- Relatively weak Auroral activity on the night 2024-11-22 / 2024-10-23 associated with geomagnetic activity up to KP3. Skies in NE Scotland were generally clear in first part of night   Activity was visible from the Clair Observatory (+57N) on 2024-11-22 from 17:16 to 20:10 UT  a period of nearly 3 hours. The start of the aurora activity was hidden by twilight sky Observed activity comprised an auroral arc to 7-8°, moving curtains at times and rays to around  12-15° altitude. The aurora display coincided with the first night's use of the Observatory's new Tapo C325WB Colour Night Vision Camera. Images below compare colour images captured by the new Camera , with the black/white images captured using the existing AllSky Camera at approximately the same time.   -  Scandinavia magnetometers showed relatively weak activity -    - Telescope Images from night 2024-11-22 >>

Night Summary (Keogram) Plot

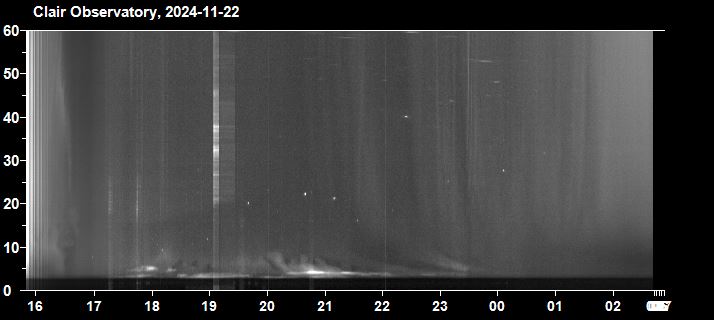

Night Summary Plot - North Sky (2024-11-22 / 23) Times on plot are local times (GMT  = UTC +00h ) Aurora faintly noticeable on keogram from 17:45 to 20:00 UT

Back to Top

Pictures (AllSky Camera)

Panoramic View - Northern Sky

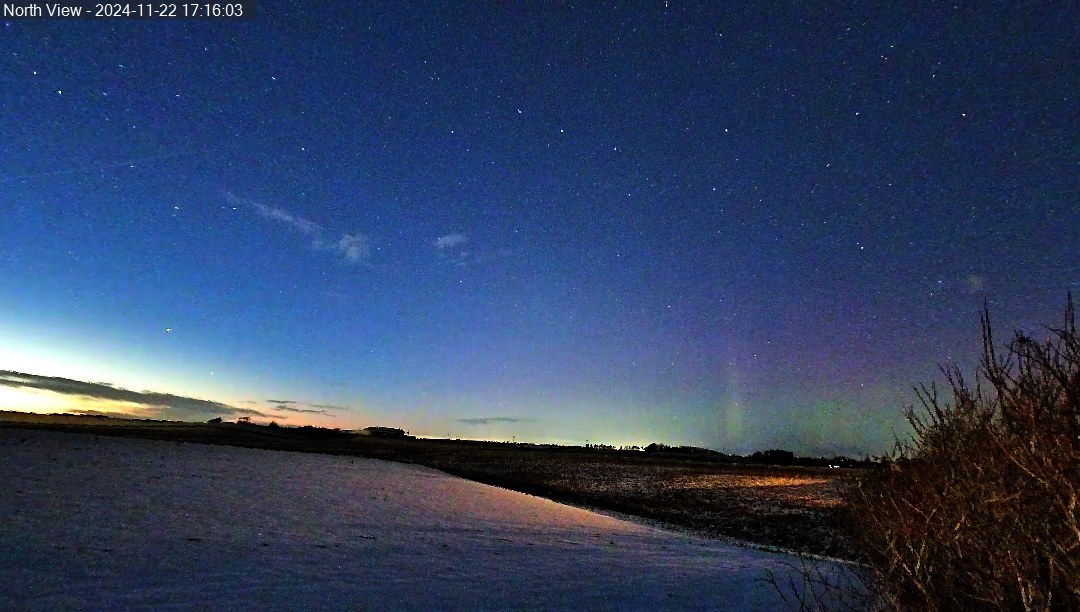

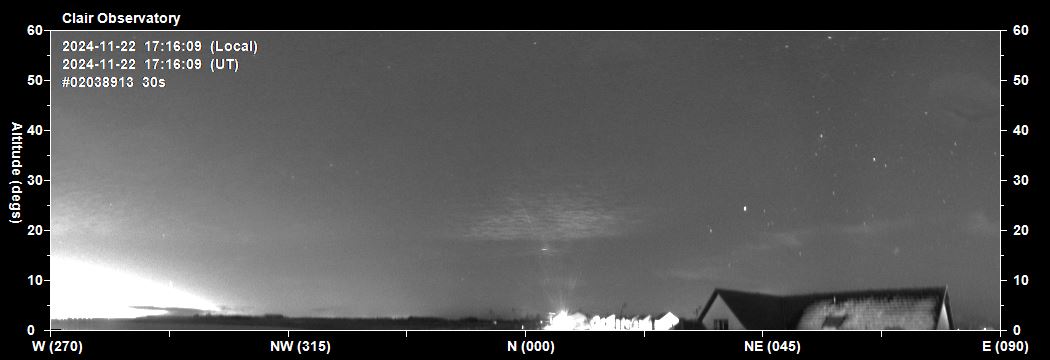

2024-11-22 17:16 UT (GMT) Sun Alt -12.1° First sign of aurora with a distinct ray NNW Sky

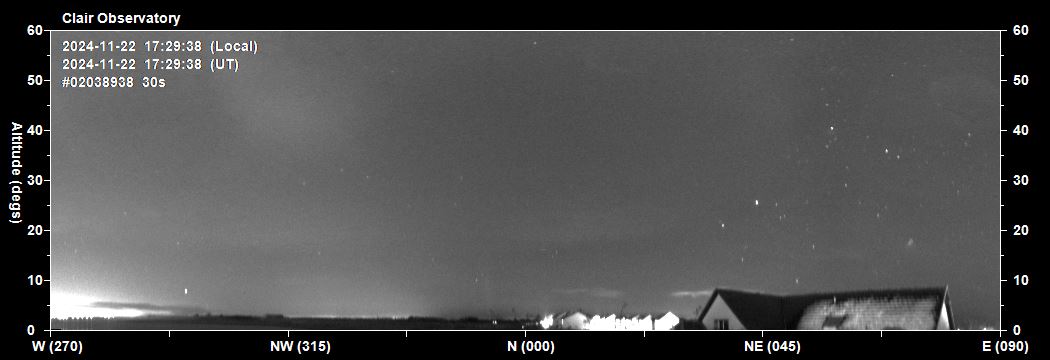

2024-11-22 17:29 UT (GMT) Sun Alt -13.8° Aurora activity (green & red glow) with distinct ray in N-NNW sky to 10-12° altitude

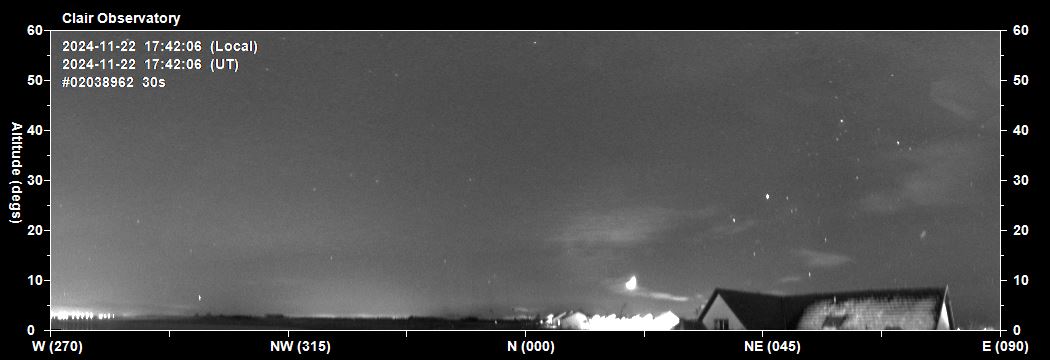

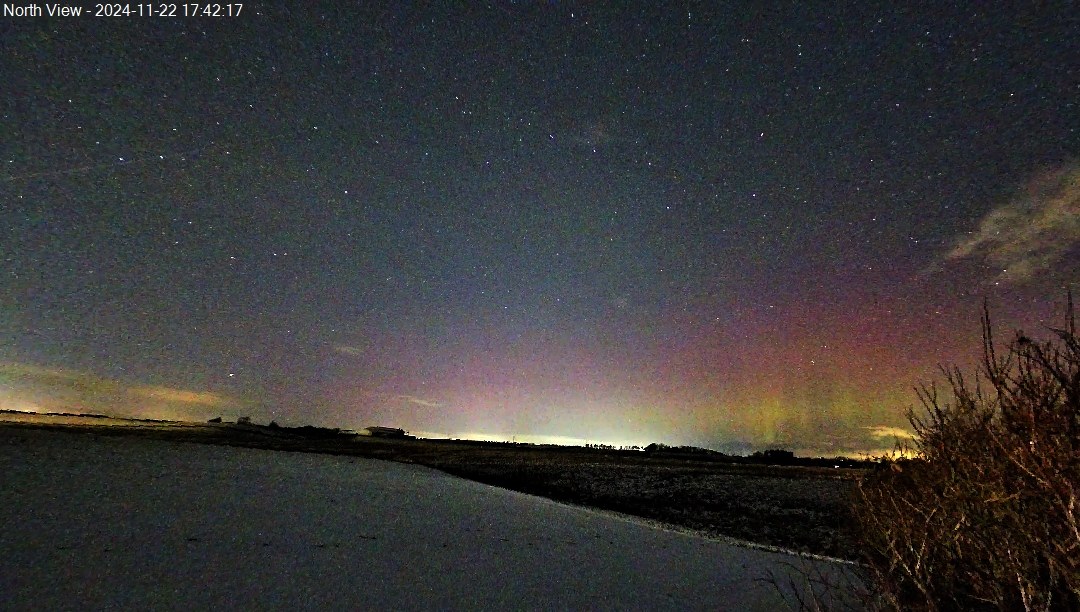

2024-11-22 17:42 UT (GMT) Sun Alt -15.4° Faint Aurora Arc, with curtains & rays to 12° altitude

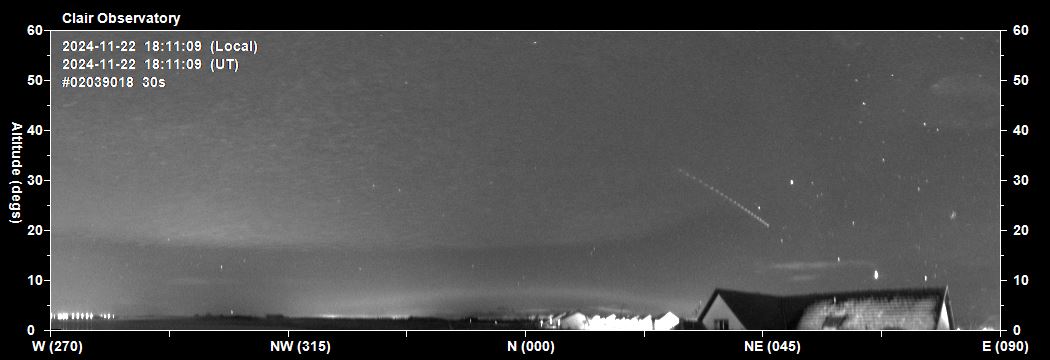

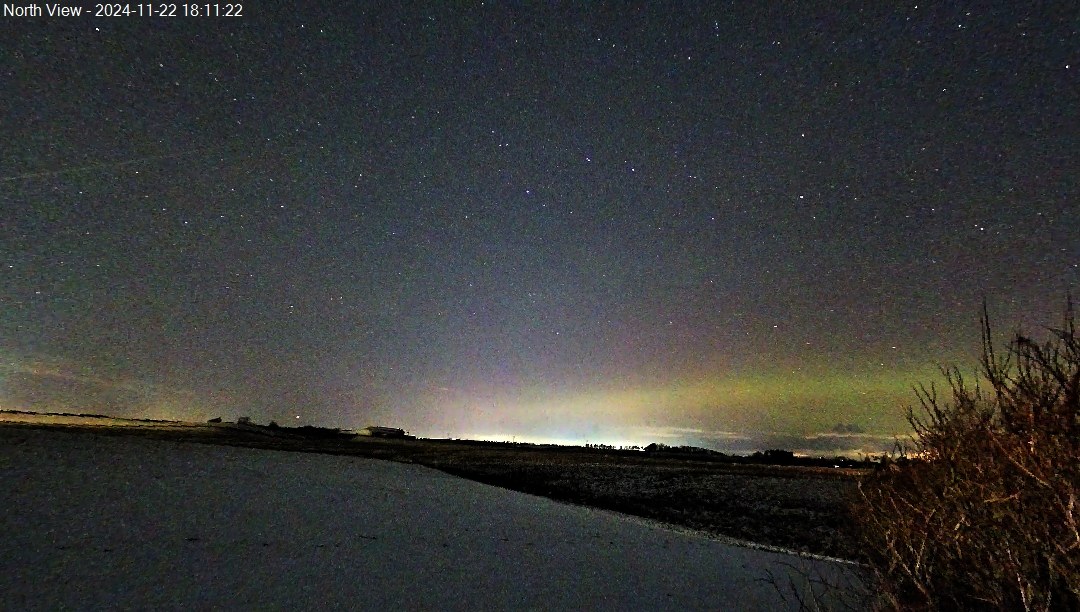

2024-11-22 18:11 UT (GMT) Sun Alt -18.3° Distinct aurora arc to 7-8° altitude

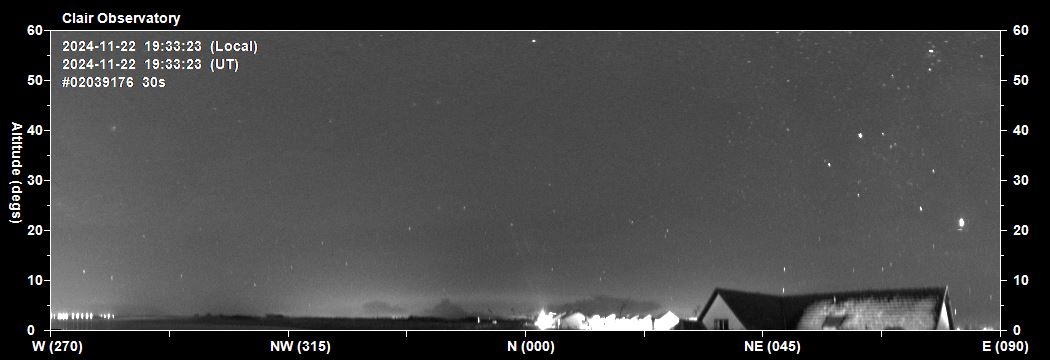

2024-11-22 19:33 UT (GMT) Sun Alt -30.3° Aurora arc to 6-7° altitude

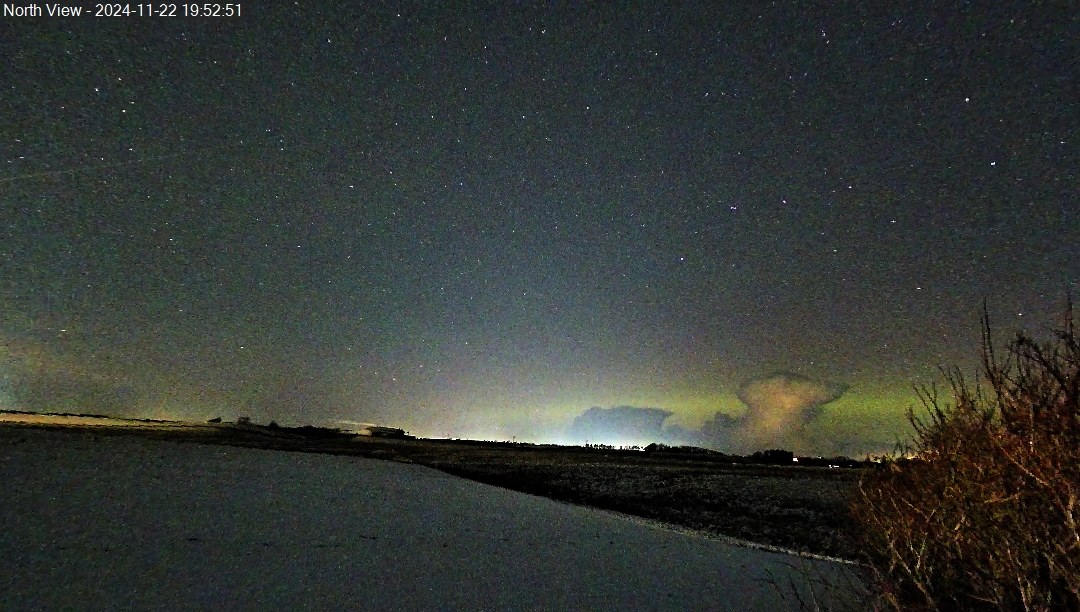

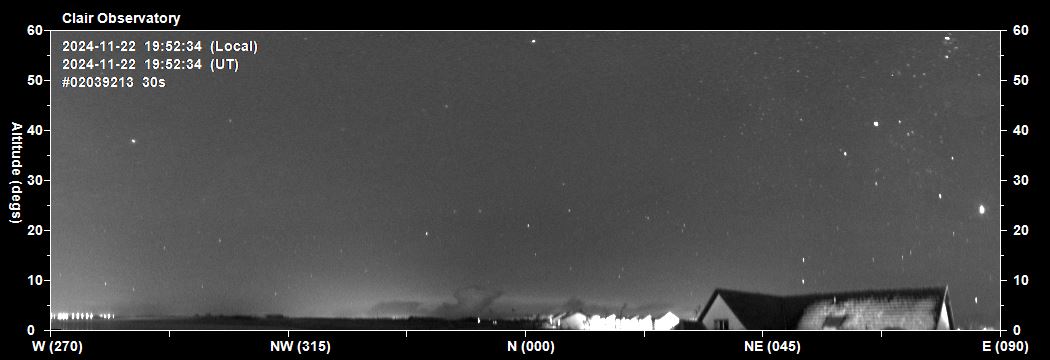

2024-11-22 19:52 UT (GMT) Sun Alt -32.9°

~ 50 ms exposures taken with Tapo C325WB Colour Camera vs 30s exposures taken with Oculus All Sky Camera

Back to Top

 Videos

Back to Top

Magnetometer Stack Plots (for reference)

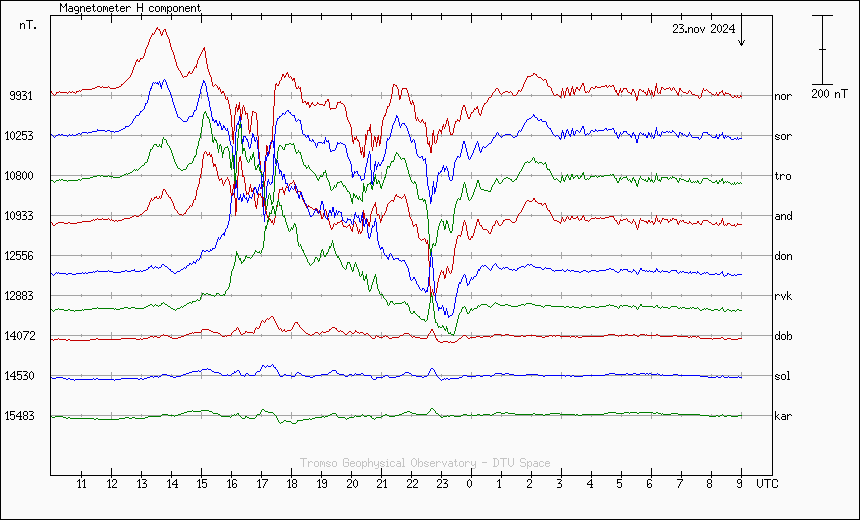

Magnetometer Stack Plots from Scandinavia (ordered by latitude) H Component - 2024-11-22 / 2024-11-23 Note: Geomagnetometer activity at rvk (Rorvik, 64.95N), dob (Dombas, 62.07N), sol (Solund, 61.08N) and kar (Karmoy, 59.21N) stations are used as indicators for potential auroral activity that may be visible from my Observatory situated at latitude 57.32N  (Map of Stations)

Graphed using 'make your own graph' facilities at  https://flux.phys.uit.no/compose/   (Tromsø Geophysical Observatory  ) Original data from Tromsø Geophysical Observatory (TGO), DTU Space (Technical University of Denmark) and Finnish Meteorological Institute (FMI) Data also displayed on SpaceWeatherLive's Europe Stackplot at  http://www.spaceweatherlive.com/en/auroral-activity/magnetometers).

Back to Top

Planetary K-Index Plot (for reference)

Estimated 3 hour Planetary K-Index (NOAA)  (from http://services.swpc.noaa.gov) Planetary-k-index_2024-11-22 / 2024-11-23 Not captured

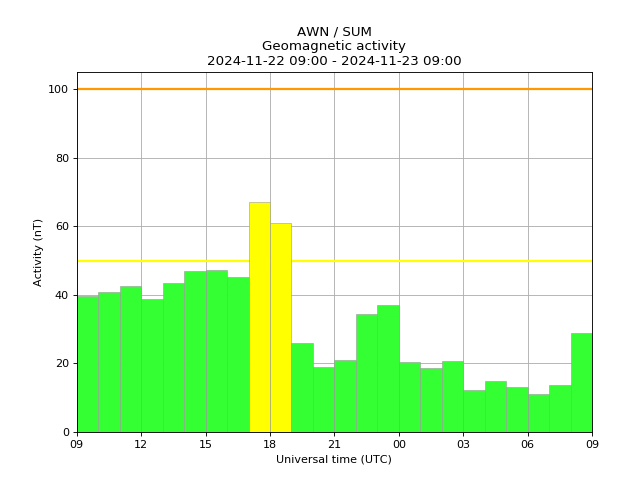

SAMNET's magnetometer at Crooktree, Near Torphins  (Chart Explanation)  - Magnetometer activity on the night 2024-11-22/ 2024-11-23   showing increased activity with at 17:00-19:00 UT

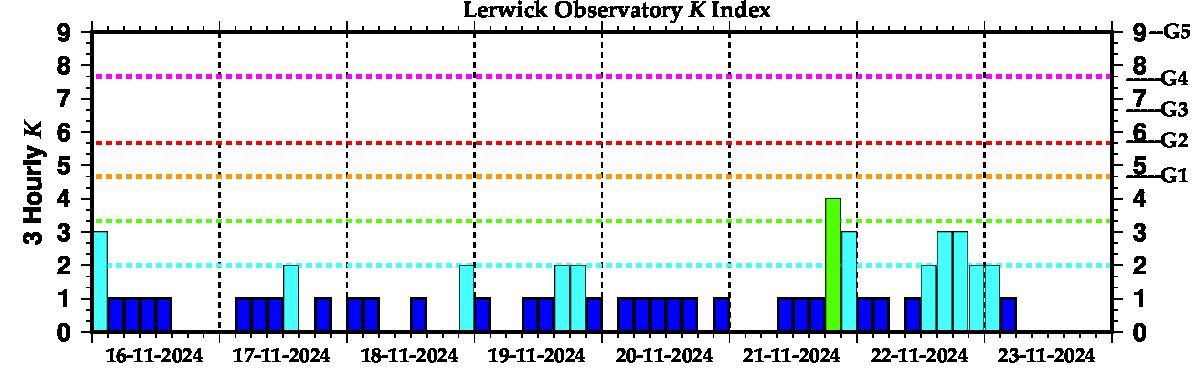

8-day Lerwick Observatory K Index Showing max K3 on the night of 2024-11-22 / 2024-11-23

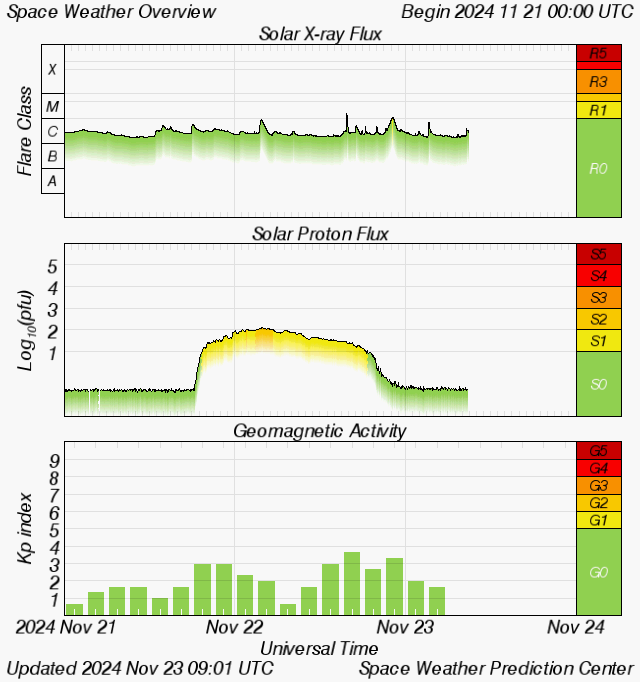

Planetary K-Index and other information (Space Weather Prediction Centre) shows KP Index reaching max KP3 on night of 2024-11-22 / 2024-11-23 Note: significant S1 peak in Solar Proton Flux  ahead of the aurora event

Back to Top

Aurora Forecast, NOAA/Ovation (for reference)

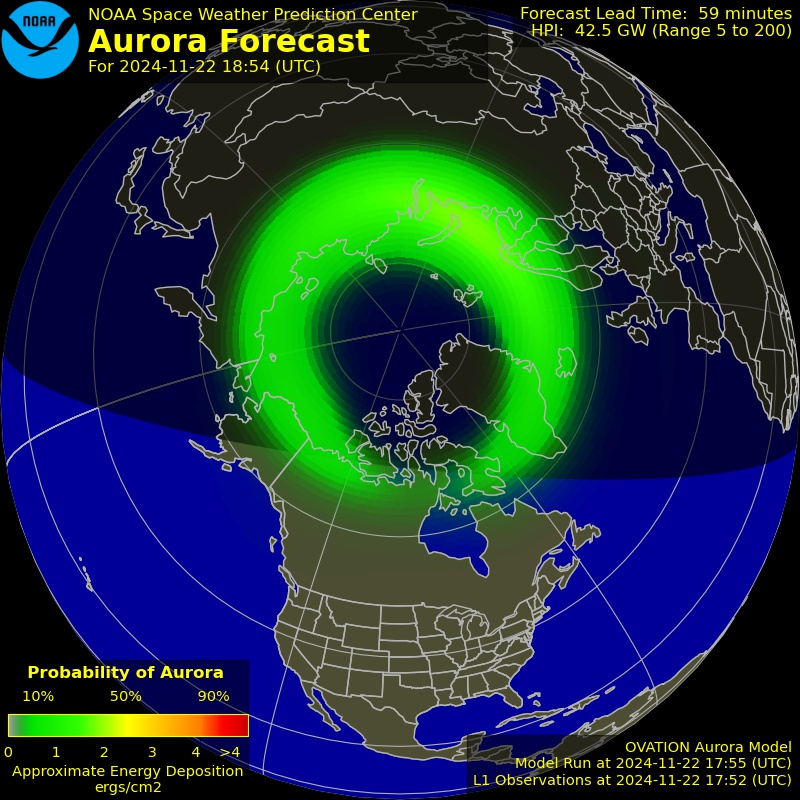

Aurora Forecast for 2024-11-22 18:54 UT (GMT) (From Space Weather Prediction Centre,  http://www.swpc.noaa.gov )
