CCD Session S00098
Bullet Notes from CCD Session
Bullet RR Lyrae - Variable Star
Bullet Delta Cepheid - Variable Star (Cepheid)
Bullet M39 - Open Cluster
Bullet UGC 1990 - Galaxy with possible supernova (2005ev)
Bullet M44 - Open Cluster (Beehive Cluster)
Bullet RT Auriga - Variable Star
Bullet M1 - Supernova Remnant (Crab Nebula)

Notes (S00098)

- Marathon session (10 hours), clear sky all night, generally calm (minor breeze at times), ambient temperature 8 degC dropping to 3 deg C.
- Aim of session was to record images on RR Lyrae through around 5 hours of its 13.6 hr period.
- In the event around 8 hours of RR Lyrae data was recorded (59% of total period) and subsequent processing showed that the rise from minimum to maximum was nicely captured.
- Opportunity was taken to record Mosaic images of M44 & M39, detailed images of M1 and photometric images of Delta Cepheid.
- Total of 1258 frames were recorded including dark frames  (Session 98 includes image numbers up to 99260)
- Total light frame exposure time was 5.2 hours.
- Mars was a brilliant object all night long.  It was tempting to image it, but this was not feasible due to the need to swap out my current wide field optical system (focal reducers / with current BVR filters) and replace by narrow field optical (with barlow and RGB filters). Mars is down on the list for imaging in the very near future.

More Notes

Back to Top


RR Lyrae - Variable Star

An alternating sequence of  V Filter (10s exposure) and B Filter (20s exposure) images were recorded over an 8 hour interval.  Image capture was via automated scripts, however occasional manual intervention was required to keep both RR Lryae and the reference star with field of view and at one point to remove dew which had formed on the front lens of the LX200 scope.

The dataset records the rapid brightening of RR Lyrae over a 1.5 - 2 hour interval, followed by a gradual dimming as the star proceeded through its regular period.

Images
RR Lyrae (Lyra)
[reference star SAO 48408, control star SAO 48415 ]
Image Image
CCD  Image (at Minimum)
10s exposure, V filter
2005-10-08  20:51h UT (#98250)
CCD  Image (just after Maximum)
10s exposure, V filter
2005-10-08  23:15h UT (#98552)
Image Maximum brightness was not accurately captured
due to condensation/dew forming on the front
the telescope (the dew shield having been removed
due to wind vibration)
.

The image on left is taken at around maximum, but is
clearly, this was due to condensation which had
temporarily formed on the front of the telescope

However after clearing the dew the brightened
nature of RR Lyr was evident even looking
at raw realtime images.

CCD  Image (at near Maximun)
10s exposure, V filter
2005-10-08  20:51h UT (#98250)

Magnitude Data (B & V Filters)
RR Lyrae Photometric Analysis Notes including data QC


Back to Top


Delta Cepheid - Variable Star (Cepheid)

Two sequence of images of Delta Cepheid  &reference star were recorded at around 03:00h UT (2005-10-09) and 04:26h. These were analyzed using the methodology described under 2005-10-05 Notes

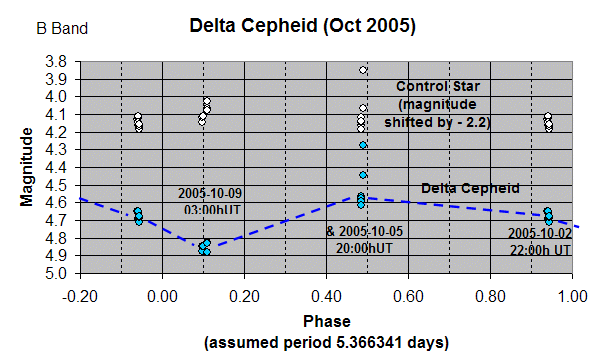

B Band Magnitude estimates for Delta Cepheid
from images between 2005-10-02 and 2005-10-09
(Reference Star SAO 34542, B mag +3.81)

Further observations will be made during future sessions
in order to further refine the light curve

Back to Top


M39 - Open Cluster

M39 (Cygnus)
Central portion of a CCD Image Mosaic (5x3,  15 Frames)
20 sec exposure,  R Filter
2005-10-09 03:16 h UT  (#99084-98 {S98} )
(Full Size)

Back to Top


UGC 1990 - Galaxy with possible supernova (2005ev)

UGC 1990 (Aries)
[ alt name PGC 9579, catalog mag +15.8 ]
A mag +16 supernova (2005ev) has been reported in UGC on 2005-10-04
at position  02 31 04.93 +27 42 06.5 CBET 244 )
CCD Image (negative)
3 x 60 sec exposure (average), C filter
2005-10-09  03:30 h UT (#99111-13 {S98} )

Enlargement of UGC 1990
The object indicated by the cross-hairs lies at the position
of the reported supernova 2005ev
CCD Image
(details as above)

DSS Reference Image showing same field of view
An object appears at the northern end of UGC 1990, but in a slightly
different position  (was this an earlier supernova ?)
[ DSS Image, converted to grey scale & cropped ]

Back to Top


M44 - Open Cluster (Beehive Cluster)

M44 (Cancer)
Central portion of a CCD Image Mosaic (8x5,  40 Frames)
20 sec exposure,  C Filter
2005-10-09 03:50 h UT  (#99115-59 {S98})
(Full Extent (1/2 size)Original Full Size)

Back to Top


RT Auriga - Variable Star

RT Auriga / SAO 59128  (Auriga)
CCD Colour Image (Approximate Colour)
Red : 3x30s (av, R Filter), Green : 3x30s (av, VFilter)
Blue : 3x60s (av, B Filter)
2005-10-09 04:17 h UT  (#991163-72 {S98})

Back to Top


M1 - Supernova Remnant (Crab Nebula)

M1 (Taurus)
CCD Image (50% size)
14 x 60 sec exposure (average), 1x1 binning, C filter
2005-10-09  04:43 h UT (#99235-48 {S98} )
(Full Size)

False Colour CCD Image (cropped)
Linear Scale,  blkbdy color table
Details as above,
(Full Size)

False Colour CCD Image (cropped)
Unsharp masked sharpening
(real time video style colouration)
(Full Size)


Negative CCD Image (cropped)
with Gamma Correction to highlight features
Details as above
(Full Size)

M1 showing CM Tau - the pulsar at heart of Crab Nebula
Annotated  CCD Image (150% size, cropped)
Richardson-Lucy sharpened
Image details as above

[ Interenet picture of Pulsar CM Tau on web at
http://www.scioly.org/eventpages/
]

Back to Top
