Bullet Delta Cepheid - Variable Star (Cepheid)
Bullet AXP Monitoring (4U 0142+615 & 1E 2259+586)
Bullet Open Clusters in Cassiopeia
Bullet NGC 659 - Open Cluster (H VIII-65)
Bullet NGC 663 - Open Cluster
Bullet NGC 743 - Open Cluster
Bullet SAC Tr 1 - Open Cluster
Bullet Moon
- 2.1/4 hour session, 94% phase moon, bright sky with cloud developing, poor seeing & poor sky transparency
- main aim was to take further variable star measurements on Delta Cepheid
- opportunity taken to monitor the two AXP stars and image a number of open clusters in Cassiopeia..
- despite passing light cloud reasonable images of the Moon were taken before finishing the session
- More Notes

Delta Cepheid - Variable Star (Cepheid)

As part of an ongoing project examining the variability in Delta Cepheid, further image sets of the variable star  & the reference star SAO 34542 were recorded at around 21:49h UT.  Image sets comprised  7 sequences of  images (3 x 0.2s V & 3 x 0.6s B) alternated between Delta Cepheid & reference star.  These were analyzed using the methodology described under 2005-10-05 Notes, and combined with previous estimates from Oct 2005 and Jan 2006 (18:32h UT & 21:50hUT on  2006-01-03, and  23:50hUT on 2006-01-01).

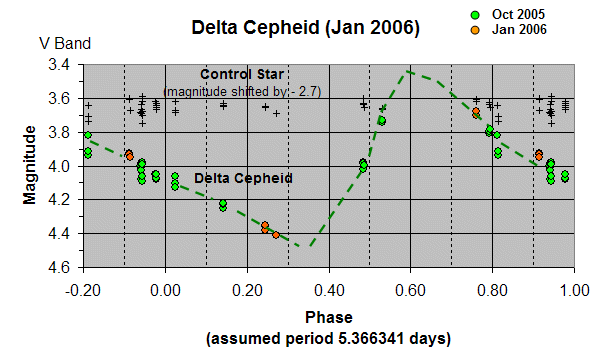

V Band Magnitude estimates for Delta Cepheid
(Reference Star SAO 34542)

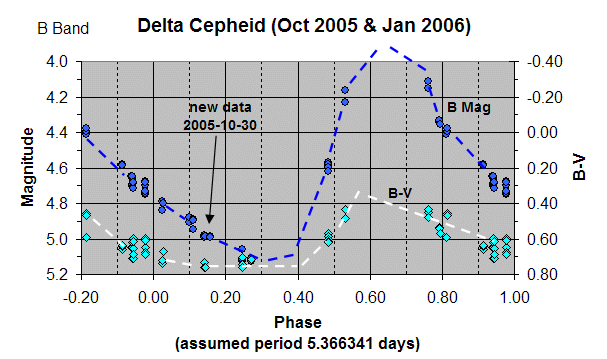

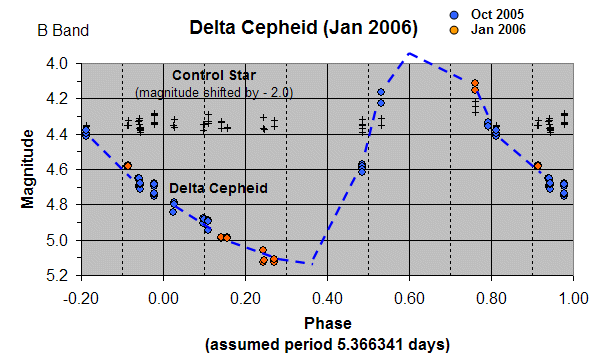

B Band Magnitude estimates for Delta Cepheid
(Reference Star SAO 34542)


Magnitude and colour variation in Delta Cepheid based on observations
on 11 observing sessions between 2005-10-02 and 2006-01-11.
Further observations will be made during future sessions
in order to fully refine the light curve

Back to Top


AXP Monitoring (4U 0142+615 & 1E 2259+586)

Two Anomalous X-ray pulsers (AXPs),  4U 0142+615 and  1E 2259+586 (both lying in Cassiopeia) were checked for brightening. No indication of activity was observed for either AXP.

Star field of 1E 2259+586 area
no sign of AXP (mag limit ~ +15.0)
Image Image
CCD Image
2 min exposure,  C Filter
2006-01-11  22:09h UT (#110070)
Reference Image
(#81094)
[ Baseline Images and More Information ]

Back to Top


Open Clusters in Cassiopeia

Four open clusters in a region of Cassiopeia were imaged (NGC 659, NGC 663, NGC 743, SAC Tr 1). These are located in star charts below.

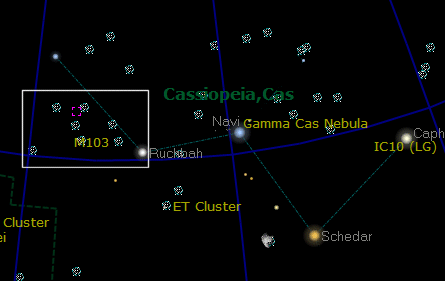

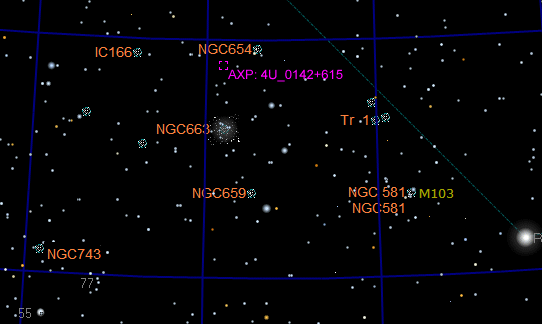

Star Chart (made using TheSky, Software Bisque)



Star Chart (made using TheSky, Software Bisque)
showing open clusters imaged during session
(location of AXP4U 0142+615 is also shown)




Cassiopeia (archive photo)

Photo, 1999-Dec-12, 23:05 UT
50mm, f/3.5, Fujicolor Superia 400, 10 mins exposure
Full 35mm frame, image enhanced

Back to Top


NGC 659 - Open Cluster (Herschel VIII-65)

NGC 659 (Cassiopeia)

 CCD Mosaic (2 x 3), 75% size
30sec exposure, 2x2 binning, C Filter
2006-01-11 22:18h UT (#110080-85)

Detailed Image of NGC 659
 CCD Image (75% size)
2 x 2 min (average combine), 1x1 binning, clear filter
2006-01-11 22:18h UT (#110073-74)

Back to Top


NGC 663 - Open Cluster

NGC 663 (Cassiopeia)

 Central portion of CCD Mosaic (2 x 3)
30sec exposure, 2x2 binning, C Filter
2006-01-11 22:35h UT (#110086-91)
 [ Full Size ]

Back to Top


NGC 743 - Open Cluster

NGC 743 (Cassiopeia)

CCD Mosaic (2 x 3), 75% size
30sec exposure, 2x2 binning, C Filter
2006-01-11 22:41h UT (#110092-97)
 [ Full Size ]

Back to Top


SAC Tr 1 - Open Cluster

SAC Tr 1 (Cassiopeia)
Catalog = Saguaro Astronomy Club Database (SAC)

CCD Mosaic (2 x 3), 75% size
30sec exposure, 2x2 binning, C Filter
2006-01-11 22:46h UT (#110098-103)
 [ Full Size ]

Detailed Image of SAC Tr 1
Central portion of CCD Image
6 x 30sec exposure (average combine), 1x1 binning, C Filter
2006-01-11 22:55h UT (#110106-111)
 [ Full Size ]

Back to Top


Moon

Moon (94% phase)

 CCD Image Mosaic
0.11 sec exposure, B Filter
1x1 Binning/Resized
2006-01-11 23:06h UT (#110119-32)

Image  Image
B&W CCD Image Mosaic (3 x 4)
Image details as above
[ Full Size
False Colour CCD Image Mosaic (3 x 4)
Image details as above
[ Full Size ]



Oceanus Procellarum / Mare Imbrian
with crater Copernicus and Copernicus ray system
Smaller crater with ray system is crater Keplar.
Brilliant crater towards limb is Aristarchus (adjacent sinuous rille is Vallis Schroteri)
 CCD Image - Approximate Colour
Red : 0.11 sec (I Filter),   Green : 0.11sec (V Filter),  Blue : 0.11sec (B Filter), 1x1 Binning. Unsharp Masked
2006-01-11 23:20h UT (#110150-54)

NE region of the Moon / Mare Serenitatus
Large prominent dark region is Mare Serenitatus
 CCD Image
0.11 sec exposure, V Filter, 1x1 Binning. Unsharp Masked
2006-01-11 23:26h UT (#110162)

East region of the Moon
Mare Serenitatus / Mare Tranquillitatus to left,  with Mare Crisium (570 x 450 km) to right.
The large bright ray crater to the west of Crisium is Proclus, whilst the largest crater within Crisium is Picard
 CCD Image
0.11 sec exposure, V Filter, 1x1 Binning. Unsharp Masked
2006-01-11 23:23h UT (#110157)
East region of the Moon in False Colour
(surface brightness but also representing approximate topography)
 CCD Image (false colour)
Linear Scale (inverse spectrum)
Image details as above

SE region of the Moon
Collection of dark floored, flooded craters on SE limb is known as Mare Australe
 CCD Image
0.11 sec exposure, B Filter, 1x1 Binning. Unsharp Masked
2006-01-11 23:29h UT (#110170)

Southern region of Moon
Heavily crated area. Bright crater is Tycho
 CCD Image
0.11 sec exposure, B Filter, 1x1 Binning. Unsharp Masked
2006-01-11 23:16h UT (#110141)
South polar region
 Portion of CCD Image (rotated & enlarged)
Image details as above

 SW region of the moon / Crater Tycho  - colour  image
Crater Tycho (diameter 84km) with Tycho ray system
 CCD Image - Approximate Colour
Red : 0.11 sec (R Filter),   Green : 0.11sec (V Filter),  Blue : 0.2sec (B Filter), 1x1 Binning. Unsharp Masked
2006-01-11 23:34h UT (#110177-79)


West region of Moon, Mare Humorum / Mare Nubium

 CCD Image
0.11 sec exposure, B Filter, 1x1 Binning. Unsharp Masked
2006-01-11 23:14h UT (#110134)

Back to Top
