Objects Session Notes
Bullet C/2006 M4 (Swan) - Comet
Bullet ADS 16402 (extrasolar planet star / HAT-P-1)
Bullet P/2006 HR30 (Siding Spring) - Comet
Bullet Nearby Stars
- Barnard's Star
Bullet Variable Star Monitoring
- U And (Mira variables)
- SS Cyg, HD 5501
- 1.1/2 hr session, cut short by deteriorating sky conditions
- CCD operation of -15 degC (at 66% cooling)
- main objectives where to acquire images of specific variables stars as part of ongoing photometric studies.
- opportunity was taken to acquire an approximate colour image of Comet C.2006 M4 (Swan).
-
- More Notes
-

C/2006 M4 (Swan) - Comet

Comet C/2006 M4 (Swan)
(passing through starfield on border between Bootes & Corona Borealis)


Approximate Colour CCD Image
Red : av 3x 30s (R), Green : av 3x30s (V),  Blue : av 3x 60s (B)
2006-10-22 18:46h UT (#148004-12)




Image as above (150% size)

(details as above)

Back to Top


ADS 16402 (extrasolar planet star / HAT-P-1)

ADS 16402 (Lacerta)
ADS 16402 (also BD+37 4734) is a visual double star system that also
bears the name HJ1832, as it was discovered by John Herschel in 1831
One of the stars (ADS 16402 B), has recently been determined to have a
large-radius, transiting exoplanet , HAT-P-1
(
Science Paper, G. A. Bakos et al, 2006


CCD Image
5 x 30s exposure (average combine), 2x2 binning, C Filter
2006-10-22 19:26h UT (#148054-58)

Back to Top


P/2006 HR30 (Siding Spring) - Comet

Comet P/2006 HR30 (Siding Spring)
(passing through starfield in Cygnus)

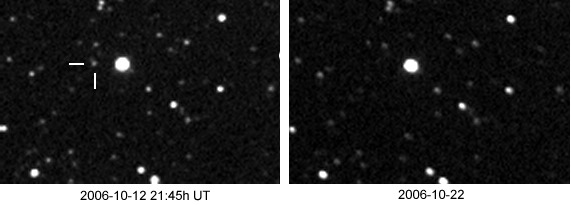

Follow up images (10 days later)


CCD Images  (200% size)
3 x 2 min exposure, 2x2 binning, C Filter
2006-10-12 21:45h UT (#147063-65)
2006-10-22 19:56h UT (#148084-86)

Back to Top


Nearby Stars

Set of images (7 x 10s exp, C Filter) acquired for astrometric measurements on previous evening (2006-10-03).
Part of a ongoing study to attempt to measure proper motion and annual parallax of Barnard's Star.  (Barnards Star Project).

[ Images too poor to use ]

Back to Top


Variable Stars

Set of BRV Images collected as part of an ongoing study of this new variable [HD 5501 project

Set of BRV Images collected as part of am ongoing study of this variable [SS Cyg project]

Set of BVRI Images collected as part of an ongoing study to develop a light curve for this Mira variable [U And project

Back to Top
