CCD Images - Session 149 (2006-10-23)

Previous Imaging Session
Images
(S148)
  Home
Images
Sessions
  Home
Home
Page
  Next Imaging Session
Images (S150)

Objects Session Notes
Bullet C/2006 M4 (Swan) - Comet
Bullet Nearby Stars
- Barnard's Star, Ross 248 (HH And)
Bullet Variable Star Monitoring
- U And, W And, U Her (Mira variables)
- SS Cyg, HD 5501
- R CrB
- 2.3 hr session, cut short by deteriorating sky conditions (fog)
- CCD operation of -15 degC (at 59% cooling)
- main objectives where to acquire images of specific variables stars as part of ongoing photometric studies.
-
-
- More Notes
-

C/2006 M4 (Swan) - Comet

Comet C/2006 M4 (Swan)
(passing through starfield on border between Bootes & Corona Borealis)

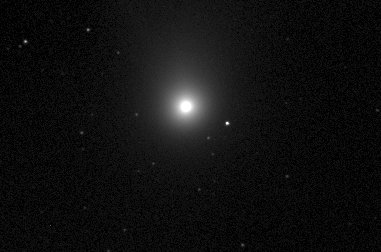

CCD Image
60s, 2x2 binning, C filter
Square root scale
2006-10-23 20:21h UT (#149058)

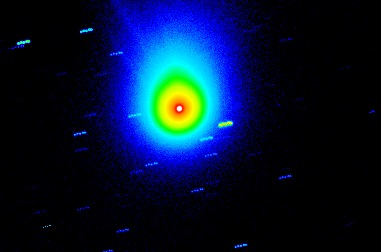

False Colour CCD Image
Log brightness scaling (3000 ADU range)
(details as above)

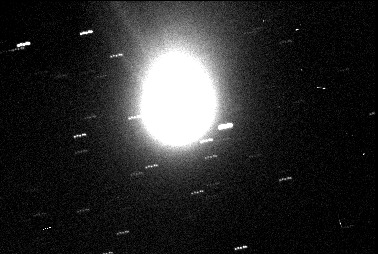

CCD Image
5 x 60s exposure (average combine, aligned on comet),
2x2 binning, C filter
Linear scale with range adjusted to show detail in tail
2006-10-23 20:23h UT (#149058-62)




False colour CCD Image
Log Scale
(image details as above)

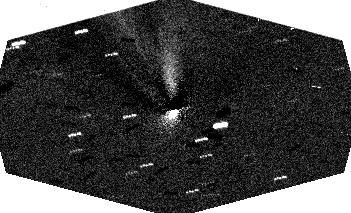

CCD Image
Rotational Gradient processed (15 deg)
(image details as above)

Back to Top


Variable Stars

Set of BRV Images collected as part of an ongoing study of this new variable [HD 5501 project

Set of BRV Images collected as part of am ongoing study of this variable [SS Cyg project]

Set of BVRI Images collected as part of an ongoing study to develop a light curve for this Mira variable [U And project

Set of BVRI Images collected as part of an ongoing study to develop a light curve for this Mira variable

Set of BVRI Images collected as part of an ongoing study to develop a light curve for this Mira variable

Set of BVRIImages collected as part of an ongoing study to develop a light curve for this R CrB  variable



Back to Top
