CCD Images - Session 245 (2007-12-22)

Previous Imaging Session
Images
(S244)
  Home
Images
Sessions
  Home
Home
Page
  Next Imaging Session
Images (S246)

Objects Session Notes
Bullet King 2 - Open Cluster / Asterism
Bullet NGC 7094 - Planetary Nebula (attempt)
Bullet 2007 XH16 - Near Earth Asteroid (NEA) / Minor Planet
Bullet NGC 7510 - Open Cluster (Herschel VII-44)
Bullet NGC 7261 - Open Cluster
Bullet 8P/Tuttle - Comet
Bullet Astrometric & Photometric Monitoring
- SS Cyg, U Gem (dwarf nova)
- BL Lac (Blazar)
- W And  (mira variables)
- CY Lyr, TZ Lyr, TT Ari, RZ LMi, RX And  (variables)
- RU Peg, DY Per (variables)
- Gliese 725 (Nearby Stars)
- Evening session (7.0hr).  Poor transparency
- Problem performing automated short mapping job using new TPoint Model.  Manually controlled mapping was required instead.
- CCD operation of -25 degC (at 68% average cooling).
- -main objectives were to acquire images of certain selected stars of ongoing photometric and astrometric analysis, and follow up images of comet 8P/Tuttle
-opportunity was also taken to acquire gallery images of certain deep sky objects, including open clusters in Cepheus

King 2 - Open Cluster / Asterism

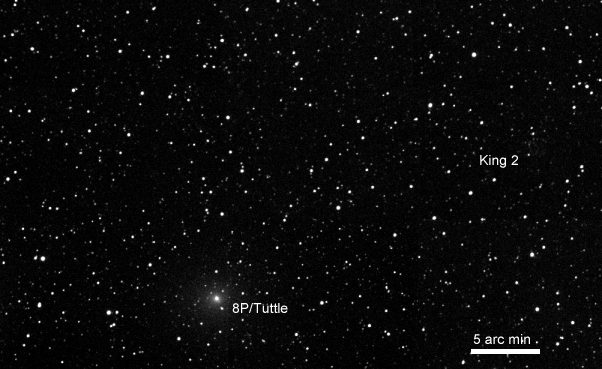

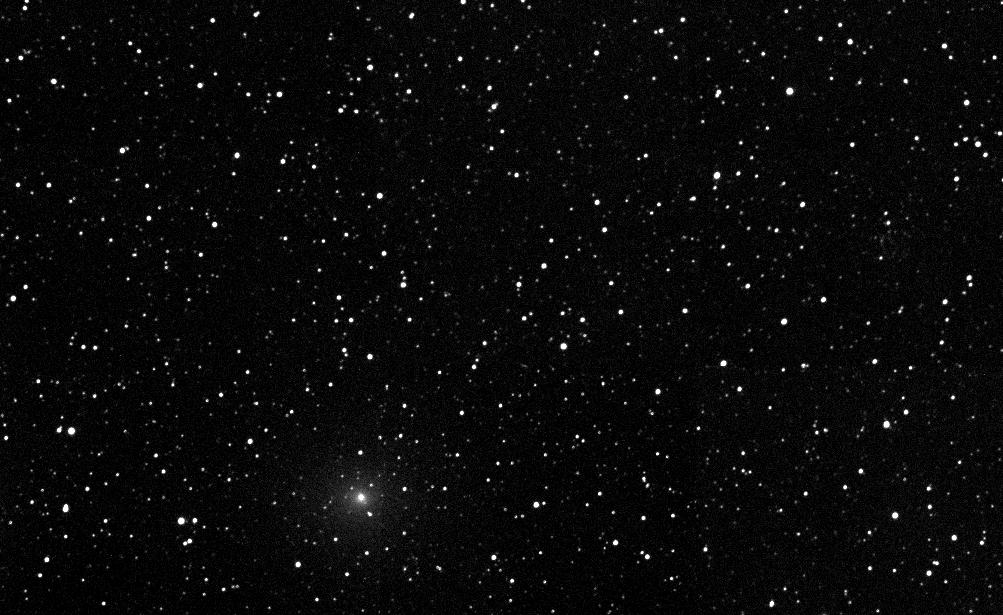

King 2 (Cepheus) ,  with Comet 8P/Tuttle


CCD Image Mosaic (60% size)
60 sec exposure, 2x2 binning, C Filter
2007-12-22 19:44hUT (#245609-17)
[ Full Size ]

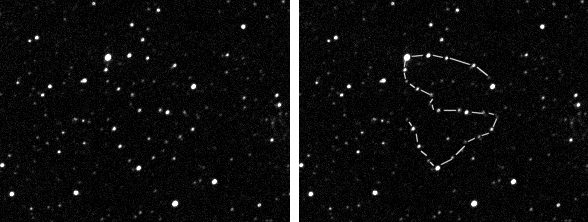

King 2 - detail


Part of CCD Image Mosaic
60 sec exposure, 2x2 binning, C Filter
2007-12-22 19:44hUT (#245609-17)

Back to Top


NGC 7094 - Planetary Nebula (attempt)

This is apparently one of the most challenging planetary nebulae to observe in the NGC catalogue. Attempts to image NGC 7094 were made in 2004 and again in this session in 2007 with 8" LX200 and CCD Camera (see below). Although the mag +13.6 central star could be easily seen, the planetary nebula could not be detected in images of 6 minutes total exposure time.

NGC 7094 (Pegasus)
Central star is indicated by white cross-hairs,
but no sign of the nebula can be seen in this image


CCD Image
3 x 120 sec (average combine), 2x2 binning, C Filter
2007-12-22 20:41hUT (#245661-63)

Back to Top


2007 XH16 - Near Earth Asteroid (NEA) / Minor Planet

2007 XH16 is a 565m diameter asteroid which is due to pass by the earth on 2007-12-24 at a distance of 8.1 lunar distance (LD).
A sequence of images of 2007 XH16 were recorded streaking through a star field in Eridanus.
(More images of 2007 XH16 from 2007-12-24/25 at near closest approach)

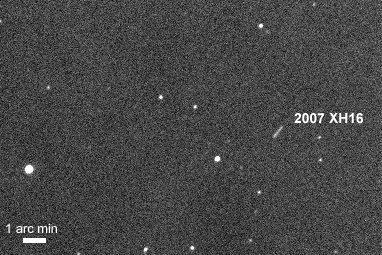

MPL 2007 XH16 passing through star field in Eridanus
Asteroid appears as a 36 arc sec long streak in this 60 sec exposure
CCD Image
60 sec, 2x2 binning, C Filter
2007-12-22 21:41hUT (#245711)


Back to Top


NGC 7510 - Open Cluster (Herschel VII-44)

NGC 7510 /  Herschel VII-44  (Cepheus)


CCD Image
3 x 60 sec (average combine), 2x2 binning, C Filter
2007-12-22 21:59hUT (#245728-30)

Back to Top


NGC 7261 - Open Cluster

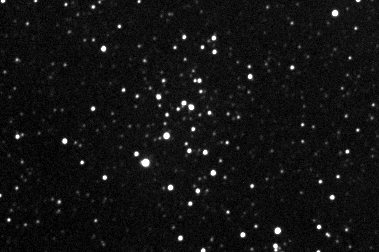

NGC 7261 (Cepheus)


CCD Image
3 x 60 sec (average combine), 2x2 binning, C Filter
2007-12-22 22:31hUT (#245752-54)

Back to Top


8P/Tuttle - Comet

Comet 8P/Tuttle  - passing through star field in Cassiopeia

Animated Sequence of CCD Images (8 frames)
60s exposures , 2x2 binning, C Filter
2007-12-22 23:22h UT (#245766-845)
[ Part of a larger 2.5 MB animation of 80 frames ]

Stacked CCD Images (25 frames)
25 x 60s exposures (average combine) , 2x2 binning, C Filter
2007-12-22 23:24h UT (#245790-814)


Comet 8P/Tuttle - colour image

Approximate Colour CCD Image  (CBVR)
Luminance : av 3x 30s (C),
Red : av 3 x 30s (R), Green : av 3 x 30s (V), Blue : av 3 x 60s (B)
2007-12-22 18:09h UT (#245554-65)

Back to Top


Sharpless 2-155 - Emission Nebula, "Cave Nebula"

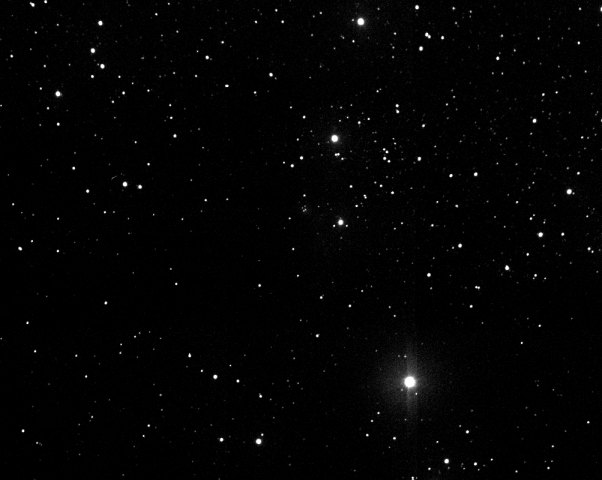

Sharpless 2-155 / Caldwell 9 (Cepheus)


CCD Image Mosaic
60 sec, 2x2 binning, C Filter
2007-12-22 21:02hUT (#245673-84)
8" LX200 Classic + ST-7E

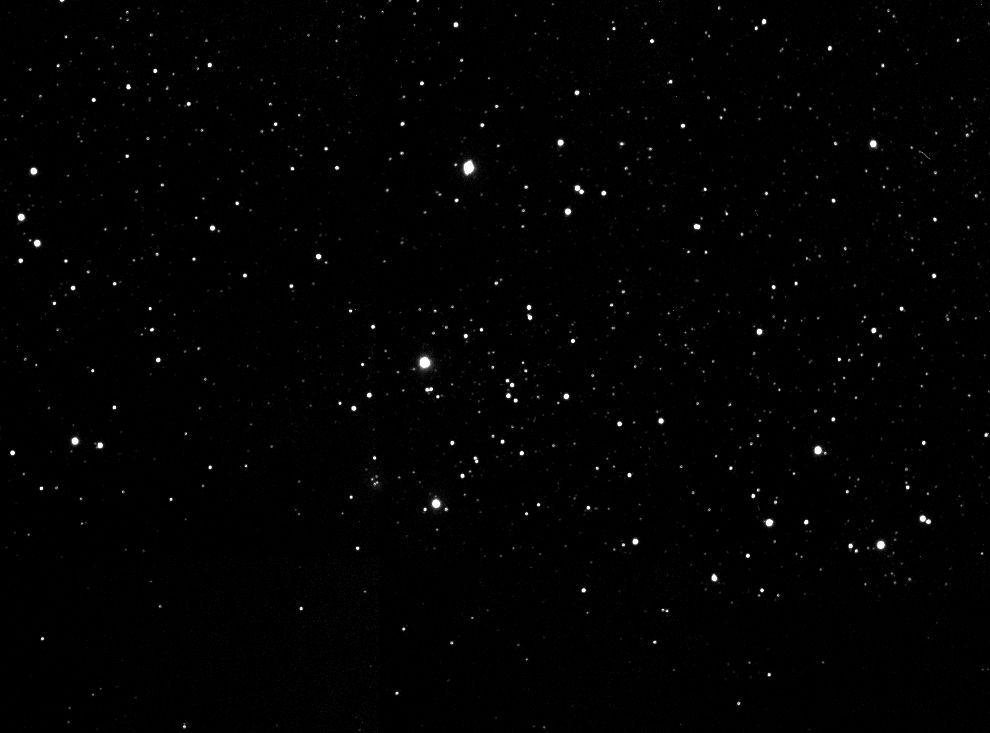

Sharpless 2-155 / Caldwell 9 - earlier image (2007-12-06)


CCD Image Mosaic
60 sec, 2x2 binning, C Filter
2007-12-06 01:07hUT (#239145-56)
8" LX200 Classic + ST-7E
[ Full Size ]



Back to Top


Astrometric and Photometric Monitoring

Back to Top
