CCD Images - Session 246 (2007-12-24)

Previous Imaging Session
Images
(S245)
  Home
Images
Sessions
  Home
Home
Page
  Next Imaging Session
Images (S247)

Objects Session Notes
Bullet Z And - variable star
Bullet 2007 XH16 - Near Earth Asteroid (NEA) / Minor Planet
Bullet PGC 1772934 and adjacent galaxies
Bullet Astrometric & Photometric Monitoring
- SS Cyg  (dwarf nova)
- BL Lac (Blazar)
- U And  (mira variables)
- Z And, TT Ari, RZ LMi, RX And, DY Per (variables)
- Evening session (4.6hr).  Operated under automated control
- CCD operation of -25 degC (at 61% average cooling).
- main objectives were to acquire images of certain selected stars of ongoing photometric and astrometric analysis.
- secondary objective was to record passage of NEA 2007 XH16 (565m diameter) as it passed earth at a distance of ~ 8 LD.
- CCDSoft application froze during image linking on the 5th target and the imaging had to be kicked off to secure the planned target list.
- Short mapping problems that have hampered the past few sessions were overcome in this session, by manually mapping the first synced star 5 times before commencing an automated short mapping run.

Z And (ZAND)

Z And  (Andromeda)

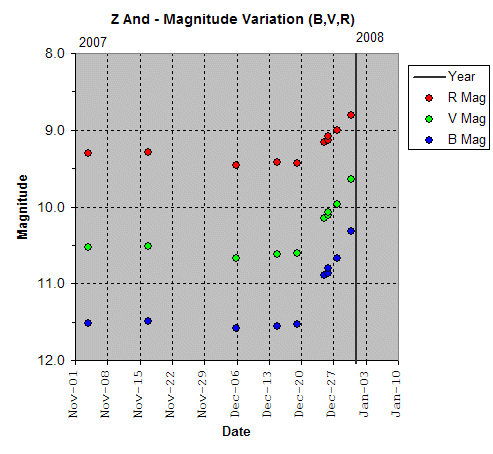

Brightening of Z And noted in photometric measurements of Z And on 2007-12-24,
(confirmed by further measurements on 2007-12-25 & 2007-12-27)

Earlier image of Z And

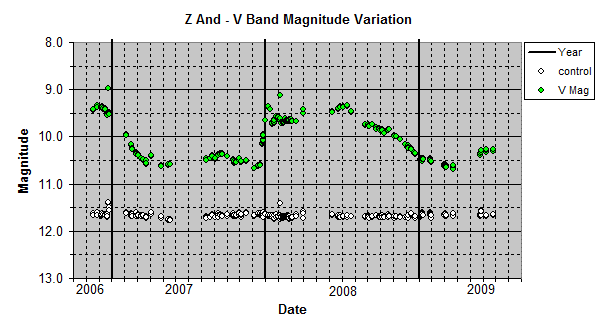

Photometry  V & B  Bands

Back to Top


2007 XH16 - Near Earth Asteroid (NEA) / Minor Planet

2007 XH16 is a 565m diameter asteroid which passed by the earth on 2007-12-24 at a distance of 8.1 lunar distance (LD). A sequence of images of 2007 XH16 were recorded streaking through a star field in Aries

MPL 2007 XH16 passing through star field in Aries
Asteroid appears as a 30 arc sec streak in this 30 sec exposure
CCD Image
30 sec, 2x2 binning, C Filter
2007-12-25 00:24hUT (#246134)


 MPL 2007 XH16 - showing motion across star field in Aries
Stacked CCD Image
10 x 30 sec exposures with 45 sec gaps between frames
 (sum combine),  2x2 binning, C Filter
2007-12-25 00:21 to 00:32hUT (#246129-47)


 MPL 2007 XH16 - showing rapid motion (1.0 arc min per minute)
Annotated CCD Image
30 sec exposures with 45 sec gaps between frames
Image details as above

CCD Image Animation
30 sec exposures / 20 frames
  2x2 binning, C Filter
2007-12-25 00:21 to 00:33hUT (#246129-48)


Back to Top


PGC 1772934 and adjacent galaxies

PGC 1772934 and adjacent faint galaxies (Aries)
| PGC 1772934 catalog mag +16.3 | PGC 1775172 catalog mag +17.5 |
| PGC 1774800 catalog mag +17.9 | PGC 1773637 catalog mag +16.6 |
| PGC 1773576 catalog mag +17.1 |
Annotated CCD Image
25 x 30 sec exposure (sum combine),  2x2 binning, C Filter
2007-12-25 00:29 hUT (#246129-53)

13 min total exposure

Back to Top


Astrometric and Photometric Monitoring

Back to Top
