CCD Images - Session 284 (2008-04-24)

Previous Imaging Session
Images
(S283)
  Home
Images
Sessions
  Home
Home
Page
  Next Imaging Session
Images (S285)

Objects Session Notes
Bullet Star Spectra
Bullet U Cyg - variable star / spectra
Bullet 3C 273 - Quasar
Bullet NGC 4490 - Spiral Galaxy with Supernovae 2008ax
Bullet Astrometric & Photometric Monitoring
- SS Cyg, U Gem (dwarf nova)
- SS Her, U Her (mira variable)
- BL Lac (blazar)
- KR Aur, SY Cnc, AM CVn, AM Her, SZ Her, RZ LMi, DY Per, ER UMa (variables)
- V2491 Cyg (nova)
- Barnard's Star, Gliese 412, Groombridge 34, Groombridge 1618, Groombridge 1830, Lalande 21185 (Nearby Stars)



- All night session (5.7hr) - night hours now shorterning as summer approaches
- CCD operation of -20 degC
(at 64% average cooling).
- main objective to try out updated software routines for automated capture of correctly focussed star spectra - produced using recently purchased Star Analyser 100.
- other main objective was to acquire images of certain selected stars for ongoing photometric and astrometric analysis

Star Spectra

Star Name
(designation)
Spectra Type
(catalog)

Star Spectra  (Star Analyser 100)


Image details
(1x1 binning)
SAO 69402
WR 133, Cyg
HD 190918
WR - WN5
Wolf Rayet
Image 3 x 60s
2008-04-25 03:11hUT (#284317-19)
4 Her B9 Image 3 x 20s
2008-04-25 00:03hUT (#284120-22)
108 Vir B9 Image 5 x 30s
2008-04-25 02:58hUT (#284301-05)
Vega
Alpha Lyr
A0 Image 7 x 0.5s
2008-04-25 00:08hUT (#284127-31)
Vega
Alpha Lyr
A0 Image 7 x 0.5s (Previous Session)
2008-04-18 01:56hUT (#283304-10)
Groombridge 1830
HIP 57939,  UMa
G8 Image 3 x 20s
2008-04-25 00:43hUT (#284161-63)
Arcturus
Alpha Boo
K2 Image 3 x 0.5s
2008-04-24 21:35hUT
(#284006-9)
Lalande 21185
HIP 54035, UMa
M2  Image 3 x 30s
2008-04-25 01:01hUT (#284178-80)
R Boo M3-M8  Image 3 x 60s
2008-04-25 03:04hUT (#284310-12)
R Vir  M3-M8 Image 3 x 60s
2008-04-24 23:27hUT (#284089-91)
RR CrB M5  Image 5 x 60s
2008-04-24 22:24hUT (#284052-56)
Y CVn C5  Image 5 x 10s
2008-04-24 23:50hUT (#284106-10)
Cyg U C7-C9 Image 3 x 60s
2008-04-25 02:47hUT (#284286-88)
R Aur  M6-M9 Image 5 x 60s
2008-04-24 22:05hUT (#284033-35)
R Leo  M6-M9 Image 3 x 60s
2008-04-24 22:13hUT (#284043-45)
U Her M6-M9 Image 3 x 60s (previous session)
2008-04-17 23:24hUT (#283143-45)


Star Name
(designation)
Spectra Type
(catalog)

Spectra Lines  ( Star Analyser 100)


Image Date/No. & Notes

SAO 69402
WR 133, Cyg
HD 190918
WR - WN5
Wolf Rayet
2008-04-25 (#284317-19)
4 Her B9 Image 2008-04-25 (#284120-22)
108 Vir B9 Image 2008-04-25 (#284301-05)
Vega
Alpha Lyr
A0 Image 2008-04-25 (#284127-31)
Vega
Alpha Lyr
A0 Image Previous Session
2008-04-18 (#283304-10)
Groombridge 1830
HIP 57939,  UMa
G8 Image 2008-04-25 (#284161-63)
Arcturus
Alpha Boo
K2 Image 2008-04-24 (#284006-9)
Lalande 21185
HIP 54035, UMa
M2  Image 2008-04-25 (#284178-80)
R Boo M3-M8  Image 2008-04-25 (#284310-12)
R Vir  M3-M8 Image 2008-04-24 (#284089-91)
RR CrB M5  Image 2008-04-24 (#284052-56)
Y CVn C5  Image 2008-04-24 (#284106-10)
Cyg U C7-C9 Image 2008-04-25 (#284286-88)
R Aur M6-M9 Image 2008-04-24 (#284033-35)
R Leo  M6-M9 Image 2008-04-24 (#284043-45)
U Her M6-M9 Image
2008-04-17 (#283143-45)



Back to Top


U Cyg - variable star / spectra

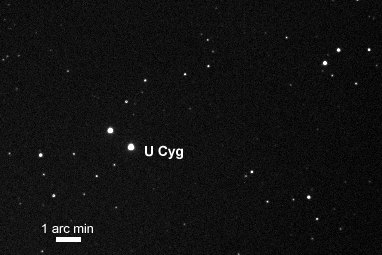

U Cyg (Cyg)

Annotated CCD Image
3s exposure, 2x2 binning, C filter
2008-04-25 02:44hUT (#284285)

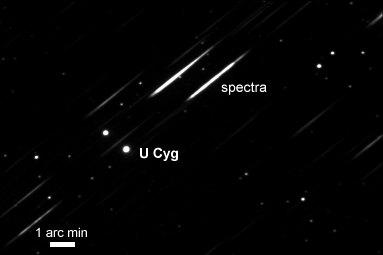

U Cyg spectral image
CCD image though slitless diffraction grating
(Star Analyser 100)

Annotated Spectrographic CCD Image (50% size)
3 x 60s exposure (average combine), 1x1 binning
Star Analyser 100
2008-04-25 02:47hUT (#284286-88)

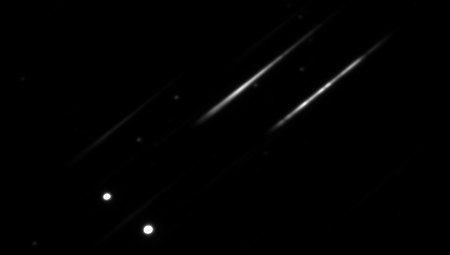

U Cyg spectral image - detail

Spectrographic CCD Image (cropped)
3 x 60s exposure (average combine), 1x1 binning
Star Analyser 100
2008-04-25 02:47hUT (#284286-88)

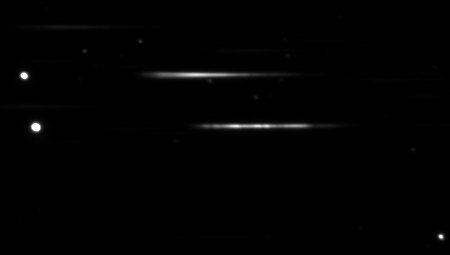

Spectrographic CCD Image (rotated & cropped)
Image details as above
U Cyg - spectral lines
Image details as above

Back to Top


3C 273 - Quasar

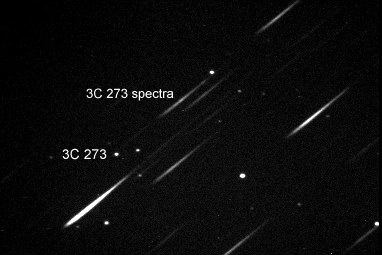

3C 273 spectra (Virgo)
CCD image though slitless diffraction grating
(Star Analyser 100)

Spectrographic CCD Image
5 x 120s exposure (average combine), 2x2binning,
Star Analyser 100 Filter Cell
2008-04-24 23:17hUT (#284080-84)



3C 273 - spectral lines (very low S/N)
Image details as above



Earlier Image of 3C 273

Annotated CCD Image
3 x 120s exposure (average combine), 2x2 binning, C Filter
2008-04-16 21:57hUT (#282084-86)



Back to Top


NGC 4490 - Spiral Galaxy & Supernovae 2008ax

NGC 4490 with SN 2008ax (Canes Venatici)
2008ax (Type II) was discovered 2008/03/03.45 by LOSS; Koichi Itagaki
Magnitude at discovery +16.1 (C)
(Rochester Supernova site | LOSS Discovery Image
 | Itagaki Discovery Image | Reference Image)

Hidden Treasures catalog object 63
[ Hidden Treasures ]

Image below (2008-04-24.99) was taken 52.5 days after discovery.
SN 2008ax - Estimated Magnitude +13.6 (C)

Annotated CCD Image
3 x 180s exposure (average combine), 2x2 binning, C Filter
2008-04-24 23:39UT (#284096-98)


Earlier Image of NGC 4490 & SN 2008ax
[ 2008-04-02.88, Estimated Magnitude +12.4 (C) ]

Annotated CCD Image
7 x 120s exposure (average combine), 2x2 binning, C Filter
2008-04-02 21:04UT (#279042-48)


Earlier Image of NGC 4490 & SN 2008ax
[ 2008-03-08.03, Estimated Magnitude +15.2 (C) ]

Annotated CCD Image
7 x 120s exposure (average combine), 2x2 binning, C Filter
2008-03-08 00:48 hUT (#273136-42)



Earlier Image of NGC 4490 (Pre-SN)

CCD Image
5 x 180s exposure (average combine), 2x2 binning, C Filter
2006-12-20 06:30h UT (#167511-15)

Back to Top


Astrometric and Photometric Monitoring
