Objects Session Notes
Bullet V777 Her (GD 358) - Pulsating White Dwarf
Bullet Astrometric & Photometric Monitoring
- SS Cyg (dwarf nova)
- V2491 Cyg (nova)
- U And, W And, U Her, SS Her (mira variable)
- BL Lac (blazar)
- RX And, Z And, RU Peg, R CrB, DY Per (variables)
- Barnards Star, Groombridge 34, Ross 248(Nearby Stars)

Attempts at SS Cyg, V2491 Cyg, AM Her, Groombridge 34 failed due to cloud



- Late evening/night session (3.4hr) - operated under automated control
- Occasional passing thin cloud
- CCD operation of -20 degC
(at 80% average cooling).
- main objective was to collect baseline images of pulsating white dwarf GD 358 (V777 Her) and to acquire images of certain selected stars for ongoing photometric and astrometric analysis in particular U And, W And

V777 Her (GD 358) - Pulsating White Dwarf

V777 Her (GD 358) is a pulsating white dwarf whose luminosity varies due to non-radial gravity wave pulsations. Variations in light output (or around 10-15%), arising from a superposition of several vibrational modes with periods of hundreds to thousands of seconds.  The star has helium dominated atmosphere/spectral type DB and forms a group of stars know as ZZBDBV or V777 Her stars.
[ GD 358 Paper 1 ,   GD 358 Paper 2 ]

A set of baseline images were collected using C and V filters.

V777 Her / GD 358 (Hercules)
Annotated CCD Image
3 x 60s (average combine), 2x2 binning, C Filter
2008-07-13 00:50 hUT (#294120-24)

V777 Her - reference stars
Annotated CCD Image
60s, 2x2 binning, C Filter
2008-07-13 00:48 hUT (#294120)

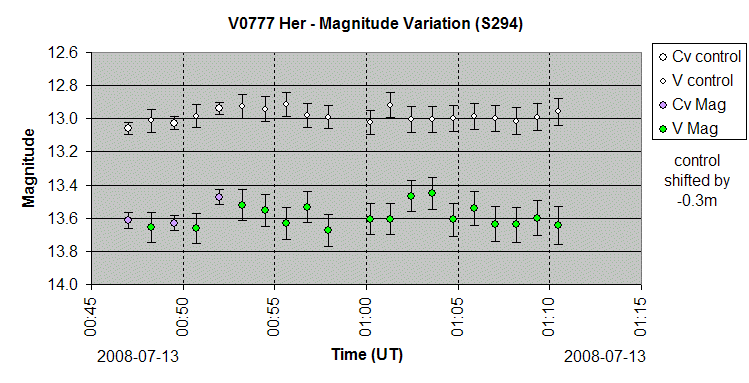

V777 Her - photometric test run
A short test run over 25 minutes indicates possible variation of V777 Her
with two peaks separated by around 6 minutes
(variability of V777 Her values greater than noise in control star values)
The magnitude error bars associated with 60s V filter exposures (derived from S/N measurements) are
too wide to give useful results moving forward. Whilst longer exposures would have higher S/N and
thus smaller error bars the data points would be too sparse to capture the expected rapid variations.
Initial points with 60s clear filter exposures have higher S/N and consequently lower error bars
and seem more appropriate for future photometric runs on this star
C Filter:  60s, 2x2 binning (#294120-26)
V Filter : 60s
, 2x2 binning (#294121-40)
