Images - Session 526 (2012-11-17)

Objects Session Notes
Bullet 168P/Hergenrother - Comet
Bullet 260/P McNaught - Comet
Bullet C/2010 S1 (LINEAR)  - Comet
Bullet C/2012 K5 (LINEAR) - Comet

Bullet Mizar -Double Star

Bullet Hickson 26 - Galaxy Group (PGC 12613 et al)
Bullet Hubble Deep Field (HDF) - North

Bullet NGC 1272 - Galaxy Cluster, "Perseus A", Caldwell 24)
Bullet NGC 1555 - Reflection Nebula

Bullet Photometric Monitoring - Variables
- FO And, RX And, U And, W And, TT Ari, KR Aur, CY Cnc, R CrB, CI Cyg, SS Cyg, U Gem, BL Lac, EV Lac, RZ LMi, CY Lyr, TZ Lyr, CN Ori, FO Ori, FU Ori, NV Ori, DY Per, GK Per

  Attempts: Z And failed (wind),  S Cyg (wind)


Bullet Astrometric Monitoring - Nearby Stars
- DX Cnc, Teegardens Star
- Late Evening session (4.8 hrs duration).
Good seeing
- Session operated under semi-automated control, with remote monitoring from indoors computer.
(Power-Line networking)
- Ambient Temperature: 0.5°C (minimum)
- CCD operation -30°C (at 75% average cooling).
- main objectives of the session were to perform further software testing and to acquire images of selected project stars for ongoing photometric and astrometric analysis, and to image a number of deep sky objects. Opportunity taken to acquire a follow-up image of Comet ISON (C/2012 S1)
-

Comet 168P/Hergenrother

168P/Hergenrother - 2012-11-17
(moving through starfield in Andromeda)

Image Image
CCD Image (50% size)
3 x 15s exposure (average combine), 3x3 binning, C Filter
2012-11-17 19:28 hUT (#526067-74)
12" LX200R  (at f/9.7) + ST-10XME
False Colour CCD Image / Inverse Spectrum
(100% size, square root scaling, cropped)
Image details as left



CCD Image (cropped)
7 x 30s (average combine), 3x3 binning, C Filter
Frame 1:  2012-11-02 19:16 hUT (#520044-50)
Frame 2:  2012-11-03 00:32 hUT (#520503-09)
12" LX200R  (at f/9.7) + ST-10XME

Back to Top


260/P McNaught - Comet

260/P McNaught - 2012-11-17
(moving through starfield in Andromeda)

Annotated CCD Image (cropped)
10  x 30s exposure (average combine), 3x3 binning, C Filter
2012-11-17  21:33 hUT (#526234-43)
12" LX200R  (at f/9.7) + ST-10XME



Back to Top


C/2010 S1 (LINEAR)  - Comet

C/2010 S1 (LINEAR) - 2012-11-17
(moving through starfield in Cygnus)

CCD Image (cropped)
6  x 30s exposure (average combine), 3x3 binning, C Filter
2012-11-17 20:50 hUT (#526180-86)
12" LX200R  (at f/9.7) + ST-10XME
False Colour CCD Image / Inverse Spectrum
(100% size, square root scaling, cropped)
Image details as left



C/2010 S1 (LINEAR) - earlier image (2012-11-02)
(moving through starfield in Cygnus)

Image Image
Annotated CCD Image (cropped)
8  x 30s exposure (average combine), 3x3 binning, C Filter
2012-11-02 22:47 hUT (#520320-34)
12" LX200R  (at f/9.7) + ST-10XME
False Colour CCD Image / Inverse Spectrum
(100% size, square root scaling, cropped)
Image details as left



Back to Top


Comet C/2012 K5 (LINEAR)

C/2012 K5 (LINEAR) - 2012-11-17
(moving through starfield in Bootes)

Image Image
Annotated CCD Image (50% size)
5  x 60s exposure (average combine), 3x3 binning, C Filter
2012-11-17 18:49 hUT (#526022-26)
12" LX200R  (at f/9.7) + ST-10XME
False Colour CCD Image / Inverse Spectrum
(100% size, square root scaling, cropped)
Image details as left



Back to Top


Mizar - Double Star

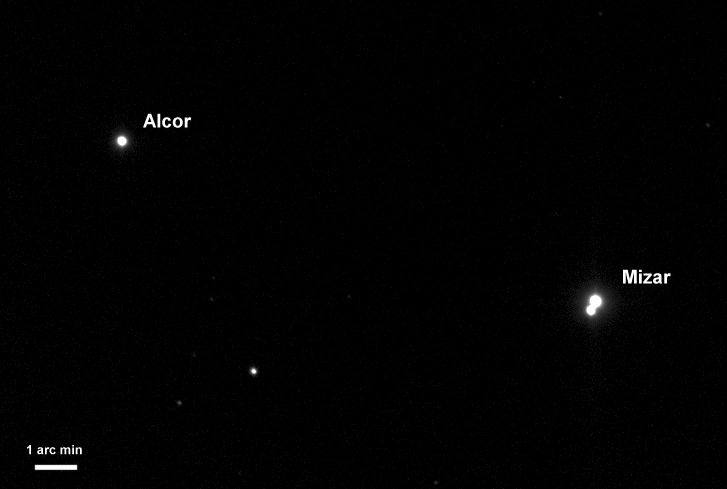

Mizar / Alcor (Ursa Major)
Mizar & Alcor are an optical double
Mizar itself is a double star (Struve 1744)

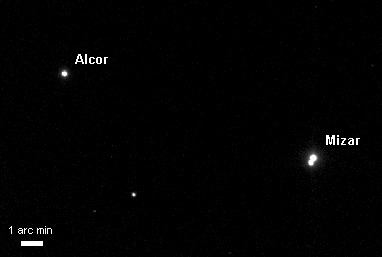

Annotated CCD Image (50% size, square root scaling)
0.12s (single frame), 3x3 binning, C Filter
2012-11-17 18:35 h UT (#526010)
12" LX200R  (at f/9.7) + ST-10XME
[ Larger view

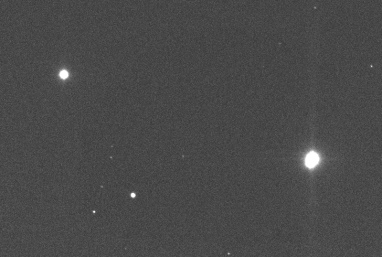

Background Stars  - detail
Contrast adjusted image to show background stars
Mizar and Alcor are mag +2.1 and +4.0 respectively
whilst background stars range from +8.0 to +13.2 magnitude
CCD Image (50% size, linear scale)
Image details as above

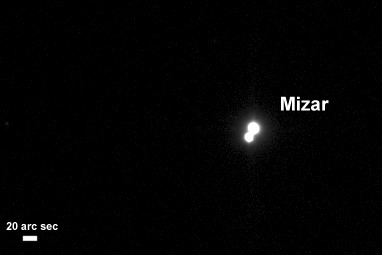

Mizar - detail
Annotated CCD Image (100% size, square root scaling, cropped)
Image details as above
[ Wider View ]

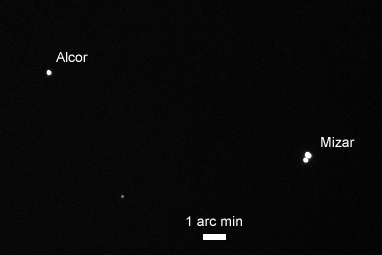

Mizar / Alcor - Earlier Image (2006-08-26)
CCD Image
1s (single frame), 2x2 binning, C Filter
2006-08-26  23:30 h UT (#135129)
8" LX200 Classic + ST-7E

Back to Top


Hickson 26 - Galaxy Group (PGC 12613 et al)

Hickson 26 / PGC 12613 et al (Eridanus)


CCD Image (50% size)
4  x 120s sec exposure (average combine),3x3 binning, C Filter
2012-11-17 22:57 h UT (#526352-55)



Hickson 26 - detail


Negative CCD Image (100% size)
Image details as above

Back to Top


Hubble Deep Field (HDF) - North

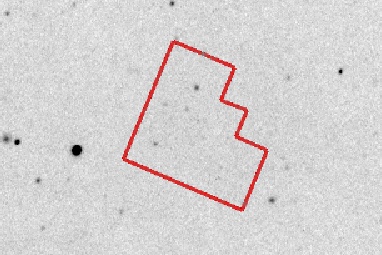

Hubble Deep Field (Ursa Major)

Detail view of HDF area
(position of HDF area shown as red polygon)
Hubble Image
Image  Image
Negative CCD Image (cropped)
13 x 2 mins (average combine), 3x3 binning, clear filter
2012-11-18  01:27 h UT (#526432-44)
12" LX200R + ST-10XME
Hubble Deep Field Image
(reduced from HST WFPC2 Mosaic
HST Gallery Image

Previous View of HDF area Previous View of HDF area, annotated
Image  Image
Negative CCD Image (enlarged, cropped)
12 x 2 mins (average combine), 3x3 binning, clear filter
2009-04-21  22:52 h UT (#364113-26)
12" LX200R  (at f/5.7) + ST-10XME
CCD Image
Image details as left

Galaxies in HDF with measured magnitudes

Previous attempt at imaging HDF ( 2006-05-04)
(position of HDF area shown as red polygon)
CCD Image
8 x 2 mins (average combine), clear filter
2006-05-04  00:42 h UT (#121166-75)
8" LX200 Classic + ST-7E
 (Other HDF atempts : 2005-06-10, 2006-05-04, 2009-04-21 )

Back to Top


NGC 1272 - Galaxy Cluster, "Perseus A", Caldwell 24)

NGC 1272 / NGC 1275 (Perseus)
Part of Perseus A / Abell 426

 CCD Image (square root scaling, 60% size)
7 x 120s (average combine), 3x3 binning, C filter
2012-11-17  21:35h UT (#526363-69)
12" LX200R  (at f/9.7) + ST-10XME



False Colour CCD Image (log scaling, 60% size)
Image details as above



Earlier Image of NGC 1272 / NGC 1275  (2010)

 CCD Image (100% size)
3 min (single frame), 3x3 binning, C filter, Autoguided
2010-11-04  21:35h UT (#434118)
12" LX200R  (at f/9.7) + ST-10XME

Back to Top


NGC 1555 - Nebula ("Hind's Variable Nebula")

NGC 1555 - "Hind's Variable Nebula" (Taurus)
The Nebula is also known as
"Struve's Lost Nebula" and "Burnham's Nebula"
The adjacent bright star is variable star T Tau
[ NGC 1555 Page ]

CCD Image (110% size, cropped)
5 x 90s exposure (average combine),
3x3 binning, C Filter, Linear brightness scaling
2012-11-18 00:07 hUT (#526377-81)
12" LX200R  (at f/9.7) + ST-10XME

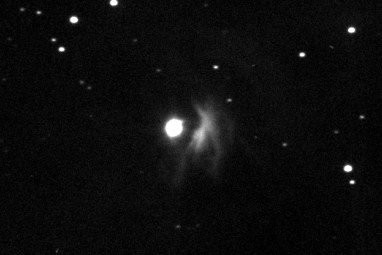

Hind's Variable Nebula - 2011-01-28

CCD Image (73% size, cropped)
5 x 90s exposure (average combine),
3x3 binning, C Filter, Linear brightness scaling
2011-01-28 22:11 hUT (#450274-78)


Back to Top
