Images - Session 583 (2015-04-09)

Objects Session Notes
Bullet 22P/Kopff - Comet

Bullet NGC 4361 - Planetary Nebula
Bullet NGC 5023 - Spiral Galaxy
Bullet NGC 5227 - Spiral Galaxy with SN ASASSN-15fz

Bullet UGC 8313 - Spiral Galaxy
Bullet UGC 8683 - Irregular Galaxy

Bullet Photometric Monitoring - Variables
  - SY Cnc, RZ LMi, R CrB, U Gem, DY per, GK Per, RR Tau, ER UMa

Bullet Astrometric Monitoring - Nearby Stars
  - None
- Evening session (2.2 hrs duration).   Clear sky.
An aurora display began later on at 1:30am.
- Session operated under semi-automated control, with remote monitoring from indoors computer.
- Ambient Temperature:  minimum of +4.5°C
- CCD operation -25°C (at 76% average cooling).
- Main objectives of the session was to monitor selected variable stars & nearby stars and to take gallery images of a selected deep sky objects  (including several members of the M51 Galaxy Group)

- Notes:
RZ LMi images (90s, C filter, -25deg C) wouldn't link until after a Hot Pixel repair operation is performed.

22P/Kopff - Comet

22P/Kopff (passing through Virgo)
Annotated CCD Image (100% size, cropped)
3 x 60 sec exposure (average combine), 3x3 binning, C Filter
2015-04-09 22:41hUT (#583049-52)
12" LX200R  (at f/10.4) + ST-10XME

22P/Kopff - earlier images (2009)
Annotated CCD Image (cropped to central area)
3 x 20s sec exposure (average combine), 3x3 binning, C Filter
2009-09-19 22:34 h UT (#389210-12)
12" LX200R  (at f/5.7) + ST-10XME


Back to Top


NGC 4361 - Planetary Nebula

NGC 4361 (Corvus)
Hidden Treasures catalog object 61
[ Hidden Treasures ]
CCD Image (50% size)
5 x 60 sec exposure (average combine), 3x3 binning, C Filter
2015-04-09 22:27hUT (#583036-41)
12" LX200R  (at f/10.4) + ST-10XME

NGC 4361 - detail
CCD Image (100% size, cropped)
Image details as above

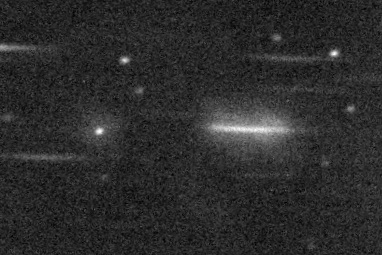

NGC 4361 - spectral image
CCD Image (100% size, cropped)
5 x 60 sec exposure (average combine), 3x3 binning, Star Analyser 200 Filter
2015-04-09 22:34hUT (#583042-46)
12" LX200R  (at f/10.4) + ST-10XME

Back to Top


NGC 5023 - Spiral Galaxy

NGC 5023 (Canes Venatici)
(a M51 Galaxy Group Member)
CCD Image (100% size, cropped)
5 x 90 sec exposure (average combine), 3x3 binning, C Filter
2015-04-09 23:17hUT (#583074-78)
12" LX200R  (at f/10.4) + ST-10XME

NGC 5023 - wider view
CCD Image (50% size)
Image details as above

NGC 5023 - Earlier Image (2010-08-14)
CCD Image (linear scale, 35% size)
5 x 90s exposure (average combine), 3x3 binning, C Filter
2010-08-14 21:57 hUT (#422019-23)
12" LX200R  (at f/9.7) + ST-10XME

Back to Top


NGC 5227 - Spiral Galaxy with SN ASASSN-15fz

NGC 5227 with SN ASASSN-15fz (Virgo)
CCD Image (100% size, cropped)
5 x 90 sec exposure (average combine), 3x3 binning, C Filter
2015-04-09 23:59hUT (#583106-12)
12" LX200R  (at f/10.4) + ST-10XME

NGC 5227 - wider view
CCD Image (50% size)
Image details as above

NGC 5227 with SN ASASSN-15fz - detail
SN ASASSN-15fz (= PS15adi)  (Type II) was discovered 2015/03/30.570 by All Sky Automated Survey for SuperNovae (ASAS-SN)
V Mag at discovery was +16.9 (Rochester Supernova site | Discovery Image | Reference Image)
Image below (2015-04-09.999) was taken 10.4 days after supernova discovery. The supernova is shown by the white markers
CCD Image (150% size, cropped)
Image details as above

Back to Top


UGC 8313 - Spiral Galaxy

UGC 8313 (Canes Venatici)
(a M51 Galaxy Group Member)
CCD Image (100% size, cropped)
3 x 90 sec exposure (average combine), 3x3 binning, C Filter
2015-04-09 23:34hUT (#583090-93)
12" LX200R  (at f/10.4) + ST-10XME

UGC 8313 - wider view
CCD Image (50% size
Image details as above

Back to Top


UGC 8683 - Irregular Galaxy

UGC 8683 (Canes Venatici)
(a M51 Galaxy Group Member)
CCD Image (100% size, cropped)
7 x 90 sec exposure (average combine), 3x3 binning, C Filter
2015-04-09 23:45hUT (#583096-102)
12" LX200R  (at f/10.4) + ST-10XME

UGC 8683 - wider view
(bright star to lower left is the
+10.2 mag star GSC 3026:652
CCD Image (50% size
Image details as above
