CCD Images - Session 830 (2020-11-19)

Objects Session Notes
Bullet C/2020 M3 (Atlas) - Comet

Bullet IC 1870 - Spiral Galaxy (UGCA 46, PGC 11202)

Bullet NGC 474 - Spiral Galaxy (ARP 227)
Bullet NGC 470 - Spiral Galaxy
Bullet NGC 514 - Spiral Galaxy with Type Ia Supernova 2020uxz
Bullet NGC 932 - Spiral Galaxy (AT2020aahp unconfirmed)
Bullet NGC 1637 - Spiral Galaxy (UGCA 93)
Bullet NGC 2782 - Spiral Galaxy with Type Ia Supernova 2020scc

Bullet QSO J0854+2006 - Quaser with massive blackhole (OJ 287), 3.5 Gly

Bullet UGCA 1 - Spiral Galaxy (PGC 538)
Bullet UGCA 36 - Spiral Galaxy (PGC 9923)
Bullet UGCA 44 - Irregular Galaxy (PGC 10682)
Bullet UGCA 82 - Spiral Galaxy (PGC 13417)
Bullet UGCA 166 - Galaxy (PGC 27183)
Bullet UGCA 208 - Galaxy (PGC 30005)
Bullet UGCA 219 - Spiral Galaxy (PGC 32356)

Bullet UGC 3777 - Spiral Galaxy (PGC 20562)
Bullet UGC 3904 - Spiral Galaxy
Bullet UGC 4186 - Spiral Galaxy
Bullet UGC 4609 - Spiral Galaxy (PGC 24779)

Bullet Variable Stars (photometric monitoring)
- RX And, U And, S Cyg, DY Per, RR Tau


Bullet Nearby Stars (astrometric monitoring)
- Groombridge 34


- Full Night Session (8.9 hours)
- Main aims of the session were the acquisition of a selection of deep sky targets, together with some variable star, nearby star and comet targets.
- 12" LX200 + ST-10XME for imaging
- TS 80mm APO + ZWO ASI178MC for guiding & imaging
- Ambient Temperature: -1.5°C (min)
- CCD Temperature:  -20°C/-25°C
- Notes from 2020-11-19 >>

-


C/2020 M3 (Atlas) - Comet

C/2020 M3 (Atlas)
(passing through Orion)

Sun Distance 1.32 AU (receeding)
Earth Distance 0.36 AU (54.3 million km)
   C/2020 M3 (Atlas) - 2020-11-20, Detail
Autoguided on offset star using PHD2 with Lock Shift
set at the comet's rate of motion
(Ra 0.32 arcsec/hr, Dec 197.63 arcsec/hr)
Image   Image
Annotated CCD Image (50% size, square root scale)
2 x 15s exposure (average combine), 3x3 binning, C Filter
2020-11-20 02:33 UT (#830162-63)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
  CCD Image (100% size, square root scale, cropped)
7 x 15s exposure (average combine), 3x3 binning, C Filter
2020-11-13 22:17 UT (#829138-44)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of C/2020 M3 (Atlas) on Comets 2020 Page >>



Back to Top


IC 1870 - Spiral Galaxy (UGCA 46, PGC 11202)

IC 1870 (Eridanus)
Alias:  UGCA 46 / PGC 11202 (catalog mag +13.8 / +13.2)
Adjacent galaxy PGC 11235 (catalog mag +15.7)
Annotated CCD Image (50% size, square root scale)
5 x 180s exposure (average combine), 3x3 binning, C Filter
2020-11-19 22:48 UT (#830067-71)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

IC 1870 / UGCA 46 -  Detail
Bright foreground star showing blooming streak is HIP 13830 (mag +7.7)
CCD Image (100% size, square root scale, cropped)
Image details as above

Negative CCD Image (100% size, square root scale, cropped)
Image details as above


Back to Top


NGC 474 - Spiral Galaxy (ARP 227)

NGC 474 / ARP 227 (Pisces)
Deep Sky Challenge Object, Oct 2020
Annotated CCD Image (50% size, square root scale)
7 x 180s exposure (average combine), 3x3 binning, C Filter
2020-11-19 23:30 UT (#830080-86)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

NGC 474 & NGC 470
CCD Image (100% size, square root scale, cropped)
Image details as above

NGC 474 / ARP 227- Detail
Complex ring structure is just visible
Negative CCD Image (100% size, square root scale, cropped)
Image details as above

NGC 474 - Earlier Image  (2011)
Faint circular concentric rings around NGC 474
are not visible in this image.
Annotated CCD Image (50% size)
3 x 120sec exposure (average combine),  3x3 binning, C Filter
2011-02-12 18:58 h UT  (#455036-38)
12" LX200R  (at f/9.7) + ST-10XME



Back to Top


NGC 470 - Spiral Galaxy

NGC 470 (Pisces)
NGC 470 (right) with NGC 474 (centre) and PGC 1252050 (left)
Annotated CCD Image (50% size, square root scale)
7 x 180s exposure (average combine), 3x3 binning, C Filter
2020-11-19 23:30 UT (#830080-86)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

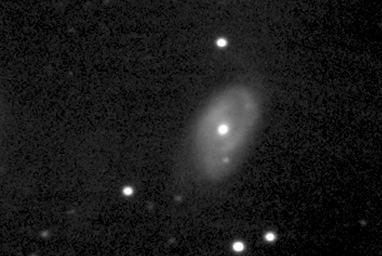

NGC 470 - detail
CCD Image (100% size, square root scale, cropped)
Image details as above

Negative CCD Image (100% size, square root scale, cropped)
Image details as above

NGC 470 - Earlier Image  (2011)
Annotated CCD Image (50% size)
3 x 120sec exposure (average combine),  3x3 binning, C Filter
2011-02-12 18:58 h UT  (#455036-38)
12" LX200R  (at f/9.7) + ST-10XME



Back to Top


NGC 514 - Spiral Galaxy with Type Ia Supernova 2020uxz

NGC 514 (Pisces)
SN 2020uxz (Type 1a), discovered 2020/10/05.573 by Koichi Itagaki
 (Rochester Supernova site | Discovery Image | )

NGC 514 with SN 2020uxz -2020-11-20 (T+45.4d)
Image below (2020-11-20.000) was taken 45.4 days after discovery of SN 2020uxz
SN is shown by white cross hairs.  Magnitude +14.7
Annotated CCD Image  (100% size, square root scale, cropped)
5 x 120s exposure (average combine), 3x3 binning, C Filter
2020-11-20 00:00 UT (#830097-101)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2020uxz (NGC 514) on Supernovae 2020 Page >>


Back to Top


 NGC 1637 - Spiral Galaxy (UGCA 93)

NGC 1637 / UGCA 93 (Eridanus)
(catalog mag +10.8)
Annotated CCD Image (50% size, square root scale)
5 x 180s exposure (average combine), 3x3 binning, C Filter
2020-11-20 00:42 UT (#830109-13)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

NGC 1637 / UGCA 93 -  Detail
CCD Image (100% size, square root scale, cropped)
Image details as above

Negative CCD Image (100% size, square root scale, cropped)
Image details as above


Back to Top


NGC 932 - Spiral Galaxy (AT2020aahp unconfirmed)

NGC 932 (Aries)

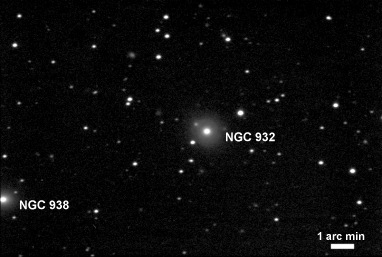

Annotated CCD Image (50% size, square root scale)
5 x 180s exposure (average combine), 3x3 binning, C Filter
2020-11-19 22:48 UT (#830067-71)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

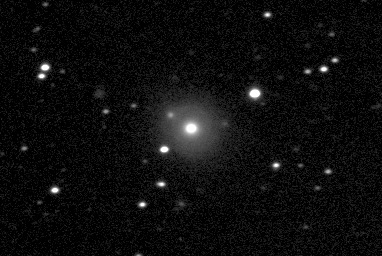

NGC 932 - Detail
Image show no indication of the object AT2020aahp (type unknown)
reported as discovered 2020/11/16.445 by Hitoshi Yamaoka
AT2020aahp is unconfirmed
CCD Image (100% size, square root scale, cropped)
Image details as above

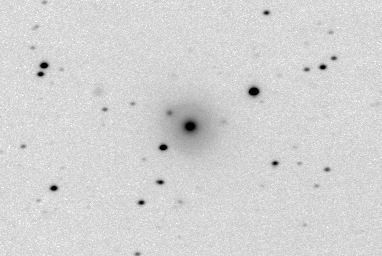

Negative CCD Image (100% size, square root scale, cropped)
Image details as above


Back to Top


NGC 2782 - Spiral Galaxy (ARP 215) with Type Ia Supernova 2020scc

NGC 2782 with SN 2020scc (Lynx)
SN 2020scc (Type Ia, z=0.008483) discovered 2020/08/20.915 by Xingming Observatory Sky Survey (XOSS)
 ( Rochester Supernova site | Discovery image | )

NGC 2782 with SN 2020scc - Detail, 2020-11-19 (T+90.9d)
Image below (2020-11-19.859) was taken 90.9 days after discovery of SN 2020scc
SN is shown by white cross hairs.  SN is to faint to get a magnitude measurement
Poor image (single frame only)
Annotated CCD Image (100% size, square root scale, cropped)
180s exposure (single frame), 3x3 binning, C Filter
2020-11-19 20:37 UT (#830021)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2020scc (NGC 2782) on Supernovae 2020 Page >>


Back to Top


QSO J0854+2006 - Quaser with massive blackhole (OJ 287), 3.5 Gly

QSO J0854+2006 / OJ 287  Cancer)
Distance 3.5 Gly
Target acqusition inspired by a BBC Web Page:
Dancing gargantuan black holes perform on cue
Annotated CCD Image (50% size, square root scale)
4 x 180s exposure (average combine), 3x3 binning, C Filter
2020-11-20 02:52 UT (#830170-74)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

QSO J0854+2006 / OJ 287- Detail
A quasar (also known as a quasi-stellar object abbreviated QSO) is an
extremely luminous active galactic nucleus (AGN), in which a supermassive black hole
with mass ranging from millions to billions of times the mass of the Sun
 is surrounded by a gaseous accretion disk.
Annotated CCD Image (100% size, square root scale , cropped)
Image details as above

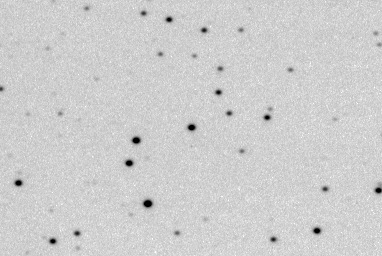

Negative CCD Image (100% size, square root scale, cropped)
Image details as above

QSO J0854+2006 / OJ 287- Earlier Image (2020-05-02)
Annotated CCD Image (100% size, linear scale, cropped)
4 x 180s exposure (average combine), 3x3 binning, C Filter
2020-05-02 22:36 UT (#777023-27)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2



Back to Top


UGCA 1 - Spiral Galaxy (PGC 538)

UGCA 1 (Cetus)
Alias: PGC 538, catalog mag +16.5)
Galaxy partially hidden by foreground star GSC 4669:167 (mag +10.0)
Relatively poor image. Target to be rescheduled fo a future session.
CCD Image (100% size, square root scale, cropped)
3 x 180s exposure (average combine), 3x3 binning, C Filter
2020-11-19 21:19 UT (#830027-29)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2


Back to Top


UGCA 36 - Spiral Galaxy (PGC 9923)

UGCA 36 (Cetus)
Alias: PGC 9923 (catalog mag +13.9)
Annotated CCD Image (50% size, square root scale)
3 x 180s exposure (average combine), 3x3 binning, C Filter
2020-11-19 21:58 UT (#830054-56)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

UGCA 36 -  Detail
CCD Image (125% size, square root scale, cropped)
Image details as above

Negative CCD Image (125% size, square root scale, cropped)
Image details as above


Back to Top


UGCA 44 - Irregular Galaxy (PGC 10682)

UGCA 44 (Eridanus)
Alias:  PGC 10682 (catalog mag ?)
Annotated CCD Image (50% size, square root scale)
4 x 180s exposure (average combine), 3x3 binning, C Filter
2020-11-19 22:23 UT (#830060-64)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

UGCA 44 -  Detail
Irregular galaxy is very faint
Target to be reimaged using more exposures & better sky transparency
CCD Image (100% size, square root scale, cropped)
Image details as above

Negative CCD Image (100% size, square root scale, cropped)
Image details as above


Back to Top


UGCA 82 - Spiral Galaxy (PGC 13417)

UGCA 82 (Eridanus)
Alias:  PGC 13417 (catalog mag ?)
with adjacent galaxies :
PGC 1060662 (catalog mag +16.8),
& PGC 1060990 (catalog mag +17.9)
Annotated CCD Image (50% size, square root scale)
4 x 180s exposure (average combine), 3x3 binning, C Filter
2020-11-20 00:21 UT (#830103-07)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

UGCA 82 -  Detail
CCD Image (100% size, square root scale, cropped)
Image details as above

Negative CCD Image (100% size, square root scale, cropped)
Image details as above


Back to Top


UGCA 166 - Galaxy (PGC 27183)

UGCA 166 (Ursa Major)
Alias: PGC 27183 (catalog mag +16.6)
Annotated CCD Image (50% size, square root scale)
5 x 180s exposure (average combine), 3x3 binning, C Filter
2020-11-20 02:22 UT (#830156-60)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

UGCA 166 -  Detail
CCD Image (150% size, square root scale, cropped)
Image details as above



Back to Top


UGCA 208 - Galaxy (PGC 30005)

UGCA 208 (Ursa Major)
Alias: PGC 30005  (catalog mag +15.9)
Annotated CCD Image (50% size, square root scale)
5 x 180s exposure (average combine), 3x3 binning, C Filter
2020-11-20 03:14 UT (#830177-81)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

UGCA 208 -  Detail
CCD Image (125% size, square root scale, cropped)
Image details as above

Negative CCD Image (125% size, square root scale, cropped)
Image details as above


Back to Top


UGCA 219 - Spiral Galaxy (PGC 32356)

UGCA 219 (Ursa Major)
Alias: PGC 32356  (catalog mag +15.0)
Annotated CCD Image (50% size, square root scale)
4 x 180s exposure (average combine), 3x3 binning, C Filter
2020-11-20 03:35 UT (#830184-87)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

UGCA 219 -  Detail
CCD Image (125% size, square root scale, cropped)
Image details as above

Negative CCD Image (125% size, square root scale, cropped)
Image details as above


Back to Top


UGC 3777 - Spiral Galaxy (PGC 20562)

UGC 3777 / PGC 20562 (Gemini)
Flat Galaxy Atlas
Annotated CCD Image (50% size, square root scale)
4 x 180s exposure (average combine), 3x3 binning, C Filter
2020-11-20 01:39 UT (#830141-45)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

UGC 3777 -  Detail

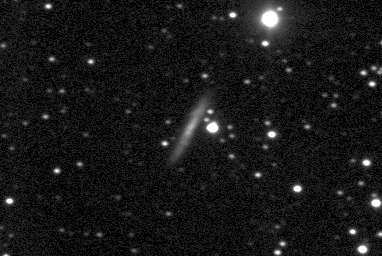

CCD Image (100% size, square root scale, cropped)
Image details as above

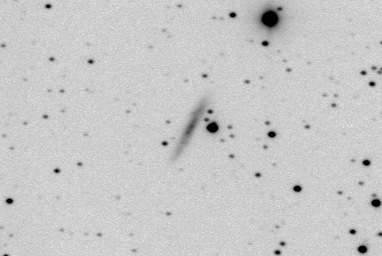

Negative CCD Image (100% size, square root scale, cropped)
Image details as above


Back to Top


UGC 3904 - Spiral Galaxy

UGC 3904 (Gemini)
Ring Galaxy, J.Lowrey List
Annotated CCD Image (50% size, square root scale)
4 x 180s exposure (average combine), 3x3 binning, C Filter
2020-11-20 04:00 UT (#830190-94)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

UGC 3904 -  Detail
CCD Image (100% size, square root scale, cropped)
Image details as above

Negative CCD Image (100% size, square root scale, cropped)
Image details as above


Back to Top


UGC 4186 - Spiral Galaxy

UGC 4186 (Camelopardalis)
Flat Galaxy Atlas
Alias: PGC 22648
Single frame only due to passing cloud.
Target to be rescheduled

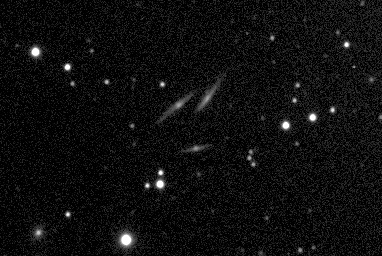

CCD Image (100% size, square root scale, cropped)
180s exposure (single frame), 3x3 binning, C Filter
2020-11-20 04:17 UT (#830196)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2



Back to Top


UGC 4609 - Spiral Galaxy (PGC 24779)

UGC 4609 (Lynx)
Ring Galaxy, J.Lowrey List
Alias: PGC 24779 (catalog mag +15.3)
Target imaged using incorrect target offset of  W 0',  N -2.5'
which had the effect of moving the offset glare star even closer to the field centre.
(Target to be rescheduled with a target offset of  W 0',  N 2.5' in order
to move the bright offset star out of the field of view as originally intended )
Annotated CCD Image (50% size, square root scale)
5 x 180s exposure (average combine), 3x3 binning, C Filter
2020-11-20 02:00 UT (#830148-52)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

UGC 4609 - Earlier Image (2020-10-25)
Annotated CCD Image (50% size, square root scale)
4 x 180s exposure (average combine), 3x3 binning, C Filter
2020-10-25 04:33 UT (#821102-05)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

UGC 4609 - Earlier Detail  (2020-10-25)
Trace of ring structure is potentially just visible in image below,
but is difficult to prove due to glare from mag +8 star HIP 43280
Target to be repeated with a target offset of  W 0',  N -2.5' in order to move
 the bright offset star well out of the field of view.
The galaxy in lower left of image is PGC 213535 (catalog mag +16.9)
CCD Image (125% size, square root scale, cropped)
Image details as above


Back to Top
