CCD Images - Session 937 (2021-11-24)

Objects Session Notes
Bullet Plane - Crossing M31 starfield with EGN Nova 2021aceg

Bullet 132P/Helin-Roman-Alu - Comet
Bullet C/2017 K2 (PANSTARRS) - Comet

Bullet EGN 2021aceg - Extragalactic Nova in Spiral Galaxy M31
Bullet M110 - Elliptical Galaxy with Nova AT2021yul

Bullet NGC 9 - Spiral Galaxy with Type Ib Supernova 2021zju

Bullet UGC 8975 - Spiral Galaxy with Type Ia Supernova 2021adpe

Bullet Variable Stars (photometric monitoring)
- RX And, SS Cyg

- TT Ari attempt failed due to cloud/poor sky

Bullet Nearby Stars (astrometric monitoring)
- None

HH And attempt failed due to cloud/poor sky


- Evening session 4.2 hours
- Session ended by cloud & rain at 21:45
- 12" LX200 + ST-10XME for imaging
- TS 80mm APO + ZWO ASI178MC for guiding & imaging
- Ambient Temperature: 3°C (min)
- CCD Temperature:  -20/-25°C
- Notes from 2021-11-24 >>
   [ Local Files >> ]


Plane - Crossing M31 starfield with EGN 2021aceg

Plane crossing M31 starfield with Extragalactic Nova (Andromeda)
  Whilst imaging starfield (M31 w/EGN 2021aceg)
4 linear tracks passed across the following 180s exposure.
The first thought that they were representing a swarm of parallel tracking satellites
but examination of AllSky Images indicates that they are from a plane

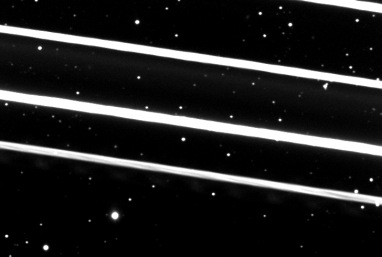

CCD Image  (50% size, linear scale)
180s exposure (single frame), 3x3 binning, C Filter
2021-11-24 18:27 UT (#937020)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

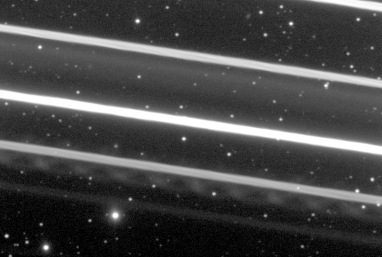

Detailed examination of the image show details of the exhaust trail
CCD Image  (50% size, log scale)
Image details as above

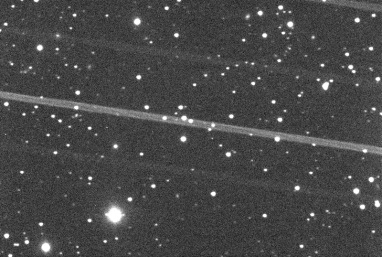

The lights from the plane were particularly bright. So bright that they left
residual traces in the CCD substrate in the next two 180s frames
(the lines are too straight / too sharp to be exhaust trails)
The trails ruined images of the target object EGN 2021aceg
CCD Image  (50% size, log scale)
180s exposure (single frame), 3x3 binning, C Filter
2021-11-24 18:30 UT (#937021)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

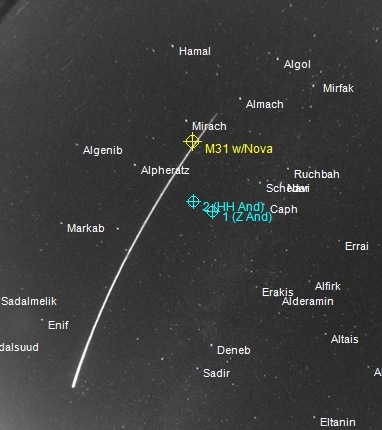

AllSky Image showing the plane crossing
the telescope view (yellow cross-hairs)
Object was already declining in brightness as it crossed the telescope view
AllSky Image  - 30s exposure (single frame)
Occulus AllSky Camera

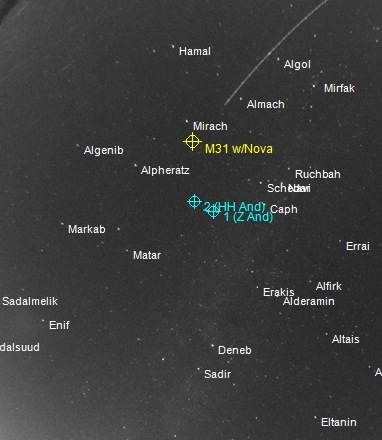

AllSky Image showing the plane after it had left the telescope view.
The entire image shows 23 strobe light flashes in 30s (ie one flash every 1.30s)
AllSky Image  - 30s exposure (single frame)
Occulus AllSky Camera


Back to Top


132P/Helin-Roman-Alu - Comet

132P/Helin-Roman-Alu
(passing through Cetus)
Sun Distance 1.70 AU
Earth Distance 0.92 AU (137.0 million km)
   132P/Helin-Roman-Alu - 2021-11-24, Detail
Autoguided on offset star using PHD2 with Lock Shift
set at the comet's rate of motion
(Ra 41.50 arcsec/hr, Dec 14.19 arcsec/hr)
Image   Image
Annotated CCD Image (50% size, square root scale)
3 x 60s exposure (average combine), 3x3 binning, C Filter
2021-11-24 19:29 UT (#937067-69)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
  CCD Image (100% size, square root scale, cropped)
7 x 60s exposure (average combine), 3x3 binning, C Filter
2021-11-24 19:29 UT (#937065-71)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of 132P/Helin-Roman-Alu on Comets 2021 Page >>

Back to Top


C/2017 K2 (PANSTARRS) - Comet

C/2017 K2 (PANSTARRS)
(passing through Hercules)
Sun Distance 4.73 AU
Earth Distance 5.39 AU (806.8 million km)
   C/2017 K2 (PANSTARRS) - 2021-11-24, Detail
Autoguided on offset star using PHD2 with Lock Shift
set at the comet's rate of motion
(Ra 26.94 arcsec/hr, Dec -19.80 arcsec/hr)
Poor quality image due to wind vibration & single frame
Image   Image
Annotated CCD Image (50% size, square root scale)
45s exposure (single frame), 3x3 binning, C Filter
2021-11-24 19:17 UT (#937060)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
  CCD Image (100% size, square root scale, cropped)
Image detail as left

Images of C2017 K2 (PANSTARRS) on Comets 2021 Page >>

Back to Top


EGN 2021aceg - Extragalactic Nova in Spiral Galaxy M31

Nova 2021aceg in M31 (Andromeda)
AT2021aceg (Type: EGN) discovered 2021-10-25.570 UT by XOSS
Alias: PSP21ac, PNV J00473256+3938102
Discovery Magnitude 16.1 (Clear Filter)
vs Prior Non-Detection Limiting Magnitude 17.5
 (Rochester Supernova site | Rochester EGN Page | Klaus Wenzel image )
( TNS 2021aceg )

 Nova 2021aceg in M31 - 2021-11-24 (T+30.2d)
Image below (2021-11-24.765) was taken 30.2 days after discovery of 2021aceg
EGN position is shown by white cross-hairs
The image is unfortunately ruined by a residual light trail left in the CCD Substrate
from a plane that crossed the field of view during the previous frame
Annotated CCD Image  (150% size, square root scale, cropped)
180s exposure (single frame), 3x3 binning, C Filter
2021-11-24 18:30 UT (#937021)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

 Nova 2021aceg in M31 - Earlier Image 2021-10-31 (T+5.5d)
Image below (2021-10-31.102) was taken 5.5 days after discovery of 2021aceg
EGN is shown by white cross-hairs
Measured magnitude +17.15
Annotated CCD Image  (150% size, square root scale, cropped)
4 x 180s exposure (average combine), 3x3 binning, C Filter
2021-10-31 02:36 UT (#930169-73)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of Nova AT 2021aceg (in M31) on Transients 2021 Page >>

Back to Top


M110 - Elliptical Galaxy with Nova AT2021yul

M110 with AT2021yul (Andromeda)
AT2021yul (Type: Nova) discovered 2021-09-13.740 UT by XOSS
Alias: PSP21J, ZTF21acbutpl
 (Rochester Supernova site | Rochester EGN Page |

M110 with AT2021yul  - 2021-11-24 (T+72.2d)
Image below (2021-11-24.896) was taken 72.2  days after discovery of 2021yul
Position of earlier Nova (no longer visible) is shown by white cross-hairs
Annotated CCD Image  (100% size, square root scale, cropped
3 x 180s exposure (average combine), 3x3 binning, C Filter
2021-11-24 21:36 UT (#937160-62)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

M110 with AT2021yul  - Earlier Image 2021-09-28 (T+14.4d)
Image below (2021-09-28.106) was taken 14.4 days after discovery of 2021yul
Nova (faint) is shown by white cross-hairs
Annotated CCD Image  (100% size, square root scale, cropped
3 x 180s exposure (average combine), 3x3 binning, C Filter
2021-09-28 02:43 UT (#917265-69)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2021yul (in M110) on Transients 2021 Page >>

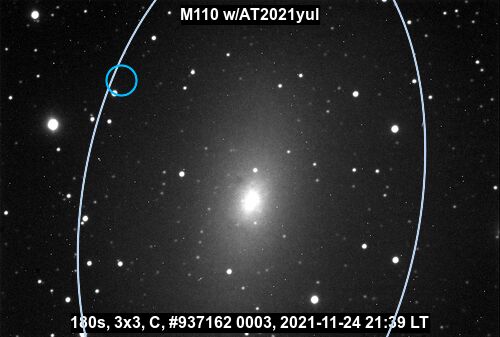

M110 Realtime Picture
M110 catalog extent shown by white ellipse
Position of AT2021yul shown by blue circle
Realtime CCD Image  (70% size, linear scale)
180s exposure (single frame), 3x3 binning, C Filter
2021-11-24 21:36 UT (#937162)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

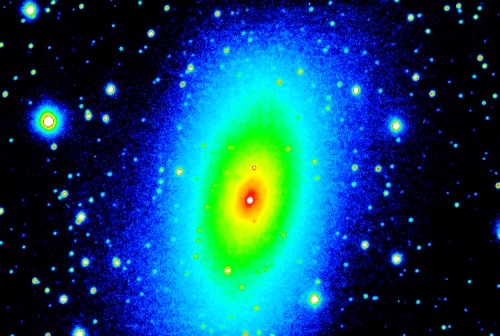

M110 - False Colour
False Colour CCD Image  (70% size, square root scale)
Inverse Spectrum
3 x 180s exposure (average combine), 3x3 binning, C Filter
2021-09-28 02:43 UT (#917265-69)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Back to Top


NGC 9 - Spiral Galaxy with Type Ib Supernova 2021zju

NGC 9 with SN2021zju (Pegasus)
SN 2021zju (Type: Ib) discovered 2021-09-24.483 UT by ATLAS
Alias: ATLAS21bjbm, ZTF21acdxhuv
 (Rochester Supernova site | Enrico Prosperi image )

NGC 9 with SN2021zju - 2021-11-24 (T+61.4d)
Image below (2021-11-24.877) was taken 61.4 days after discovery of 2021zju
Position of supernova (faint) is shown by white cross-hairs
Annotated CCD Image  (150% size, square root scale, cropped)
3 x 180s exposure (average combine), 3x3 binning, C Filter
2021-11-24 21:15 UT (#937155-57)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2021zju (NGC 9) on Supernovae 2021 Page >>

Back to Top


UGC 8975 - Spiral Galaxy with Type Ia Supernova 2021adpe

UGC 8975 with SN 2021adpe (Canes Venatici)
SN 2021adpe (Type: Type Ia, z=0.009) discovered 2021-11-04.975 UT by Gaia
Alias: Gaia21fas,  Mag +17.76 at discovery
 (Rochester Supernova site | Gaia21fas )

UGC 8975 with SN 2021adpe - 2021-11-24 (T+19.8d)
Image below (2021-11-24.747) was taken 19.8 days after discovery of 2021adpe

Position of Candiate SN (AT2021adpe) is shown by white cross-hairs
Image quality very poor due to wind vibration / poor seeing
Annotated CCD Image  (150% size, square root scale, cropped)
5 x 180s exposure (average combine), 3x3 binning, C Filter
2021-11-24 18:05 UT (#937012-16)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2021adpe (UGC 8975) on Supernovae 2021 Page >>

Back to Top
