CCD Images - Session 986 (2022-03-16)

Objects Session Notes
Bullet C/2020 V2 (ZTF) - Comet

Bullet AT2021agpw - CV Type Transient

Bullet 2MASS J17554042+6551277 - Star (JWST mirror alignment evaluation star)
Bullet PGC 61099 - Spiral Galaxy

Bullet UGC 10566 - Spiral Galaxy with Type Ia Supernova 2022aab

Bullet Variable Stars (photometric monitoring)
- U Her, SS Her

Bullet Nearby Stars (astrometric monitoring)
- Barnards Star


- Pre-Dawn session 1.7 hours
Session slightly delayed by 'Too Few Stars'
- Main objective was to take my own images of the star 2MASS J17554042+6551277 (TYC 4212-1079-1), the star used for fine-phasing the alignment and focusing of the 18 hexagonal mirrors on the JWST space telescope  (Details and JWST picture in 16 Mar press release at https://www.nasa.gov/press-release/nasa-s-webb-reaches-alignment-milestone-optics-working-successfully).

- 12" LX200 + ST-10XME for imaging
- TS 80mm APO + ZWO ASI178MC for guiding & imaging
- Ambient Temperature: 2°C (min)
- CCD Temperature:  -20°C
- Notes from 2022-03-16 >>
   [ Local Files >> ]


C/2020 V2 (ZTF) - Comet

C/2020 V2 (ZTF)
(passing through Ursa Major)

Sun Distance 4.89 AU
Earth Distance 4.28 AU (640.8 million km)
   C/2020 V2 (ZTF) - 2022-03-17, Detail
Autoguided on offset star using PHD2 with Lock Shift
set at the comet's rate of motion
(Ra -76.87 arcsec/hr, Dec 24.77 arcsec/hr)
Image   Image
Annotated CCD Image (50% size, square root scale)
3 x 90s exposure (average combine), 3x3 binning, C Filter
2022-03-17 03:16 UT (#986003-05)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
  CCD Image (100% size, square root scale, cropped)
5 x 90s exposure (average combine), 3x3 binning, C Filter
2022-03-17 03:17 UT (#986003-07)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of C/2020 V2 (ZTF) on Comets 2022 Page >>

Back to Top


AT2021agpw - CV Type Transient

AT2021agpw (Serpens)
AT2021agpw (Type: CV) discovered 2021-12-27.275 UT by MASTER
Alias: MASTER OT J155629.78+090149.3
Discovery Mag 10.1 (red long variability ?)
[ TNS 2021agpw ]

AT2021agpw - 2022-03-17 (T+79.9d)
Image below (2022-03-17.161) was taken 79.9 days after discovery of 2021agpw
Reported transient is shown by white cross hairs.
Measured magnitude +12.39
Annotated CCD Image (100% size, linear scale, cropped)
5 x 60s exposure (average combine), 3x3 binning, C Filter
2022-03-17 03:55 UT (#986025-29)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT2021agpw on Transients 2021 Page

Back to Top


2MASS J17554042+6551277 - Star (JWST mirror alignment evaluation star)

2MASS J17554042+6551277 (Draco)
Alias: TYC 4212-1079-1

Image taken of the star used for the fine-phasing alignment and focusing of
18 hexagonal mirrors on the James Webb Space Telescope.
(Reference: See NASA press release, 2022-03-16
 https://www.nasa.gov/press-release/nasa-s-webb-reaches-alignment-milestone-optics-working-successfully).

Image is taken through R filter (like the JWST image)

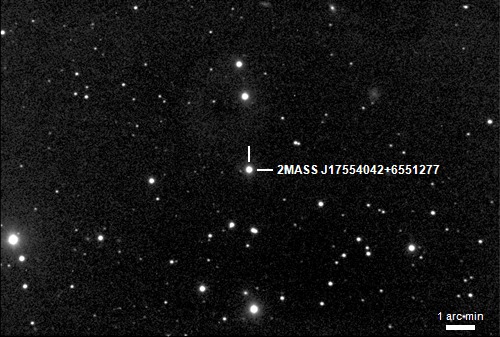

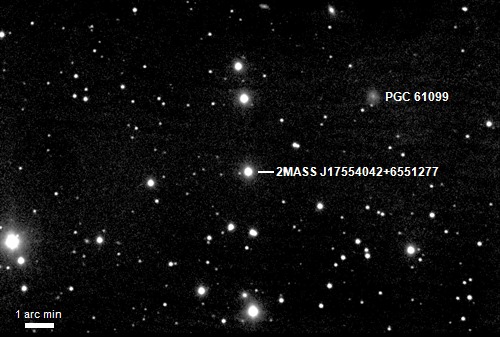

Annotated CCD Image (70% size, square root scale, cropped)
7 x 45s exposure (average combine), 3x3 binning, R Filter
2022-03-17 03:32 UT (#986011-17)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

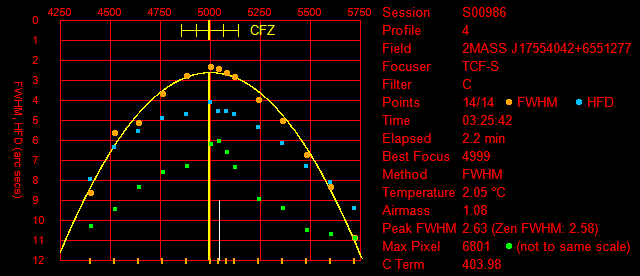

2MASS J17554042+6551277  - Focus Profile

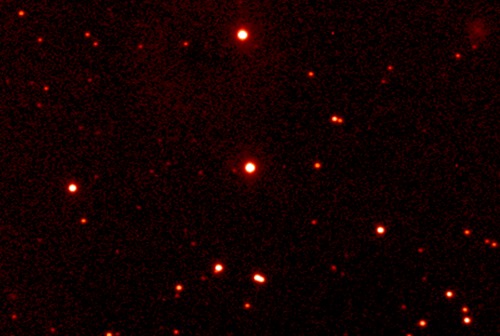

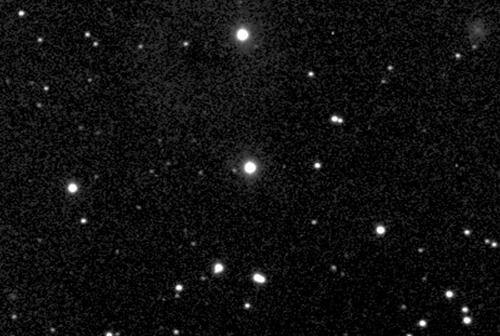

2MASS J17554042+6551277 - Closer View (R Filter)
CCD Image (125% size, square root scale, cropped)
Image details as above

CCD Image (125% size, square root scale, cropped)
Image details as above
(Shown in red, to match the filter colour)

2MASS J17554042+6551277 - (C Filter)
North Up
CCD Image (125% size, square root scale, cropped)
Image details as above

2MASS J17554042+6551277 - JWST Image
(Image Credits: NASA/STScI)
Note:  The JWST image is rotated 80 deg from North
R Filter, taken c. 2022-03-11
[ Full size Image on NASA.gov site ]
https://www.nasa.gov/sites/default/files/thumbnails/image/telescope_alignment_evaluation_image_labeled.png

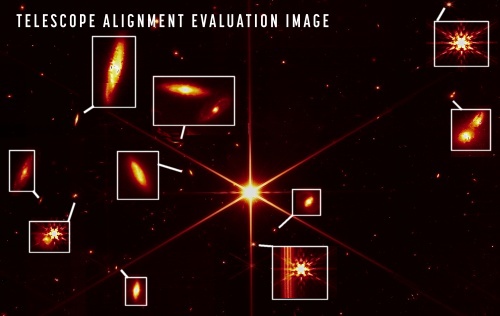

JWST Image with detailed inserts showing some of the faint background stars and galaxies
(Base Image Credits : NASA/STScI)

2MASS J17554042+6551277 - Image Cross-Matching

12" LX200 Image - Non aligned
Negative, Cropped, Rescaled
Raw Image Scale : 1.399"/px,  PictureScale 1.119"/px
With picture size of 500 x 336px,   the Cropped Image FOV is 9.325' x  6.266'

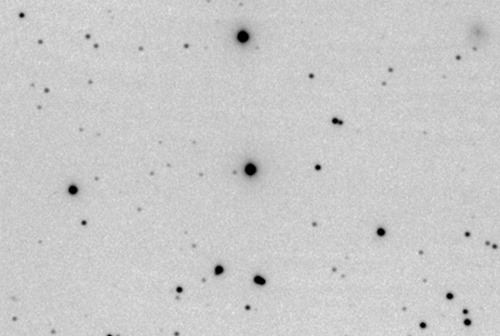

Negative CCD Image (125% size, square root scale, cropped)
5 x 120s exposure (average combine), 3x3 binning, C Filter
2022-03-17 03:41 UT (#986018-22)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Reference Image (DSS2)

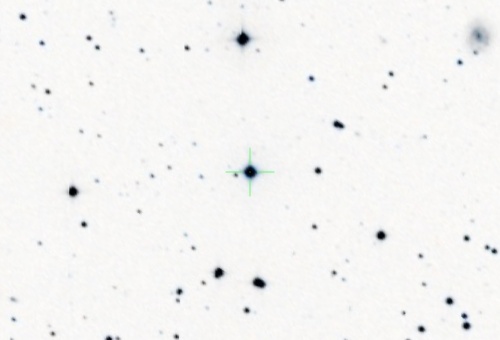

DSS2 Image captured through Aladin, Negative, Cropped, Rescaled,
This DSS2 image doesn't contain much more detail than my own CCD Image
and doesn't help in cross-matching to the JWST image

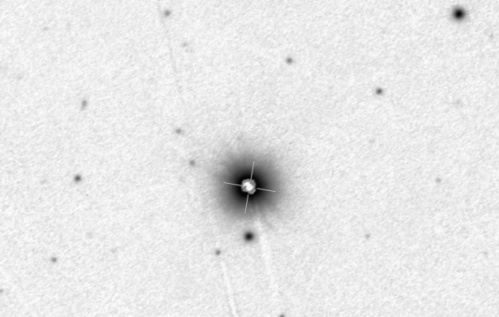

Reference Image (PanSTARRS) - Detail
PanSTARRS DR Image captured through Aladin,  Rescaled, Negative, Rotated 80 deg
This PanSTARRS image contains more detail than either my own CCD Image or DSS2 image
and shows some of the small galaxies seen in the JWST background
Image has to be rotated 80 deg left to align with JWST image

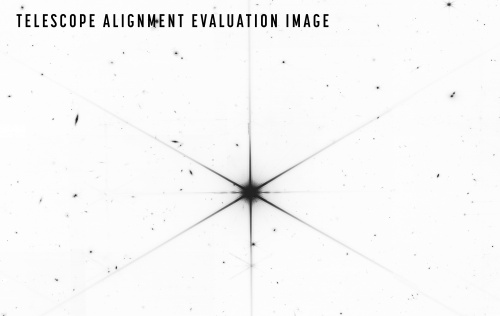

JWST Image - Negative
JWST pocket guide ( jwst-pocket-guide.pdf) states the NirCam FOV to be 2 x 132" x 132" with gaps
suggesting either 2.2' x 2.2'  or  4.4' x 4.4' as expected FOV sizes
Original Picture 5437 x 3438 pixels.  Assuming this is the original image size and that NirCam pixel scale imaging
is 0.031 arc sec/px (from  jwst-pocket-guide.pdf) then the Image FOV is 2.809' x  1.776'
Certain artefacts in original full size picture suggest at least one picture join which might
explain the difference is the FOV from that initially expected
Orientation of JWST image isn't given but has been determined to be rotated 80 deg from north.
(Image Credits: NASA/STScI)

12" LX200 Image - aligned and cross-matched to JWST Image
Rectangle shows approximate area equivalent to JWST image
My CCD image (10 minute total exposure) shows a couple of the background stars seen
in the JWST image but not surprisingly it show none of the faint distant galaxies that JWST can see.
On the otherhand outside of JWST field of view, my CCD Image has captured the galaxy PGC 61099 (see image)

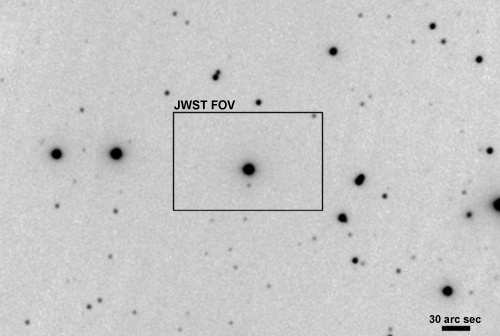

Negative CCD Image (125% size, square root scale, rotated 80 deg (left), cropped)
5 x 120s exposure (average combine), 3x3 binning, C Filter
2022-03-17 03:41 UT (#986018-22)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2


See earlier image of HD 84406 - Star ("JWST mirror alignment star")  from 2022-02-14

Back to Top


PGC 61099 - Spiral Galaxy

PGC 61099 (Draco)
Spiral Galaxy in same field of view as 2MASS J17554042+6551277
Annotated CCD Image (70% size, square root scale)
5 x 120s exposure (average combine), 3x3 binning, C Filter
2022-03-17 03:41 UT (#986018-22)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

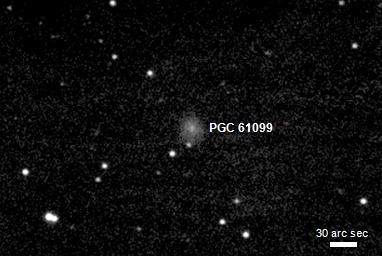

PGC 61099 - Detail
