| 12P/Pons-Brooks - 2024-02-13 pm (passing through Lacerta) Sun Distance 1.42 AU (approaching) Earth Distance 1.80 AU (269.3 million km) |
12P/Pons-Brooks - 2024-02-13 pm Detail Autoguided on offset star using PHD2 with Lock Shift set at the comet's rate of motion (Ra 175.24 arcsec/hr, Dec -9.60 arcsec/hr) |
|
 |
 |
|
| Annotated CCD Image (50% size, log scale) 90s exposure (single frame), 3x3 binning, Clear Filter 2024-02-13 20:00 UT (#1185034) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Annotated CCD Image (100% size, log root scale, cropped) 7 x 90s exposure (average combine), 3x3 binning, Clear Filter 2024-02-13 20:06 UT (#1185034-40) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
|
| 12P/Pons-Brooks - 2024-02-13 pm Detail | 12P/Pons-Brooks - 2024-02-13 pm Detail | |
 |
 |
|
| Annotated false-colour CCD Image (50% size, log scale) 7 x 90s exposure (average combine), 3x3 binning, Clear Filter 2024-02-13 20:06 UT (#1185034-40) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Annotated false-colour CCD Image (100% size, log scale, cropped) Inverse Spectrum Image details as left |
|
| Images of 12P/Pons-Brooks on Comets 2023 Page >> | ||
| Images of 12P/Pons-Brooks on Comets 2024 Page >> |
Back to Top
| 13P/Olbers - 2024-02-13 (passing through Eridanus) Sun Distance 2.26 AU Earth Distance 2.26 AU (338.5 million km) Passing by faint background galaxies PGC 11038 (catalog mag +16.1), PGC 1116766 (catalog mag +16.5) & PGC 1115827 (catalog mag +16.8) |
13P/Olbers - 2024-02-13 Detail Autoguided on offset star using PHD2 with Lock Shift set at the comet's rate of motion (Ra 15.64 arcsec/hr, Dec 52.12 arcsec/hr) |
|
 |
 |
|
| Annotated CCD Image (50% size, square root scale) 3 x 60s exposure (average combine), 3x3 binning, Clear Filter 2024-02-13 21:11 UT (#1185064-66) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Annotated CCD Image (100% size, square root scale, cropped) 7 x 90s exposure (average combine), 3x3 binning, Clear Filter 2024-02-13 20:06 UT (#1185034-40) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
|
| Images of 13P/Olbers on Comets 2024 Page >> |
Back to Top
| 61P/Shajn-Schaldach - 2024-02-13 (passing through Leo) Sun Distance 3.71 AU (receeding) Earth Distance 2.73 AU (408.0 million km) Expected position of comet (not visible) is shown by white circle |
61P/Shajn-Schaldach - 2024-02-13 Detail Autoguided on offset star using PHD2 with Lock Shift set at the comet's rate of motion (Ra -27.47 arcsec/hr, Dec 11.66 arcsec/hr) |
|
 |
 |
|
| Annotated CCD Image (50% size, square root scale) 6 x 60s exposure (average combine), 3x3 binning, Clear Filter 2024-02-13 22:44 UT (#1185109-15) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Annotated CCD Image (100% size, square root scale, cropped) Image details as left |
|
| Images of 61P/Shajn-Schaldach on Comets 2023 Page >> | ||
| Images of 61P/Shajn-Schaldach on Comets 2024 Page >> |
Back to Top
| 62P/Tsuchinshan - 2024-02-14 (passing through Virgo) Sun Distance 1.40 AU (receeding) Earth Distance 0.51 AU (75.9 million km) |
62P/Tsuchinshan - 2024-02-14 Detail Autoguided on offset star using PHD2 with Lock Shift set at the comet's rate of motion (Ra 4.82 arcsec/hr, Dec 1.45 arcsec/hr) |
|
 |
 |
|
| Annotated CCD Image (50% size, square root scale) 5 x 90s exposure (average combine), 3x3 binning, Clear Filter 2024-02-14 03:29 UT (#1185217-22) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Annotated CCD Image (100% size, square root scale, cropped) Image details as left |
|
| 62P/Tsuchinshan - 2024-02-14 Detail | 62P/Tsuchinshan - 2024-02-14 Detail | |
 |
 |
|
| Annotated CCD Image (50% size, log scale) 5 x 90s exposure (average combine), 3x3 binning, Clear Filter 2024-02-14 03:29 UT (#1185217-22) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Annotated false-colour CCD Image (50% size, log scale) Inverse Spectrum Image details as left |
|
| Images of 62P/Tsuchinshan on Comets 2023 Page >> | ||
| Images of 62P/Tsuchinshan on Comets 2024 Page >> |
Back to Top
| 144P/Kushida - 2024-02-13 (passing through Taurus) Sun Distance 1.42 AU (approaching) Earth Distance 0.76 AU (113.8 million km) |
144P/Kushida - 2024-02-13 Detail Autoguided on offset star using PHD2 with Lock Shift set at the comet's rate of motion (Ra 110.62 arcsec/hr, Dec 10.07 arcsec/hr) |
|
 |
 |
|
| Annotated CCD Image (50% size, square root scale) 2 x 60s exposure (average combine), 3x3 binning, Clear Filter 2024-02-13 19:03 UT (#1185010-11) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Annotated CCD Image (100% size, square root scale, cropped) 8 x 60s exposure (average combine), 3x3 binning, Clear Filter 2024-02-13 19:07 UT (#1185010-18) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
|
| Images of 144P/Kushida on Comets 2009 Page >> | ||
| Images of 144P/Kushida on Comets 2023 Page >> | ||
| Images of 144P/Kushida on Comets 2024 Page >> |
Back to Top
| 207P/NEAT - 2024-02-13 (passing through Eridanus) Sun Distance 0.96 AU Earth Distance 0.29 AU (43.7 million km) |
207P/NEAT - 2024-02-13 Detail Autoguided on offset star using PHD2 with Lock Shift set at the comet's rate of motion (Ra 238.99 arcsec/hr, Dec -2.48 arcsec/hr) |
|
 |
 |
|
| Annotated CCD Image (50% size, square root scale) 90s exposure (single frame), 3x3 binning, Clear Filter 2024-02-13 18:53 UT (#1185006) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Annotated CCD Image (100% size, square root scale, cropped) 2 x 90s exposure (average combine), 3x3 binning, Clear Filter 2024-02-13 18:54 UT (#1185006-07) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
|
| Images of 207P/NEAT on Comets 2024 Page >> |
Back to Top
| C/2022 E2 (ATLAS) - 2024-02-13 (passing through Gemini) Sun Distance 4.13 AU (approaching) Earth Distance 3.23 AU (482.6 million km) |
C/2022 E2 (ATLAS) - 2024-02-13 Detail Autoguided on offset star using PHD2 with Lock Shift set at the comet's rate of motion (Ra -64.66 arcsec/hr, Dec 31.94 arcsec/hr) |
|
 |
 |
|
| Annotated CCD Image (50% size, square root scale) 2 x 60s exposure (average combine), 3x3 binning, Clear Filter 2024-02-13 23:37 UT (#1185132-33) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Annotated CCD Image (100% size, square root scale, cropped) 7 x 60s exposure (average combine), 3x3 binning, Clear Filter 2024-02-13 23:40 UT (#1185132-38) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
|
| Images of C/2022 E2 (ATLAS) on Comets 2023 Page >> | ||
| Images of C/2022 E2 (ATLAS) on Comets 2024 Page >> |
Back to Top
| AT 2022yok (Lepus) AT 2022yok (Type: CV) discovered 2022-10-24.402 UT by ZTF Alias: ZTF22abpyjrz Discovery Magnitude +16.74 (r-ZTF Filter) The object's spectrum is reported to be dominated by a blue continuum, with the H beta discerned as an absorption feature. These characteristics suggest that this object is a Galactic CV. ( TNS 2022yok ) |
| AT 2022yok - 2024-02-13 (T+477.5d) Image below (2024-02-13.895) was taken 477.5 days after discovery of 2022yok Position of earlier transient (not visible) is shown by white circle Non-Detection Limiting Magnitude +18.2 |
 |
| Annotated CCD Image (100% size, linear scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-02-13 21:38 UT (#1185076-80) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of AT 2022yok on Transients 2022 Page >> |
Back to Top
| AT 2023gqc (Auriga) AT 2023gqc (Type: ulens?) discovered 2023-04-17.432 UT by Gaia Alias: Gaia23bpn Discovery magnitude 11.40 (G-Gaia Filter) vs Historic magnitude 11.70 +/- 0.06 SD ( TNS 2023gqc | Gaia23bpn ) |
| AT 2023gqc - 2024-02-13 (T+302.5d) Image below (2024-02-13.954) was taken 302.5 days after discovery of 2023gqc Position of reported transient (bright) is shown by white cross-hairs Measured Magnitude + 11.80 (Clear Filter) |
 |
| Annotated CCD Image (100% size, linear scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-02-13 23:02 UT (#1185118-22) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of AT 2023gqc on Transients 2023 Page >> |
Back to Top
| AT 2023vqz (Auriga) In WISEA J064410.86+354644.6 AT 2023vqz (Type: QSO) discovered 2023-10-16.370 UT by Gaia Alias: Gaia23cxv Discovery magnitude 15.39 (G-Gaia Filter) vs Historic magnitude 16.31 +/- 0.25 SD Brightening in known QSO Gaia, 2019-04-11 18:20, mag 16.08 Gaia, 2020-03-13 07:16, mag 15.90 Gaia, 2023-04-09 20:40, mag 15.50 Gaia, 2023-10-16 10:40, mag 15.41 ( Whilst discovery alert only triggered on 2023-10-16 (at Historic Mag - 3 *SD) the QSO has been brighter than normal range (16.0-16.6) since 2020-03-13 ) ( TNS 2023vqz | Gaia23cxv ) |
| AT 2023vqz - 2024-02-13 (T+120.6d) Image below (2024-02-13.968) was taken 120.6 days after discovery of 2023vqz Position of reported transient (faint but distinct) is shown by white cross-hairs Measured Magnitude + 15.12 (Clear Filter) |
 |
| Annotated CCD Image (100% size, linear scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-02-13 23:23 UT (#1185125-29) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of AT 2023vqz (in WISEA Galaxy) on Transients 2023 Page >> |
Back to Top
| AT 2023aaky (Perseus) AT 2023aaky (Type: CV) discovered 2023-12-15.096 UT by Gaia Alias: Gaia23dql Discovery magnitude 11.62 (G-Gaia Filter) vs Historic Magnitude 11.97 +/- 0.07 SD Bright Gaia source brightens by 0.4 mag, previous events seen ( TNS 2023aaky | Gaia23dql ) |
| AT 2023aaky - 2024-02-13 (T+60.8d) Image below (2024-02-13.874) was taken 60.8 days after discovery of 2023aaky Position of reported transient (distinct) is shown by white cross-hairs Measured Magnitude +11.86 (Clear Filter) |
 |
| Annotated CCD Image (100% size, linear scale, cropped) 5 x 60s exposure (average combine), 3x3 binning, Clear Filter 2024-02-13 21:02 UT (#1185057-61) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of AT 2023aaky on Transients 2023 Page >> |
Back to Top
| AT 2024vf (Cancer) AT 2024vf (Type: CV) discovered 2024-01-09.678 UT by Tadashi Kojima Alias: TCP J09174122+0736487 Discovery magnitude 14.0 (Clear Filter) Corresponds to SDSS J091741.29+073647.4, Cataclysmic Binary Candidate with normal magnitude 21.5 ( TNS 2024vf ) |
| AT 2024vf - 2024-02-13 (T+35.3d) Image below (2024-02-13.992) was taken 35.3 days after discovery of 2024vf Position of reported transient (fading) is shown by white cross-hairs Measured Magnitude +16.37 (Clear Filter) |
 |
| Annotated CCD Image (100% size, linear scale, cropped) 5 x 60s exposure (average combine), 3x3 binning, Clear Filter 2024-02-13 23:52 UT (#1185141-45) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |

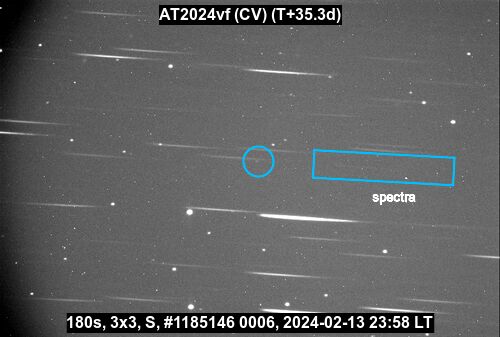

| AT 2024vf - Spectrum (T+35.3d) Exposure (180s) too short to capture spectrum of the now fading CV transient (mag +16.37) |
 |
| Annotated CCD Image (16% size) 180s exposure (single realtime frame), 3x3 binning, S filter 2024-02-13 23:58 UT (#1185146) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of AT 2024vf on Transients 2024 Page >> |
Back to Top
| IC 564 with SN 2023abqf (Sextans) SN 2023abqf (Type: Ia) discovered 2023-12-26.492 UT by ATLAS Alias: ATLAS23xws, Gaia24adb Discovery Magnitude 18.23 (orange-ATLAS Filter) Confirmed SN Ia Gaia, 2023-12-24 20:22 , 19.42 (pre-discovery) Gaia, 2024-01-04 08:30, 16.01 ( TNS 2024gy | Gaia24adb ) |
| IC 564 with SN 2023abqf - 2024-02-14 (T+49.5d) Image below (2024-02-14.039) was taken 49.5 days after discovery of 2023abqf Position of reported SN (fading) is indicated by white cross-hairs. Estimated Magnitude +16.4 (Clear Filter) |
 |
| Annotated CCD Image (150% size, square root scale, cropped) 4 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-02-14 01:03 UT (#1185168-71) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of SN 2023abqf (in IC 564) on Supernova 2023 Page >> |
Back to Top
| IC 1125 with SN 2024jz (Serpens) SN 2024jz (Type: Ia) discovered 2024-01-05.641 UT by ATLAS Alias: ATLAS24ahj Discovery Magnitude 17.73 (orange-ATLAS Filter) ( TNS 2024jz ) |
| IC 1125 with SN 2024jz - 2024-02-14 (T+39.5d) Image below (2024-02-14.160) was taken 39.5 days after discovery of 2024jz Position of reported supernova (fading but still distinct) is indicated by white cross-hairs. Measured Magnitude +15.45 (Clear Filter) |
 |
| Annotated CCD Image (150% size, square root scale, cropped) 2 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-02-14 03:53 UT (#1185230-31) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of SN 2024jz (in IC 1125) on Supernova 2024 Page >> |
Back to Top
| IC 2165 / PLN 221-12.1 (Canis Major) Ast.Now Deep Sky Challenge Object Feb 2024 [ Deep Sky Challanges (Ast.Now) ] [ Planetary Nebula ] |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 30s exposure (average combine), 3x3 binning, Clear Filter 2024-02-13 21:50 UT (#1185083-87) 12" LX200R (at f/10.4) + ST-10XME (Autoguided using TS 80mm APO + ZWO ASI178MC) |
| IC 2165 - Detail |
 |
| Annotated CCD Image (125% size, square root scale, cropped) Image details as above |

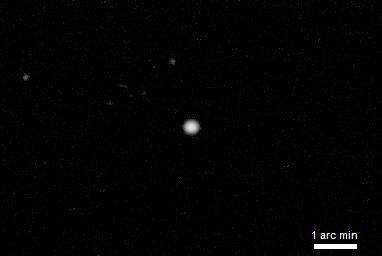

| IC 2165 - Ha Filter No extra detail can been seen in Ha image |
 |
| Annotated CCD Image (100% size, log scale, cropped) 3 x 30s exposure (average combine), 2x2 binning, Ha Filter 2024-02-13 22:03 UT (#1185095-99) 12" LX200R (at f/10.4) + ST-10XME (Autoguided using TS 80mm APO + ZWO ASI178MC) |
| IC 2165 - Spectral Image (SA 200 Filter) Zero-order star image on left First-order spectra on right Spectra shows classic Planetary Nebula spectrum with the two main emission lines |
 |
| Annotated CCD Image (100% size, linear scale, cropped) 5 x 90s exposure (average combine), 2x2 binning, S Filter 2024-02-13 21:56 UT (#1185088-92) 12" LX200R (at f/10.4) + ST-10XME (Autoguided using TS 80mm APO + ZWO ASI178MC) |
| IC 2165 - Earlier Images (Dec 2017) |
 |
| CCD Image (50% size) 2 x 90s exposure (average combine), 3x3 binning, C Filter 2017-12-22 03:31h UT (#608081-83) 12" LX200R (at f/10.4) + ST-10XME (Autoguided using TS 80mm APO + ZWO ASI178MC) |
 |
| CCD Image (100% size, cropped) Image details as above |
Back to Top
| M31 with AT 2024ccb (Andromeda) AT 2024ccb (Type: EGN) discovered 2024-02-10.594 UT by XOSS Alias: PSP24L, PNV J00425721+4119038, ATLAS24chb Discovery Mag 17.74 (Clear Filter) Low S/N spectrum resembles that of a Nova in M31 as already reported by Reguitti et al. (AstroNote 2024-50) ( TNS 2024ccb ) |
| Nova M31 AT 2024ccb - 2024-02-13
(T+3.3d) Image below (2024-02-13.858) was taken 3.3 days after discovery of 2024ccb Position of reported transient (faint, brightening slightly ?) is shown by white cross-hairs Measured Magnitude +15.96 (Clear Filter) |
 |
| Annotated CCD Image (100% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-02-13 20:43 UT (#1185050-54) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of Nova AT 2024ccb (in M31) on Transients 2024 Page >> |
Back to Top
| M101 with SN 2023ixf (Ursa Major) SN 2023ixf (Type: IIL) discovered 2023-05-19.727 UT by Koichi Itagaki Alias: ZTF23aaklqou, AT2023iyi, AT2023jgd, AT2023jfz, PSN J14033858+5418421, PS23dij Discoverer Mag 14.9 (Clear filter) ( Rochester Supernova site | TNS 2023ixf ) SN 2023ixf (Type: IIL) discovered 2023-05-19.727 UT by Koichi Itagaki at Mag 14.9 is located near M101's prominant star-forming region NGC 5461. The supernova resulted from a exploding red supergiant and lies just 21 million light years away. It's the closest core-collapse supernova to us since SN 1993J which lit up M81 (some 12 million ly away) in Spring 1993. The SN is designated of type II-L (L for 'linear') , which is characterised by a rapid rise to maximum brightness followed by a slow and gradual decrease, that is thought to be brought about by ejection of the dead stars' outer hydrogen shell. (from Article "Summer's Super Supernova", AstNow Magazine, Sep 2023, pp 36-39) |
| M101 with SN 2023ixf - 2024-02-14 (T+270.5d) Image below (2024-02-14.240) was taken 270.5 days after discovery of 2023ixf Position of supernova (fading) is shown by white cross-hairs Measured Magnitude +15.47 (Clear Filter) |
 |
| Annotated CCD Image (100% size, square root scale, cropped) 2 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-02-14 05:48 UT (#1185255-56) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of SN 2023ixf (M101) on Supernova 2023 Page |
Back to Top
| MCG +9-27-70 with SN 2023acha (Draco) SN 2023acha (Type: Ia) discovered 2023-12-31.638 UT by ATLAS Alias: ATLAS23ych Discovery Magnitude 16.3 ( Clear Filter) ( TNS 2023acha ) |
| MCG +9-27-70 with SN 2023acha - 2024-02-14 (T+44.6d) Image below (2024-02-14.249) was taken 44.6 days after discovery of 2023acha Position of reported SN (faint / fading?) is indicated by white cross-hairs. Estimated Magnitude +16.5 ? (Clear Filter) Poor quality image (poor sky transparency / cloud) |
 |
| Annotated CCD Image (150% size, square root scale, cropped) 3 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-02-14 06:03 UT (#1185261-63) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of SN 2023acha (in MCG +9-27-70) on Supernova 2023 Page >> |
Back to Top
| MCG -1-33-30 with SN 2024byg (Virgo) SN 2024byg (Type: II) discovered 2024-02-08.550 UT by ASAS-SN Alias: ASASSN-24ax Discovery Magnitude 16.3 ( Clear Filter) ( TNS 2024byg ) |
| MCG -1-33-30 - Irregular Galaxy MCG -1-33-30 / PGC 43600 catalog mag +15.2) Other galaxies in FOV are PGC 1057471 (catalog mag +16.3) PGC 1056162 (catalog mag +16.8) PGC 1057048 (catalog mag +17.6) |
 |
| Annotated CCD Image (50% size, square root scale) 2 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-02-14 02:29 UT (#1185197-98) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| MCG -1-33-30 with SN 2024byg - 2024-02-14 (T+5.6d) Image below (2024-02-14.101) was taken 5.6 days after discovery of 2024byg Position of reported SN (faint but distinct) is indicated by white cross-hairs. Measured Magnitude +15.94 (Clear Filter) Fairly poor quality image (poor/variable sky transparency) |
 |
| Annotated CCD Image (150% size, square root scale, cropped) 2 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-02-14 02:29 UT (#1185197-98) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of SN 2024byg (in MCG -1-33-30) on Supernova 2024 Page >> |
Back to Top
| NGC 3206 with SN 2024bch (Ursa Major) SN 2024bch (Type: IIn) discovered 2024-01-29.252 UT by Patrick Wiggins Alias: ATLAS24bmx, PS24aap, GOTO24hm Discovery Magnitude 15.5 ( Clear Filter) ( TNS 2024bch ) |
| NGC 3206 with SN 2024bch - 2024-02-14 (T+15.8d) Image below (2024-02-14.083) was taken 15.8 days after discovery of 2024bch Position of reported SN (relatively bright & distinct) is indicated by white cross-hairs. Measured Magnitude +13.10 (Clear Filter) |
 |
| Annotated CCD Image (125% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-02-14 02:09 UT (#1185189-93) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of SN 2024bch (in NGC 3206) on Supernova 2024 Page >> |
Back to Top
| NGC 3893 with AT 2023uhx (Ursa Major) AT 2023uhx (Type: LRN) discovered 2023-10-07.816 UT by Koichi Itagaki Discovery magnitude 17.2 (Clear filter) vs DSS Archival Image Luminous Red Nova based on its peak luminosity, and narrow Balmer and Fe II emission lines. ( TNS 2023uhx) |
| NGC 3893 with AT 2023uhx - 2024-02-14 (T+129.3d) Image below (2024-02-14.069) was taken 129.3 days after discovery of 2023uhx Position of reported transient (faint) is shown by white cross-hairs Measured Magnitude 17.30 (Clear Filter) |
 |
| Annotated CCD Image (125% size, square root scale, cropped) 3 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-02-14 01:49 UT (#1185182-86) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of AT 2023uhx (NGC 3893) on Transients 2023 Page >> |
Back to Top
| NGC 4216 with SN 2024gy (Virgo) SN 2024gy (Type: Ia, z=0.001183) discovered 2024-01-04.678 UT by Koichi Itagaki Alias: AT2023acjv, AT2024ix, ASASSN-24ac, PSN J12155131+1306561 Discovery Magnitude 16.3 ( Clear Filter) ( TNS 2024gy ) |
| NGC 4216 with SN 2024gy - 2024-02-14 (T+40.4d) Image below (2024-02-14.126) was taken 40.4 days after discovery of 2024gy Position of reported SN (distinct, brightening) is indicated by white cross-hairs. Measured Magnitude +13.83 (Clear Filter) |
 |
| Annotated CCD Image (100% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-02-14 03:10 UT (#1185210-14) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
|
SN 2024gy Spectra - 2024-02-14 (T+40.4d) Poor quality bright sky background, low SNR |
 |
| Annotated CCD Image (100% size, square root scale, rotated, cropped) 2 x 180s exposure (average combine), 2x2 binning, S Filter 2024-02-14 02:55 UT (#1185207-08) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| SN 2024gy Spectra - 2024-02-14 (T+40.4d) |
 |
|
Spectra Chart 2 x 180s exposure (average combine), 2x2 binning, S Filter 2024-02-14 02:55 UT (#1185207-08) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of SN 2024gy (in NGC 4216) on Supernova 2024 Page >> |
Back to Top
| NGC 5363 (Virgo) Alias: Herschel I-6, Hidden Treasures 72 [ Herschel 400 Objects ] [ Hidden Treasures ] |
 |
| Annotated CCD Image (50% size, log scale) 3 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-02-14 04:54 UT (#1185248-50) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| NGC 5363 - Detail |
 |
| Annotated CCD Image (100% size, log scale, cropped) Image details as above |
 |
| Negative CCD Image (100% size, log scale, cropped) Image details as above |
 |
| False Colour CCD Image (100% size, log scale, cropped) Inverse Spectrum Image details as above |
Back to Top
| NGC 6004 with SN 2024cld (Serpens) SN 2024cld (Type: II) discovered 2024-02-13.228 UT by GOTO Alias: GOTO24ql, ATLAS24clv Discovery Magnitude 17.97 ( Clear Filter) Spectrum contains clear narrow H Balmer and He II 4686A flash ionisation features typically seen in young type II SNe ( TNS 2024cld ) |
| NGC 6004 -Spiral Galaxy with SN 2024cld (T+1.0d) NGC 6004 (catalog mag +12.6) with other galaxies in FOV including PGC 1576050 (catalog mag +16.4), PGC 214426 (catalog mag +16.4) PGC 1577456 (catalog mag +17.4), PGC 1575768 (catalog mag +17.8) |
 |
| Annotated CCD Image (100% size, square root scale, cropped) 3 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-02-14 04:31 UT (#1185241-43) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| NGC 6004 with SN 2024cld - 2024-02-14 (T+1.0d) Image below (2024-02-14.185) was taken 1.0 days after discovery of 2024cld Position of reported SN (faint but brightening since discovery) is indicated by white cross-hairs. Measured Magnitude +16.25 (Clear Filter) |
 |
| Annotated CCD Image (150% size, square root scale, cropped) 3 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-02-14 04:31 UT (#1185241-43) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of SN 2024cld (in NGC 6004) on Supernova 2024 Page >> |
Back to Top
| NGC 6106 with SN 2024ahv (Hercules) SN 2024ahv (Type: Ib) discovered 2024-01-16.852 UT by Hidehiko Okoshi Alias: PS24vc, ATLAS24baw Discovery magnitude 16.2 (Clear Filter) ( TNS 2024ahv) |
| NGC 6106 with SN 2024ahv - 2024-02-14 (T+28.3d) Image below (2024-02-14.169) was taken 28.3 days after discovery of 2024ahv Position of reported transient (distinct) is shown by white cross-hairs Measured Magnitude +14.79 (Clear Filter) |
 |
| Annotated CCD Image (125% size, square root scale, cropped) 4 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-02-14 04:11 UT (#1185234-37) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of SN 2024ahv (in NGC 6106) on Supernova 2024 Page >> |
Back to Top
| NGC 7625 with SN 2023vyl (Pegasus) SN 2023vyl (Type: Ia) discovered 2023-10-28.393 UT by ATLAS Alias: ATLAS23urs, ZTF23abnprwj Discovery Magnitude 17.43 (orange-ATLAS Filter) ( TNS 2023vyl ) |
| NGC 7625 with SN 2023vyl - 2024-02-13 (T+108.4d) Image below (2024-02-13.803) was taken 108.4 days after discovery of 2023vyl Position of reported SN (faint, fading ?) is indicated by white cross-hairs. (cross-hairs shifted 5 pixels onto assumed SN object, ie onto the object that has clearly being fading since the first images acquired at T+10.5d) Estimated Magnitude +16.2 (Clear Filter) |
 |
| Annotated CCD Image (150% size, square root scale, cropped) 4 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-02-13 19:26 UT (#1185021-25) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
|
|
| NGC 7625 with SN 2023vyl (T+108.4d) - Alternate Picture Alternative position of reported SN (faded / not visible ?) is indicated by white cross-hairs (cross-hairs at original database coordinates for sn 2023vyl). |
 |
| Annotated CCD Image (150% size, square root scale, cropped) Image details |
|
|
| Images of SN 2023vyl (in NGC 7625) on Supernova 2023 Page >> |
Back to Top
| NGC 7735 with SN 2024we (Pegasus) SN 2024we (Type: Ia) discovered 2024-01-11.110 UT by ASAS-SN Alias: ASASSN-24ag, Gaia24ahp, ATLAS18whp, PS24pn Discovery Magnitude 17.0 ( g-Sloan Filter) Confirmed SN Ia Gaia, 2024-01-18 01:09,mag 17.09 ( TNS 2024we | Gaia24ahp ) |
| NGC 7735 - Elliptical Galaxy NGC 7735 (catalog mag +13.7) with other galaxies in FOV including PGC 197694 (catalog mag +16.1) PGC 1769491 (catalog mag +17.2) PGC 1767411 (catalog mag +17.2) |
 |
| Annotated CCD Image (100% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-02-13 20:24 UT (#1185043-47) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| NGC 7735 with SN 2024we - 2024-02-13 (T+33.7d) Image below (2024-02-13.844) was taken 33.7 days after discovery of 2024we Position of reported SN (not separately distinguishable) is indicated by white cross-hairs. |
 |
| Annotated CCD Image (100% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-02-13 20:24 UT (#1185043-47) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of SN 2024we (in NGC 7735) on Supernova 2024 Page >> |
Back to Top
| SN 2022vod (Hydra) SN 2022vod (Type: Ia) discovered 2022-09-21.604 UT by Gaia Alias: Gaia22dzh, ZTF22abjbvnv Discovery Magnitude 15.92 (G-Gaia Filter) Declined to 18.6 on 2022-12-14 ( TNS 2022vod | Gaia22dzh ) |
| SN 2022vod - 2024-02-13 (T+510.3d) Image below (2024-02-13.926) was taken 510.3 days after discovery of 2022vod Position of SN (faded & no longer visible) is shown by white cross-hairs Non-Detection Limiting Magnitude +19.5 (Clear Filter) |
 |
| Annotated CCD Image (125% size, square root scale, cropped) 4 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-02-13 22:21 UT (#1185102-05) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of SN 2022vod on Supernova 2022 Page >> |
Back to Top
| UGC 5886 with AT 2024hw (Sextans) AT 2024hw (Type: unk) discovered 2024-01-05.357 UT by ZTF Alias: ZTF24aaaibep Discovery Magnitude 17.394 (i-ZTF Filter) ( TNS 2024hw ) |
| UGC 5886 with SN 2024hw - 2024-02-14 (T+39.7d) Image below (2024-02-14.024) was taken 39.7 days after discovery of 2024hw Position of reported transient (faint) is indicated by white cross-hairs. Estimated Magnitude +16.5 (Clear Filter) |
 |
| Annotated CCD Image (150% size, square root scale, cropped) 4 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-02-14 00:41 UT (#1185160-63) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of SN 2024hw (in UGC 5886) on Supernova 2024 Page >> |
Back to Top
| This Web Page: | Images - Session 1185 (2024-02-13) |
| Last Updated : | 2024-11-03 |
| Site Owner : | David Richards |
| Home Page : | David's Astronomy Web Site |
