David's Astronomy Pages
Images - Session 1186 (2024-02-16)

Objects Session Notes
Bullet 12P/Pons-Brooks - Comet
Bullet 13P/Olbers - Comet
Bullet 207P/NEAT - Comet
Bullet C/2022 E2 (ATLAS) - Comet

Bullet AT 2023elx - CV Type Transient (in NGC 2345)
Bullet AT 2023rrr - Type QSO Transient (QSO J0136+4751)
Bullet AT 2023xvv - CV Type Transient
Bullet AT 2023xzr - Type YSO Transient
Bullet AT 2024vf - CV Type Transient

Bullet IC 564 - Spiral Galaxy with Type Ia Supernova 2023abqf

Bullet NGC 2345 - Open Cluster
Bullet NGC 4216 - Spiral Galaxy with Type Ia Supernova 2024gy
Bullet NGC 7735 - Elliptical Galaxy with Type Ia Supernova 2024we

Bullet UGC 4269 - Spiral Galaxy with Type Ia-91T Supernova 2023dxb

Bullet Variable Stars (photometric monitoring)
- BL Lac

Bullet Nearby Stars (astrometric monitoring)
- None


- Attempted All Night Session (10.9 hrs) interrupted by cloud in second half of night

- 12" LX200 + ST-10XME for imaging
- TS 80mm APO + ZWO ASI178MC for guiding & imaging
- Ambient Temperature: 1.0°C (min) , climbing later to 8°C
- CCD Temperature:   -20° /-25°C
- Notes from 2024-02-16 >>

-

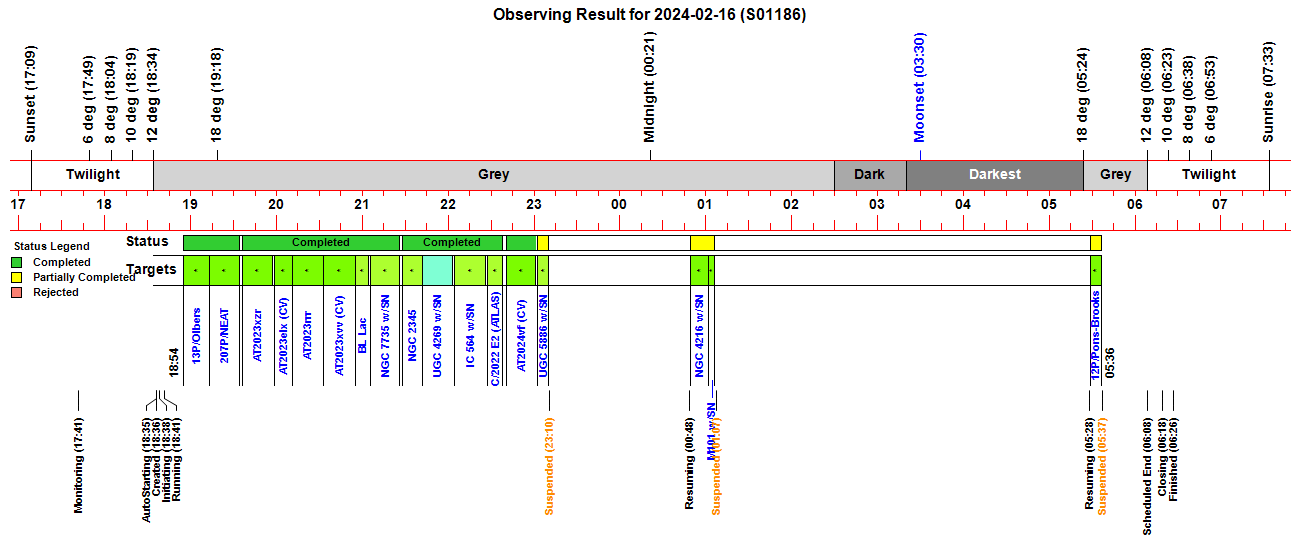

Observing Result


Back to Top


12P/Pons-Brooks - Comet (Outburst)

12P/Pons-Brooks - 2024-02-17
(passing through Lacerta)

Sun Distance 1.38 AU (approaching)
Earth Distance 1.77 AU (265.3 million km)
   12P/Pons-Brooks -  2024-02-17 Detail
Autoguided on offset star using PHD2 with Lock Shift
set at the comet's rate of motion
(Ra 179.92 arcsec/hr, Dec -13.52 arcsec/hr)
Image   Image
Annotated CCD Image (50% size, log scale)
90s exposure (single frame), 3x3 binning, Clear Filter
2024-02-17 05:33 UT (#1186135)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
  Annotated CCD Image (100% size, log root scale, cropped)
Image details as left

12P/Pons-Brooks - 2024-02-17 Detail    12P/Pons-Brooks - 2024-02-17 Detail
Image   Image
Annotated false-colour CCD Image (50% size, log scale)
90s exposure (single frame), 3x3 binning, Clear Filter
2024-02-17 05:33 UT (#1186135)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
  Annotated false-colour CCD Image
(100% size, log scale, cropped)
Inverse Spectrum
Image details as left

Images of 12P/Pons-Brooks on Comets 2023 Page >>
Images of 12P/Pons-Brooks on Comets 2024 Page >>

Back to Top


13P/Olbers - Comet

13P/Olbers - 2024-02-16
(passing through Cetus)
Sun Distance 2.23 AU (approaching)
Earth Distance 2.27 AU (339.6 million km)
   13P/Olbers - 2024-02-16 Detail
Autoguided on offset star using PHD2 with Lock Shift
set at the comet's rate of motion
(Ra 18.41 arcsec/hr, Dec 52.43 arcsec/hr)
Image   Image
Annotated CCD Image (50% size, square root scale)
3 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-02-16 19:03 UT (#1186006-08)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
  Annotated CCD Image (100% size, square root scale, cropped)
10 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-02-16 19:07 UT (#1186006-15)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of 13P/Olbers on Comets 2024 Page >>

Back to Top


207P/NEAT - Comet

207P/NEAT - 2024-02-16
(passing through Eridanus)

Sun Distance 0.97 AU (receeding)
Earth Distance 0.27 AU (41.1 million km)
   207P/NEAT - 2024-02-16 Detail
Autoguided on offset star using PHD2 with Lock Shift
set at the comet's rate of motion
(Ra 267.54 arcsec/hr, Dec 3.44 arcsec/hr)
Image   Image
Annotated CCD Image (50% size, square root scale)
2 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-02-16 19:18 UT (#1186018-19)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
  Annotated CCD Image (100% size, square root scale, cropped)
15 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-02-16 19:25 UT (#1186018-32)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of 207P/NEAT on Comets 2024 Page >>

Back to Top


C/2022 E2 (ATLAS) - Comet

C/2022 E2 (ATLAS) - 2024-02-16
(passing through Gemini)
Sun Distance 4.12 AU (approaching)
Earth Distance 3.24 AU (485.0 million km)
   C/2022 E2 (ATLAS) - 2024-02-16 Detail
Autoguided on offset star using PHD2 with Lock Shift
set at the comet's rate of motion
(Ra -63.39 arcsec/hr, Dec 30.80 arcsec/hr)
Image   Image
Annotated CCD Image (50% size, square root scale)
60s exposure (single frame), 3x3 binning, Clear Filter
2024-02-16 22:36 UT (#1186107)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
  Annotated CCD Image (100% size, square root scale, cropped)
7 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-02-16 22:34 UT (#1186101-07)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

 Images of C/2022 E2 (ATLAS) on Comets 2023 Page >>
 Images of C/2022 E2 (ATLAS) on Comets 2024 Page >>

Back to Top


AT 2023elx - CV Type Transient (in NGC 2345)

AT 2023elx (Canis Major)
AT 2023elx (Type: CV) discovered 2023-03-30.837 UT by Gaia
Alias: Gaia23bir
Discovery Magnitude 13.26 (G-Gaia Filter)
vs Historic Mag 13.65 +/- 0.08 SD
~0.3 mag rise in Be star
Gaia, 2022-03-15 19:07, mag 13.65
Gaia, 2022-10-07 22:28, mag 13.56
Gaia, 2022-11-07 04:11, mag 13.32
Gaia, 2023-03-04 20:14, mag 13.26
Gaia, 2023-11-18 05:22, mag 13.28
 ( TNS 2023elx | Gaia23bir )

AT 2023elx - 2024-02-16 (T+323.0d)
Image below (2024-02-16.837) was taken 323.0 days after discovery of 2023elx
Position of reported transient (distinct) is shown by white cross-hairs
Measured Mag +13.43 (Clear Filter)
Annotated CCD Image (100% size, linear scale, cropped)
4 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-02-16 20:08 UT (#1186043-47)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2023elx on Transients 2023 Page >>

Back to Top


AT 2023rrr - Type QSO Transient (QSO J0136+4751)

AT 2023rrr (Andromeda)
AT 2023rrr (Type: QSO) discovered 2023-09-02.139 UT by Gaia
Alias: Gaia23cfc
Discovery Magnitude 16.04 (G-Gaia Filter)
vs Historic Mag 18.43 +/- 0.778 SD
Brightening in known QSO  (QSO J0136+4751)
Gaia, 2022-02-24 22:20, mag 18.78
Gaia, 2023-08-08 21:24, mag 17.19
Gaia, 2023-09-02 03:20, mag 16.04
Gaia, 2023-12-08 08:00, mag 17.15
Gaia, 2023-12-16 06:19, mag 17.80
 ( TNS 2023rrr | Gaia23cfc )

AT 2023rrr - 2024-02-16 (T+167.7d)
Image below (2024-02-16.845) was taken 167.7 days after discovery of 2023rrr
Position of reported transient (very faint & fading) is shown by white cross-hairs
Measured Mag +17.85 (Clear Filter)
Annotated CCD Image (100% size, square root scale, cropped)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-02-16 20:25 UT (#1186050-54)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2023rrr on Transients 2023 Page >>

Back to Top


AT 2023xvv - CV Type Transient

AT 2023xvv (Cygnus)
AT 2023xvv (Type: CV) discovered 2023-11-02.121 UT by ZTF
Alias: ZTF23aboelln, Gaia23dkh
Discovery Magnitude 15.92 (r-ZTF Filter)
vs Prior Non-Detection Limiting Mag 17.31
Outburst in candidate CV
Gaia, 2023-11-27 14:02, mag 17.82
Gaia, 2023-12-25 05:57, mag 19.99
Gaia, 2024-01-21 05:47, mag 20.76
 ( TNS 2023xvv | Gaia23dkh )

AT 2023xvv - 2024-02-16 (T+106.7d)
Image below (2024-02-16.860) was taken 106.7 days after discovery of 2023xvv
Position of reported transient (faded & no longer visible) is shown by white cross-hairs
Non-Detection, Limiting Magnitude +17.8 (Clear Filter)
Transient appears to have fading and returning
towards probable normal mag range (19.0 to 21.0)
Annotated CCD Image (100% size, linear scale, cropped)
3 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-02-16 20:46 UT (#1186058-61)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2023xvv on Transients 2023 Page >>

Back to Top


AT 2023xzr - Type YSO Transient

AT 2023xzr (Orion)
AT 2023xzr (Type: YSO) discovered 2023-11-08.655 UT by Gaia
Alias: Gaia23dcm
Discovery magnitude 16.18 (G-Gaia Filter) vs Historic Magnitude 16.39 +/- 0.06 (SD)
Long slow brightening in YSO
 ( TNS 2023xzr  | Gaia23dcm )

AT 2023xzr - 2024-02-16 (T+100.2d)
Image below (2024-02-16.821) was taken 100.2 days after discovery of 2023xzr
Position of reported transient (distinct) is shown by white cross-hairs
Measured Magntitude  +13.18 (Clear Filter)
Annotated CCD Image (100% size, square root scale, cropped)
3 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-02-16 19:48 UT (#1186035-38)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2023xzr on Transients 2023 Page >>

Back to Top


AT 2024vf - CV Type Transient

AT 2024vf (Cancer)
AT 2024vf (Type: CV) discovered 2024-01-09.678 UT by Tadashi Kojima
Alias: TCP J09174122+0736487
Discovery magnitude 14.0 (Clear Filter)
Corresponds to SDSS J091741.29+073647.4,
Cataclysmic Binary Candidate with normal magnitude 21.5
 ( TNS 2024vf )

AT 2024vf - 2024-02-16 (T+38.3d)
Image below (2024-02-16.949) was taken 38.3 days after discovery of 2024vf
Position of reported transient (not visible) is shown by white cross-hairs
Non-Detection Limiting Mag +18.2 (Clear Filter)
Annotated CCD Image (100% size, linear scale, cropped)
5 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-02-16 22:49 UT (#1186110-14)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2024vf on Transients 2024 Page >>

Back to Top


IC 564 - Spiral Galaxy with Type Ia Supernova 2023abqf

IC 564 with SN 2023abqf (Sextans)
SN 2023abqf (Type: Ia) discovered 2023-12-26.492 UT by ATLAS
Alias: ATLAS23xws, Gaia24adb
Discovery Magnitude 18.23  (orange-ATLAS Filter)
Confirmed SN Ia
Gaia, 2023-12-24 20:22 , 19.42 (pre-discovery)
Gaia, 2024-01-04 08:30, 16.01
 ( TNS 2024gy  | Gaia24adb )

IC 564 with SN 2023abqf - 2024-02-16 (T+52.4d)
Image below (2024-02-16.928) was taken 52.4 days after discovery of 2023abqf
Position of reported SN (fading) is indicated by white cross-hairs.
Estimated Magnitude +16.7 (Clear Filter)
Annotated CCD Image (150% size, square root scale, cropped)
2 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-02-16 22:20 UT (#1186096-97)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2023abqf (in IC 564) on Supernova 2023 Page >>

Back to Top


NGC 2345 - Open Cluster

NGC 2345 (Canis Major)
 [ Open Star Clusters ]
Annotated CCD Image (70% size, linear scale)
6 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-02-16 21:37 UT (#1186077-83)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

NGC 2345 - Earlier Image (Dec 2023)
Annotated CCD Image (70% size, linear scale)
4 x 60s exposure (average combine), 3x3 binning, Clear Filter
2023-12-02 03:27 UT (#1170274-78)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2



Back to Top


NGC 4216 - Spiral Galaxy with Type Ia Supernova 2024gy

NGC 4216 with SN 2024gy (Virgo)
SN 2024gy (Type: Ia, z=0.001183) discovered 2024-01-04.678 UT by Koichi Itagaki
Alias: AT2023acjv, AT2024ix, ASASSN-24ac, PSN J12155131+1306561
Discovery Magnitude 16.3 ( Clear Filter)
 ( TNS 2024gy )

NGC 4216 with SN 2024gy - 2024-02-17 (T+43.4d)
No standard images acquired (due to cloud)



SN 2024gy Spectra - 2024-02-17 (T+43.4d)
Poor quality bright sky background, low SNR
Annotated CCD Image (100% size, square root scale, rotated, cropped)
2 x 180s exposure (average combine), 2x2 binning, S Filter
2024-02-17 00:57 UT (#1186126-27)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

SN 2024gy Spectra - 2024-02-17 (T+43.4d)
Very low signal/noise. Unable to get a proper spectrum
Spectra Chart
2 x 180s exposure (average combine), 2x2 binning, S Filter
2024-02-17 00:57 UT (#1186126-27)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2024gy (in NGC 4216) on Supernova 2024 Page >>

Back to Top


NGC 7735 - Elliptical Galaxy with Type Ia Supernova 2024we

NGC 7735 with SN 2024we (Pegasus)
SN 2024we (Type: Ia) discovered 2024-01-11.110 UT by ASAS-SN
Alias: ASASSN-24ag, Gaia24ahp, ATLAS18whp, PS24pn
Discovery Magnitude 17.0 ( g-Sloan Filter)
Confirmed SN Ia
Gaia, 2024-01-18 01:09,mag 17.09
 ( TNS 2024we | Gaia24ahp )

NGC 7735 with SN 2024we - 2024-02-16 (T+36.8d)
Image below (2024-02-16.882) was taken 36.8 days after discovery of 2024we
Position of reported SN (not separately distinguishable) is indicated by white cross-hairs.
Annotated CCD Image (100% size, square root scale, cropped)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-02-16 21:18 UT (#1186070-74)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2024we (in NGC 7735) on Supernova 2024 Page >>

Back to Top


UGC 4269 - Spiral Galaxy with Type Ia-91T Supernova 2023dxb

UGC 4269 with SN 2023dxb (Cancer)
SN 2023dxb (Type: Ia-91T) discovered 2023-03-26.059 UT by ATLAS
Alias: ATLAS23eix
Alerting Magnitude 17.63 (orange-ATLAS Filter)
 ( TNS 2023dxb )


UGC 4269 with SN 2023dxb - 2024-02-16 (T+327.8d)
Image below (2024-02-16.908) was taken 327.8 days after discovery of 2023dxb
Position of reported supernova (faded & no longer visible) is shown by white cross-hairs


Annotated CCD Image (150% size, square root scale, cropped)
4 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-02-16 21:54 UT (#1186086-89)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

UGC 4269 with SN 2023dxb - Earlier Image, 2023-04-14 (T+19.8d)
Image below (2023-04-14.897) was taken 19.8 days after discovery of 2023dxb
Position of reported supernova (distinct) is shown by white cross-hairs
Measured magnitude +14.96 (C Filter)


Annotated CCD Image (150% size, square root scale, cropped)
2 x 180s exposure (average combine), 3x3 binning, Clear Filter
2023-04-14 21:36 UT (#1112025-26)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2023dxb on (UGC 4269) Supernova 2023 Page >>

Back to Top
