David's Astronomy Pages
Images - Session 1193 (2024-02-26)

Objects Session Notes
Bullet 12P/Pons-Brooks - Comet
Bullet NGC 1051 - Spiral Galaxy (UGCA 40)
Bullet UGC 831 - Spiral Galaxy with Type IIb Supernova 2023wdd

Bullet Variable Stars (photometric monitoring)
- None

Bullet Nearby Stars (astrometric monitoring)
- None


- Evening Session (1.1 hrs effective) ending early due to Telescope Slewing issue and development of cloud. Session eventually closed by user due to forecast continuing cloud and potential rain.

- 12" LX200 + ST-10XME for imaging
- TS 80mm APO + ZWO ASI178MC for guiding & imaging
- Ambient Temperature: 0°C (min) rising quickly & reaching 3°C by end of session
- CCD Temperature:   -25°C
- Notes from 2024-02-26 >>

-

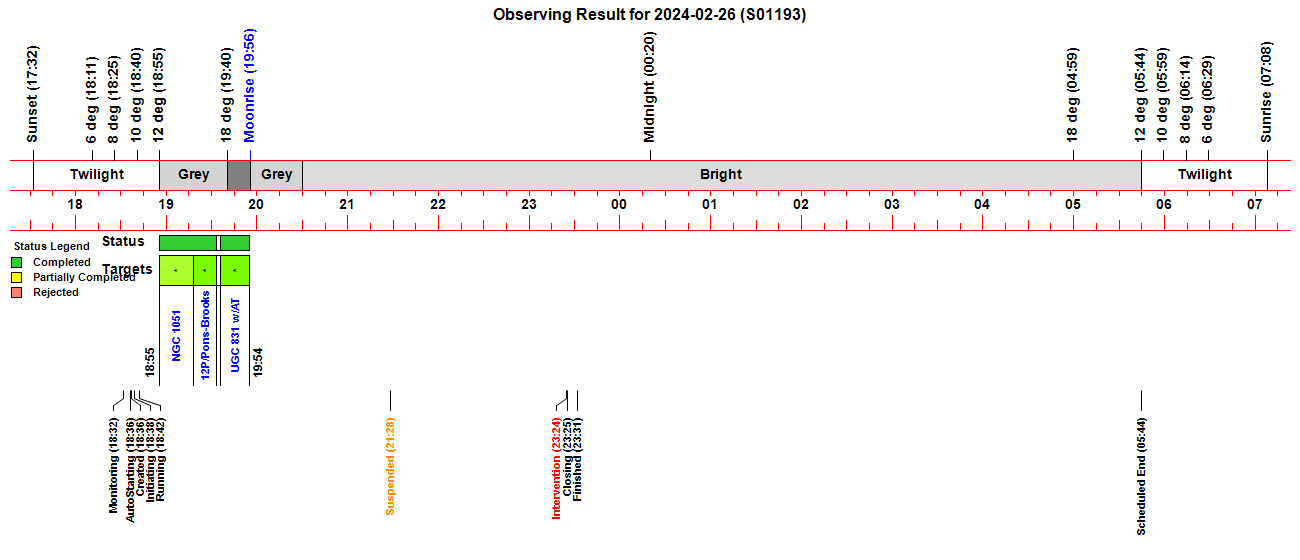

Observing Result


Back to Top


12P/Pons-Brooks - Comet (Outburst)

12P/Pons-Brooks - 2024-02-26
(passing through  Andromeda)

Sun Distance 1.25 AU (approaching)
Earth Distance 1.71 AU (255.5 million km)
   12P/Pons-Brooks -  2024-02-26 Detail
Autoguided on offset star using PHD2 with Lock Shift
set at the comet's rate of motion
(Ra 189.24 arcsec/hr, Dec -27.45 arcsec/hr)
Image   Image
Annotated CCD Image (50% size, log scale)
90s exposure (single frame), 3x3 binning, Clear Filter
2024-02-26 19:22 UT (#1193016)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
  Annotated CCD Image (100% size, log root scale, cropped)
7 x 90s exposure (average combine), 3x3 binning, Clear Filter
2024-02-26 19:28 UT (#1193016-22)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

12P/Pons-Brooks - 2024-02-26 Detail    12P/Pons-Brooks - 2024-02-26 Detail
Image   Image
Annotated false-colour CCD Image (50% size, log scale)
7 x 90s exposure (average combine), 3x3 binning, Clear Filter
2024-02-26 19:28 UT (#1193016-22)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
  Annotated false-colour CCD Image
(100% size, log scale, cropped)
Inverse Spectrum
Image details as left

Images of 12P/Pons-Brooks on Comets 2023 Page >>
Images of 12P/Pons-Brooks on Comets 2024 Page >>

Back to Top


NGC 1051 - Spiral Galaxy (UGCA 40)

NGC 1051 (Cetus)
Alias: UGCA 40 ( PGC 10128, catalog mag +13.4 or +12.8
Low Surface Brightness (LSB) Galaxy
[ UGCA Galaxies ]

Poor quality image (poor focus, altitude 18°)
Target to be again be rescheduled for a later session
Annotated CCD Image (125% size, square root scale, cropped)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-02-26 19:10 UT (#1193008-12)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2



Back to Top


UGC 831 - Spiral Galaxy with Type IIb Supernova 2023wdd

UGC 831 with SN 2023wdd (Andromeda)
SN 2023wdd (Type: IIb) discovered 2023-11-01.445 UT by ATLAS
Alias: ATLAS23uvt
Discovery Magnitude 17.96 (orange-ATLAS Filter)
(AT 2023wdd, Candidate Supernova
later confirmed as Type IIb Supernova
)
 ( TNS 2023wdd )

UGC 831 with SN 2023wdd - 2024-02-26 (T+117.4d)
Image below (2024-02-26.819) was taken 117.4 days after discovery of 2023wdd
Position of reported supernova (not visible) is shown by white cross-hairs
Very poor quality image (bad focus)
Annotated CCD Image (150% size, square root scale, cropped)
3 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-02-26 19:44 UT (#1193025-27)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2023wdd (in UGC 831) on Supernova 2023 Page >>

Back to Top
