Gallery of "UGCA Galaxies" imaged with my 12" LX200 telescope and ST-10XME Camera (2019-2020+)
Project was inspired from seeing a web page https://www.astronomy-mall.com/Adventures.In.Deep.Space/Starting off the New Year right.htm which showed pictures from 9 particular UGCA galaxies: UGCA 14, 17, 23, 24, 36, 61, 71 , 85 & 126
UGCA stands for "Uppsala General Catalogue Addendum". The 1973 UGC only covered galaxies north of -02° declination. It was one of the primary galaxy catalogues that were based on the first Palomar Sky Survey. It included 12,921 galaxies at least 1’ in diameter, complete to roughly 15th magnitude. An addendum was published the following year adding 400+ galaxies mostly south of the equator. The addendum is a hodgepodge of bright southern NGCs, large low surface brightness dwarfs and compact northern galaxies.
Back to Top
| UGCA 1 (Cetus) Alias: PGC 538, catalog mag +16.5) Galaxy partially hidden by foreground star GSC 4669:167 (mag +10.0) Relatively poor image. Target to be rescheduled fo a future session. |
 |
| CCD Image (100% size, square root scale, cropped) 3 x 180s exposure (average combine), 3x3 binning, C Filter 2020-11-19 21:19 UT (#830027-29) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Back to Top
| UGCA 11 (Cetus) Alias : NGC 247 / Herschel V-20 / Caldwell 62 [ Herschel 400 Objects ] [ Caldwell Objects ] |
|
| Annotated CCD Image (50% size, square root scale) 6 x 180s exposure (average combine), 3x3 binning, Clear Filter 2023-12-05 20:04 UT (#1172025-31) 12" LX200R (at f/5.7) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
|
| Negative CCD Image (50% size, square root scale) Image details as above |
Back to Top
| UGCA 13 (Sculptor) Alias: Caldwell 65 / NGC 253 / Herschel I-5 Declination -25 deg. Taken whilst at altitude of 7 deg (airmass 7.6) |
|
| Annotated CCD Image (Linear scale, 50% size) 17 x 60 sec exposure, 3x3 binning, C Filter 2009-09-20 21:45 h UT (#389358-74) 12" LX200R (at f/5.7) + ST-10XME |
| UGCA 13 - Detail |
|
| CCD Image (200% size, cropped, linear scale) Image details as above |
Back to Top
| UGCA 17 (Cetus) UGCA 17 / PGC 5341 (catalog mag +14.6) |
 |
| CCD Image (50% size, square root scale) 2 x 180s exposure (average combine), 3x3 binning, C Filter 2020-10-23 22:43 UT (#820133-35) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 17 - Detail |
 |
| CCD Image (100% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top

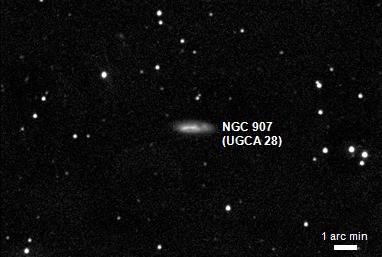

| UGCA 22 / NGC 907 (Cetus) Alias: UGCA 28, PGC 9054 (catalog mag +13.3) |
|
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2023-12-05 21:13 UT (#1172048-52) 12" LX200R (at f/5.7) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 22 / NGC 907 - Detail |
|
| Annotated CCD Image (125% size, square root scale, cropped) Image details as above |
|
| Negative CCD Image (125% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 24 (Cetus) Alias: PGC 7900 (catalog mag +14.0) |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2022-01-05 19:57 UT (#949030-34) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 24 - Detail |
 |
| CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 25 (Andromeda) Alias: PGC 8704, catalog mag +16.4) |
 |
| Annotated CCD Image (50% size, square root scale) 4 x 180s exposure (average combine), 3x3 binning, C Filter 2020-11-13 19:20 UT (#829050-54) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 25 - Detail |
 |
| CCD Image (150% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 26 / NGC 899 (Cetus) (Alias: PGC 8990, catalog mag +13.3) [ Irregular Galaxies ] Poor quality image (poor seeing & bright sky background) Target to be rescheduled for a later session |
 |
| Annotated CCD Image (125% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2023-12-01 23:12 UT (#1170161-65) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Back to Top
| UGCA 35 / NGC 988 (Cetus) (Bright foreground object is the +7.1 mag star HIP 12055) |
 |
| CCD Image (50% size, Linear Scaling) 3 x 120s exposure (average combine), 3x3 binning, C Filter 2017-12-13 22:53h UT (#607089-92) 12" LX200R (at f/10.4) + ST-10XME (Autoguided using TS 80mm APO + ZWO ASI178MC) |
| UGCA 35 / NGC 988 - detail |
 |
| CCD Image (100% size, Linear Scaling) Image details as above |
Back to Top
| UGCA 36 (Cetus) Alias: PGC 9923 (catalog mag +13.9) |
 |
| Annotated CCD Image (50% size, square root scale) 3 x 180s exposure (average combine), 3x3 binning, C Filter 2020-11-19 21:58 UT (#830054-56) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 36 - Detail |
 |
| CCD Image (125% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (125% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 38 / PGC 10128 (Cetus) Catalog mag +16.4 Galaxy is faint but visible |
 |
| Annotated CCD Image (50% size, square root scale) 3 x 180s exposure (average combine), 3x3 binning, C Filter 2021-12-05 21:38 UT (#939115-17) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 38 / PGC 10128 - Detail |
 |
| CCD Image (100% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 40 / NGC 1051 (Cetus) Alias: PGC 10128 (catalog mag +13.4 or +12.8 Low Surface Brightness (LSB) Galaxy Poor quality image (uneven sky background) Target to be rescheduled for a later session |
 |
| Annotated CCD Image (125% size, square root scale, cropped) 4 x 180s exposure (average combine), 3x3 binning, Clear Filter 2023-12-01 22:30 UT (#1170141-45) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Back to Top
|
UGCA 42 (Cetus) |
|
|
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2020-09-20 03:15 UT (#812225-29) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 42 - Detail |
 |
| CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 43 (Eridanus) Flat Galaxy Atlas Object Alias: NGC 1110 , PGC 10673 [ Flat Galaxies ] |
 |
| CCD Image (100% size, square root scale, cropped) 4 x 180s exposure (average combine), 3x3 binning, Clear Filter 2022-09-19 02:30 UT (#1039270-74) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Back to Top
| UGCA 44 (Eridanus) Alias: PGC 10682 (catalog mag ?) |
 |
| Annotated CCD Image (50% size, square root scale) 4 x 180s exposure (average combine), 3x3 binning, C Filter 2020-11-19 22:23 UT (#830060-64) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 44 - Detail Irregular galaxy is very faint Target to be reimaged using more exposures & better sky transparency |
 |
| CCD Image (100% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 45 / NGC 1145 (Eridanus) Alias: UGCA 45, PGC 10965 (catalog mag +13.7 or +12.9) Flat Galaxy Catalog Member [ UGCA Galaxies ] [ Flat Galaxies ] |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2023-12-01 23:34 UT (#1170168-72) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| NGC 1145 - Detail |
 |
| Annotated CCD Image (125% size, square root scale, cropped) Image details as above |
Back to Top

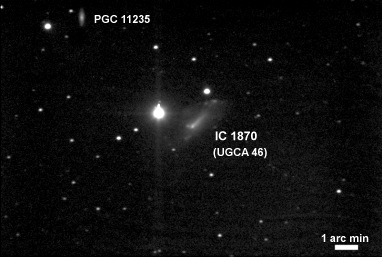

| UGCA 46 / IC 1870 (Eridanus) Alias: PGC 11202 (catalog mag +13.8 / +13.2) Adjacent galaxy PGC 11235 (catalog mag +15.7) |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2020-11-19 22:48 UT (#830067-71) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |

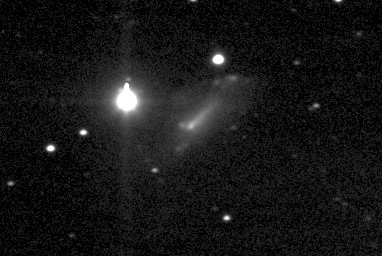

| IC 1870 / UGCA 46 - Detail Bright foreground star showing blooming streak is HIP 13830 (mag +7.7) |
 |
| CCD Image (100% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 47 (Eridanus) Alias: PGC 11248 (catalog mag +14.2) Bright star to upper left is HIP 13872 (mag +7.92) Other faint galaxies in field of view are PGC 1059307 (catalog mag +17.7), PGC 1061391 (catalog mag +18.1), PGC 1061080 (catalog mag +18.5) |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2020-11-22 21:01 UT (#832057-61) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 47 - Detail |
 |
| CCD Image (125% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (125% size, square root scale, cropped) Image details as above |
Back to Top

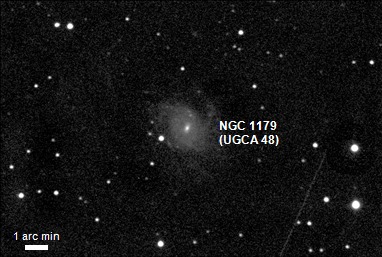

| UGCA 48 / NGC 1179 (Eridanus) Alias: PGC 11480 (catalog mag +12.8 or +11.9) |
|
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2023-12-05 22:07 UT (#1172066-70) 12" LX200R (at f/5.7) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 48 / NGC 1179 - Detail |
|
| Annotated CCD Image (100% size, square root scale, cropped) Image details as above |
|
| Negative CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top
| ? UGCA 57 / IC 298 / ARP 147 (Cetus) Ring Galaxy, J.Lowrey List |
 |
| Annotated CCD Image (100% size, linear scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2019-10-03 00:47 UT (#704097-101) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| ? UGCA 57 / IC 298 / ARP 147 - Detail |
 |
| CCD Image (150% size, square root scale, cropped) Image details as above |
| IC 298 / ARP 147 - Wider View Bright star is SAO 111034 (mag +9.3) |
 |
| Annotated CCD Image (50% size, linear scale) Image details as above |
Back to Top
| UGCA 58 / NGC 1247 (Eridanus) Flat Galaxy Atlas Object |
 |
| CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2019-09-01 02:22 UT (#687239-43) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 58 / NGC 1247 - Detail |
 |
| CCD Image (100% size, square root scale, cropped) Image Details as above |
 |
| Negative CCD Image (100% size, square root scale, cropped) Image Details as above |
Back to Top
| UGCA 62 (Eridanus) ARP 279 / NGC 1253 & 1253A Alias: PGC 12041 (catalog mag +11.7 or +12.6) Other faint galaxies in field of view are PGC 1082999 (catalog mag +17.9), PGC 1082706 (catalog mag +18.7) |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2020-11-22 23:53 UT (#832115-19) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 62 / ARP 279 - Detail |
 |
| CCD Image (100% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 66 / NGC 1300 (Eridanus) |
 |
| CCD Image (cropped) 4 x 120s (average combine), 3x3 binning, C filter, Autoguided 2010-11-15 22:33h UT (#437270-73) 12" LX200 (at f/9.7) + ST-10XME Auto-guided using ST-10ME Guide CCD |
 |
| Annotated CCD Image (100% size, square root scale, cropped) 4 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-11-06 01:45 UT (#1262137-40) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Back to Top
| UGCA 76 / NGC 1353 (Eridanus) Alias: PGC 13108 |
 |
| Annotated CCD Image (50% size, square root scale) 4 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-10-10 02:07 UT (#1252148-51) 12" LX200R (at f/10.4) + ST-10XME (Autoguided using TS 80mm APO + ZWO ASI178MC) |
| UGCA 76 / NGC 1353 - Detail |
 |
| Annotated CCD Image (125% size, square root scale, cropped) Image details as above |
Back to Top
|
IC 1953 (Eridanus) |
|
|
|
Annotated CCD Image (50% size, square root scale, cropped) 3 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-11-06 01:25 UT (#1262131-33) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Back to Top

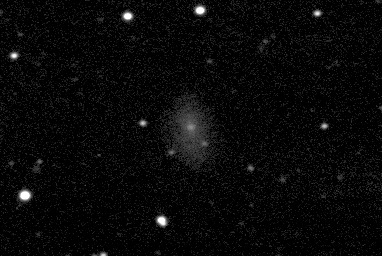

| UGCA 82 (Eridanus) Alias: PGC 13417 (catalog mag ?) with adjacent galaxies : PGC 1060662 (catalog mag +16.8), & PGC 1060990 (catalog mag +17.9) |
 |
| Annotated CCD Image (50% size, square root scale) 4 x 180s exposure (average combine), 3x3 binning, C Filter 2020-11-20 00:21 UT (#830103-07) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 82 - Detail |
 |
| CCD Image (100% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 92 (Camelopardalis) Alias: PGC 15439 Dec +63d 36m |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2020-11-13 20:31 UT (#829084-88) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 92 - Detail |
 |
| CCD Image (100% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 93 / NGC 1637 (Eridanus) (catalog mag +10.8) |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2020-11-20 00:42 UT (#830109-13) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 93 / NGC 1637 - Detail |
 |
| CCD Image (100% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 94 (Eridanus) Alias: PGC 15869 (catalog mag +15.0) |
 |
| Annotated CCD Image (70% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2021-01-16 21:19 UT (#850094-98) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |

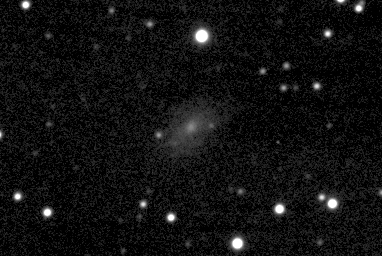

| UGCA 94 - Detail |
 |
| CCD Image (100% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top

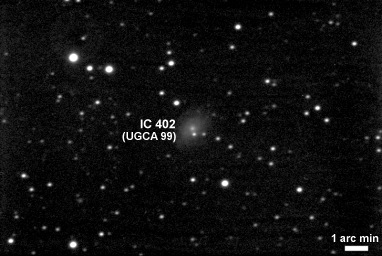

| UGCA 99 (Eridanus) Alias: IC 402 |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2020-11-23 00:25 UT (#832138-42) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 99 - Detail |
 |
| CCD Image (125% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (125% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 102 (Orion) Alias: PGC 16868 (catalog mag +15.0) |
 |
| CCD Image (50% size, square root scale) 4 x 180s exposure (average combine), 3x3 binning, C Filter 2020-11-22 01:30 UT (#831312-15) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 102 - Detail |
 |
| CCD Image (125% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 104 (Lepus) Alias: PGC 16894 (catalog mag +13.0) |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2020-11-23 00:46 UT (#832145-49) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 104 - Detail |
 |
| CCD Image (100% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 105 (Camelopardalis) Alias: PGC 16957 (catalog mag +14.5) Bright star in field of view is HIP 24444 (mag +8.3) Slight glare at top of image is from HIP 24348 (mag +6.5) located 1.1' outside of field of view |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 300s exposure (average combine), 3x3 binning, C Filter 2021-01-16 19:00 UT (#850020-24) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 105 - Detail Total exposure time 30 mins |
 |
| CCD Image (100% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 107 / NGC 1843 (Orion) (catalog mag +13.3 or +12.7) |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2020-11-23 01:09 UT (#832151-55) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 107 / NGC 1843 - Detail |
 |
| CCD Image (125% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (125% size, square root scale, cropped) Image details as above |
Back to Top
| IC 421 (Orion) Alias: UGCA 111 (catalog mag +16.4 ) [ UGCA Galaxies ] |
 |
| Annotated CCD Image (50% size, square root scale) 4 x 180s exposure (average combine), 3x3 binning, C Filter 2022-02-22 20:07 UT (#975028-32) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| IC 421 - Detail |
 |
| CCD Image (125% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (125% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 114 (Lepus) Alias: PGC 17978 (catalog mag +13.0) |
 |
| Annotated CCD Image (50% size, square root scale) 3 x 180s exposure (average combine), 3x3 binning, C Filter 2021-01-11 22:46 UT (#848078-80) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 114 - Detail |
 |
| Annotated CCD Image (100% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 116 (Orion) Alias: PGC 18096 (catalog mag +15.5) |
 |
| CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2020-11-22 01:59 UT (#831327-31) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 116 - Detail |
 |
| CCD Image (105% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top
|
UGCA 121 (Lepus) |
|
|
|
Annotated CCD Image (50% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-10-25 04:00 UT (#1259193-97) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
|
UGCA 121 - Detail |
|
|
|
Annotated CCD Image (150% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-10-25 04:00 UT (#1259193-97) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Back to Top
| UGCA 127 (Monoceros) Alias: PGC 18855 (catalog mag +14.2) |
 |
| CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2020-11-22 02:31 UT (#831341-45) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 127 - Detail |
 |
| CCD Image (100% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 132 (Monoceros) Alias: NGC 2377 (catalog mag +12.8 or +13.6) |
 |
| CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2021-01-23 00:08 UT (#853214-18) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 132 - Detail |
 |
| CCD Image (125% size, square root scale, cropped) Image details as above |
Back to Top
| NGC 2525 (Puppis) Alias: UGCA 135 (catalog mag +11.6 or +12.2) [ UGCA Galaxies ] |
 |
| Annotated CCD Image (50% size, square root scale) 4 x 180s exposure (average combine), 3x3 binning, C Filter 2022-02-22 21:41 UT (#975072-75) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| NGC 2525 - Detail |
 |
| CCD Image (125% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (125% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 140 (Lynx) Alias: PGC 23834 (catalog mag +15.1) [ UGCA Galaxies ] Other galaxy in same field of view PGC 23803 (catalog mag +16.9) Bright star with slight blooming streak is HIP 41651 (mag +8.6) |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2021-01-19 00:12 UT (#852034-38) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 140 - Detail |
 |
| CCD Image (150% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 150 (Hydra) Alias: PGC 25886 (catalog mag +11.93) |
 |
| CCD Image (50% size, square root scale) 4 x 180s exposure (average combine), 3x3 binning, C Filter 2020-11-26 04:32 UT (#833223-27) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 150 - Detail |
 |
| CCD Image (100% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 154 (Ursa Major) Alias: PGC 26188 (catalog mag +14.6) with adjacent galaxy PGC 26174 (catalog mag +16.1) |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2020-12-22 04:01 UT (#841139-43) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 154 - Detail |
 |
| CCD Image (150% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (150% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 157 / NGC 2835 (Hydra) Image taken at altitude of only 6.5 deg, galaxy is only just visible due to high airmass (8.2) and bright moonlight (87% phase) (At Declination -22d 21m, the highest altitude reached by the galaxy at my site is 10.25 deg) |
 |
| Annotated CCD Image (55% scale) 9 x 30s exposure (average combine), 3x3 binning, C Filter 2016-02-19 01:34h UT (#597188-98) 12" LX200R (at f/10.4) + ST-10XME |
| UGCA 157 / NGC 2835 - detail |
 |
| CCD Image (100% scale, cropped) Image details as above |
Back to Top
| UGCA 164 (Leo) Alias: PGC 26750 (catalog mag +14.7) |
 |
| CCD Image (50% size, square root scale) 3 x 180s exposure (average combine), 3x3 binning, C Filter 2020-11-22 03:11 UT (#831356-59) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 164 - Detail |
 |
| CCD Image (125% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2021-01-16 23:48 UT (#850181-85) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Back to Top
| UGCA 166 (Ursa Major) Alias: PGC 27183 (catalog mag +16.6) |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2020-11-20 02:22 UT (#830156-60) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 166 - Detail |
 |
| CCD Image (150% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 172 (Sextans) Alias: NGC 2974 (catalog mag +10.9 or +11.9) The bright foreground star in line with the galaxy is BD-03 2751 |
 |
| CCD Image (50% size, log scale) 4 x 180s exposure (average combine), 3x3 binning, C Filter 2020-12-22 05:01 UT (#841168-72) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 172 / NGC 2974 - Detail |
 |
| CCD Image (100% size, log scale, cropped) Image details as above |
 |
| Negative CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 174 (Sextans) Alias: PGC 27828 (catalog mag +14.9) Other galaxies in field of view are PGC 27817 (catalog mag ?), PGC 27825 (catalog mag +14.5) PGC 1046825 (catalog mag +17.3), PGC 1046387 (catalog mag +17.7), |
 |
| Annotated CCD Image (50% size, square root scale) 3 x 180s exposure (average combine), 3x3 binning, C Filter 2021-02-16 23:21 UT (#859120-22) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 174 - Detail |
 |
| CCD Image (125% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 175 (Sextans) Alias: PGC 27833 (catalog mag +13.8) [ UGCA Galaxies ] |
 |
| Annotated CCD Image (50% size, square root scale) 4 x 180s exposure (average combine), 3x3 binning, C Filter 2022-03-21 21:34 UT (#991048-51) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 175 - Detail |
 |
| Annotated CCD Image (125% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 184 (Ursa Major) Alias: PGC 28251 (catalog mag +16.4) |
 |
| Annotated CCD Image (50% size, square root scale) 4 x 180s exposure (average combine), 3x3 binning, C Filter 2021-04-15 21:42 UT (#886017-21) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 184 - Detail |
 |
| CCD Image (150% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 186 (Sextans) Alias: PGC 28408 |
 |
| CCD Image (50% size, log scale) 3 x 180s exposure (average combine), 3x3 binning, C Filter 2020-11-26 04:55 UT (#833230-33) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 186 - Detail galaxy is difficuly to discern due to the foreground star |
 |
| CCD Image (100% size, log scale, cropped) Image details as above |
Back to Top
| UGCA 188 (Leo) Alias: PGC 28627 (catalog mag +16.2) |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2020-12-21 01:32 UT (#840189-93) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 188 - Detail |
 |
| CCD Image (125% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (125% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 193 (Sextans) Alias: PGC 29086 (catalog mag +14.6) with several faint galaxies in same field of view: PGC 182114 (catalog mag +16.2), PGC 1036972 (catalog mag +16.5), PGC 1037398 (catalog mag +17.7) & PGC 1037313 (catalog mag +17.8) |
 |
| Annotated CCD Image (50% size, square root scale) 4 x 180s exposure (average combine), 3x3 binning, C Filter 2020-12-22 03:10 UT (#841122-25) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGC 5173 - Detail |
|
|
| CCD Image (100% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 199 / NGC 3115 (Sextans) Alias: UGCA 199 (catalog mag +9.1 or +10.1), Caldwell 53 [ Caldwell Objects ] Image crossed by several parallel tracking satelltites during exposures Target to be rescheduled for a future session |
|
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2022-01-29 00:32 UT (#961055-59) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 199 / NGC 3115 - Detail |
|
| CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 200 (Sextans) Alias: PGC 29299 (catalog mag ?) [ UGCA Galaxies, Irregular Galaxies ] Position of galaxy is shown by white circle. Image is crossed by a series of planes or satellites |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2021-02-17 00:23 UT (#859161-65) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 200 - Detail Galaxy is just visible above the background noise |
 |

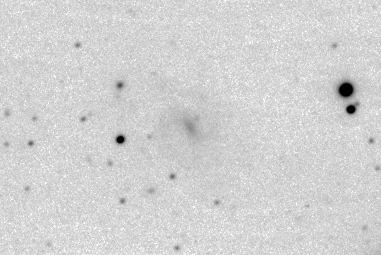

| Negative CCD Image (100% size, square root scale, cropped) Image details as above |
| UGCA 200 - Detail (Jan 2021) Galaxy (position indicated by white circle) is barely visible above the background noise. Target to be rescheduled for a later session |
 |
| CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 201 (Leo Minor) Alias : PGC 29347 (catalog mag +14.7) |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2021-01-12 02:29 UT (#848144-48) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 201 - Detail |
 |
| CCD Image (125% size, square root scale, cropped) Image details as above |
Back to Top

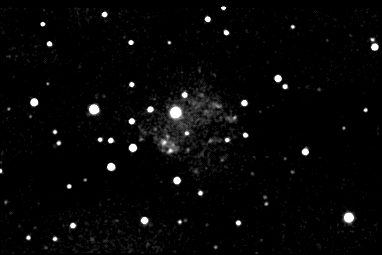

| UGCA 205 (Sextans) Alias: PGC 29653 |
 |
| CCD Image 5 x 180s exposure (summed combine), 2x2 binning, C filter, Smoothed 2007-03-15 23:04h UT (#183251-55) 8" LX200 + ST-7E |
Back to Top
| UGCA 206 (Ursa Major) Alias: PGC 29702 (Catalog mag +17.3) |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2020-11-23 02:04 UT (#832171-75) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 206 - Detail |
 |
| CCD Image (150% size, square root scale, cropped) Image details as above |
Back to Top

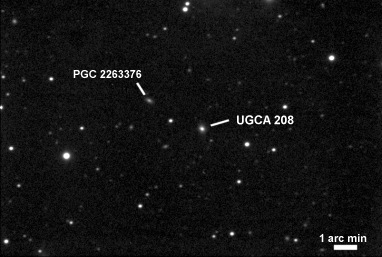

| UGCA 208 (Ursa Major) Alias: PGC 30005 (catalog mag +15.9) |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2020-11-20 03:14 UT (#830177-81) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 208 - Detail |
 |
| CCD Image (125% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (125% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 209 (Sextans) Alias: IC 600 (Catalog mag +12.5 or +14.0) with adjacent galaxies : PGC 112681 (catalog mag +18.6), PGC 1069553 (catalog mag +18.3), |
 |
| CCD Image (100% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2021-01-06 04:20 UT (#845043-47) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| IC 600 / UGCA 209 - Detail |
 |
| CCD Image (125% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 211 (Ursa Major) Alias: PGC 30715 (Catalog mag +16.3) |
 |
| Annotated CCD Image (50% size, square root scale) 3 x 180s exposure (average combine), 3x3 binning, C Filter 2021-01-12 19:59 UT (#849040-42) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 211 - Detail |
 |
| CCD Image (125% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 214 (Sextans) Alias: NGC 3321 (Catalog mag +13.5 or +13.7 |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2021-01-12 03:13 UT (#848152-56) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 214 - Detail |
 |
| CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 217 (Sextans) Alias: PGC 31979 (Catalog mag +14.2) |
 |
| CCD Image (100% size, square root scale, cropped) 180s exposure (single frame), 3x3 binning, C Filter 2021-01-12 03:30 UT (#848159) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Back to Top
| UGCA 219 (Ursa Major) Alias: PGC 32356 (catalog mag +15.0) |
 |
| Annotated CCD Image (50% size, square root scale) 4 x 180s exposure (average combine), 3x3 binning, C Filter 2020-11-20 03:35 UT (#830184-87) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 219 - Detail |
 |
| CCD Image (125% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (125% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 220 Ursa Major) Alias : PGC 32385 Galaxy (circled) has very low surface brightness and is almost invisible in image below despite its longer exposure (35 min total). |
 |
| Annotated CCD Image (50% size, square root scale) 7 x 300s exposure (average combine), 3x3 binning, C Filter 2021-01-09 00:35 UT (#847182-88) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 220 - Detail Galaxy is visible against the noisy and uneven background 35 min total exposure |
 |
| CCD Image (100% size, square root scale, cropped) Image details as above |
 |
Back to Top
| UGCA 225 (Leo Minor) Alias: PGC 33486 (catalog mag +15.7) Other galaxies in field of view : PGC 33458 (catalog mag +15.5), PGC 1854827 (catalog mag +18.0) bright star in upper left of view is HIP 54148 (mag +7.9) |
 |
| CCD Image (50% size, square root scale) 4 x 180s exposure (average combine), 3x3 binning, C Filter 2020-11-26 06:13 UT (#833263-67) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 225 - Detail |
 |
| CCD Image (150% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 228 (Crater) Alias: PGC 34006 (catalog mag +14.4) Other small galaxy in field of view is PGC 170118 (catalog mag +15.4) |
 |
| CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2021-01-19 04:17 UT (#852157-61) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 228 - Detail |
 |
| CCD Image (100% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top

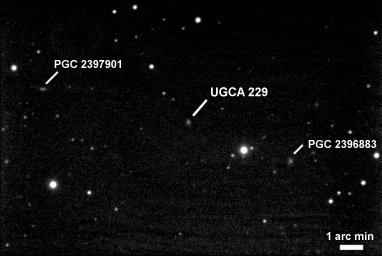

| UGCA 229 (Ursa Major) Alias : PGC 34094 (catalog mag +17.1) with adjacent galaxies PGC 2396883 (catalog mag +17.5), PGC 2397901 (catalog mag +17.7) |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2020-11-22 22:37 UT (#832090-94) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |

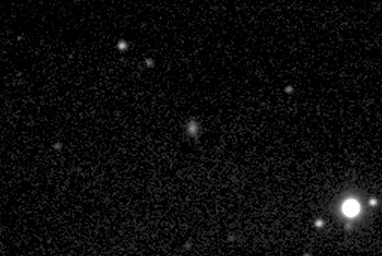

| UGCA 229 - Detail |
 |
| CCD Image (150% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 233 (Ursa Major) Alias: PGC 34670 (Catalog mag +14.9) [ UGCA Galaxies ] |
| UGCA 233 with adjacent galaxies PGC 2469743 (catalog mag +16.2), PGC 34650 (catalog mag +16.4), PGC 2470239 (catalog mag +16.4), PGC 2472564 (catalog mag +16.6) PGC 2468434 (catalog mag +16.8), PGC 2468029 (catalog mag +16.9), PGC 2469444 (catalog mag +17.1), PGC 2468484 (catalog mag +17.5), PGC 2472365 (catalog mag +17.8) |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2022-01-09 01:41 UT (#951017-21) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 [ 70 % size, negative image ] |
| UGCA 233 - Detail |
 |
| Annotated CCD Image (150% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (150% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 205 (Sextans) Alias: NGC 3672 NGC 3672 with SN 2007bm Image below (2007-05-07.95) was taken 17 days after discovery Estimated magnitude of 2006bm is +14 to +15 (C filter). |
 |
| Annotated CCD Image (100% size, linear scale) 3 x 120s exposure (average combine), 2x2 binning, C filter 2007-05-07 22:49h UT (#196022-24) 8" LX200 + ST-7E |

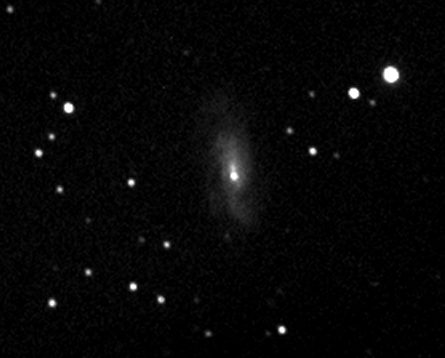

| NGC 3672 with SN 2007bm - Detail |
 |
| CCD Image (200% size, linear scale, cropped) Image details as above |
Back to Top
| UGCA 239 (Ursa Major) Alias: PGC 35678 (catalog mag +15.9) Other galaxies in field of view are PGC 2491131 (catalog mag +16.9), PGC 2491687 (catalog mag +17.9), PGC 2492433 (catalog mag +18.0) |
 |
| CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2021-01-22 22:30 UT (#853178-82) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 239 - Detail |
 |
| CCD Image (150% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 240 (Ursa Major) Alias: PGC 35813 (catalog mag +17.9) [ UGCA Galaxies ] Adjacent galaxies are: PGC 2545621(catalog mag+17.2), PGC 2549810 (mag +17.9) & PGC 2547753 (catalog mag +18.1) Bright star in FOV is HIP 56593 (mag +8.47) |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2022-01-01 21:25 UT (#947088-92) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 240 - Detail |
 |
| Annotated CCD Image (125% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (125% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 241 (Crater) Alias: PGC 36217 (catalog mag +13.6) [ UGCA Galaxies ] |
 |
| Annotated CCD Image (50% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2021-04-01 22:22 UT (#879046-50) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 241 - Detail |
 |
| CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 244 (Ursa Major) Alias: PGC 36322 (catalog mag +16.7) Other galaxies in field of view: PGC 2075166 (catalog mag +17.3), PGC 2075551 (catalog mag +17.9), PGC 2074023 (catalog mag +18.1), PGC 2073759 (catalog mag +18.9) |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2020-11-28 05:53 UT (#835308-12) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 244 - Detail |
 |
| CCD Image (150% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 249 (Virgo) Alias: PGC 37202 (catalog mag +14.8) [ Irregular Galaxies ] Other galaxies in field of view are PGC 1068326 (catalog mag +18.4), PGC 1068828 (catalog mag +18.6) |
 |
| CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2021-01-19 03:34 UT (#852143-47) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 249 - Detail |
 |
| CCD Image (100% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 252 (Crater) Alias: PGC 37348 Catalog mag +15.2 [ UGCA Galaxies ] |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2022-02-08 02:46 UT (#966080-84) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 252 - Detail |
 |
| Annotated CCD Image (125% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (125% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 256 (Corvus) Alias: PGC 37667 (Catalog mag +16.1) [ Irregular Galaxies ] |
 |

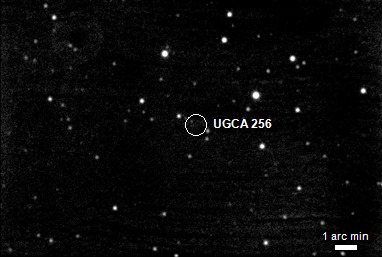

| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2022-03-05 02:05 UT (#981048-52) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 256 - Detail Even though the total integration time is 15 minutes the galaxy's very low surface brightness makes it too dim to see in image below |
 |
| Annotated CCD Image (125% size, square root scale, cropped) Image details as above |
| Galaxy is just visible in the negative image below |
 |
| Negative CCD Image (125% size, square root scale, cropped) Image details as above |
| UGCA 256 - Reference Image |
 |
| DSS2 Colour Image from Aladin |
Back to Top
| UGCA 258 (Corvus) [ Irregular Galaxies ] |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2022-01-29 02:19 UT (#961089-93) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 258 - Detail |
 |
| CCD Image (125% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 259 (Ursa Major) Alias: PGC 37722 (Catalog mag +16.2) Other galaxies in field of view are LEDA 3098275 (catalog mag ?), PGC 2270931 (catalog mag +16.6), PGC 2269772 (catalog mag +18.1), PGC 2270110 (catalog mag +18.3) |
 |
| CCD Image (50% size, square root scale) 2 x 180s exposure (average combine), 3x3 binning, C Filter 2021-01-13 05:55 UT (#849105-06) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 259 - Detail |
 |
| CCD Image (100% size, square root scale, cropped) Image details as above |
 |
| Annotated Negative CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 260 (Corvus) Alias : ARP 22 / NGC 4027 / Herschel II-296 |
||
 |
 |
|
| CCD Image (75% size, cropped) 5 x 120s exposure (average combine), 2x2 binning, C filter, 2010-03-09 23:19h UT (#416336-40) 12" LX200R (at f/9.7) + ST-10XME |
Negative CCD Image (75% size, cropped) Image details as left |
Back to Top
| UGCA 262 (Ursa Major) Alias: PGC 37862 (catalog mag +17.6) [ UGCA Galaxies ] Other galaxies in same field of view PGC 2302468 (catalog mag +17.5), PGC 2303775 (catalog mag +17.6), PGC 2303818 (catalog mag +17.9), PGC 2305424 (catalog mag +18.1) |
 |
| CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2021-02-11 03:26 UT (#858213-17) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 262 - Detail |
 |
| CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 269 (Corvus) Alias: NGC 4094 (catalog mag +12.0 or 12.5). [ UGCA Galaxies ] |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2022-02-05 03:39 UT (#963218-22) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 269 - Detail |
 |
| CCD Image (125% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (125% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 271 (Canes Venatici) Alias: PGC 38481 [ Irregular Galaxies ] |
 |
| CCD Image (50% size, square root scale) 3 x 300s exposure (average combine), 3x3 binning, C Filter 2021-05-01 00:31 UT (#893052-54) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 271 - Detail UGCA 271 is faint but distinct |
 |
| CCD Image (125% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (125% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 275 (Virgo) Alias: PGC 39146 (catalog mag +15.8) UGCA 275 (position indicated by white circle) is very faint. [ Irregular Galaxies ] Other galaxies in same field of view NGC 4207 (catalog mag +12.9 or +13.6) IC 3071 (catalog mag ?) |
 |
| CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2021-02-11 02:07 UT (#858185-89) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 275 - Detail |
 |
| CCD Image (100% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 276 (Canes Venatici) Alias: PGC 39145 (catalog mag +17.7) [ Irregular Galaxies ] Position of UGCA 276 (very faint) is shown by white circle Bright area in top left of image is part of galaxy NGC 4214 |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2022-01-02 04:05 UT (#947244-48) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 276 - Detail |
 |
| Annotated CCD Image (100% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 279 (Virgo) Alias: PGC 40339 (Catalog mag +15.6 [ UGCA Galaxies ] Other galaxies in same field of view PGC 40404 & 40405 (catalog mag +16.5) PGC 1266425 (catalog mag +18.5) |
 |
| CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2021-02-11 02:29 UT (#858192-96) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 279 - Detail |
 |
| CCD Image (125% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 281 (Canes Venatici) Alias: PGC 40665 (catalog mag +15.4) [ UGCA Galaxies ] Poor quality image (single frame) Target to be rescheduled for a future session |
 |
| Annotated CCD Image (150% size, square root scale, cropped) 180s exposure (single frame), 3x3 binning, Clear Filter 2024-02-13 00:25 UT (#1184106) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Back to Top
| UGCA 282 (Virgo) Alias: PGC 41291 (catalog mag +14.0) [ UGCA Galaxies ] Other galaxies in field of view : PGC 1004370 (catalog mag +17.3), PGC 1004281 (catalog mag +17.3), PGC 1004142 (catalog mag +17..8), PGC 1004378 (catalog mag +18.0), |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2021-04-01 23:52 UT (#879083-87) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 282 - Detail |
 |
| CCD Image (100% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 287 (Virgo) Alias: PGC 41743 (catalog mag +15.4) [ UGCA Galaxies ] Other faint galaxies in FOV include PGC 976158 (catalog mag +15.9), PGC 976178 (catalog mag +16.9), PGC 974560 (catalog mag +17.5) |
|
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-01-17 04:41 UT (#1183101-05) 12" LX200R (at f/5.7) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 287 - Detail |
|
| Annotated CCD Image (125% size, square root scale, cropped) Image details as above |
|
| Negative CCD Image (125% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 288 (Virgo) Alias: NGC 4546, Herschel I-160 UGCA 288 / NGC 4546 (catalog mag +10.3) with adjacent galaxies : PGC 41990 (catalog mag +15.7), PGC 116821 (catalog mag +17.5), PGC 116823 (catalog mag +18.2) |
 |
| Annotated CCD Image (50% size, log scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2020-04-27 22:24 UT (#775039-43) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| NGC 4546 - Detail |
 |
| CCD Image (100% size, log scale, cropped) Image details as above |
 |
| Negative CCD Image (100% size, log scale, cropped) Image details as above |
Back to Top
| UGCA 289 (Virgo) Alias: PGC 41965 (catalog mag +14.9) Other galaxies in same field of view: PGC 1010646 (catalog magnitude +16.1), PGC 1010602 (catalog mag +17.9) |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2021-02-11 04:10 UT (#858228-32) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 289 - Detail |
 |
| CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 290 (Canes Venatici) Alias: PGC 42134 (catalog mag +15.7) [ UGCA Galaxies ] Bright star in same field of view is HIP 61619 (mag +7.3) |
 |
| CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2021-01-22 23:01 UT (#853191-95) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 290 - Detail |
 |
| CCD Image (125% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 291 (Ursa Major) Alias: PGC 42259 (Catalog mag +15.6) Bright star in same field of view is HIP 61734 (mag +8.0) |
 |
| CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2021-01-13 01:51 UT (#849099-103) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 291 |
 |
| CCD Image (125% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 292 (Canes Venatici) Alias: PGC 42275 Catalog mag +16.1 [ UGCA Galaxies ] [ Irregular Galaxies ] |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2022-02-26 21:28 UT (#977031-35) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 292 - Detail Insufficient contrast to show much detail. Target to be rescheduled for a later session |
 |
| Annotated CCD Image (125% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 298 (Coma Berenices) Alias: PGC 43121 Catalog mag +15.6 [ UGCA Galaxies ] |
 |
| Annotated CCD Image (50% size, log scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2022-02-08 01:43 UT (#966059-63) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 298 - Detail |
 |
| Annotated CCD Image (150% size, log scale, cropped) Image details as above |
 |
| Negative CCD Image (150% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 299 / NGC 4691 (Virgo) UGCA 299 / NGC 4691 (catalog mag +11.1) |
 |
| CCD Image (50% size, log scale) 4 x 180s exposure (average combine), 3x3 binning, C Filter 2020-04-27 23:10 UT (#775057-60) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 299 / NGC 4691 - Detail |
 |
| CCD Image (100% size, log scale, cropped) Image details as above |
 |
| Negative CCD Image (100% size, log scale, cropped) Image details as above |
Back to Top
| UGCA 300 (Virgo) Alias: NGC 4697, Caldwell 52 |
 |
| CCD Image (50% size, log scale) 4 x 180s exposure (average combine), 3x3 binning, C Filter 2020-04-28 00:39 UT (#775087-91) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 300 & Adjacent Galaxies UGCA 300 / NGC 4697 (catalog mag +10.4) with PGC 170203 (catalog mag +15.1), PGC 1039472 (catalog mag +17.2), PGC 1040005 (catalog mag +18.1) |
 |
| Annotated CCD Image (50% size, log scale) Image details as above |
| UGCA 300 - Detail |
 |
| CCD Image (100% size, log scale, cropped) Image details as above |
 |
| Negative CCD Image (100% size, log scale, cropped) Image details as above |
Back to Top
| UGCA 301 (Virgo) Alias: NGC 4699, H I-29 Catalog mag +9.6 or +10.6, Hidden Treasures catalog object 68 [ Herschel 400 Objects ] [ Hidden Treasures ] Other faint galaxies in same field of view are PGC 183306 (catalog mag +17.0), PGC 1000221 (catalog mag +17.5) & PGC 1001825 (catalog mag +17.7) |
 |
| Annotated CCD Image (50% size, square root scale) 3 x 180s exposure (average combine), 3x3 binning, C Filter 2021-01-18 04:24 UT (#851071-73) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 301 - Detail |
 |
| CCD Image (100% size, log scale, cropped) Image details as above |
 |
| Negative CCD Image (100% size, log scale, cropped) Image details as above |
Back to Top

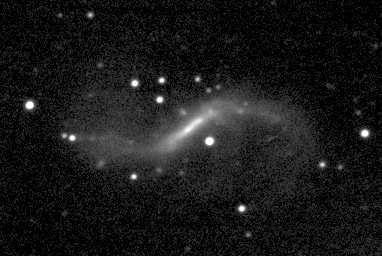

| UGCA 302 (Virgo) Alias: NGC 4731 (Catalog mag +11.5 or +12.1) [ UGCA Galaxies ] Faint galaxy in same field of view is PGC 1034071 (catalog mag +17.8) |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2021-01-18 05:12 UT (#851088-92) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 302 / NGC 4731 - Detail |
 |
| CCD Image (100% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top

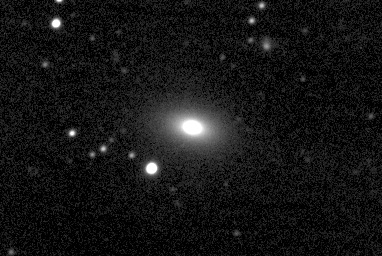

| NGC 4742 (Virgo) Alias: UGCA 303 (Catalog mag +11.3 or +12.4) Other faint galaxy in field of view is PGC 978915 (catalog mag +18.4) |
 |
| CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2021-01-19 03:55 UT (#852150-54) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| NGC 4742 / UGCA 303 - Detail |
 |
| CCD Image (100% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (100% size, log scale, cropped) Image details as above |
Back to Top
| UGCA 304 (Virgo) Alias: PGC 43679 (catalog mag +14.2) [ UGCA Galaxies ] With adjacent galaxies PGC 43690 (catalog mag +14.4), PGC 183366 (catalog mag +16.9), PGC 183375 (catalog mag +17.3), PGC 987099 (catalog mag +17.6), PGC 987583 (catalog mag +17.9) |
 |
| CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2021-04-13 22:59 UT (#884065-69) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 304 - Detail |
 |
| CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 305 (Virgo) Alias: PGC 43786 Catalog mag +17.4 [ Irregular Galaxies ] Other galaxies in FOV : PGC 170212 (catalog mag +15.4), PGC 1051440 (catalog +17.8) PGC 1050888 (catalog mag +18.1), PGC 1050657 (catalog mag +18.2) |
 |
| Annotated CCD Image (50% size, square root scale) 3 x 180s exposure (average combine), 3x3 binning, C Filter 2021-03-14 02:57 UT (#869162-66) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 305 - Detail UGC 305 with very low surface brightness |
 |
| Annotated CCD Image (150% size, square root scale, cropped) Image details as above |
 |
| Annotated negative CCD Image (150% size, square root scale, cropped) Image details as above |
Back to Top
| NGC 4775 (Virgo) Alias: UGCA 306 (catalog mag +11.1 or +12.2) [ UGCA Galaxies ] Other galaxies in same field of view: PGC 1030299 (catalog magnitude +16.3), PGC 1029832 (catalog mag +18.0) |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2021-02-11 04:32 UT (#858235-39) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| NGC 4775 - Detail |
 |
| CCD Image (100% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 310 (Virgo) Alias: PGC 44264 (catalog mag +14.5) [ Irregular Galaxies ] |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2021-03-23 02:20 UT (#874177-81) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 310 - Detail |
 |
| CCD Image (125% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (125% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 311 (Virgo) Alias: PGC 44358 (catalog mag +13.8) [ UGCA Galaxies ] [ Flat Galaxies ] Uncertain if UGCA 311 is a member of the Flat Galaxy Atlas or not |
 |
| Annotated CCD Image (50% size, square root scale) 4 x 180s exposure (average combine), 3x3 binning, C Filter 2021-03-23 02:41 UT (#874184-88) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 311 - Detail |
 |
| CCD Image (100% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 313 (Virgo) Alias: NGC 4856 , H I-68 (catalog mag +10.6 or +11.5) [ Herschel 400 Objects ] Other galaxies in same field of view are PGC 44645 (catalog mag +14.9), PGC 916026 (catalog mag +16.3) & PGC 916090 (catalog mag +16.8, |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2021-01-18 05:12 UT (#851088-92) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 313 - Detail |
 |
| CCD Image (100% size, square root scale, cropped) Image details as above |
 |
| CCD Image (100% size, log scale, cropped) Image details as above |
 |
| Negative CCD Image (100% size, log scale, cropped) Image details as above |
Back to Top
| UGCA 314 (Virgo) Alias: PGC 44735 (catalog mag +14.4) |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2021-01-12 05:51 UT (#848184-88) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 314 - Detail |
 |
| CCD Image (100% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 315 (Virgo) |
 |
| CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2020-04-27 23:30 UT (#775064-68) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 315 and adjacent galaxies UGCA 315 / NGC 4902 (catalog mag +10.9), Unnamed (calibrated mag +15.7) PGC 924035 (catalog mag +16.9), PGC 924586 (catalog mag +17.4) PGC 924415 (catalog mag +18.7) |
 |
| Annotated Negative CCD Image (50% size, square root scale) Image details as above |
| UGCA 315 - Detail |
 |
| CCD Image (100% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top
| NGC 4897 (Virgo) Alias: UGCA 316 (catalog mag +10.9 or +11.8) [ UGCA Galaxies ] |
 |
| CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2021-01-23 05:05 UT (#853324-28) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| NGC 4897 / UGCA 316 - Detail |
 |
| CCD Image (125% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 317 (Draco) UGCA 317 / PGC 44782 (catalog mag +15.8) |
 |
| Annotated CCD Image (50% size, log scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2020-05-24 23:04 UT (#784004-08) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 317 - Detail |
 |
| CCD Image (125% size, log scale, cropped) Image details as above |
 |
| Negative CCD Image (125% size, log scale, cropped) Image details as above |
Back to Top
| UGCA 318 (Virgo) UGCA 318 / NGC 4915 (catalog mag +12.1) with adjacent galaxies : NGC 4918 (catalog mag +14.4), PGC 1057500 (catalog mag +17.5), PGC 1055748 (catalog mag +17.7), PGC 1057794 (catalog mag +17.9), PGC 1055856 (catalog mag +18.5), |
 |
| Annotated CCD Image (50% size, log scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2020-04-27 23:53 UT (#775072-76) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 318 - Detail |
 |
| CCD Image (100% size, log scale, cropped) Image details as above |
 |
| Negative CCD Image (100% size, log scale, cropped) Image details as above |
Back to Top
| NGC 4941 (Virgo) Alias: UGCA 321 Catalog mag +11.2 or +12.0 [ UGCA Galaxies ] Other galaxies in FOV : PGC 117401 (catalog mag +17.6) |
 |
| Annotated CCD Image (50% size, square root scale) 4 x 180s exposure (average combine), 3x3 binning, C Filter 2021-03-14 02:02 UT (#869141-45) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| NGC 4941 - Detail |
 |
| CCD Image (100% size, square root scale, cropped) Image details as above |
 |
| Annotated negative CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 323 (Virgo) Alias: NGC 4958, H I-130 (catalog mag +10.7 or +11.7) [ Herschel 400 Objects ] Other faint galaxies in same field of view are PGC 1008827 (catalog mag +16.1), PGC 1008236 (catalog mag +17.3) PGC 1008141 (catalog mag +17.3), PGC 1010270 (catalog mag +17.4) |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2021-01-18 05:59 UT (#851103-07) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| NGC 4958 - Detail |
 |
| CCD Image (100% size, log scale, cropped) Image details as above |
 |
| Negative CCD Image (100% size, log scale, cropped) Image details as above |
Back to Top
| UGCA 329 (Virgo) Alias :NGC 4995 , Herschel I-42 UGCA 329 / NGC 4995 (catalog mag +11.2) with adjacent galaxies : PGC 1011507 (catalog mag +16.3), PGC 1011579 (catalog mag +17.5), PGC 1012274 (catalog mag +17.9), PGC 1012713 (catalog mag +18.0), |
 |
| Annotated CCD Image (50% size, square root scale) 4 x 180s exposure (average combine), 3x3 binning, C Filter 2020-04-28 00:18 UT (#775080-84) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 329 - Detail |
 |
| CCD Image (100% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2020-04-28 00:18 UT (#775080-84) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
 |
| Negative CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top

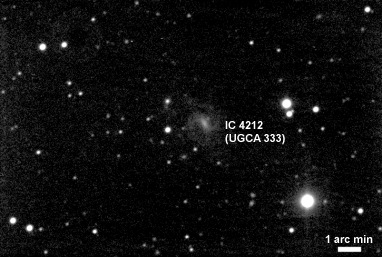

| IC 4212 / UGCA 333 (Virgo) Catalog mag +15.2 or +16.4 |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2021-01-17 03:56 UT (#850284-88) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| IC 4212 / UGCA 333 - Detail |
 |
| CCD Image (100% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 336 (Canes Venatici) Alias: PGC 45882 (catalog mag +16.7) Other faint galaxy in same field of view PGC 2181732 (catalog mag +17.1) |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2021-01-19 01:51 UT (#852074-78) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGCA 336 - Detail |
 |
| CCD Image (125% size, square root scale, cropped) Image details as above |
Back to Top
| UGCA 342 (Canes Venatici) R Mag of UGCA 342 from Simbad +18.55 Alias: PGC 46093 (Catalog mag ?) Image gathered under twilight conditions , Sun Alt -10.5°. Limiting mag of image ~18.5. No sign of any object at UGCA 342 (PGC 46093) location marked by white circle Other galaxies in view however are : M63 (catalog mag +8.5), PGC 2189676 (catalog mag +17.3), PGC 2191787 (catalog mag +17.7) Target location needs to checked : Coordinates for UGCA 342 from Simbad are RA: 13 15 07.535 Dec: +42 00 11.23 (J2000) Coordinates of PGC 46093 from TheSky6 are RA: 13h 15m 08s Dec: +42°00'01" (J2000) Coordinates broadly match - the correct piece of sky has therefore been imaged. Target needs to rescheduled for much darker sky conditions. |
 |
| CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2020-05-30 23:38 UT (#787008-12) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Back to Top
| UGCA 346 / NGC 5073 (Virgo) Flat Galaxy Atlas Object |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, C Filter 2020-03-04 02:36 UT (#758190-94) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |

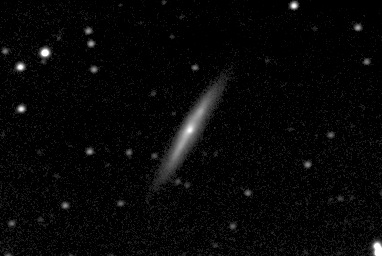

| UGCA 346 / NGC 5073 - Detail |
 |
| CCD Image (100% size, square root scale, cropped) Image details as above |
 |
| Negative CCD Image (100% size, square root scale, cropped) Image details as above |
Back to Top
Back to Top
| This Web Page: | CCD Images - UGCA Galaxies |
| Last Updated : | 2024-12-16 |
| Site Owner : | David Richards |
| Home Page : | David's Astronomy Web Site |
