David's Astronomy Pages
|
Images (S1195) |
Images Main |
Home Page |
Images (S1197) |
Objects Session Notes
103P/Hartley - Comet 207P/NEAT - Comet C/2022 E2 (ATLAS) - Comet AT 2022wlz - Transient (non-detection) AT 2024ll - CV Type Transient (non-detection) IC 2190 - Spiral Galaxy with Type Ia Supernova 2024dhp NGC 1122 - Spiral Galaxy with Type Ia Supernova 2024dru UGC 831 - Spiral Galaxy with Type IIb Supernova 2023wdd - NGC 3467 w/AT2024dda, NGC 5036 w/SN 2024dop attempts failed (due to poor sky / cloud) Variable Stars (photometric monitoring) - YZ Cnc Nearby Stars (astrometric monitoring) - None
- Attempted all night session (9.7 hrs) - 12" LX200 + ST-10XME for imaging - TS 80mm APO + ZWO ASI178MC for guiding & imaging - Ambient Temperature: 5.5°C (min) - CCD Temperature: -20°C - Notes from 2024-03-04 >> -
 |
Back to Top
| 103P/Hartley - 2024-03-04 (passing through Monoceros) Sun Distance 2.07 AU AU (receeding) Earth Distance 1.25 AU (187.3 million km) |
103P/Hartley - 2024-03-04 Detail Autoguided on offset star using PHD2 with Lock Shift set at the comet's rate of motion (Ra 8.66 arcsec/hr, Dec 30.80 arcsec/hr) Position of comet (barely visible) is shown by white cross-hairs |
|
 |
 |
|
| Annotated CCD Image (50% size, square root scale) 4 x 60s exposure (average combine), 3x3 binning, Clear Filter 2024-03-04 23:07 UT (#1196091-94) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Annotated CCD Image (100% size, square root scale, cropped) Image details as above |
|
| Images of 103P/Hartley on Comets 2023 Page >> | ||
| Images of 103P/Hartley on Comets 2024 Page >> |
Back to Top
| 207P/NEAT - 2024-03-04 (passing through Lepus) Sun Distance 1.07 AU (receeding) Earth Distance 0.22 AU (32.9 million km) |
207P/NEAT - 2024-03-04 Detail Autoguided on offset star using PHD2 with Lock Shift set at the comet's rate of motion (Ra 414.16 arcsec/hr, Dec 82.58 arcsec/hr) |
|
 |
 |
|
| Annotated CCD Image (50% size, square root scale) 60s exposure (single frame), 3x3 binning, Clear Filter 2024-03-04 22:00 UT (#1196061) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Annotated CCD Image (100% size, square root scale, cropped) 5 x 60s exposure (average combine), 3x3 binning, Clear Filter 2024-03-04 22:04 UT (#1196061-65) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
|
| Images of 207P/NEAT on Comets 2024 Page >> |
Back to Top
| C/2022 E2 (ATLAS) - 2024-03-04 (passing through Gemini) Sun Distance 4.05 AU (approaching) Earth Distance 3.40 AU (508.9 million km) |
C/2022 E2 (ATLAS) - 2024-03-04 Detail Autoguided on offset star using PHD2 with Lock Shift set at the comet's rate of motion (Ra -51.17 arcsec/hr, Dec 23.56 arcsec/hr) |
|
 |
 |
|
| Annotated CCD Image (50% size, square root scale) 60s exposure (single frame), 3x3 binning, Clear Filter 2024-03-04 23:32 UT (#1196115) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Annotated CCD Image (100% size, square root scale, cropped) 6 x 60s exposure (average combine), 3x3 binning, Clear Filter 2024-03-04 23:36 UT (#1196115-21) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
|
| Images of C/2022 E2 (ATLAS) on Comets 2023 Page >> | ||
| Images of C/2022 E2 (ATLAS) on Comets 2024 Page >> |
Back to Top
| AT 2022wlz (Monoceros) AT 2022wlz (Type: unk) discovered 2022-09-27.502 UT by ZTF Alias: ZTF22abiudsj Discovery magnitude 15.27 (r-ZTF Filter) vs Prior Non-Detection Limiting Magnitude 20.05 ( TNS 2022wlz ) |
| AT 2022wlz - 2024-03-04 (T+524.4d) Image below (2024-03-04.949) was taken 524.4 days after discovery of 2022wlz Position of earlier transient (no longer visible) is shown by white cross-hairs Non-Detection Limiting Magnitude +17.5 (Clear Filter) |
 |

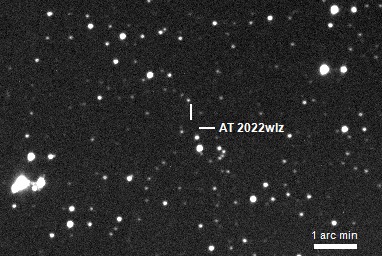

| Annotated CCD Image (100% size, linear scale, cropped) 180s exposure (single frame), 3x3 binning, Clear Filter 2024-03-04 22:47 UT (#1196085) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of AT 2022wlz on Transients 2022 Page >> |
Back to Top
| AT 2024ll (Taurus) AT 2024ll (Type: CV) discovered 2024-01-04.756 UT by XOSS Alias: KATS24A001, TCP J05103196+2336557 Discovery magnitude 16.65 (Clear Filter) ( TNS 2024ll ) |
| AT 2024ll - 2024-03-04 (T+60.2d) Image below (2024-03-04.911) was taken 60.2 days after discovery of 2024ll Position of earlier transient (no longer visible) is shown by white cross-hairs Non-Detection Limiting Magnitude +18.5 (Clear Filter) |
 |
| Annotated CCD Image (100% size, linear scale, cropped) 2 x 60s exposure (average combine), 3x3 binning, Clear Filter 2024-03-04 21:53 UT (#1196055-56) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of AT 2024ll on Transients 2024 Page >> |
Back to Top
| IC 2190 with SN 2024dhp (Auriga) SN 2024dhp (Type: Ia) discovered 2024-02-28.291 UT by ZTF Alias: ZTF24aagirej Discovery Magnitude 18.33 (r-ZTF Filter) vs Prior Non-Detection Limiting Mag 16.0 (g-ZTF Filter) ( TNS 2024dhp ) |
| IC 2190 with SN 2024dhp - 2024-03-04 (T+5.6d) Image below (2024-03-04.933) was taken 5.6 days after discovery of 2024dhp Position of reported SN (faint) is indicated by white cross-hairs. Measured Magnitude +16.38 (Clear Filter) |
 |
| Annotated CCD Image (150% size, square root scale, cropped) 3 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-03-04 22:29 UT (#1196077-79) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of SN 2024dhp (in IC 2190) on Supernova 2024 Page >> |
Back to Top
| NGC 1122 with SN 2024dru (Perseus) SN 2024dru (Type: Ia, z=0.012005) discovered 2024-03-02.240 UT by ATLAS Alias: ATLAS24dcs Discovery Magnitude 15.97 (orange-ATLAS Filter) vs Prior Non-Detection Limiting Mag 19.23 ( TNS 2024dru ) |
| NGC 1122 with SN 2024dru - 2024-03-04 (T+2.6d) Image below (2024-03-04.824) was taken 2.6 days after discovery of 2024dru Position of reported SN (not separately visible) is indicated by white cross-hairs. |
 |
| Annotated CCD Image (175% size, log scale, cropped) 4 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-03-04 19:53 UT (#1196019-22) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of SN 2024dru (in NGC 1122) on Supernova 2024 Page >> |
Back to Top
| UGC 831 with SN 2023wdd (Andromeda) SN 2023wdd (Type: IIb) discovered 2023-11-01.445 UT by ATLAS Alias: ATLAS23uvt Discovery Magnitude 17.96 (orange-ATLAS Filter) (AT 2023wdd, Candidate Supernova later confirmed as Type IIb Supernova) ( TNS 2023wdd ) |
| UGC 831 with SN 2023wdd - 2024-03-04 (T+124.4d) Image below (2024-03-04.837) was taken 124.4 days after discovery of 2023wdd Position of earlier supernova (not visible) is shown by white cross-hairs |
 |
| Annotated CCD Image (150% size, square root scale, cropped) 3 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-03-04 20:10 UT (#1196025-27) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| UGC 831 with SN 2023wdd - Earlier Image, 2023-11-06 (T+5.5d) Image below (2023-11-06.966) was taken 5.5 days after discovery of 2023wdd Position of reported supernova (faint and indistinct) is shown by white cross-hairs Measured Magnitude +16.63 (Clear Filter) |
 |
| Annotated CCD Image (150% size, square root scale, cropped) 3 x 180s exposure (average combine), 3x3 binning, Clear Filter 2023-11-06 23:21 UT (#1161049-53) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of SN 2023wdd (in UGC 831) on Supernova 2023 Page >> |
