David's Astronomy Pages
Images - Session 1197 (2024-03-13)
Images
(S1196)
Images
Main
Home
Page
Images
(S1198)
David's Astronomy Pages
|
Images (S1196) |
Images Main |
Home Page |
Images (S1198) |
Objects Session Notes

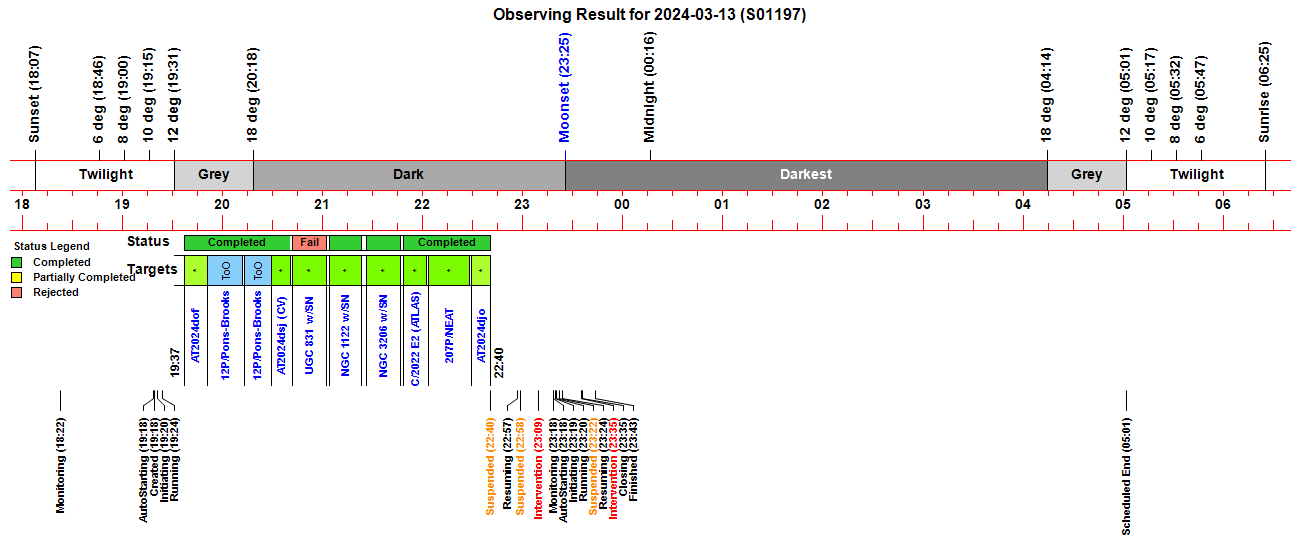

12P/Pons-Brooks - Comet 207P/NEAT - Comet C/2022 E2 (ATLAS) - Comet AT 2024djo - Type MP Transient AT 2024dof - CV Type Transient AT 2024dsj - CV Type Transient NGC 1122 - Spiral Galaxy with Type Ia Supernova 2024dru NGC 3206 - Spiral Galaxy with Type IIn Supernova 2024bch - UGC 831 with SN 2023wdd attempt failed (cloud / poor sky transparency) - Segue 1 attempt failed (due to dome azimuth issue & occluded sky view) Variable Stars (photometric monitoring) - None Nearby Stars (astrometric monitoring) - None
- Evening Session (4.1 hours) ended early due to issue with Pulsar Dome loosing its azimuthal position after a power outage test which saw a complete of all the dome's settings. At around the same time, the sky clouded over , with overcast conditions lasting until dawn. - 12" LX200 + ST-10XME for imaging - TS 80mm APO + ZWO ASI178MC for guiding & imaging - Ambient Temperature: 5.5°C (min) - CCD Temperature: -15°/20°C - Notes from 2024-03-13 >> -
 |
Back to Top
| 12P/Pons-Brooks - 2024-03-13 (passing through Andromeda) Sun Distance 1.05 AU (approaching) Earth Distance 1.64 AU (245.0 million km) |
12P/Pons-Brooks - 2024-03-13 Detail Autoguided on offset star using PHD2 with Lock Shift set at the comet's rate of motion (Ra 187.66 arcsec/hr, Dec -56.72 arcsec/hr) |
|
 |
 |
|
| Annotated CCD Image (50% size, log scale) 60s exposure (single frame), 3x3 binning, Clear Filter 2024-03-13 19:55 UT (#1197014) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Annotated CCD Image (100% size, log root scale, cropped) 15 x 60s exposure (average combine), 3x3 binning, Clear Filter 2024-03-13 20:04 UT (#1197014-28) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
|
| 12P/Pons-Brooks - 2024-03-13 Detail | 12P/Pons-Brooks - 2024-03-13 Detail | |
 |
 |
|
| Annotated false-colour CCD Image (50% size, log scale) 15 x 60s exposure (average combine), 3x3 binning, Clear Filter 2024-03-13 20:04 UT (#1197014-28) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Annotated false-colour CCD Image (100% size, log scale, cropped) Inverse Spectrum Image details as left |
|
| 12P/Pons-Brooks - 2024-03-13 Detail | 12P/Pons-Brooks - 2024-03-13 Detail | |
 |
 |
|
| Annotated false-colour CCD Image (50% size, log scale) 14 x 30s exposure (average combine), 3x3 binning, Clear Filter 2024-03-13 20:24 UT (#1197032-46) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Annotated CCD Image (50% size, log scale) Image details as left |
|
| 12P/Pons-Brooks - 2024-03-13 Detail Processed with Rotational Gradient |
||
 |
||
| CCD Image (50% size, log scale, rotational gradient (20 deg) 14 x 30s exposure (average combine), 3x3 binning, Clear Filter 2024-03-13 20:24 UT (#1197032-46) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
||
| Images of 12P/Pons-Brooks on Comets 2023 Page >> | ||
| Images of 12P/Pons-Brooks on Comets 2024 Page >> |
Back to Top
| 207P/NEAT - 2024-03-13 (passing through Monoceros) Sun Distance 1.13 AU (receeding) Earth Distance 0.24 AU (35.7 million km) Relatively poor quality image (due to bright sky background) Position of comet is indicated by white cross-hairs |
207P/NEAT - 2024-03-13 Detail Autoguided on offset star using PHD2 with Lock Shift set at the comet's rate of motion (Ra 361.22 arcsec/hr, Dec 98.50 arcsec/hr) Position of comet (very faint) is indicated by white cross-hairs |
|
 |
 |
|
| Annotated CCD Image (56% size, square root scale) 2 x 60s exposure (average combine), 3x3 binning, Clear Filter 2024-03-13 22:23 UT (#1197098-99) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Annotated CCD Image (100% size, square root scale, cropped) Image details as left |
|
| Images of 207P/NEAT on Comets 2024 Page >> |
| 207P/NEAT - 2024-03-13, Detail Comet position was only established after creating an animation of 14 frames |
 |
| Annotated CCD Image (100% size, linear scale, cropped) 60s exposure (average combine), 3x3 binning, Clear Filter 2024-03-13 22:22 UT (#1197098) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Back to Top
| C/2022 E2 (ATLAS) - 2024-03-13 (passing through Gemini) Sun Distance 4.02 AU (approaching) Earth Distance 3.52 AU (526.7 million km) |
C/2022 E2 (ATLAS) - 2024-03-13 Detail Autoguided on offset star using PHD2 with Lock Shift set at the comet's rate of motion (Ra -42.68 arcsec/hr, Dec 20.04 arcsec/hr) |
|
 |
 |
|
| Annotated CCD Image (50% size, square root scale) 2 x 60s exposure (average combine), 3x3 binning, Clear Filter 2024-03-13 21:55 UT (#1197080-81) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Annotated CCD Image (100% size, square root scale, cropped) 7 x 60s exposure (average combine), 3x3 binning, Clear Filter 2024-03-13 21:58 UT (#1197080-86) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
|
| Images of C/2022 E2 (ATLAS) on Comets 2023 Page >> | ||
| Images of C/2022 E2 (ATLAS) on Comets 2024 Page >> |
Back to Top
| AT 2024djo (Camelopardalis) AT 2024djo (Type: MP) discovered 2024-02-28.634 UT by MASTER Alias: MASTER OT J075622.70+594105.8 Discovery Magnitude 13.2 (Clear Filter) vs Prior Non-Detection Limiting Mag 17.9 ( TNS 2024djo ) |
| AT 2024djo - 2024-03-13 (T+14.3d) Image below (2024-03-13.940) was taken 14.3 days after discovery of 2024djo Position of reported transient (not visible, presumed faded) is shown by white cross-hairs Non-Detection, Limiting Magnitude +17.8 (Clear Filter) Transient appears to have faded and returned to its normal state Adjacent bright star is HIP 38791 (catalog mag +7.72) |
 |
| Annotated CCD Image (100% size, linear scale, cropped) 180s exposure (single frame), 3x3 binning, Clear Filter 2024-03-13 22:34 UT (#1197106) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of AT 2024djo on Transients 2024 Page >> |
Back to Top
| AT 2024dof (Cassiopeia) AT 2024dof (Type: CV) discovered 2024-02-25.965 UT by Gaia Alias: Gaia24asd Discovery Magnitude 11.16 (G-Gaia Filter) vs Historic Magnitude 11.39 +/- 0.06 SD Brightening in Be star TNS discovery report on TNS says Prior Non-Detection Limiting Mag 21.5 but Gaia data for the same date gives mag 11.39) ( TNS 2024dof | Gaia24asd) |
| AT 2024dof - 2024-03-13 (T+16.9d) Image below (2024-03-13.823) was taken 16.9 days after discovery of 2024dof Position of reported transient (distinct) is shown by white cross-hairs Measured Magnitude +10.85 (Clear Filter) |
 |
| Annotated CCD Image (100% size, linear scale, cropped) 5 x 60s exposure (average combine), 3x3 binning, Clear Filter 2024-03-13 19:48 UT (#1197006-10) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of AT 2024dof on Transients 2024 Page >> |
Back to Top
| AT 2024dsj (Cassiopeia) AT 2024dsj (Type: CV) discovered 2024-02-28.787 UT by Gaia Alias: Gaia24ath Discovery Magnitude 15.25 (G-Gaia Filter) vs Historic Magnitude 15.03 +/- 0.02 SD Gaia source fades by 0.2 mag TNS discovery report on TNS says Prior Non-Detection Limiting Mag 21.5 (2024-01-25 17:32) but Gaia data for the same date gives mag 15.26) ( TNS 2024dsj | Gaia24ath) |
| AT 2024dsj - 2024-03-13 (T+14.1d) Image below (2024-03-13.857) was taken 14.1 days after discovery of 2024dsj Position of reported transient (faint) is shown by white cross-hairs Measured Magnitude +14.57 (Clear Filter) |
 |
| Annotated CCD Image (100% size, linear scale, cropped) 5 x 60s exposure (average combine), 3x3 binning, Clear Filter 2024-03-13 20:37 UT (#1197049-53) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of AT 2024dsj on Transients 2024 Page >> |
Back to Top
| NGC 1122 with SN 2024dru (Perseus) SN 2024dru (Type: Ia, z=0.012005) discovered 2024-03-02.240 UT by ATLAS Alias: ATLAS24dcs Discovery Magnitude 15.97 (orange-ATLAS Filter) vs Prior Non-Detection Limiting Mag 19.23 ( TNS 2024dru ) |
| NGC 1122 - Spiral Galaxy with SN 2024dru (T+11.6d) |
 |
| Annotated CCD Image (50% size, square root scale) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-03-13 21:16 UT (#1197065-69) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| NGC 1122 with SN 2024dru - 2024-03-13 (T+11.6d) Image below (2024-03-13.880) was taken 11.6 days after discovery of 2024dru Position of reported SN (not separately visible) is indicated by white cross-hairs. Measured Magnitude, Nucleus+SN +14.14 (Clear Filter) |
 |
| Annotated CCD Image (150% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-03-13 21:16 UT (#1197065-69) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| NGC 1122 with SN 2024dru - Detail,
2024-03-13 (T+11.6d) Position of reported SN (not separately visible) is indicated by white cross-hairs. |
 |
| Annotated CCD Image (175% size, log scale, cropped) Image details as above |
| Images of SN 2024dru (in NGC 1122) on Supernova 2024 Page >> |
Back to Top
| NGC 3206 with SN 2024bch (Ursa Major) SN 2024bch (Type: IIn) discovered 2024-01-29.252 UT by Patrick Wiggins Alias: ATLAS24bmx, PS24aap, GOTO24hm Discovery Magnitude 15.5 ( Clear Filter) ( TNS 2024bch ) |
| NGC 3206 with SN 2024bch - 2024-03-13 (T+44.6d) Image below (2024-03-13.897) was taken 44.6 days after discovery of 2024bch Position of reported SN (distinct but fading slowly) is indicated by white cross-hairs. Measured Magnitude +14.00 (Clear Filter) |
 |
| Annotated CCD Image (125% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-03-13 21:39 UT (#1197073-77) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of SN 2024bch (in NGC 3206) on Supernova 2024 Page >> |
Back to Top
