Images - Session 1200 (2024-03-21)

Objects Session Notes
Bullet 62P/Tsuchinshan - Comet

Bullet AT 2022xij - CV Type Transient
Bullet AT 2023tki - Type XRB Transient
Bullet AT 2023tsk - Type BL Transient
Bullet AT 2023txn - CV Type Transient
Bullet AT 2024crd - Type Nova? Transient
Bullet AT 2024dsj - CV Type Transient
Bullet AT 2024epa - CV Type Transient

Bullet NGC 4619 - Spiral Galaxy with Type II Supernova 2024drt

Bullet UGC 8630 - Spiral Galaxy with Type II Supernova 2024drv
Bullet UGC 11858 - Spiral Galaxy with Type Ia Supernova 2023rjj (non-detection)

Bullet Variable Stars (photometric monitoring)
- BL Lac, U Her

Bullet Nearby Stars (astrometric monitoring)
- Groombridge 34


- Evening Session (2.1 hrs) . Session ended when sky clarity reduced and clouds developed

- 12" LX200 + ST-10XME for imaging
- TS 80mm APO + ZWO ASI178MC for guiding & imaging
- Ambient Temperature: 4°C (min)
- CCD Temperature:   -20°C
- Notes from 2024-03-21 >>

-

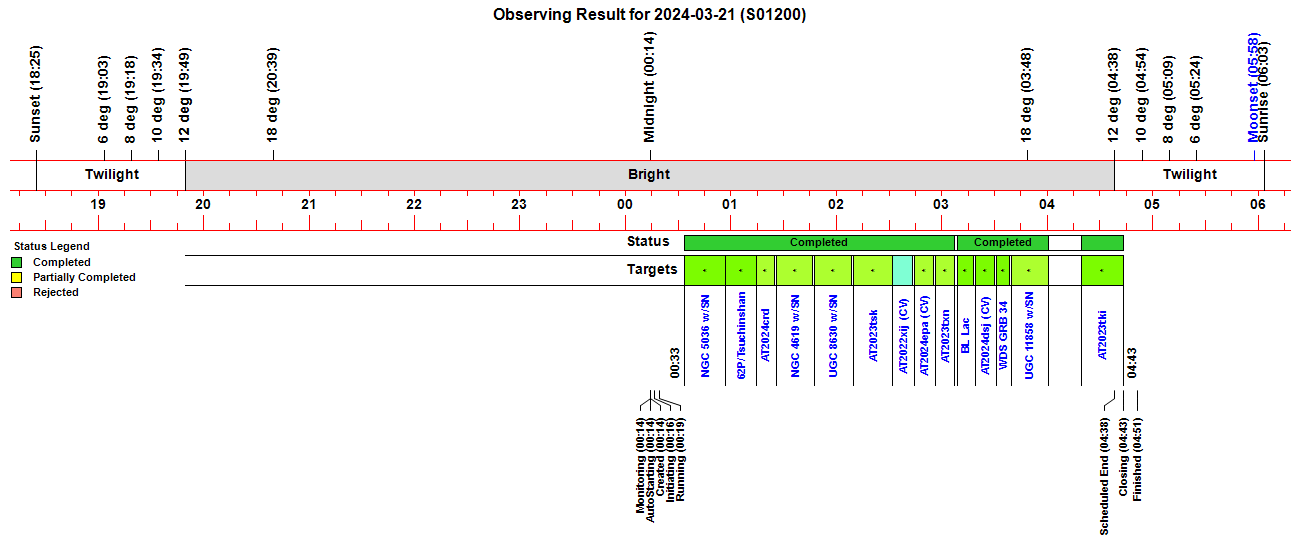

Observing Result


Back to Top


62P/Tsuchinshan - Comet

62P/Tsuchinshan - 2024-03-22
(passing through Virgo)

Sun Distance 1.63 AU (receeding)
Earth Distance 0.64 AU (95.3 million km)
   62P/Tsuchinshan - 2024-03-22 Detail
Autoguided on offset star using PHD2 with Lock Shift
set at the comet's rate of motion
(Ra -32.08 arcsec/hr, Dec -4.78 arcsec/hr)
Image   Image
Annotated CCD Image (50% size, square root scale)
3 x 90s exposure (average combine), 3x3 binning, Clear Filter
2024-03-22 01:05 UT (#1200012-14)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
  Annotated CCD Image (100% size, square root scale, cropped)
6 x 90s exposure (average combine), 3x3 binning, Clear Filter
2024-03-22 01:08 UT (#1200012-18)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of 62P/Tsuchinshan on Comets 2023 Page >>
Images of 62P/Tsuchinshan on Comets 2024 Page >>

Back to Top


AT 2022xij - CV Type Transient

AT 2022xij (Sagitta)
AT 2022xij (Type: CV) discovered 2022-10-09.998 UT by MASTER
Alias: MASTER OT J190926.97+191224.1
Discovery Magnitude 13.5 (Clear Filter)
 ( TNS 2022xij )

AT 2022xij - 2024-03-22 (T+529.1d)
Image below (2024-03-22.110) was taken 529.1 days after discovery of 2022xij
Position of reported transient (faint) is shown by white cross-hairs
Measured magnitude +15.45 (Clear Filter)
Annotated CCD Image (100% size, linear scale, cropped)
5 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-03-22 02:41 UT (#1200050-54)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

AT 2022xij - Earlier Image 2022-10-13 (T+3.9d)
Image below (2022-10-13.944) was taken 3.9 days after discovery of 2022xij
Position of reported transient (bright) is shown by white cross-hairs
Measured magnitude +13.27 (Clear Filter)
Annotated CCD Image (100% size, linear scale, cropped)
2 x 60s exposure (average combine), 3x3 binning, Clear Filter
2022-10-13 22:40 UT (#1046016-17)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2022xij on Transients 2022 Page >>

Back to Top


AT 2023tki - Type XRB Transient

AT 2023tki (Scutum)
AT 2023tki (Type: XRB) discovered 2023-09-19.776 UT by Gaia
Alias: Gaia23cnv
Discovery Magnitude 11.49 (G-Gaia Filter)
vs Historic Magnitude 11.94 +/- 0.07 SD
~0.5 mag rise in Gaia source, aka HMXRB ATO
XRB = X-Ray Binary
 ( TNS 2023tki | Gaia23cnv )

AT 2023tki - 2024-03-22 (T+184.4d)
Image below (2024-03-22.186) was taken 184.4 days after discovery of 2023tki
Position of reported transient (bright) is shown by white cross-hairs
Measured magnitude +12.08 (Clear Filter)
Likely faded back to historic level
Annotated CCD Image (100% size, linear scale, cropped)
180s exposure (single frame), 3x3 binning, Clear Filter
2024-03-22 04:28 UT (#1200113)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2023tki on Transients 2023 Page >>

Back to Top


AT 2023tsk - Type BL Transient

AT 2023tsk (Bootes)
AT 2023tsk (Type: BL) discovered 2023-09-25.828 UT by Gaia
Alias: Gaia23cqg
Discovery Magnitude 14.76 (g-Gaia Filter)
vs Prior Non-Detection Limiting Magnitude 21.5 ?
vs Historic Magnitude 15.94 +/- 0.41 SD
Known BL Lac brightens by 2 mag in 45 months
Gaia, 2018-05-07 23:58, mag 15.01
Gaia, 2019-11-04 01:17, mag 16.99
Gaia, 2023-01-26 17:20, mag 15.50
Gaia, 2023-09-25 19:53, mag 14.76
Gaia, 2023-11-06 15:16, mag 15.51
Gaia, 2023-12-05 07:22, mag 15.30
Gaia, 2024-01-04 02:51, mag 15.54
 ( TNS 2023tsk | Gaia23cqg )


AT 2023tsk - 2024-03-22 (T+178.3d)
Image below (2024-03-22.094) was taken 178.3 days after discovery of 2023tsk
Position of reported transient (faint but brightening) is shown by white cross-hairs
Measured Magnitude +15.03 (Clear Filter)


Annotated CCD Image (100% size, square root scale, cropped)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-03-22 02:24 UT (#1200043-47)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2023ati on Transients 2023 Page >>

Back to Top


AT 2023txn - CV Type Transient

AT 2023txn (Cygnus)
AT 2023txn (Type: CV) discovered 2023-09-29.797 UT by Gaia
Alias: Gaia23cse
Discovery magnitude 11.83 (G-Gaia) vs Historic Mag 13.14
Red Galactic plane source brightens erratically by 2 mag & becomes bluer
 ( TNS 2023txn | Gaia23cse )

AT 2023txn - 2024-03-22 (T+174.3d)
Image below (2024-03-22.126) was taken 174.3 days after discovery of 2023txn
Position of reported transient (distinct but fading) is shown by white cross-hairs
Measured magntitude +12.79 (Clear Filter)
Annotated CCD Image (100% size, linear scale, cropped)
5 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-03-22 03:04 UT (#1200064-68)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2023txn on Transients 2023 Page >>

Back to Top


AT 2024crd - Type Nova? Transient

AT 2024crd (Virgo)
AT 2024crd (Type: Nova?) discovered 2024-02-14.750 UT by Tadashi Kojima
Alias: TCP J13530185+0522000, Gaia24apm
Discovery Magnitude 13.2 (Clear Filter)
vs Prior Non-Detection Limiting Magnitude 15.2
Transient on faint blue PanSTARRS source
 ( TNS 2024crd | Gaia24apm )

AT 2024crd - 2024-03-22 (T+36.3d)
Image below (2024-03-22.055) was taken 36.3 days after discovery of 2024crd
Position of reported transient (fading) is shown by white cross-hairs
Measured Magnitude +15.76 (Clear Filter)


Annotated CCD Image (100% size, linear scale, cropped)
5 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-03-22 01:22 UT (#1200021-25)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2024crd on Transients 2024 Page >>

Back to Top


AT 2024dsj - CV Type Transient

AT 2024dsj (Cassiopeia)
AT 2024dsj (Type: CV) discovered 2024-02-28.787 UT by Gaia
Alias: Gaia24ath
Discovery Magnitude 15.25 (G-Gaia Filter)
vs Historic Magnitude 15.03 +/- 0.02 SD
Gaia source fades by 0.2 mag
TNS discovery report on TNS says
Prior Non-Detection Limiting Mag 21.5 (2024-01-25 17:32)
but Gaia data for the same date gives mag 15.26)

 ( TNS 2024dsj | Gaia24ath)

AT 2024dsj - 2024-03-22 (T+22.4d)
Image below (2024-03-22.142) was taken 22.4 days after discovery of 2024dsj
Position of reported transient (faint) is shown by white cross-hairs
Measured Magnitude +14.49 (Clear Filter)
Annotated CCD Image (100% size, linear scale, cropped)
4 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-03-22 03:28 UT (#1200079-82)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2024dsj on Transients 2024 Page >>

Back to Top


AT 2024epa - CV Type Transient

AT 2024epa (Aquila)
AT 2024epa (Type: CV) discovered 2024-03-15.507 UT by Gaia
Alias: Gaia24azt
Discovery Magnitude 13.72 (G-Gaia Filter)
vs Historic Magnitude 13.93 +/- 0.03 SD
~0.3 mag rise in Gaia source
 ( TNS 2024epa | Gaia24azt )

AT 2024epa - 2024-03-22 (T+6.6d)
Image below (2024-03-22.117) was taken 6.6 days after discovery of 2024epa
Position of reported transient (faint) is shown by white cross-hairs
Measured Magnitude +13.84 (Clear Filter)
Annotated CCD Image (100% size, linear scale, cropped)
5 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-03-22 02:52 UT (#1200057-61)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2024epa on Transients 2024 Page >>

Back to Top


NGC 4619 - Spiral Galaxy with Type II Supernova 2024drt

NGC 4619 with SN 2024drt (Canes Venatici)
SN 2024drt (Type: II) discovered 2024-03-02.486 UT by ATLAS
Alias: ATLAS24dcr, ZTF24aagmhtq
Discovery Magnitude 17.93 (orange-ATLAS Filter)
vs Prior Non-Detection Limiting Mag 18.46 (g-ZTF Filter)
 ( TNS 2024drt )

NGC 4619 with SN 2024drt - 2024-03-22 (T+19.6d)
Image below (2024-03-22.063) was taken 19.6 days after discovery of 2024drt
Position of reported SN (distinct) is indicated by white cross-hairs.
Estimated Magnitude +15.5 (Clear Filter)
Annotated CCD Image (150% size, square root scale, cropped)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-03-22 01:39 UT (#1200028-32)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2024drt (in NGC 4619) on Supernova 2024 Page >>

Back to Top


UGC 8630 - Spiral Galaxy with Type II Supernova 2024drv

UGC 8630 with SN 2024drv (Canes Venatici)
SN 2024drv (Type: II) discovered 2024-03-02.513 UT by ATLAS
Alias: ATLAS24dct
Discovery Magnitude 16.56 (orange-ATLAS Filter)
vs Prior Non-Detection Limiting Mag 18.86
 ( TNS 2024drv )

UGC 8630 with SN 2024drv - 2024-03-22 (T+19.6d)
Image below (2024-03-22.078) was taken 19.6 days after discovery of 2024drv
Position of reported SN (distinct) is indicated by white cross-hairs.
Measured Magnitude +15.12 (Clear Filter)
Annotated CCD Image (150% size, square root scale, cropped)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-03-22 02:01 UT (#1200035-39)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2024drv (in UGC 8630) on Supernova 2024 Page >>

Back to Top


UGC 11858 - Spiral Galaxy with Type Ia Supernova 2023rjj (non-detection)

UGC 11858 with SN 2023rjj (Cygnus)
SN 2023rjj (Type: Ia) discovered 2023-09-05.340 UT by ALeRCE
Alias: ZTF23abaxkwq
Discovery Magnitude 18.17 (g-ZTF Filter)
 ( TNS 2023rjj )

UGC 11858 with SN 2023rjj - 2024-03-22 (T+198.8d)
Image below (2024-03-22.156) was taken 198.8 days after discovery of 2023rjj
Position of reported transient (not visible) is indicated by white cross-hairs.
Annotated CCD Image (150% size, square root scale, cropped)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-03-22 03:53 UT (#1200095-99)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

UGC 11858 with SN 2023rjj - Earlier Image, 2023-09-08 (T+3.6d)
Image below (2023-09-08.900) was taken 3.6 days after discovery of 2023rjj
Position of reported supernova (faint but distinct) is indicated by white cross-hairs.
Measured Magnitude ? (unable to differentiate SN from nucleus)
Annotated CCD Image (150% size, square root scale, cropped)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2023-09-08 21:45 UT (#1141045-49)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2023rjj (in UGC 11858) on Supernova 2023 Page >>

Back to Top
