Session Aims & Highlights (2024-03-21)

Main aims

1. 12P/Pons-Brooks. Acquire images of Comet 12P/Pons-Brooks which has been undergoing regular outbursts.
2. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions.
3. AstroMain. Test new 3.66.6 (pre-3.67) version  of AstroMain in a live session, following mutliple changes in version 3.66.4, 3.66.5 & 3.66.6. Verify there are no significant sideeffects or issues with the new versions.

 Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• TheSky6, CCDSoft5, DeviceHub 6.6.1.1,  MeadeGeneric 1.3.9, UPB 1.5, ASCOM 6.6,   Pulsar Dome Firmware 1.51 & Driver 6.3.10
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.13, Siril 1.0.6, deCONZ 1.18.2, ASCOM 6.6 SP1
• [ DomeLink 1.0 / 1.1 - not used ]

• AstroMain 3.66.7,  AstroPlan 1.39.12,  AstroShCap 1.3.15, AstroGuard 1.10.2   (any new items or versions in bold)
  AstroVOE 1.13.1,  AstroSN 1.10.2,  AstroProtect 1.7,  AstroMove 1.12.11
  AstroWeather 1.23.15, AstroAllSky 3.20.3,  AstroObsCam 1.11.4, AstroLaunch 1.11.3

Highlights

• Targets. 1415  planned targets observations were completed, with the other 1 target partially completed
• 12P/Pons-Brooks. Images of Comet 12P/Pons-Brooks were successfully acquired.)
• AstroMain / SBIG Camera. There was one case with CcdCamera / SBIG Camera.but were resolved by AstroMain's Manager/Job Executor.
•  Dome Parking.  Dome parked at correct position at the end of the session.

Notes:

Summary Plots & Logs

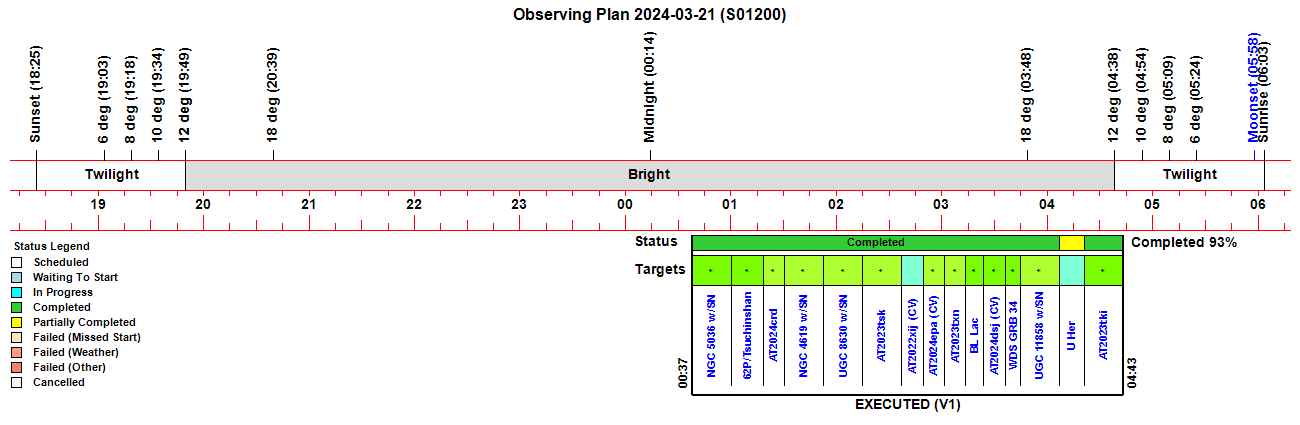

Observing Plan

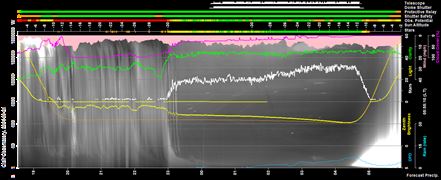

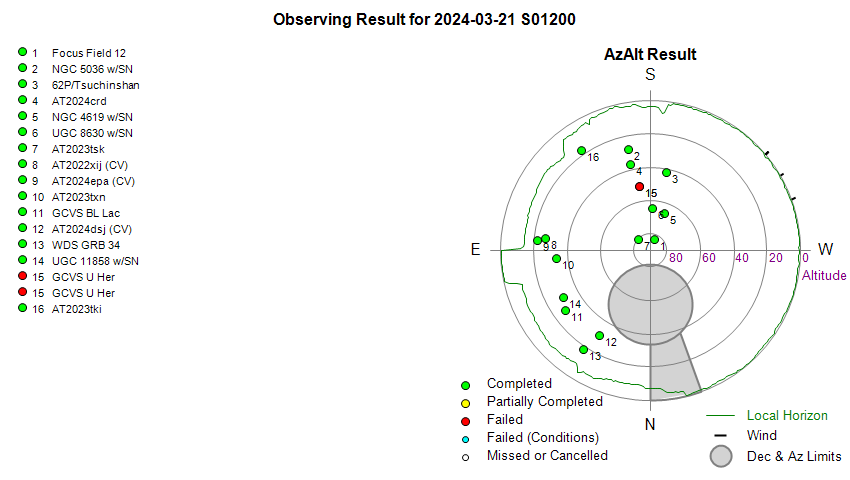

Observing Result

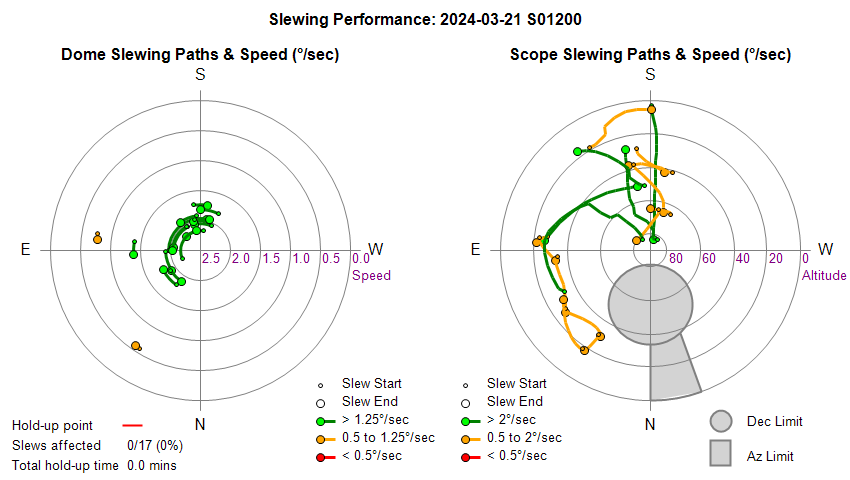

Dome & Scope Slewing Performance

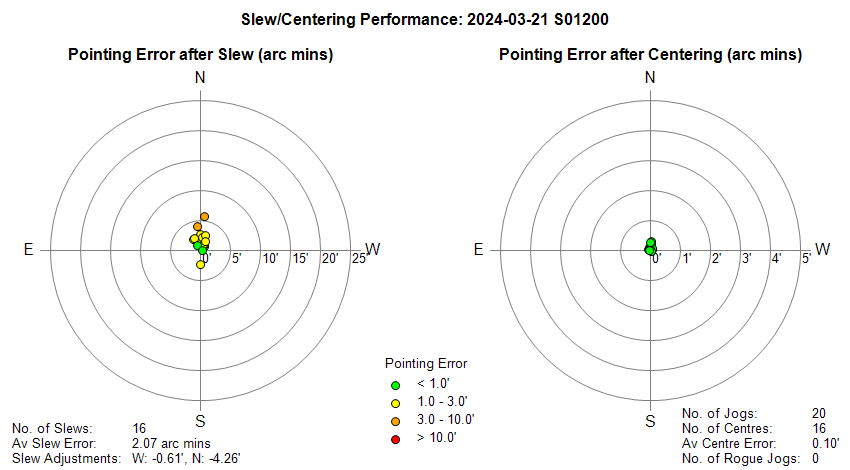

Slew/Centering Performance

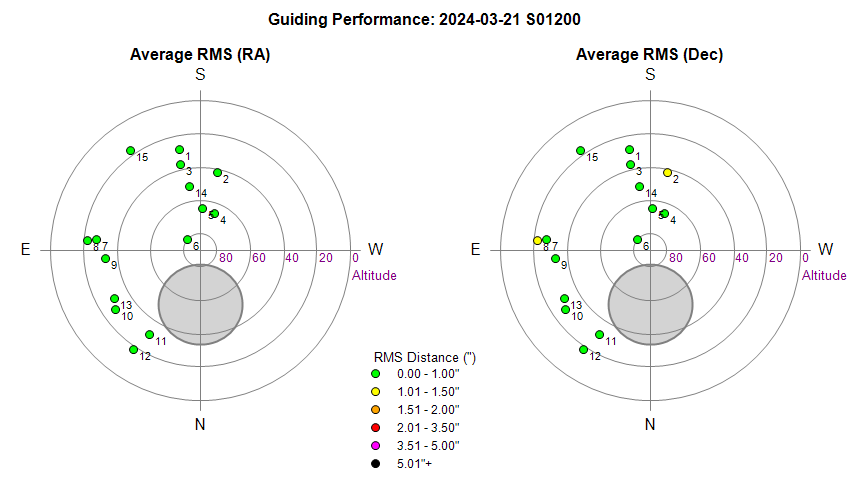

Guiding Performance

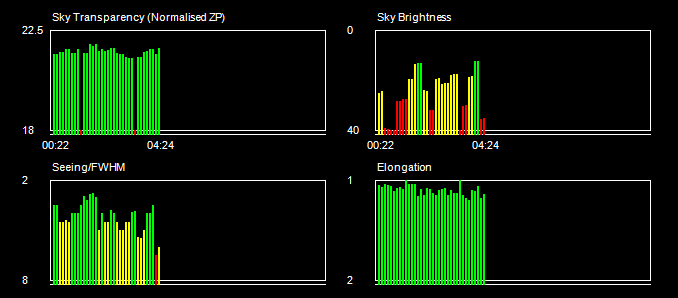

Sky Conditions (Locate Frames)

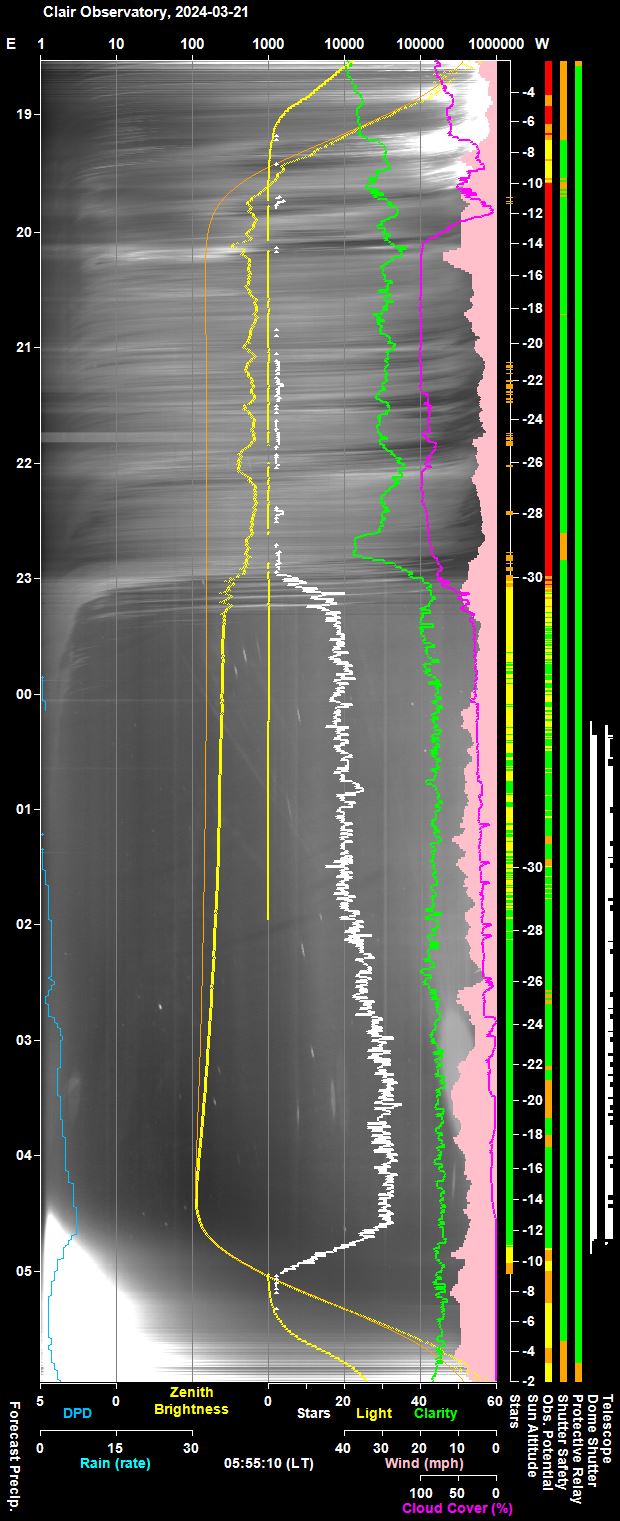

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

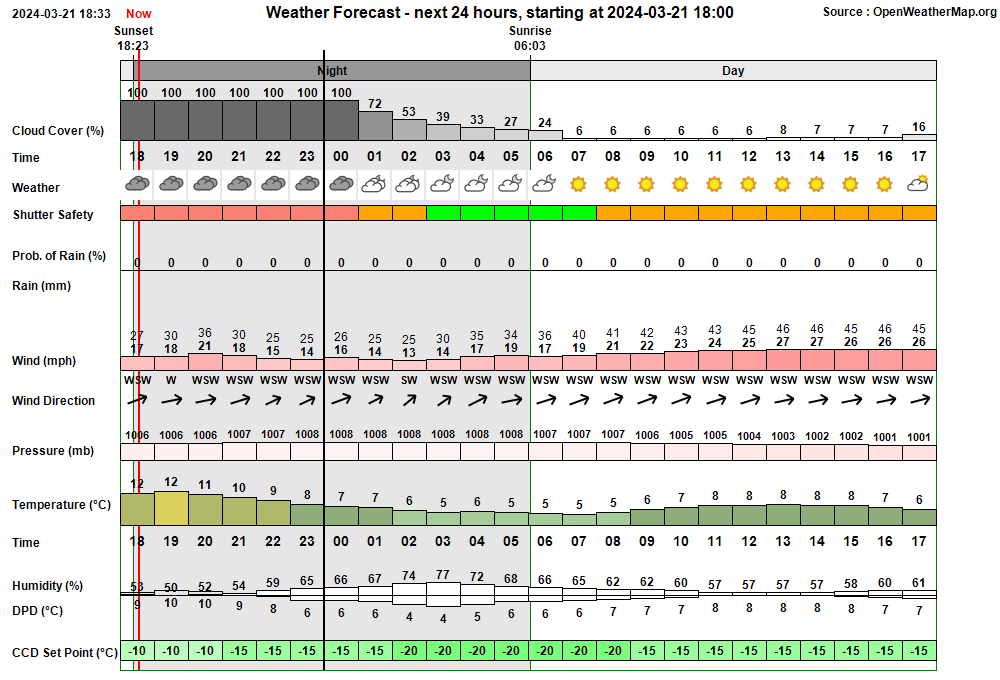

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 00:14:01 Session Monitoring AutoStart monitoring for Live Session opportunity between 00:13 & 03:58 00:14:04 Session AutoStarting Session autostarting (00:14) 00:14:14   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.) 00:14:27 Session Created Session Created (Live, 2024-03-21 S01200, ImageSaveNum: 1200001) 00:14:34   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 00:16:20   Services Started Observatory Services started 00:16:26 Observatory (Auto) Observatory placed in Fully-Automated Mode 00:16:29 Session Pending Session pending (2024-03-21) 00:16:31 Session Initiating Session initiating (2024-03-21) 00:16:33   Plan Requested Observing Plan requested from AstroPlan (1.39.12) 00:17:26   Plan Loaded Observing Plan loaded to queue (Plan ID: 974) 00:17:49   Camera1 Connected SBIG Camera connected (Set point -15°C) 00:18:26   Telescope Connected Telescope connected (TheSky6) 00:18:50 Session Equilibration Session ready to Open Dome 00:19:35   Dome Opened Dome opened (Opening time 45s, Zigbee 40s) 00:19:37 Session Running Session running 00:19:39   Queue Started Observing Queue started (15 targets selected) 00:19:41     Target Started (NrZen) Target started (Focus Field 12, HIP 58514) 00:19:54       Dome Unparked Dome unparked 00:23:56       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:26:35       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide) 00:28:46       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 00:29:11       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 00:31:18       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 00:33:01       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 00:33:18     Target Completed (NrZen) Target completed (Focus Field 12, HIP 58514) 00:33:22     Target Started (1/15) Target started (1/15, NGC 5036 w/SN2024dop) 00:40:19       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 00:56:45     Target Completed Target completed (1/15, NGC 5036 w/SN2024dop) 00:56:49     Target Started (2/15) Target started (2/15, 62P/Tsuchinshan) 00:59:47       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:02:13       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 01:14:24     Target Completed Target completed (2/15, 62P/Tsuchinshan) 01:14:28     Target Started (3/15) Target started (3/15, AT2024crd) 01:17:12       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:19:28       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 01:25:17     Target Completed Target completed (3/15, AT2024crd) 01:25:43     Target Started (4/15) Target started (4/15, NGC 4619 w/SN2024drt) 01:28:33       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:30:41       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 01:46:44     Target Completed Target completed (4/15, NGC 4619 w/SN2024drt) 01:47:43     Target Started (5/15) Target started (5/15, UGC 8630 w/SN2024drv) 01:50:28       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:52:56       Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 02:08:54     Target Completed Target completed (5/15, UGC 8630 w/SN2024drv) 02:09:43     Target Started (6/15) Target started (6/15, AT2023tsk) 02:13:20       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:15:47       Focusing Completed Foc1 AutoFocus Completed (Profile No 7) 02:32:08     Target Completed Target completed (6/15, AT2023tsk) 02:32:12     Target Started (7/15) Target started (7/15, AT2022xij (CV)) 02:35:43       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:37:54       Focusing Completed Foc1 AutoFocus Completed (Profile No 8) 02:43:42     Target Completed Target completed (7/15, AT2022xij (CV)) 02:44:23     Target Started (8/15) Target started (8/15, AT2024epa (CV)) 02:46:59       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:49:25       Focusing Completed Foc1 AutoFocus Completed (Profile No 9) 02:55:57     Target Completed Target completed (8/15, AT2024epa (CV)) 02:56:23     Target Started (9/15) Target started (9/15, AT2023txn) 02:59:03       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:01:15       Focusing Completed Foc1 AutoFocus Completed (Profile No 10) 03:07:03     Target Completed Target completed (9/15, AT2023txn) 03:08:43     Target Started (10/15) Target started (10/15, GCVS BL Lac) 03:11:52       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:14:04       Focusing Completed Foc1 AutoFocus Completed (Profile No 11) 03:17:58     Target Completed Target completed (10/15, GCVS BL Lac) 03:19:02     Target Started (11/15) Target started (11/15, AT2024dsj (CV)) 03:22:15       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:24:26       Focusing Completed Foc1 AutoFocus Completed (Profile No 12) 03:30:15     Target Completed Target completed (11/15, AT2024dsj (CV)) 03:31:21     Target Started (12/15) Target started (12/15, WDS GRB 34) 03:34:33       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:36:43       Focusing Completed Foc1 AutoFocus Completed (Profile No 13) 03:38:44     Target Completed Target completed (12/15, WDS GRB 34) 03:39:48     Target Started (13/15) Target started (13/15, UGC 11858 w/SN2023rjj) 03:42:29       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:44:42       Focusing Completed Foc1 AutoFocus Completed (Profile No 14) 04:00:43     Target Completed Target completed (13/15, UGC 11858 w/SN2023rjj) 04:02:08     Target Started (14/15) Target started (14/15, GCVS U Her) 04:05:14       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:07:04       Focusing Completed Foc1 AutoFocus Completed (Profile No 15) 04:09:31   CCDSoft Issue CCDSoft has encountered an image save issue [0000] 04:09:33   CCDSoft Restarting CCDSoft being restarted (attempt to fix unsaved file issue) 04:09:38   SBIG Camera Reset SBIG Camera being power-cycled 04:10:29   Camera1 Connected SBIG Camera connected (Set point -20°C) 04:12:56   CCDSoft Issue CCDSoft has encountered an image save issue [0000] 04:12:58   CCDSoft Restarting CCDSoft being restarted (attempt to fix unsaved file issue) 04:13:03   SBIG Camera Reset SBIG Camera being power-cycled 04:13:54   Camera1 Connected SBIG Camera connected (Set point -20°C) 04:16:21   CCDSoft Issue CCDSoft has encountered an image save issue [0000] 04:16:23   CCDSoft Restarting CCDSoft being restarted (attempt to fix unsaved file issue) 04:16:28   SBIG Camera Reset SBIG Camera being power-cycled 04:17:19   Camera1 Connected SBIG Camera connected (Set point -20°C) 04:17:47   CcdCamera Frozen CcdCamera appears to be frozen at around 04:17 in section 'GetCameraProperties' 04:18:17   SBIG Camera Take Image failed (Command timed-out) 04:18:25   CCDSoft Restarting CCDSoft being restarted (attempt to fix frozen CcdCamera) 04:18:32   SBIG Camera Reset SBIG Camera being power-cycled 04:19:25   Camera1 Connected SBIG Camera connected (Set point -20°C) 04:19:27     Target Failed (14/15) Target failed due to sbig camera (14/15, GCVS U Her) 04:19:29     Target Started (15/15) Target started (15/15, AT2023tki) 04:23:37   SBIG Camera Take Image command accepted (bSbigDriverException flag is reset) 04:43:32     Target Completed Target completed (15/15, AT2023tki) 04:43:35   Queue Completed Job Queue completed 04:43:38 Session Closing Session closing 04:44:33   Dome Closed Dome closed (Closing time 50s, Zigbee 44s) 04:45:11   Dome Parked Dome parked (parking time 31s), Az: 90.0 deg 04:46:24   Telescope Parked Telescope parked (parking time 69s total) 04:46:39   Telescope State Handbox reads 'Scope parked Turn scope off.' 04:47:01   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 04:48:23   Dome Charging Dome is parked and re-charging Ok (45mA) 04:48:25   Services Stopped Night Services stopped 04:48:28 Session Finishing Session Finishing started (Create Fits Summary, Transfer Files) 04:48:45     Dome (Find Park) Find Park started (Search Az 87.0 to 93.0°, Step 0.2°, Narrow) 04:50:13     Dome Find Park found (Best Park Az 90.2°) 04:50:20     Dome Dome has been synced at park position (Az 90.0°, Adjustment: -0.2°) 04:50:22   Dome Parked Dome parked 04:51:34   Dome Charging Dome is parked and re-charging Ok (42mA) 04:51:36 Session Finished Session Finished

Session Alerts & Alarms

Time     Type       Name Detail 00:16:29 Yellow Alert Disk Space Free Space on C:\ Drive (42.19 GB) is less than 50 GB 04:09:31 Red Alert CCDSoft Image file [0000] hasn't been saved to disk, possible CCDSoft issue 04:11:46 Green Clear CCDSoft Image file has been saved to disk following CCDSoft Restart 04:12:56 Red Alert CCDSoft Image file [0000] hasn't been saved to disk, possible CCDSoft issue 04:15:11 Green Clear CCDSoft Image file has been saved to disk following CCDSoft Restart 04:16:21 Red Alert CCDSoft Image file [0000] hasn't been saved to disk, possible CCDSoft issue 04:18:17 Red Alert SBIG Camera Alert Take Image failed (Command timed-out) 04:18:25 Red Alert CcdCamera CcdCamera appears to be frozen (last cycle at 04:17:47) in section 'GetCameraProperties' 04:18:30 Green Clear CcdCamera CcdCamera has resumed again (04:18) after 43s 04:23:37 Green Clear SBIG Camera Take Image command accepted (bSbigDriverException flag is reset) 04:23:56 Green Clear CCDSoft Image file has been saved to disk following CCDSoft Restart 04:45:59 Red Alert Unexpected Scope Movement Scope appears to be tracking even though Tracking=False 04:48:40 Yellow Alert Disk Space Free Space on C:\ Drive (49.45 GB) is less than 50 GB 04:51:34 Green Clear Dome Charging Dome is parked and re-charging Ok (42mA)

Back to Top

Operational Issues (2024-03-21 S1200)

• Critical Issues (0)
• Major Issues (0)
• Minor Issues (3)
• Small Defects (7)
• Continuous Improvement (10)


[ Prev | Next ]

Critical Issues

• None

Major Issues

• None

Minor Issues

• CCDSoft Camera/SBIG Camera froze on 3 occasions whilst taking I filter frames employing ShortSubs. Whilst acquiring BVRI image sets for Target 14/15 (GCVS U Her), the CCDSoft Camera/SBIG Camera and/or AstroMain CCDCamera object reported to have frozen each time I (infrared) filter frames were attempted and CCDSoft & SBIG Camera were restarted.  In each case a 'CCDSoft' red alert was raised with the message "Image file [0000] hasn't been saved to disk, possible CCDSoft issue" . At 04:18:17,  2 minutes after the final [0000] case (04:16:21) there was also a 'SBIG Camera Alert' with message "Take Image failed (Command timed-out)" together with a 'CcdCamera' alert with the message "CcdCamera appears to be frozen (last cycle at 04:17:47) in section 'GetCameraProperties".  There were no issues during the acquistion of B, V & R  frames that were interspersed between the I filter frames, nor with any other14 targets during the session.  Whilst the I filter frames are shorter exposures than for other filters the most notable difference is that each I frame was planned as an average of 5 ShortSubs. The freezing up of the camera and the necessary CCDSoft/SBIG Camera restart has been seen in other recent sessions but this is the first time that a definate pattern exists which will hopefully give a better insight over what causes the problem and how to prevent their occurance or to workaround them better.   Bug identified in TakeImage() routine, when NumShortSubs > 1, take TakeImageAsync() is called without passing bImageTakenOk which makes it appears that a problem has occurred as bImageTakenOk is false.   Fixed in AstroMain 3.66.8.   This might not prevent all Camera related issues, but should prevent the issues with exposure frames that employ ShortSubs.
  Fixed  2024-03-22 (AstroMain 3.66.8)

• Windows Update stuck on Downloading 0% on AllSky/Weather Computer  (2024-03-25).  Windows Update is stuck on Downloading 0% for 3 items (Window Malicious Software Removal Tool, Cummulative Update for Windows 10 22H2. Update for Windows 10 Version 22H2, and stayed in this state for more than 48 hours.   Resolved 2024-03-27.  Go to 'Services', Stop 'Windows Update', Delete contents of C:\WINDOWS\SOFTWAREDISTRIBUTION , Go to 'Services', Restart 'Windows Update'.  Found that not files in Software Distribution could be deleted. Tried to Stop Windows Update from Admin,  but system said that it was unable to complete the action. Restarted Computer, Stopped Windows Update, but again couldn't delete all files in Software Distribution When back to Windows Update, which said last attempt had failed, and used the Try Again option. Download and install then proceeded ok.
  Resolved 2024-03-27 (AllSky/Weather Computer, Windows Update)

• Majority of ObsCam pictures from the session were corrupted, with upside down annotation etc.  Resolved by restarting AstroObsCam, but what can the program to recognise the issue taking place and restart itself.  Issue began around S1031 2022-08-23 and is still occasionally seen, and still awaits a fix.
  To fix  2024-03-23 (AstroObsCam)

Small Defects

• When switching on SBIG Camera power , the 'Wait On SBIG Camera' message that follows is sometimes reported before the Zigbee Event is reported. Fixed in AstroMain 3.66.8, a 1s wait loop has been added after calling SwitchOnSbigPower() to allow the zigbee event to come through and be reported. .
  Fixed  2024-03-22 (AstroMain 3.66.8)

• GCVS U Her was recorded as being a failed target, due to 'SBIG Camera', when it was in fact partially completed. Whilst an issue with CCDSoft/SBIG Camera freezing causing a failure to acquire I filter frames for GCVS U Her, BVR  frames were successfull acquired.   Therefore the target observation should have been recorded a 'Partially Completed' with 'SBIG Camera' being the reason for target's not beig completed..
  Fixed  2024-03-22 (AstroMain 3.66.8)

• Logging records unexpectedly stopping showing target name, GCVS U Her (04:18:26). At 04:18:26.77 following a "The RPC server is unavailable" exception in TakeMainImage() routine, the next log record "Problem with Image.InventoryArray in GetImageInventory()" had an empty S1 field, the expected "GCVS U Her" was missing. The following 32 records up until start of next target were similarly affected.   It  would appear that the szTargetName was set to an empty string.  This most likely happened because a number of code section set szTargetName based on Object Name from Fits header and in event of exception szTargetName is set to a blank string, or is set to Fits_Object which may have been set to blank string because an exception occurred.   Propose to reset szTargetName = T.TargetName in the calling OB.Block, so that at least subsequent records use appropriate name, even if the immediate records have a blank S1 element. Fix implemented in AstroMain 3.67.
  Fixed  2024-03-26 (AstroMain 3.67)

• An 'Unexpected Scope Movement' alert whilst Parking the Scope at end of the session (04:46).  During 'Session Closing' and after slewing the scope to the Near Park Position using an objScope.SlewToAltAzAsync call at  04:45:15.50 (with the slew finishing at 04:45:38) the Scope was parked via a call to 'objScope.Park' at 04:45:43. Shortly after the Park comand was sent an 'Unexpected Scope Movement' alert was raised at 04:45:59 with the message "Scope appears to be tracking even though Tracking=False". The log file has 'ScopeTrackingIsOff Alert' with tthis same message at 04:45:59.18.  During this period Telescope Tracking was turned Off at 04:43:38 (at Start of Closing operations), turned On at 04:45:15.34 (upon enter the 'Park' Routine) and then turned Off at 04:45:15.50 immediately before the SlewToAltAzAsync call. So scope was seemingly moving whilst Telescope Tracking was off.  But is this normal for the Park operation ?,  how does it compare with past sessions ?   Slew to Near Park position is performed by objScope.SlewToAltAzAsync provided that objScope.CanSlewAltAzAsync is True, which is the case for the LX200 (otherwise TheSky6.Telescope.SlewToAzAlt is used). Tracking needs to Off otherwise ASCOM.SlewToAzAltAsync() will fail (Note that in contrast TheSky6.Telescope.SlewToAzAlt() requires Tracking to be On).  Tracking didn't need to be turned On at  04:45:15.34. This was a call to Scope.EnsureTrackingOn() in the ParkScope2 routine, but there is also a Scope.EnsureTrackingOn() just before calling  to Scope.SlewTheSkyScopeToAzAlt().
  Fixed  2024-03-22 (AstroMain 3.66.8)

• The 'Local Files' link on Session Notes pages is broken for older sessions.  After session folders were moved from ../ CCD Imaging/Analysis to new location '../CCD Imaging/Sessions'  the 'Local Files' links  om mutliple session notes pages became broken. Links need to be corrected with the correct path. . Some 248 files need to be changes (files from before c. 2023-04-16 or so). Updated files down to S890 so far.  This change will be superceded by a new improvement in progress that will insert "Local FIle >, Report File>, Log File>, Folder>" links to all Notes pages.
  Closed  2024-03-26 (Website)

• AstroMain's new 'Rebuild All Log Pages' button routine doesn't create a Finalised Log file for Session Attempts.  Fixed in AstroMain 3.67 (2024-03-26) by including special handling in FinaliseLogFile() routine.
  Fixed  2024-03-26 (AstroMain 3.67)

• AstroMain's new 'Finalise Session Log'  produces an htm with some records wrapping at hypens. Fixed in AstroMain 3.67 (2024-03-26) by using '<code style-"white-space: nowrap">'  for each section instead of a standard '<code>'.
  Fixed  2024-03-26 (AstroMain 3.67)

• Nebulosity produced a corrupted Synthethic Flat Field Corrected Image for AT 2024dcg image from S1188 (post-session). Although combined image from CCDSoft opened ok in Nebulosity, applied synthetic flat field correction produced an image where 50% or 30% from left hand side of image was shifted across to right hand side. Recreating the combined image and redoing the operation didn't correct the problem. Nor did restarting Nebulosity.  The original uncorrected image had to be used instead.  This appears to be a data related glitch in Nebulosity, the problem doesn't occur for other images apart from this one for AT 2024dcg. Further tests should that the problem occurred with the first of two subframes (AT2024dcg.20240222.im1188131.120s.C.FIT) but not for second frame.
  The header from first frame is used for combined image which explains why the Combined Image was also affected.
  Closed after review  2024-03-27 (Nebulosity)

Continuous Improvement

• Introduce a new RecordFinishingProgression() routine to ObsManager and incorporate a log line break into RecordClosingProgression(). Small improvements to logging of Closing and Finishing stages.
  Done  2024-03-22 (AstroMain 3.66.8)

• Finalise Session Log File at end of session and upload to website.  After adding a FinaliseLogFile() in AstroMain 3.68.8 fulfilling a continuous improvement ticket from S1150 (2023-09-28)  make further improvement to automatically finalise the log file at end of session (at a similar point to where Report File is finalised), upload it to website using AstroPlan, and to view view a link from Current/Latest Session Web Page.  Implemented in AstroMain 3.67 with additions to SetState_Finished() &  WriteLatestSessionLogs() routines, and in AstroPlan 1.39.13 (Web Upload)
  Done  2024-03-22 (AstroMain 3.67, AstroPlan 1.39.13, Web Site - Current Session Page)

• Make a number of improvements to Session LogFile to improve its appearance when viewed on line on IPad and particularly when viewed as htm page.  Problems occur with some lines and text wrapping around (particularly on IPAD which has more limited width display. It is also an opportunity to replace  °  by  ° (using  '&deg;' ).  Replace writelogfilerecord S3a  "TheSkyTelescopeCoords" by "TheSkyScopeCoords".
  Done  2024-03-24 (AstroMain 3.67)

• Commence addition of  Report File, Report Log and _Log Folder links to Session Notes pages. Add addition links to Session Note page headers
        [ Local Files > | Report File > | Log File > | Folder > ]
   Implemented starting 2024-03-25 using following script code and applied to Notes for S1997 to S1201 to date.  Note the use of a 'session' variable to minimise work creating new pages and retrofitting improvement to older pages.

      <!--webbot bot="PurpleText" preview="Local Files & Logs" -->
    <script type="Text/JavaScript">
       if (window.location.protocol == 'file:') {
         session = '2024-03-21 S01200'
         document.write(' [ <a href="file:///C:/Data/CCD%20Imaging/Sessions/' + session +
                           '/_LOGS/Session_Pictures.htm">Local Files</a> &gt; | ');
         document.write(' <a href="file:///C:/Data/CCD%20Imaging/Sessions/' + session +
                           '/_LOGS/' + session + ' Observatory (report).htm">Report File</a> &gt; | ');
         document.write(' <a href="file:///C:/Data/CCD%20Imaging/Sessions/' + session +
                            '/_LOGS/' + session + ' Observatory (run).htm">Log File</a> &gt; | ');
         document.write(' <a href="file:///C:/Data/CCD%20Imaging/Sessions/' + session +
                            '/_LOGS">Folder</a> &gt; ] ');
       }
   </script>
  Done  2024-03-25 (Website)

• Disable 'Dome.Movement' logging when FindPark operation is taking place.  Use bRunningSearchForDomePark flag to disable Dome.Movement logging to make the log file more legible and shorter.
  Done  2024-03-26 (AstroMain 3.67)

• Add option to include/exclude trace records '(trace)' from finalised log file. Implemented in AstroMain 3.67 (2024-03-26) using 'Include (trace)'  checkbox on Reduction Workflow tab. Default option is unchecked, meaning that (trace) records are excluded from finalised log (htm) file.  This shortens the log (htm) file and makes it easier to use.  The '(trace)' messages can still be accessed by going to the original .log file or by rerunning the Finalise Log File with the 'Include (trace)' option checked.
  Done  2024-03-26 (AstroMain 3.67)

• Replace simple 'Ok (Link Image)' or 'Cancel' dialog and provide a more detailed dialog incorporating different link options.  Implemented in AstroMa 3.67 (2024-03-26) using new QueryDialog with options 'Link (8)', 'Link (15)', 'Link (30)' & 'Link (50)
  Done  2024-03-26 (AstroMain 3.67)

• Provide a means in AstroMain/Analysis to quickly go back to reattempt Image Link.  Use new QueryDialog form to quicky go back to retry 'Link Image' without having to Cancel the 'FV'  Dialog and then re-click on Link Image.
  Done  2024-03-26 (AstroMain 3.67)

• Add a 'Copy From CCDSoft' option to AstroMain's ImageSet 'Software Tool' QueryDialog.  Add a new option to exist QueryDialog (AnalysisStage.FV) that copies the current image picture from CCDSoft and pastes it into AstroMain ImageSets/Images as a linear image.  Prior to using option user will need to have set the range using CCDSoft Histogram tool.   Implemented in AstroMain 3.67 (2024-03-27), Imaged copied from CCDSoft using new routine 'ExecuteCCDSoftCopyImage()",  Image pasted into AstroMain using PasteImageFromClipboard().  In order to pickup the image from the clipboard it was found necessary to invoke the operation using following otherwise ObjImageFull is nothing which lead to an exception / paste failure.
     objConsole.Invoke(Sub() ObjImageFull = Clipboard.GetImage
  Done  2024-03-27 (AstroMain 3.67)

• When a Target is opened in AstroPlan from AstroMan it should always open on the General tab. Currently when 'Open in AstroPlan' facility is used the target can open on History or Frames tab, and user has to manually go the General Tab. The target should be made to automatically open on the General tab regardless of what tab the form was previously showing.  Implemented in AstroPlan 1.39.14
  Done  2024-03-27 (AstroPlan 1.39.14)
