Objects Session Notes
62P/Tsuchinshan - Comet C/2021 S3 (PANSTARRS) - Comet C/2023 A3 (Tsuchinshan-ATLAS) - Comet AT 2022pxn - CV Type Transient AT 2024crd - Type Nova? Transient NGC 3690 - Spiral Galaxy with Type Ia Supernova 2023wrk NGC 3690 - Spiral Galaxy with Type IIb Supernova 2024gzk NGC 5876 - Spiral Galaxy with Type II Supernova 2024igg UGC 8139 - Spiral Galaxy with Type Ia Supernova 2024ifu Variable Stars (photometric monitoring) - None Nearby Stars (astrometric monitoring) - None

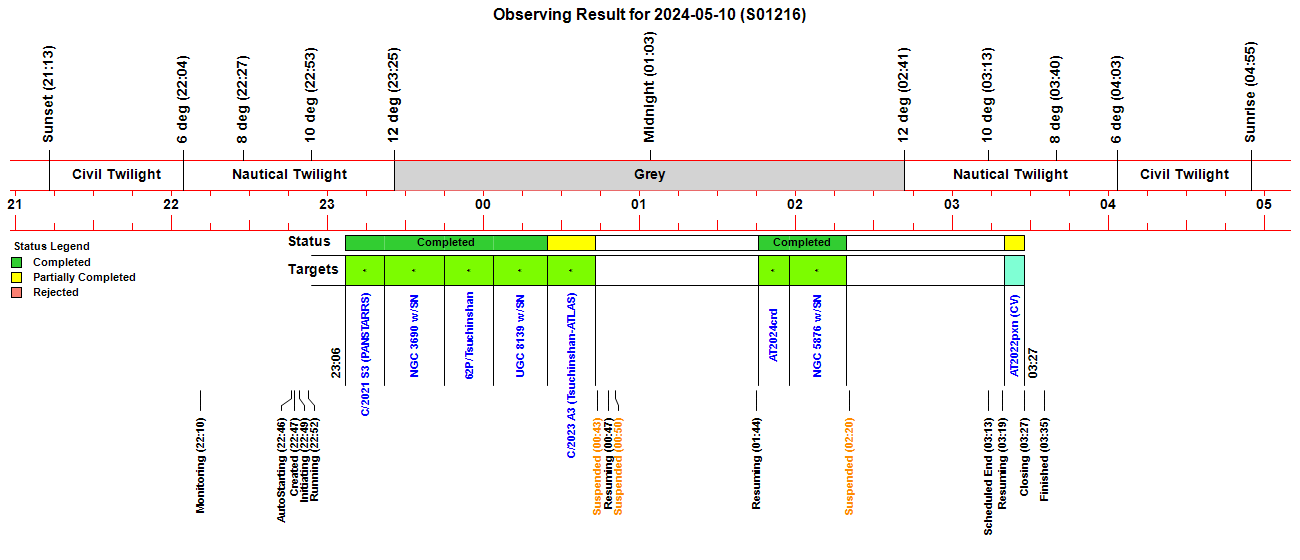

- Attempted All-Night Session (4.5 hrs), interrupted by cloud - 12" LX200 + ST-10XME for imaging - TS 80mm APO + ZWO ASI178MC for guiding & imaging - Ambient Temperature: 10°C (min) - CCD Temperature: -10°C - Notes from 2024-05-10 >> - Aurora Images/Video from night, 2024-05-10 >>
South
North
-
 |
Back to Top
| 62P/Tsuchinshan - 2024-05-10 (passing through Virgo) Sun Distance 1.99 AU (receeding) Earth Distance 1.19 AU (177.9 million km) Expected position of comet (not visible) is indicated by white cross-hairs |
62P/Tsuchinshan - 2024-05-10 Detail Autoguided on offset star using PHD2 with Lock Shift set at the comet's rate of motion (Ra 17.31 arcsec/hr, Dec -21.39 arcsec/hr) |
|
 |
 |
|
| Annotated CCD Image (50% size, square root scale) 4 x 90s exposure (average combine), 3x3 binning, Clear Filter 2024-05-10 23:00 UT (#1216024-27) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Annotated CCD Image (100% size, square root scale, cropped) Image details as above |
|
| 62P/Tsuchinshan - 2024-05-10 (passing through Virgo) Sun Distance 1.99 AU (receeding) Linear Scale 25000-31000 ADU Background Sky Value 29020 ADU |
62P/Tsuchinshan - 2024-05-10 Detail 62P is receeding and will naturally be fainter than earlier observation in March 2024 but observation is not helped by the bright aurora sky The light signal associated with comet is less than the sky noise and the comet can't be seen |
|
 |
 |
|
| Annotated CCD Image (50% size, square root scale) 4 x 90s exposure (average combine), 3x3 binning, Clear Filter 2024-05-10 23:00 UT (#1216024-27) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Annotated CCD Image (100% size, square root scale, cropped) Image details as left |
|
| 62P/Tsuchinshan - Earlier Image 2024-03-28 (passing through Virgo) Sun Distance 1.67 AU (receeding) Linear Scale 6340 - 7340 ADU Background Sky Value 6427 ADU |
62P/Tsuchinshan - Earlier Image 2024-03-28 Detail |
|
 |
 |
|
| Annotated CCD Image (50% size, linear scale) 6 x 90s exposure (average combine), 3x3 binning, Clear Filter 2024-03-28 00:12 UT (#1201027-32) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Annotated CCD Image (100% size, square root scale, cropped) Image details as left |
|
| Images of 62P/Tsuchinshan on Comets 2023 Page >> | ||
| Images of 62P/Tsuchinshan on Comets 2024 Page >> |
Back to Top
| C/2021 S3 (PANSTARRS) - 2024-05-10 (passing through Cygnus) Sun Distance 1.82 AU (receeding) Earth Distance 1.63 AU (243.5 million km) |
C/2021 S3 (PANSTARRS) - 2024-05-10 Detail Autoguided on offset star using PHD2 with Lock Shift set at the comet's rate of motion (Ra 30.56 arcsec/hr, Dec 72.31 arcsec/hr) |
|
 |
 |
|
| Annotated CCD Image (50% size, square root scale) 2 x 60s exposure (average combine), 3x3 binning, Clear Filter 2024-05-10 22:14 UT (#1216005-06) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Annotated CCD Image (100% size, square root scale, cropped) 7 x 60s exposure (average combine), 3x3 binning, Clear Filter 2024-05-10 22:17 UT (#1216005-11) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
|
| Images of C/2021 S3 (PANSTARRS) on Comets 2024 Page >> |
Back to Top
| C/2023 A3 (Tsuchinshan-ATLAS) - 2024-05-10 (passing through Virgo) Sun Distance 2.63 AU (approaching) Earth Distance 1.76 AU (263.4 million km) Poor quality image (bright sky background / aurora) |
C/2023 A3 (Tsuchinshan-ATLAS) - 2024-05-10 Autoguided on offset star using PHD2 with Lock Shift set at the comet's rate of motion (Ra -103.24 arcsec/hr, Dec 19.57 arcsec/hr) |
|
 |
 |
|
| Annotated CCD Image (50% size, square root scale) 60s exposure (single frame), 3x3 binning, Clear Filter 2024-05-10 23:31 UT (#1216038) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Annotated CCD Image (100% size, log scale, cropped) 8 x 60s exposure (average combine), 3x3 binning, Clear Filter 2024-05-10 23:37 UT (#1216038-46) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
|
| C/2023 A3 (Tsuchinshan-ATLAS) - 2024-05-10 | C/2023 A3 (Tsuchinshan-ATLAS) - 2024-05-10 | |
 |
 |
|
| False Color CCD Image (50% size, log scale) 8 x 60s exposure (average combine), 3x3 binning, Clear Filter 2024-05-10 23:37 UT (#1216038-46) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
False Color CCD Image (100% size, log scale, cropped) Image details as left |
|
| Images of C/2023 A3 Tsuchinshan-ATLAS on Comets 2024 Page >> |
Back to Top
|
AT 2022pxn (Ophiuchus) AT 2022pxn (Type: CV) discovered 2022-07-29.022 UT by MASTER Alias: MASTER OT J184452.58+113328.2 Discovery Magnitude 13.1 (Clear Filter) vs Prior Non-Detection Limiting Magnitude 17.7 ( TNS 2022pxn ) |
|
AT 2022pxn - 2024-05-11 (T+652.1d) Image below (2024-05-11.099) was taken 652.1 days after discovery of 2022pxn Position of reported transient (faint) is shown by white cross-hairs Estimated Magnitude +15.5 (Clear Filter) Poor quality image (bright/uneven background, aurora, single frame) |
|
|
|
Annotated CCD Image (100% size, linear scale, cropped) 60s exposure (single frame), 3x3 binning, Clear Filter 2024-05-11 02:23 UT (#1216064) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of AT 2022pxn on Transients 2022 Page >> |
Back to Top
|
AT 2024crd (Virgo) AT 2024crd (Type: Nova?) discovered 2024-02-14.750 UT by Tadashi Kojima Alias: TCP J13530185+0522000, Gaia24apm Discovery Magnitude 13.2 (Clear Filter) vs Prior Non-Detection Limiting Magnitude 15.2 Transient on faint blue PanSTARRS source ( TNS 2024crd | Gaia24apm ) |
|
AT 2024crd - 2024-05-11 (T+86.3d) Image below (2024-05-11.035) was taken 86.3 days after discovery of 2024crd Position of reported transient (not visible) is shown by white cross-hairs Non-Detection Limiting Magnitude +17.8 (Clear Filter) Poor quality image (bright sky background / aurora , cloud) |
|
|
|
Annotated CCD Image (100% size, linear scale, cropped) 5 x 60s exposure (average combine), 3x3 binning, Clear Filter 2024-05-11 00:54 UT (#1216050-54) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of AT 2024crd on Transients 2024 Page >> |
Back to Top
| NGC 3690 with SN 2023wrk (Ursa Major) SN 2023wrk (Type: Ia) discovered 2023-11-04.229 UT by GOTO Alias: GOTO23bdo, ZTF23abpbdfm, ATLAS23vna Discovery Magnitude 18.11 (L-GOTO filter) ( Rochester Supernova site ) ( TNS 2023wrk ) |
| NGC 3690 with SN 2023wrk - 2024-04-18 (T+188.7d) Image below (2024-05-10.94) was taken 188.7 days after discovery of 2023wrk Position of SN (fading ?) is shown by white cross-hairs Measured Magnitude +17.79 (C Filter) |
 |
| Annotated CCD Image (150% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-05-10 22:37 UT (#1216014-18) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of SN 2023wrk (in NGC 3690) on Supernovae 2023 Page >> |
Back to Top
| NGC 3690 with SN 2024gzk (Ursa Major) SN 2024gzk (Type: IIb) discovered 2024-04-12.349 UT by ZTF Alias: ZTF19abgbbzy Discovery Magnitude 17.78 (L-GOTO filter) ( TNS 2024gzk ) |
| NGC 3690 with SN 2024gzk - 2024-05-10 (T+28.6d) Image below (2024-05-10.936) was taken 28.6 days after discovery of 2024gzk Position of SN (faint) is shown by white cross-hairs |
|
|
| Annotated CCD Image (150% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-05-10 22:37 UT (#1216014-18) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of SN 2023wrk (in NGC 3690) on Supernovae 2023 Page >> |
| Images of SN 2024gzk (in NGC 3690) on Supernovae 2024 Page >> |
Back to Top
| NGC 5876 with SN 2024igg (Bootes) SN 2024igg (Type: II) discovered 2024-05-07.304 UT by ALeRCE Alias: ZTF24aamlalc Discovery Magnitude 17.76 (g-ZTF Filter) ( TNS 2024igg ) |
| NGC 5876 - Spiral Galaxy Poor quality image (bright, uneven sky background due to aurora) |
 |
| Annotated CCD Image (50% size, square root scale) 2 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-05-11 01:07 UT (#1216057-58) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| NGC 5876 with SN 2024igg - 2024-05-11 (T+3.7d) Image below (2024-05-11.044) was taken 3.7 days after discovery of 2024igg Position of SN (faint) is shown by white cross-hairs Estimated Magnitude +15.0* (Clear Filter) *Poor quality image (bright, uneven sky background due to aurora) |
 |
| Annotated CCD Image (150% size, square root scale, cropped) 2 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-05-11 01:07 UT (#1216057-58) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of SN 2024igg (in NGC 5876) on Supernovae 2024 Page >> |
Back to Top
| UGC 8139 with SN 2024ifu (Canes Venatici) SN 2024ifu (Type: Ia) discovered 2024-05-07.289 UT by ATLAS Alias: ZTF24aalqrpc Discovery Magnitude 17.53 (g-ZTF Filter) ( TNS 2024ifu ) |
| UGC 8139 with SN 2024ifu - 2024-05-10 (T+3.7d) Image below (2024-05-10.964) was taken 3.7 days after discovery of 2024ifu Position of SN (faint / not separately distinguishable) is shown by white cross-hairs Measured Magnitude (nucleus + SN) +15.46 (Clear Filter) Poor quality image (bright, uneven sky background due to aurora) |
 |
| Annotated CCD Image (150% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-05-10 23:17 UT (#1216030-34) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of SN 2024ifu (in UGC 8139) on Supernovae 2024 Page >> |
