Images - Session 1217 (2024-05-15)

Objects Session Notes
Bullet C/2021 S3 (PANSTARRS) - Comet
Bullet C/2022 E2 (ATLAS) - Comet
Bullet C/2023 A3 (Tsuchinshan-ATLAS) - Comet

Bullet AT 2023udd - CV Type Transient (attempt)
Bullet AT 2024crd - Type Nova? Transient

Bullet M31 - Spiral Galaxy with Transient AT 2024ikt (Attempt)

Bullet NGC 3690 - Spiral Galaxy with Type Ia Supernova 2023wrk
Bullet NGC 3690 - Spiral Galaxy with Type IIb Supernova 2024gzk
Bullet NGC 5466 - Globular Cluster (H VI-9)
Bullet NGC 5876 - Spiral Galaxy with Type II Supernova 2024igg
Bullet NGC 6004 - Spiral Galaxy with Type II Supernova 2024cld

Bullet UGC 8139 - Spiral Galaxy with Type Ia Supernova 2024ifu

Bullet Variable Stars (photometric monitoring)
- BL Lac

Bullet Nearby Stars (astrometric monitoring)
- None


- All-Night Session (3.7 hrs)

- 12" LX200 + ST-10XME for imaging
- TS 80mm APO + ZWO ASI178MC for guiding & imaging
- Ambient Temperature: 7°C (min)
- CCD Temperature:   -10°/-15° C
- Notes from 2024-05-15 >>

-

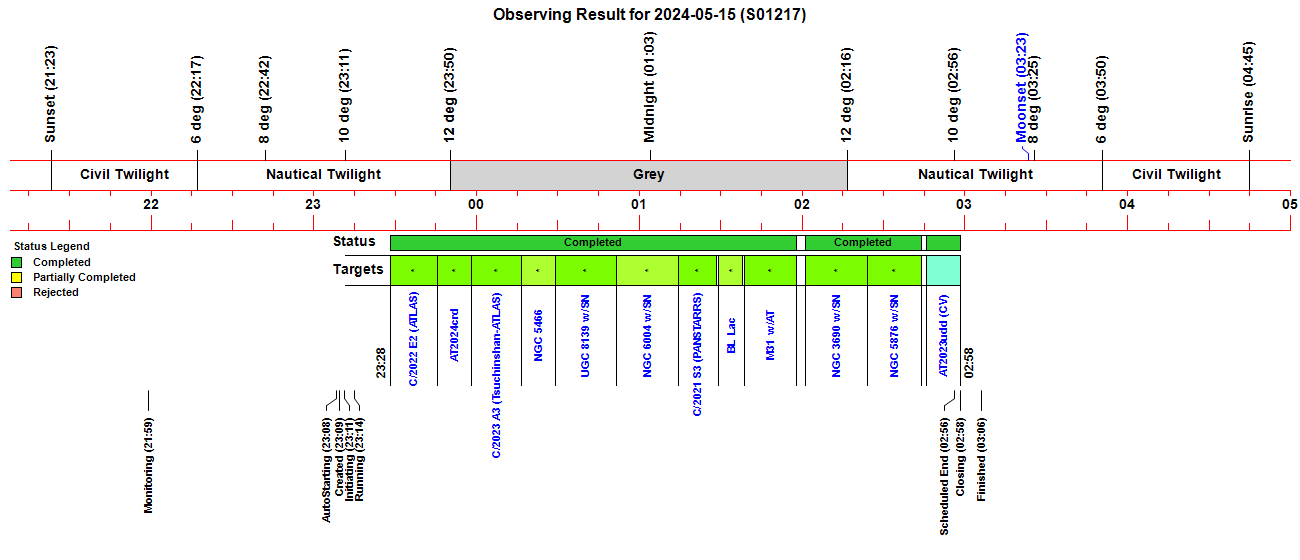

Observing Result


Back to Top


C/2021 S3 (PANSTARRS) - Comet

C/2021 S3 (PANSTARRS) - 2024-05-16
(passing through Cygnus)

Sun Distance 1.87 AU (receeding)
Earth Distance 1.67 AU (250.2 million km)
   C/2021 S3 (PANSTARRS) - 2024-05-16 Detail
Autoguided on offset star using PHD2 with Lock Shift
set at the comet's rate of motion
(Ra 22.54 arcsec/hr, Dec 65.97 arcsec/hr)
Image   Image
Annotated CCD Image (50% size, square root scale)
2 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-05-16 00:22 UT (#1217062-63)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
  Annotated CCD Image (100% size, log scale, cropped)
7 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-05-16 00:25 UT (#1217062-68)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of C/2021 S3 (PANSTARRS) on Comets 2024 Page >>

Back to Top


C/2022 E2 (ATLAS) - Comet

C/2022 E2 (ATLAS) - 2024-05-15
(passing through Gemini)
Sun Distance 3.82  AU (approaching)
Earth Distance 4.45 AU (665.9 million km)
   C/2022 E2 (ATLAS) - 2024-05-15 Detail
Autoguided on offset star using PHD2 with Lock Shift
set at the comet's rate of motion
(Ra 5.77 arcsec/hr, Dec 10.01 arcsec/hr)
Image   Image
Annotated CCD Image (50% size, square root scale)
7 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-05-15 22:41 UT (#1217007-13)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
  Annotated CCD Image (100% size, square root scale, cropped)
Image details as left

 Images of C/2022 E2 (ATLAS) on Comets 2023 Page >>
 Images of C/2022 E2 (ATLAS) on Comets 2024 Page >>

Back to Top


C/2023 A3 (Tsuchinshan-ATLAS) - Comet

C/2023 A3 (Tsuchinshan-ATLAS) - 2024-05-15
(passing through Virgo)
Sun Distance 2.56 AU (approaching)
Earth Distance 1.75 AU (262.5 million km)
   C/2023 A3 (Tsuchinshan-ATLAS) - 2024-05-15
Autoguided on offset star using PHD2 with Lock Shift
set at the comet's rate of motion
(Ra -100.04 arcsec/hr, Dec 17.42 arcsec/hr)
Image   Image
Annotated CCD Image (50% size, log scale)
60s exposure (single frame), 3x3 binning, Clear Filter
2024-05-15 23:04 UT (#1217023)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
  Annotated CCD Image (100% size, log scale, cropped)
11 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-05-15 23:10 UT (#1217023-33)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

C/2023 A3 (Tsuchinshan-ATLAS) - 2024-05-15    C/2023 A3 (Tsuchinshan-ATLAS) - 2024-05-15
Image   Image
False Color CCD Image (50% size, log scale)
11 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-05-15 23:10 UT (#1217023-33)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2
  False Color CCD Image (100% size, log scale, cropped)
Image details as left

Images of C/2023 A3 Tsuchinshan-ATLAS on Comets 2024 Page >>

Back to Top


AT 2023udd - CV Type Transient (Attempt)

AT 2023udd (Ophiuchus)
AT 2023udd (Type: CV) discovered 2023-10-05.585 UT by XOSS
Alias: KATS23T001, TCP J17532696+0350045
Discovery Magnitude 15.78 (Clear Filter)
 ( TNS 2023udd )

AT 2023udd - 2024-05-16 (T+223.5d)
Image below (2024-05-16.078) was taken 223.5 days after discovery of 2023udd
Position of reported transient (not visible / likely faded) is shown by white cross-hairs
Non-Detection Limiting Magnitude +17.0 (Clear Filter)


Annotated CCD Image (150% size, linear scale, cropped)
3 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-05-16 01:54 UT (#1217097-99)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2023udd on Transients 2023 Page >>

Back to Top


AT 2024crd - Type Nova? Transient

AT 2024crd (Virgo)
AT 2024crd (Type: Nova?) discovered 2024-02-14.750 UT by Tadashi Kojima
Alias: TCP J13530185+0522000, Gaia24apm
Discovery Magnitude 13.2 (Clear Filter)
vs Prior Non-Detection Limiting Magnitude 15.2
Transient on faint blue PanSTARRS source
 ( TNS 2024crd | Gaia24apm )

AT 2024crd - 2024-05-15 (T+91.2d)
Image below (2024-05-15.953) was taken 91.2 days after discovery of 2024crd
Position of earlier transient (no longer visible) is shown by white cross-hairs
Non-Detection Limiting Magnitude +18.5 (Clear Filter)


Annotated CCD Image (100% size, linear scale, cropped)
5 x 60s exposure (average combine), 3x3 binning, Clear Filter
2024-05-15 22:55 UT (#1217016-20)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2024crd on Transients 2024 Page >>

Back to Top


M31 - Spiral Galaxy with Transient AT 2024ikt (Attempt)

M31 with AT 2024ikt (Andromeda)
AT 2024ikt (Type: unk) discovered 2024-05-07.489 UT by ZTF
Alias: ZTF24aamrdsj
Discovery Mag 18.4 (r-ZTF filter)
 ( Rochester Supernova site | TNS 2024ikt )

M31 with AT 2024ikt
Image taking with secondary scope showing position of reported transient (blue circle)
relative to outline of M31 galaxy (white ellipse) & M31 Galaxy centre (labelled)


CMOS Image (16% size)
10s exposure (stacked), 1x1 binning
2024-05-16 00:41 UT (01:41 LT), Cam2_Ref
TS 80mm APO, ZWO ASI178MC & PHD2

M31 with AT 2023ax(T+35.5d)
Position of reported transient is shown by white circle
Annotated CCD Image (50% size, square root scale)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-05-16 00:50 UT (#1217076-80)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

M31 with AT 2024ikt - 2024-05-16 (T+8.5d)
Image below (2024-05-16.029) was taken 8.5 days after discovery of 2024ikt
Position of reported transient (not visible) is shown by white circle
Annotated CCD Image (125% size, square root scale)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-05-16 00:50 UT (#1217076-80)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of AT 2024ikt (in M31) on Transients 2024 Page >>


Back to Top


NGC 3690 - Spiral Galaxy with Type Ia Supernova 2023wrk

NGC 3690 with SN 2023wrk (Ursa Major)
SN 2023wrk (Type: Ia) discovered 2023-11-04.229 UT by GOTO
Alias: GOTO23bdo, ZTF23abpbdfm, ATLAS23vna
Discovery Magnitude 18.11 (L-GOTO filter)
 ( Rochester Supernova site ) ( TNS 2023wrk )
NGC 3690 with SN 2023wrk - 2024-04-18 (T+193.8d)
Image below (2024-05-16.05) was taken 193.8 days after discovery of 2023wrk
Position of SN (very faint) is shown by white cross-hairs
Measured Magnitude +17.12 (C Filter)
Annotated CCD Image (150% size, square root scale, cropped)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-05-16 01:16 UT (#1217083-87)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2023wrk (in NGC 3690) on Supernovae 2023 Page >>

Back to Top


NGC 3690 - Spiral Galaxy with Type IIb Supernova 2024gzk

NGC 3690 with SN 2024gzk (Ursa Major)
SN 2024gzk (Type: IIb) discovered 2024-04-12.349 UT by ZTF
Alias: ZTF19abgbbzy
Discovery Magnitude 17.78 (L-GOTO filter)
( TNS 2024gzk )
NGC 3690 with SN 2024gzk - 2024-05-16 (T+33.7d)
Image below (2024-05-16.047) was taken 33.7 days after discovery of 2024gzk
Position of SN (faint) is shown by white cross-hairs
Annotated CCD Image (150% size, square root scale, cropped)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-05-16 01:16 UT (#1217083-87)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2023wrk (in NGC 3690) on Supernovae 2023 Page >>
Images of SN 2024gzk (in NGC 3690) on Supernovae 2024 Page >>

Back to Top


NGC 5466 - Globular Cluster (H VI-9)

NGC 5466 / Herschel VI-9 (Bootes)
Deep Sky Challenge object, AstNow May 2024
 [ Herschel 400 Objects ] [ Deep Sky Challanges (Ast.Now) ] [ Globular Star Clusters


Annotated CCD Image (70% size, linear scale)
6 x 45s exposure (average combine), 3x3 binning, Clear Filter
2024-05-15 23:24 UT (#1217036-45)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2


NGC 5466 / Herschel VI-9 - Earlier Image (2008)


CCD Image
3 x 90s sec exposure (average combine), 2x2 binning, C Filter
2008-12-23 06:03 h UT (#336437-39)
8" LX200 + ST-7E

Back to Top


NGC 5876 - Spiral Galaxy with Type II Supernova 2024igg

NGC 5876 with SN 2024igg (Bootes)
SN 2024igg (Type: II) discovered 2024-05-07.304 UT by ALeRCE
Alias: ZTF24aamlalc
Discovery Magnitude 17.76 (g-ZTF Filter)
( TNS 2024igg )

NGC 5876 - Spiral Galaxy
Annotated CCD Image (50% size, square root scale)
4 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-05-16 01:34 UT (#1217090-93)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

NGC 5876 with SN 2024igg - 2024-05-16 (T+8.8d)
Image below (2024-05-16.060) was taken 8.8 days after discovery of 2024igg
Position of SN (faint) is shown by white cross-hairs
Annotated CCD Image (150% size, square root scale, cropped)
4 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-05-16 01:34 UT (#1217090-93)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2024igg (in NGC 5876) on Supernovae 2024 Page >>

Back to Top


NGC 6004 - Spiral Galaxy with Type II Supernova 2024cld

NGC 6004 with SN 2024cld (Serpens)
SN 2024cld (Type: II) discovered 2024-02-13.228 UT by GOTO
Alias: GOTO24ql, ATLAS24clv
Discovery Magnitude 17.97 ( Clear Filter)
Spectrum contains clear narrow H Balmer and He II 4686A flash
ionisation features typically seen in young type II SNe
 ( TNS 2024cld )

NGC 6004 with SN 2024cld - 2024-05-15 (T+92.8d)
Image below (2024-05-15.998) was taken 92.8 days after discovery of 2024cld
Position of reported SN (distinct, fading slowly) is indicated by white cross-hairs.
Measured Magnitude +15.84 (Clear Filter)
Annotated CCD Image (150% size, square root scale, cropped)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-05-16 00:06 UT (#1217055-59)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2024cld (in NGC 6004) on Supernova 2024 Page >>

Back to Top


UGC 8139 - Spiral Galaxy with Type Ia Supernova 2024ifu

UGC 8139 with SN 2024ifu (Canes Venatici)
SN 2024ifu (Type: Ia) discovered 2024-05-07.289 UT by ATLAS
Alias: ZTF24aalqrpc
Discovery Magnitude 17.53 (g-ZTF Filter)
( TNS 2024ifu )

UGC 8139 with SN 2024ifu - 2024-05-15 (T+8.7d)
Image below (2024-05-15.983) was taken 8.7 days after discovery of 2024ifu
Position of SN (faint / not separately distinguishable) is shown by white cross-hairs
Measured Magnitude (nucleus + SN) +15.46 (Clear Filter)
Annotated CCD Image (150% size, square root scale, cropped)
5 x 180s exposure (average combine), 3x3 binning, Clear Filter
2024-05-15 23:44 UT (#1217048-52)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Images of SN 2024ifu (in UGC 8139) on Supernovae 2024 Page >>

Back to Top
