Objects Session Notes
Nova Vul 2024 - Nova (V615 Vul) T CrB - Variable Star AT 2024vhz - Type CV? Transient AT 2024vid - Type MP Transient AT 2024vla - Type CV? Transient AT 2024wqf - Type AGN Transient (4C 27.50) ACO 2584 - Galaxy Cluster Hu 1-2 - Planetary Nebula (Humason 1-2, PN G086.5-08.8) UGC 690 - Spiral Galaxy with Type II Supernova 2024vfo UGC 4957 - Spiral Galaxy with Transient AT 2024vrq Variable Stars (photometric monitoring) - TT Ari, T CrB, RZ LMi, BL Lac, GK Per Nearby Stars (astrometric monitoring) - None

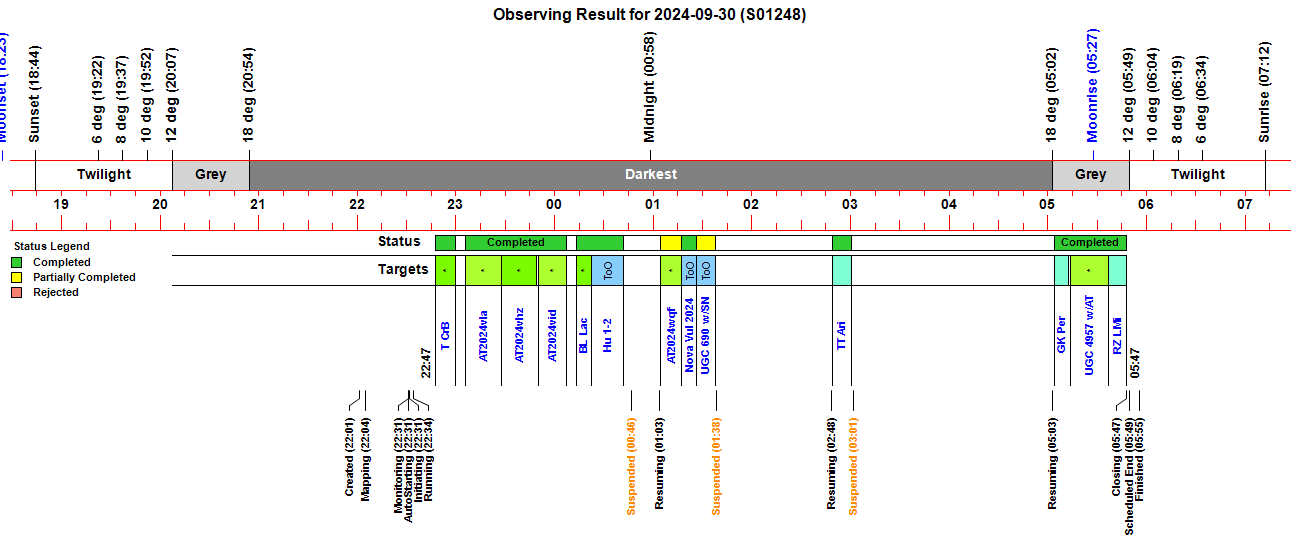

- Late-Night Session (7.7 hr), interrupted by cloud
Session preceeded by Telescope Focusing & Short Mapping Job- 12" LX200 + ST-10XME for imaging - TS 80mm APO + ZWO ASI178MC for guiding & imaging - Ambient Temperature: 11°C (min) - CCD Temperature: -10°/ -15°C - Notes from 2024-09-30 >> -
Back to Top
Nova Vul 2024 (Vulpecula) Alias: N Vul 2024, V615 Vul, PNV J19430751+2100204 Nova Vul 2024 (Type: Nova) discovered 2024-07-29.832 UT by New Milky Way survey Discovery Magnitude 11.2 Maximum Magnitude 9.8 [ Novae ] |
Nova Vul 2024 - 2024-10-01 (T+63.2d) Image below (2024-10-01.016) was taken 63.2 days after discovery of Nova Vul 2024 Positon of Nova (fading) is shown by white cross hairs. Measured magnitude +14.29 (Clear Filter) |
Annotated CCD Image (100% size, linear scale, cropped) 30s exposure (single frame), 3x3 binning, Clear Filter 2024-10-01 00:23 UT (#1248142) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Images of Nova Vul 2024 on Novae Page >> |
Back to Top
T CrB (Corona Borealis) Alias: GCVS T CrB, HIP 78322, SAO 84129, HD 143454 Max Magnitude 2.0 Min Magnitude 10.8 Spectral: M3III+pec(NOVA) ( VSX T CrB ) |
T CrB (V Band) - 2024-09-30 | T CrB - Photometry - 2024-09-30 | |||||||||||||||||||||||||||||||||||||||||||||
Altitude: 17.6°, Airmass: 3.292
|
||||||||||||||||||||||||||||||||||||||||||||||
Annotated CCD Image (50% size, linear scale) 3 x 15s exposure (average combine), 3x3 binning, V Filter 2024-09-30 21:58 UT (#1248084-88) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
CCD Image (not shown) 3 x 20s exposure (average combine), 3x3 binning, B Filter 2024-09-30 21:57 UT (#1248083-87) |
|||||||||||||||||||||||||||||||||||||||||||||
More Images & Data for T CrB >> |
Back to Top
AT 2024vhz (Cepheus) |
AT 2024vhz - 2024-09-30 (T+18.2d) Image below (2024-09-30.940) was taken 18.2 days after discovery of 2024vhz Position of reported transient (faint, fading) is shown by white cross-hairs Measured magnitude +16.39 (Clear Filter) |
|
Annotated CCD Image (100% size, linear scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-09-30 22:42 UT (#1248100-04) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Images of AT 2024vhz on Transients 2024 Page >> |
Back to Top
AT 2024vid (Pegasus) |
AT 2024vid - 2024-09-30 (T+23.3d) Image below (2024-09-30.956) was taken 23.3 days after discovery of 2024vid Position of reported transient (ambiguous) is shown by white cross-hairs Measured magnitude (visible star) +16.28 (Clear Filter) It is unclear if the reported transient is the star lying close to cross-hairs or not |
|
Annotated CCD Image (100% size, linear scale, cropped) 5 x 120s exposure (average combine), 3x3 binning, Clear Filter 2024-09-30 23:02 UT (#1248107-11) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Images of AT 2024vid on Transients 2024 Page >> |
Back to Top
AT 2024vla (Aquila) |
AT 2024vla - 2024-09-30 (T+15.2d) Image below (2024-09-30.924) was taken 15.2 days after discovery of 2024vla Position of reported transient (faint) is shown by white cross-hairs Estimated Magnitude +17.5 (Clear Filter) Difficulty to Plate Solve, eventually achieved with Detection Threshold 80 & GSC Stars |
|
Annotated CCD Image (150% size, linear scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-09-30 22:20 UT (#1248093-97) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
AT 2024vla - Earlier Image 2024-09-18 (T+3.2d) Image below (2024-09-18.898) was taken 3.2 days after discovery of 2024vla Position of reported transient (faint) is shown by white cross-hairs Unable to Plate Solve & Derive Photometry Estimated Magnitude +16.5 (Clear Filter) |
|
Annotated CCD Image (150% size, linear scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-09-18 21:41 UT (#1247053-57) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Images of AT 2024vla on Transients 2024 Page >> |
Back to Top
AT 2024wqf (Pegasus) |
AT 2024wqf - 2024-10-01 (T+6.8d) Image below (2024-10-01.005) was taken 6.8 days after discovery of 2024wqf Position of reported transient (distinct) is shown by white cross-hairs Measured Magnitude +14.16 (Clear Filter) |
|
Annotated CCD Image (100% size, linear scale, cropped) 2 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-10-01 00:10 UT (#1248133-34) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Galaxies near to AT 2024wqf / 4C 27.50 AT 2024wqf / 4C 27.50 (alias PGC 2820015, catalog mag +19.0) with adjacent Galaxies : PGC 71219 (catalog mag +16.1), WGB2006 231936+27150, 2MASX J23215928+2733016, PGC 1811085 (catalog mag +17.1), PGC 1810714 (catalog mag +17.5), PGC 1809806 (catalog mag 18.0), PGC 1810680 (catalog mag +18.4) |
|
Annotated CCD Image (100% size, square root scale, cropped) 2 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-10-01 00:10 UT (#1248133-34) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Images of AT 2024wqf on Transients 2024 Page >> |
Back to Top
ACO 2584 (Pegasus) |
4C 27.50 Outburst / AT 2024wqf (alias PGC 2820015) with adjacent Galaxies : PGC 71219 (catalog mag +16.1), WGB2006 231936+27150, 2MASX J23215928+2733016, PGC 1811085 (catalog mag +17.1), PGC 1810714 (catalog mag +17.5), PGC 1809806 (catalog mag 18.0), PGC 1810680 (catalog mag +18.4) |
|
Annotated CCD Image (100% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-09-18 21:41 UT (#1247053-57) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Back to Top
Hu 1-2 (Cygnus) |
|
Annotated CCD Image (50% size, square root scale, cropped) 4 x 90s exposure (average combine), 3x3 binning, Clear Filter 2024-09-30 23:31 UT (#1248120-24) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Hu 1-2 - Detail |
|
Annotated CCD Image (175% size, log scale, cropped) 4 x 90s exposure (average combine), 3x3 binning, Clear Filter 2024-09-30 23:31 UT (#1248120-24) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |

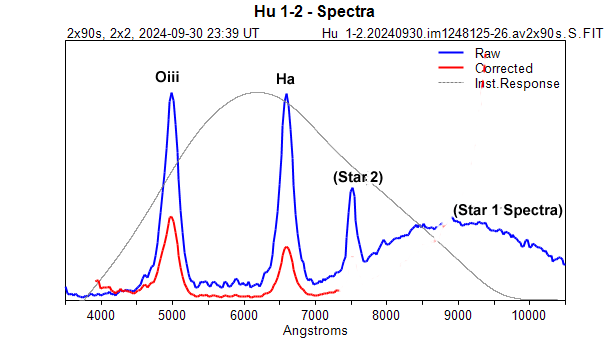

Hu 1-2 - Spectra |
|
Annotated CCD Image (100% size, square root scale) 2 x 90s exposure (average combine), 2x2 binning, S Filter 2024-09-30 23:38 UT (#1248125-26) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Back to Top
UGC 690 with SN 2024vfo (Andromeda) |
UGC 690 - Spiral Galaxy |
|
Annotated CCD Image (50% size, square root scale, cropped) 180s exposure (single frame), 3x3 binning, Clear Filter 2024-10-01 00:32 UT (#1248147) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
UGC 690 with SN 2024vfo - 2024-10-01 (T+19.4d) Image below (2024-10-01.022) was taken 19.4 days after discovery of 2024vfo Position of reported transient (very faint) is shown by white cross-hairs Estimated Magnitude +18.3 (Clear Filter) |
|
Annotated CCD Image (150% size, square root scale, cropped) 180s exposure (single frame), 3x3 binning, Clear Filter 2024-10-01 00:32 UT (#1248147) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Images of SN 2024vfo (in UGC 690) on Supernova 2024 Page >> |
Back to Top
UGC 4957 with AT 2024vrq (Cancer) |
UGC 4957 - Spiral Galaxy |
|
Annotated CCD Image (100% size, linear scale, cropped) 4 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-10-01 04:28 UT (#1248167-71) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
UGC 4957 with AT 2024vrq - 2024-10-01 (T+12.7d) Image below (2024-10-01.181) was taken 12.7 days after discovery of 2024vrq Position of reported transient (very faint) is shown by white cross-hairs |
|
Annotated CCD Image (150% size, square root scale, cropped) 4 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-10-01 04:28 UT (#1248167-71) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Images of AT 2024vrq (in UGC 4957) on Transients 2024 Page >> |
Back to Top
