C/2023 A3 (Tsuchinshan-ATLAS) - 2024-10-24 (passing through Ophiuchus) Sun Distance 0.79 AU (receeding) Earth Distance 0.73 AU (109.6 million km) Poor quality image (not centered as planned) |
C/2023 A3 (Tsuchinshan-ATLAS) - 2024-10-24 Autoguided on offset star using PHD2 with Lock Shift set at the comet's rate of motion (Ra 310.17 arcsec/hr, Dec 18.10 arcsec/hr) Poor quality image (single frame only) |
|
Annotated CCD Image (50% size, log scale) 10s exposure (single frame), 3x3 binning, Clear Filter 2024-10-24 19:49 UT (#1259019) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Annotated CCD Image (100% size, log scale, cropped) Image details as left |
|
C/2023 A3 (Tsuchinshan-ATLAS) - 2024-10-24 Poor quality image (not centered as planned) |
C/2023 A3 (Tsuchinshan-ATLAS) - 2024-10-24 Poor quality image (single frame only) |
|
False Color CCD Image (50% size, log scale) 10s exposure (single frame), 3x3 binning, Clear Filter 2024-10-24 19:49 UT (#1259019) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
False Color CCD Image (100% size, log scale, cropped) Image details as left |
|
Images of C/2023 A3 Tsuchinshan-ATLAS on Comets 2024 Page >> |
Back to Top

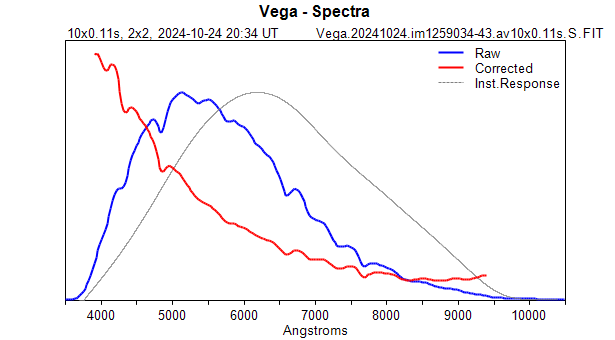

Vega (Lyra) Alias: HIP 91262 Spectral A0V |
Annotated CCD Image (100% size, square root scale, rotated) 10 x 0.11s exposure (average combine), 2x2 binning, S Filter 2024-10-24 20:34 UT (#1259034-43) 12" LX200R (at f/10.4) + ST-10XME |

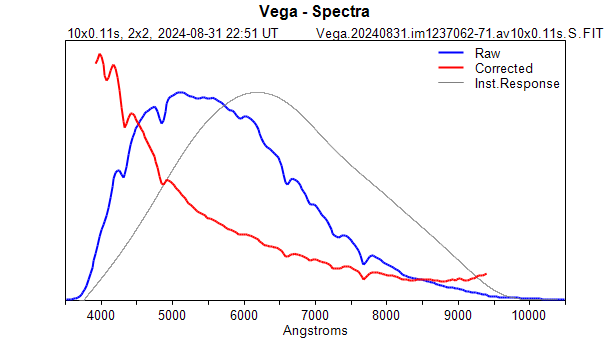

Vega - Earlier Spectra, 2024-08-31 |
Annotated CCD Image (100% size, square root scale, rotated) 10 x 0.11s exposure (average combine), 2x2 binning, S Filter 2024-08-31 22:51 UT (#1237062-71) 12" LX200R (at f/10.4) + ST-10XME |
Spectral images above created using new code in AstroMain
3.71.5+ to align frames using brightest star and automatically select the brightest star in the combined image as the zero order star for creating the spectral profile. and new code in AstroMain 3.71.5+ to quickly label star and add appropriate scale bar in Angstrom |
Back to Top
AT 2023tpr (Monoceros) AT 2023tpr (Type: ulens?) discovered 2023-09-23.226 UT by Gaia Alias: Gaia23cpg Alerting Magnitude 14.94 (G-Gaia Filter) vs Historic Magnitude 15.13 +/- 0.06 SD Bright blue gal.plane source candidate microlensing event or Be-type outburst ( TNS 2023tpr | Gaia23cpg ) |
AT 2023tpr - 2024-10-25 (T+398.0d) Image below (2024-10-25.203) was taken 398.0 days after discovery of 2023tpr Position of earlier transient (distinct) is shown by white cross-hairs Measured magntitude +14.75 (Clear Filter) |
Annotated CCD Image (100% size, linear scale, cropped) 4 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-10-25 04:59 UT (#1259216-19) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Images of AT 2023tpr on Transients 2023 Page >> |
Back to Top
AT 2023ttx (Canis Major) |
AT 2023ttx - 2024-10-25 (T+394.0d) Image below (2024-10-25.174) was taken 394.0 days after discovery of 2023ttx Position of reported transient (relatively distinct, faded) is shown by white cross-hairs Measured Magnitude +13.76 (Clear Filter) |
|
Annotated CCD Image (100% size, linear scale, cropped) 4 x 60s exposure (average combine), 3x3 binning, Clear Filter 2024-10-25 04:14 UT (#1259200-04) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Images of AT 2023ttx on Transients 2023 Page >> |
Back to Top
AT 2023uzs (Camelopardalis) |
AT 2023uzs - 2024-10-25 (T+377.7d) Image below (2024-10-25.013) was taken 377.7 days after discovery of 2023uzs Position of earlier transient (very faint, faded) is shown by white cross-hairs Measured Magnitude +17.63 (Clear Filter) |
|
Annotated CCD Image (100% size, linear scale, cropped) 5 x 60s exposure (average combine), 3x3 binning, Clear Filter 2024-10-25 00:21 UT (#1259104-08) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Images of AT 2023uzs on Transients 2023 Page >> |
Back to Top
AT 2023wfq (Orion) |
AT 2023wfq - 2024-10-25 (T+364.6d) Image below (2024-10-25.028) was taken 364.6 days after discovery of 2023wfq Position of earlier transient (faint) is shown by white cross-hairs Measured Magnitude +15.53 (Clear Filter) |
|
Annotated CCD Image (100% size, linear scale, cropped) 2 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-10-25 00:44 UT (#1259115-16) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Images of AT 2023wfq on Transients 2023 Page >> |
Back to Top
AT 2023aaui (Eridanus) |
AT 2023aaui - 2024-10-25 (T+307.2d) Image below (2024-10-25.065) was taken 307.2 days after discovery of 2023aaui Position of earlier transient (faded & no longer visible) is shown by white cross-hairs Non-Detection Limiting Magnitude +18.6 (Clear Filter) |
|
Annotated CCD Image (100% size, linear scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-10-25 01:42 UT (#1259139-43) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Images of AT 2023aaui on Transients 2023 Page >> |
Back to Top
AT 2024eoh (Monoceros) |
AT 2024eoh - 2024-10-25 (T+221.8d) Image below (2024-10-25.147) was taken 221.8 days after discovery of 2024eoh Position of earlier transient (faded & no longer visible) is shown by white cross-hairs Non-Detection Limiting Magnitude +19.0 (Clear Filter) Bright star in FOV is HD 50529 (alias SAO 114577, catalog mag +8.24) |
|
Annotated CCD Image (100% size, linear scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-10-25 03:40 UT (#1259186-90) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Images of AT 2024eoh on Transients 2024 Page >> |
Back to Top
AT 2024fxd (Virgo) |
AT 2024fxd - 2024-10-25 (T+210.3d) Image below (2024-10-25.224) was taken 210.3 days after discovery of 2024fxd Position of earlier transient (fading) is shown by white cross-hairs Measured Magnitude +15.52 (Clear Filter) |
|
Annotated CCD Image (100% size, linear scale, cropped) 4 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-10-25 05:29 UT (#1259227-30) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Images of AT 2024fxd on Transients 2024 Page >> |
Back to Top
AT 2024sje (Orion) |
AT 2024sje (T+77.7d), near Horsehead Nebula, B33 |
|
Annotated CCD Image (50% size, linear scale) 4 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-10-25 04:32 UT (#1259207-11) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
AT 2024sje - 2024-10-25 (T+77.7d) Image below (2024-10-25.183) was taken 77.7 days after discovery of 2024sje Position of earlier transient (distinct, normal state) is shown by white cross-hairs Measured Magnitude +15.37 (Clear Filter) Transient likely returned to normal state (15.1-15.6 Gaia) |
|
Annotated CCD Image (100% size, linear scale, cropped) 4 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-10-25 04:32 UT (#1259207-11) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Images of AT 2024sje on Transients 2024 Page >> |
Back to Top
AT 2024vhz (Cepheus) |
AT 2024vhz - 2024-10-24 (T+42.2d) Image below (2024-10-24.892) was taken 42.2 days after discovery of 2024vhz Position of reported transient (faded & no longer visible) is shown by white cross-hairs Non-Detection Limiting Magnitude +18.4 (Clear Filter) |
|
Annotated CCD Image (100% size, linear scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-10-24 21:33 UT (#1259056-60) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
AT 2024vhz - Earlier Image, 2024-09-16 (T+3.3d) Image below (2024-09-16.054) was taken 3.3 days after discovery of 2024vhz Position of reported transient (faint) is shown by white cross-hairs Measured magnitude +15.22 (Clear Filter) |
|
Annotated CCD Image (100% size, linear scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-09-16 01:27 UT (#1244169-73) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Images of AT 2024vhz on Transients 2024 Page >> |
Back to Top
AT 2024vsz (Pisces) |
AT 2024vsz - 2024-10-24 (T+35.3d) Image below (2024-10-24.985) was taken 35.3 days after discovery of 2024vsz Position of earlier transient (not visible) is shown by white cross-hairs Non-Detection Limiting Magnitude +19.5 (Clear Filter) |
|
Annotated CCD Image (125% size, linear scale, cropped) 3 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-10-24 23:44 UT (#1259091-94) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Images of AT 2024vsz on Transients 2024 Page >> |
Back to Top
AT 2024wpc (Bootes) |
AT 2024wpc - 2024-10-24 (T+32.2d) Image below (2024-10-24.784) was taken 32.2 days after discovery of 2024wpc Position of reported transient (faint, fading) is shown by white cross-hairs Measured Magnitude +15.05 (Clear Filter) |
|
Annotated CCD Image (125% size, square root scale, cropped) 3 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-10-24 18:55 UT (#1259013-15) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Images of AT 2024wpc on Transients 2024 Page >> |
Back to Top
AT 2024xhn (Lynx) |
AT 2024xhn - 2024-10-25 (T+20.4d) Image below (2024-10-25.127) was taken 20.4 days after discovery of 2024xhn Position of reported transient (distinct, brightening slightly ?) is shown by white cross-hairs Measured Magnitude +14.08 (Clear Filter) |
|
Annotated CCD Image (100% size, linear scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-10-25 03:12 UT (#1259178-82) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Images of AT 2024xhn on Transients 2024 Page >> |
Back to Top
AT 2024xvy (Aries) |
AT 2024xvy - 2024-10-22 (T+12.0d) Image below (2024-10-22.127) was taken 12.0 days after discovery of 2024xvy Position of reported transient (not visible) is shown by white cross-hairs Non-Detection Limiting Magnitude +19.2 (Clear Filter) |
|
Annotated CCD Image (100% size, linear scale, cropped) 5 x 90s exposure (average combine), 3x3 binning, Clear Filter 2024-10-25 02:32 UT (#1259164-68) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Images of AT 2024xvy on Transients 2024 Page >> |
Back to Top
AT 2024ycs (Perseus) |
AT 2024ycs - 2024-10-25 (T+11.8d) Image below (2024-10-25.113) was taken 11.8 days after discovery of 2024ycs Position of reported transient (not visible) is shown by white cross-hairs Non-Detection Limiting Magnitude +19.4 (Clear Filter) |
|
Annotated CCD Image (100% size, linear scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-10-25 02:51 UT (#1259171-75) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Images of AT 2024ycs on Transients 2024 Page >> |
Back to Top
AT 2024yej (Aquila) |
AT 2024yej - 2024-10-24 (T+10.2d) Image below (2024-10-24.863) was taken 10.2 days after discovery of 2024yej Position of reported transient (very faint) is shown by white cross-hairs Estimated Magnitude +16.5 (Clear Filter) |
|
Annotated CCD Image (100% size, linear scale, cropped) 4 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-10-24 20:52 UT (#1259046-50) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Images of AT 2024yej on Transients 2024 Page >> |
Back to Top
AT 2024yho (Hydra) |
AT 2024yho - 2024-10-25 (T+13.4d) Image below (2024-10-25.215) was taken 13.4 days after discovery of 2024yho Position of reported transient (not visible) is shown by white cross-hairs Non-Detection Limiting Magnitude +16.9 (Clear Filter) |
|
Annotated CCD Image (100% size, linear scale, cropped) 3 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-10-25 05:14 UT (#1259222-24) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Images of AT 2024yho on Transients 2024 Page >> |
Back to Top
LEDA 2078778 with SN 2024xqe (Triangulum) SN 2024xqe (Type: Ia) discovered 2024-10-09.466 UT by PS1 Alias: PS24jlp, ZTF24ablssfw Discovery Magnitude 19.93 (g-P1 Filter) Type: SN Ia, Redshift: z=0.034 ( TNS 2024xqe ) |
LEDA 2078778 - Galaxy with SN 2024xqe (T+15.5d) |
Annotated CCD Image (50% size, square root scale) 3 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-10-25 00:01 UT (#1259097-101) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
LEDA 2078778 with SN 2024xqe - 2024-10-24 (T+15.5d) Image below (2024-10-24.996) was taken 15.5 days after discovery of 2024xqe Position of reported supernova (distinct) is shown by white cross-hairs Measured Magnitude +15.43 (Clear Filter) |
Annotated CCD Image (175% size, square root scale, cropped) 3 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-10-25 00:01 UT (#1259097-101) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Images of SN 2024xqe (in LEDA 2078778) on Supernova 2024 Page >> |
Back to Top
M31 with AT 2024ynw (Andromeda) |
M31 - Spiral Galaxy with AT 2024ynw (T+4.4d) Cam2 Reference Image Position of AT 2023hrm (not visible in this exposure) is shown by blue circle Limits of M31 Spiral Galaxy is shown by white ellipse (bottom left-hand corner) |
Annotated CMOS Image (16% size) (10s exposure, 1x1 binning) 2024-10-24 23:15 UT (00:15 BST) TS 80mm APO, ZWO ASI178MC |
M31 -Spiral Galaxy with AT 2024ynw (T+4.4d) |
|
Annotated CCD Image (70% size, square root scale) 180s exposure (single frame), 3x3 binning, Clear Filter 2024-10-24 23:19 UT (#1259086) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
M31 with AT 2024ynw - 2024-10-24 (T+4.4d) Image below (2024-10-24.972) was taken 4.4 days after discovery of 2024ynw Position of reported transient (not visible) is shown by white cross-hairs Non-Detection Limiting Magnitude +16.8 (Clear Filter) |
|
Annotated CCD Image (125% size, log scale, cropped) 180s exposure (single frame), 3x3 binning, Clear Filter 2024-10-24 23:19 UT (#1259086) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Images of AT 2024ynw (in M31) on Transients 2024 Page >> |
Back to Top
NGC 1275 with SN 2024xav (Perseus) |
NGC 1275 with SN 2024xav - 2024-10-25 (T+25.1d) Image below (2024-10-25.087) was taken 25.1 days after discovery of 2024xav Position of reported transient (faint) is shown by white cross-hairs Estimated Magnitude +16.3 (Clear Filter) |
|
Annotated CCD Image (150% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-10-25 02:14 UT (#1259157-61) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Images of SN 2024xav (in NGC 1275) on Supernovae 2024 Page >> |
Back to Top

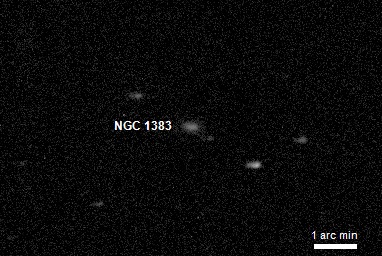

NGC 1383 (Eridanus) |
|
Annotated CCD Image (125% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-10-25 01:21 UT (#1259132-36) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
NGC 1383 - Earlier Image |
|
Annotated CCD Image (100% size, square root scale, cropped) 180s exposure (single frame), 3x3 binning, Clear Filter 2024-10-13 02:17 UT (#1254030) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Back to Top
NGC 2196 (Lepus) |
|
Annotated CCD Image (50% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-10-25 04:00 UT (#1259193-97) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
NGC 2196 / UGCA 121 - Detail |
|
Annotated CCD Image (150% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-10-25 04:00 UT (#1259193-97) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Back to Top
PGC 143 / Cetus Dwarf (Cetus) |
|
Annotated CCD Image (50% size, square root scale) 2 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-10-24 21:58 UT (#1259068-69) 12" LX200R (at f/9.7) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
PGC 143 / Cetus Dwarf - Earlier Image (Nov 2011) |
|
CCD Image (50% size) 7 x 90 sec exposure (average combine), 3x3 binning, C Filter 2012-11-02 21:30 h UT (#520187-93) 12" LX200R (at f/9.7) + ST-10XME |
|
|
Negative CCD Image (50% size)
Image details as above |
Back to Top
SN 2024xqt (Hercules) |
SN 2024xqt - 2024-10-24 (T+14.7d) Image below (2024-10-24.844) was taken 14.7 days after discovery of 2024xqt Position of reported supernova (distinct) is shown by white cross-hairs Estimated Magnitude +15.37 (Clear Filter) |
|
Annotated CCD Image (125% size, square root scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-10-24 20:24 UT (#1259027-31) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
Images of SN 2024xqt on Supernovae 2024 Page >> |
Back to Top
