Notes from CCD Session 87 (S00087)

Bullet M27 Colour Image Construction
Bullet Master Flat Field

>

Goto Images from 2005-05-17


M27 Colour Image Construction



M27 through different filters (Planetary Nebula, Vulpecula)
 CLEAR RED
Image Image
CCD Image  - Clear Filter
3 x 1min (average combine)
2005-05-18  01:24 h UT (#87135-37)
CCD Image  - Red Filter
3 x 1min (average combine)
2005-05-18  01:32 h UT (#87141-45)

GREEN  BLUE
Image Image
CCD Image  - Green Filter
3 x 1min (average combine)
2005-05-18  01:34 h UT (#87142-47)
CCD Image  - Blue Filter
3 x 2min (average combine)
2005-05-18  01:38 h UT (#87143-50)

LRGB Colour Image  LRGB Colour Image (brightened)
Image Image
CCD Colour Image (LRGB)
Luminance 3x1min (average), Red : 3x1min (average),
Green 3x1min (average), Blue 3x2min (average)
2005-05-18  01:24 h UT (#87135-50)
CCD Colour Image (LRGB)
Image as left, but brightened

Back to Top

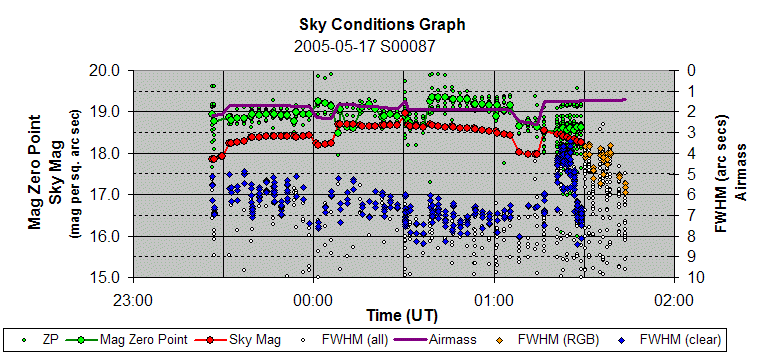

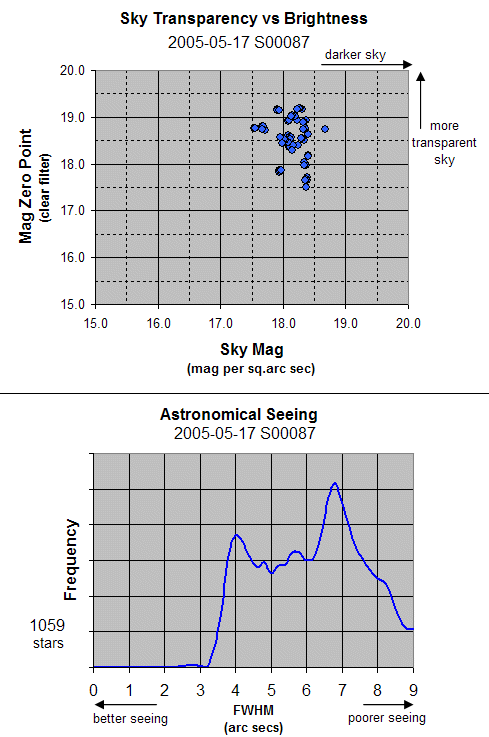

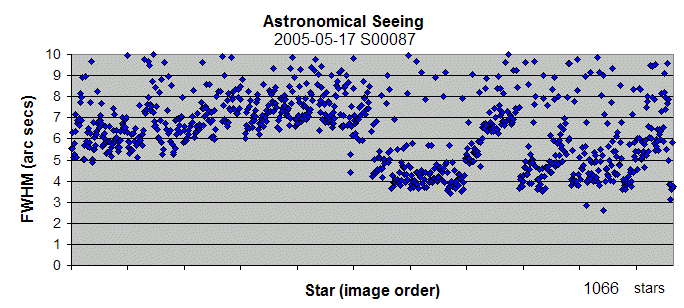

Observing Conditions


Back to Top

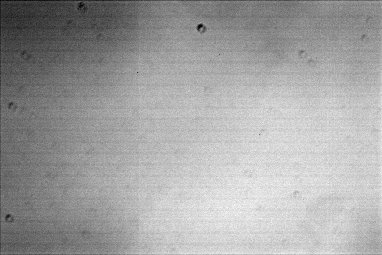

Master Flat Field

Master Flat Field
(used for sessions 86 & 87)
Tee-Shirt Flat, 2x2 Binning
Average of 15 Flat Frames,
8 sec exposures, Clear Filter, f10/3
(#86218-32)
