Notes from CCD Session 92 (S00092)

Bullet Sky Condition Graph
Bullet Sky Brightness Survey
Bullet Master Flat

>

Goto Images from 2005-08-14

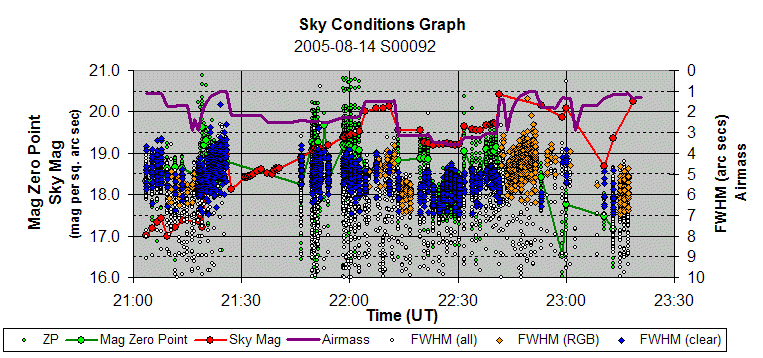

Sky Condition Graph

Sky Condition Graphs for Observing Session 92

Notice
1) Noticeable sky darkening between 21:00 and 22:00h UT
2) Variation in airmass as targets at different altitudes were acquired
3) Rapid deterioration in sky quality at 22:45h UT as shown by smaller Mag Zero Point values
(gap in FWHM / ZP data at 21:30-21:45h UT is due to failure of certain Globular Cluster images to image link)

See explanation of these graphs

Back to Top

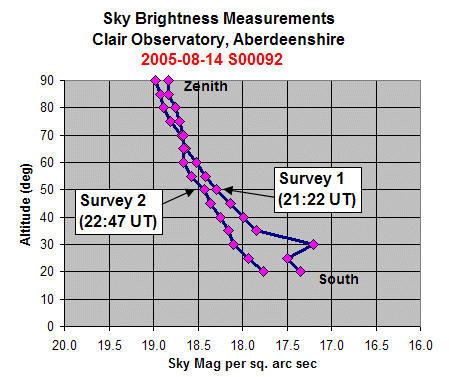

Sky Brightness Survey


Back to Top

Master Flat

Master Flat
(Dusk Sky Flats near Zenith, with TeeShirt)
11 x 20s (average combine), clear filter, -15 deg C
2005-08-14 (#92001-11)

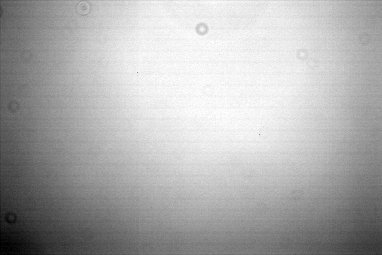

Master Flat
(TeeShirt Flats against illuminated board in Observatory)
Noise levels are much lower in this Master Flat Attempt (due to brighter
incident light and higher number of frames used), however lighting is considered
to non-uniform, leading to the bright spot being more off-centre.
The possible impact of mirror flop can not be ruled out .
20 x 20s (average combine), clear filter, - 5 deg C
2005-08-14 (#90114-33)
