Bullet Flat History (8" LX200 + ST-7E)

>

Goto Images from 2009-03-05


Flats History (8" LX200 + ST-7E)

Selection of Master Flats (2x2) from 2003-2009 with Flat Field/Vignetting Analysis made using CCD Inspector in 2009

Master Flat Frames taken through 8" LX200 Classic with ST-7E
average or average median combine, 2x2 binning, C Filter

Image Image

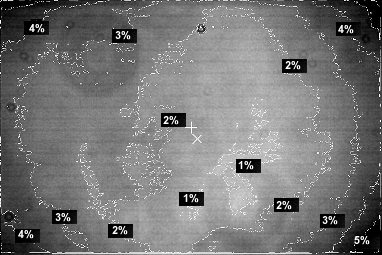

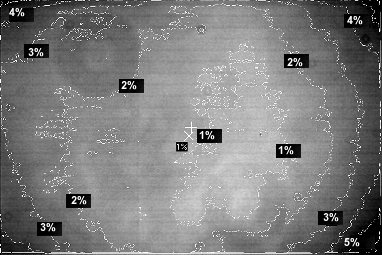

 2002-10-03 (S029) 2002-12-09 (S035)

Top left dust particle removed
Image Image

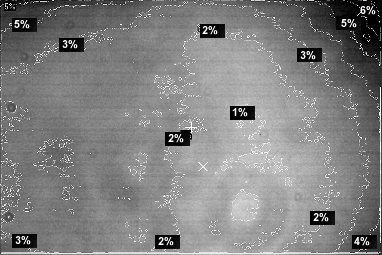

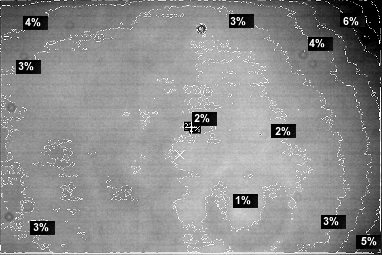

 2003-08-03 (S048) 2003-08-12 (S050)

Filter Wheel Added 2004-02-05 (S056)

Rather poor flats ?
Image Image

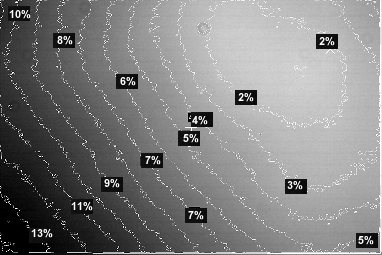

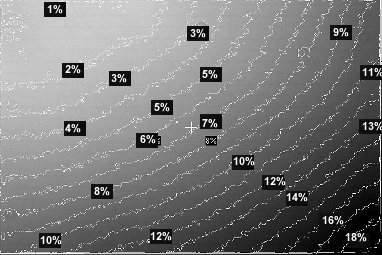

 2004-09-02 (S070)  2004-12-11 (S079)

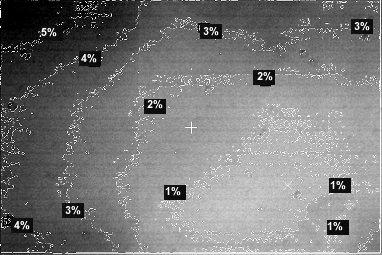

 2005-05-14 (S086)

 6.3 Focal Reducer added to imaging train (2005--08-06, S090)
Increased vignetting at f/6.3 compared to f/10
Image Image

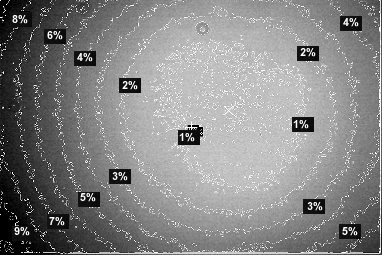

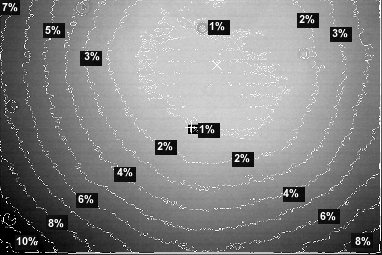

 2005-08-06 (S090)  2005-08-14 (S092)

 Sag developing (weak bearings on JMI NGF-S focuser)
Image Image

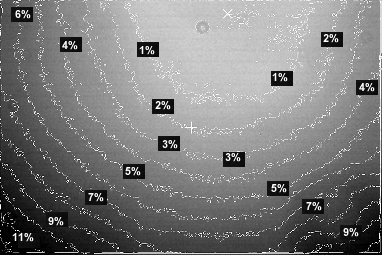

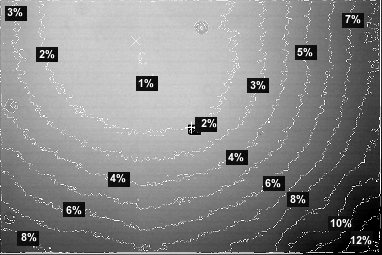

 2005-12-22 (S107)  2005-05-09 (S123)

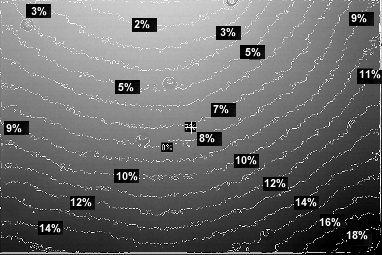

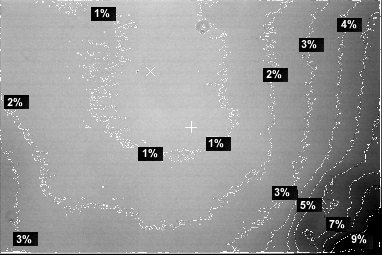

2007-03-02 (S179)

 Sag getting very bad
'flats' varying between different sky positions
Image Image

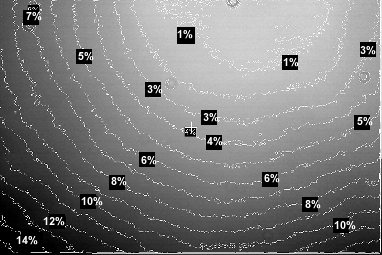

 2007-05-06 (S195)  2007-05-25 (S200)

 Bearings on JMI NGF-S tightening
Optical /Illumination centre lying close to Image Centre

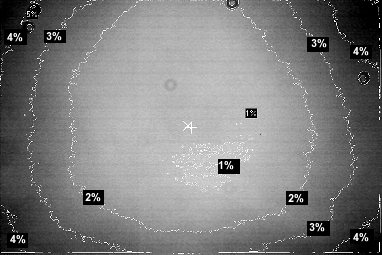

2008-01-06 (S250)

JMI NGF-S focuser replaced by Optec TCF-S focuser - 2008-02-16 (S265)
8" LX200 Classic / Optec TCF-S / f6.3 reducer / ST-7E

More robust focuser  ---> removes sag in imaging train
Image Image

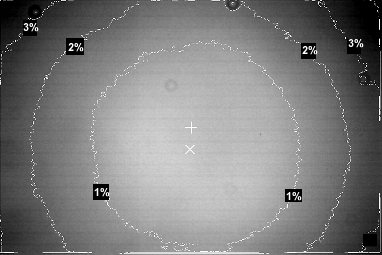

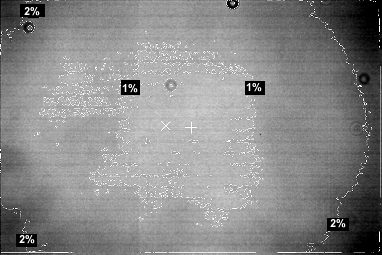

2008-02-16 (S265)  2009-03-06 (S355)


New Equipment
Master Flat Frames taken through 12" LX200 R with ST-10XME
average or average median combine, 3x3 binning, C Filter
Larger CCD chip --> Increased vignetting

Image Image

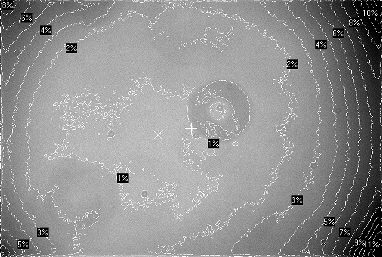

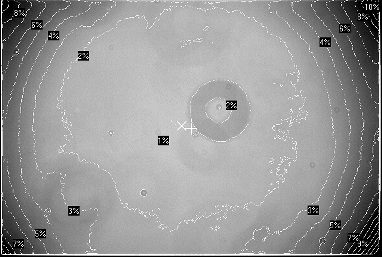

2009-03-26 (S238)  2009-04-05 (S361)


Temporary Setup (Jan 2010)
Master Flat Frames taken through 8" LX200 Classic (at f/10.1) with ST-10XME
Average median combine, 3x3 binning, C Filter
Larger CCD chip in 8" scope --> Increased vignetting

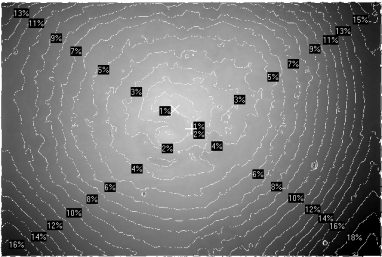

2010-01-17 (S411)
