Session Aims & Highlights (2018-05-10)

Main aims of this session were to continue formal commissioning of the new Dome Observatory including :

  1. Periodic Error. Check telescope's periodic error to confirm that installation of new RA Motor Unit (2018-04-27) has provided the necessary improvements to telescope's RA tracking .
  2. Polar Alignment. Perform Polar Alignment of the LX200 Telescope mounted on its new pier base.
  3. Telescope/Dome. Check stability of POTH.Hub working with LX200GPS scope and Pulsar dome controller

Equipment & Software

Highlights

Notes

Summary Plots & Logs

Night Sky Summary Plot - 2018-05-10
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)



Back to Top


Operational Issues (2018-05-10, S610.3)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Small Defects

Continuous Improvement

[ Prev | Next ]

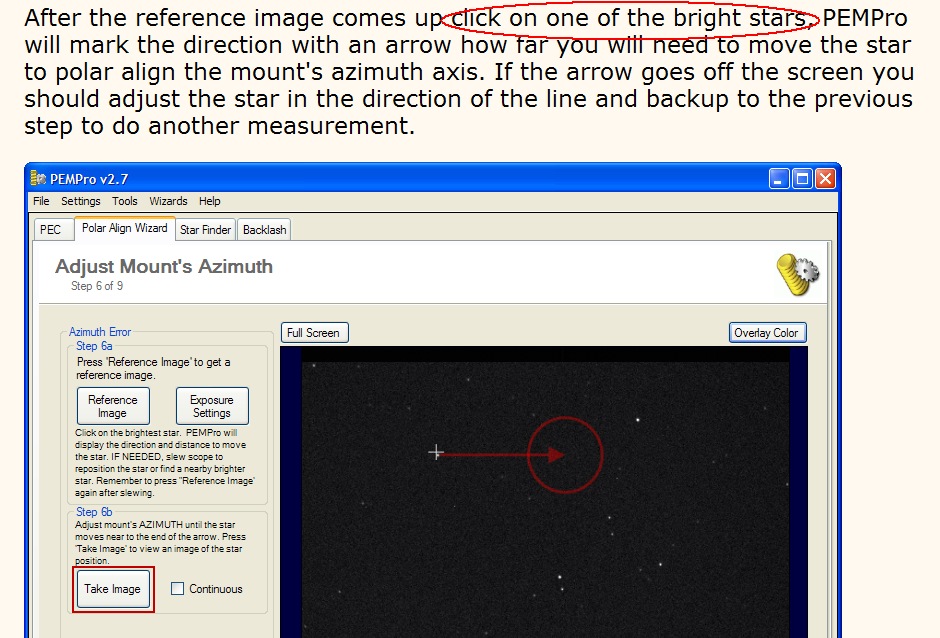

Fig 1  PemPro V2 Help
Help states that one has to click on a star in order for PemPro to mark the direction and
distance that one needs to move the star using mount's polar align adjustment knobs


Back to Top


Periodic Error Assessment (2018-05-10)

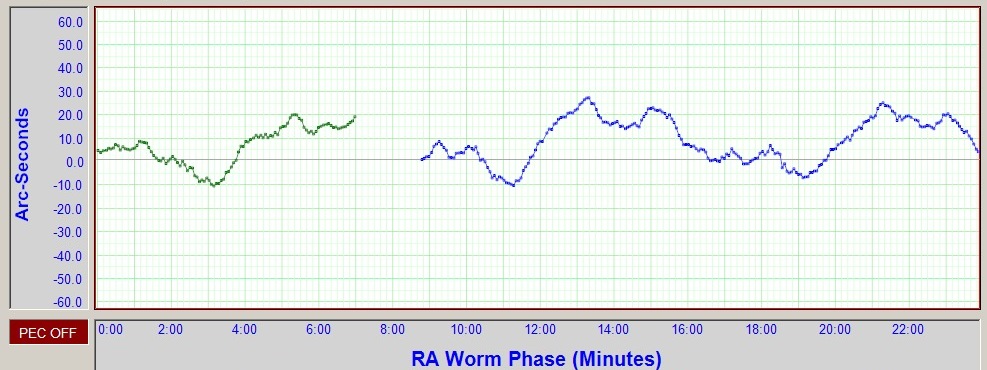

Periodic Error Asssement / RA Tracking (2018-05-10)
(22 minute assessment finished when star drifted out of view due to initially large Polar Alignment error
but is nevertheless sufficient to show that scope shows a 'normal' periodic error trace without the
104s jumps in RA that have affected the scope for the last 18 months)

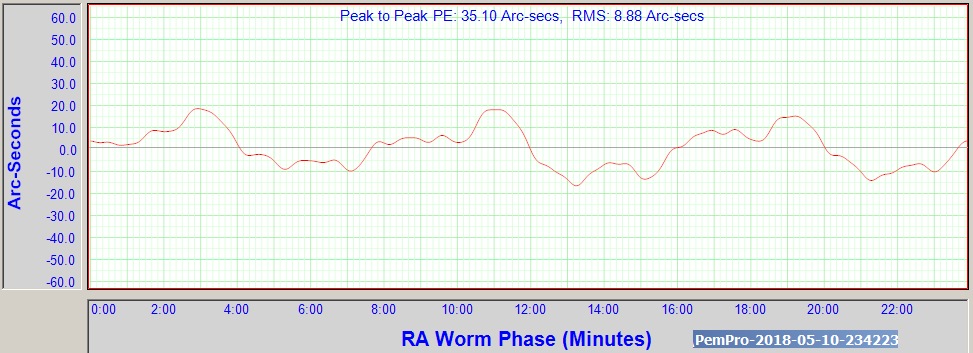

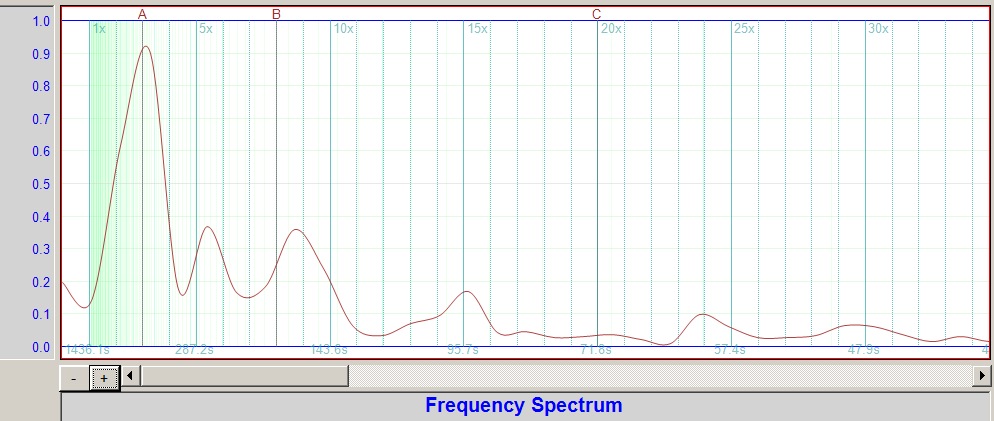

Data suggests a peak-to-peak periodic error of 35 arc secs (without PEC) which is 'normal' for LX200GPS



Back to Top


Polar Alignment  (2018-05-10)

Polar Alignment (2018-05-10)
(Polar Alignment using PemPro Polar Align Wizard (PAW) - first time use of PAW)
Note: An incorrect plate scale was used (2x2 one instead of 1x1) and the real errors
are believed to be 50% of those shown in the graphs.

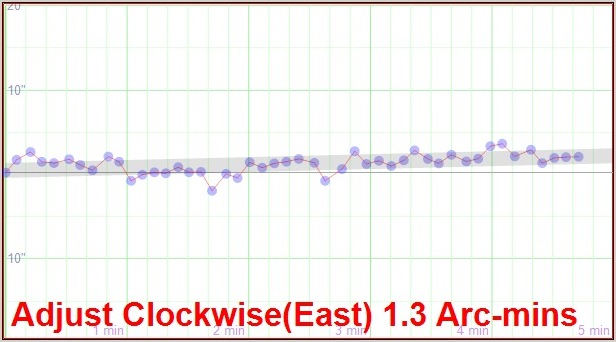

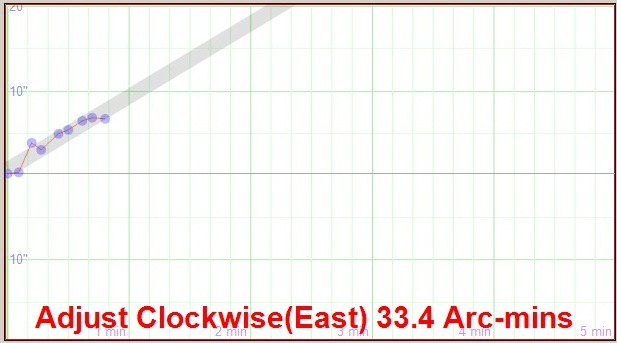

Azimuth Adjustment / South Sky Point

(Clockwise(East) adjustment made by temporily easing the retaining knobs
on the wedge that hold it to the Top Plate and rotating the right hand Azimuth control knob
in a clockwise direction (clockwise when looking at knob from the west))

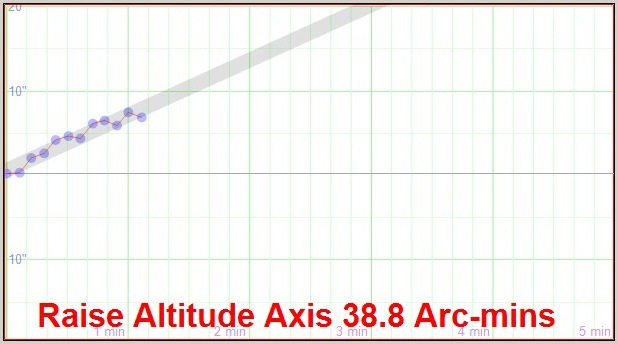

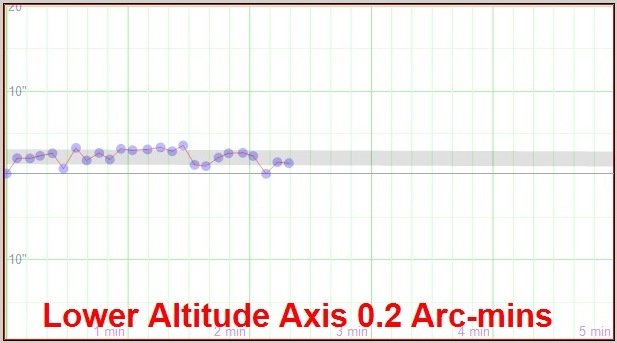

Altitude Adjustment / West Sky Point  (40 degs)
Altitude axis raised by temporaily easing two side bolts with Allen Key
and then rotating the Altitude Knob in an anticlockwise direction.
(anticlockwise when looking at the wedge from the south)
