Notes - Session 623  (2018-08-31)


Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot

Bullet Operational Issues
  - Critical Issues (0),  Major Issues (1),  Minor Issues (2),  Small Defects (0),  Continuous Improvement (0)

Bullet Job Queue Freezing after checking target coordinates - Diagnosis & Fix
Bullet PHD2 Guiding not picking a fresh guide star for each new target - Diagnosis & Fix

Bullet Images from 2018-08-31  >>



2018-08-31 (Automated Operation Testing)


Session Aims & Highlights (2018-08-30)

Main aims

  1. Targets. Acquire images for a selection of variable stars, nearby stars, star clusters
    (imaging of deep sky targets was not anticipated since  sky constraints associated with most galaxy and nebulae targets with have precluded them being selected by the Schedule Builder since the Moon was at 81% illumination during the session) .
  2. Autoguiding. Test automated autoguiding using PHD2 and 80mm APO Guidescope with specific attention to selection of a fresh guide star when starting a new target .
    (Correct selection and lock on to fresh guide star for each new target is critical for Automated Observatory operation. Cloud conditions had prevented these tests during an attempted session on the previous night, 2018-08-29)
  3. System Stability.  Continue checking stability of the Observatory system components (POTH.Hub (Telescope + Dome), Observatory Control Software, Computers), noting in particular any further re-occurrences of the '203 error', and any cases of lock-up/hanging of the observatory control program (CCDApp2).

Equipment & Software

Highlights

Summary Plots & Logs

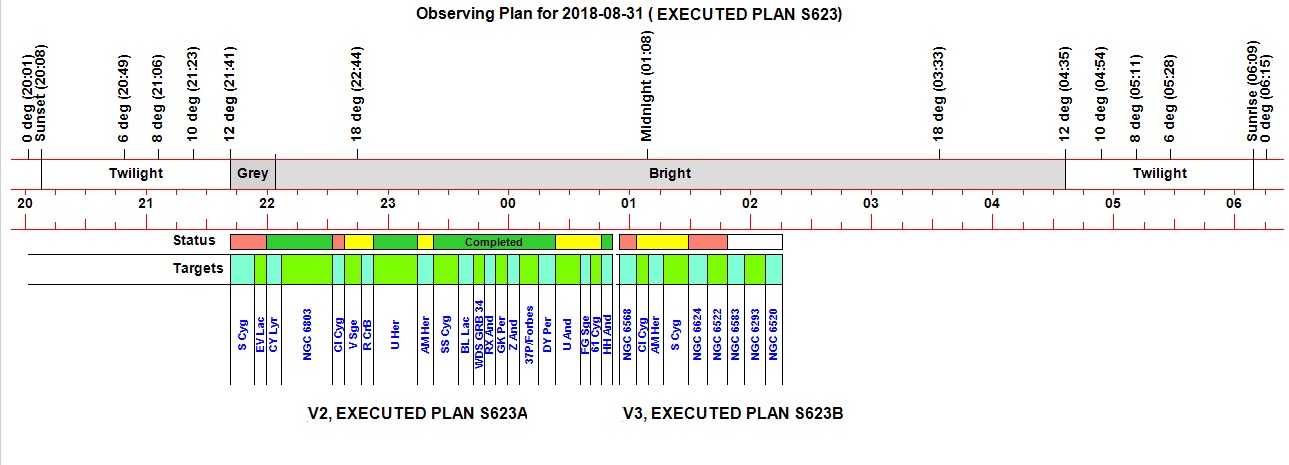

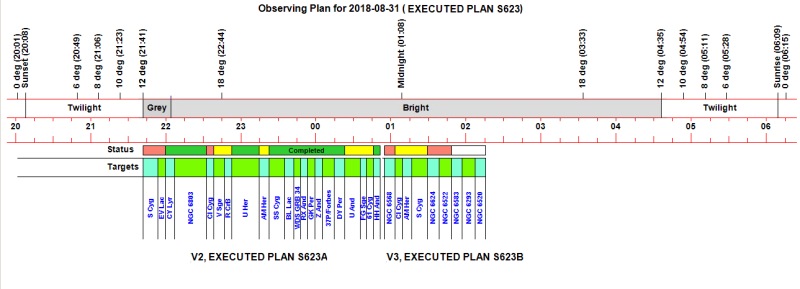

Observing Result (2018-08-31, S623)
Observatory Operations started at 21:47, Fully-Automated Mode from 23:43
1st Job Queue started at 21:57,  Shutter closed at 00:22 due to Cloud
2nd Job Queue started at 01:07.
Software interruptions/restarts at 01:45 (10 mins), 02:06 (4 mins), 02:47 (5 mins)
Job Queue ended 03:58. Session finished 04:01
(Observation Status :  Green=Completed, Yellow= Partially Completed, Red= Failed)

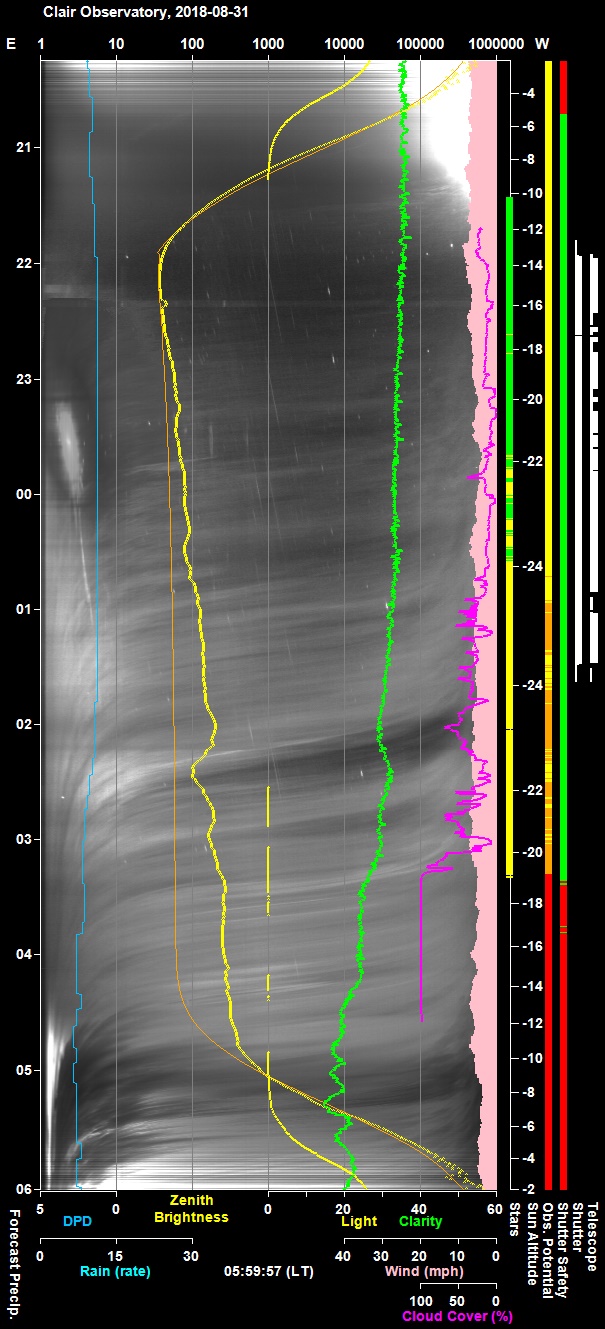

Night Sky Summary Plot - 2018-08-31
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

Back to Top


Operational Issues (2018-08-31, S623)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Small Defects

Continuous Improvement

[ Prev | Next ]

Fig 1

Back to Top


Job Queue Freezing after checking target coordinates  - Diagnosis & Fix

The Problem
Execution of a QSO Job Queue has been observed to occasionally freeze and not proceed until the program is exited and restarted.
Problem begun after introducing the automated initiation of PHD2 autoguiding. The problem has occurred 0 to 2 times within a session. Execution of job queue was freezing after after 'Checking Coordinates...' and before 'Checking Altitude...' . The main interface of the program remains active, allowing the program to be closed rather than killed (unlike the the issue above where CCDApp2 program has to be killed.    Since this is a showstopper to unattended / automated operation of the observatory, the problem was investigated in detail.

Problem Analysis

Examination of the output lines in the Report File provides evidence of what code had been executed and what code hadn't been reached before the job queue froze.

Report File (from incident)

  Checking Target ...         Ok        Sidereal Target   (GCVS CI Cyg)
  Checking Coordinates ...    Ok        J2000 Coords      RA: 19 50 11.798, Dec: +35 41 02.99
   (<< Job Queue freezes here )

Normal Report File (from later in the same session):

  Checking Target ...         Ok        Sidereal Target   (GCVS CI Cyg)
  Checking Coordinates ...    Ok        J2000 Coords      RA: 19 50 11.798, Dec: +35 41 02.99
  Checking Altitude ...       Ok        Altitude          55.3 degs (<< within ImageTargetT_GotoTarget() )

 Checking Airmass ...        Ok        Airmass           1.22

  Checking Declination...     Ok        Declination       35.74 degs
  Slewing ...                 Ok

Examination of output lines in the Log File provides further evidence of what code has / hasn't been executed before the job queue froze.

Log File (from incident):

22:26:10.14 | GCVS CI Cyg Try Target 5/21 | Target : GCVS CI Cyg
22:26:10.14 | GCVS CI Cyg Info SetScopeMode | Setting Scope Mode to 2
22:27:18.34 | GCVS CI Cyg Data ObjectAzAlt | Az = 184.6 Alt= 68.4 Airmass=1.08  (<< within LookupKeyTargetInfo() )
 (<< Job Queue freezes here )
 (<< no line output about PHD2 App State )
 (<< no line output about Setting Scope Mode to 3 )
22:33:14.20 | Killing current CCDSoft process -3580

Normal Log Report (from later in the same session):

01:02:38.27 | GCVS CI Cyg Try Target 2/9 | Target : GCVS CI Cyg
01:02:38.52 | GCVS CI Cyg Data ObjectAzAlt | Az = 249.4 Alt= 55.3 Airmass=1.22
01:02:39.03 | Checking PHD2 App State (Result=Stopped)   (<< within Phd2.StopPHD2Guiding() )
01:02:39.03 | GCVS CI Cyg Info SetScopeMode | Setting Scope Mode to 3   (<< within SetScopeMode() )
01:02:39.48 | GCVS CI Cyg Data Object Coords (2000) | RA= 19 50 11.798 Dec= +35 41 02.99 | Epoch 2000
01:02:39.48 | GCVS CI Cyg Data Object Coords | RA= 19 50 53.988 Dec= +35 44 11.27 | Epoch Current

Relevant Code:

ReportComment(LAlign2("Ok", 10) + LPad18("J2000 Coords") + "RA: " + GetFullRA(T.Ra2000) + ", " + "Dec: " + GetFullDEC(T.Dec2000))   (<< Job Queue freeze occurs after here)

'Stop GuideScope Guiding (if we will be slewing)
' ----------------------
If (objConsole.checkboxAutomatedPhd2Guiding.Checked Or Phd2.Active) And T.Delay <> cdNoSlew Then
   Phd2.StopPHD2Guiding()

End If

SetScopeMode(ScopeMode.Slewing)    (<< Job Queue Freeze must occur before here)

ImageTargetT_GotoTarget(T, bExitSub)  (<< Job Queue Freeze must occur before here)

From this analysis it would seem that the freeze occurs within "Phd2.StopPHD2Guiding()" routine, and more specifically with the line  PHD2.SendRequest("{""method"": ""get_app_state"", ""id"": #ID}", response, "result", Result).

PHD2.SendRequest and the subroutines that it calls (PHD2.GetMessage) make calls to Phd2ServerStream.Write & Phd2ServerStream.Read,   where Phd2ServerStream is a NetworkStream opened by a prior call to Phd2Socket.GetStream within PHD2.ConnectPHD2.     Whilst ServerStream Write and Read could easily produce exceptions it is less clear how they might be responsible for the freeze, unless the Stream was maybe just half-open in some way when the write or read call was made  ?)

PHD2.GetMessage also contains a Do Until..Loop.  This seems a much more feasible place for the job queue to freeze, if execution couldn't breakout of the loop.   The loop is designed to work with 'jsonrpc' messages to extract the string lying between two curly brackets  (e.g.  "{string}"  will return "string").  Testing the loop in isolation showed that it will loop endlessly if an open curly bracket "{" is present in the message without a closing bracket "}".  The loop appears to be purely for testing purposes for writing out the embedded string to the logfile and doesn't serve an actual real role since GetMessage routine has already updated it's ByRef variable before reaching the Do Until..Loop which operates on local variables only.

Resolution of Problem

The Do Until ..Loop responsible for  freezing the job queue has been modified so that execution will always exit the loop whatever the input. Code was tested during Session 624 and appears to have fixed the problem

Do Until.. Loop Code  ( fix is shown in bold)

bMessageEnd = False
S = Message

Do Until bMessageEnd

i = S.IndexOf("{")

If i < 0 Then
  Exit Do
End If

i2 = S.IndexOf("}")

If i2 < 0 Then
  Exit Do
End If


Try
  S2 = Trim(S.Substring(i, i2 + 1))

  S = S.Substring(i2 + 1)
Catch ex As Exception
   Exit Do
End Try

Loop



Back to Top


PHD2 Guiding not picking a fresh guide star for each new target  - Diagnosis & Fix

Background
The Observatory Control program uses OpenPHD / Event Monitoring to send commands to PHD2 software and listen for messages in return.   It is used to initiate autoguiding using Guidescope / ZWO ASI178MC camera from within the Job Queue execution after slewing to and centering targets with image exposures > 20s.  Guiding results are sent for QC and recording with the image observations. Autoguiding is terminated before slewing to the next target.    Autoguiding was initiated by requesting PHD2 to begin looping and then to begin guiding.

More on PHD2 Commands & Event Monitoring (https://github.com/OpenPHDGuiding/phd2/wiki/EventMonitoring)

The Problem
Whilst PHD2 would begin looping when requested and  attempt to begin to guiding when subsequently requested by the Job Queue executor, it was found that PHD2 wasn't generally able to find a suitable guide star to guide on. To obtain the expected quality of images I was forced to intervene and manually select star from the Full Frame image in PHD2 and manually click on Guide button to start guiding.    Since this is a showstopper to unattended / automated operation of the observatory, the problem was investigated in detail.

Problem Analysis
Watching the behavior of PHD2 during automated guiding attempts showed that it wasn't selecting a fresh guide star for each new target before attempting to guide. PHD2 would seem to be using the star/lock position from the previous target. The guide attempt would generally fail because there was no star at /near the lock coordinates or the star would be quickly lost because it was very faint. Either way the automated guiding would fail.

Attempts to fix problem by inserting a command to 'Select Star ' between 'Looping' and 'Guide'  and by adding a few seconds pause after looping starts to enable the first frame to have been taken and loaded to PHD2 before commanding Guide both failed to solve the problem

Problem Resolution
Problem was finally fixed by directly requesting PHD2 to guide, without requesting Looping first.   This fix works . It does so because, as the OpenPHD guide states,  "the guide method allows a client to request PHD2 to do whatever it needs to start guiding ..."  PHD will
• start capturing if necessary
• auto-select a guide star if one is not already selected
• calibrate if necessary, or if the RECALIBRATE parameter is true
• wait for calibration to complete
• start guiding if necessary
• wait for settle (or timeout)
• report progress of settling for each exposure (send Settling events)
• report success or failure by sending a SettleDone event.
