Notes - Session 703 (2019-10-01)


Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log

Bullet Operational Issues
  - Critical Issues (0),  Major Issues (0),  Minor Issues (5),  Continuous Improvement (5)


Bullet Investigation - Issue with Network & AllSky Computer at 23:15
Bullet Investigation - Unexpected Dome Closure at 23:33

Bullet Images from 2019-10-01  >>



Session Aims & Highlights (2019-10-01)

Main aims

  1. Live Image Update: Test out new feature where raw images are loaded to website as they are acquired
  2. Centering. Confirm the performance of recently modified centering routines (JogQSO)
  3. Targets . Acquire images of selection of comet and deep sky targets, including T2 PANSTARRS
  4. Software & Systems  - Check stability of software and presence of any side effects following ongoing enhancements to AstroMain and associated support programs.


Equipment & Software

Highlights

Lowlights

Summary Plots & Logs

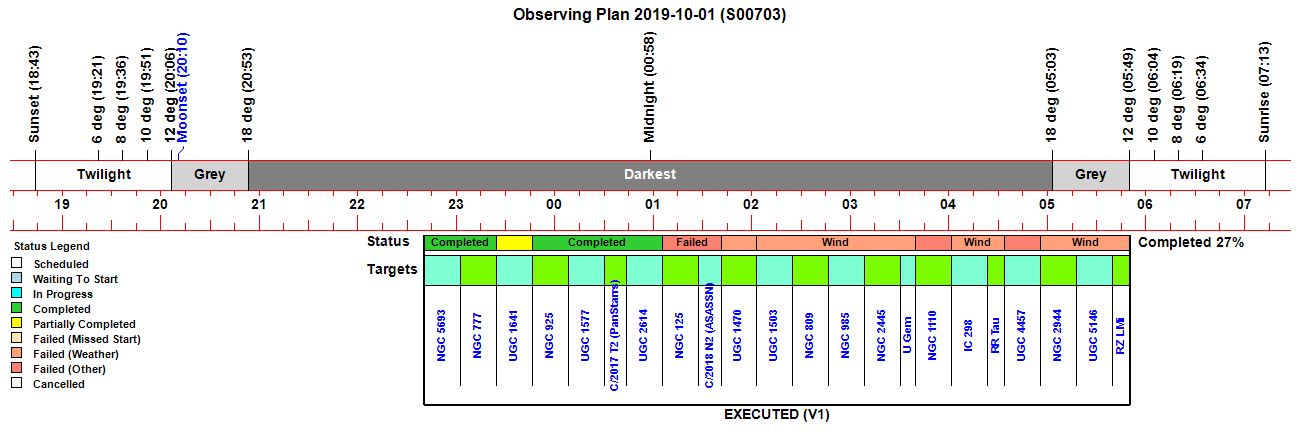

Observing Plan

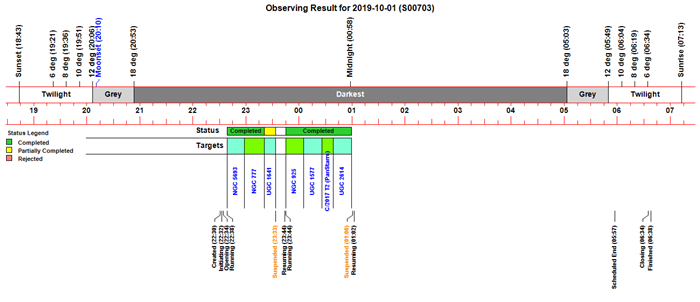

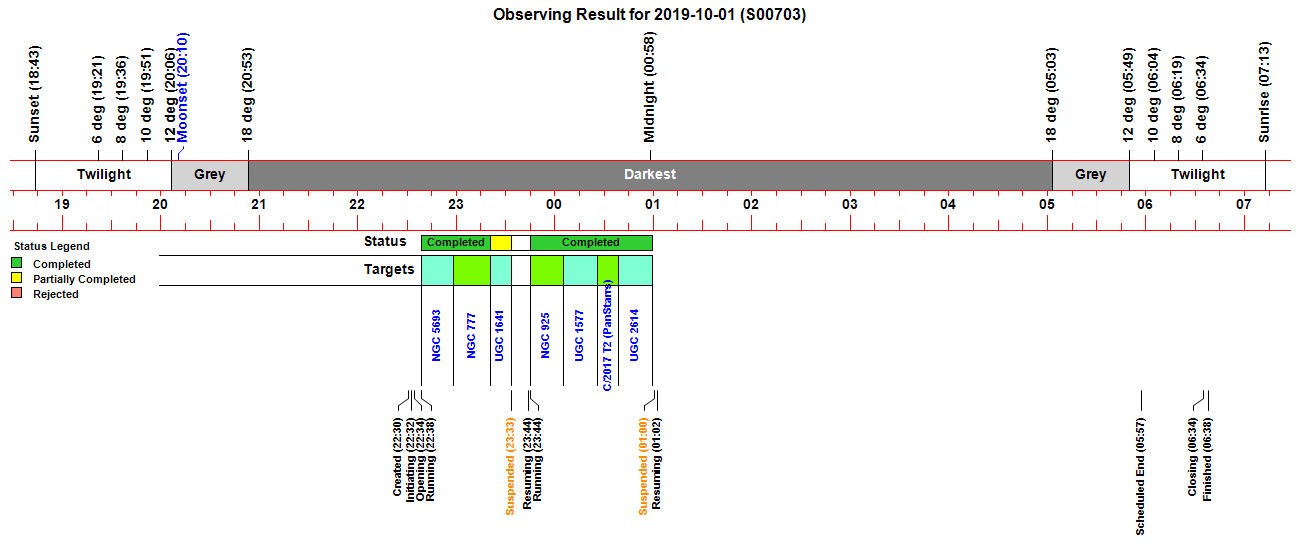

Observing Result

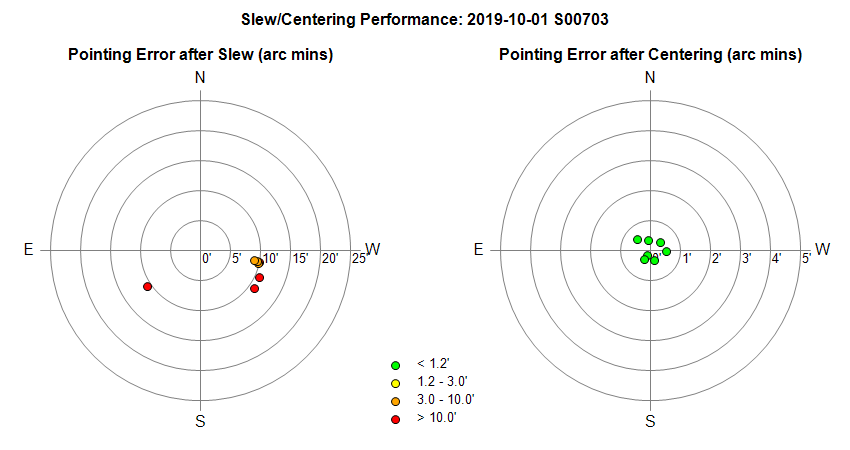

Slew/Centering Performance

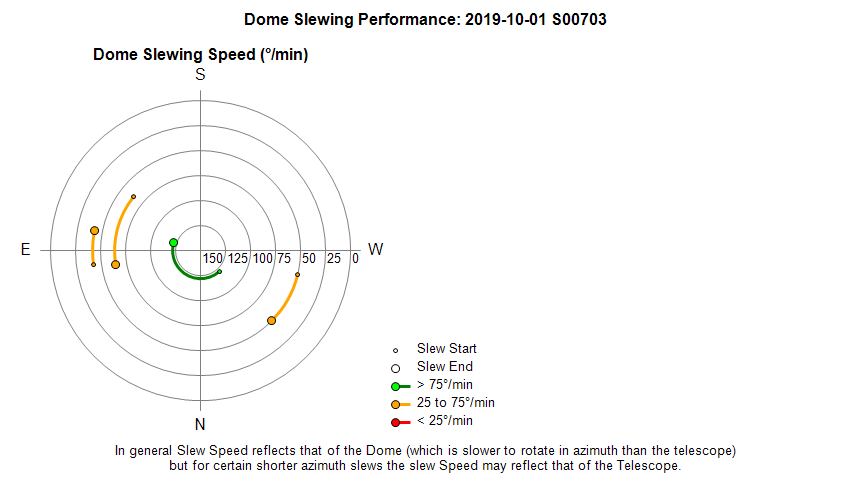

Dome Slewing Performance

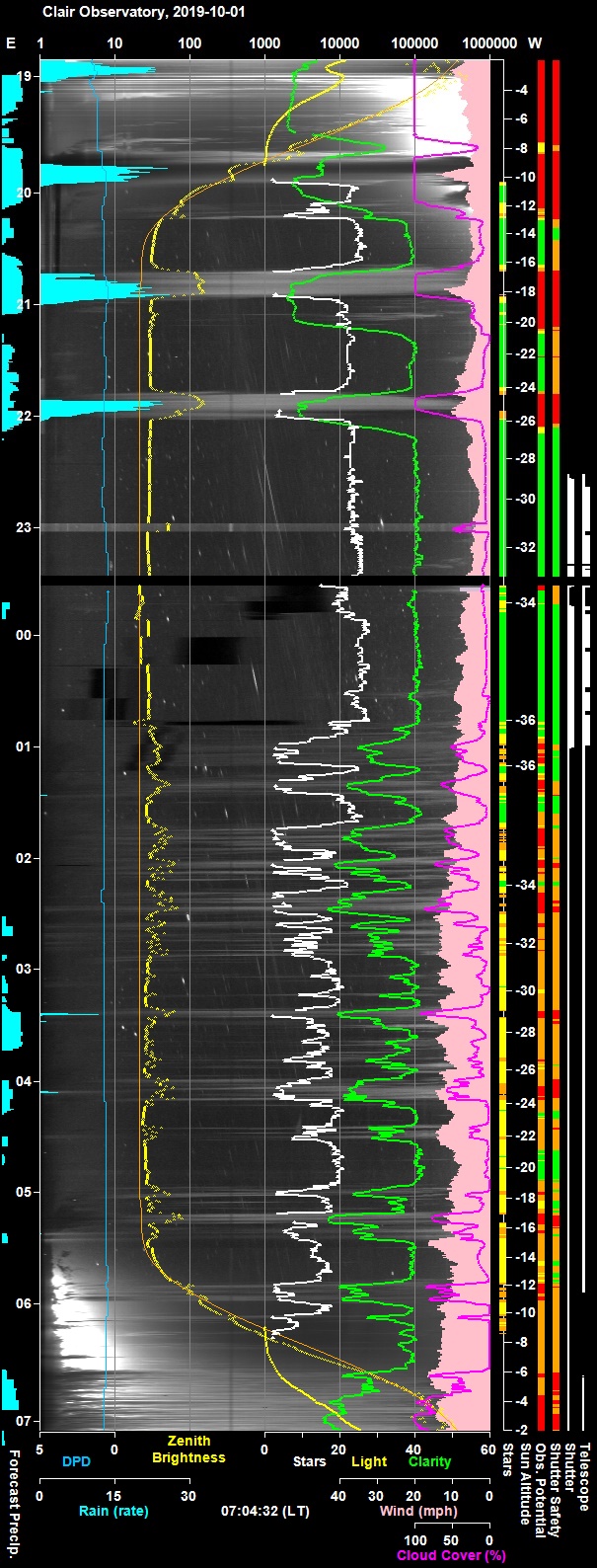

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

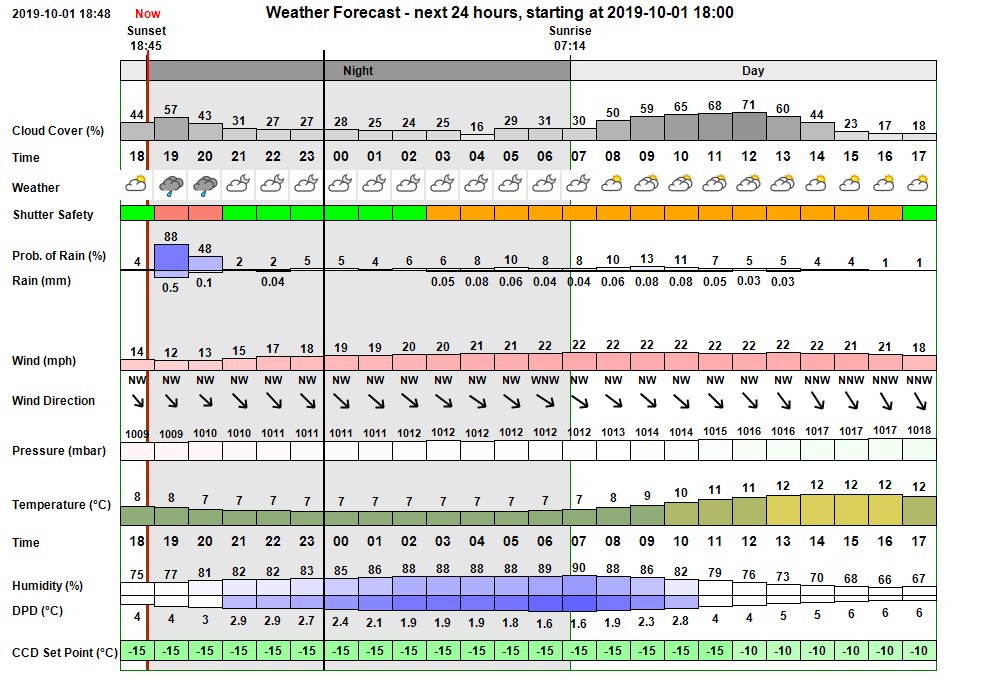

Pre-Session Weather Forecast (AstroWeather 1.7.8)
Forecast showed patchy cloud up to 00:00 and then cloud thickeneing until total cloud cover at 04:00
In the event therre was a moderately clear interval between 23:00 and 00:45.
Operations suspended at 23:42 and remained that way until the morning

Session Event Log
Time     Event Detail
22:30:50 Session Created Live Session Created (2019-10-01 S00703, ImageSaveNum: 703001)
22:32:00   Obs.Manager Started Obs.Manager started
22:32:02   Obs.Overseer Started Obs.Overseer started
22:32:07   Services Started Observatory Services started
22:32:38 Observatory (Auto) Observatory placed in Fully-Automated Mode
22:32:40 Session Pending Session pending (2019-10-01)
22:32:42 Session Initiating Session initiating (2019-10-01)
22:32:44   Plan Requested Observing Plan requested from AstroPlan (1.12.1)
22:33:21   Plan Loaded Observing Plan loaded to queue (2019-10-01 V1 BEST PLAN, Plan ID: 377)
22:33:33   Camera1 Connected SBIG Camera Connected (set point -20°C)
22:33:36   Telescope Connected Telescope Connected (TheSky6)
22:33:46 Session Equilibration Session ready for dome & camera equilibration
22:34:31   Shutter Opened Shutter opened (opening time 46s)
22:34:34   Equilibration Started Dome Equilibration started
22:38:42   Equilibration Ended Dome Equilibration ended (4.2 mins total)
22:38:44 Session Running Session running
22:38:46   Queue Started Observing Queue started (22 targets selected)
22:38:48     Target Started (1/22) Target started (1/22, NGC 5693)
22:42:07       Focusing Failed Foc1 Focusing Failed - star is too dim (TCF-S)
22:58:19     Target Completed Target completed (1/22, NGC 5693)
22:58:21     Target Started (2/22) Target started (2/22, NGC 777)
23:02:32       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:04:34       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
23:20:47     Target Completed Target completed (2/22, NGC 777)
23:20:49     Target Started (3/22) Target started (3/22, UGC 1641)
23:22:51       Focusing Failed Foc1 Focusing Failed - star is too dim (TCF-S)
23:33:47   Shutter Closed Shutter closed (closing time 45s)
23:33:50     Target Aborted (3/22) Target aborted (3/22, UGC 1641) due to other condition
23:33:52   Queue Paused Queue pausing for HardSuspend
23:33:54 Session Suspended Session suspended
23:33:56     Queue Resumed Queue resumed after HardSuspend (6s)
23:44:08 Session Resuming Session resuming
23:44:53   Shutter Opened Shutter opened (opening time 45s)
23:44:55 Session Running Session running
23:44:57   Queue Resumed Observing Queue resumed
23:44:59     Target Started (4/22) Target started (4/22, NGC 925)
23:47:05       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:49:13       Focusing Completed Foc1 AutoFocus Completed (Profile No 2)
00:05:32     Target Completed Target completed (4/22, NGC 925)
00:05:34     Target Started (5/22) Target started (5/22, UGC 1577)
00:07:33       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:09:27       Focusing Completed Foc1 AutoFocus Completed (Profile No 3)
00:25:58     Target Completed Target completed (5/22, UGC 1577)
00:26:00     Target Started (6/22) Target started (6/22, C/2017 T2 (PanStarrs))
00:28:41       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:30:47       Focusing Completed Foc1 AutoFocus Completed (Profile No 4)
00:39:00     Target Completed Target completed (6/22, C/2017 T2 (PanStarrs))
00:39:02     Target Started (7/22) Target started (7/22, UGC 2614)
00:41:23       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:43:27       Focusing Completed Foc1 AutoFocus Completed (Profile No 5)
00:59:35     Target Completed Target completed (7/22, UGC 2614)
01:00:35 Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Shutter)
01:00:37   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud)
01:00:39   Queue Paused Queue pausing for HardSuspend
01:00:41 Session Suspended Session suspended
01:01:30   Shutter Closed Shutter closed (closing time 49s)
01:01:32   Queue Resumed Queue resumed after HardSuspend (55s)
01:02:45 Session Resuming Session resuming
01:19:30     Target Cancelled Target cancelled (8/22, NGC 125) due to other condition
01:35:30     Target Cancelled Target cancelled (9/22, C/2018 N2 (ASASSN)) due to other condition
01:55:07     Target Cancelled Target cancelled (10/22, UGC 1470) due to cloud
02:16:59     Target Cancelled Target cancelled (11/22, UGC 1503) due to wind
02:38:51     Target Cancelled Target cancelled (12/22, NGC 809) due to wind
03:00:43     Target Cancelled Target cancelled (13/22, NGC 985) due to wind
03:22:35     Target Cancelled Target cancelled (14/22, NGC 2445) due to wind
03:33:53     Target Cancelled Target cancelled (15/22, GCVS U Gem) due to wind
03:53:30     Target Cancelled Target cancelled (16/22, NGC 1110) due to other condition
04:15:22     Target Cancelled Target cancelled (17/22, IC 298) due to wind
04:28:11     Target Cancelled Target cancelled (18/22, GCVS RR Tau) due to wind
04:47:48     Target Cancelled Target cancelled (19/22, UGC 4457) due to other condition
05:09:40     Target Cancelled Target cancelled (20/22, NGC 2944) due to wind
05:31:32     Target Cancelled Target cancelled (21/22, UGC 5146) due to wind
05:54:20     Target Cancelled Target cancelled (22/22, GCVS RZ LMi) due to wind
05:54:25   Queue Completed Job Queue completed
06:34:55 Session Closing Session closing
06:35:00   Shutter Closed Shutter already closed (closed at 01:01, closing time 49s)
06:36:19   Dome Parked Dome parked (parking time 74s)
06:37:06   Telescope Parked Telescope parked (parking time 42s)
06:37:56 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files)
06:38:01 Session Finished Session Finished


Back to Top


Operational Issues (2019-10-01, S703)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Continuous Improvement

[ Prev | Next ]

Back to Top


Investigation - Issue with Network or AllSky Computer at 23:15

Somewhen between 23:15 and 23:20 it was noticed that there was an outage in scorecard / weather data on the Obs.Manager and AstroGuard screens. There was also issue with communications with AllSky computer and Observatory Computer to a lesser degere. With live session underway and an absence of scorecard & weather services a late night visit out to the observatory was made.   Eventually services were restored at 23:33-23:35, but seemingly only after restarting the AllSky Computer and suffering an unexpected closue of the dome at 23:33

Obs Monitor Log (on Laptop9)
Weather data dropped out at ~ 23:15 coming back at ~ 23:20.   (5 minute outage)
Data dropped out again at ~23:27 coming back at ~ 23:34 (7 minute outage)

Obs. Env Log (on Laptop7)
Obs/Env data dropped out at 23:15 to 23:20 (5 minute outage )
Data dropped out again at 23:27 coming back at 23:34 (7 minute outage)

AllSky Stars Log
Log shows continuous data through 23:14 to 23:20
but shows a data gap between 23:27 and 23:32 (with reduced data till 23:34)

AllSky Log
Log shows continuous operations/data through 23:14 to 23:20
Program aborted around 23:27 and restarted at 23:32

AstroGuard log
Scorecard reported as being silent for 5 mins at 23:19.   Scorecard reported as resumed at 23:20.
This is consisent with Network comms being out for 5 minutes between 23:14 and 23:19

A Telescope Safety Alert was given at 23:33 'Light Conditions are a warning'
following by  message announching the action 'Closing Shutter due to Light Conditions'

CloudSensor data file
File shows continuous data through 23:14 to 23:20
but shows a data gap between 23:27 and 23:35

The first instance was seen by AstroGuard as a outage, the second instance was presumably short enough not to raise a flag.

During first outage AstroMain' Job Executor was busy collecting a set of 5x180s frames, and by the time the job queue examined the Current Conditions at 23:20 the weather data stream was back and running.

Conclusion:
The LAN seems to have gone down at 23:15 for some unknown reason.

This was observed as an outage in scorecard / weather data in Obs.Manager and AstroGuard screens.   Although the outage lasted only 5 minutes (and came back by itself), problems trying to raise the AllSky Computer during this time using VNC/Network created enough concern to visit the Observatory.   User overreaction to the problem then contributed to a decision to directly access and ultimately restart the AllSky Computer  causing a second data outage.

Back to Top


Investigation - Unexpected Dome Closure at 23:33

After restarting the AllSky Computer at 23:32 the observatory shutter unexpectedly closed at 23:33 and the session suspended itself until 23:44.

The job executor was busy collecting a set of 5x180s frames but was interrupted by a Dome Closure alert ("Dome is unexpectedly closing (Poor Conditions), 2019-10-01 23:33".  The current target was aborted "due to other conditions" and the next target was delayed by suspension  'due to non-defined reason (0)'      The Alert didn't follow the normal Critical Conditions Alert message style.

Analysis

Examining the code indiates this alert  is produced in the situation where the Shutter is detected as Closing but the Closure hasn't been commanded by the ObsManager /AstroMain.

Examing the AstroGuard log showed that at 23:33 it gave a telescope safety alert and actioned closure of the shutter due to 'Light Conditions'

Closing the shutter due to 'Light Conditions' at this time when the Sun was well below the horizon (SunAlt -33.5deg) is clearly not expected.
There was no indication of any cloud at this time that could have triggered the light conditions. or anomalous local light source
It seems more than just coincidence that this Light Condition alert came at about the same that scorecard services came back on line.

When the Scorecard service came back online at 23:33 it did so before the Cloud Sensor was fully online (which wasn't until 23:35). For these two minutes the Scorecard/Synopsis gave a 'Light Warning', which only dropped when data from light sensor (0 light) came through.

Examing the AstroGuard code shows that it commands a Dome Closure when Shutter is open and there is a Light Warning

Conclusion:
The AstroGuard design would appear to be overreactive.   It should have
  a) given time for AstroMain to react first  and
  b) give the time for the warning to go away by itself.

Scorecard is probably correct in giving a warning, but should indicat it someway that it has only just started up and data values may not have settled down.



have gone down at 23:15 which was observed at an outage in scorecard / weather data in Obs.Manager and AstroGuard screens.

Although the outage lasted only 5 minutes (and came back by itself), problems trying to raise the AllSky Computer using VNC/Network created enough concern to visit the Observatory.   Overreaction to the problem contributed to a decision to directly access and ultimately restart the AllSky Computer.   causing a second data outage.

The first instance was seen by AstroGuard as a outage, the second instance was presumably short enough not to raise a flag.

During first outage AstroMain' Job Executor was busy collecting a set of 5x180s frames, and by time the job queue examined at the Current Conditions at 23:20 the weather data stream was back and running.

During the second outage AstroMain'

Synopsis.CriticalLight = ThreatLevel.Warning
