Notes - Session 719 (2019-11-07)


Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log

Bullet Operational Issues
  - Critical Issues (0),  Major Issues (1),  Minor Issues (6),  Continuous Improvement (7)
Bullet Images from 2019-11-07  >>



Session Aims & Highlights (2019-11-07)

Main aims

  1. Smarter Suspension:  Test bug fixes to new code that suspends session if 'AllSkyStars' count falls below 20
  2. Targets: Acquire images of a selection of new targets plus monitoring of previous variable stars, nearby stars and comets.
    (Rain and/or cloud was expected to interrupt or possibly end the session at some point)

Equipment & Software

Highlights Image

Lowlights Image

Summary Plots & Logs

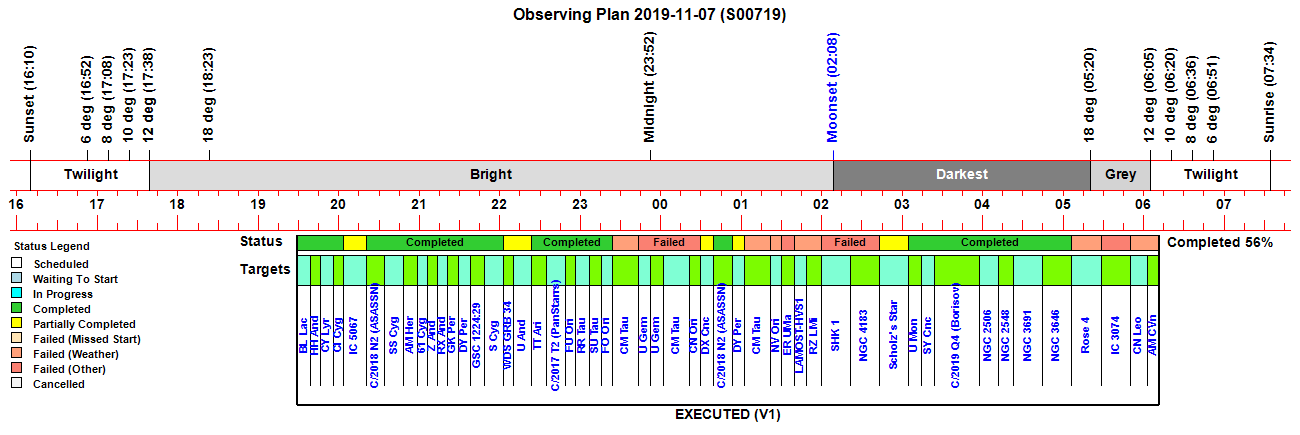

Observing Plan

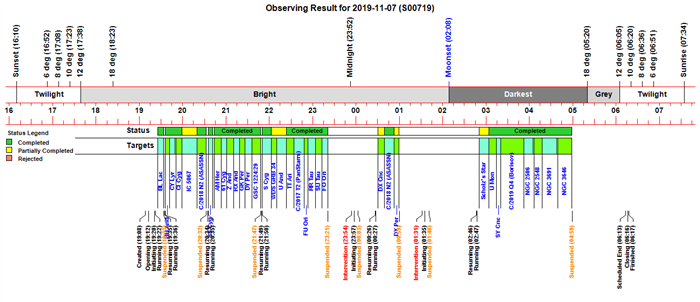

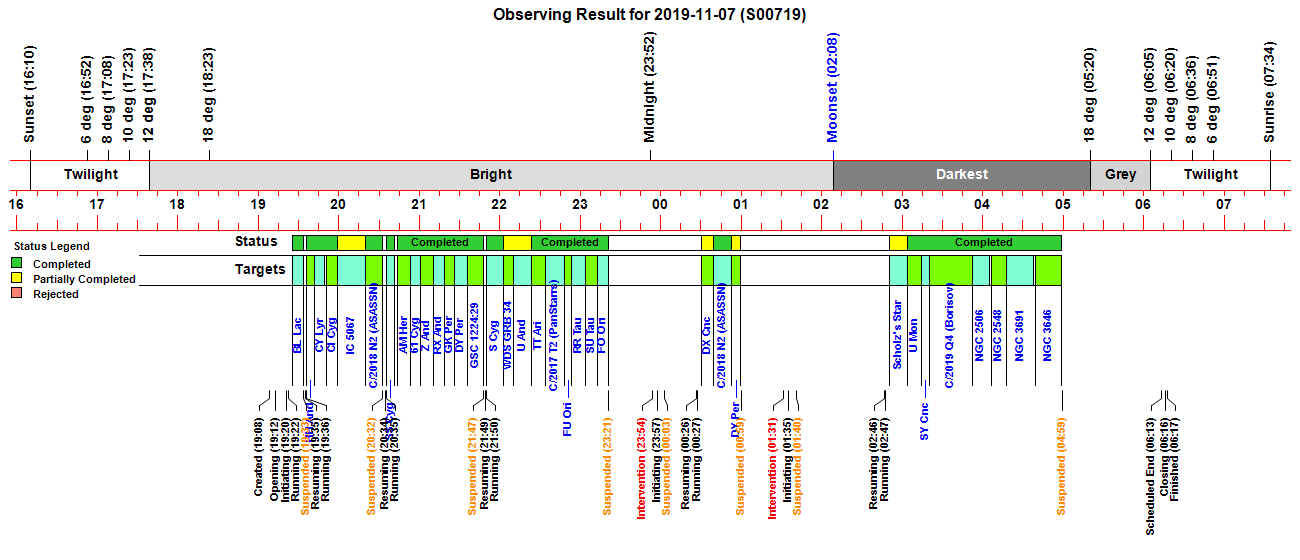

Observing Result

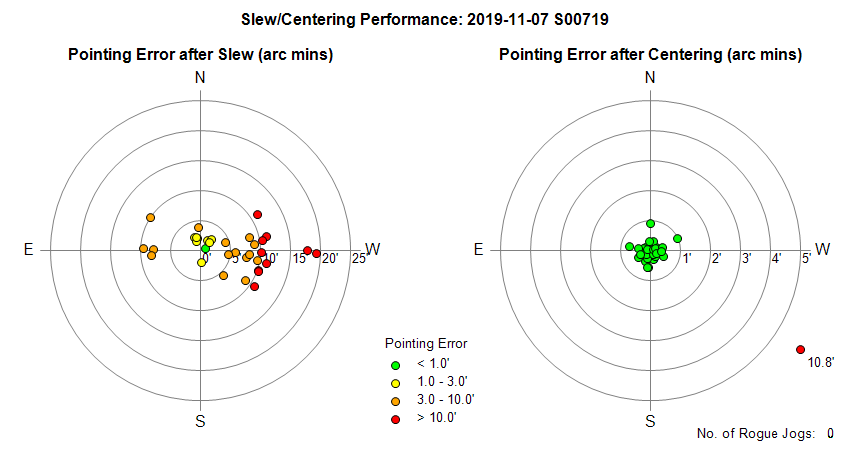

Slew/Centering Performance

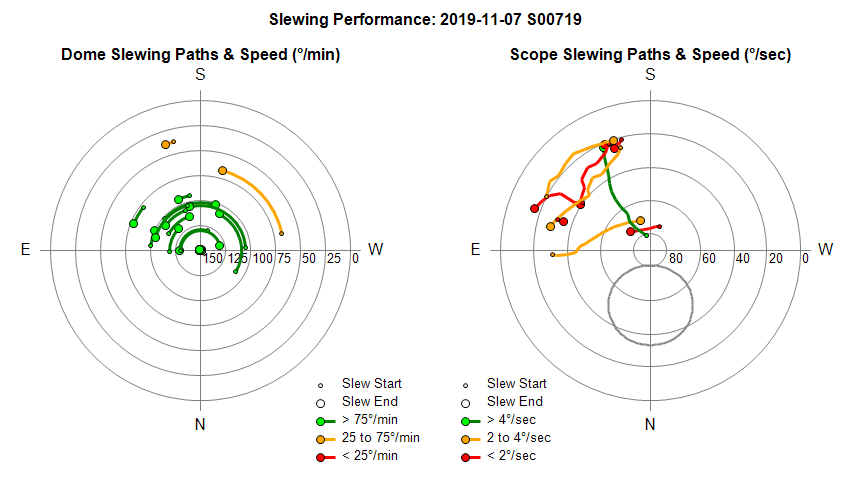

Dome Slewing Performance

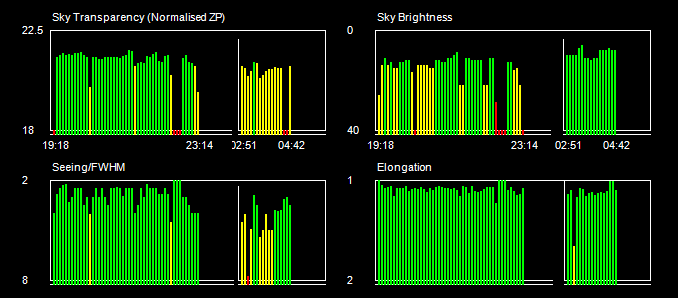

Sky Conditions (Locate Frames)

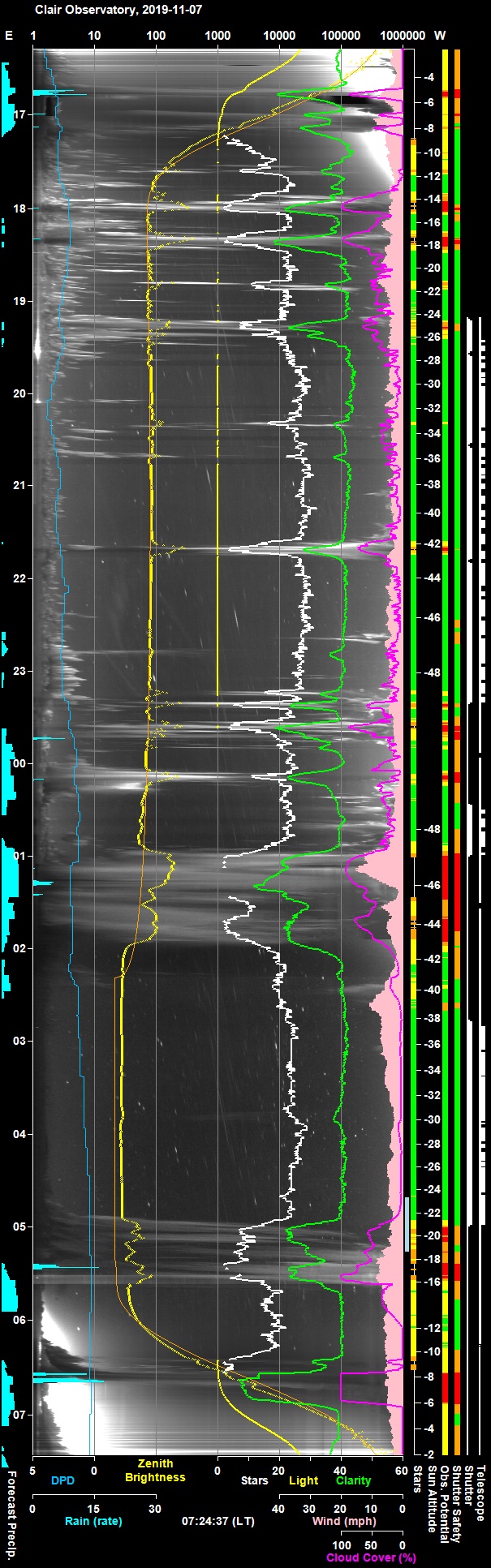

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

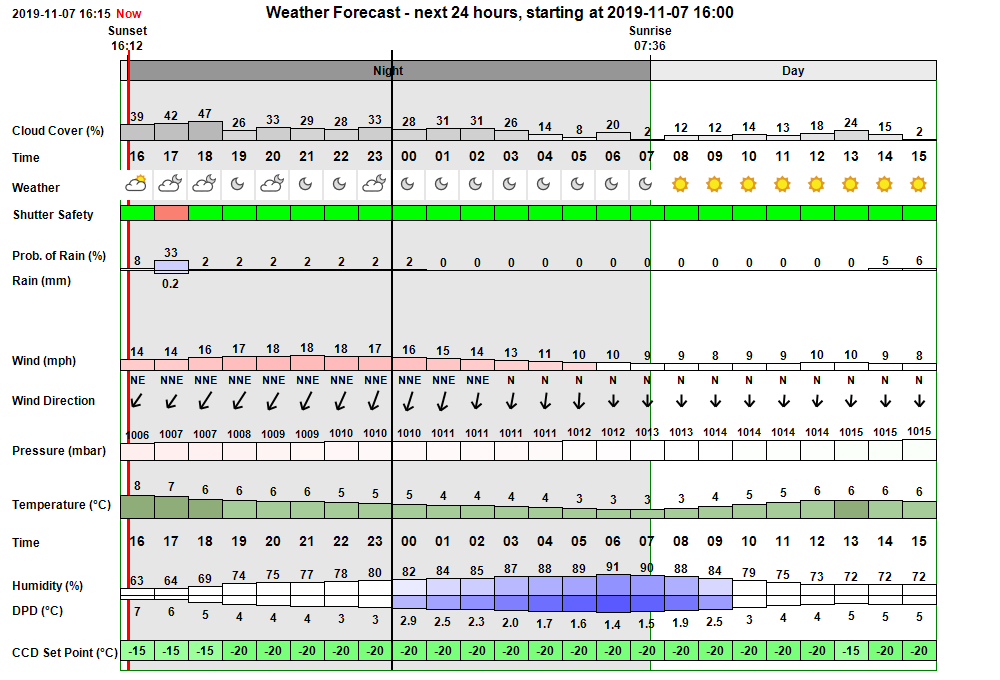

Pre-Session Weather Forecast (API data from darksky.net)
Forecast showed some initial clear patches, but with cloud progressively developing through the night, but otherwise dry and calm
In the event there was a moderately clear interval between 18:30 and 22:30, with another clear interval at 02:30-03:45.
Transparency wasn't great at any stage.
Operations didn't start till suspended at 21:50 and took advantage of clear intervals, suspending when sky deteriorated.

Session Event Log
Time     Event Detail
19:08:34 Session Created Live Session Created (2019-11-07 S00719, ImageSaveNum: 719001)
19:09:18   Scope Switched On Scope Power has been switched on via UPB Powerbox.
19:10:57   Obs.Manager Started Obs.Manager started
19:10:59   Obs.Overseer Started Obs.Overseer started
19:11:03   Services Started Observatory Services started
19:12:43   Shutter Opened Shutter opened (opening time 47s)
19:12:49   Telescope Connected Telescope Connected (TheSky6)
19:13:08   Camera1 Connected SBIG Camera Connected (set point -20°C)
19:20:44 Observatory (Auto) Observatory placed in Fully-Automated Mode
19:20:49 Session Pending Session pending (2019-11-07)
19:20:51 Session Initiating Session initiating (2019-11-07)
19:20:53   Plan Requested Observing Plan requested from AstroPlan (1.13)
19:22:15   Plan Loaded Observing Plan loaded to queue (2019-11-07 V1 BEST PLAN, Plan ID: 416)
19:22:19   Camera1 Connected SBIG Camera Connected (set point -20°C)
19:22:22   Telescope Connected Telescope Connected (TheSky6)
19:22:36 Session Equilibration Session ready for dome & camera equilibration
19:22:39   Equilibration Started Dome Equilibration started
19:22:41   Equilibration Skipped Dome Equilibration skipped by user
19:22:43 Session Running Session running
19:22:45   Queue Started Observing Queue started (50 targets selected)
19:23:43   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
19:23:53       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
19:25:43       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
19:25:46     Target Started (1/50) Target started (1/50, GCVS BL Lac)
19:27:52       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
19:29:51       Focusing Completed Foc1 AutoFocus Completed (Profile No 2)
19:33:19     Target Completed Target completed (1/50, GCVS BL Lac)
19:33:21   Queue Paused Queue paused for SoftSuspend
19:33:25 Session Suspended Session suspended
19:34:14   Shutter Closed Shutter closed (closing time 49s)
19:35:29 Session Resuming Session resuming
19:36:14   Shutter Opened Shutter opened (opening time 45s)
19:36:16 Session Running Session running
19:36:18   Queue Resumed Observing Queue resumed
19:36:20     Target Started (2/50) Target started (2/50, GCVS HH And)
19:38:42       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
19:40:35       Focusing Completed Foc1 AutoFocus Completed (Profile No 3)
19:42:13     Target Completed Target completed (2/50, GCVS HH And)
19:42:15     Target Started (3/50) Target started (3/50, GCVS CY Lyr)
19:44:46       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
19:46:41       Focusing Completed Foc1 AutoFocus Completed (Profile No 4)
19:50:14     Target Completed Target completed (3/50, GCVS CY Lyr)
19:50:50     Target Started (4/50) Target started (4/50, GCVS CI Cyg)
19:53:43       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
19:55:35       Focusing Completed Foc1 AutoFocus Completed (Profile No 5)
19:59:12     Target Completed Target completed (4/50, GCVS CI Cyg)
19:59:14     Target Started (5/50) Target started (5/50, IC 5067). Using SharpCap
20:20:14     Target Completed Target partially completed (5/50, IC 5067)
20:20:16     Target Started (6/50) Target started (6/50, C/2018 N2 (ASASSN))
20:21:16   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
20:22:40       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
20:24:48       Focusing Completed Foc1 AutoFocus Completed (Profile No 6)
20:32:35     Target Completed Target completed (6/50, C/2018 N2 (ASASSN))
20:32:37   Queue Paused Queue paused for SoftSuspend
20:32:39 Session Suspended Session suspended
20:33:26   Shutter Closed Shutter closed (closing time 49s)
20:34:41 Session Resuming Session resuming
20:35:26   Shutter Opened Shutter opened (opening time 45s)
20:35:28 Session Running Session running
20:35:30   Queue Resumed Observing Queue resumed
20:35:32     Target Started (7/50) Target started (7/50, GCVS SS Cyg)
20:41:22     Target Completed Target completed (7/50, GCVS SS Cyg)
20:43:32     Target Started (8/50) Target started (8/50, GCVS AM Her)
20:46:29       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
20:48:30       Focusing Completed Foc1 AutoFocus Completed (Profile No 7)
20:53:30     Target Completed Target completed (8/50, GCVS AM Her)
20:53:43     Target Started (9/50) Target started (9/50, 61 Cyg)
20:55:59       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
20:57:46       Focusing Completed Foc1 AutoFocus Completed (Profile No 8)
20:58:30       Focusing Started Foc2 Focusing Started (Secondary Scope)
20:59:24       Focusing Failed Foc2 Focusing Failed - star lost
21:00:56     Target Completed Target completed (9/50, 61 Cyg)
21:00:58     Target Started (10/50) Target started (10/50, GCVS Z And)
21:03:04       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:05:00       Focusing Completed Foc1 AutoFocus Completed (Profile No 10)
21:05:55       Focusing Started Foc2 Focusing Started (Secondary Scope)
21:06:50       Focusing Failed Foc2 Focusing Failed - star lost
21:10:38     Target Completed Target completed (10/50, GCVS Z And)
21:10:40     Target Started (11/50) Target started (11/50, GCVS RX And)
21:12:34       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:14:25       Focusing Completed Foc1 AutoFocus Completed (Profile No 12)
21:15:13       Focusing Started Foc2 Focusing Started (Secondary Scope)
21:16:08       Focusing Failed Foc2 Focusing Failed - star lost
21:18:45     Target Completed Target completed (11/50, GCVS RX And)
21:18:47     Target Started (12/50) Target started (12/50, GCVS GK Per)
21:20:57       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:22:57       Focusing Completed Foc1 AutoFocus Completed (Profile No 14)
21:25:55     Target Completed Target completed (12/50, GCVS GK Per)
21:25:57     Target Started (13/50) Target started (13/50, GCVS DY Per)
21:28:10       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:30:11       Focusing Completed Foc1 AutoFocus Completed (Profile No 15)
21:30:41       Focusing Started Foc2 Focusing Started (Secondary Scope)
21:31:25       Focusing Failed Foc2 Focusing Failed - star lost
21:35:53     Target Completed Target completed (13/50, GCVS DY Per)
21:35:55     Target Started (14/50) Target started (14/50, GSC 1224:29)
21:38:32       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:38:45   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
21:40:45       Focusing Completed Foc1 AutoFocus Completed (Profile No 17)
21:41:33       Focusing Started Foc2 Focusing Started (Secondary Scope)
21:42:29       Focusing Failed Foc2 Focusing Failed - star lost
21:47:31     Target Completed Target completed (14/50, GSC 1224:29)
21:47:33   Queue Paused Queue paused for SoftSuspend
21:47:35 Session Suspended Session suspended
21:48:21   Shutter Closed Shutter closed (closing time 49s)
21:49:36 Session Resuming Session resuming
21:50:21   Shutter Opened Shutter opened (opening time 45s)
21:50:23 Session Running Session running
21:50:25   Queue Resumed Observing Queue resumed
21:50:27     Target Started (15/50) Target started (15/50, GCVS S Cyg)
22:02:40     Target Completed Target completed (15/50, GCVS S Cyg)
22:02:42     Target Started (16/50) Target started (16/50, WDS GRB 34)
22:05:12       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:07:09       Focusing Completed Foc1 AutoFocus Completed (Profile No 19)
22:07:41       Focusing Started Foc2 Focusing Started (Secondary Scope)
22:08:28       Focusing Failed Foc2 Focusing Failed - star lost
22:09:59     Target Completed Target partially completed (16/50, WDS GRB 34)
22:10:01     Target Started (17/50) Target started (17/50, GCVS U And)
22:12:15       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:14:03       Focusing Completed Foc1 AutoFocus Completed (Profile No 21)
22:23:26     Target Completed Target partially completed (17/50, GCVS U And)
22:23:28     Target Started (18/50) Target started (18/50, GCVS TT Ari)
22:25:44       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:27:55       Focusing Completed Foc1 AutoFocus Completed (Profile No 22)
22:34:11     Target Completed Target completed (18/50, GCVS TT Ari)
22:34:13     Target Started (19/50) Target started (19/50, C/2017 T2 (PanStarrs))
22:37:29       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:39:44       Focusing Completed Foc1 AutoFocus Completed (Profile No 23)
22:47:58     Target Completed Target completed (19/50, C/2017 T2 (PanStarrs))
22:48:01     Target Started (20/50) Target started (20/50, GCVS FU Ori)
22:51:10       Focusing Failed Foc1 Focusing Failed - unable to find a star (TCF-S)
22:53:46     Target Completed Target completed (20/50, GCVS FU Ori)
22:53:48     Target Started (21/50) Target started (21/50, GCVS RR Tau)
22:56:02       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:57:53       Focusing Completed Foc1 AutoFocus Completed (Profile No 24)
23:03:55     Target Completed Target completed (21/50, GCVS RR Tau)
23:03:57     Target Started (22/50) Target started (22/50, GCVS SU Tau)
23:06:15       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:08:17       Focusing Completed Foc1 AutoFocus Completed (Profile No 25)
23:12:31     Target Completed Target completed (22/50, GCVS SU Tau)
23:12:33     Target Started (23/50) Target started (23/50, GCVS FO Ori)
23:15:12       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:15:59   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
23:17:00       Focusing Completed Foc1 AutoFocus Completed (Profile No 26)
23:20:56     Target Completed Target completed (23/50, GCVS FO Ori)
23:20:58   Queue Paused Queue paused for SoftSuspend
23:21:00 Session Suspended Session suspended
23:21:49   Shutter Closed Shutter closed (closing time 49s)
23:37:36     Target Cancelled Target cancelled (24/50, GCVS CM Tau) due to cloud
23:46:54     Target Cancelled Target cancelled (25/50, GCVS U Gem) due to other condition
23:53:57   Queue Aborted Job Queue aborted
23:54:13 User Intervention User intervention in order to install new program version (with bug fixes)
23:54:14   Services Stopped Observatory Services stopped
23:54:24 Program Closed Program closed by User
23:55:52 Session Resumed Live Session Resumed (2019-11-07 S00719, ImageSaveNum: 719213)
23:57:01   Obs.Manager Started Obs.Manager started
23:57:03   Obs.Overseer Started Obs.Overseer started
23:57:08   Services Started Observatory Services started
23:57:30 Observatory (Auto) Observatory placed in Fully-Automated Mode
23:57:32 Session Pending Session pending (2019-11-07)
23:57:34 Session Initiating Session initiating (2019-11-07)
23:57:36   Plan Loaded Observing Plan loaded to queue (2019-11-07 V1 ACTIVE PLAN S719, Plan ID: 416)
23:57:38   Camera1 Connected SBIG Camera Connected (set point -20°C)
23:57:41   Telescope Connected Telescope Connected (TheSky6)
23:57:58 Session Equilibration Session ready for dome & camera equilibration
23:58:00 Wait on Weather Waiting for acceptable weather conditions
00:03:00 Session Suspended Session suspended
00:03:02   Shutter Closed Shutter already closed (closure time is unknown)
00:03:04   Queue Started Observing Queue started (24 targets selected)
00:15:12     Target Cancelled Target cancelled (27/50, GCVS CM Tau) due to other condition
00:24:13     Target Cancelled Target cancelled (28/50, GCVS CN Ori) due to other condition
00:26:36 Session Resuming Session resuming
00:27:22   Shutter Opened Shutter opened (opening time 45s)
00:27:23 Session Running Session running
00:27:25   Queue Resumed Observing Queue resumed
00:28:30       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:30:30       Focusing Completed Foc1 AutoFocus Completed (Profile No 27)
00:30:32     Target Started (29/50) Target started (29/50, GCVS DX Cnc)
00:33:46       Focusing Started Foc2 Focusing Started (Secondary Scope)
00:36:08       Focusing Failed Foc2 Focusing Failed - failed QC check (Range)
00:39:19     Target Completed Target partially completed (29/50, GCVS DX Cnc)
00:39:21     Target Started (30/50) Target started (30/50, C/2018 N2 (ASASSN))
00:42:21       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:44:35       Focusing Completed Foc1 AutoFocus Completed (Profile No 29)
00:52:51     Target Completed Target completed (30/50, C/2018 N2 (ASASSN))
00:52:53     Target Started (31/50) Target started (31/50, GCVS DY Per)
00:54:34   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
00:54:43       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:56:43       Focusing Completed Foc1 AutoFocus Completed (Profile No 30)
00:57:22       Focusing Started Foc2 Focusing Started (Secondary Scope)
00:58:27       Focusing Failed Foc2 Focusing Failed - star lost
00:59:05 Critical RainThreat Alert Critical Rain Threat Alert (Obs.Manager will close the Shutter)
00:59:07   HardSuspend Called Hard Suspend is called due to Critical Conditions (threat of rain)
00:59:47     Target Aborted (31/50) Target aborted (31/50, GCVS DY Per) due to threat of rain
00:59:50   Queue Paused Queue paused for SoftSuspend
00:59:52 Session Suspended Session suspended
00:59:54   Queue Paused Queue pausing for HardSuspend
01:00:39   Shutter Closed Shutter closed (closing time 48s)
01:15:58     Target Cancelled Target cancelled (32/50, GCVS CM Tau) due to cloud
01:24:32     Target Cancelled Target cancelled (33/50, GCVS NV Ori) due to rain
01:31:15   Queue Aborted Job Queue aborted
01:31:27 User Intervention User intervention in order to install new program version (with bug fixes)
01:31:28   Services Stopped Observatory Services stopped
01:31:58 Program Closed Program closed by User
01:33:21 Session Resumed Live Session Resumed (2019-11-07 S00719, ImageSaveNum: 719239)
01:34:29   Obs.Manager Started Obs.Manager started
01:34:31   Obs.Overseer Started Obs.Overseer started
01:34:35   Services Started Observatory Services started
01:35:17 Observatory (Auto) Observatory placed in Fully-Automated Mode
01:35:21 Session Pending Session pending (2019-11-07)
01:35:23 Session Initiating Session initiating (2019-11-07)
01:35:25   Plan Loaded Observing Plan loaded to queue (2019-11-07 V1 ACTIVE PLAN S719, Plan ID: 416)
01:35:27   Camera1 Connected SBIG Camera Connected (set point -20°C)
01:35:36   Telescope Connected Telescope Connected (TheSky6)
01:35:52 Session Equilibration Session ready for dome & camera equilibration
01:35:54 Wait on Weather Waiting for acceptable weather conditions
01:40:53 Session Suspended Session suspended
01:40:56   Shutter Closed Shutter already closed (closure time is unknown)
01:40:58   Queue Started Observing Queue started (16 targets selected)
01:43:06     Target Cancelled Target cancelled (35/50, LAMOST-HVS1) due to cloud
01:53:14     Target Cancelled Target cancelled (36/50, GCVS RZ LMi) due to cloud
02:13:36     Target Cancelled Target cancelled (37/50, SHK 1) due to other condition
02:35:28     Target Cancelled Target cancelled (38/50, NGC 4183) due to other condition
02:46:29 Session Resuming Session resuming
02:47:15   Shutter Opened Shutter opened (opening time 46s)
02:47:18 Session Running Session running
02:47:20   Queue Resumed Observing Queue resumed
02:48:39       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:50:25       Focusing Completed Foc1 AutoFocus Completed (Profile No 32)
02:50:27     Target Started (39/50) Target started (39/50, Scholz's Star)
03:03:44     Target Completed Target partially completed (39/50, Scholz's Star)
03:03:46     Target Started (40/50) Target started (40/50, GCVS U Mon)
03:05:54       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:07:42       Focusing Completed Foc1 AutoFocus Completed (Profile No 33)
03:14:05     Target Completed Target completed (40/50, GCVS U Mon)
03:14:08     Target Started (41/50) Target started (41/50, GCVS SY Cnc)
03:16:36       Focusing Failed Foc1 Focusing Failed - star is too dim (TCF-S)
03:20:10     Target Completed Target completed (41/50, GCVS SY Cnc)
03:20:12     Target Started (42/50) Target started (42/50, C/2019 Q4 (Borisov))
03:23:08       Focusing Failed Foc1 Focusing Failed - star is too dim (TCF-S)
03:52:10     Target Completed Target completed (42/50, C/2019 Q4 (Borisov))
03:52:46     Target Started (43/50) Target started (43/50, NGC 2506)
03:54:20       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:56:19       Focusing Completed Foc1 AutoFocus Completed (Profile No 34)
04:05:12     Target Completed Target completed (43/50, NGC 2506)
04:06:42     Target Started (44/50) Target started (44/50, NGC 2548)
04:09:32       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:11:32       Focusing Completed Foc1 AutoFocus Completed (Profile No 35)
04:17:39     Target Completed Target completed (44/50, NGC 2548)
04:17:52     Target Started (45/50) Target started (45/50, NGC 3691)
04:22:00       Focusing Failed Foc1 Focusing Failed - star is too dim (TCF-S)
04:38:16     Target Completed Target completed (45/50, NGC 3691)
04:39:44     Target Started (46/50) Target started (46/50, NGC 3646)
04:42:59       Focusing Failed Foc1 Focusing Failed - star is too dim (TCF-S)
04:58:41   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
04:59:08     Target Completed Target completed (46/50, NGC 3646)
04:59:10   Queue Paused Queue paused for SoftSuspend
04:59:12 Session Suspended Session suspended
05:00:01   Shutter Closed Shutter closed (closing time 49s)
05:09:17   Camera1 SetPoint SBIG Camera Set Point Temperature Updated (new set point -25°C)
05:20:28     Target Cancelled Target cancelled (47/50, Rose 4) due to cloud
05:29:19   Camera1 SetPoint SBIG Camera Set Point Temperature Updated (new set point -20°C)
05:42:20     Target Cancelled Target cancelled (48/50, IC 3074) due to other condition
05:57:22     Target Cancelled Target cancelled (49/50, GCVS CN Leo) due to cloud
05:59:22   Camera1 SetPoint SBIG Camera Set Point Temperature Updated (new set point -25°C)
06:16:00     Target Cancelled Target cancelled (50/50, GCVS AM CVn) due to cloud
06:16:05   Queue Completed Job Queue completed
06:16:08 Session Closing Session closing
06:16:13   Shutter Closed Shutter already closed (closed at 05:00, closing time 49s)
06:16:29   Dome Parked Dome parked (parking time 16s)
06:16:40   Telescope Parked Telescope parked (parking time 11s)
06:17:23 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files)
06:17:45 Session Finished Session Finished


Back to Top


Operational Issues (2019-11-07, S719)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Continuous Improvement

[ Prev | Next ]

Back to Top
