Notes - Session 739 (2020-01-08)


Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log

Bullet Operational Issues
  - Critical Issues (0),  Major Issues (2),  Minor Issues (12),  Continuous Improvement (8)

Bullet Changes prior to session (Optical Cleaning, Rebalancing, Refocusing, Updated Plate Scale)

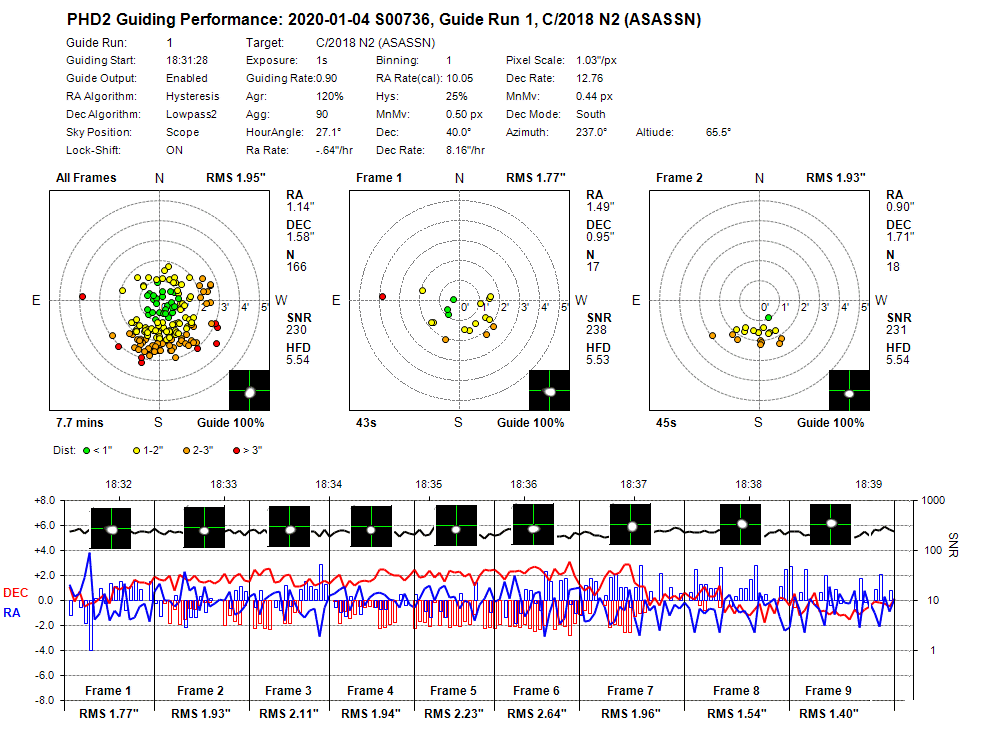

Bullet Guiding Performance

Bullet Images from 2020-01-08  >>

Bullet Dark Frames (2020-01-09)

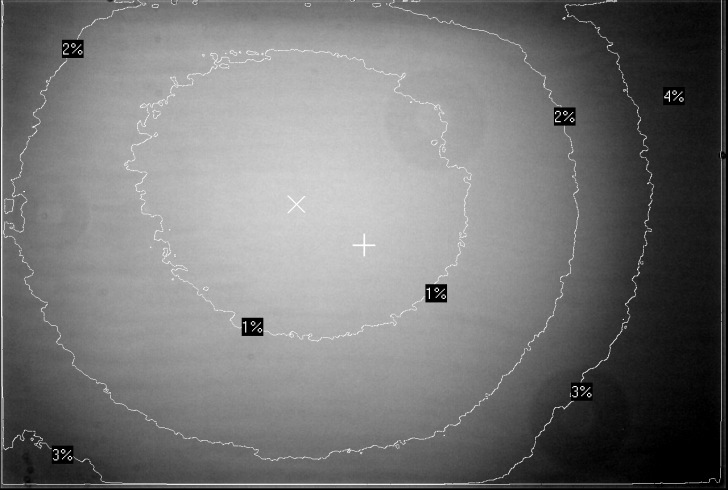

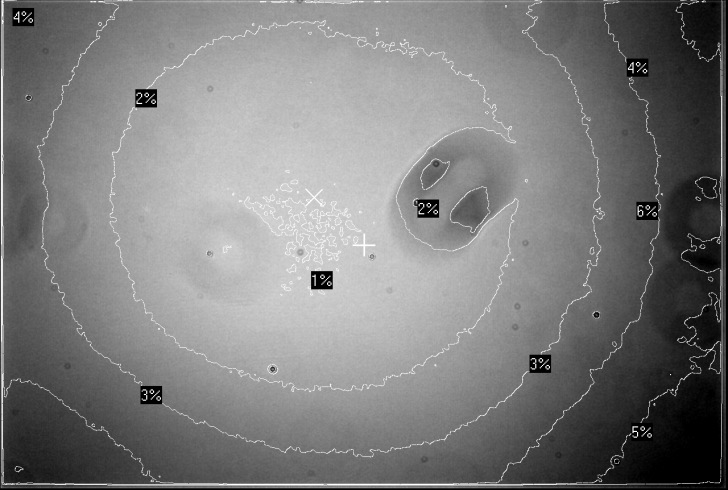

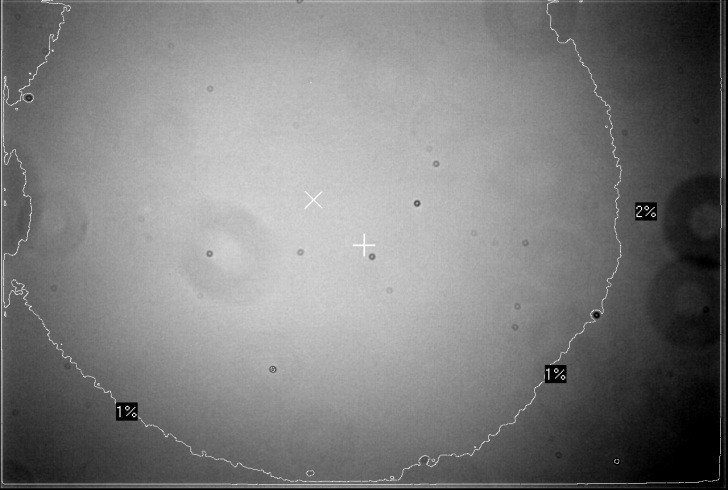

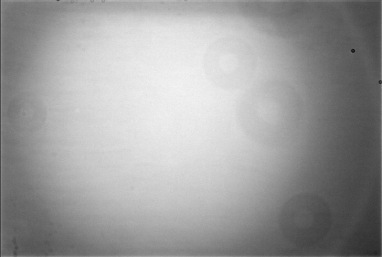

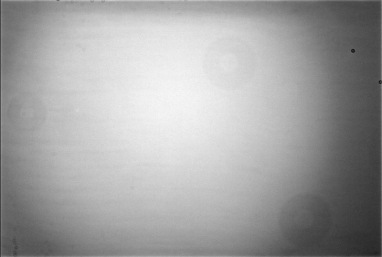

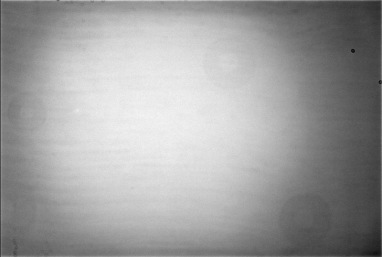

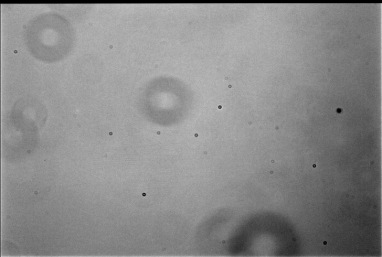

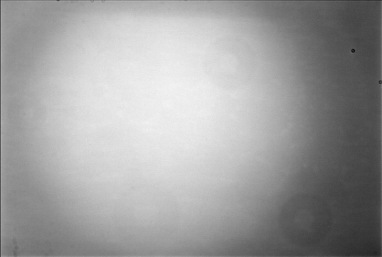

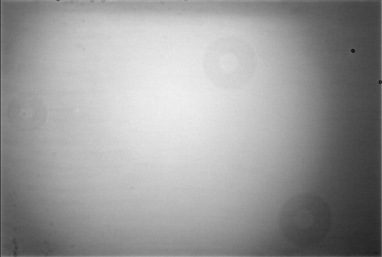

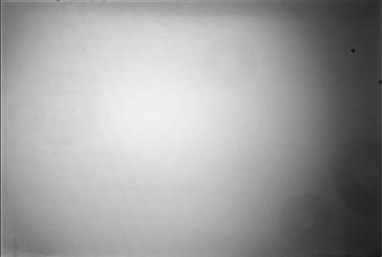

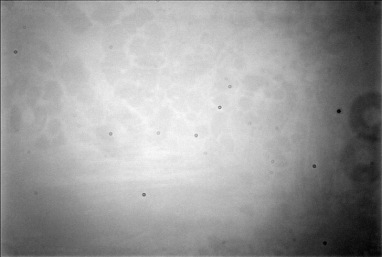

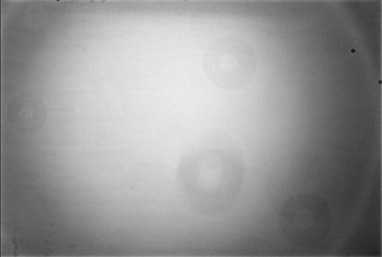

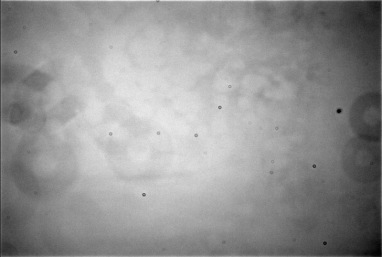

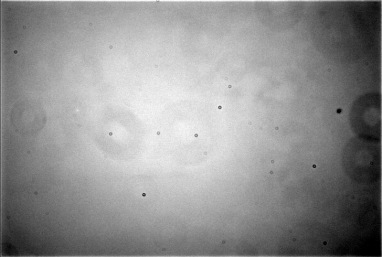

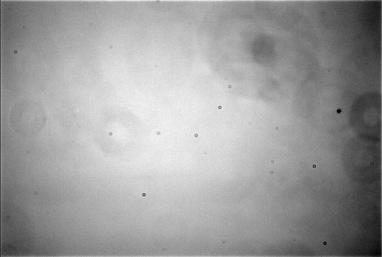

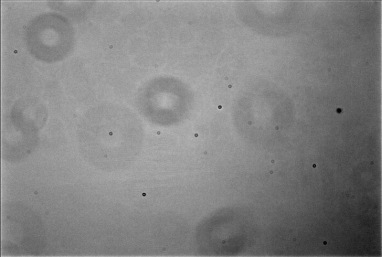

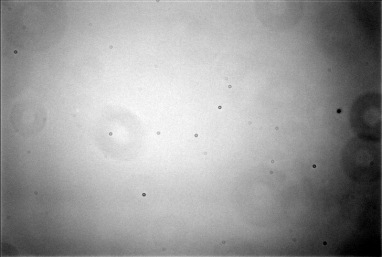

Bullet Flat Frames (2020-01-09)


Session Aims & Highlights (2020-01-08)

Main aims

  1. Scope Reconfiguration: Setup new configuration (focusing,  camera orientaion and plate scale)
  2. Telescope Rebalance:  Check performance following rebalancing of scope (RA and Dec)
  3. Targets: Acquire images of selected variable and nearby stars (conditions too light for deep sky imaging)
  4. Guiding:  Continue checking guiding performance after recent changes

Equipment & Software

Highlights

Lowlights



Summary Plots & Logs

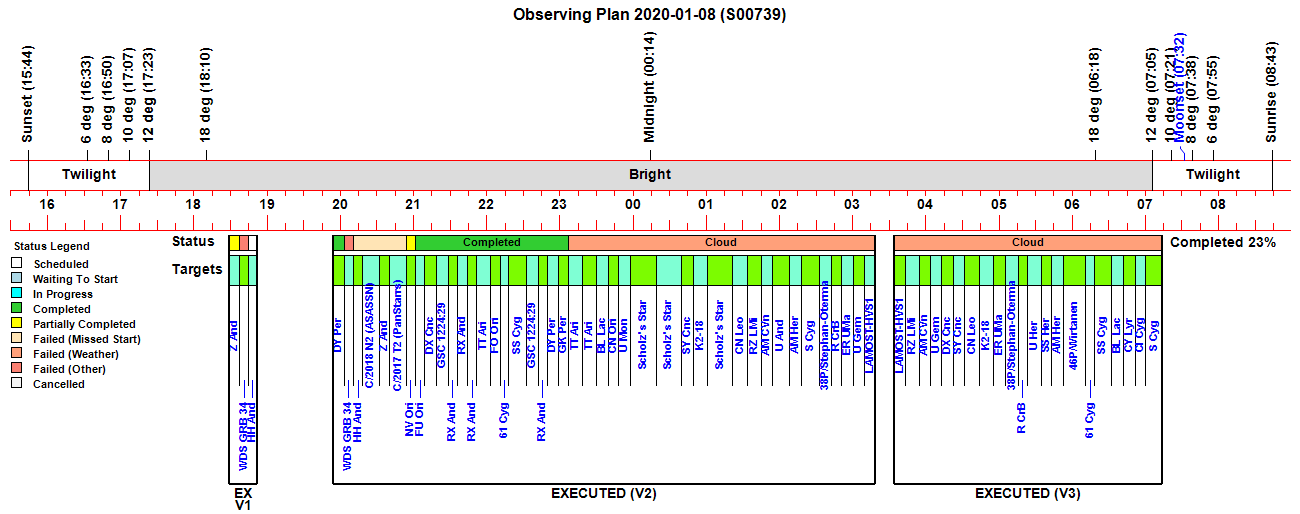

Observing Plan

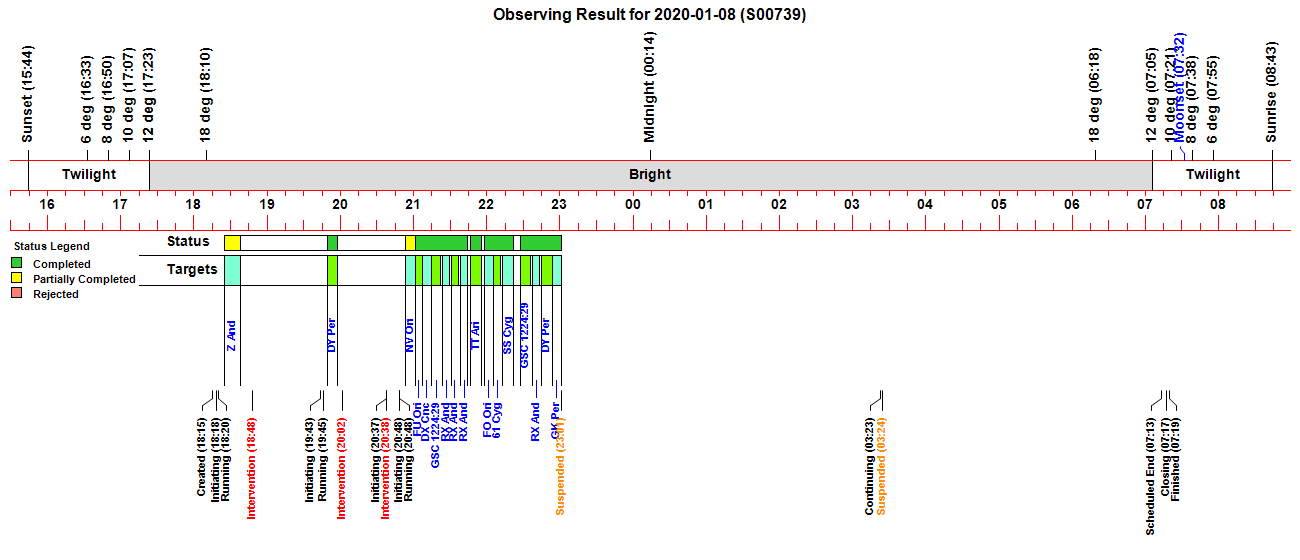

Observing Result

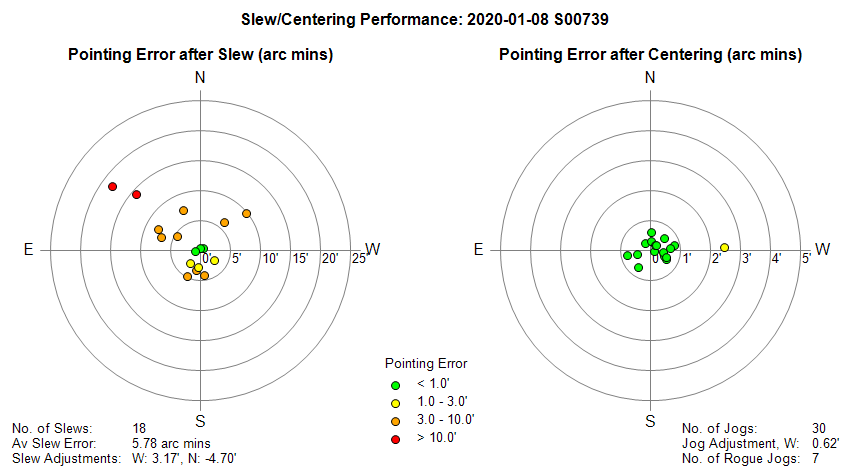

Slew/Centering Performance

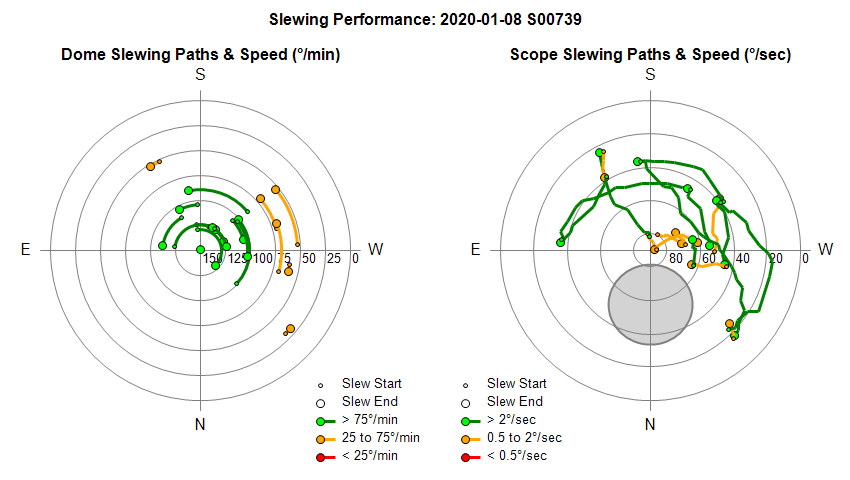

Dome Slewing Performance

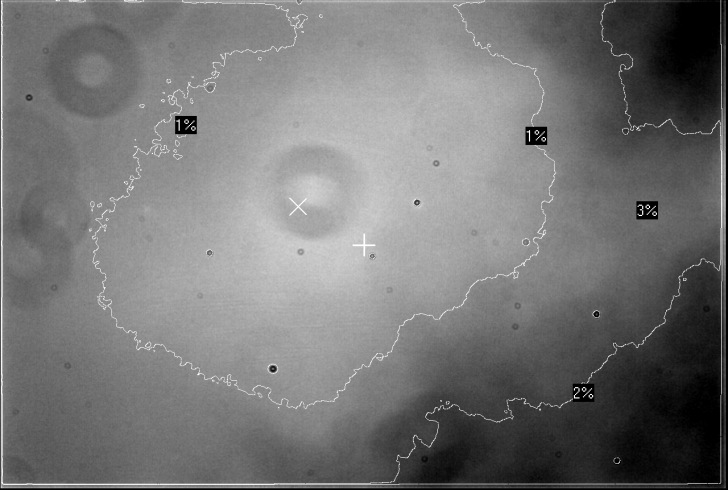

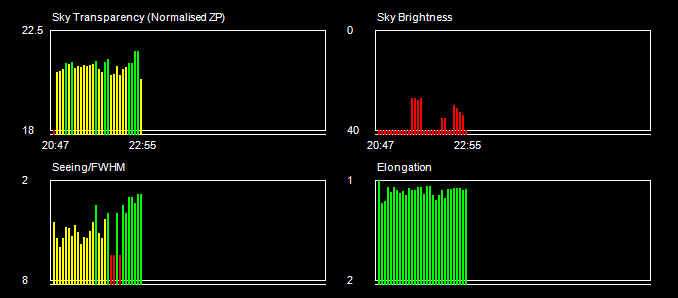

Sky Conditions (Locate Frames)

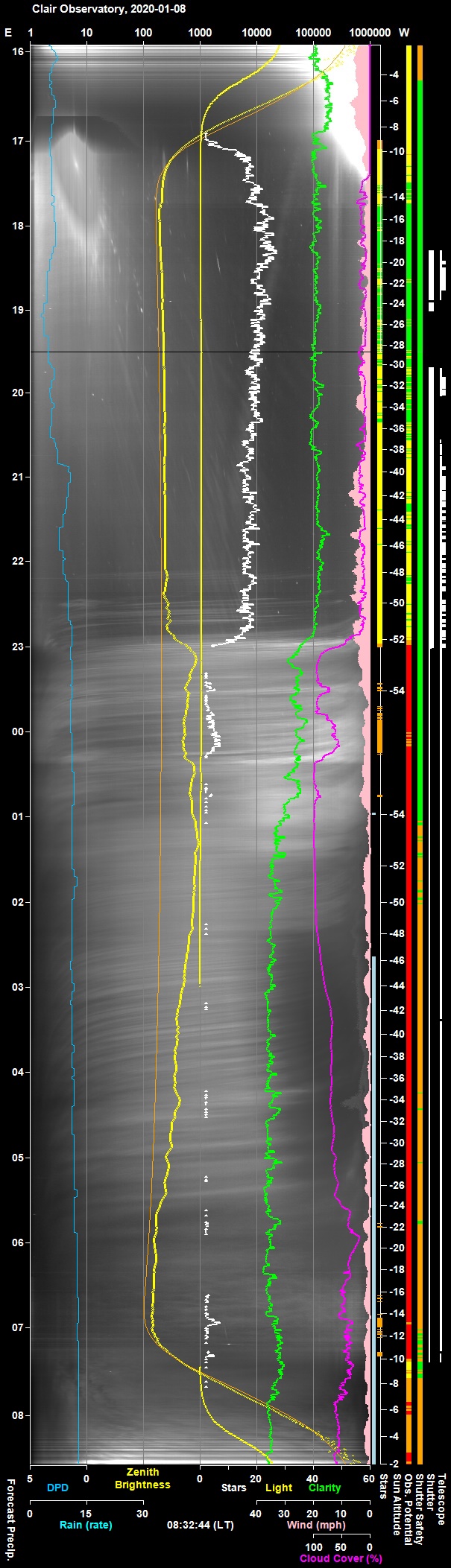

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

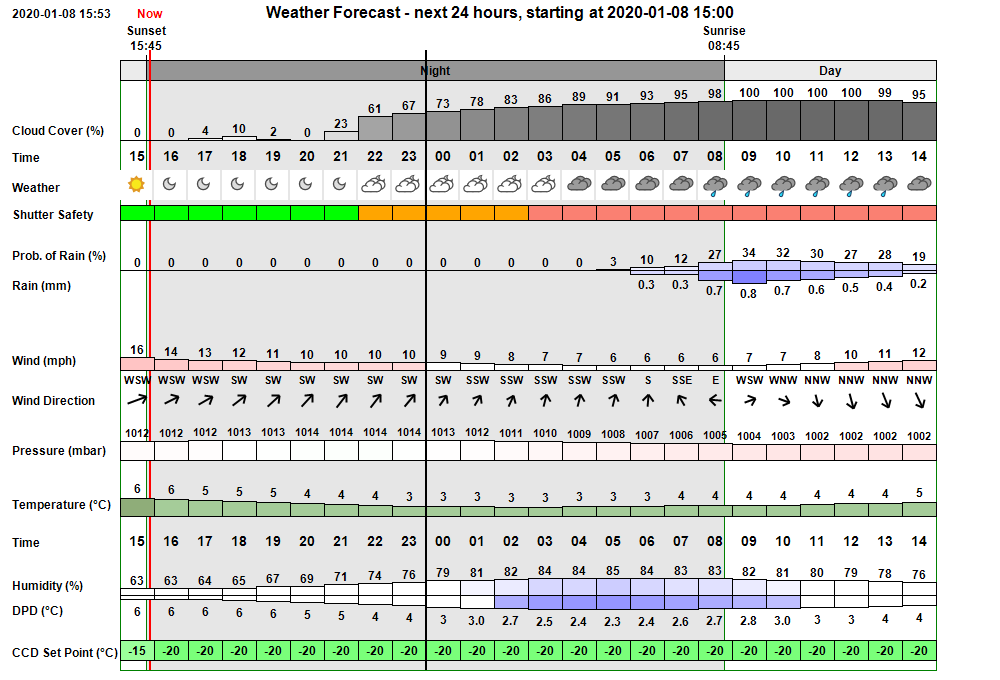

Pre-Session Weather Forecast (API data from darksky.net)
Forecast showed
In the event skies

Session Event Log
Time     Event Detail
18:15:29 Session Created Live Session Created (2020-01-08 S00739, ImageSaveNum: 739001)
18:15:55   Scope Switched On Telescope power has been switched on via UPB Powerbox.
18:17:40   Services Started Observatory Services started
18:18:12 Observatory (Auto) Observatory placed in Fully-Automated Mode
18:18:17 Session Pending Session pending (2020-01-08)
18:18:19 Session Initiating Session initiating (2020-01-08)
18:18:21   Plan Requested Observing Plan requested from AstroPlan (1.13.8)
18:19:47   Plan Loaded Observing Plan loaded to queue (2020-01-08 V1 BEST PLAN, Plan ID: 447)
18:20:01   Camera1 Connected SBIG Camera Connected (set point -20°C)
18:20:05   Telescope Connected Telescope Connected (TheSky6)
18:20:17 Session Equilibration Session ready for dome & camera equilibration
18:20:20   Equilibration Started Dome Equilibration started
18:20:22   Equilibration Skipped Dome Equilibration skipped by user
18:20:24 Session Running Session running
18:20:26   Queue Started Observing Queue started (35 targets selected)
18:21:15       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
18:23:17       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
18:23:19       Focusing Started Foc2 Focusing Started (Secondary Scope, using ShCap)
18:24:52       Focusing Completed Foc2 AutoFocus Completed (Profile No 2)
18:24:54     Target Started (1/35) Target started (1/35, GCVS Z And)
18:27:58       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
18:29:55       Focusing Completed Foc1 AutoFocus Completed (Profile No 3)
18:37:47     Target Completed Target partially completed (1/35, GCVS Z And)
18:38:47     Target Started (2/35) Target started (2/35, WDS GRB 34)
18:40:40   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
18:41:15   SoftSuspend Cancelled Soft Suspend is cancelled due to Improved Conditions
18:48:00 User Intervention User interventation to restart telescope / resolve centering issue
18:53:11 Session Resumed Live Session Resumed (2020-01-08 S00739, ImageSaveNum: 739011)
18:55:08   Obs.Manager Started Obs.Manager started
18:55:10   Obs.Overseer Started Obs.Overseer started
18:55:12   Services Started Observatory Services started
18:56:31   Services Stopped Observatory Services stopped
18:57:02   Obs.Manager Started Obs.Manager started
18:57:04   Obs.Overseer Started Obs.Overseer started
18:57:06   Services Started Observatory Services started
18:57:23   Services Stopped Observatory Services stopped
18:59:34 Program Closed Program closed by User
19:07:39 Session Resumed Live Session Resumed (2020-01-08 S00739, ImageSaveNum: 739011)
19:07:56   Scope Switched Off Telescope Power has been switched off via UPB Powerbox.
19:08:06   Scope Switched On Telescope power has been switched on via UPB Powerbox.
19:08:45   Obs.Manager Started Obs.Manager started
19:08:47   Obs.Overseer Started Obs.Overseer started
19:41:19 Session Resumed Live Session Resumed (2020-01-08 S00739, ImageSaveNum: 739011)
19:42:48   Obs.Manager Started Obs.Manager started
19:42:50   Obs.Overseer Started Obs.Overseer started
19:42:54   Services Started Observatory Services started
19:43:19 Observatory (Auto) Observatory placed in Fully-Automated Mode
19:43:21 Session Pending Session pending (2020-01-08)
19:43:23 Session Initiating Session initiating (2020-01-08)
19:43:25   Plan Requested Observing Plan requested from AstroPlan (1.13.8)
19:45:20   Plan Loaded Observing Plan loaded to queue (2020-01-08 V2 BEST PLAN, Plan ID: 448)
19:45:25   Camera1 Connected SBIG Camera Connected (set point -20°C)
19:45:33   Telescope Connected Telescope Connected (TheSky6)
19:45:45 Session Equilibration Session ready for dome & camera equilibration
19:45:48   Equilibration Started Dome Equilibration started
19:45:50   Equilibration Skipped Dome Equilibration skipped by user
19:45:52 Session Running Session running
19:45:54   Queue Started Observing Queue started (42 targets selected)
19:46:54       Focusing Started Foc2 Focusing Started (Secondary Scope, using ShCap)
19:48:30       Focusing Completed Foc2 AutoFocus Completed (Profile No 4)
19:49:20     Target Started (1/42) Target started (1/42, GCVS DY Per)
19:52:48       Focusing Failed Foc1 Focusing Failed - star is too dim (TCF-S)
19:57:52     Target Completed Target completed (1/42, GCVS DY Per)
19:58:37     Target Started (2/42) Target started (2/42, WDS GRB 34)
20:02:00 User Intervention User intervention to sort out problems with TCF-S focus driver
20:02:51     Target Failed Target failed due to centering error (2/42, WDS GRB 34)
20:02:53   Queue Aborted Job Queue aborted
20:04:15       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
20:05:13       Focusing Aborted Foc1 Focusing Aborted
20:08:14       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
20:11:29       Focusing Completed Foc1 AutoFocus Completed (Profile No 6)
20:34:29   Telescope Parked Telescope parked (parking time 36s)
20:34:44   Scope Switched Off Telescope Power has been switched off via UPB Powerbox.
20:35:19   Services Stopped Night Services stopped
20:35:38   Scope Switched On Telescope power has been switched on via UPB Powerbox.
20:37:20   Services Started Observatory Services started
20:37:49 Observatory (Auto) Observatory placed in Fully-Automated Mode
20:37:51 Session Pending Session pending (2020-01-08)
20:37:53 Session Initiating Session initiating (2020-01-08)
20:37:55   Plan Loaded Observing Plan loaded to queue (2020-01-08 V2 ACTIVE PLAN S739, Plan ID: 448)
20:37:56   Camera1 Connected SBIG Camera Connected (set point -25°C)
20:38:00 User Intervention User intervention to restart telescope
20:38:04   Telescope Connected Telescope Connected (TheSky6)
20:43:26 Session Resumed Live Session Resumed (2020-01-08 S00739, ImageSaveNum: 739022)
20:43:40   Scope Switched Off Telescope Power has been switched off via UPB Powerbox.
20:43:52   Scope Switched On Telescope power has been switched on via UPB Powerbox.
20:45:40   Obs.Manager Started Obs.Manager started
20:45:42   Obs.Overseer Started Obs.Overseer started
20:45:46   Services Started Observatory Services started
20:46:03   Telescope Connected Telescope Connected (TheSky6)
20:46:17   Camera1 Connected SBIG Camera Connected (set point -25°C)
20:48:12 Observatory (Auto) Observatory placed in Fully-Automated Mode
20:48:16 Session Pending Session pending (2020-01-08)
20:48:18 Session Initiating Session initiating (2020-01-08)
20:48:20   Plan Loaded Observing Plan loaded to queue (2020-01-08 V2 ACTIVE PLAN S739, Plan ID: 448)
20:48:22   Camera1 Connected SBIG Camera Connected (set point -25°C)
20:48:24   Telescope Connected Telescope Connected (TheSky6)
20:48:37 Session Equilibration Session ready for dome & camera equilibration
20:48:40   Equilibration Started Dome Equilibration started
20:48:42   Equilibration Skipped Dome Equilibration skipped by user
20:48:44 Session Running Session running
20:48:46   Queue Started Observing Queue started (40 targets selected)
20:49:25       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
20:51:19       Focusing Completed Foc1 AutoFocus Completed (Profile No 7)
20:51:22       Focusing Started Foc2 Focusing Started (Secondary Scope, using ShCap)
20:53:03       Focusing Completed Foc2 AutoFocus Completed (Profile No 8)
20:53:05     Target Missed (3/42) Target's time slot was missed (3/42, GCVS HH And)
20:53:07     Target Missed (4/42) Target's time slot was missed (4/42, C/2018 N2 (ASASSN))
20:53:09     Target Missed (5/42) Target's time slot was missed (5/42, GCVS Z And)
20:53:11     Target Missed (6/42) Target's time slot was missed (6/42, C/2017 T2 (PanStarrs))
20:53:13     Target Started (7/42) Target started (7/42, GCVS NV Ori)
20:56:14       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:00:04       Focusing Completed Foc1 AutoFocus Completed (Profile No 9)
21:01:43     Target Completed Target partially completed (7/42, GCVS NV Ori)
21:01:45     Target Started (8/42) Target started (8/42, GCVS FU Ori)
21:07:34     Target Completed Target completed (8/42, GCVS FU Ori)
21:07:37     Target Started (9/42) Target started (9/42, GCVS DX Cnc)
21:10:22       Focusing Failed Foc1 Focusing Failed - star is too dim (TCF-S)
21:14:50     Target Completed Target completed (9/42, GCVS DX Cnc)
21:14:52     Target Started (10/42) Target started (10/42, GSC 1224:29)
21:17:43       Focusing Failed Foc1 Focusing Failed - star is too dim (TCF-S)
21:22:10     Target Completed Target completed (10/42, GSC 1224:29)
21:23:54     Target Started (11/42) Target started (11/42, GCVS RX And)
21:26:04       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:28:06       Focusing Completed Foc1 AutoFocus Completed (Profile No 10)
21:30:42     Target Completed Target completed (11/42, GCVS RX And)
21:31:24     Target Started (12/42) Target started (12/42, GCVS RX And)
21:32:17       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:34:16       Focusing Completed Foc1 AutoFocus Completed (Profile No 11)
21:36:54     Target Completed Target completed (12/42, GCVS RX And)
21:38:54     Target Started (13/42) Target started (13/42, GCVS RX And)
21:40:01       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:41:51       Focusing Completed Foc1 AutoFocus Completed (Profile No 12)
21:44:28     Target Completed Target completed (13/42, GCVS RX And)
21:46:24     Target Started (14/42) Target started (14/42, GCVS TT Ari)
21:48:43       Focusing Failed Foc1 Focusing Failed - star is too dim (TCF-S)
21:55:38     Target Completed Target completed (14/42, GCVS TT Ari)
21:57:50     Target Started (15/42) Target started (15/42, GCVS FO Ori)
22:00:02       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:01:49       Focusing Completed Foc1 AutoFocus Completed (Profile No 13)
22:05:42     Target Completed Target completed (15/42, GCVS FO Ori)
22:05:58     Target Started (16/42) Target started (16/42, 61 Cyg)
22:08:58       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:10:46       Focusing Completed Foc1 AutoFocus Completed (Profile No 14)
22:12:13     Target Completed Target completed (16/42, 61 Cyg)
22:13:03     Target Started (17/42) Target started (17/42, GCVS SS Cyg)
22:16:07       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:17:59       Focusing Completed Foc1 AutoFocus Completed (Profile No 15)
22:21:35     Target Completed Target completed (17/42, GCVS SS Cyg)
22:27:25     Target Started (18/42) Target started (18/42, GSC 1224:29)
22:30:56       Focusing Failed Foc1 Focusing Failed - star is too dim (TCF-S)
22:35:35     Target Completed Target completed (18/42, GSC 1224:29)
22:37:16     Target Started (19/42) Target started (19/42, GCVS RX And)
22:39:14       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:41:14       Focusing Completed Foc1 AutoFocus Completed (Profile No 16)
22:43:47     Target Completed Target completed (19/42, GCVS RX And)
22:44:46     Target Started (20/42) Target started (20/42, GCVS DY Per)
22:46:42       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:48:42       Focusing Completed Foc1 AutoFocus Completed (Profile No 17)
22:53:40     Target Completed Target completed (20/42, GCVS DY Per)
22:54:04     Target Started (21/42) Target started (21/42, GCVS GK Per)
22:56:04       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:57:09   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
22:58:24       Focusing Completed Foc1 AutoFocus Completed (Profile No 18)
23:01:20     Target Completed Target completed (21/42, GCVS GK Per)
23:01:22   Queue Paused Queue paused for SoftSuspend
23:01:25 Session Suspended Session suspended
23:02:15   Shutter Closed Shutter closed (closing time 50s)
23:11:26   Camera1 SetPoint SBIG Camera Set Point Temperature Updated (new set point -20°C)
23:12:36     Target Cancelled Target cancelled (22/42, GCVS TT Ari) due to cloud
23:24:02     Target Cancelled Target cancelled (23/42, GCVS TT Ari) due to cloud
23:33:35     Target Cancelled Target cancelled (24/42, GCVS BL Lac) due to cloud
23:41:28   Camera1 SetPoint SBIG Camera Set Point Temperature Updated (new set point -25°C)
23:42:36     Target Cancelled Target cancelled (25/42, GCVS CN Ori) due to cloud
23:52:24     Target Cancelled Target cancelled (26/42, GCVS U Mon) due to cloud
00:12:05     Target Cancelled Target cancelled (27/42, Scholz's Star) due to cloud
00:33:01     Target Cancelled Target cancelled (28/42, Scholz's Star) due to cloud
00:43:25     Target Cancelled Target cancelled (29/42, GCVS SY Cnc) due to cloud
00:55:24     Target Cancelled Target cancelled (30/42, K2-18) due to cloud
01:14:50     Target Cancelled Target cancelled (31/42, Scholz's Star) due to cloud
01:28:52     Target Cancelled Target cancelled (32/42, GCVS CN Leo) due to cloud
01:39:00     Target Cancelled Target cancelled (33/42, GCVS RZ LMi) due to cloud
01:48:48     Target Cancelled Target cancelled (34/42, GCVS AM CVn) due to cloud
02:01:39     Target Cancelled Target cancelled (35/42, GCVS U And) due to cloud
02:12:35     Target Cancelled Target cancelled (36/42, GCVS AM Her) due to cloud
02:25:39     Target Cancelled Target cancelled (37/42, GCVS S Cyg) due to cloud
02:37:15     Target Cancelled Target cancelled (38/42, 38P/Stephan-Oterma) due to cloud
02:45:21     Target Cancelled Target cancelled (39/42, GCVS R CrB) due to cloud
02:54:24     Target Cancelled Target cancelled (40/42, GCVS ER UMa) due to cloud
03:03:42     Target Cancelled Target cancelled (41/42, GCVS U Gem) due to cloud
03:23:03     Target Cancelled Target cancelled (42/42, LAMOST-HVS1) due to cloud
03:23:08   Queue Completed Job Queue completed
03:23:14 Session Continuing Session continuing
03:23:24   Plan Requested Observing Plan requested from AstroPlan (1.13.8)
03:23:40   Plan Loaded Observing Plan loaded to queue (2020-01-08 V3 BEST PLAN, Plan ID: 449)
03:24:24 Wait on Weather Waiting for acceptable weather conditions
03:24:26 Session Suspended Session suspended
03:24:28   Shutter Closed Shutter already closed (closed at 23:02, closing time 50s)
03:24:31   Queue Started Observing Queue started (21 targets selected)
03:38:00     Target Cancelled Target cancelled (1/21, LAMOST-HVS1) due to cloud
03:48:08     Target Cancelled Target cancelled (2/21, GCVS RZ LMi) due to cloud
03:57:56     Target Cancelled Target cancelled (3/21, GCVS AM CVn) due to cloud
04:06:59     Target Cancelled Target cancelled (4/21, GCVS U Gem) due to cloud
04:17:26     Target Cancelled Target cancelled (5/21, GCVS DX Cnc) due to cloud
04:26:00     Target Cancelled Target cancelled (6/21, GCVS SY Cnc) due to cloud
04:38:47     Target Cancelled Target cancelled (7/21, GCVS CN Leo) due to cloud
04:50:21     Target Cancelled Target cancelled (8/21, K2-18) due to cloud
04:59:39     Target Cancelled Target cancelled (9/21, GCVS ER UMa) due to cloud
05:10:15     Target Cancelled Target cancelled (10/21, 38P/Stephan-Oterma) due to cloud
05:18:21     Target Cancelled Target cancelled (11/21, GCVS R CrB) due to cloud
05:28:47     Target Cancelled Target cancelled (12/21, GCVS U Her) due to cloud
05:37:18     Target Cancelled Target cancelled (13/21, GCVS SS Her) due to cloud
05:47:04     Target Cancelled Target cancelled (14/21, GCVS AM Her) due to cloud
06:05:36     Target Cancelled Target cancelled (15/21, 46P/Wirtanen) due to cloud
06:12:53     Target Cancelled Target cancelled (16/21, 61 Cyg) due to cloud
06:27:01     Target Cancelled Target cancelled (17/21, GCVS SS Cyg) due to cloud
06:36:04     Target Cancelled Target cancelled (18/21, GCVS BL Lac) due to cloud
06:45:52     Target Cancelled Target cancelled (19/21, GCVS CY Lyr) due to cloud
06:54:30     Target Cancelled Target cancelled (20/21, GCVS CI Cyg) due to cloud
07:17:04     Target Cancelled Target cancelled (21/21, GCVS S Cyg) due to cloud
07:17:09   Queue Completed Job Queue completed
07:17:15 Session Closing Session closing
07:17:20   Shutter Closed Shutter already closed (closed at 23:02, closing time 50s)
07:18:21   Dome Parked Dome parked (parking time 61s)
07:18:35   Telescope Parked Telescope parked (parking time 10s)
07:18:50   Scope Switched Off Telescope Power has been switched off via UPB Powerbox.
07:19:37   Services Stopped Night Services stopped
07:19:39 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files)
07:19:53 Session Finished Session Finished


Back to Top


Operational Issues (2020-01-08, S739)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Continuous Improvement

[ Prev | Next ]

Back to Top


Changes prior to session (Optical Cleaning, Scope Rebalancing, Refocusing, Updated Plate Scale)

Changes made prior to session:


Optical Cleaning

- ST10XME camera and CFW10 focus wheel removed from LX200.  Current 2" to T2 adapter assembly removed.
- CFW10 opened, optical window cleaned,  filters checked and cleaned where necessary
- ST10XME camera open, optical window and window on CCD Sensor cleaned
- ST10XME camera and CFW10 reassembled and installed on LX200 with new (shorter) 2" to T2 adapter

- ST10XME tested, but all frames (darks, and light/flats) have just dark signal.  Tried several times
- Removed ST10XME and CFW10. Opened Camera and checked.   Could see any problem (rotating camera shutter was closed so moved it to its open  position.
- Reinstalled ST10XME and CFW10  on LX200.  Retested Lights/Flats and Darks - Both Ok

Rebalancing

- Rebalanced scope in Dec.  One ankle weight removed (leaving one ankle weight) + 2 main weights. Position of two main weights below OTA and the 80mm guidescope adjusted to achieve best overall balance vertically and horizontally.
- Rebalanced scope in RA. Two weighted ankle weights added to left-hand fork arm to balance the combined weight of Dec Motor, Pegasus Power Box and TCF-S controller on the right-hand fork arm.

Alignment and Focusing

- Aligned scope on Venus in early evening
- Initial re-focusing on Venus using main mirror focuser (with TCF-S focuser set at 4000 steps)
- Refined focusing on 2 mag star using main mirror focuser
- Refined focusing using TCF-S focuser

Plate Scale & Orientation
- Take 15s frames and Image Link
- Checked Camera orientation (orientation 179.5° deg, within tolerance(180 +/- 0.5°), no rotation necessary)
- Checked Image Scale (1.404"/pixel at 3x3 binning)
- Updated standard Image Scale and orientation in AstroMain (0.468 at 1x1,  179.5°)
- Updated standard Reference FOV field size and orientation in TheSky6 (17.03' x 11.47' , 179.5°)

Impact of reducing the length of the optical train (AO-8 removed) is to slightly decrease the plate scale and slighly enlarge the FOV area.

Back to Top


Guiding Performance

Examples of guiding results from the session are shown below:

Example of Guiding Performance from Session S739









Comparison with previous results

Back to Top


Dark Frames (2020-01-09)

Dark & Bias frames collected 2020-01-09

Binning & CCD Temp   Bias   10s   15s   20s   30s   45s   60s   90s   120s   180s

3x3 -15°C 50 17 17 17 17 17 17 17 21 21
2x2 -15°C 17 - 17 17 - 17 17 17 17 17
1x1 -15°C - - - - - - - - - -

3x3 -20°C 50 - - - 34 17 17 17 21 21
2x2 -20°C 50 - - - - 17 17 17 17 17
1x1 -20°C 50 - - 20 - - - - - -

3x3 -25°C 50 - - - 17 17 17 17 21 21
2x2 -25°C 50 - - - 17 17 17 17 17 17
1x1 -25°C 50 - - 20 - - - - - -

3x3 -30°C 50 - - - 17 17 17 17 20 21
2x2 -30°C 50 - - - 17 17 17 17 17 17
1x1 -30°C 50 - - 20 - - - - - -


Back to Top


Flat Frames (2020-01-09)

A new set of Flat Frames were collected using Light Board for 1x1, 2x2, 3x3 following recent cleaning of Camera & Filter Wheel and Filters, cleaning of SCT corrector lens and installation of a new 2" to T2 adapter.   Flats are a lot cleaner than previous (in particular in the critical central zone of the image) but the amount of vignetting has increased.  Initial use of the new master flats on raw frames from Session S739, are not possibly not producing 'Reduced' frames that are as flat as desirable, but these results could be affected or exagerated by bright moonlit background.

Sky flats have previously been shown to give better results than Light Board Flat, but take several days to collect flats for 10 filter in 3 different binning configuratopm.  A new sky flats (C filter) will be initially collected and compared, and depending on results, sky flats for other filters gradually collected and used to replace the light board flats.

(Subsequent Master Flats produced from Sky Flats taken on 2020-01-11, S740 showed less succesful reduction of raw images than the those produced from Light Board Flats taken on 2020-01-09)

Note: The time available for collecting Sky Flats at Dusk/Dawn is much shorter in mid-winter than at other times of the year where the sun desends in altitude much more slowly.

Results

Set    Filter / Bin Set
Sun Altitude
(deg)
   Exposure
(s)
Av. Count
(ADU)
  Target Count
(ADU)
  Total Time
(incl Slew)
(mins)
   Result

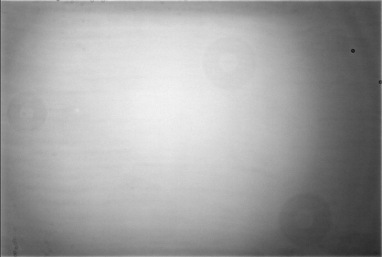

New Flats - Post Cleaning
2019-01-09, S739
Light Board Flats,  CCD Temp -20°C

  Previous Flats - Pre-Cleaning
2019-12-24 & 31, S732 & S733 or 2018-09-14

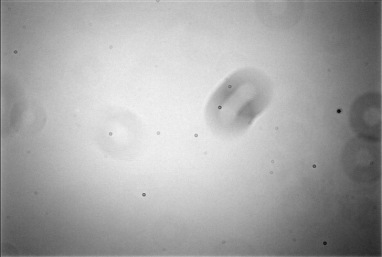

Master Flat, New C filter (3x3)
(Average Median for 26 frames )
  Master Flat, New C filter (3x3), 2019-12-31
(Average Median for 25 frames )
  Commentary
Image   Image    Specks on CCD Sensor Window
removed from field center and largely removed
from rest of field
(detail picture show specks moved to edge of CCD)

Recent developed overlapping Dust Specks
and some other dust removed from
Camera/Filter Wheel optical windows

Amount of vignetting is greater and there is some shadow at top of field casused by the mirror that takes light to the
secondary CCD

Master Flat, B filter (3x3)
(Average Median for 13 frames )
  Master Flat, B filter (3x3), 2019-12-25
(Sky Flat, Average Median for 15 frames )
  Commentary
Image   Image     Overall improvement from cleaning

Organic / chemical deposits on ? CCD Sensor Window
seen on Blue and Infrared Filters (with opposing contrasts)
have been removed

Cleaning has left some faint streaks marks
 on CCD Sensor Window

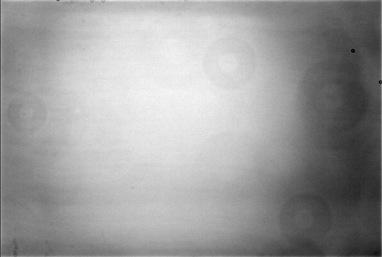

Master Flat, V filter (3x3)
(Average Median for 18 frames )
  Master Flat, V filter (3x3), 2019-12-25
(Average Median for 15 frames )
  Commentary
Image    Image    Overall improvement
but there is some dust dougnuts on left of field
caused by dust specks on V filter

There is unexplained banding on lower part of field


Master Flat, R filter (3x3)
(Average Median for 18 frames )
  Master Flat, R filter (3x3), 2019-12-25
(Average Median for 15 frames )
  Commentary
Image    Image    Overall improvement from cleaning
Optical windows, CCD Sensor window & Filter

There is a blurred dust dougnuts on
lower central lower part of field
caused by dust speck on R filter

Master Flat, I filter (3x3)
(Average Median for 18 frames )
  Master Flat, I filter (3x3), 2019-12-25
(Average Median for 15 frames )

Image    Image     Overall improvement from cleaning

Organic / chemical deposits on ? CCD Sensor Window
seen principally on Blue and Infrared Filters
(with opposing brightness/darkness)
have been removed by cleaning

Cleaning has left some faint streaks marks
 on CCD Sensor Window

There is a very faint dust dougnuts on
lower part of field just to left of centre line
caused by a dust speck on I filter

Master Flat, Xo filter (3x3)
(Average Median for 18 frames )
   Master Flat, Xo filter (3x3), 2018-09-14
(Average Median for 15 frames)
Note: Xo (3x3) flats not acquired in 2019-12-24 / 25
  Commentary
Image    Image     Overall improvement from cleaning
Optical windows, CCD Sensor window & Filter

There is a blurred dust dougnuts on
middle left  part of field
caused by dust speck on Xo filter

Master Flat, Ha filter (3x3)
(Average Median for 17 frames )
  Master Flat, Ha filter (3x3), 2018-09-09
(Average Median for 15 frames)
Note: Ha (3x3) flats not acquired in 2019-12-24 / 25
  Commentary
Image     Image   Overall improvement from cleaning
Optical windows, CCD Sensor window & Filter

Ha filter itself is clear of any specks

Some diagonal stripping is evident but unexplained.

Master Flat, Nd filter (3x3)
(Average Median for 17 frames )
  Master Flat, Nd filter (3x3), 2018-09-14
(Average Median for 15 frames)
 Note: Nd (3x3) flats not acquired in 2019-12-24 / 25
  Commentary
Image     Image   Overall improvement from cleaning
Optical windows, CCD Sensor window & Filter

Nd filter itself is clear of any specks

Master Flat, New DB filter (3x3)
(Average Median for 18 frames )
  Master Flat, New DB filter (3x3), 2019-12-24
(Average Median for 15 frames )
  Commentary
Image    Image   Overall improvement from cleaning
Optical windows and CCD Sensor window

New DB filter itself is clear of any specks


All Frames 50% original size

Back to Top


Flat Frame Analysis

Examination of new set of Flat Frames were collected after installation of new shorter 2" to T2 adapter shows that they have a greater amount of vignetting than previous.  There is also a greater amount of shadow at the top of field that is believed to be caused by the mirror that takes light off to the secondary CCD.

Analysis of flat field using CCDWare CCDInspector confirm the extra amount of vignetting.





Flat Field Analysis - New Optical Set Up 2020-01-09
Short 2" to T2 adapter
Master Flat, New C filter (3x3), (Average Median for 26 light-board flat frames )
  Commentary
Image   Position of peak brightness is offset from field centre by 1.82 arc min

This is most likely due to mis-collimination of scope
(re-collimination continues to be an overdue task)

Right hand side of field is more than 4% less illuminated
than the centre. Bottom right corner is probably around 5% lower.

Top left and bottom right are around 2.5% and 3% less illuminaton

Flat Field Analysis - Interim Optical Set Up 2019-12-31
Long 2" to T2 adapter
Master Flat, New C filter (3x3), (Average Median for 25 sky flat frames )
  Commentary
Image   New flat taken to correct images for  2 new dust specks in the Filter Wheel/CCD Camera system that have caused
an annoying new pair of overlapping dark doughnuts on raw images

Taken with the same optical set up as 2019-12-24 but shows
much higher amounts of vignetting than the original flats

Right hand side of field shows more than 5 % less illuminated
than the centre. Bottom right corner is probably around 6% lower.

Top left and bottom right have around 4% and 4.5% less illuminaton
than the centre.

Difference in vignetting is very hard to explain

Flat Field Analysis - Interim Optical Set Up 2019-12-24
Long 2" to T2 adapter
Master Flat, New C filter (3x3), (Average Median for 25 sky flat frames )
  Commentary
Image   Fairly flat field

Position of peak brightness is offset from field centre by 1.50 arc min

This is most likely due to mis-collimination of scope
(re-collimination is an overdue task)

Right hand side of field is more than 2 % less illuminated
than the centre. Bottom right corner is probably around 2.5% lower.

Top left and bottom right have around 1% and 1.5% less illuminaton
than the centre.

Flat Field Analysis - Previous Optical Set Up 2018-09-14
With AO-8 Unit
Master Flat, New C filter (3x3), (Average Median for 25 sky flat frames )
  Commentary
Somewhat uneven flat field
Position of peak brightness is offset from field centre by 1.70 arc min

This is most likely due to mis-collimination of scope

Top right corner of field has around 2.5% less illumination than centre
Bottom right corner is probably around 3% lower.

Top left and bottom right have around 1.5% less illuminaton
Master Flat, B filter (3x3)
(Average Median for 13 frames )
  Commentary
Image    Overall improvement from cleaning

Organic / chemical deposits on ? CCD Sensor Window
seen on Blue and Infrared Filters (with opposing contrasts)
have been removed

Cleaning has left some faint streaks marks
 on CCD Sensor Window

Master Flat, V filter (3x3)
(Average Median for 18 frames )
  Commentary
Image    Overall improvement
but there is some dust dougnuts on left of field
caused by dust specks on V filter

There is unexplained banding on lower part of field


Master Flat, R filter (3x3)
(Average Median for 18 frames )
  Commentary
Image    Overall improvement from cleaning
Optical windows, CCD Sensor window & Filter

There is a blurred dust dougnuts on
lower central lower part of field
caused by dust speck on R filter

Master Flat, I filter (3x3)
(Average Median for 18 frames )

Image     Overall improvement from cleaning

Organic / chemical deposits on ? CCD Sensor Window
seen principally on Blue and Infrared Filters
(with opposing brightness/darkness)
have been removed by cleaning

Cleaning has left some faint streaks marks
 on CCD Sensor Window

There is a very faint dust dougnuts on
lower part of field just to left of centre line
caused by a dust speck on I filter

Master Flat, Xo filter (3x3)
(Average Median for 18 frames )
  Commentary
Image     Overall improvement from cleaning
Optical windows, CCD Sensor window & Filter

There is a blurred dust dougnuts on
middle left  part of field
caused by dust speck on Xo filter

Master Flat, Ha filter (3x3)
(Average Median for 17 frames )
  Commentary
Image    Overall improvement from cleaning
Optical windows, CCD Sensor window & Filter

Ha filter itself is clear of any specks

Some diagonal stripping is evident but unexplained.

Master Flat, Nd filter (3x3)
(Average Median for 17 frames )
  Commentary
Image    Overall improvement from cleaning
Optical windows, CCD Sensor window & Filter

Nd filter itself is clear of any specks

Master Flat, New DB filter (3x3)
(Average Median for 18 frames )
  Commentary
Image    Overall improvement from cleaning
Optical windows and CCD Sensor window

New DB filter itself is clear of any specks


All Frames 50% original size

Back to Top
