Notes - Session 740 (2020-01-11)


Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log

Bullet Operational Issues
  - Critical Issues (0),  Major Issues (5),  Minor Issues (10),  Continuous Improvement (2)

Bullet Guiding Performance

Bullet Images from 2020-01-11  >>


Session Aims & Highlights (2020-01-11)

Main aims

  1. Guider Settling whilst focusing: Test new feature in AstroMain (3.19.3) which initiates Target Autoguiding before Focusing which allows guider to be settled, direction of Dec drift to be established and Dec Mode to be set before Imaging starts
  2. Telescope Rebalance:  Continue check performance following rebalancing of scope (RA and Dec)
  3. Targets: Acquire images of selected variable and nearby stars (conditions too light for deep sky imaging)
  4. Guiding:  Continue checking guiding performance after recent changes

Equipment & Software

Highlights

Lowlights



Summary Plots & Logs

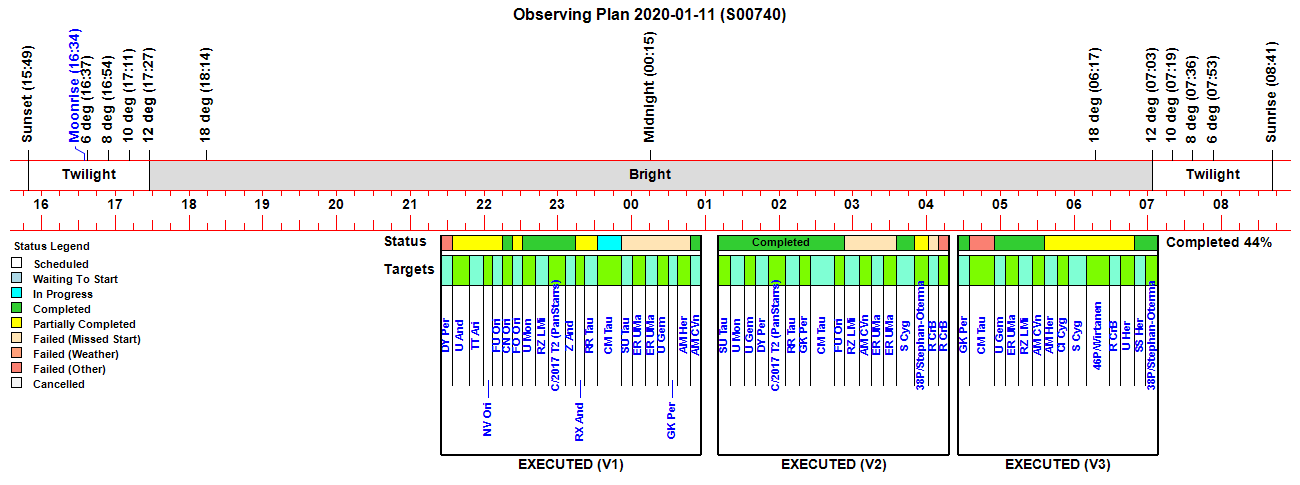

Observing Plan

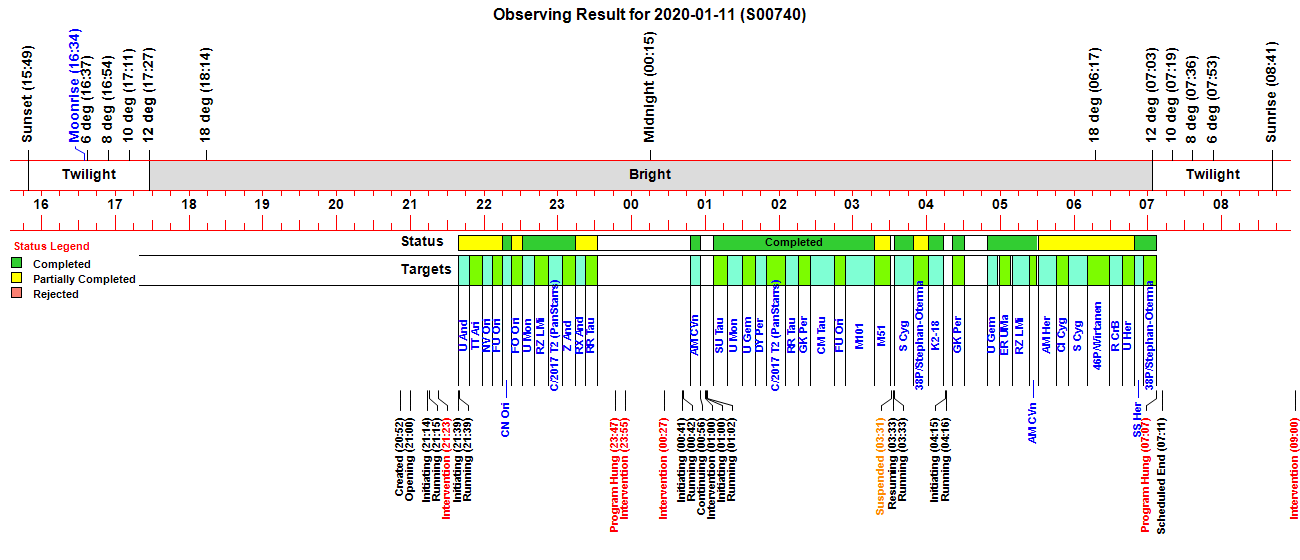

Observing Result

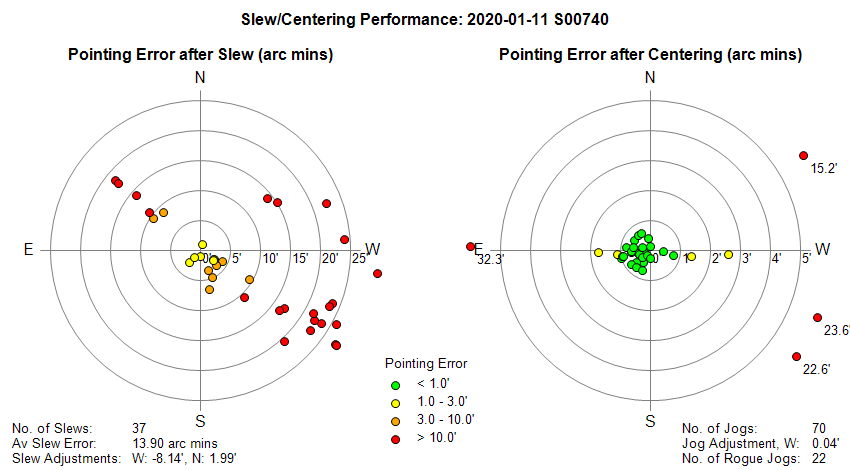

Slew/Centering Performance

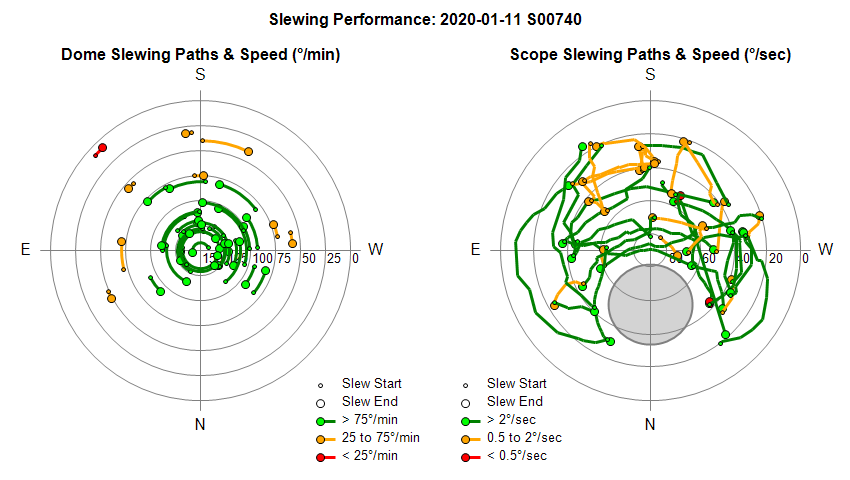

Dome Slewing Performance

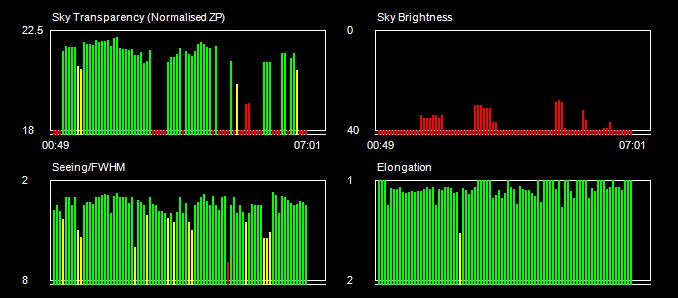

Sky Conditions (Locate Frames)

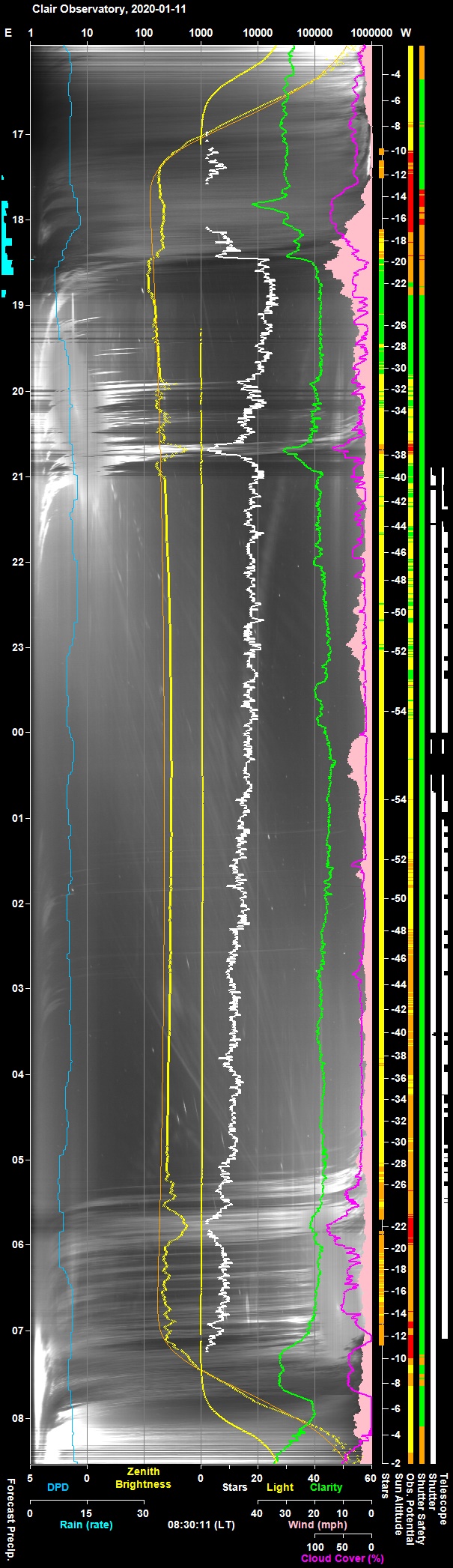

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

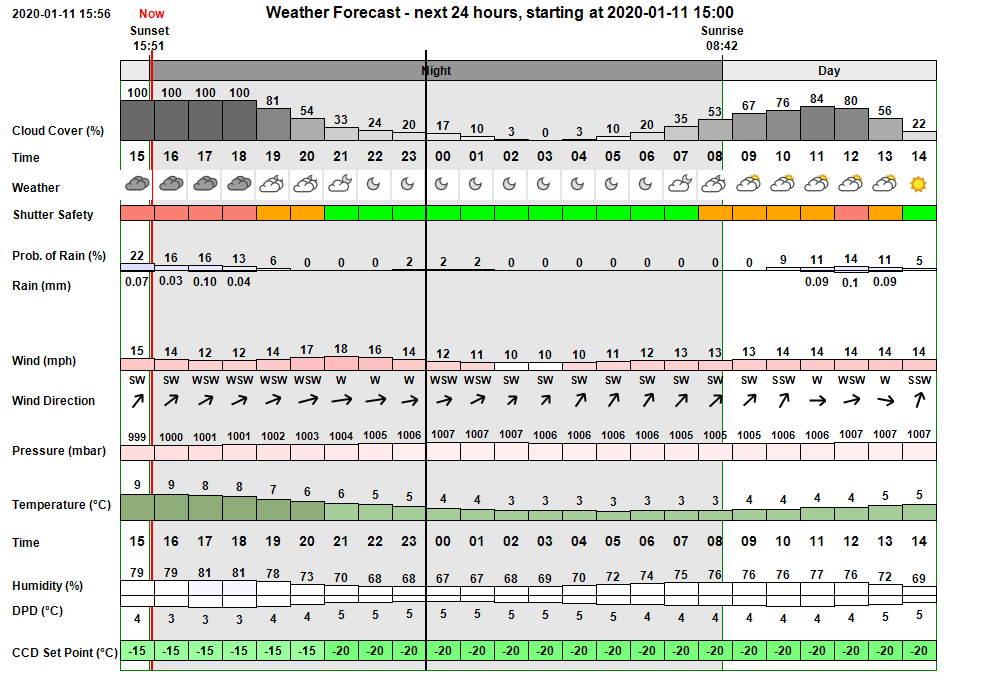

Pre-Session Weather Forecast (API data from darksky.net)
Forecast showed
In the event skies

Session Event Log
Time     Event Detail
20:52:23 Session Created Live Session Created (2020-01-11 S00740, ImageSaveNum: 740001)
20:52:44   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
20:54:29   Obs.Manager Started Obs.Manager started
20:54:31   Obs.Overseer Started Obs.Overseer started
20:54:36   Services Started Observatory Services started
20:55:16   Telescope Connected Telescope Connected (TheSky6)
20:55:41   Camera1 Connected SBIG Camera Connected (set point -20°C)
21:00:11   Shutter Opened Shutter opened (opening time 45s)
21:06:32   Telescope Parked Telescope parked (parking time 36s)
21:06:40   Scope Switched Off Telescope Power has been switched off via UPB Powerbox.
21:07:29   Scope Switched On Telescope power has been switched on via UPB Powerbox.
21:10:51   Services Started Observatory Services started
21:11:31   Services Started Observatory Services started
21:14:10 Observatory (Auto) Observatory placed in Fully-Automated Mode
21:14:13 Session Pending Session pending (2020-01-11)
21:14:15 Session Initiating Session initiating (2020-01-11)
21:14:17   Plan Requested Observing Plan requested from AstroPlan (1.13.8)
21:15:17   Plan Loaded Observing Plan loaded to queue (2020-01-11 V1 BEST PLAN, Plan ID: 451)
21:15:22   Camera1 Connected SBIG Camera Connected (set point -20°C)
21:15:26   Telescope Connected Telescope Connected (TheSky6)
21:15:37 Session Equilibration Session ready for dome & camera equilibration
21:15:40   Equilibration Started Dome Equilibration started
21:15:42   Equilibration Skipped Dome Equilibration skipped by user
21:15:44 Session Running Session running
21:15:46   Queue Started Observing Queue started (21 targets selected)
21:16:44       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:19:41       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
21:19:44       Focusing Started Foc2 Focusing Started (Secondary Scope, using ShCap)
21:21:18       Focusing Completed Foc2 AutoFocus Completed (Profile No 2)
21:21:20     Target Started (1/21) Target started (1/21, GCVS DY Per)
21:23:00 User Intervention User Intervention to Sync telescope on a known star
21:23:55     Target Failed Target failed due to centering error (1/21, GCVS DY Per)
21:23:57   Queue Aborted Job Queue aborted
21:33:15   Scope Switched Off Telescope Power has been switched off via UPB Powerbox.
21:33:33   Scope Switched On Telescope power has been switched on via UPB Powerbox.
21:35:43   Services Started Observatory Services started
21:36:52   Telescope Connected Telescope Connected (TheSky6)
21:39:06 Observatory (Auto) Observatory placed in Fully-Automated Mode
21:39:11 Session Pending Session pending (2020-01-11)
21:39:13 Session Initiating Session initiating (2020-01-11)
21:39:15   Plan Loaded Observing Plan loaded to queue (2020-01-11 V1 ACTIVE PLAN S740, Plan ID: 451)
21:39:17   Camera1 Connected SBIG Camera Connected (set point -20°C)
21:39:19   Telescope Connected Telescope Connected (TheSky6)
21:39:32 Session Equilibration Session ready for dome & camera equilibration
21:39:35   Equilibration Started Dome Equilibration started
21:39:37   Equilibration Skipped Dome Equilibration skipped by user
21:39:39 Session Running Session running
21:39:41   Queue Started Observing Queue started (20 targets selected)
21:39:43     Target Started (2/21) Target started (2/21, GCVS U And)
21:48:18     Target Completed Target partially completed (2/21, GCVS U And)
21:48:20     Target Started (3/21) Target started (3/21, GCVS TT Ari)
21:50:46       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:53:56       Focusing Completed Foc1 AutoFocus Completed (Profile No 3)
21:59:09     Target Completed Target partially completed (3/21, GCVS TT Ari)
21:59:11     Target Started (4/21) Target started (4/21, GCVS NV Ori)
22:02:29       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:05:10       Focusing Completed Foc1 AutoFocus Completed (Profile No 4)
22:07:13     Target Completed Target partially completed (4/21, GCVS NV Ori)
22:07:16     Target Started (5/21) Target started (5/21, GCVS FU Ori)
22:10:54       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:13:53       Focusing Completed Foc1 AutoFocus Completed (Profile No 5)
22:14:48     Target Completed Target partially completed (5/21, GCVS FU Ori)
22:14:51     Target Started (6/21) Target started (6/21, GCVS CN Ori)
22:22:01     Target Completed Target completed (6/21, GCVS CN Ori)
22:22:03     Target Started (7/21) Target started (7/21, GCVS FO Ori)
22:26:45       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:29:31       Focusing Completed Foc1 AutoFocus Completed (Profile No 6)
22:31:23     Target Completed Target partially completed (7/21, GCVS FO Ori)
22:31:26     Target Started (8/21) Target started (8/21, GCVS U Mon)
22:41:05     Target Completed Target completed (8/21, GCVS U Mon)
22:41:07     Target Started (9/21) Target started (9/21, GCVS RZ LMi)
22:44:33       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:47:19       Focusing Completed Foc1 AutoFocus Completed (Profile No 7)
22:52:19     Target Completed Target completed (9/21, GCVS RZ LMi)
22:52:21     Target Started (10/21) Target started (10/21, C/2017 T2 (PanStarrs))
23:04:06     Target Completed Target completed (10/21, C/2017 T2 (PanStarrs))
23:04:08     Target Started (11/21) Target started (11/21, GCVS Z And)
23:07:19       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:10:12       Focusing Completed Foc1 AutoFocus Completed (Profile No 8)
23:14:07     Target Completed Target completed (11/21, GCVS Z And)
23:14:09     Target Started (12/21) Target started (12/21, GCVS RX And)
23:16:57       Focusing Started Foc2 Focusing Started (Secondary Scope, using ShCap)
23:18:32       Focusing Completed Foc2 AutoFocus Completed (Profile No 9)
23:19:26       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:22:21       Focusing Completed Foc1 AutoFocus Completed (Profile No 10)
23:22:24     Target Completed Target partially completed (12/21, GCVS RX And)
23:22:26     Target Started (13/21) Target started (13/21, GCVS RR Tau)
23:32:53     Target Completed Target partially completed (13/21, GCVS RR Tau)
23:32:55     Target Started (14/21) Target started (14/21, GCVS CM Tau)
23:47:00 Program Hung Job queue became frozen
23:48:23   Shutter Closed Shutter closed (closing time 48s)
23:49:06   Dome Parked Dome moved to Az 90 deg (Park Position)
23:55:00 User Intervention User intervention to install AstroMain 3.19.4
00:03:17 Session Resumed Live Session Resumed (2020-01-11 S00740, ImageSaveNum: 740106)
00:03:41   Scope Switched Off Telescope Power has been switched off via UPB Powerbox.
00:03:54   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
00:05:36   Obs.Manager Started Obs.Manager started
00:05:38   Obs.Overseer Started Obs.Overseer started
00:05:40   Services Started Observatory Services started
00:06:15   Services Started Observatory Services started
00:07:07   Services Started Observatory Services started
00:09:44   TCF-S Switched Off TCF-S Power has been switched off via UPB Powerbox.
00:10:07   TCF-S Switched On TCF-S Power has been switched on via UPB Powerbox.
00:10:17   Services Started Observatory Services started
00:10:43   Services Stopped Observatory Services stopped
00:10:50 Program Closed Program closed by User
00:27:00 User Intervention User intervention to restart AstroMain after problems with TCF-S connection
00:27:18 Session Resumed Live Session Resumed (2020-01-11 S00740, ImageSaveNum: 740106)
00:27:45   TCF-S Switched Off TCF-S Power has been switched off via UPB Powerbox.
00:27:51   TCF-S Switched On TCF-S Power has been switched on via UPB Powerbox.
00:27:59   Scope Switched Off Telescope Power has been switched off via UPB Powerbox.
00:28:15   Scope Switched On Telescope power has been switched on via UPB Powerbox.
00:30:15   Obs.Manager Started Obs.Manager started
00:30:17   Obs.Overseer Started Obs.Overseer started
00:30:19   Services Started Observatory Services started
00:31:01   Services Started Observatory Services started
00:31:27   Services Started Observatory Services started
00:31:41   TCF-S Switched Off TCF-S Power has been switched off via UPB Powerbox.
00:32:13   Camera1 Connected SBIG Camera Connected (set point -20°C)
00:32:18   Services Started Observatory Services started
00:32:26   TCF-S Switched On TCF-S Power has been switched on via UPB Powerbox.
00:33:33   Services Started Observatory Services started
00:34:04   Services Started Observatory Services started
00:34:56   Services Started Observatory Services started
00:36:49   Services Started Observatory Services started
00:37:03   Services Stopped Night Services stopped
00:37:17   Services Started Observatory Services started
00:38:38   Services Started Observatory Services started
00:38:42   Services Started Observatory Services started
00:39:10   Services Stopped Observatory Services stopped
00:39:13 Program Closed Program closed by User
00:39:36 Session Resumed Live Session Resumed (2020-01-11 S00740, ImageSaveNum: 740106)
00:39:46   Obs.Manager Started Obs.Manager started
00:39:48   Obs.Overseer Started Obs.Overseer started
00:39:52   Services Started Observatory Services started
00:40:42   Services Started Observatory Services started
00:41:16 Observatory (Auto) Observatory placed in Fully-Automated Mode
00:41:18 Session Pending Session pending (2020-01-11)
00:41:20 Session Initiating Session initiating (2020-01-11)
00:41:22   Plan Loaded Observing Plan loaded to queue (2020-01-11 V1 ACTIVE PLAN S740, Plan ID: 451)
00:41:24   Camera1 Connected SBIG Camera Connected (set point -20°C)
00:41:27   Telescope Connected Telescope Connected (TheSky6)
00:41:37 Session Equilibration Session ready for dome & camera equilibration
00:42:23   Shutter Opened Shutter opened (opening time 45s)
00:42:26   Equilibration Started Dome Equilibration started
00:42:28   Equilibration Skipped Dome Equilibration skipped by user
00:42:30 Session Running Session running
00:42:32   Queue Started Observing Queue started (7 targets selected)
00:43:42       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:46:17       Focusing Completed Foc1 AutoFocus Completed (Profile No 11)
00:46:20       Focusing Started Foc2 Focusing Started (Secondary Scope, using ShCap)
00:48:18       Focusing Completed Foc2 AutoFocus Completed (Profile No 12)
00:48:20     Target Missed (15/21) Target's time slot was missed (15/21, GCVS SU Tau)
00:48:22     Target Missed (16/21) Target's time slot was missed (16/21, GCVS ER UMa)
00:48:24     Target Missed (17/21) Target's time slot was missed (17/21, GCVS ER UMa)
00:48:26     Target Missed (18/21) Target's time slot was missed (18/21, GCVS U Gem)
00:48:28     Target Missed (19/21) Target's time slot was missed (19/21, GCVS GK Per)
00:48:30     Target Missed (20/21) Target's time slot was missed (20/21, GCVS AM Her)
00:48:32     Target Started (21/21) Target started (21/21, GCVS AM CVn)
00:56:18     Target Completed Target completed (21/21, GCVS AM CVn)
00:56:22   Queue Completed Job Queue completed
00:56:26 Session Continuing Session continuing
01:00:00 User Intervention User intervention after program became stuck attempting to continue with new plan
01:00:09 Observatory (Manual) Observatory placed in Manual Mode
01:00:41 Observatory (Auto) Observatory placed in Fully-Automated Mode
01:00:43 Session Pending Session pending (2020-01-11)
01:00:45 Session Initiating Session initiating (2020-01-11)
01:00:47   Plan Requested Observing Plan requested from AstroPlan (1.13.10)
01:01:43   Plan Loaded Observing Plan loaded to queue (2020-01-11 V2 BEST PLAN, Plan ID: 452)
01:01:46   Camera1 Connected SBIG Camera Connected (set point -20°C)
01:01:51   Telescope Connected Telescope Connected (TheSky6)
01:02:02 Session Equilibration Session ready for dome & camera equilibration
01:02:05   Equilibration Started Dome Equilibration started
01:02:07   Equilibration Skipped Dome Equilibration skipped by user
01:02:09 Session Running Session running
01:02:11   Queue Started Observing Queue started (24 targets selected)
01:06:43     Target Started (1/24) Target started (1/24, GCVS SU Tau)
01:11:15       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:14:04       Focusing Completed Foc1 AutoFocus Completed (Profile No 13)
01:18:17     Target Completed Target completed (1/24, GCVS SU Tau)
01:18:19     Target Started (2/24) Target started (2/24, GCVS U Mon)
01:22:11       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:24:56       Focusing Completed Foc1 AutoFocus Completed (Profile No 14)
01:30:36     Target Completed Target completed (2/24, GCVS U Mon)
01:30:38     Target Started (3/24) Target started (3/24, GCVS U Gem)
01:35:11       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:38:11       Focusing Completed Foc1 AutoFocus Completed (Profile No 15)
01:40:59     Target Completed Target completed (3/24, GCVS U Gem)
01:41:01     Target Started (4/24) Target started (4/24, GCVS DY Per)
01:50:07     Target Completed Target completed (4/24, GCVS DY Per)
01:50:09     Target Started (5/24) Target started (5/24, C/2017 T2 (PanStarrs))
01:54:36       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:57:25       Focusing Completed Foc1 AutoFocus Completed (Profile No 16)
02:05:39     Target Completed Target completed (5/24, C/2017 T2 (PanStarrs))
02:05:41     Target Started (6/24) Target started (6/24, GCVS RR Tau)
02:16:01     Target Completed Target completed (6/24, GCVS RR Tau)
02:16:04     Target Started (7/24) Target started (7/24, GCVS GK Per)
02:19:43       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:22:37       Focusing Completed Foc1 AutoFocus Completed (Profile No 17)
02:25:39     Target Completed Target completed (7/24, GCVS GK Per)
02:25:41     Target Started (8/24) Target started (8/24, GCVS CM Tau)
02:29:10       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:32:02       Focusing Completed Foc1 AutoFocus Completed (Profile No 18)
02:45:30     Target Completed Target completed (8/24, GCVS CM Tau)
02:45:32     Target Started (9/24) Target started (9/24, GCVS FU Ori)
02:48:15       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:51:17       Focusing Completed Foc1 AutoFocus Completed (Profile No 19)
02:53:58     Target Completed Target completed (9/24, GCVS FU Ori)
02:54:00     Target Started (10/25) Target started (10/25, M101)
03:17:44     Target Completed Target completed (10/25, M101)
03:17:46     Target Started (11/26) Target started (11/26, M51)
03:31:02 Critical Conditions Alert Critical Conditions Alert (Obs.Manager will close the Shutter)
03:31:04   HardSuspend Called Hard Suspend is called due to Critical Conditions (other condition)
03:31:05     Target Aborted (11/26) Target aborted (11/26, M51) due to other condition
03:31:07   Queue Paused Queue pausing for HardSuspend
03:31:10 Session Suspended Session suspended
03:31:57   Shutter Closed Shutter closed (closing time 49s)
03:31:59     Target Missed (12/26) Target's time slot was missed (12/26, GCVS RZ LMi)
03:32:01     Target Missed (13/26) Target's time slot was missed (13/26, GCVS AM CVn)
03:32:03     Target Missed (14/26) Target's time slot was missed (14/26, GCVS ER UMa)
03:32:05     Target Missed (15/26) Target's time slot was missed (15/26, GCVS ER UMa)
03:33:12 Session Resuming Session resuming
03:33:57   Shutter Opened Shutter opened (opening time 45s)
03:33:59 Session Running Session running
03:34:01   Queue Resumed Observing Queue resumed
03:34:03     Target Started (16/26) Target started (16/26, GCVS S Cyg)
03:37:08       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:39:56       Focusing Completed Foc1 AutoFocus Completed (Profile No 20)
03:49:47     Target Completed Target completed (16/26, GCVS S Cyg)
03:49:49     Target Started (17/26) Target started (17/26, 38P/Stephan-Oterma)
03:53:34       Focusing Started Foc2 Focusing Started (Secondary Scope, using ShCap)
03:54:53       Focusing Failed Foc2 Focusing Failed - star lost
03:55:39       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:58:40       Focusing Completed Foc1 AutoFocus Completed (Profile No 22)
04:01:51     Target Completed Target partially completed (17/26, 38P/Stephan-Oterma)
04:01:53     Target Started (18/27) Target started (18/27, K2-18)
04:13:49     Target Completed Target completed (18/27, K2-18)
04:13:51     Target Missed (19/27) Target's time slot was missed (19/27, GCVS R CrB)
04:13:53     Target Started (20/27) Target started (20/27, GCVS R CrB)
04:14:50 Observatory (Manual) Observatory placed in Manual Mode
04:15:02     Target Failed Target failed due to centering error (20/27, GCVS R CrB)
04:15:04   Queue Aborted Job Queue aborted
04:15:13 Observatory (Auto) Observatory placed in Fully-Automated Mode
04:15:17 Session Pending Session pending (2020-01-11)
04:15:19 Session Initiating Session initiating (2020-01-11)
04:15:21   Plan Requested Observing Plan requested from AstroPlan (1.13.10)
04:15:37   Plan Loaded Observing Plan loaded to queue (2020-01-11 V3 BEST PLAN, Plan ID: 453)
04:15:40   Camera1 Connected SBIG Camera Connected (set point -25°C)
04:15:44   Telescope Connected Telescope Connected (TheSky6)
04:15:57 Session Equilibration Session ready for dome & camera equilibration
04:16:00   Equilibration Started Dome Equilibration started
04:16:02   Equilibration Skipped Dome Equilibration skipped by user
04:16:04 Session Running Session running
04:16:06   Queue Started Observing Queue started (14 targets selected)
04:21:17     Target Started (1/14) Target started (1/14, GCVS GK Per)
04:24:52       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:27:52       Focusing Completed Foc1 AutoFocus Completed (Profile No 23)
04:30:53     Target Completed Target completed (1/14, GCVS GK Per)
04:30:55     Target Started (2/14) Target started (2/14, GCVS CM Tau)
04:30:57     Target Failed Target failed due to airmass limit (2/14, GCVS CM Tau)
04:49:58     Target Started (3/14) Target started (3/14, GCVS U Gem)
04:53:07       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:56:06       Focusing Completed Foc1 AutoFocus Completed (Profile No 24)
04:58:52     Target Completed Target completed (3/14, GCVS U Gem)
04:59:31     Target Started (4/14) Target started (4/14, GCVS ER UMa)
05:02:36       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
05:05:36       Focusing Completed Foc1 AutoFocus Completed (Profile No 25)
05:09:09     Target Completed Target completed (4/14, GCVS ER UMa)
05:09:49     Target Started (5/14) Target started (5/14, GCVS RZ LMi)
05:15:47       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
05:18:42       Focusing Completed Foc1 AutoFocus Completed (Profile No 26)
05:23:41     Target Completed Target completed (5/14, GCVS RZ LMi)
05:23:43     Target Started (6/14) Target started (6/14, GCVS AM CVn)
05:27:39       Focusing Failed Foc1 Focusing Failed - star is too dim (TCF-S)
05:30:24     Target Completed Target completed (6/14, GCVS AM CVn)
05:31:10     Target Started (7/14) Target started (7/14, GCVS AM Her)
05:46:03     Target Completed Target partially completed (7/14, GCVS AM Her)
05:46:05     Target Started (8/14) Target started (8/14, GCVS CI Cyg)
05:55:41     Target Completed Target partially completed (8/14, GCVS CI Cyg)
05:55:43     Target Started (9/14) Target started (9/14, GCVS S Cyg)
06:11:22     Target Completed Target partially completed (9/14, GCVS S Cyg)
06:11:24     Target Started (10/14) Target started (10/14, 46P/Wirtanen)
06:28:49     Target Completed Target partially completed (10/14, 46P/Wirtanen)
06:28:51     Target Started (11/14) Target started (11/14, GCVS R CrB)
06:39:46     Target Completed Target partially completed (11/14, GCVS R CrB)
06:39:48     Target Started (12/14) Target started (12/14, GCVS U Her)
06:49:05     Target Completed Target partially completed (12/14, GCVS U Her)
06:49:07     Target Started (13/14) Target started (13/14, GCVS SS Her)
06:56:52     Target Completed Target completed (13/14, GCVS SS Her)
06:56:54     Target Started (14/14) Target started (14/14, 38P/Stephan-Oterma)
07:06:48     Target Completed Target completed (14/14, 38P/Stephan-Oterma)
07:06:51   Queue Completed Job Queue completed
07:07:00 Program Hung Program hung as 07:07 just after session entered 'Closing' state
08:06:00 Shutter Closed Astroguard intervened to close shutter
09:00:00 User Intervention User Intervention to park dome and park telescope


Back to Top


Operational Issues (2020-01-11, S740)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Continuous Improvement

[ Prev | Next ]

Back to Top


Guiding Performance

Examples of guiding results from the session are shown below:

Example of Guiding Performance from Session S739









Comparison with previous results

Back to Top


Flat Frames

A new set of Flat Frames were collected using Light Board for 1x1, 2x2, 3x3 following recent cleaning of Camera & Filter Wheel and Filters, cleaning of SCT corrector lens and installation of a new 2" to T2 adapter.   Flats are a lot cleaner than previous (in particular in the critical central zone of the image) but the amount of vignetting has increased.  Initial testing of the new master flats on raw frames from Session S739, are not producing 'Reduced' frames that are as flat as desirable.

Sky flats have previously been shown to give better results than Light Board Flat, but take several days to collect flats for 10 filter in 3 different binning configuratopm.  A new sky flats (C filter) will be initially collected and compared, and depending on results, sky flats for other filters gradually collected and used to replace the light board flats.

Note: The time available for collecting Sky Flats at Dusk/Dawn is much shorter in mid-winter than at other times of the year where the sun desends in altitude much more slowly.

Results

Set    Filter / Bin Set
Sun Altitude
(deg)
   Exposure
(s)
Av. Count
(ADU)
  Target Count
(ADU)
  Total Time
(incl Slew)
(mins)
   Result
1   B, 3x3 -4.6 to -4.9   3.3 to 4.6s  ~30000   30000   3.5 min   OK
-   DB, 2x2 --4.9   10s ~ 30000   30000   -   Sky too dark
3   C, 2x2 -5.0 to -5.6   2.8 to 5.9s  ~ 30000   30000   5 min   OK
-   DB, 3x3 --5.7   10s 11199   30000   -   Sky too dark
5   C, 3x3 -5.8 to -6.3   3.5 to 5.9s  ~ 30000   30000   5 min   OK
-   V, 3x3 --6.4   10s 9533   30000   -   Sky too dark
-   R, 3x3 --6.5   10s 11485   30000   -   Sky too dark


New Sky Flats, S740
Sky Flats,  CCD Temp -20°C

  Earlier Flats, S739
Light Board Flats,  CCD Temp -20°C

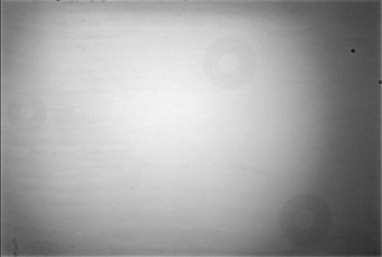

Master Sky Flat, C filter (3x3)
(Average Median for 25 frames )
  Master Flat, C filter (3x3), 2020-01-10
(Average Median for 26 frames )
Image   Image

Image    Image

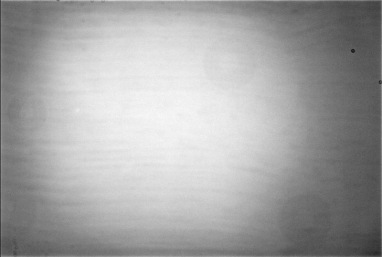

Master Sky Flat, B filter (3x3)
(Average Median for 15 frames )
  Master Flat, B filter (3x3), 2020-01-10
(Average Median for 13 frames )
Image   Image

All Frames 50% original size

Back to Top

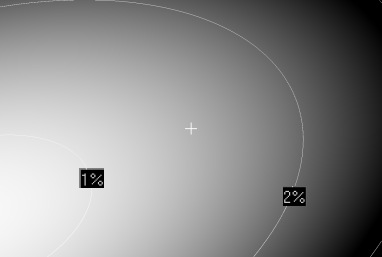

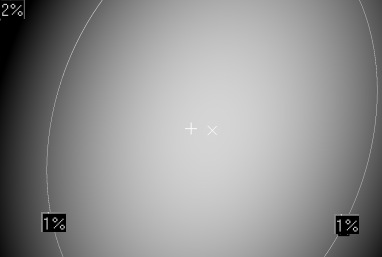

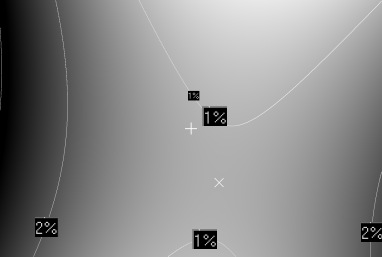

Flat Reduction Testing

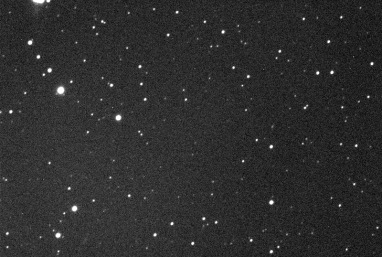

Two 60s C filter images from different sky regions were reduced using different Flat Fields (Flat A - Master Light Board Flat, and Flat B - Master Sky Flat)

Vignetting Analysis of the two raw images is broadly similar.  Analysis of the two flat fields are also broadly similar, however both flats a shadow area at top of field where the illumination contours are flattened.   The shadow can be seen in the raw images but this doesn't come across in the illumination contours. Is this related to how contouring/filtering on bright fields in CCDInspector is different to dim fields



    Image 1
60s, C, #740289, AM Her Field

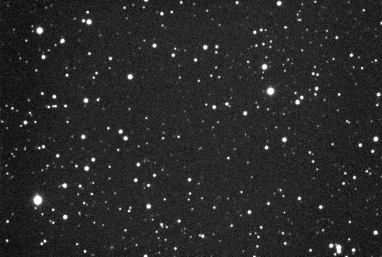

  Image 2
60s, C, #740307, S Cyg Field
Raw Images

60s, C
  Image   Image

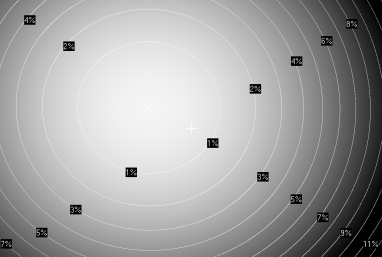

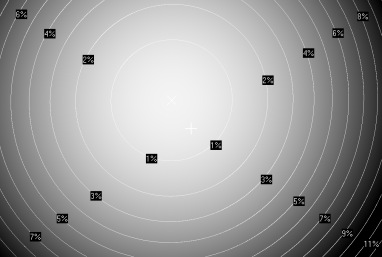

Raw Frames

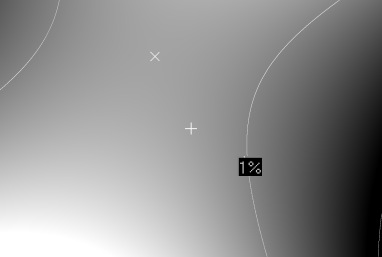

Vignetting
Analysis

(using
CCDWares's
CCDInspector
2.5.3)
  Image   Image

Flat A
(Light Board Flat)

Master
Flat, S739

Created using 60%
Normalisation Area

Displayed in
CCDInspector
2.5.3

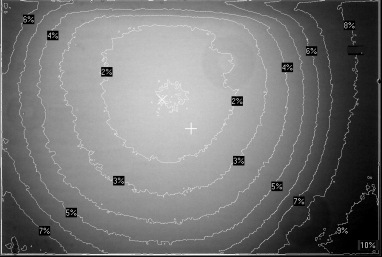

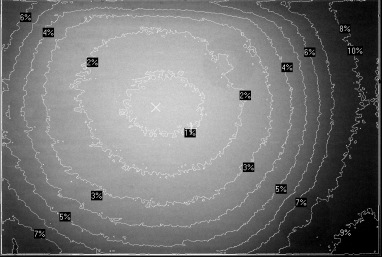

Flat Field Analysis
  Image   Image

Flat B
Sky Flat

Master
Sky Flat, S740

Created using 60%
Normalisation Area
  Image   Image

Reduced Images

Reduced using
Flat A
  Image   Image

Reduced Images

Reduced using
Flat B
  Image   Image

Reduced Image
(reduced with Flat A)

Illumination
Anaysis
  Image   Image

Reduced Image
(reduced with Flat B)

Illumination
Anaysis
  Image   Image
    All Frames 50% original size

Back to Top
