Notes - Session 796 (2020-07-26)


Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log

Bullet Operational Issues
  - Critical Issues (0),  Major Issues (0),  Minor Issues (4),  Continuous Improvement (4)

Bullet SharpCap Update to v3.2.6383.0
Bullet Images from 2020-07-26 >>
2020-08-03
Bullet PHD2 Update to v2.6.9
Bullet AllSky Computer Outage due to A/C Adapter Failure
Bullet Investigation - Potential Observing Sessions not utilised (2020-07-29 & 2020-08-03)
2020-08-05
Bullet Pegasus UPB - ASCOM Driver Updates, Jun/20
Bullet AutoStart - New Observatory Mode


Session Aims & Highlights (2020-07-26)

Main aims

  1. Comet NEOWISE. Take images of comet C/2020 F3 (NEOWISE)
  2. Targets. Take images of a range of targets, taking advantage of the increase in nighttime darkness (one month on from mid-summer, 2.5 hours > 12 deg solar depression)
  3. Dome Driver & AstroMain. Test out dome driver under Device Hub control. Look for any glitches which had hampered the previous two sessions (S792 & S793) that were under DeviceHub control and the issue that saw the session freeze upon entering  'Closing' state in last session (S795). Test AstroMain 3.26.

Equipment & Software

Highlights

Lowlights

Summary Plots & Logs

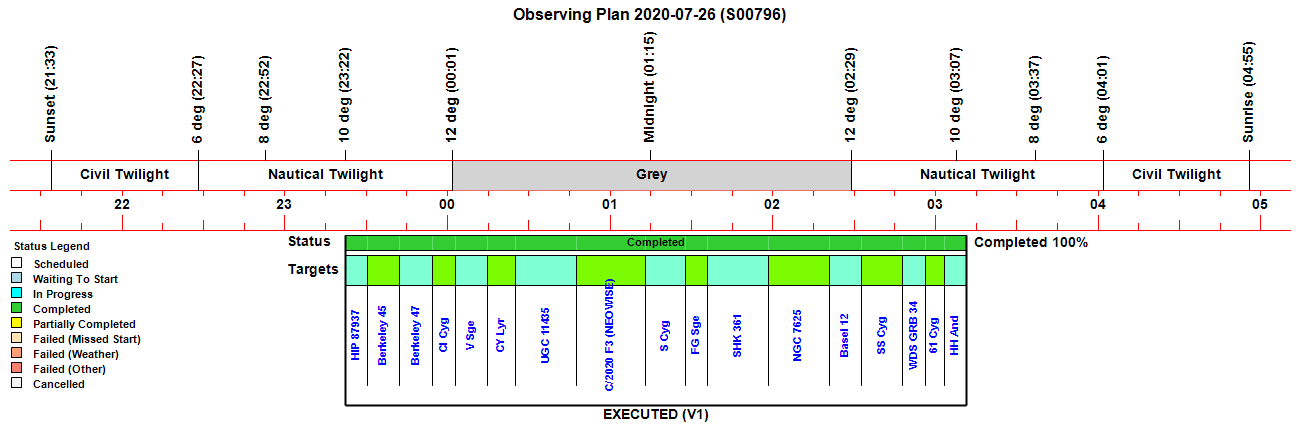

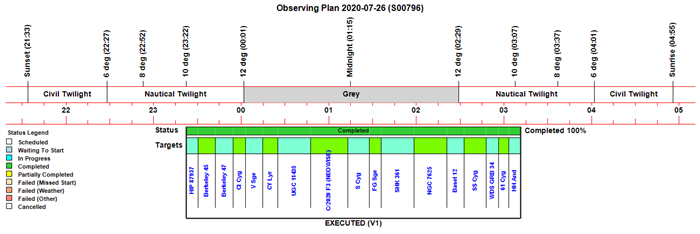

Observing Plan

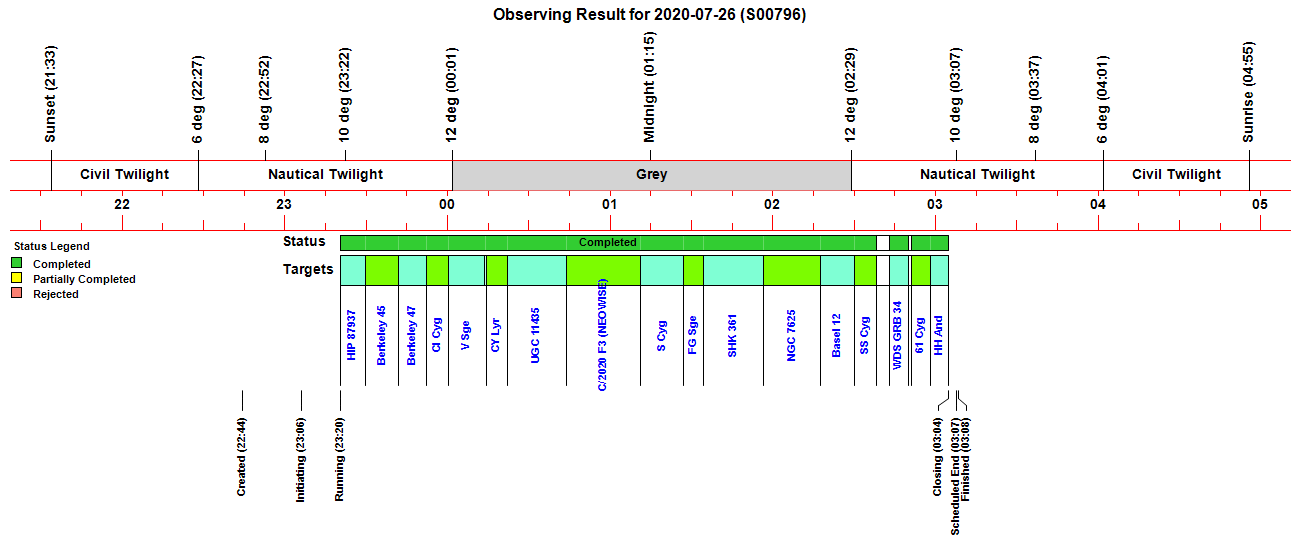

Observing Result

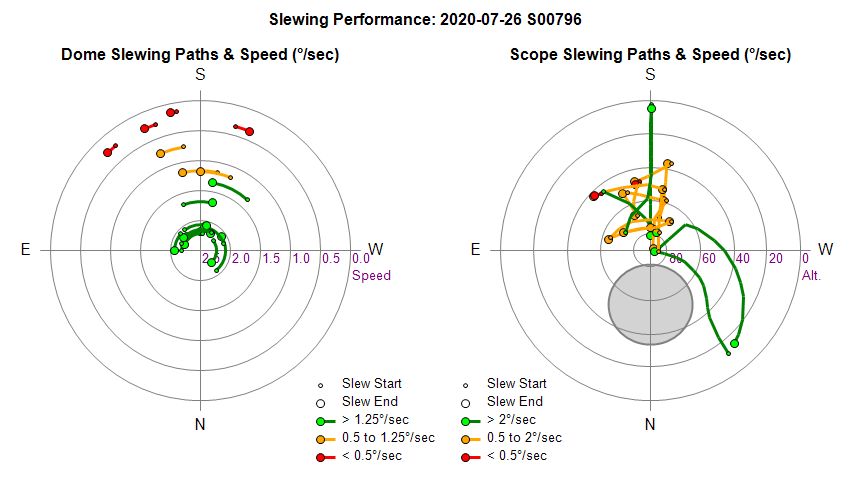

Dome & Scope Slewing Performance

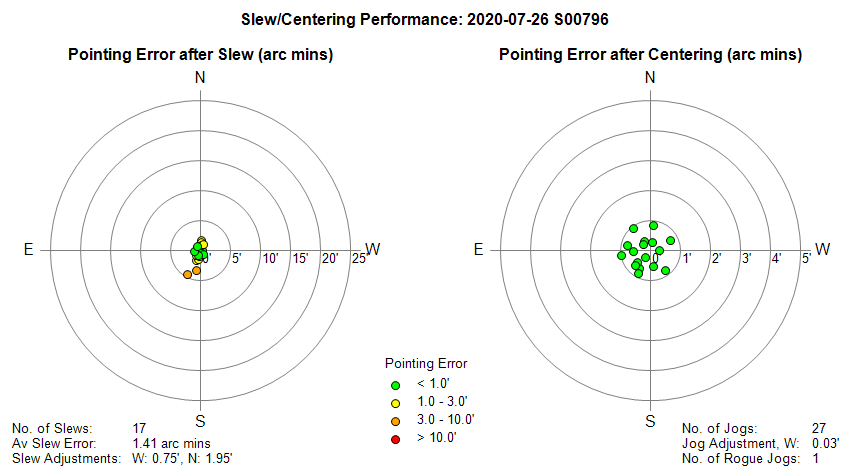

Slew/Centering Performance

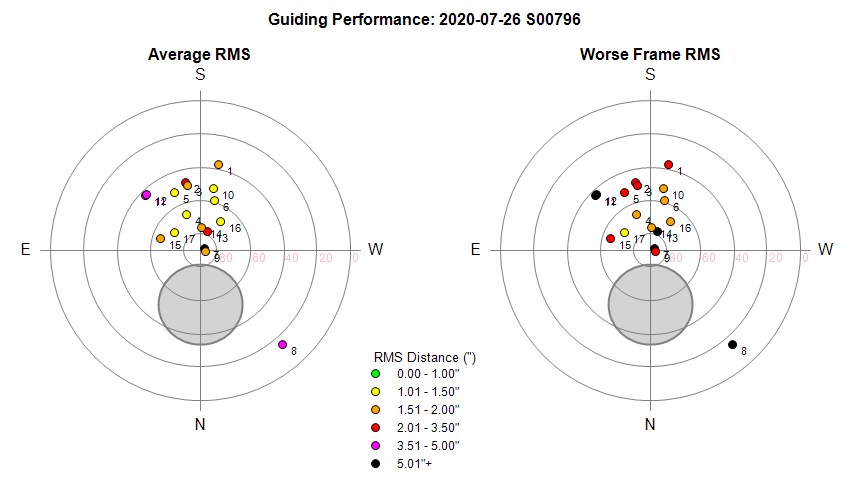

Guiding Performance

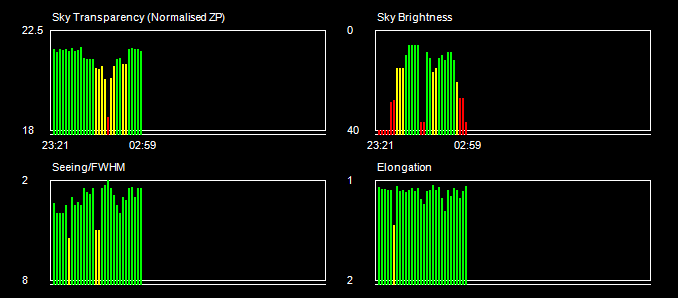

Sky Conditions (Locate Frames)

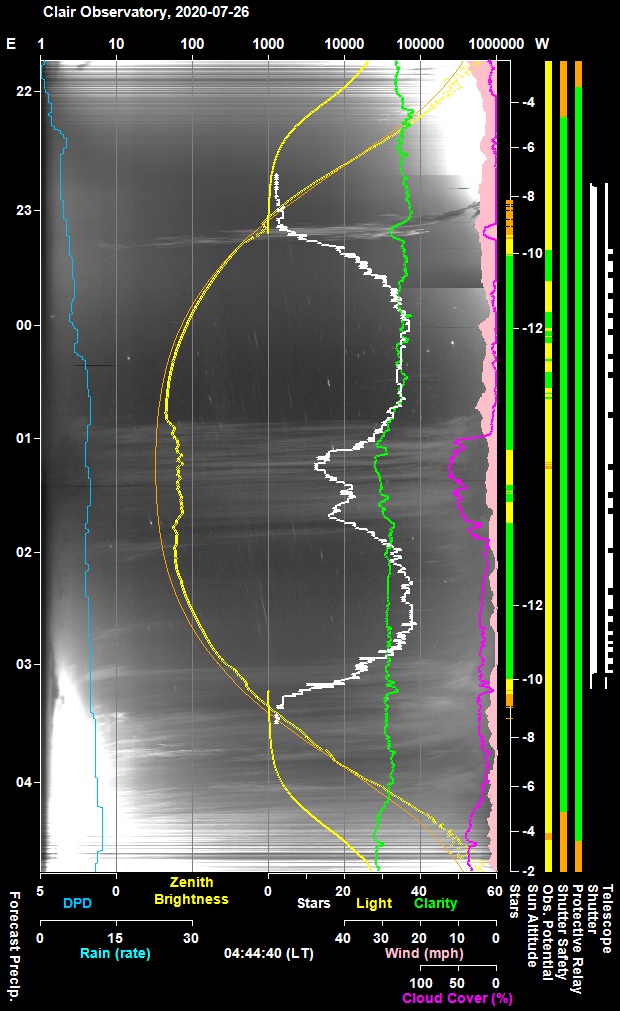

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

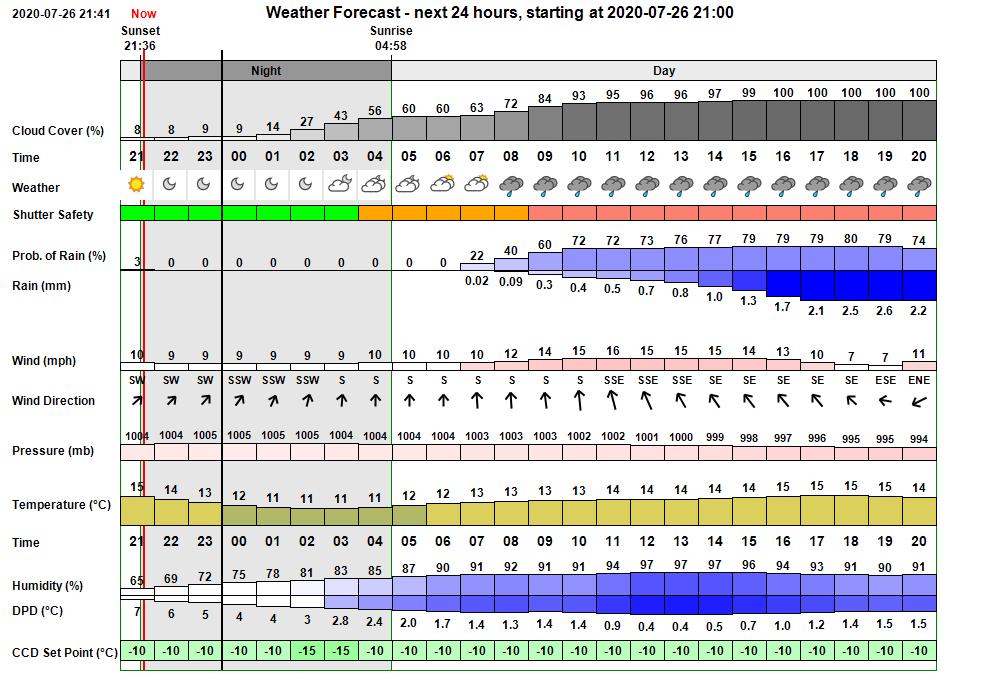

Pre-Session Weather Forecast (API data from darksky.net)
Pre-Session Weather forecast showed good condition (8-14% cloud cover) with light wind (9 mph) , no rain and a minimum temperature of 11°C.

In the event conditions were clear the whole night (except for some light cloud around 00:50 - 01:30) with light wind and a minimum temperature of 8°C .

Session Event Log
Time     Event Detail
22:44:22 Session Created Live Session Created (2020-07-26 S00796, ImageSaveNum: 796001)
22:44:44   Obs.Manager Started Obs.Manager started
22:44:46   Obs.Overseer Started Obs.Overseer started
22:44:50   Services Started Observatory Services started
22:45:06   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
22:47:01   Services Started Observatory Services started
22:47:38   Camera1 Connected SBIG Camera Connected (set point -10°C)
22:48:06   Telescope Connected Telescope Connected (TheSky6)
22:49:01   Dome Opened Dome opened (opening time 43s)
22:50:34       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:53:49       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
22:53:51       Focusing Started Foc2 Focusing Started (Secondary Scope, using ShCap)
22:56:05       Focusing Failed Foc2 Focusing Failed - failed QC check (Range)
22:56:45   UPB.Switch Restart UPB.Switch has been restarted.
22:57:09       Focusing Started Foc2 Focusing Started (Secondary Scope, using ShCap)
22:59:34       Focusing Failed Foc2 Focusing Failed - failed QC check (Range)
22:59:56       Focusing Started Foc2 Focusing Started (Secondary Scope, using ShCap)
23:02:21       Focusing Failed Foc2 Focusing Failed - failed QC check (Range)
23:02:57       Focusing Started Foc2 Focusing Started (Secondary Scope, using ShCap)
23:05:20       Focusing Failed Foc2 Focusing Failed - failed QC check (Quadratic)
23:06:02 Observatory (Auto) Observatory placed in Fully-Automated Mode
23:06:07 Session Pending Session pending (2020-07-26)
23:06:09 Session Initiating Session initiating (2020-07-26)
23:06:11   Plan Requested Observing Plan requested from AstroPlan (1.15.3)
23:10:07   Plan Loaded Observing Plan loaded to queue (2020-07-26 V1 BEST PLAN, Plan ID: 526)
23:10:10   Camera1 Connected SBIG Camera Connected (set point -15°C)
23:10:15   Telescope Connected Telescope Connected (TheSky6)
23:10:27 Session Equilibration Session ready for dome & camera equilibration
23:10:31   Equilibration Started Dome Equilibration started
23:20:35   Equilibration Ended Dome Equilibration ended (10.1 mins total)
23:20:37 Session Running Session running
23:20:39   Queue Started Observing Queue started (17 targets selected)
23:20:41     Target Started (1/17) Target started (1/17, HIP 87937)
23:23:28       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:26:18       Focusing Completed Foc1 AutoFocus Completed (Profile No 6)
23:29:50     Target Completed Target completed (1/17, HIP 87937)
23:29:52     Target Started (2/17) Target started (2/17, Berkeley 45)
23:32:40       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:35:24       Focusing Completed Foc1 AutoFocus Completed (Profile No 7)
23:41:47     Target Completed Target completed (2/17, Berkeley 45)
23:41:50     Target Started (3/17) Target started (3/17, Berkeley 47)
23:43:54       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:46:46       Focusing Completed Foc1 AutoFocus Completed (Profile No 8)
23:52:09     Target Completed Target completed (3/17, Berkeley 47)
23:52:11     Target Started (4/17) Target started (4/17, GCVS CI Cyg)
23:54:06       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:56:49       Focusing Completed Foc1 AutoFocus Completed (Profile No 9)
00:00:27     Target Completed Target completed (4/17, GCVS CI Cyg)
00:00:29     Target Started (5/17) Target started (5/17, GCVS V Sge)
00:02:49       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:05:40       Focusing Completed Foc1 AutoFocus Completed (Profile No 10)
00:14:12     Target Completed Target completed (5/17, GCVS V Sge)
00:14:14     Target Started (6/17) Target started (6/17, GCVS CY Lyr)
00:15:47       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:18:26       Focusing Completed Foc1 AutoFocus Completed (Profile No 11)
00:21:57     Target Completed Target completed (6/17, GCVS CY Lyr)
00:21:59     Target Started (7/17) Target started (7/17, UGC 11435)
00:25:36       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:28:18       Focusing Completed Foc1 AutoFocus Completed (Profile No 12)
00:43:55     Target Completed Target completed (7/17, UGC 11435)
00:43:57     Target Started (8/17) Target started (8/17, C/2020 F3 (NEOWISE))
00:46:46       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:49:50       Focusing Failed Foc1 Focusing Failed - failed QC check (Quadratic)
01:11:12     Target Completed Target completed (8/17, C/2020 F3 (NEOWISE))
01:11:14     Target Started (9/17) Target started (9/17, GCVS S Cyg)
01:14:28       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:17:27       Focusing Completed Foc1 AutoFocus Completed (Profile No 14)
01:27:08     Target Completed Target completed (9/17, GCVS S Cyg)
01:27:10     Target Started (10/17) Target started (10/17, GCVS FG Sge)
01:29:09       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:32:07       Focusing Completed Foc1 AutoFocus Completed (Profile No 15)
01:34:31     Target Completed Target completed (10/17, GCVS FG Sge)
01:34:33     Target Started (11/17) Target started (11/17, SHK 361)
01:37:32       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:40:34       Focusing Completed Foc1 AutoFocus Completed (Profile No 16)
01:56:31     Target Completed Target completed (11/17, SHK 361)
01:56:33     Target Started (12/17) Target started (12/17, NGC 7625)
01:58:43       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:01:22       Focusing Completed Foc1 AutoFocus Completed (Profile No 17)
02:17:27     Target Completed Target completed (12/17, NGC 7625)
02:17:29     Target Started (13/17) Target started (13/17, Basel 12)
02:20:34       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:23:39       Focusing Completed Foc1 AutoFocus Completed (Profile No 18)
02:29:59     Target Completed Target completed (13/17, Basel 12)
02:30:01     Target Started (14/17) Target started (14/17, GCVS SS Cyg)
02:31:46       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:34:43       Focusing Completed Foc1 AutoFocus Completed (Profile No 19)
02:38:19     Target Completed Target completed (14/17, GCVS SS Cyg)
02:42:55     Target Started (15/17) Target started (15/17, WDS GRB 34)
02:45:06       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:48:01       Focusing Completed Foc1 AutoFocus Completed (Profile No 20)
02:49:50     Target Completed Target completed (15/17, WDS GRB 34)
02:51:11     Target Started (16/17) Target started (16/17, 61 Cyg)
02:54:19       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:56:57       Focusing Completed Foc1 AutoFocus Completed (Profile No 21)
02:58:11     Target Completed Target completed (16/17, 61 Cyg)
02:58:13     Target Started (17/17) Target started (17/17, GCVS HH And)
03:00:21       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:03:11       Focusing Completed Foc1 AutoFocus Completed (Profile No 22)
03:04:49     Target Completed Target completed (17/17, GCVS HH And)
03:04:50   Queue Completed Job Queue completed
03:04:55 Session Closing Session closing
03:05:50   Dome Closed Dome closed (closing time 50s)
03:06:10   Dome Parked Dome parked (parking time 20s)
03:07:00   Telescope Parked Telescope parked (parking time 45s)
03:07:30   Telescope Switched Off Telescope Power has been switched off via UPB Powerbox.
03:08:17   Services Stopped Night Services stopped
03:08:19 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files)
03:08:34 Session Finished Session Finished

Session Alerts
Time     Alert Detail
22:56:44 UPB.Switch disconnected UPB.Switch has unexpectedly disconnected. Restart will be attempted

Back to Top


Operational Issues (2020-07-26, S796)

[ Prev | Next ]

Critical Issues

Major Issues

No major issues during session itself, but one issue cropped up during subsequent nights that is ranked as major due to its impact on Potential Observing and is captured below:

Minor Issues

Continuous Improvement

[ Prev | Next ]

Back to Top


SharpCap Update to v3.2.6383.0

New Development Version of SharpCap (v3.2.6383.0, dated 2020-07-04) installed onto Observatory and Office Computers today 2020-07-26

https://www.sharpcap.co.uk/sharpcap/downloads

Back to Top


2020-08-03


PHD2 Update to v2.6.9

New Version of PHD2 (v2.6.9, dated 2020-07-04) installed onto Office Computers today 2020-08-03.   Observatory Computer was already at v2.6.9.

https://openphdguiding.org/downloads/

Back to Top


AllSky Computer Outage due to A/C Adapter Failure (2020-08-03)

Data from AllSky Computer was noticed (at 09:00) to have gone offline at c. 05:00 this morning (2020-08-03). Investigating eventually established that there was a problem with the Laptop's ASUS A/C Adapter and the laptop's battery had become heavily depleted.  An equivalent laptop A/C Adapter (19v) was employed as a workaround to provide a charging source, and the weather data monitoring reenabled at 01:00 (giving a Weather Data Outage of 8 hours).

There had been thunderstorms in the previous 12 hours and it is possible that a lighning induced power surge had possibly been involved in the failure of the A/C adapter or it could have been pure coincidence that the A/C adapter had failed at this time.   Any surge should have been surpressed by Surge Protector built into the Power Strip.

Back to Top


Investigation - Potential Observing Sessions not utilised (2020-07-29 & 2020-08-03)

Issue:  Sessions were not initiated on 2020-07-29 & 2020-08-03 as the evening weather conditions were cloudy and the weather forecast did show up any potential clear conditions, yet the Night Summary plots for both nights showed sufficiently clear intervals that could have (and ideally should have) been used for observing/imaging.

2020-07-29

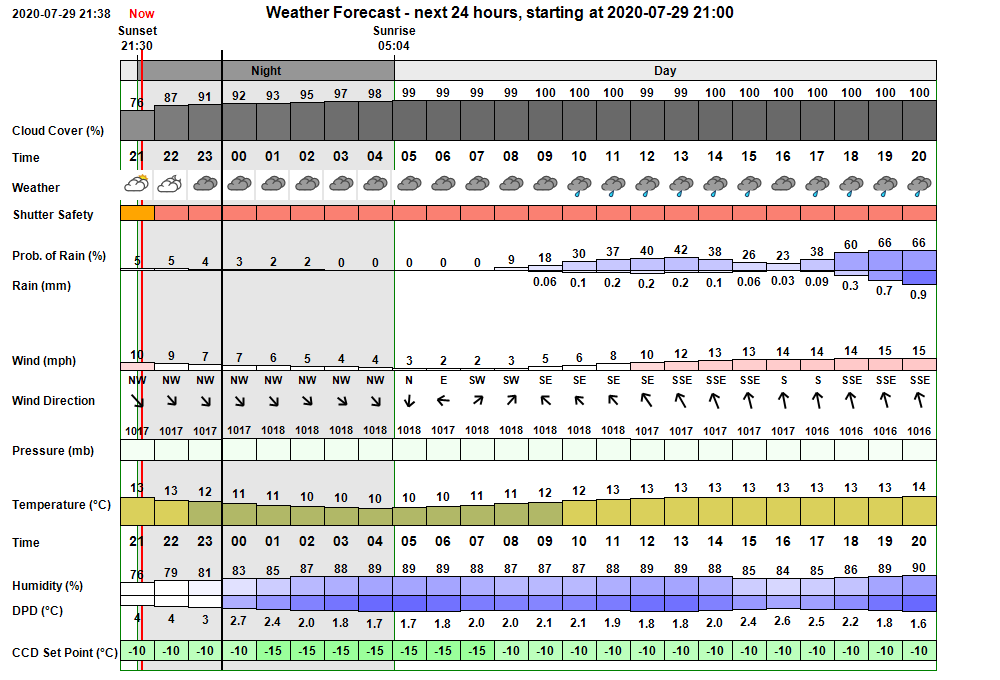

Weather Forecast for 2020-07-29
Weather forecast for the night (generated at 21:00) shows dry & relatively calm conditions (4-9 mph wind) but with fairly significant cloud cover
(starting at 76% at dusk and rising to 92%  in middle of night, and then increasing to 98% by dawn , av. for night : 93%).
Temperature 13 degC falling to 10 degC by dawn.  No rain in forecast until 10:00 the following day.
(API data from darksky.net)

Actual Weather for 2020-07-29
In the event conditions were dry and fairly calm throught the night. After 100% cloud at dusk , the sky gradually cleared between
23:30 and 00:45 becoming clear with 30+ AllSky Stars from 00:45 until dawn

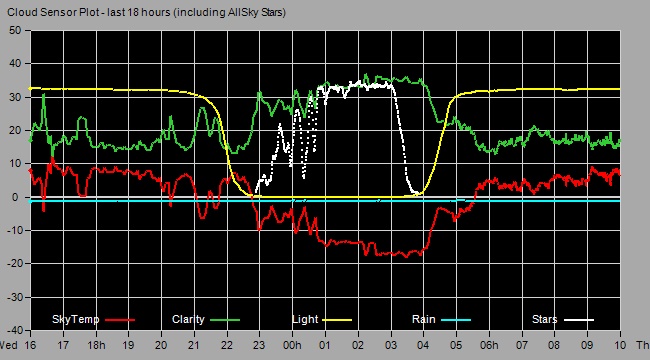

Cloud Sensor & Stars Plot - 2020-07-29

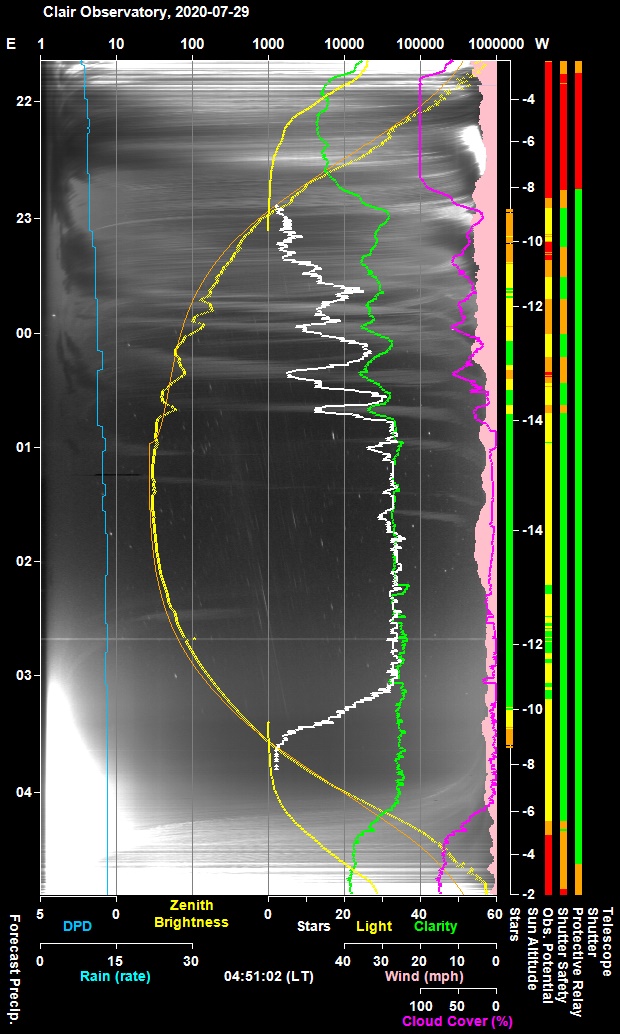

Night Sky Summary Plot - 2020-07-29
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)


2020-08-03

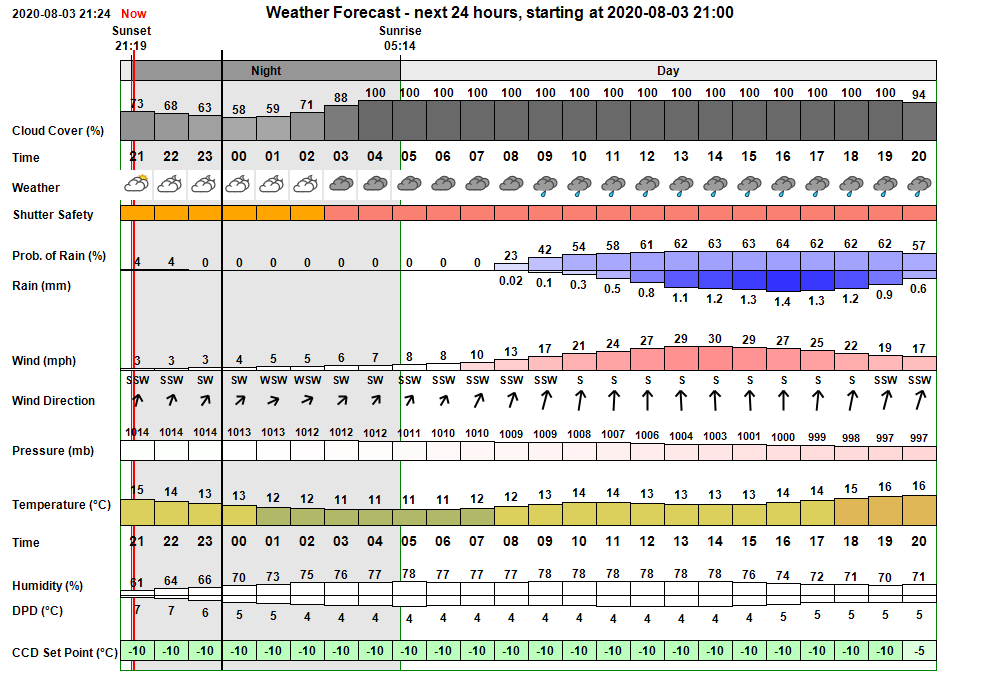

Weather Forecast for 2020-08-03
Weather forecast for the night (generated at 21:00) shows dry & relatively calm conditions (3-6 mph wind) but with fairly significant cloud cover
(73% falling to 58-59% in middle of night, and then increasing to 88-100% by dawn , av. for night : 68%).
Temperature 14 degC falling to 11 degC by dawn.  No rain in forecast until 09:00 the following day.
(API data from darksky.net)

Actual Weather for 2020-08-03
In the event conditions were dry and fairly calm, but with cloud clearing at 23:00, then moderately clear / patchy cloud
between 23:00 and 01:20, and then clear to fairly clear between 01:20 and 03:30.

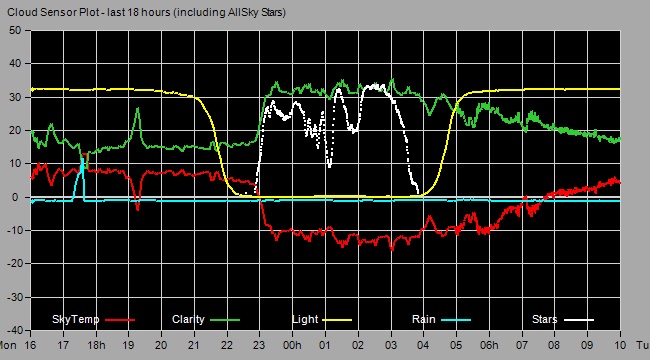

Cloud Sensor & Stars Plot - 2020-08-03

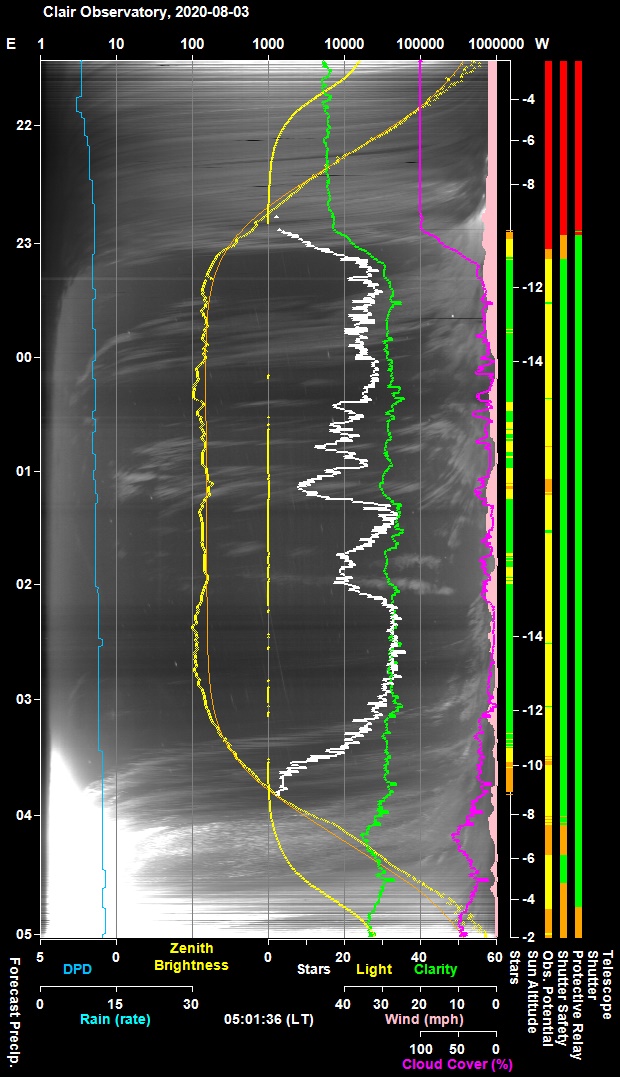

Night Sky Summary Plot - 2020-08-03
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)



Proposed Solution

Proposed solution to the issue is to introduce a new 'AutoStart' observatory mode which the user can activate anytime during the day or evening if the night conditions are judged to be safe (i.e no storms/heavy rain etc), but the chances of clear intervals are too uncertain to warrent going to the effort of creating a session on the off-chance or staying up late to create session should conditions clear.   Once activated the Obs.Manager enters a new Waiting (Auto) state in which weather conditions and sun alt / time are monitored through the evening/night and if acceptable criteria are met a new Live Session is created, Night Services are begun (including powering up the Telescope) and the Observatory placed into Fully-Automated mode to conduct the live session.

This has the advantage that a new Session is only created if/when conditions are safe and suitable for observing.   This prevents Latest Session Web Page being overwritten with blank charts/data from a new session which may not execute any imaging.

The new mode is detailed in the section 'AutoStart - New Observatory Mode'

Back to Top


2020-08-05


Pegasus UPB - ASCOM Driver Updates, Jun/20

Updated ASCOM Drivers for Pegasus Astro UPB (dated Jun 2020) were installed onto the Observatory & Office Computers today 2020-08-05:

- Observing Conditions Driver v1.5  (Jun/20)
- Focuser Driver v1.6 (Jun/20)
- Switch Driver v2.2 (Jun/20)

https://pegasusastro.com/support/

Back to Top


AutoStart - New Observatory Mode

Following an investigation & review after two potential observing session were not utilised (see Investigation - Potential Observing Sessions not utilised (2020-07-29 & 2020-08-03) ) it was proposed to introduction a new observatory mode called 'AutoStart'

Note:  Whilst the AutoStart is for now called a new Mode with its own Waiting State which will be actioned and behave differently from the current Fully-Automated Mode, it may eventually be relegated to being a just a new alternate start up state for the Fully-Automated Mode.

Descripton

'AutoStart' is a new observatory mode for the Observatory's AstroMain program, that will sit alongside the two existing modes 'Manual' and 'Fully-Automated'.   The user can activate the new AutoStart mode anytime during the day or evening if the coming night conditions are judged to be safe (with no storms/heavy rain etc), but the chances of clear intervals are too uncertain to warrant creating a session (with a new session number) or require staying up late to create a session should conditions clear.   Once activated the Obs.Manager enters a new Waiting (Auto) state in which conditions and sun alt / time are monitored through the evening/night and only if acceptable criteria are met a new Live Session is created, Night Services are begun (including powering up the Telescope) and the Observatory placed into Fully-Automated mode to conduct the live session.

Benefits

The principal advantage of the new AutoStart mode are :

The User

Requirements

AutoRun Criteria

AutoRun Sequence

Risks:

Development, Testing & Deployment

Back to Top
