Notes - Session 797 (2020-08-08)


Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log

Bullet Operational Issues
  - Critical Issues (0),  Major Issues (2),  Minor Issues (9),  Continuous Improvement (8)

Bullet AutoStart Results (2020-08-08)

Bullet Images from 2020-08-08 >>
2020-08-09
Bullet AutoStart Results (2020-08-09)
2020-08-11
Bullet Observatory Alarm System (AstroAlarm)
2020-08-17
Bullet Virtual Weather Station - Database Glitch
2020-08-18
Bullet AllSky Computer Problems (BSOD & Failed Windows Startup)
Bullet AllSky Computer,  Potential Replacement


Session Aims & Highlights (2020-08-08)

Main aims

  1. AutoStart. Conduct second live test of AutoStart (new observatory mode)
  2. Focusing with Wide Search. Conduct live test of autofocusing of Foc2 (Secondary Scope) systems using a precursive widened search range (test failed in previous session)
  3. Targets. Acquire images of a number of targets if conditions allow.

Equipment & Software

Highlights

Lowlights

Summary Plots & Logs

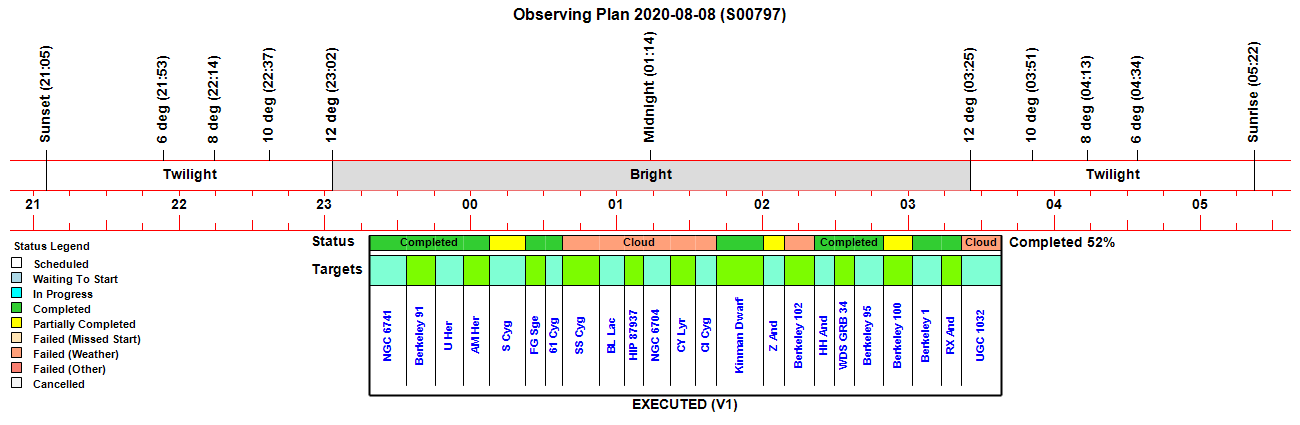

Observing Plan

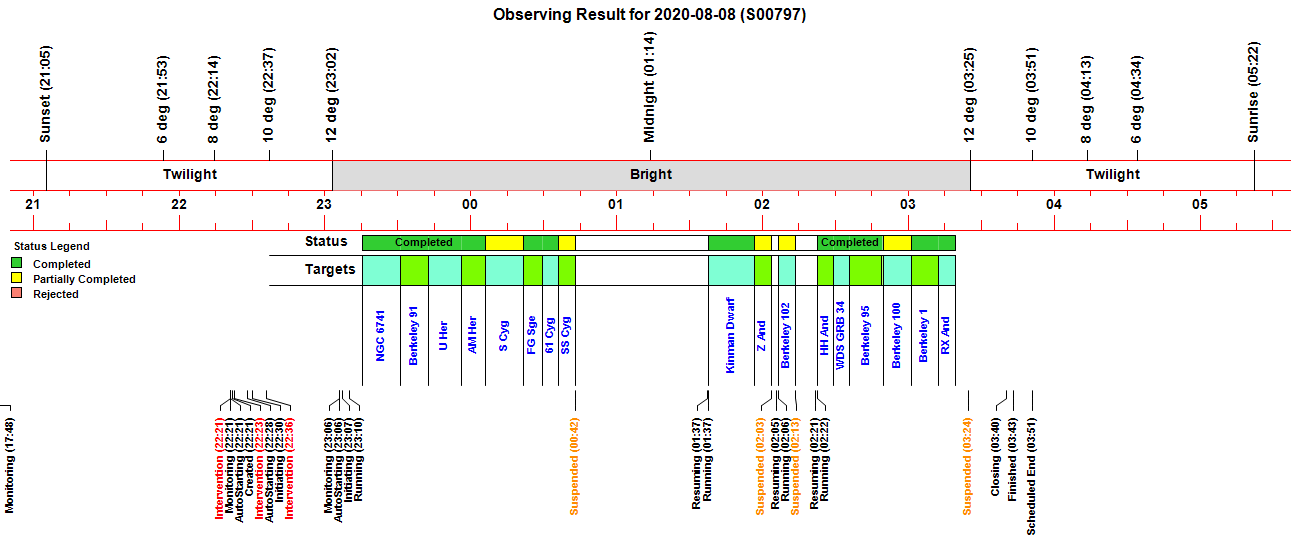

Observing Result

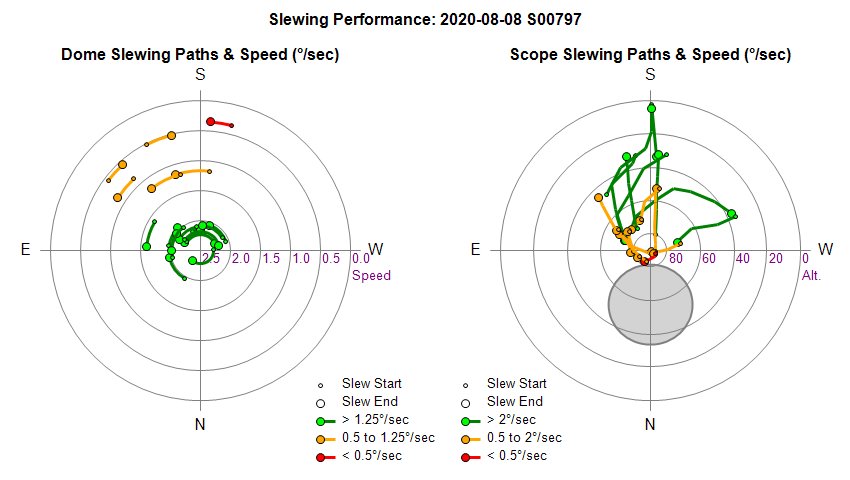

Dome & Scope Slewing Performance

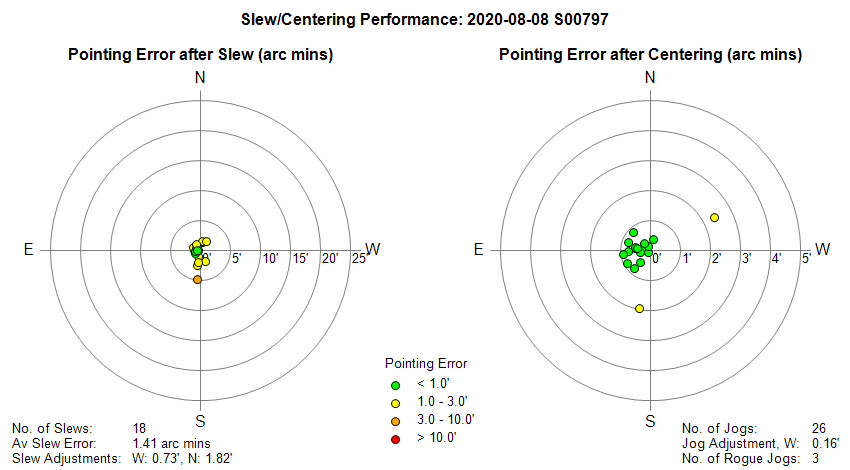

Slew/Centering Performance

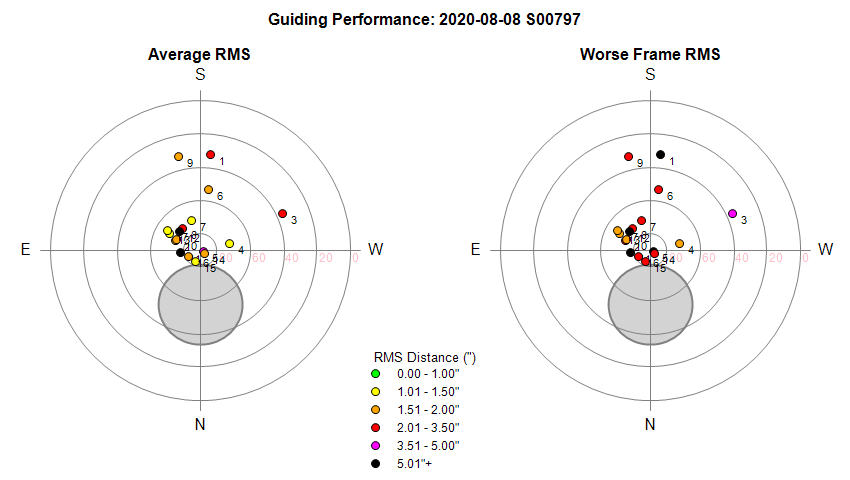

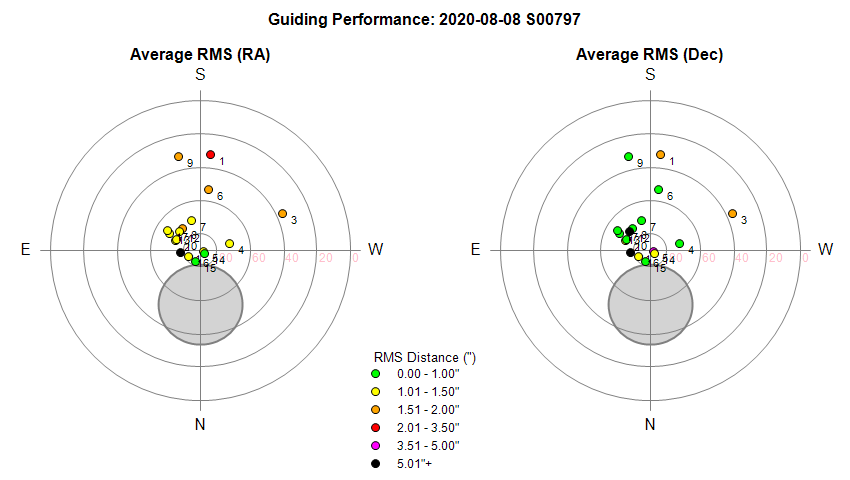

Guiding Performance

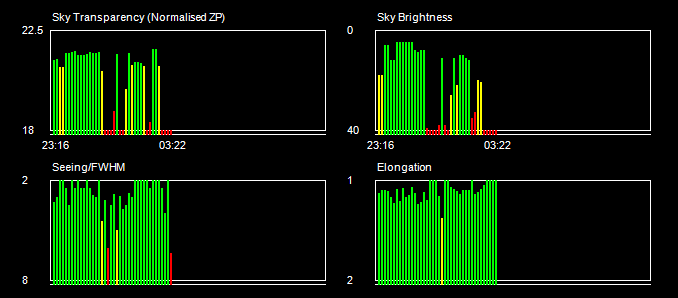

Sky Conditions (Locate Frames)

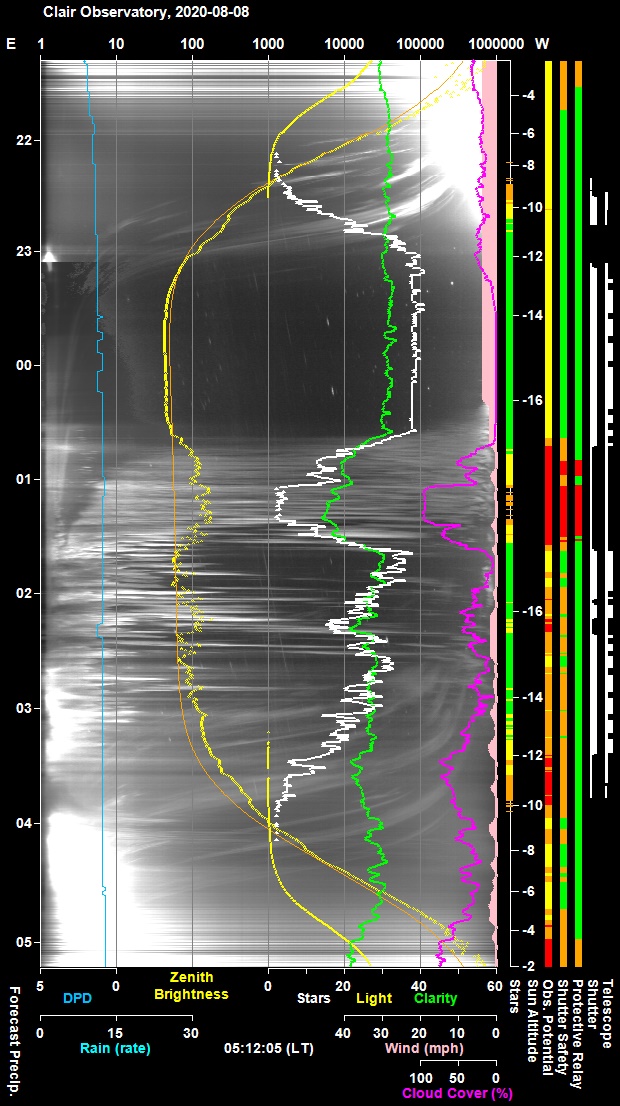

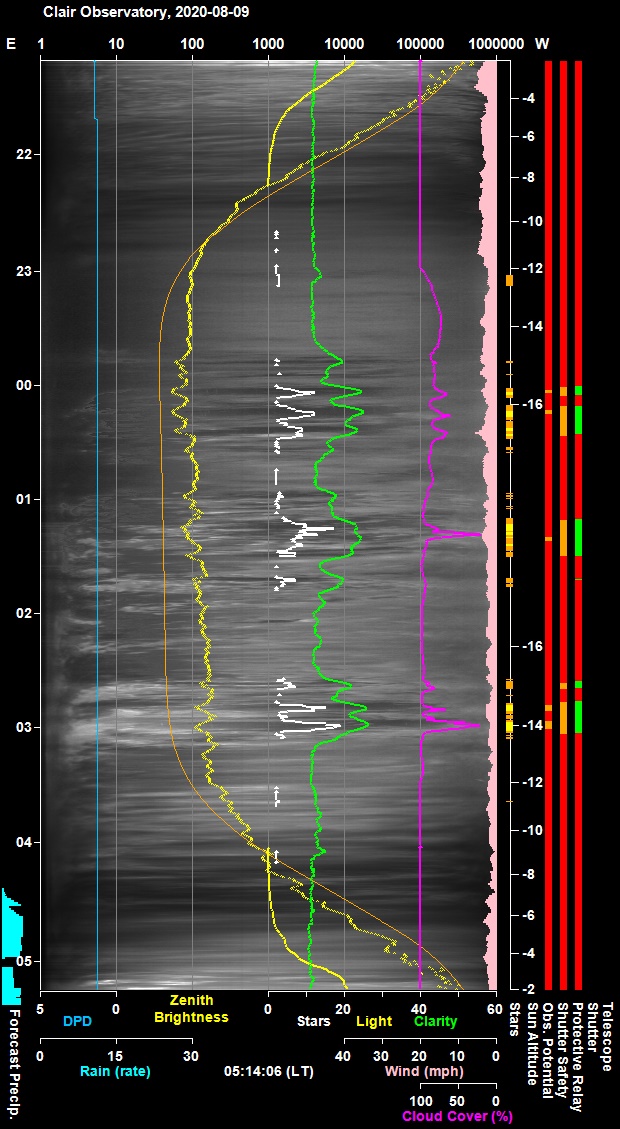

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

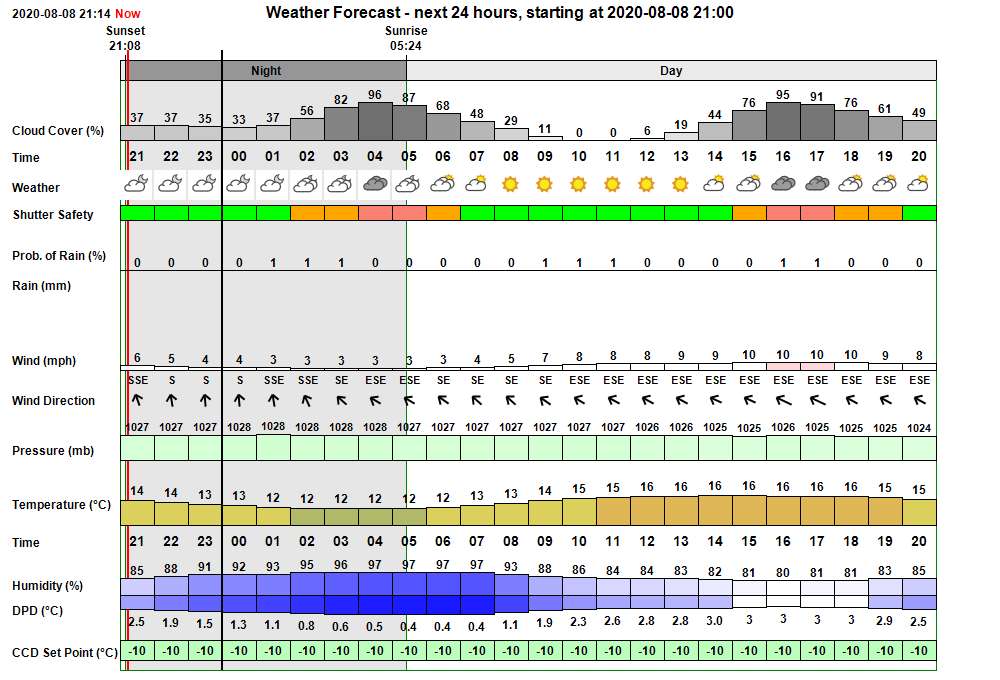

Pre-Session Weather Forecast (API data from darksky.net)
Pre-Session Weather forecast showed semi-clear conditions (33-37% cloud cover) becoming cloudy by dawn (82-96%)
with very light wind (3-5 mph), no rain and a minimum temperature of 12°C.

In the event conditions were clear in early part of night (up to 40 AllSky Stars) before a cloudy interval at 00:45 and 01:30
after which sky was semi-clouded until 03:30 when sky clouded over.  Entire night was dry and calm.

Session Event Log
Time     Event Detail
17:48:00 Session Monitoring AutoStart monitoring for Live Session opportunity starting between 22:19 & 02:55
17:48:02   AutoStart Waiting AutoStart waiting till earliest start time at 22:19
22:19:00   AutoStart Delayed AutoStart delayed due to light conditions (sun alt)
22:21:00 User Intervention User intervention to workaround bug (sun alt)
22:21:02 Session Monitoring AutoStart monitoring for Live Session opportunity starting between 22:21 & 02:55
22:21:04 Session AutoStarting Session autostarting (22:21)
22:21:57 Session Created Live Session Created (2020-08-08 S00797, ImageSaveNum: 797001)
22:22:15   Services Started Observatory Services started
22:23:00 User Intervention User intervention to workaround bug (scope power on)
22:23:14 Observatory (Manual) Observatory placed in Manual Mode
22:23:48   Services Stopped Observatory Services stopped
22:25:07   Obs.Manager Started Obs.Manager started
22:25:09   Obs.Overseer Started Obs.Overseer started
22:25:13   Services Started Observatory Services started
22:25:38   Scope Switched On Telescope power has been switched on via UPB Powerbox.
22:28:00 Session Monitoring AutoStart monitoring for Live Session opportunity starting between 22:28 & 02:55
22:28:02 Session AutoStarting Session autostarting (22:28)
22:28:35 Observatory (AutoStart) Observatory placed in Auto-Start Mode
22:29:48   Services Started Observatory Services started
22:29:56 Observatory (Auto) Observatory placed in Fully-Automated Mode
22:30:00 Session Pending Session pending (2020-08-08)
22:30:02 Session Initiating Session initiating (2020-08-08)
22:30:04   Plan Requested Observing Plan requested from AstroPlan (1.15.4)
22:31:24   Plan Loaded Observing Plan loaded to queue (2020-08-08 V1 BEST PLAN, Plan ID: 530)
22:31:32   Telescope Connected Telescope Connected (TheSky6)
22:31:45 Session Equilibration Session ready for dome & camera equilibration
22:32:30   Dome Opened Dome opened (opening time 45s)
22:32:33   Equilibration Started Dome Equilibration started
22:36:00 User Intervention User intervention to workaround SBIG camera connection issue
22:36:22   Equilibration Ended Dome Equilibration ended (3.9 mins total)
22:36:24 Observatory (Manual) Observatory placed in Manual Mode
22:38:49   Telescope Parked Telescope parked (parking time 30s)
22:39:19   Telescope Switched Off Telescope Power has been switched off via UPB Powerbox.
22:41:51   Services Stopped Observatory Services stopped
22:42:02   Obs.Manager Started Obs.Manager started
22:42:04   Obs.Overseer Started Obs.Overseer started
22:42:08   Services Started Observatory Services started
22:42:17   Services Stopped Observatory Services stopped
22:42:31 Program Closed Program closed by User
23:06:00 Session Monitoring AutoStart monitoring for Live Session opportunity starting between 23:06 & 02:55
23:06:02 Session AutoStarting Session autostarting (23:06)
23:06:31 Session Resumed Live Session Resumed (2020-08-08 S00797, ImageSaveNum: 797001)
23:07:05   Services Started Observatory Services started
23:07:13 Observatory (Auto) Observatory placed in Fully-Automated Mode
23:07:17 Session Pending Session pending (2020-08-08)
23:07:19 Session Initiating Session initiating (2020-08-08)
23:07:21   Plan Requested Observing Plan requested from AstroPlan (1.15.4)
23:08:22   Plan Loaded Observing Plan loaded to queue (2020-08-08 V1 BEST PLAN, Plan ID: 530)
23:08:30   Telescope Connected Telescope Connected (TheSky6)
23:08:42 Session Equilibration Session ready for dome & camera equilibration
23:09:11   Camera1 Connected SBIG Camera Connected (set point -10°C)
23:09:27   Dome Opened Dome opened (opening time 45s)
23:09:30   Equilibration Started Dome Equilibration started
23:10:08   Equilibration Skipped Dome Equilibration skipped by user
23:10:10 Session Running Session running
23:10:12   Queue Started Observing Queue started (23 targets selected)
23:10:45       Focusing Failed Foc1 Focusing Failed - star is lost (TCF-S)
23:10:48       Focusing Started Foc2 Focusing Started (Secondary Scope, using ShCap)
23:13:27       Focusing Completed Foc2 AutoFocus Completed (Profile No 1, wide)
23:15:22       Focusing Completed Foc2 AutoFocus Completed (Profile No 1)
23:15:25     Target Started (1/23) Target started (1/23, NGC 6741)
23:18:02       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:21:18       Focusing Completed Foc1 AutoFocus Completed (Profile No 2)
23:31:15     Target Completed Target completed (1/23, NGC 6741)
23:31:17     Target Started (2/23) Target started (2/23, Berkeley 91)
23:33:32       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:36:12       Focusing Completed Foc1 AutoFocus Completed (Profile No 3)
23:42:34     Target Completed Target completed (2/23, Berkeley 91)
23:42:37     Target Started (3/23) Target started (3/23, GCVS U Her)
23:45:43       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:48:39       Focusing Completed Foc1 AutoFocus Completed (Profile No 4)
23:56:06     Target Completed Target completed (3/23, GCVS U Her)
23:56:09     Target Started (4/23) Target started (4/23, GCVS AM Her)
23:58:17       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:01:08       Focusing Completed Foc1 AutoFocus Completed (Profile No 5)
00:06:05     Target Completed Target completed (4/23, GCVS AM Her)
00:06:07     Target Started (5/23) Target started (5/23, GCVS S Cyg)
00:21:53     Target Completed Target partially completed (5/23, GCVS S Cyg)
00:21:55     Target Started (6/23) Target started (6/23, GCVS FG Sge)
00:24:21       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:27:11       Focusing Completed Foc1 AutoFocus Completed (Profile No 6)
00:29:38     Target Completed Target completed (6/23, GCVS FG Sge)
00:29:40     Target Started (7/23) Target started (7/23, 61 Cyg)
00:31:28       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:34:41       Focusing Completed Foc1 AutoFocus Completed (Profile No 7)
00:36:03     Target Completed Target completed (7/23, 61 Cyg)
00:36:05     Target Started (8/23) Target started (8/23, GCVS SS Cyg)
00:38:00       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:41:28       Focusing Completed Foc1 AutoFocus Completed (Profile No 8)
00:42:51 Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Shutter)
00:42:53   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud)
00:42:54     Target Aborted (8/23) Target aborted (8/23, GCVS SS Cyg) due to cloud
00:42:57   Queue Paused Queue pausing for HardSuspend
00:42:59 Session Suspended Session suspended
00:43:46   Dome Closed Dome closed (closing time 49s)
00:47:38     Target Cancelled Target cancelled (8/23, GCVS SS Cyg) due to cloud
00:52:57   Camera1 SetPoint SBIG Camera Set Point Temperature Updated (new set point -15°C)
00:57:11     Target Cancelled Target cancelled (9/23, GCVS BL Lac) due to cloud
01:06:01     Target Cancelled Target cancelled (10/23, HIP 87937) due to cloud
01:16:29     Target Cancelled Target cancelled (11/23, NGC 6704) due to cloud
01:26:17     Target Cancelled Target cancelled (12/23, GCVS CY Lyr) due to cloud
01:33:01   Camera1 SetPoint SBIG Camera Set Point Temperature Updated (new set point -10°C)
01:35:45     Target Cancelled Target cancelled (13/23, GCVS CI Cyg) due to cloud
01:37:11 Session Resuming Session resuming
01:37:56   Dome Opened Dome opened (opening time 45s)
01:37:59 Session Running Session running
01:38:01   Queue Resumed Observing Queue resumed
01:38:03     Target Started (14/23) Target started (14/23, Kinman Dwarf)
01:41:20       Focusing Failed Foc1 Focusing Failed - unable to find a star (TCF-S)
01:56:31     Target Completed Target completed (14/23, Kinman Dwarf)
01:56:33     Target Started (15/23) Target started (15/23, GCVS Z And)
01:59:52       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:02:42       Focusing Failed Foc1 Focusing Failed - failed QC check (Quadratic)
02:03:13 Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Shutter)
02:03:15   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud)
02:03:36     Target Aborted (15/23) Target aborted (15/23, GCVS Z And) due to cloud
02:03:38   Queue Paused Queue pausing for HardSuspend
02:03:39 Session Suspended Session suspended
02:04:29   Dome Closed Dome closed (closing time 49s)
02:05:44 Session Resuming Session resuming
02:06:29   Dome Opened Dome opened (opening time 45s)
02:06:31 Session Running Session running
02:06:33   Queue Resumed Observing Queue resumed
02:06:35     Target Started (16/23) Target started (16/23, Berkeley 102)
02:09:30       Focusing Failed Foc1 Focusing Failed - star is lost (TCF-S)
02:13:29 Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Shutter)
02:13:31   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud)
02:13:34     Target Aborted (16/23) Target aborted (16/23, Berkeley 102) due to cloud
02:13:36   Queue Paused Queue pausing for HardSuspend
02:13:38 Session Suspended Session suspended
02:14:20   Dome Closed Dome closed (closing time 40s)
02:15:43     Target Cancelled Target cancelled (16/23, Berkeley 102) due to cloud
02:21:45 Session Resuming Session resuming
02:22:30   Dome Opened Dome opened (opening time 45s)
02:22:32 Session Running Session running
02:22:34   Queue Resumed Observing Queue resumed
02:22:36     Target Started (17/23) Target started (17/23, GCVS HH And)
02:24:16       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:27:08       Focusing Failed Foc1 Focusing Failed - failed QC check (Quadratic)
02:27:16   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (reducing clarity)
02:28:31   SoftSuspend Cancelled Soft Suspend is cancelled due to Improved Conditions
02:29:04     Target Completed Target completed (17/23, GCVS HH And)
02:29:06     Target Started (18/23) Target started (18/23, WDS GRB 34)
02:31:01       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:33:39       Focusing Completed Foc1 AutoFocus Completed (Profile No 11)
02:35:38     Target Completed Target completed (18/23, WDS GRB 34)
02:35:40     Target Started (19/23) Target started (19/23, Berkeley 95)
02:40:16       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:43:17       Focusing Completed Foc1 AutoFocus Completed (Profile No 12)
02:49:34     Target Completed Target completed (19/23, Berkeley 95)
02:49:37     Target Started (20/23) Target started (20/23, Berkeley 100)
02:52:33       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:55:34       Focusing Completed Foc1 AutoFocus Completed (Profile No 13)
03:01:12     Target Completed Target partially completed (20/23, Berkeley 100)
03:01:14     Target Started (21/23) Target started (21/23, Berkeley 1)
03:03:53       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:06:56       Focusing Completed Foc1 AutoFocus Completed (Profile No 14)
03:12:20     Target Completed Target completed (21/23, Berkeley 1)
03:12:22     Target Started (22/23) Target started (22/23, GCVS RX And)
03:13:50       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:16:57       Focusing Failed Foc1 Focusing Failed - failed QC check (Quadratic)
03:19:32     Target Completed Target completed (22/23, GCVS RX And)
03:19:34     Target Started (23/23) Target started (23/23, UGC 1032)
03:22:57       Focusing Failed Foc1 Focusing Failed - unable to find a star (TCF-S)
03:24:36 Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Shutter)
03:24:38   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud)
03:24:40     Target Aborted (23/23) Target aborted (23/23, UGC 1032) due to cloud
03:24:42   Queue Paused Queue pausing for HardSuspend
03:24:45 Session Suspended Session suspended
03:25:31   Dome Closed Dome closed (closing time 46s)
03:34:47   Camera1 SetPoint SBIG Camera Set Point Temperature Updated (new set point -15°C)
03:40:21     Target Cancelled Target cancelled (23/23, UGC 1032) due to cloud
03:40:26   Queue Completed Job Queue completed
03:40:33 Session Closing Session closing
03:40:37   Dome Closed Dome already closed (closed at 03:25, closing time 46s)
03:41:05   Dome Parked Dome parked (parking time 27s)
03:41:52   Telescope Parked Telescope parked (parking time 40s)
03:42:22   Telescope Switched Off Telescope Power has been switched off via UPB Powerbox.
03:43:09   Services Stopped Night Services stopped
03:43:11 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files)
03:43:23 Session Finished Session Finished

Session Alerts
Time     Alert Detail
22:23:14 Scope Alert TheSky's scope is reporting a RA=0/Dec=0 position or is not connected

Back to Top


Operational Issues (2020-08-08, S797)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Continuous Improvement

[ Prev | Next ]

Back to Top


AutoStart - Results (2020-08-08)

2020-08-08 was the second live test of AutoStart (new observatory mode).  The night had expected to be clear through the evening and the night was forecast to be dry and semi-clear .  Whilst a LIve Session would have been intitated anyway, AutoStart was used anyway to test its new and evolving routine.

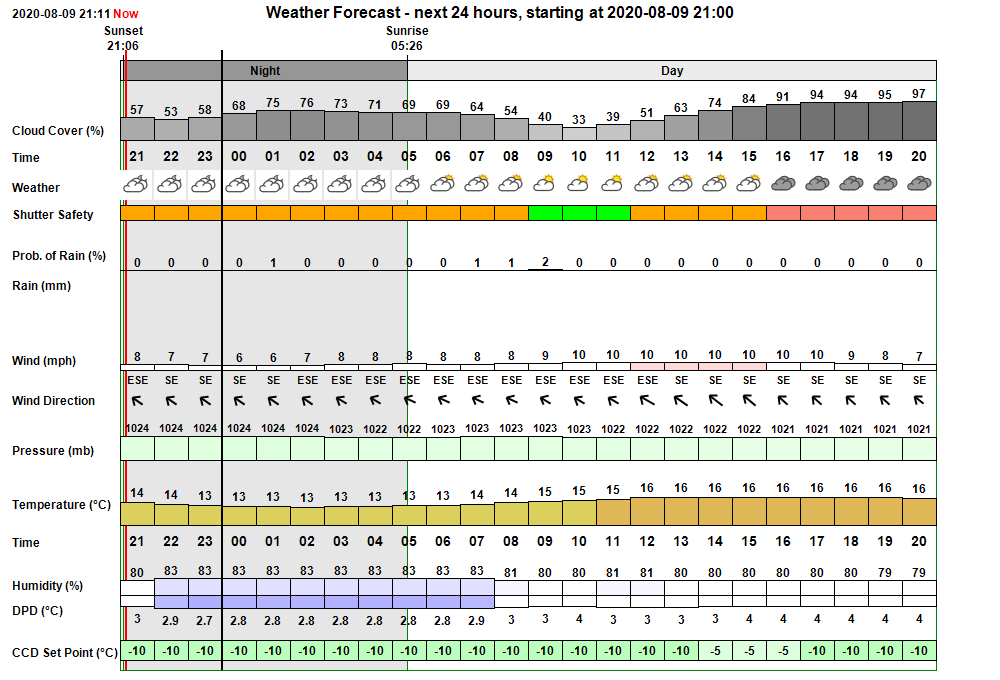

 Skies were cloudy in the early evening and the DarkSky weather forecast for the night  showed dry but relatively cloudy conditions (cloud cover 53 to 76%), though another forecast source (xcweather.co.uk) offered slightly more encouragement and suggested a potential 2 hour interval of clear skies at around 00:30 - 02:30 in the morning.

Result: Partially Successful Test (Clear Night) a Live Session was created and after 4 attempts and significant user intervention an automated session was finally kicked off and executed.  Several bugs and issues identified for resolution before the next test (2020-08-09)

Attempt 1:   AutoStart Mode was initiated from AstroMain 3.27.1 program at 17:48.
It's operational window was from 22:19 (30 minutes before descending Sun Alt -11 deg) to 02:55 (30 minutes before ascending Sun Alt -12 deg)
AutoStart was unable to run at 22:19 due to light conditions.   This was due to a bug that was failing to update SunAlt when observatory was in the new AutoStart mode).

User intervention was made to cancel AutoStart and Restart Observatory Services

Attempt 2:   AutoStart Mode was re-initiated at 22:21, with operational window  from 22:21 ('Now') to 02:55
AutoStart deemed that conditions were suitable for starting an observatory session at 22:21 and proceeded to create a Live Session.

Session began executing. Night Services were started but due to a bug the Telescope Power was not commanded to switch on and the telescope was therefore not connected to.  AutoStart routine picked up that there was a problem with Telescope connection through Ra=0/Dec=0 Scope Coords in TheSky, aborted automated operations and returned the observatory to Manual Mode.

User Intervention was made to set Scope Power On

Attempt 3:  AutoStart Mode was re-initiated at 22:28. with operational window from 22:28 ('Now') to 02:55
AutoStart deemed that conditions were suitable for starting an observatory session at 22:28 and proceeded to reopen the Live Session.

Session began executing. Night Services were started and the Telescope was connected to ok.  Execution continued despite finding a problem connecting to CCD Camera and had reached and opened the Observatory for Temperature Equilibration,  before user monitoring recognised the camera problem

User Intervention was made to abort automated operations, restore communication to CCD Camera, involving parking scope, power cycling CCD Camera and restarting Computer and restarting Observatory Software etc, fixing a problem with CCDSoft Camera Settings and turning the Scope Power On

Attempt 4:  AutoStart Mode was re-initiated at 23:06, with operational window from 23:06 ('Now') to 02:55
AutoStart deemed that conditions were suitable for starting an observatory session at 23:06 and proceeded to reopen the Live Session.

Session began executing. Night Services were started and the Telescope again connected to ok.  Execution continued despite finding another problem connecting to CCD Camera (Settings problem in CCDSoft). A User Intevention was made to Achieve Camera connection without stopping Automated Operations.  Automated operartions were conducted  for remainder of the session including automatically closing the observatory down at 03:40


Report Logs :

Observatory Mode                        2020-08-08 17:48  (Local)
  Setting Mode...             Ok        Auto-Start

AutoStart Monitoring                    2020-08-08 17:48  (Local)
  AutoStart Window:           Info      2020-08-08 22:19 (Local, Earliest Start)
                              Info      2020-08-09 02:55 (Local, Latest Start)
  Waiting...                  Info      Waiting till the beginning of AutoStart Window at 22:19
  Delaying AutoStart...       Info      Unable to begin AutoStart at 22:19 due to light conditions
  Waiting...                  Info      Waiting till conditions are suitable for observing

USER INTERVENTION AT THIS POINT >>

Observatory Mode
                        2020-08-08 22:21  (Local)

  Setting Mode...             Ok        Auto-Start

AutoStart Monitoring                    2020-08-08 22:21  (Local)
  AutoStart Window:           Info      2020-08-08 22:19 (Local, Earliest Start)
                              Info      2020-08-09 02:55 (Local, Latest Start)
  AutoStart Check             Info      Conditions at 22:21 are suitable for starting an observing session
  Starting AutoStart...       Info      Starting AutoStart at 22:21

Running AutoStart                       2020-08-08 22:21  (Local)
  Create Live Session..
  Creating session folder ... Ok        .\New\2020-08-08 S00797
  Creating analysis folder ...Ok        .\...\2020-08-08 S00797
  Creating subfolders ...     Ok        .\...\2020-08-08 S00797\_RAW, \_REDUCED etc

Running AstroMain (3.27.1)              2020-08-08 22:21  (Local)

New Live Session
                        2020-08-08 22:21  (Local)

  Session ID:                 Ok        797               (Live)
  Session Name:               Ok        2020-08-08 S00797 (Session)

  Targets Database Transfer   Ok        0001-01-01 00:00  (Local) Last Database Transfer To Observatory
  Focus Profiles:             Ok        Profile Start No: 0
  Focus Runs:                 Ok        Focus Start No:   0
  Initialise Session Data..   Ok
  Stopping CCDSoft            Ok
  Setting Autosave Number     Ok        797001
  Restarting CCDSoft
  Creating Camera object...   Ok        CCDsoft.Camera
  Creating Autoguider object..Ok        CCDsoft.Camera
  Creating Folder object..    Ok        CCDSoft.Folder
  AutoSave Start Num...       Ok        797001
  Setting AutoSave Folder...  Ok        .\New\2020-08-08 S00797
  Select Services..           Ok
  Start Services..

Start Observatory Services              2020-08-08 22:21  (Local)
  Observatory Monitor:        Ok        Started already
  Dome Monitor:               Ok        Started already
  TempMonitor:                Ok        Started already
  Weather Station:            Ok        Started already
  Cloud Sensor:               Ok        Started already
  Scorecard:                  Ok        Started already
  PowerBox Switch:            Ok        Started already    (Pegasus Powerbox Switch)
  PowerBox Env:               Ok        Started already    (Pegasus Astro Environment)
  PowerBox Foc2:              Ok        Started already    (Pegasus UPB Focuser)
  DeviceHub Dome (COM9):      Ok        Started already    (ASCOM.Pulsar_Observatories_Dome.Dome)
  DeviceHub Telescope (COM7): Fail      Telescope Power is Off
  TelePosition:               Ok        Started
  TelePosition Listener:      Ok        Started
  PHD2 Client                 Ok        Started            (Profile:ZWO ASI178MC)
  PHD2 Equipment              Fail (0)  Unable to connect to Camera:ZWO ASI Camera, Mount:
  SharpCap Client             Ok        Started            (IP: 127.0.0.1 Port: 4002)
  SharpCap Server             Ok        Started            (2020-08-08 S00797)
  Observatory Manager:        Ok        Started already
  Focuser 1:                  Ok        Started already    (Optec TCF-S)
  ObsEnv                      Ok        Started already

  Notify ShCap Session        Ok        2020-08-08 S00797
  Check TheSky Scope...       Alert     TheSky's scope is reporting a RA=0/Dec=0 position or is not connected.
  Aborting AutoStart...       Alert     Aborting AutoStart & returning to Manual Mode

Observatory Mode                        2020-08-08 22:23  (Local)
  Setting Mode ...            Ok        Manual

USER INTERVENTION AT THIS POINT >>

  Switch On Telescope         Ok        Telescope power has been switched on (22:25:38)

Observatory Mode
                        2020-08-08 22:28  (Local)

  Setting Mode...             Ok        Auto-Start

AutoStart Monitoring                    2020-08-08 22:28  (Local)
  AutoStart Window:           Info      2020-08-08 22:19 (Local, Earliest Start)
                              Info      2020-08-09 02:55 (Local, Latest Start)
  AutoStart Check             Info      Conditions at 22:28 are suitable for starting an observing session
  Starting AutoStart...       Info      Starting AutoStart at 22:28

Running AutoStart                       2020-08-08 22:28  (Local)
  Create Live Session..
  Checking Session            Ok        Session (2020-08-08 S00797) is already active
  Data Info 1                 Ok        ObservatoryMode = 3 , SessionState = 13
  Data Info 2                 Ok        ObservatoryMode = 3 , SessionState = 13
  Select Services..           Ok
  Start Services..

Start Observatory Services              2020-08-08 22:28  (Local)
  Observatory Monitor:        Ok        Started already
  Dome Monitor:               Ok        Started already
  TempMonitor:                Ok        Started already
  Weather Station:            Ok        Started already
  Cloud Sensor:               Ok        Started already
  Scorecard:                  Ok        Started already
  PowerBox Switch:            Ok        Started already    (Pegasus Powerbox Switch)
  PowerBox Env:               Ok        Started already    (Pegasus Astro Environment)
  PowerBox Foc2:              Ok        Started already    (Pegasus UPB Focuser)
  DeviceHub Dome (COM9):      Ok        Started already    (ASCOM.Pulsar_Observatories_Dome.Dome)
  DeviceHub Telescope (COM7): Ok        Started            (MeadeLX200GPS.Telescope)
  TelePosition:               Ok        Started
  TelePosition Listener:      Ok        Started
  PHD2 Client                 Ok        Started            (Profile:ZWO ASI178MC)
  PHD2 Equipment              Fail (3)  Unable to connect to Mount:DeviceHub -> LX200GPS/R (ASCOM)
  SharpCap Client             Ok        Started            (IP: 127.0.0.1 Port: 4002)
  SharpCap Server             Ok        Started            (2020-08-08 S00797)
  Observatory Manager:        Ok        Started already
  Focuser 1:                  Ok        Started already    (Optec TCF-S)
  ObsEnv                      Ok        Started already

  Notify ShCap Session        Ok        2020-08-08 S00797
  Setting Fully Automated..

Observatory Mode                        2020-08-08 22:29  (Local)
  Setting Mode...             Ok        Fully-Automated

Session Pending                         2020-08-08 22:30  (Local)
  NightDate:                  Ok        2020-08-08        (NightDate)

Session Initiating                      2020-08-08 22:30  (Local)
  NightDate:                  Ok        2020-08-08        (NightDate)
  Import Observing Plan...

Create Observing Plan                   2020-08-08 22:30  (Local)
  Request Observing Plan...   Ok
  Generate Night Plan...      Ok        Schedule Builder has completed
  Selecting Plan...           Ok        2020-08-08   V1   BEST PLAN   (Plan ID: 530)
  Retrieving Targets ...      Ok        24 Targets.
  Reading Start Time...       Ok        2020-08-08 22:49  (Scheduled StartTime, Local)

Session Starting                        2020-08-08 22:31  (Local)
  Session:                    Ok        2020-08-08        (NightDate)

Setting Up Session                      2020-08-08 22:31  (Local)
  Checking Session            Ok        Session (2020-08-08 S00797) is already active

Connect Camera                          2020-08-08 22:31  (Local)
  Connecting camera...        Failed
                              SBIG driver: Camera not found.

Connect Telescope                       2020-08-08 22:31  (Local)
  Establishing link...        Ok
  Telescope (TeleApi)...      Ok        ASCOM.DeviceHub.Telescope
  Telescope Coords...         Ok        Az:  180.4         Alt: 2.5 ASCOM
  Telescope Coords...         Ok        Az:  160.7         Alt: 4.7 TheSky6
  Local Sidereal Time...      Ok        LST: 17 03 05.901
  Telescope Coords...         Ok        RA:  18 32 48.000, Dec: -30 29 02.00 (Current Epoch) ASCOM
  Telescope Coords...         Ok        RA:  18 29 00.889, Dec: -25 59 48.58 (Current Epoch)
  Telescope Coords...         Ok        RA:  18 27 44.255, Dec: -26 00 38.14 (J2000)
  Guide Rate...               Ok        Guide Rate 0.90

  Turn Off Tracking..         Ok        Telescope Tracking is OFF

Connect PHD2 Guiding Software           2020-08-08 22:31  (Local)
  - Profile                   Yes       ZWO ASI178MC         (ID: 1)
  - Camera                    Yes       ZWO ASI178MC         (Connected)
  - Mount                     Yes       DeviceHub -> LX200GP (Connected)
  - Aux Mount                 No
  - Calibration               Yes
  - Binning & Pixel Scale     Ok        1, 1.03132 arc sec/px

Session Equilibration                   2020-08-08 22:31  (Local)
  Now                         Info      2020-08-08 22:31  ( -18 mins )
  Expected Shutter Opening    Info      2020-08-08 22:31  ( -18 mins )
  Expected Equilbrat'n Start  Info      2020-08-08 22:32  ( -17 mins )
  Expected Run Start          Info      2020-08-08 22:37  ( -12 mins )
  Expected Near-Zenith Foc1   Info      2020-08-08 22:38  ( -11 mins )
  Expected Near-Zenith Foc2   Info      2020-08-08 22:41  (  -8 mins )
  Expected Queue Start        Info      2020-08-08 22:44  (  -5 mins )
  Plan Queue Start            Info      2020-08-08 22:49  ( On Track )
  Open Dome...                Opening
  Open Dome...                Ok        Dome is open (45s)

  Dome Equilibration:         Started   2020-08-08 22:32  (Local)
    Rotating Dome into wind   Ok        Wind Direction 158°
    Temperatures at 22:32     Open      Amb. 10.6°C, Obs. 13.0°C (+2.4°C), Scope -99.0°C, CCD --.-°C (°C)
    Temperatures at 22:33     Open      Amb. 10.7°C, Obs. 12.9°C (+2.2°C), Scope -99.0°C, CCD --.-°C (°C)
    Temperatures at 22:34     Open      Amb. 10.7°C, Obs. 12.9°C (+2.2°C), Scope -99.0°C, CCD --.-°C (°C)
    Temperatures at 22:35     Open      Amb. 10.7°C, Obs. 12.8°C (+2.1°C), Scope -99.0°C, CCD --.-°C (°C)

Connect Camera                          2020-08-08 22:35  (Local)
  Connecting camera...        Failed
                              SBIG driver: Camera not found.

  Dome Equilibration:         Stopped   3.9 mins (3.9 mins total)

USER INTERVENTION AT THIS POINT >>


Observatory Mode                        2020-08-08 22:36  (Local)
  Setting Mode ...            Ok        Manual

  Switch On Telescope         Ok        Telescope power has been switched on (23:03:49)

Observatory Mode
                        2020-08-08 23:06  (Local)

  Setting Mode...             Ok        Auto-Start

AutoStart Monitoring                    2020-08-08 23:06  (Local)
  AutoStart Window:           Info      2020-08-08 22:32 (Local, Earliest Start)
                              Info      2020-08-09 02:55 (Local, Latest Start)
  AutoStart Check             Info      Conditions at 23:06 are suitable for starting an observing session
  Starting AutoStart...       Info      Starting AutoStart at 23:06

Running AutoStart                       2020-08-08 23:06  (Local)
  Create Live Session..
  Checking session folder ... Ok        Session Folder already exists (.\New\2020-08-08 S00797)
  Checking analysis folder ...Ok        Analysis Folder already exists (.\Analysis\2020-08-08 S00797)


Resume Live Session                     2020-08-08 23:06  (Local)
  Session ID:                 Ok        797               (Live)
  Session Name:               Ok        2020-08-08 S00797 (Session)

  Targets Database Transfer   Ok        0001-01-01 00:00  (Local) Last Database Transfer To Observatory
  Focus Profiles:             Ok        Profile Start No: 0
  Focus Runs:                 Ok        Focus Start No:   0
  Read Session Data...        Ok
  Stopping CCDSoft            Ok
  Setting Autosave Number     Ok        797001
  Restarting CCDSoft
  Creating Camera object...   Ok        CCDsoft.Camera
  Creating Autoguider object..Ok        CCDsoft.Camera
  Creating Folder object..    Ok        CCDSoft.Folder
  AutoSave Start Num...       Ok        797001
  Setting AutoSave Folder...  Ok        .\New\2020-08-08 S00797

  Data Info 1                 Ok        ObservatoryMode = 3 , SessionState = 13
  Data Info 2                 Ok        ObservatoryMode = 3 , SessionState = 13
  Select Services..           Ok
  Start Services..

Start Observatory Services              2020-08-08 23:06  (Local)
  Observatory Monitor:        Ok        Started already
  Dome Monitor:               Ok        Started already
  TempMonitor:                Ok        Started already
  Weather Station:            Ok        Started already
  Cloud Sensor:               Ok        Started already
  Scorecard:                  Ok        Started already
  PowerBox Switch:            Ok        Started already    (Pegasus Powerbox Switch)
  PowerBox Env:               Ok        Started already    (Pegasus Astro Environment)
  PowerBox Foc2:              Ok        Started already    (Pegasus UPB Focuser)
  DeviceHub Dome (COM9):      Ok        Started already    (ASCOM.Pulsar_Observatories_Dome.Dome)
  DeviceHub Telescope (COM7): Ok        Started            (MeadeLX200GPS.Telescope)
  TelePosition:               Ok        Started
  TelePosition Listener:      Ok        Started
  PHD2 Client                 Ok        Started            (Profile:ZWO ASI178MC)
  PHD2 Equipment              Fail (3)  Unable to connect to Mount:DeviceHub -> LX200GPS/R (ASCOM)
  SharpCap Client             Ok        Started            (IP: 127.0.0.1 Port: 4002)
  SharpCap Server             Ok        Started            (2020-08-08 S00797)
  Observatory Manager:        Ok        Started already
  Focuser 1:                  Ok        Started already    (Optec TCF-S)
  ObsEnv                      Ok        Started already

  Notify ShCap Session        Ok        2020-08-08 S00797
  Setting Fully Automated..

Observatory Mode                        2020-08-08 23:07  (Local)
  Setting Mode...             Ok        Fully-Automated

Session Pending                         2020-08-08 23:07  (Local)
  NightDate:                  Ok        2020-08-08        (NightDate)

Session Initiating                      2020-08-08 23:07  (Local)
  NightDate:                  Ok        2020-08-08        (NightDate)
  Import Observing Plan...

Create Observing Plan                   2020-08-08 23:07  (Local)
  Request Observing Plan...   Ok
  Generate Night Plan...      Ok        Schedule Builder has completed
  Selecting Plan...           Ok        2020-08-08   V1   BEST PLAN   (Plan ID: 530)
  Retrieving Targets ...      Ok        23 Targets.
  Reading Start Time...       Ok        2020-08-08 23:18  (Scheduled StartTime, Local)

Session Starting                        2020-08-08 23:08  (Local)
  Session:                    Ok        2020-08-08        (NightDate)

Setting Up Session                      2020-08-08 23:08  (Local)
  Checking Session            Ok        Session (2020-08-08 S00797) is already active

Connect Camera                          2020-08-08 23:08  (Local)
  Connecting camera...        Failed
                              A camera was detected, but it does not match the one selected.

Connect Telescope                       2020-08-08 23:08  (Local)
  Establishing link...        Ok
  Telescope (TeleApi)...      Ok        ASCOM.DeviceHub.Telescope
  Telescope Coords...         Ok        Az:  180.3         Alt: 2.5 ASCOM
  Telescope Coords...         Ok        Az:  255.5         Alt: -26.9 TheSky6
  Local Sidereal Time...      Ok        LST: 01 24 28.036
  Telescope Coords...         Ok        RA:  19 10 12.000, Dec: -30 28 48.00 (Current Epoch) ASCOM
  Telescope Coords...         Ok        RA:  19 09 45.156, Dec: -30 05 40.62 (Current Epoch)
  Telescope Coords...         Ok        RA:  19 08 26.437, Dec: -30 07 41.24 (J2000)
  Guide Rate...               Ok        Guide Rate 0.90

  Turn Off Tracking..         Ok        Telescope Tracking is OFF

Connect PHD2 Guiding Software           2020-08-08 23:08  (Local)
  - Profile                   Yes       ZWO ASI178MC         (ID: 1)
  - Camera                    Yes       ZWO ASI178MC         (Connected)
  - Mount                     Yes       DeviceHub -> LX200GP (Connected)
  - Aux Mount                 No
  - Calibration               Yes
  - Binning & Pixel Scale     Ok        1, 1.03132 arc sec/px

Session Equilibration                   2020-08-08 23:08  (Local)
  Now                         Info      2020-08-08 23:08  ( -10 mins )
  Expected Shutter Opening    Info      2020-08-08 23:08  ( -10 mins )
  Expected Equilbrat'n Start  Info      2020-08-08 23:09  (  -9 mins )
  Expected Run Start          Info      2020-08-08 23:09  (  -9 mins )
  Expected Near-Zenith Foc1   Info      2020-08-08 23:10  (  -8 mins )
  Expected Near-Zenith Foc2   Info      2020-08-08 23:13  (  -5 mins )
  Expected Queue Start        Info      2020-08-08 23:16  (  -2 mins )
  Plan Queue Start            Info      2020-08-08 23:18  ( On Track )
  Open Dome...                Opening

Connect Camera                          2020-08-08 23:09  (Local)
  Connecting camera...        Ok
  Temperature Regulation...   Ok
  Temperature Set Point...    Ok        -10 °C
  TempMonitor:                Ok        Started already

  Open Dome...                Ok        Dome is open (45s)

  Dome Equilibration:         Started   2020-08-08 23:09  (Local)
    Rotating Dome into wind   Ok        Wind Direction 158°
    Temperatures at 23:09     Open      Amb. 10.3°C, Obs. 12.4°C (+2.1°C), Scope 12.1°C, CCD +15.0°C (+25.0°C)
  Dome Equilibration:         Stopped   0.7 mins (0.7 mins total) Dome Equilibration skipped by user

Session Running                         2020-08-08 23:10  (Local)
  NightDate:                  Ok        2020-08-08        (NightDate)
  Turn on Dome Slaving...     Ok        Dome Slaving is ON
  Turn On Tracking..          Ok        Telescope Tracking is ON

Remainder of session report log not shown here.

Back to Top


2020-08-09


AutoStart - Results (2020-08-09)

2020-08-09 was the third live test of AutoStart (new observatory mode).  The night had exactly the sort of conditions that AutoStart is designed for. Skies were cloudy in the early evening and the DarkSky weather forecast for the night  showed dry but relatively cloudy conditions (cloud cover 53 to 76%), though another forecast source (xcweather.co.uk) offered slightly more encouragement and suggested a potential 2 hour interval of clear skies at around 00:30 - 02:30 in the morning.

Rather than stay up until 01:00 just in case the skies cleared, AutoStart Mode was initiated from AstroMain 3.27.2 program at 22:03.
It's operational window was from 22:39 (20 minutes before descending Sun Alt -12 deg) to 02:59 (30 minutes before ascending Sun Alt -12 deg)
AutoStart was unable to run at 22:39 due to cloud, and monitoring continued pending suitable observing conditions.  Conditions didn't improve and at 02:59 AutoStart was automatically cancelled.

Result: Successful Test (Cloudy Night) - a Live Session was not created.

Observatory Mode                        2020-08-09 22:03  (Local)
  Setting Mode...             Ok        Auto-Start

AutoStart Monitoring                    2020-08-09 22:03  (Local)
  AutoStart Window:           Info      2020-08-09 22:39 (Local, Earliest Start)
                              Info      2020-08-10 02:59 (Local, Latest Start)
  Waiting...                  Info      Waiting till the beginning of AutoStart Window at 22:39
  Delaying AutoStart...       Info      Unable to begin AutoStart at 22:39 due to cloud
  Waiting...                  Info      Waiting till conditions are suitable for observing


  Obs.Manager: DomePort:      Fail      Dome Port has changed at 2020-08-10 00:25:01
  Obs.Manager: DomePort:      Fail      Dome Port has changed from COM9 to COM14

An attempt will be made to restart the dome connection
  DeviceHub Dome:             Ok        Stopped
  DeviceHub Dome (COM14):     Ok        Started            (ASCOM.Pulsar_Observatories_Dome.Dome)
  AutoStart Check             Info      End of AutoStart Window reached at 02:59
  Cancelling AutoStart...     Ok        Cancelling AutoStart & returning to Manual Mode

Observatory Mode                        2020-08-10 02:59  (Local)
  Setting Mode ...            Ok        Manual

2020-08-09

Weather Forecast for 2020-08-09
The Weather forecast for the night (generated at 21:00) didn't look particularly good with relatively cloudy conditions (cloud cover 53 to 76%)
but dry and fairly calm (6-8 mph wind). Temperature falling from 13-14 degC.  (API data from darksky.net)

Another Weather Forecast source (xcweather.co.uk) offered slightly more encouragement and
indicated a potential 2 hour peirod of clear skies at around 1-2am in the morning.

Actual Weather for 2020-08-09
In the event conditions skies were cloudy for pretty much the entire night, with a few short partial breaks in the cloudy,
 but with no more than ~ 15 AllSkyStars &  maximum clarity of ~ 25  The night was howver dry throughout (no rain) and winds were light.
Night Sky Summary Plot - 2020-08-09
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

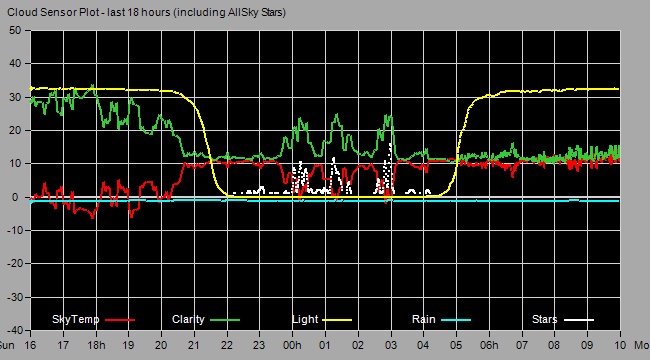

Cloud Sensor & Stars Plot - 2020-08-09



Back to Top


2020-08-11


Observatory Alarm System (AstroAlarm)

AstroAlarm is a new AstroSuite product & web app being developed to provide auditory sounds/alarms for various events and alerts associated with the Clair Dome Observatory (for prototype see Observatory Alarms web page).

It will comprise a set of Javascript & HTML5 Code within an 'Observatory Alarms' webpage on the Observatory Website and associated Observatory Software routines (within varous AstroSuite programs : AstroMain, AstroGuard, AstroProtect, AstroAllSky) that will set Alarms based on various Event/Alert triggers.

It's principal aim is for the 'Observatory Alarms' web page to be left running in Safari on an IPad beside my bed at night and for it to sound an alarm) if there is critical observatory condition or alert (e.g.  if the shutter hasn't closed)

Beside a night-time mode (which sounds alarms for a select number of conditions critical events), there will be a wake-and-reassure alarm to indicate that observatory session has successfully closed down at the end of the session.

(In due course the system may be converted to a iOS App but this won't be attempted until the system has been fully prototyped and specification has hardened and been tested over a period of time)

Sleep Mode

"Wake-and-attend"  - purpose:  wake user as there is a critical condition requiring immediate attention (e.g. the shutter hasn't closed when it should)

"Wake-and-check" - purpose:  wake user as the session has stalled (in a safe state) but requires restarting

"Wake-and-reassure"  - purpose:  wake user briefly as the session has finished and successfully closed down the observatory (shutter closed, dome and scope parked etc

"Wake-at-specific-time " - purpose:  wake user at a specific time (hh:mm) or particular sun altitude (deg).

Normal Mode

'Wake' alarms as above, plus following 'Inform' events

"Session_has_started" - purpose:  notify user than session has started.

"Shutter_has_opened" - purpose:  notify user than observatory dome has opened.

"Telescope_is_slewing" - purpose:  notify user than telescope is slewing to a target

"Shutter_has_closed" - purpose:  notify user than observatory dome has closed.


Alarm trigger mechanism

Development, Testing & Deployment

Back to Top




2020-08-17


Virtual Weather Station - Database Glitch

Whilst trying to resolve Weather data and displays issues that have affected recent days (wind data offline and gaps in temperature/pressure data), it was noticed in testing on Development Computer and then in Live Weather Graphs from AllSky Computer that no data was plotting from 13th Aug 00:00 to 17th Aug 16:09, when previously data had been plotting in this time interval.

Investigating further should that the VWS database (dbase.csv file) had a time gap of around one month between 2020-07-18 14:46 and 2020-08-17 16:09.

It is unclear how or why this happened. Prehaps the VWS program had performed an automatic database resize on 2020-08-17 and there was a flaw in its algorithum for doing this or it had encountered some block on the dbase file or something else. Eitherway it resulted in lost of mid-term weather data.


2020-08-18


AllSky Computer Problems (BSOD & Failed Windows Startup)

AllSky/Weather Computer has been having a serious of problems in recent days with the appearance of Blue Screen of Death (BSOD) crashes, with stop messages "Critical Structure Corruption" and "DPC Watchdog Violation".   Could be system file corruption, could be a driver problem but is hard to diagnose and fix. Even worse are the crashes when everything stops / no messages at allos

Since the problems are not continuous and difficult to resolve I'm had resigned myself to just struggling on with the intermittent problems and the annoying requirement to have to visit the observatory every so often to restart the computer.

With BSOD crashes I can make things a little easier to manage by setting the computer to automatically reboot following a BSOD, so that the login & restart of AllSky/Weather programs can at least be performed remotely without needing a visit the computer to Power Off/Power On the computer.

However this morning (2020-08-18) Windows 10 wouldn't load when the computer was re-started and windows diagnostics couldn't resolve the issue, and sounds being made from disk didn't sound too good.  I was about to give up and just order a new computer (Toshiba Dynabook Satellite Pro C50-E-102)  when I eventually got Windows 10 to load.

Automatic Reboot was enabled, using the method
>  Open elevated (Admin) Command Prompt
>   wmic RecoverOS set AutoReboot = True

and Windows Update was run
- Window Feature Update to Windows 10, version 1903 installed
- Various Windows Update installed,
- Net 4.8 Framework Update installed

Back to Top


AllSky Computer,  Potential Replacement

At some point the AllSky/Weather Computer will fail or it becomes simply to problematic to continue with, and will need to be replaced.

A potential replacement (Toshiba Dynabook Satellite Pro C50-E-102) has been identified and the question is whether to wait untill the existing computer fails or get the replacement ahead of time and get it setup and running with all the necessary programs & hardware offline, without having to endure a potentially long outage if the AllSky Computer was to stop with no backup pre-prepared.

Toshiba Dynabook Satellite Pro C50-E-102
 at laptopsdirect : https://www.laptopsdirect.co.uk/toshiba-dynabook-satellite-pro-c50-e-102-core-i5-8250u-8gb-512gb-ssd-15.6-i-a1pys20e111d/version.asp

Back to Top
