Notes - Session 798 Attempt (2020-08-20)


2020-08-20 (Session 798 Attempt)
Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log

Bullet Operational Issues
  - Critical Issues (0),  Major Issues (1),  Minor Issues (0),  Continuous Improvement (0)

Bullet AutoStart Results (2020-08-20)

Bullet No images from session  >>


Session Aims & Highlights (2020-08-20)

Main aims

  1. AutoStart. Conduct fourth live test of AutoStart (new observatory mode)
  2. Targets. Acquire images of a number of targets if conditions allow.

Equipment & Software

Highlights

Lowlights

Summary Plots & Logs

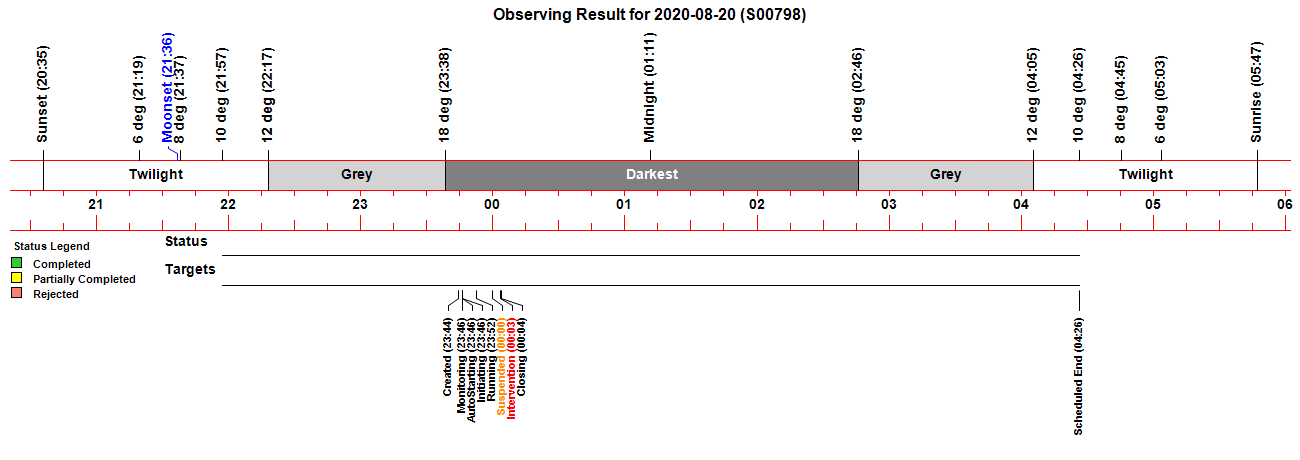

Observing Result

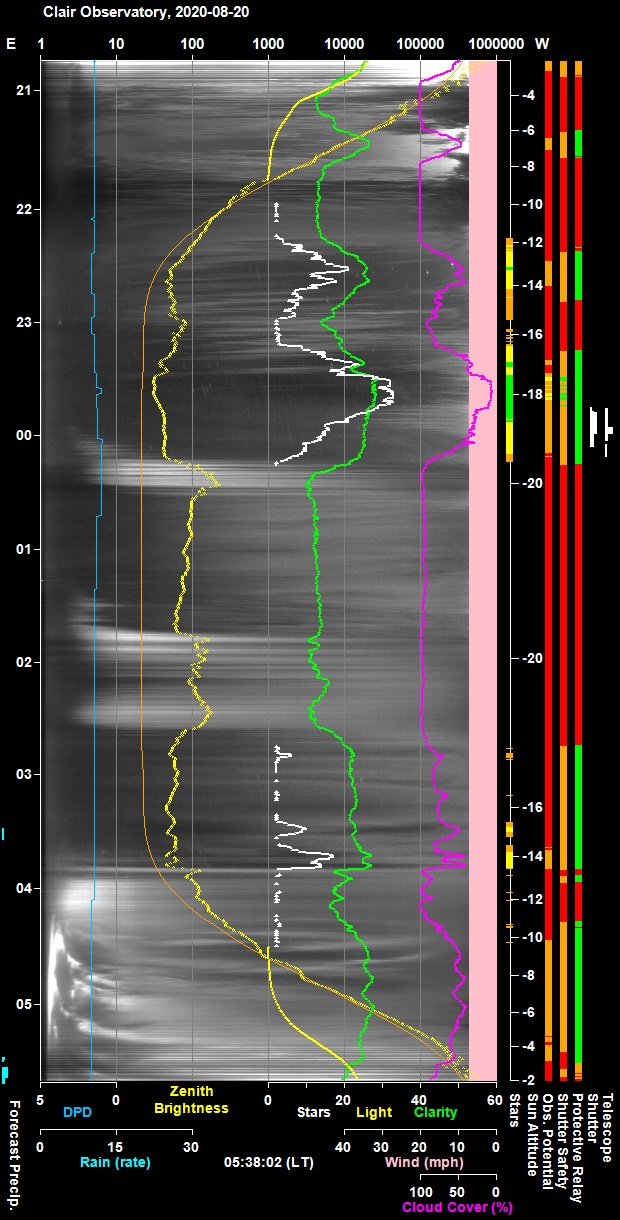

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

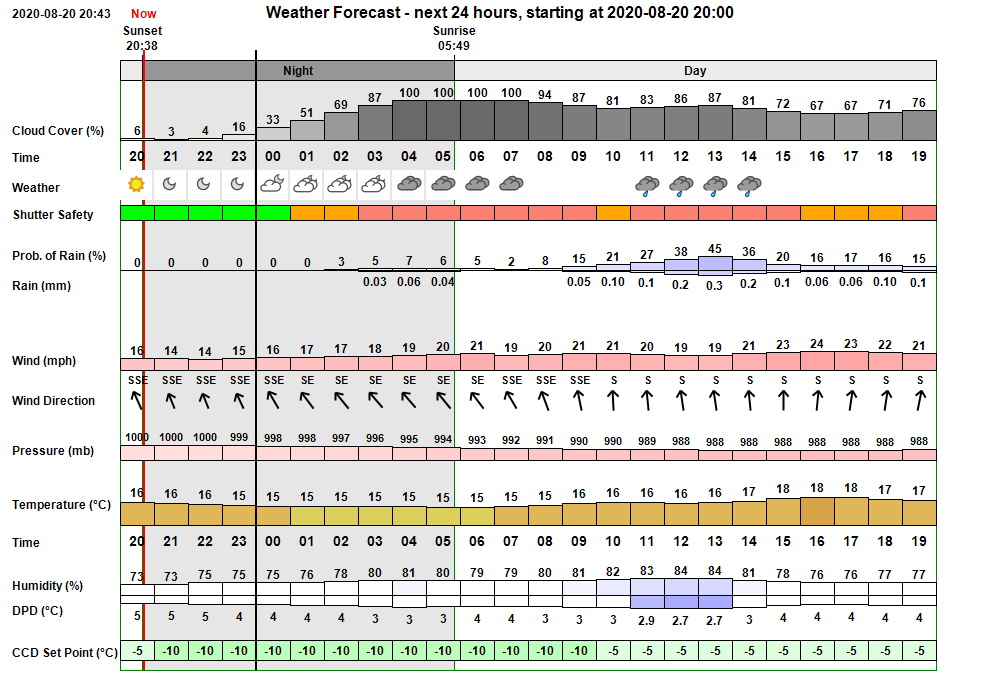

Pre-Session Weather Forecast (API data from darksky.net)
Pre-Session Weather forecast showed fairly clear conditions up to midnight (3-16% cloud cover), but gradually becoming increasing cloudy (33-100% cloud cover) with no rain, moderate wind (14-18 mph) and a minimum temperature of 15°C.

In the event conditions were dry but were clear for just a short interval around 23:30 - 23:45 (up to 31 AllSky Star). The rest of the night was cloudy.

Session Event Log
Time     Event Detail
23:44:13 Session Created Live Session Created (2020-08-20 S00798, ImageSaveNum: 798001)
23:44:15   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
23:46:09   Services Started Observatory Services started
23:46:18 Observatory (Auto) Observatory placed in Fully-Automated Mode
23:46:20 Session Monitoring AutoStart monitoring for Live Session opportunity starting between 23:43 & 03:35
23:46:22 Session Pending Session pending (2020-08-20)
23:46:24 Session AutoStarting Session autostarting (23:43)
23:46:26 Session Initiating Session initiating (2020-08-20)
23:46:28   Plan Requested Observing Plan requested from AstroPlan (1.15.5)
23:47:18   Plan Loaded Observing Plan loaded to queue (2020-08-20 V1 BEST PLAN, Plan ID: 531)
23:47:31   Camera1 Connected SBIG Camera Connected (set point -10°C)
23:47:36   Telescope Connected Telescope Connected (TheSky6)
23:47:48 Session Equilibration Session ready for dome & camera equilibration
23:48:33   Dome Opened Dome opened (opening time 45s)
23:48:36   Equilibration Started Dome Equilibration started
23:52:34   Equilibration Ended Dome Equilibration ended (4.0 mins total)
23:52:36 Session Running Session running
23:52:38   Queue Started Observing Queue started (18 targets selected)
23:53:36       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:56:04   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
23:56:17       Focusing Failed Foc1 Focusing Failed - failed QC check (Quadratic)
23:56:20     Target Started (1/18) Target started (1/18, B107). Using SharpCap
00:00:00     Target Failed Target failed due to cloud (1/18, B107)
00:00:02   Queue Paused Queue paused for SoftSuspend
00:00:05 Session Suspended Session suspended
00:03:42 User Intervention User intervention to try to resolved dome connection issue
00:03:44   Queue Aborted Job Queue aborted
00:04:00 Session Closing Session being closed via manual control
00:05:30   Telescope Park Telescope parked via manual control using DeviceHub
00:07:01   Telescope Switched Off Telescope Power has been switched off via UPB Powerbox.
00:07:23   Services Stopped Night Services stopped
00:08:09   Services Started Observatory Services started
00:09:10   Dome Closed Dome closed (closing time 47s)
00:09:40   Dome Parked Dome parked (parking time 22s)
00:09:43   Dome Parked Dome parked

Session Alerts
Time     Alert Detail
23:53:59 Dome Alert DomeRecords have stopped updating

Back to Top


Operational Issues (2020-08-20, S798 Attempt)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Continuous Improvement

[ Prev | Next ]

Back to Top


AutoStart - Results (2020-08-20)

2020-08-20 was the fourth live test of the new observatory mode AutoStart.  It was conducted using AstroMain 3.27.3 which included bug fixes since the previous AutoStart test on 2020-08-09 (conditions in the intervening time having been unseasoningly cloudy)

The weather forecast for the night wasn't promising through the DarkSky weather forecast for the night showed fairly clear conditions up to midnight (3-16% cloud cover), before gradually becoming increasing cloudy (33-100% cloud cover), but with no rain, moderate wind (14-18 mph) and a minimum temperature of 15°C. In the event early evening clear skies didn't materialised.   However the skies did cleared (briefly) at 23:30 - 23:40 and the opportunity to re-test AutoStart and conduct a live session was taken

Result: Successful Test of AstroGuard and a Live Session was created and begun under complete automated control.  Unfortunately an issue with Dome Connection and deteriorating weather conditions (neither the fault of AutoStart) forced the premature end to the session.

AutoStart Mode was initiated from AstroMain 3.27.3 program at 23:43. It's operational window was from 23:43 (straightaway) until 03:35.
Conditions at 23:43 were suitable for observing and AutoStart ran, and created a new live session (S798 attempt), and begun Observatory Night Services including powering up and connecting to the LX200 Telescope. The dome was opened at 23:47 and session began running at 23:52.

At some point between 23:48 and 23:52 there was a problem with the Dome Connection and the dome doesn't seem to have been slewed to Near-Zenith Focus Field. Whilst performing Foc1 autofocusing at 23:53,  AstroMain reported (23:53) that Dome Records had stopped updating.  and at 23:56, the dome failed to slew to Target 1/18 (B107, dark nebula).


Report Logs :

Observatory Mode                        2020-08-20 23:43  (Local)
  Setting Mode...             Ok        Auto-Start

AutoStart Monitoring                    2020-08-20 23:43  (Local)
  AutoStart Window:           Info      2020-08-20 23:43 (Local, Earliest Start)
                              Info      2020-08-21 03:35 (Local, Latest Start)
  AutoStart Check             Ok        Conditions at 23:43 are suitable for starting an observing session
  Starting AutoStart...       Info      Starting AutoStart at 23:43

Running AutoStart                       2020-08-20 23:43  (Local)
  Checking CCD Camera..       Ok
  Create Live Session..
  Creating session folder ... Ok        .\New\2020-08-20 S00798
  Creating analysis folder ...Ok        .\...\2020-08-20 S00798
  Creating subfolders ...     Ok        .\...\2020-08-20 S00798\_RAW, \_REDUCED et




Running AstroMain (3.27.3)              2020-08-20 23:44  (Local)


New Live Session                        2020-08-20 23:44  (Local)
  Session ID:                 Ok        798               (Live)
  Session Name:               Ok        2020-08-20 S00798 (Session)

  Targets Database Transfer   Ok        0001-01-01 00:00  (Local) Last Database Transfer To Observatory
  Focus Profiles:             Ok        Profile Start No: 0
  Focus Runs:                 Ok        Focus Start No:   0
  Initialise Session Data..   Ok
  Stopping CCDSoft            Ok
  Setting Autosave Number     Ok        798001
  Restarting CCDSoft
  Creating Camera object...   Ok        CCDsoft.Camera
  Creating Autoguider object..Ok        CCDsoft.Camera
  Creating Folder object..    Ok        CCDSoft.Folder
  AutoSave Start Num...       Ok        798001
  Setting AutoSave Folder...  Ok        .\New\2020-08-20 S00798

  Data Info 1                 Ok        ObservatoryMode = 3 , SessionState = 13
  Data Info 2                 Ok        ObservatoryMode = 3 , SessionState = 13
  Select Services..           Ok
  Start Services..

Start Observatory Services              2020-08-20 23:44  (Local)
  Observatory Monitor:        Ok        Started already
  Dome Monitor:               Ok        Started already
  TempMonitor:                Ok        Started already
  Weather Station:            Ok        Started already
  Cloud Sensor:               Ok        Started already
  Scorecard:                  Ok        Started already
  PowerBox Switch:            Ok        Started already    (Pegasus Powerbox Switch)
  PowerBox Env:               Ok        Started already    (Pegasus Astro Environment)
  PowerBox Foc2:              Ok        Started already    (Pegasus UPB Focuser)
  DeviceHub Dome (COM14):     Ok        Started already    (ASCOM.Pulsar_Observatories_Dome.Dome)
  DeviceHub Telescope (COM7): Ok        Started            (MeadeLX200GPS.Telescope)
  TelePosition:               Ok        Started
  TelePosition Listener:      Ok        Started
  PHD2 Client                 Ok        Started            (Profile:ZWO ASI178MC)
  PHD2 Equipment              Ok (4)    Started            (Camera:ZWO ASI178MC, Mount:DeviceHub -> LX200GPS/R (ASCOM))
  SharpCap Client             Ok        Started            (IP: 127.0.0.1 Port: 4002)
  SharpCap Server             Ok        Started            (2020-08-20 S00798)
  Observatory Manager:        Ok        Started already
  Focuser 1:                  Ok        Started already    (Optec TCF-S)
  ObsEnv                      Ok        Started already

  Notify ShCap Session        Ok        2020-08-20 S00798
  Checking ASCOM Scope..      Ok
  Turn Off Tracking..         Ok        Telescope Tracking is OFF
  Setting Fully Automated..

Observatory Mode                        2020-08-20 23:46  (Local)
  Setting Mode...             Ok        Fully-Automated

Session Pending                         2020-08-20 23:46  (Local)
  NightDate:                  Ok        2020-08-20        (NightDate)

Session Initiating                      2020-08-20 23:46  (Local)
  NightDate:                  Ok        2020-08-20        (NightDate)
  Import Observing Plan...

Create Observing Plan                   2020-08-20 23:46  (Local)
  Request Observing Plan...   Ok
  Generate Night Plan...      Ok        Schedule Builder has completed
  Selecting Plan...           Ok        2020-08-20   V1   BEST PLAN   (Plan ID: 531)
  Retrieving Targets ...      Ok        18 Targets.
  Reading Start Time...       Ok        2020-08-20 23:57  (Scheduled StartTime, Local)

Session Starting                        2020-08-20 23:47  (Local)
  Session:                    Ok        2020-08-20        (NightDate)

Setting Up Session                      2020-08-20 23:47  (Local)
  Checking Session            Ok        Session (2020-08-20 S00798) is already active

Connect Camera                          2020-08-20 23:47  (Local)
  Connecting camera...        Ok
  Temperature Regulation...   Ok
  Temperature Set Point...    Ok        -10 °C
  TempMonitor:                Ok        Started already

Connect Telescope                       2020-08-20 23:47  (Local)
  Establishing link...        Ok
  Telescope (TeleApi)...      Ok        ASCOM.DeviceHub.Telescope
  Telescope Coords...         Ok        Az:  180.1         Alt: 2.5 ASCOM
  Telescope Coords...         Ok        Az:  180.1         Alt: 2.7 TheSky6
  Local Sidereal Time...      Ok        LST: 20 38 29.182
  Telescope Coords...         Ok        RA:  20 37 53.000, Dec: -30 28 25.00 (Current Epoch) ASCOM
  Telescope Coords...         Ok        RA:  20 37 56.713, Dec: -29 55 58.38 (Current Epoch)
  Telescope Coords...         Ok        RA:  20 36 40.697, Dec: -30 00 18.75 (J2000)
  Guide Rate...               Ok        Guide Rate 0.90

  Turn Off Tracking..         Ok        Telescope Tracking is OFF

Connect PHD2 Guiding Software           2020-08-20 23:47  (Local)
  - Profile                   Yes       ZWO ASI178MC         (ID: 1)
  - Camera                    Yes       ZWO ASI178MC         (Connected)
  - Mount                     Yes       DeviceHub -> LX200GP (Connected)
  - Aux Mount                 No
  - Calibration               Yes
  - Binning & Pixel Scale     Ok        1, 1.03132 arc sec/px

Session Equilibration                   2020-08-20 23:47  (Local)
  Now                         Info      2020-08-20 23:47  (  -9 mins )
  Expected Shutter Opening    Info      2020-08-20 23:47  (  -9 mins )
  Expected Equilbrat'n Start  Info      2020-08-20 23:48  (  -8 mins )
  Expected Run Start          Info      2020-08-20 23:51  (  -6 mins )
  Expected Near-Zenith Foc1   Info      2020-08-20 23:52  (  -5 mins )
  Expected Near-Zenith Foc2   Info      Not selected
  Expected Queue Start        Info      2020-08-20 23:55  (  -2 mins )
  Plan Queue Start            Info      2020-08-20 23:57  ( On Track )
  Open Dome...                Opening
  Open Dome...                Ok        Dome is open (45s)

  Dome Equilibration:         Started   2020-08-20 23:48  (Local)
    Rotating Dome into wind   Ok        Wind Direction 135°
    Temperatures at 23:48     Open      Amb. 14.3°C, Obs. 15.9°C (+1.6°C), Scope 15.7°C, CCD + 8.9°C (+18.9°C)
    Temperatures at 23:49     Open      Amb. 14.3°C, Obs. 15.9°C (+1.6°C), Scope 15.6°C, CCD + 1.5°C (+11.5°C)
    Temperatures at 23:50     Open      Amb. 14.2°C, Obs. 15.8°C (+1.6°C), Scope 15.6°C, CCD  -3.2°C (+ 6.8°C)
    Temperatures at 23:51     Open      Amb. 14.2°C, Obs. 15.8°C (+1.6°C), Scope 15.6°C, CCD  -6.5°C (+ 3.5°C)
  Dome Equilibration:         Stopped   4.0 mins (4.0 mins total)

Session Running                         2020-08-20 23:52  (Local)
  NightDate:                  Ok        2020-08-20        (NightDate)
  Turn on Dome Slaving...     Ok        Dome Slaving is ON
  Turn On Tracking..          Ok        Telescope Tracking is ON

Take Frame Jobs (Live MODE)             2020-08-20 23:52  (Local)
  Checking Plan...            Ok        2020-08-20   V1   BEST PLAN            (Plan ID= 531)
  Checking Targets...         Ok        18 targets selected
  AutoSave Folder...          Ok        C:\Data\CCD Imaging\New\2020-08-20 S00798
  AutoSave Start Num...       Ok        798001
  Date/Time (TheSky6)...      Ok        2020-08-20 23:52:35 (Local)
                                        2020-08-20 22:52:35 (UT)
  Lat/Long (TheSky6)...       Ok        57 19 09.00 N / 02 00 25.00 W

  CCD Regulation ...          Ok        Regulation is ON (Setpoint: -10.0 °C)
  Checking CCD Temp...        Warning   Temp [-8.5 °C] is 1.5 °C above setpoint
  Last Sequence ID...         Ok        0 (no prior observations for session in database)
  Airmass Cutoff...           Ok        Airmass 3.3

Execute Queue                           2020-08-20 23:52  (Local)
  Execute Job Queue           Info      Starting QsoQueue.ExecuteQueue
  Checking Targets ...        Ok        18 targets selected
  Setting Up RealTime VMA...  Ok        (1.2 Method)
  Checking VMA Folders ...    Ok
  Reading Reference File ...  Ok        ..\Reference\ProjectStars.txt

Remainder of session report log not shown here.

Back to Top
