Notes - Session 836  (2020-11-28)


Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log

Bullet Operational Issues
  - Critical Issues (0),  Major Issues (1),  Minor Issues (1),  Continuous Improvement (2)
Bullet Images from 2020-11-28 >>
Bullet Investigation - Impossibly Large Pointing Error (156P/Russell-LINEAR)


Session Aims & Highlights (2020-11-28)

Main aims -

  1. Targets. Acquire images of a selection of variable stars, nearby stars, comets and deep sky targets as allowed by bright moonlight conditions.
  2. Bug Fixes. Check that bug fixes made since last session haven't upset the program operation and are working where appropriate.

Equipment & Software

Dome position adjusted and resynced from 93.4 to 90.0 deg in order to achieve final park.

Highlights

Summary Plots & Logs

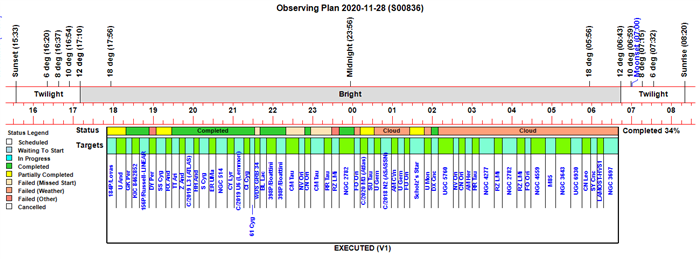

Observing Plan

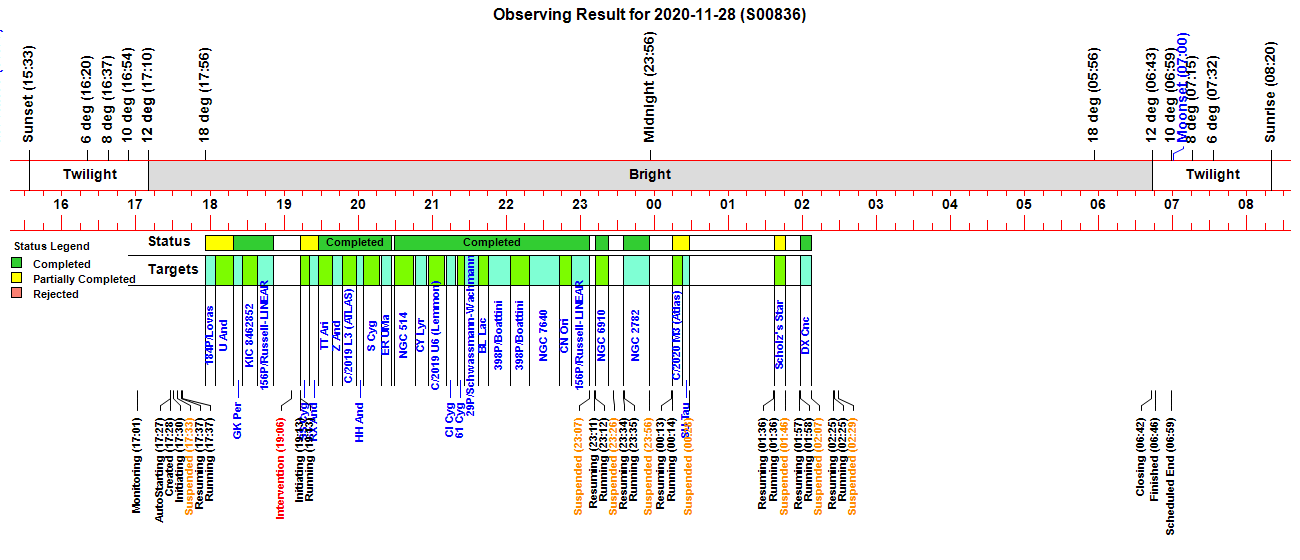

Observing Result

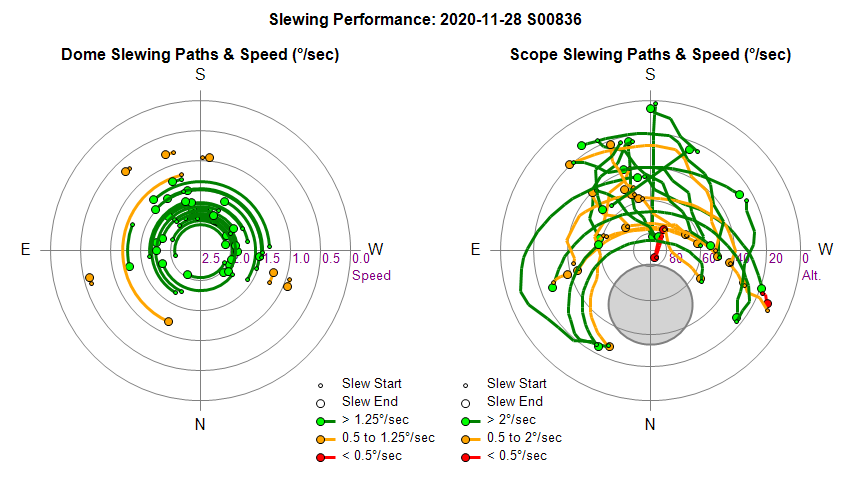

Dome & Scope Slewing Performance

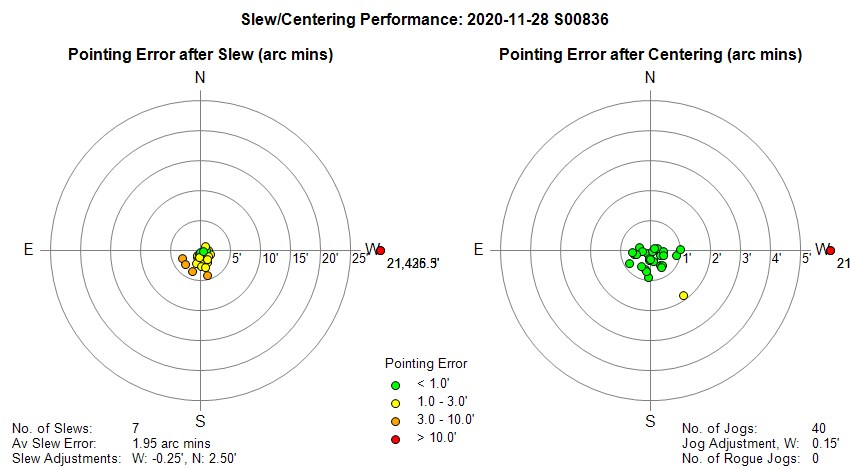

Slew/Centering Performance

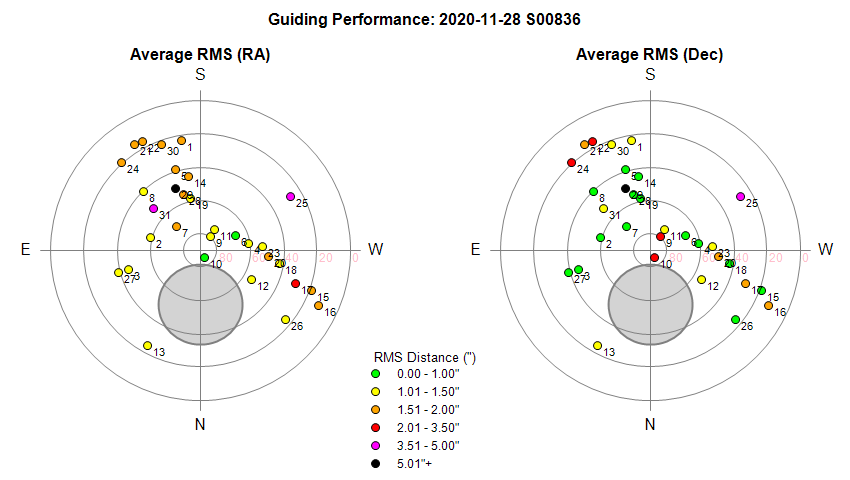

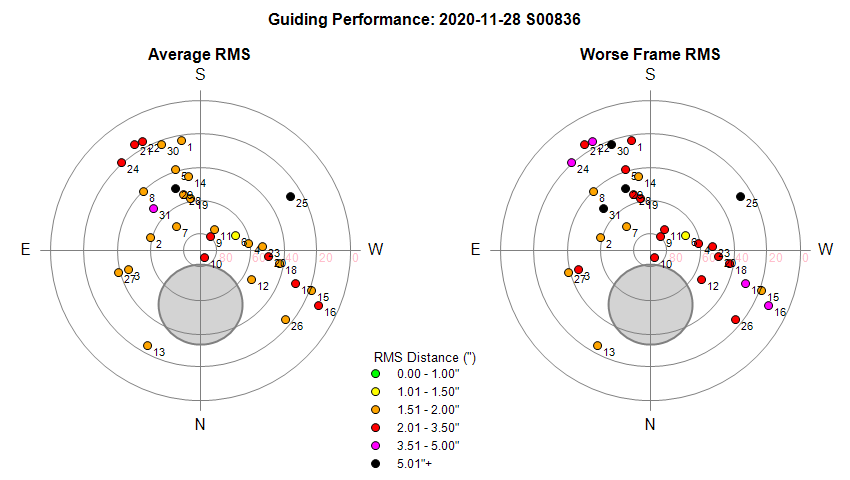

Guiding Performance

Sky Conditions (Locate Frames)
Chart unavailable for this session

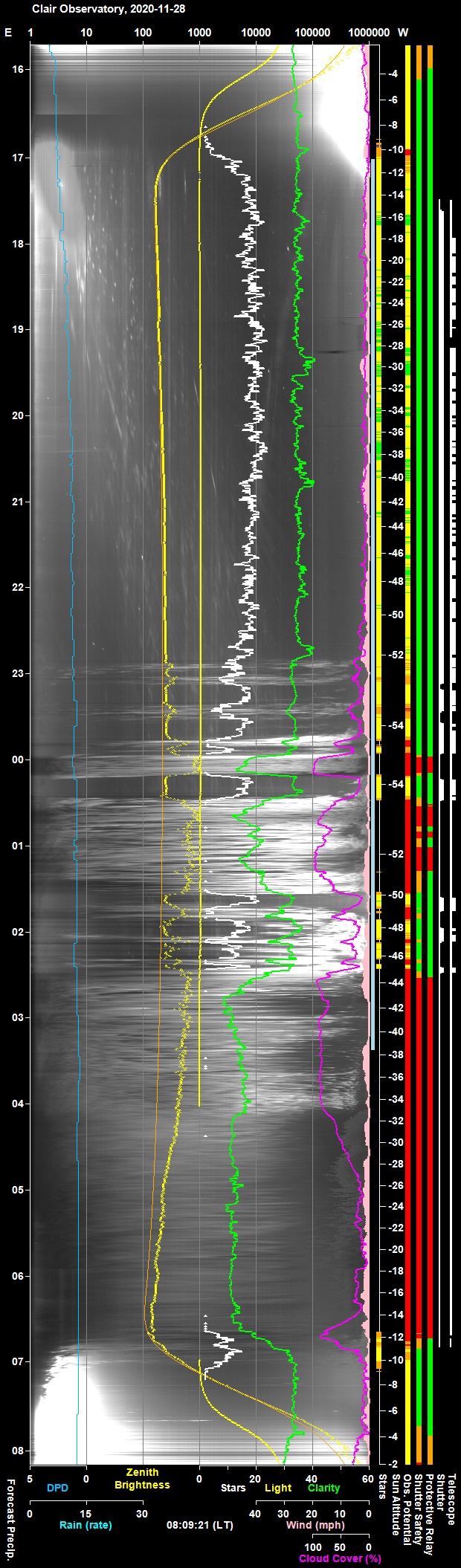

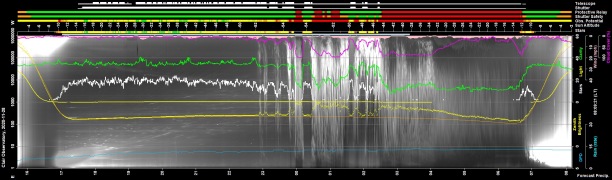

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

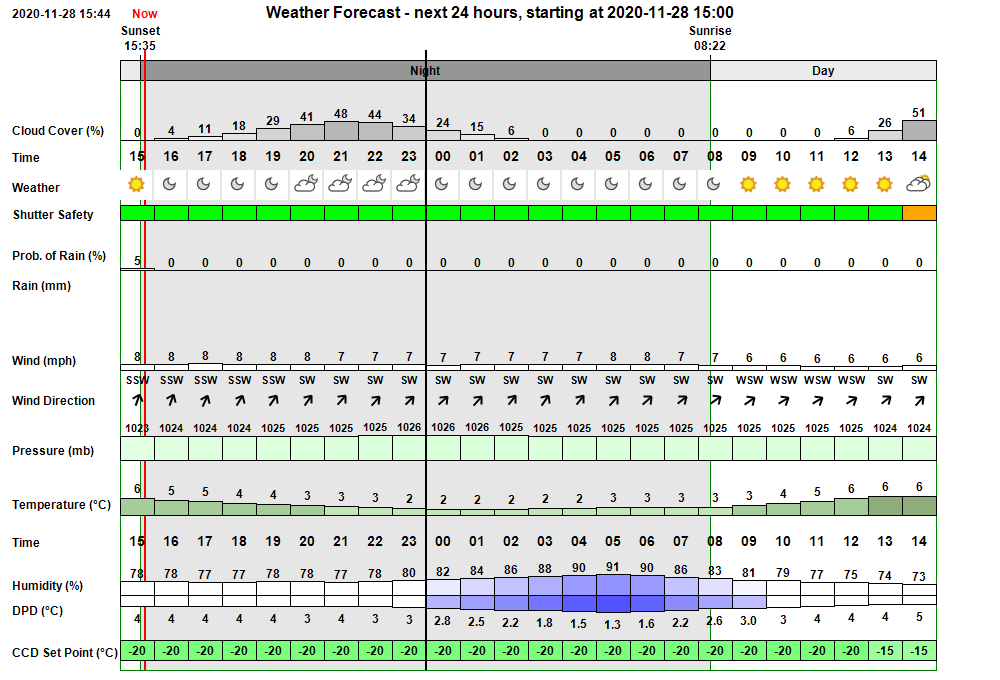

Pre-Session Weather Forecast (API data from darksky.net)
Pre-Session Weather forecast showed clear skies in early evening  (cloud cover 4-18%) and again later in the night (0-15% cloud cover), but with a
more cloudy interval between 20:00 and 01:00 (cloud cover 24 - 48%) with light wind (wind 7 mph) and minimum temperature 2 degC.

In the event skies were clear from from dusk till 23:00, becoming increasing cloudy till sky were completely overcast by 02:30
and remaining that way until dawn. Winds were calm to very light.
Minumum temperature was -2.5 degC in first part of night, rising later as skies clouded over

Session Event Log
Time     Event Detail
17:01:25 Session Monitoring AutoStart monitoring for Live Session opportunity starting between 17:01 & 06:13
17:01:29   AutoStart Delayed Session delayed due to cloud
17:27:46 Session AutoStarting Session autostarting (17:27)
17:28:17 Session Created Live Session Created (2020-11-28 S00836, ImageSaveNum: 836001)
17:28:19   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
17:30:12   Services Started Observatory Services started
17:30:21 Observatory (Auto) Observatory placed in Fully-Automated Mode
17:30:24 Session Pending Session pending (2020-11-28)
17:30:26 Session Initiating Session initiating (2020-11-28)
17:30:28   Plan Requested Observing Plan requested from AstroPlan (1.17.5)
17:32:53   Plan Loaded Observing Plan loaded to queue (2020-11-28 V1 BEST PLAN, Plan ID: 571)
17:33:05   Camera1 Connected SBIG Camera Connected (set point -25°C)
17:33:10   Telescope Connected Telescope Connected (TheSky6)
17:33:21 Session Equilibration Session ready for dome & camera equilibration
17:33:22 Wait On Weather Waiting For acceptable conditions
17:33:24 Session Suspended Session suspended
17:33:26   Dome Closed Dome already closed (closure time is unknown)
17:33:28   Queue Started Observing Queue started (59 targets selected)
17:37:07 Session Resuming Session resuming
17:37:52   Dome Opened Dome opened (opening time 45s)
17:37:54 Session Running Session running
17:37:56   Queue Resumed Observing Queue resumed
17:46:26       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
17:49:56       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
17:51:46       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
17:51:48       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
17:54:04       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide)
17:55:51       Focusing Completed Foc2 AutoFocus Completed (Profile No 2)
17:56:06       Focusing Checked Foc2 Focusing Check Succeeded
17:56:13     Target Started (1/59) Target started (1/59, 184P/Lovas)
18:04:47     Target Completed Target partially completed (1/59, 184P/Lovas)
18:04:49     Target Started (2/59) Target started (2/59, GCVS U And)
18:07:57       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
18:09:38       Focusing Completed Foc1 AutoFocus Completed (Profile No 3)
18:18:51     Target Completed Target partially completed (2/59, GCVS U And)
18:18:53     Target Started (3/59) Target started (3/59, GCVS GK Per)
18:21:11       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
18:23:05       Focusing Completed Foc1 AutoFocus Completed (Profile No 4)
18:26:00     Target Completed Target completed (3/59, GCVS GK Per)
18:26:02     Target Started (4/59) Target started (4/59, KIC 8462852)
18:29:27       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
18:31:28       Focusing Completed Foc1 AutoFocus Completed (Profile No 5)
18:38:39     Target Completed Target completed (4/59, KIC 8462852)
18:38:41     Target Started (5/59) Target started (5/59, 156P/Russell-LINEAR)
18:41:46       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
18:43:58       Focusing Completed Foc1 AutoFocus Completed (Profile No 6)
18:51:38     Target Completed Target completed (5/59, 156P/Russell-LINEAR)
18:51:40     Target Started (6/59) Target started (6/59, GCVS DY Per)
18:53:38     Target Failed Target failed due to slew error (6/59, GCVS DY Per)
18:59:02     Target Started (7/59) Target started (7/59, GCVS SS Cyg)
18:59:47     Target Failed Target failed due to slew error (7/59, GCVS SS Cyg)
19:06:13   Queue Aborted Job Queue aborted
19:12:44   Telescope Connected Telescope Connected (TheSky6)
19:13:03 Observatory (Auto) Observatory placed in Fully-Automated Mode
19:13:06 Session Pending Session pending (2020-11-28)
19:13:08 Session Initiating Session initiating (2020-11-28)
19:13:11   Plan Loaded Observing Plan loaded to queue (2020-11-28 V1 ACTIVE PLAN S836, Plan ID: 571)
19:13:12   Camera1 Connected SBIG Camera Connected (set point -25°C)
19:13:19   Telescope Connected Telescope Connected (TheSky6)
19:13:31 Session Equilibration Session ready for dome & camera equilibration
19:13:33 Session Running Session running
19:13:35   Queue Started Observing Queue started (53 targets selected)
19:13:37     Target Started (7/59) Target started (7/59, GCVS SS Cyg)
19:20:43     Target Completed Target partially completed (7/59, GCVS SS Cyg)
19:20:45     Target Started (8/59) Target started (8/59, GCVS RX And)
19:27:39     Target Completed Target partially completed (8/59, GCVS RX And)
19:27:42     Target Started (9/59) Target started (9/59, GCVS TT Ari)
19:30:26       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
19:32:57       Focusing Completed Foc1 AutoFocus Completed (Profile No 7)
19:39:08     Target Completed Target completed (9/59, GCVS TT Ari)
19:39:10     Target Started (10/59) Target started (10/59, GCVS Z And)
19:41:53       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
19:43:43       Focusing Completed Foc1 AutoFocus Completed (Profile No 8)
19:47:23     Target Completed Target completed (10/59, GCVS Z And)
19:47:26     Target Started (11/59) Target started (11/59, C/2019 L3 (ATLAS))
19:50:03       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
19:51:53       Focusing Completed Foc1 AutoFocus Completed (Profile No 9)
19:58:15     Target Completed Target completed (11/59, C/2019 L3 (ATLAS))
19:58:18     Target Started (12/59) Target started (12/59, GCVS HH And)
20:00:33       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
20:02:21       Focusing Completed Foc1 AutoFocus Completed (Profile No 10)
20:04:02     Target Completed Target completed (12/59, GCVS HH And)
20:04:14     Target Started (13/59) Target started (13/59, GCVS S Cyg)
20:06:44       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
20:08:34       Focusing Completed Foc1 AutoFocus Completed (Profile No 11)
20:18:15     Target Completed Target completed (13/59, GCVS S Cyg)
20:19:03     Target Started (14/59) Target started (14/59, GCVS ER UMa)
20:22:36       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
20:27:19     Target Completed Target completed (14/59, GCVS ER UMa)
20:29:21     Target Started (15/59) Target started (15/59, NGC 514)
20:32:36       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
20:34:37       Focusing Completed Foc1 AutoFocus Completed (Profile No 12)
20:45:27     Target Completed Target completed (15/59, NGC 514)
20:46:43     Target Started (16/59) Target started (16/59, GCVS CY Lyr)
20:50:16       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
20:52:06       Focusing Completed Foc1 AutoFocus Completed (Profile No 13)
20:55:49     Target Completed Target completed (16/59, GCVS CY Lyr)
20:57:01     Target Started (17/59) Target started (17/59, C/2019 U6 (Lemmon))
20:59:50       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:01:44       Focusing Completed Foc1 AutoFocus Completed (Profile No 14)
21:09:34     Target Completed Target completed (17/59, C/2019 U6 (Lemmon))
21:11:27     Target Started (18/59) Target started (18/59, GCVS CI Cyg)
21:13:17       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:15:06       Focusing Completed Foc1 AutoFocus Completed (Profile No 15)
21:18:38     Target Completed Target completed (18/59, GCVS CI Cyg)
21:20:10     Target Started (19/59) Target started (19/59, 61 Cyg)
21:22:42       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:24:28       Focusing Completed Foc1 AutoFocus Completed (Profile No 16)
21:25:48     Target Completed Target completed (19/59, 61 Cyg)
21:25:50     Target Started (20/60) Target started (20/60, 29P/Schwassmann-Wachmann, ToO)
21:28:32       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:31:27       Focusing Completed Foc1 AutoFocus Completed (Profile No 17)
21:37:14     Target Completed Target completed (20/60, 29P/Schwassmann-Wachmann, ToO)
21:37:16     Target Missed (21/60) Target's time slot was missed (21/60, WDS GRB 34)
21:37:18     Target Started (22/60) Target started (22/60, GCVS BL Lac)
21:39:54       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:41:46       Focusing Completed Foc1 AutoFocus Completed (Profile No 18)
21:45:33     Target Completed Target completed (22/60, GCVS BL Lac)
21:45:48     Target Started (23/60) Target started (23/60, 398P/Boattini)
21:52:24       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:54:36       Focusing Completed Foc1 AutoFocus Completed (Profile No 19)
22:03:21     Target Completed Target completed (23/60, 398P/Boattini)
22:03:23     Target Started (24/60) Target started (24/60, 398P/Boattini)
22:08:28       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:10:29       Focusing Completed Foc1 AutoFocus Completed (Profile No 20)
22:18:47     Target Completed Target completed (24/60, 398P/Boattini)
22:18:49     Target Started (25/61) Target started (25/61, NGC 7640, ToO)
22:22:07       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:24:25       Focusing Completed Foc1 AutoFocus Completed (Profile No 21)
22:43:18     Target Completed Target completed (25/61, NGC 7640, ToO)
22:43:20     Target Missed (26/61) Target's time slot was missed (26/61, GCVS CM Tau)
22:43:22     Target Missed (27/61) Target's time slot was missed (27/61, GCVS NV Ori)
22:43:24     Target Started (28/61) Target started (28/61, GCVS CN Ori)
22:47:19       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:49:21       Focusing Completed Foc1 AutoFocus Completed (Profile No 22)
22:52:48     Target Completed Target completed (28/61, GCVS CN Ori)
22:52:51     Target Started (29/62) Target started (29/62, 156P/Russell-LINEAR, ToO)
22:56:45       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
23:04:18   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
23:07:01     Target Completed Target completed (29/62, 156P/Russell-LINEAR, ToO)
23:07:03   Queue Paused Queue paused for Session Suspension
23:07:06 Session Suspended Session suspended
23:07:54   Dome Closed Dome closed (closing time 50s)
23:11:24 Session Resuming Session resuming
23:12:09   Dome Opened Dome opened (opening time 45s)
23:12:11 Session Running Session running
23:12:13   Queue Resumed Observing Queue resumed
23:12:15     Target Started (30/63) Target started (30/63, NGC 6910, ToO)
23:22:36     Target Completed Target completed (30/63, NGC 6910, ToO)
23:22:38     Target Missed (31/63) Target's time slot was missed (31/63, GCVS CM Tau)
23:22:40     Target Missed (32/63) Target's time slot was missed (32/63, GCVS RR Tau)
23:23:06     Target Started (33/63) Target started (33/63, GCVS RZ LMi)
23:24:15   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
23:26:52     Target Failed Target failed due to cloud (33/63, GCVS RZ LMi)
23:26:54   Queue Paused Queue paused for Session Suspension
23:26:56 Session Suspended Session suspended
23:27:45   Dome Closed Dome closed (closing time 50s)
23:33:24     Target Cancelled Target cancelled (33/63, GCVS RZ LMi) due to other condition
23:34:36 Session Resuming Session resuming
23:35:21   Dome Opened Dome opened (opening time 45s)
23:35:23 Session Running Session running
23:35:25   Queue Resumed Observing Queue resumed
23:35:27     Target Started (34/63) Target started (34/63, NGC 2782)
23:37:59       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:40:02       Focusing Completed Foc1 AutoFocus Completed (Profile No 23)
23:46:57   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
23:56:00     Target Completed Target completed (34/63, NGC 2782)
23:56:02   Queue Paused Queue paused for Session Suspension
23:56:03 Session Suspended Session suspended
23:56:48   Dome Closed Dome closed (closing time 45s)
00:01:49     Target Cancelled Target cancelled (35/64, GCVS BL Lac, ToO) due to cloud
00:05:59     Target Cancelled Target cancelled (36/64, GCVS FO Ori) due to cloud
00:13:50 Session Resuming Session resuming
00:14:35   Dome Opened Dome opened (opening time 45s)
00:14:37 Session Running Session running
00:14:39     Target Started (37/64) Target started (37/64, C/2020 M3 (Atlas))
00:14:41   Queue Resumed Observing Queue resumed
00:22:23     Target Completed Target partially completed (37/64, C/2020 M3 (Atlas))
00:22:26     Target Started (38/64) Target started (38/64, GCVS SU Tau)
00:25:23       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:26:17       Focusing Failed Foc1 focusing failed - star lost
00:28:06   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (reducing clarity)
00:28:08 Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Shutter)
00:28:10   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud)
00:28:39     Target Aborted (38/64) Target aborted (38/64, GCVS SU Tau) due to cloud
00:28:42   Queue Paused Queue paused for Session Suspension
00:28:44 Session Suspended Session suspended
00:29:26   Dome Closed Dome closed (closing time 45s)
00:36:25     Target Cancelled Target cancelled (39/64, GCVS U Gem) due to cloud
00:52:40     Target Cancelled Target cancelled (40/64, C/2018 N2 (ASASSN)) due to cloud
01:02:28     Target Cancelled Target cancelled (41/64, GCVS AM CVn) due to cloud
01:12:01     Target Cancelled Target cancelled (42/64, GCVS U Gem) due to cloud
01:20:56     Target Cancelled Target cancelled (43/64, GCVS FU Ori) due to cloud
01:36:12 Session Resuming Session resuming
01:36:57   Dome Opened Dome opened (opening time 45s)
01:36:59 Session Running Session running
01:37:01     Target Started (44/64) Target started (44/64, Scholz's Star)
01:37:03   Queue Resumed Observing Queue resumed
01:43:58   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
01:46:03     Target Completed Target partially completed (44/64, Scholz's Star)
01:46:05   Queue Paused Queue paused for Session Suspension
01:46:07 Session Suspended Session suspended
01:46:53   Dome Closed Dome closed (closing time 49s)
01:52:31     Target Cancelled Target cancelled (45/64, GCVS U Mon) due to cloud
01:57:24 Session Resuming Session resuming
01:58:09   Dome Opened Dome opened (opening time 45s)
01:58:11 Session Running Session running
01:58:13   Queue Resumed Observing Queue resumed
01:58:15     Target Started (46/64) Target started (46/64, GCVS DX Cnc)
02:00:07       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:02:31       Focusing Completed Foc1 AutoFocus Completed (Profile No 25)
02:06:25   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (reducing clarity)
02:07:32     Target Completed Target completed (46/64, GCVS DX Cnc)
02:07:34   Queue Paused Queue paused for Session Suspension
02:07:37 Session Suspended Session suspended
02:08:25   Dome Closed Dome closed (closing time 50s)
02:23:20     Target Cancelled Target cancelled (47/64, UGC 5760) due to cloud
02:25:07 Session Resuming Session resuming
02:25:52   Dome Opened Dome opened (opening time 45s)
02:25:54 Session Running Session running
02:25:56   Queue Resumed Observing Queue resumed
02:26:19     Target Started (48/64) Target started (48/64, GCVS NV Ori)
02:28:07   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
02:29:03     Target Failed Target failed due to cloud (48/64, GCVS NV Ori)
02:29:05   Queue Paused Queue paused for Session Suspension
02:29:07 Session Suspended Session suspended
02:29:52   Dome Closed Dome closed (closing time 45s)
02:34:43     Target Cancelled Target cancelled (48/64, GCVS NV Ori) due to cloud
02:43:44     Target Cancelled Target cancelled (49/64, GCVS CN Ori) due to cloud
02:54:00     Target Cancelled Target cancelled (50/64, GCVS AM Her) due to cloud
03:05:04     Target Cancelled Target cancelled (51/64, GCVS RR Tau) due to cloud
03:25:11     Target Cancelled Target cancelled (52/64, NGC 4277) due to cloud
03:38:29     Target Cancelled Target cancelled (53/64, GCVS RZ LMi) due to cloud
03:49:14   Camera1 SetPoint -20°C SBIG Camera Set Point Temperature Updated (new set point -20°C)
03:59:21     Target Cancelled Target cancelled (54/64, NGC 2782) due to cloud
04:12:39     Target Cancelled Target cancelled (55/64, GCVS RZ LMi) due to cloud
04:22:52     Target Cancelled Target cancelled (56/64, GCVS FO Ori) due to cloud
04:42:29     Target Cancelled Target cancelled (57/64, NGC 4559) due to cloud
04:59:46     Target Cancelled Target cancelled (58/64, M85) due to cloud
05:19:53     Target Cancelled Target cancelled (59/64, NGC 3643) due to cloud
05:38:15     Target Cancelled Target cancelled (60/64, UGC 6930) due to cloud
05:53:07     Target Cancelled Target cancelled (61/64, GCVS CN Leo) due to cloud
06:02:21     Target Cancelled Target cancelled (62/64, GCVS SY Cnc) due to cloud
06:12:32     Target Cancelled Target cancelled (63/64, LAMOST-HVS1) due to cloud
06:42:14     Target Cancelled Target cancelled (64/64, NGC 3697) due to cloud
06:42:19   Queue Completed Job Queue completed
06:42:20 Session Closing Session closing
06:42:25   Dome Closed Dome already closed (closed at 02:29, closing time 45s)
06:43:40   Dome Parked Dome parked (parking time 67s), Az: 90.0 deg
06:44:17   Telescope Parked Telescope parked (parking time 28s)
06:44:47   Telescope Switched Off Telescope Power has been switched off via UPB Switch.
06:45:37   Services Stopped Night Services stopped
06:45:39 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files)
06:46:01 Session Finished Session Finished


Session Alerts
Time     Alert Detail
19:49:00 Dome Discrepency Difference between Telescope Az and Dome Az is > 8 deg (C/2019 L3 (ATLAS))


Back to Top


Operational Issues (2020-11-28 S836)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Continuous Improvement

[ Prev | Next ]

Back to Top


Investigation - Impossibly Large Pointing Error (156P/Russell-LINEAR)

Issue: Problem with centering Target 5/59 (156P/Russell-LINEAR, pointing error 21,435 arc min poiting error), causing RA Slew Adjustment to be set to a very large number, which then caused subsequent targets to fail slew: Target 6/59 (DY Per) and Target 7/59 (SS Cyg, first attempt) until the problem was noticed and a user intervention made.

Description:  Slew File shows very large numbers 21,435.51,  435.622. Centering Graph shows Av Slew Error after 5 slews of 4288.59 arc min,  Slew Adj W 3062.52' .   Resolved in session by a) going to manual and confirming that telescope coordinates were sound by taking a CCD Image and checking that it links ok with coordinates very close to those of the telescope) b) using back door facility to reset slew adjustments,  allowing a second attempt at imaging SS Cyg and subsequent targets to work ok.

Later in the session the 156P/Russell-LINEAR was reattempted as target 29/62 by submitting it as a ToO   Again the same problem happened again and the slew adjustment was immediately reset to prevent it affecting other targets.  So the problem is repeatable with the same target and therefore it must relate to something specific about the 156P/Russel (Linear) target or its coordinates.  Issue is categorised as major because without spotting the problem by remote monitoring and intervening the problem would have impacted some 55 targets.An alert needs to be issued if a high slew adjustment numbers are generated, and the slew adjustment reset to 0,0 or the number it had before the target with problematic slew/pointing error calculation.

In-Session Fix
After acknowledging the error (by clicking on dialog window's Ok button), the session automatically resumed without further incident.

Investigation:

Looking at first case,  the slew to Target Coords  (RA: 23 59 41.731, Dec: +06 58 00.48 (J2000)) was normal.  Locate Frame 1 linked ok (UCA/USNO,  Stars 8), but the reported pointing error was an impossibily large number  21,435.52 arc mins (W: 21,435.52', N: 11.28')  given the range of sky searched by the linking operation.

Looking at second case,  the slew to Target Coords  (RA= 23 59 58.279 Dec= +07 05 40.91) was normal, and although first locate image failed to link (too few stars), the 2nd locate image eventually linked ok (UCA/USNO* , 6 stars). Again the reported pointing error was an impossibily large number 21,426.29 arc mins (W: 21,426.28', N: 17.41')  given the range of sky searched by the linking operation.

The pointing error in both cases corresponds to some  357 deg suggesting that the error has somehow been wrapped by nearly a full circle.

Coordinates show that the target coordinates of the comet where very close to RA 0 / RA 24

Object Coords (2000)  Data  | RA= 23 59 58.279 Dec= +07 05 40.91 | Epoch 2000
Object Coords         Data  | RA= 00 01 01.959 Dec= +07 12 38.29 | Epoch Current

Slew Adjustments      Data  | 2.62 arc min (W= -0.23', N= 2.61')

Object                Data  | RA= 23 59 58.395 Dec= +07 05 44.07 | Epoch 2000
 Image                Data  | RA= 00 00 31.884 Dec= +07 23 05.46 | Epoch 2000

Examing in the logfile shows that by one method a pointing error of  19.2 arc mins was calculated and logged
But subsequently in CalculatePointingError an exception was captured :

22:54:47.11 | Get Image.RaDectoXY    Fail | Exception getting XY coordinates in CalculatePointingError
22:54:47.11 | Get Image.RaDectoXY    Fail | Exception: Error: command failed.    Error code = 206 (0xce).

After outputting the target and image coordinates

22:54:47.11 |  Target Coords (2000)  Data | RA= 23 59 58.279 Dec= +07 05 40.91 | Epoch 2000
22:54:47.11 |  Image Coords (2000)   Data | RA= 00 00 31.884 Dec= +07 23 05.46 | Epoch 2000

the very large pointing error was output

22:54:47.11 | Pointing Check (Image) Data | Object Offset:             [W: 21,426.28', N: 17.41']  21,426.29 arc mins
22:54:47.11 | Pointing Check (Image) Data | Pointing Error:            [W: 21,426.28', N: 17.41']  21,426.29 arc mins
22:54:47.11 | Pointing Check (Image) Data | Correction Required: [W: -21,426.28', N: -17.41'] 21,426.29 arc mins

Although jog adjustment wasn't actually performed ("Jog aborted as jog amount is > 2 deg"), the pointing error had already been incorporated into a revised slew adjustment that throws of the slewing to subsequent targets>

22:54:47.44 |   Get SlewAdj          Data | Previous Slew Adjustments: [W= -0.23', N= 2.61' ]
22:54:47.46 |   Update SlewWAdj      Ok   | Updated Slew Adjustments: [W= -1,071.55', N= 1.74', nSlews= 18 ]

In this second cases were there were 18 prior slews (rarther than just 4)  the affect of the single anomalous pointing error is more smeared out but still leads to updating the slew adjustment to a value of 17.86 degs !

Conclusion:
There is a design flaw in OB.CalculatePointingError() routine, where if Ra2 (RA Image) and Ra1 (RA Target) fall either side of RA=0 then
large negative dErrorW and large postive dErrorW values can be produced.

dJogWcorrection = (Ra2 - Ra1) * 15 * 60
dErrorW = -dJogWcorrection * Math.Cos(Dec1 / DR)

This does occur that often, but the consequence is large as demonstrated by the issue discovered in this session

Fix:
The OB.CalculatePointingError() routine was fixed to correct 'RA error' value where RA Target and RA Image fall either side of RA 0 (either adding to 24 to the difference or subtracting the difference from 24).

' Calculate West Correction (in rotational arc mins), correcting for cases where Ra1 and Ra2 fall eitherside of the Ra=0 line
' -------------------------
  If Ra2 - Ra1 < -12 Then
    dJogWcorrection = ((Ra2 - Ra1) + 24) * 15 * 60
  ElseIf Ra2 - Ra1 > 12 Then
    dJogWcorrection = (24 - (Ra2 - Ra1)) * 15 * 60
  Else
    dJogWcorrection = (Ra2 - Ra1) * 15 * 60
  End If

  dErrorW = -dJogWcorrection * Math.Cos(Dec1 / DR)

As an extra precaution pointing errors in excess of 20 arc mins are excluded from the calculation of Av. Slew Adjustments values.

With these corrections it is not necessary to include an alert.

Image Fixed  2020-11-29 (AstroMain 3.32.11)

Back to Top
