Notes - Session 837  (2020-12-02)


Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log

Bullet Operational Issues
  - Critical Issues (0),  Major Issues (0),  Minor Issues (3),  Continuous Improvement (5)
Bullet Images from 2020-12-02 >>

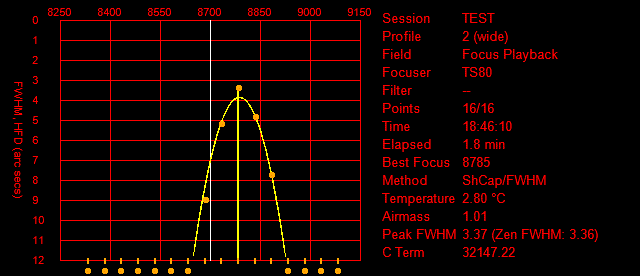

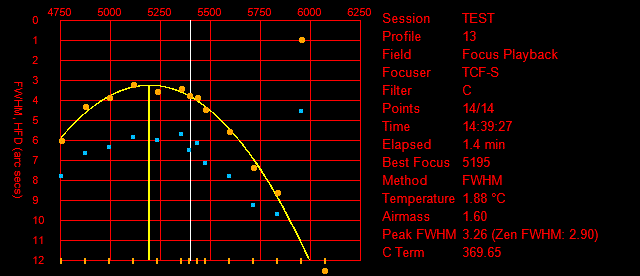

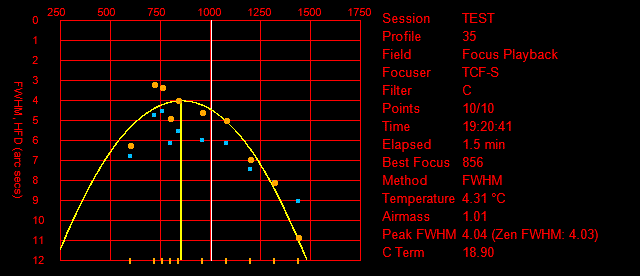

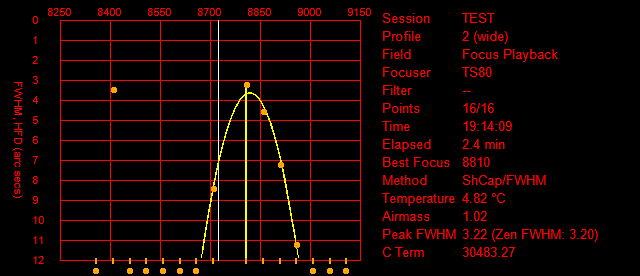

Bullet Review - Anomalous points during autofocusing


Session Aims & Highlights (2020-12-02)

Main aims -

  1. Targets. Acquire images of a selection of variable stars, nearby stars, comets and deep sky targets as allowed by bright moonlight conditions.
  2. AstroSN. Test out first release of new AstroSN application for automating the import of newly discovered supernova and other interesting transient targets. Only targets that are potentially accessible using the observatory telescope and meet certain brightness criteria are imported.

Equipment & Software

Dome position adjusted and resynced from 93.4 to 90.0 deg in order to achieve final park.

Highlights

Summary Plots & Logs

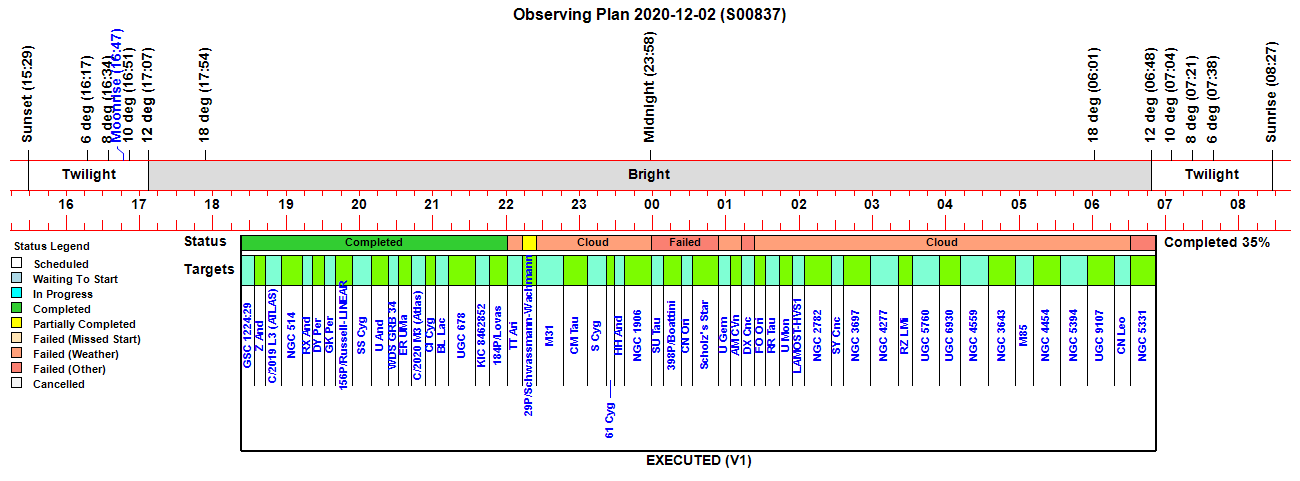

Observing Plan

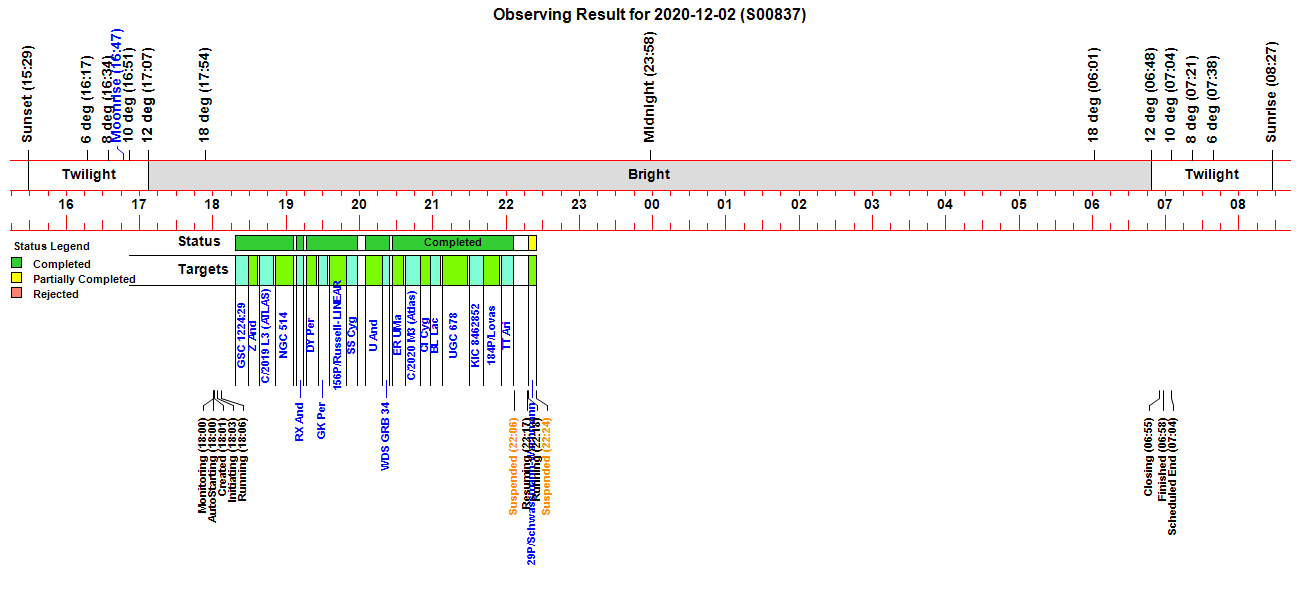

Observing Result

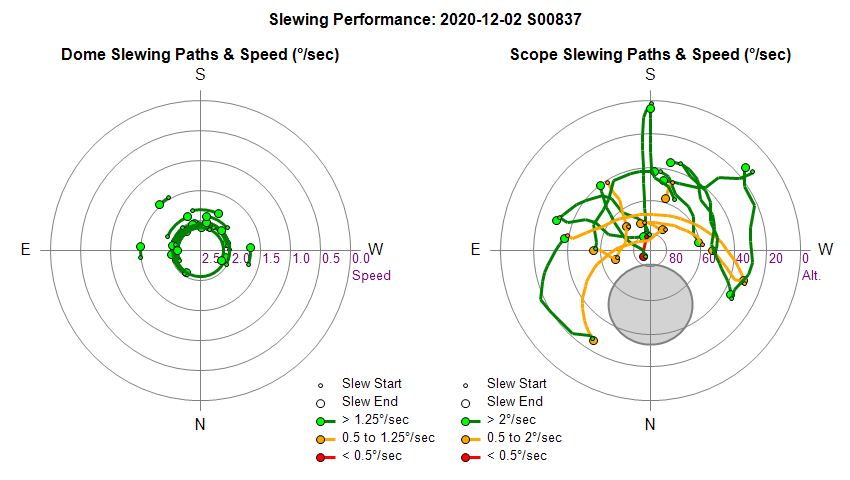

Dome & Scope Slewing Performance

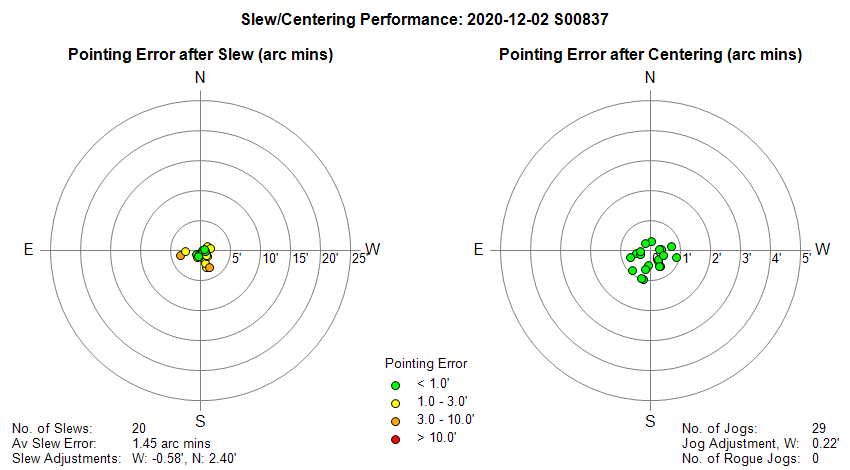

Slew/Centering Performance

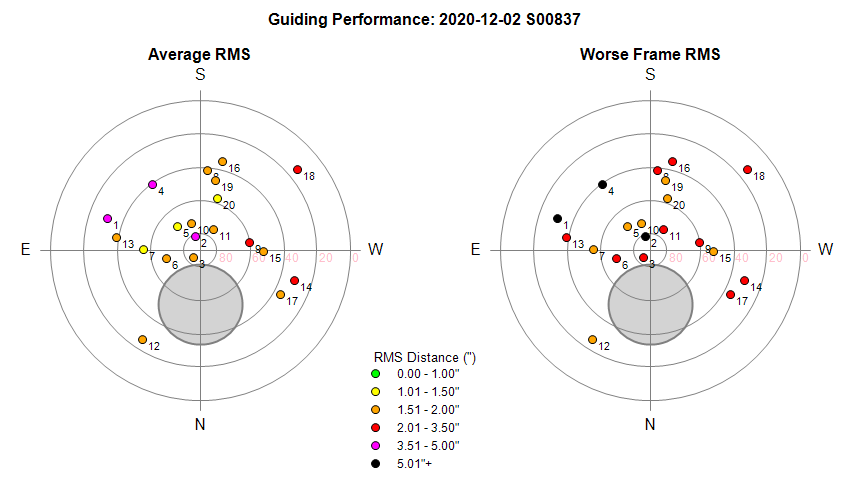

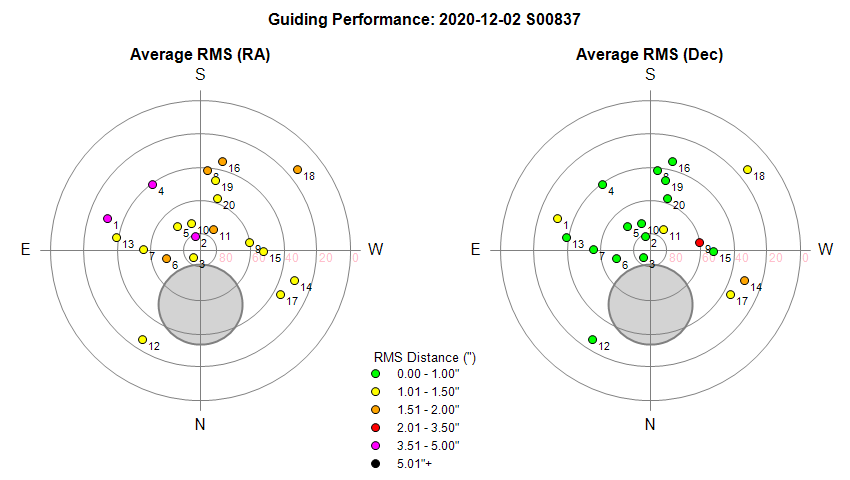

Guiding Performance

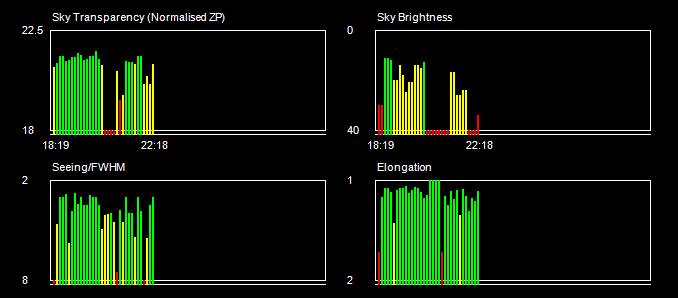

Sky Conditions (Locate Frames)

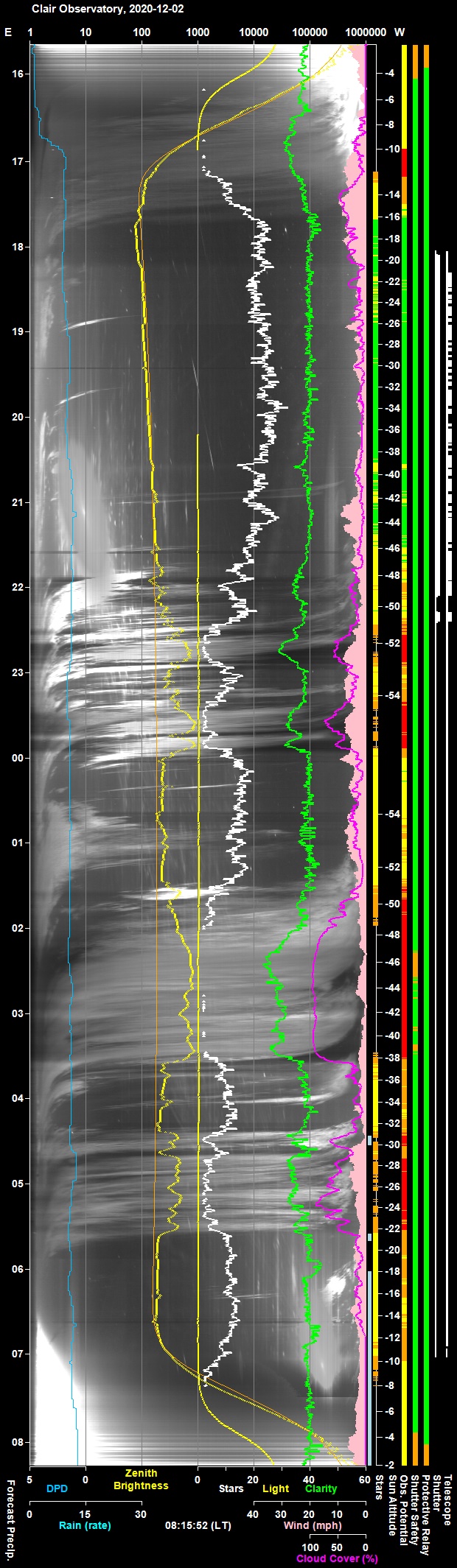

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

Pre-Session Weather Forecast (API data from darksky.net)
Pre-Session Weather forecast showed clear skies in early evening  (cloud cover 4-18%) and again later in the night (0-15% cloud cover), but with a
more cloudy interval between 20:00 and 01:00 (cloud cover 24 - 48%) with light wind (wind 7 mph) and minimum temperature 2 degC.

In the event skies were clear from from dusk till 23:00, becoming increasing cloudy till sky were completely overcast by 02:30
and remaining that way until dawn. Winds were calm to very light.
Minumum temperature was -2.5 degC in first part of night, rising later as skies clouded over

Session Event Log
Time     Event Detail
18:00:47 Session Monitoring AutoStart monitoring for Live Session opportunity starting between 18:00 & 06:18
18:00:48 Session AutoStarting Session autostarting (18:00)
18:01:31   Camera1 Connected SBIG Camera Connected (set point -25°C)
18:01:33 Session Created Live Session Created (2020-12-02 S00837, ImageSaveNum: 837001)
18:01:35   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
18:03:28   Services Started Observatory Services started
18:03:37 Observatory (Auto) Observatory placed in Fully-Automated Mode
18:03:38 Session Pending Session pending (2020-12-02)
18:03:40 Session Initiating Session initiating (2020-12-02)
18:03:42   Plan Requested Observing Plan requested from AstroPlan (1.18)
18:04:19   Plan Loaded Observing Plan loaded to queue (2020-12-02 V1 BEST PLAN, Plan ID: 572)
18:04:22   Camera1 Connected SBIG Camera Connected (set point -20°C)
18:04:26   Telescope Connected Telescope Connected (TheSky6)
18:04:36 Session Equilibration Session ready for dome & camera equilibration
18:06:23   Dome Opened Dome opened (opening time 45s)
18:06:38 Session Running Session running
18:06:41   Queue Started Observing Queue started (52 targets selected)

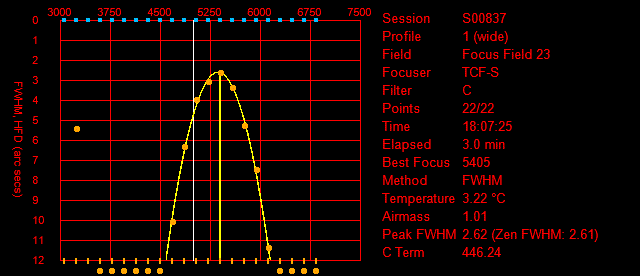

18:07:41       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
18:10:47       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
18:12:37       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
18:12:39       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
18:14:55       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide)

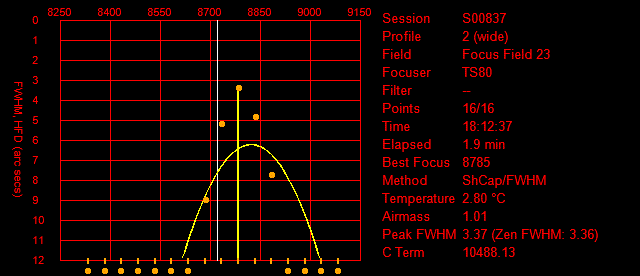

18:16:41       Focusing Completed Foc2 AutoFocus Completed (Profile No 2)
18:16:57       Focusing Checked Foc2 Focusing Check Succeeded
18:18:38     Target Started (1/52) Target started (1/52, GSC 1224:29)
18:21:48       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
18:29:00     Target Completed Target completed (1/52, GSC 1224:29)
18:29:20     Target Started (2/52) Target started (2/52, GCVS Z And)
18:32:04       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
18:33:58       Focusing Completed Foc1 AutoFocus Completed (Profile No 3)
18:37:41     Target Completed Target completed (2/52, GCVS Z And)
18:38:09     Target Started (3/52) Target started (3/52, C/2019 L3 (ATLAS))
18:40:58       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
18:42:52       Focusing Completed Foc1 AutoFocus Completed (Profile No 4)
18:49:28     Target Completed Target completed (3/52, C/2019 L3 (ATLAS))
18:50:50     Target Started (4/52) Target started (4/52, NGC 514)
18:53:46       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
18:55:46       Focusing Completed Foc1 AutoFocus Completed (Profile No 5)
19:06:20     Target Completed Target completed (4/52, NGC 514)
19:08:12     Target Started (5/52) Target started (5/52, GCVS RX And)
19:10:02       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
19:11:53       Focusing Completed Foc1 AutoFocus Completed (Profile No 6)
19:14:30     Target Completed Target completed (5/52, GCVS RX And)
19:16:32     Target Started (6/52) Target started (6/52, GCVS DY Per)
19:18:43       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
19:20:35       Focusing Completed Foc1 AutoFocus Completed (Profile No 7)
19:25:01     Target Completed Target completed (6/52, GCVS DY Per)
19:26:40     Target Started (7/52) Target started (7/52, GCVS GK Per)
19:29:14       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
19:31:12       Focusing Completed Foc1 AutoFocus Completed (Profile No 8)
19:34:07     Target Completed Target completed (7/52, GCVS GK Per)
19:35:21     Target Started (8/52) Target started (8/52, 156P/Russell-LINEAR)
19:38:46       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
19:40:49       Focusing Completed Foc1 AutoFocus Completed (Profile No 9)
19:49:30     Target Completed Target completed (8/52, 156P/Russell-LINEAR)
19:49:32     Target Started (9/52) Target started (9/52, GCVS SS Cyg)
19:52:39       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
19:54:29       Focusing Completed Foc1 AutoFocus Completed (Profile No 10)
19:58:09     Target Completed Target completed (9/52, GCVS SS Cyg)
20:04:47     Target Started (10/52) Target started (10/52, GCVS U And)
20:07:07       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
20:08:45       Focusing Completed Foc1 AutoFocus Completed (Profile No 11)
20:18:28     Target Completed Target completed (10/52, GCVS U And)
20:18:53     Target Started (11/52) Target started (11/52, WDS GRB 34)
20:20:51       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
20:22:41       Focusing Completed Foc1 AutoFocus Completed (Profile No 12)
20:24:25     Target Completed Target completed (11/52, WDS GRB 34)
20:27:08     Target Started (12/52) Target started (12/52, GCVS ER UMa)
20:31:09       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
20:36:17     Target Completed Target completed (12/52, GCVS ER UMa)
20:37:26     Target Started (13/52) Target started (13/52, C/2020 M3 (Atlas))
20:42:00       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)

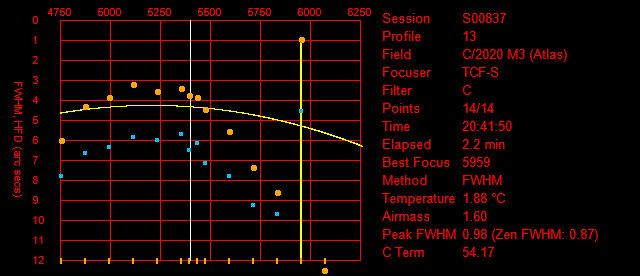

20:44:12       Focusing Failed Foc1 focusing failed - failed QC check (Ambiguous)
20:49:39     Target Completed Target completed (13/52, C/2020 M3 (Atlas))
20:49:41     Target Started (14/52) Target started (14/52, GCVS CI Cyg)
20:52:57       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
20:54:47       Focusing Completed Foc1 AutoFocus Completed (Profile No 14)
20:58:24     Target Completed Target completed (14/52, GCVS CI Cyg)
20:58:26     Target Started (15/52) Target started (15/52, GCVS BL Lac)
21:01:05       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:02:56       Focusing Completed Foc1 AutoFocus Completed (Profile No 15)
21:06:27     Target Completed Target completed (15/52, GCVS BL Lac)
21:07:54     Target Started (16/52) Target started (16/52, UGC 678)
21:11:13       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
21:28:38     Target Completed Target completed (16/52, UGC 678)
21:29:46     Target Started (17/52) Target started (17/52, KIC 8462852)
21:32:47       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:34:47       Focusing Completed Foc1 AutoFocus Completed (Profile No 16)
21:41:55     Target Completed Target completed (17/52, KIC 8462852)
21:41:57     Target Started (18/52) Target started (18/52, 184P/Lovas)
21:45:32       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S)
21:48:18   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
21:52:29   SoftSuspend Cancelled Soft Suspend is cancelled due to Improved Conditions
21:55:28     Target Completed Target completed (18/52, 184P/Lovas)
21:56:16     Target Started (19/52) Target started (19/52, GCVS TT Ari)
21:58:27       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S)
21:58:44   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
22:06:29     Target Completed Target completed (19/52, GCVS TT Ari)
22:06:31   Queue Paused Queue paused for Session Suspension
22:06:33 Session Suspended Session suspended
22:07:20   Dome Closed Dome closed (closing time 49s)
22:07:27     Target Cancelled Target cancelled (19/52, GCVS TT Ari) due to cloud
22:17:21 Session Resuming Session resuming
22:18:06   Dome Opened Dome opened (opening time 45s)
22:18:08 Session Running Session running
22:18:10   Queue Resumed Observing Queue resumed
22:18:12     Target Started (20/52) Target started (20/52, 29P/Schwassmann-Wachmann)
22:24:02   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
22:24:47     Target Completed Target partially completed (20/52, 29P/Schwassmann-Wachmann)
22:24:49   Queue Paused Queue paused for Session Suspension
22:24:52 Session Suspended Session suspended
22:25:42   Dome Closed Dome closed (closing time 50s)
22:39:04     Target Cancelled Target cancelled (21/52, M31) due to cloud
23:01:04     Target Cancelled Target cancelled (22/52, GCVS CM Tau) due to cloud
23:14:53     Target Cancelled Target cancelled (23/52, GCVS S Cyg) due to cloud
23:23:55     Target Cancelled Target cancelled (24/52, 61 Cyg) due to cloud
23:32:07     Target Cancelled Target cancelled (25/52, GCVS HH And) due to cloud
23:51:04     Target Cancelled Target cancelled (26/52, NGC 1906) due to cloud
00:03:30     Target Cancelled Target cancelled (27/52, GCVS SU Tau) due to other condition
00:17:30     Target Cancelled Target cancelled (28/52, 398P/Boattini) due to other condition
00:27:06     Target Cancelled Target cancelled (29/52, GCVS CN Ori) due to other condition
00:46:52     Target Cancelled Target cancelled (30/52, Scholz's Star) due to other condition
00:57:40     Target Cancelled Target cancelled (31/52, GCVS U Gem) due to cloud
01:07:13     Target Cancelled Target cancelled (32/52, GCVS AM CVn) due to cloud
01:18:30     Target Cancelled Target cancelled (33/52, GCVS DX Cnc) due to other condition
01:27:23     Target Cancelled Target cancelled (34/52, GCVS FO Ori) due to cloud
01:37:57     Target Cancelled Target cancelled (35/52, GCVS RR Tau) due to cloud
01:48:40     Target Cancelled Target cancelled (36/52, GCVS U Mon) due to cloud
01:55:11   Camera1 SetPoint -25°C SBIG Camera Set Point Temperature Updated (new set point -25°C)
01:58:51     Target Cancelled Target cancelled (37/52, LAMOST-HVS1) due to cloud
02:18:33     Target Cancelled Target cancelled (38/52, NGC 2782) due to cloud
02:30:27     Target Cancelled Target cancelled (39/52, GCVS SY Cnc) due to cloud
02:50:34     Target Cancelled Target cancelled (40/52, NGC 3697) due to cloud
03:12:56     Target Cancelled Target cancelled (41/52, NGC 4277) due to cloud
03:26:14     Target Cancelled Target cancelled (42/52, GCVS RZ LMi) due to cloud
03:47:06     Target Cancelled Target cancelled (43/52, UGC 5760) due to cloud
04:05:28     Target Cancelled Target cancelled (44/52, UGC 6930) due to cloud
04:26:50     Target Cancelled Target cancelled (45/52, NGC 4559) due to cloud
04:49:12     Target Cancelled Target cancelled (46/52, NGC 3643) due to cloud
05:06:29     Target Cancelled Target cancelled (47/52, M85) due to cloud
05:26:06     Target Cancelled Target cancelled (48/52, NGC 4454) due to cloud
05:47:58     Target Cancelled Target cancelled (49/52, NGC 5394) due to cloud
06:09:50     Target Cancelled Target cancelled (50/52, UGC 9107) due to cloud
06:25:43     Target Cancelled Target cancelled (51/52, GCVS CN Leo) due to cloud
06:54:54     Target Cancelled Target cancelled (52/52, NGC 5331) due to other condition
06:54:59   Queue Completed Job Queue completed
06:55:03 Session Closing Session closing
06:55:08   Dome Closed Dome already closed (closed at 22:25, closing time 50s)
06:56:11   Dome Parked Dome parked (parking time 54s), Az: 90.1 deg
06:56:46   Telescope Parked Telescope parked (parking time 30s)
06:57:17   Telescope Switched Off Telescope Power has been switched off via UPB Switch.
06:58:05   Services Stopped Night Services stopped
06:58:07 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files)
06:58:24 Session Finished Session Finished

Session Alerts
Time     Alert Detail
18:39:54 Dome Discrepency Difference between Telescope Az and Dome Az is > 8 deg (C/2019 L3 (ATLAS))

Back to Top


Operational Issues (2020-12-02 S837)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Continuous Improvement

[ Prev | Next ]

Back to Top


Review - Anomalous points during autofocusing

Issue: Anomalous points can occasionally during occur during autofocusing can throw-off the determination of best focus position.  Session S837 contained at least 2 examples of this.   Whilst this problem has been seen before and AstroMain's autofocusing code modified so that the worse consequences of such rogue points (such as badly out of focus images),  focusing can sometimes be not as optimal as it could.

Description:  See graphs & tables below

Wide Search Focus Profile 1
Profile has successfully picked point of best focus at 5405, but there is rogue point sitting at 3245
which had much lower FWHM (5.42") than would be expected based on FWHM of its adjacent points (25 - 40")
In this case focusing wasn't affected.

  Measure Focus Profile (Foc1, wide)    2020-12-02 18:07  (Local)
| Image                     | Result    | DRO   | FWHM  | HFD   | Temp  | Max   | Mag    | SN   | Elong |
| Taking 0.7s box (C)  1/22   Ok        |  6845 | 31.22 |     - |   3.2 |  1841 |  -8.96 |    - |  1.02 |
| Taking 0.7s box (C)  2/22   Ok        |  6665 | 20.90 |     - |   3.2 |  2051 |  -9.51 |    - |  1.00 |
| Taking 0.7s box (C)  3/22   Ok        |  6485 | 17.47 |     - |   3.2 |  2776 | -10.06 |    - |  1.03 |
| Taking 0.7s box (C)  4/22   Ok        |  6305 | 14.54 |     - |   3.2 |  3754 | -10.54 |    - |  1.03 |
| Taking 0.7s box (C)  5/22   Ok        |  6125 | 11.38 |     - |   3.2 |  4718 | -11.34 |    - |  1.02 |
| Taking 0.7s box (C)  6/22   Ok        |  5945 |  7.50 |     - |   3.2 |  7576 | -12.22 |    - |  1.05 |
| Taking 0.7s box (C)  7/22   Ok        |  5765 |  5.26 |     - |   3.2 | 11936 | -12.77 |    - |  1.03 |
| Taking 0.7s box (C)  8/22   Ok        |  5585 |  3.40 |     - |   3.2 | 18985 | -13.17 |    - |  1.04 |
| Taking 0.7s box (C)  9/22   Ok        |  5405 |  2.62 |     - |   3.2 | 27882 | -13.37 |    - |  1.05 |
| Taking 0.7s box (C) 10/22   Ok        |  5225 |  3.08 |     - |   3.2 | 24500 | -13.31 |    - |  1.08 |
| Taking 0.7s box (C) 11/22   Ok        |  5045 |  3.99 |     - |   3.2 | 16917 | -13.08 |    - |  1.06 |
| Taking 0.7s box (C) 12/22   Ok        |  4865 |  6.35 |     - |   3.2 |  9903 | -12.51 |    - |  1.04 |
| Taking 0.7s box (C) 13/22   Ok        |  4685 | 10.05 |     - |   3.2 |  5253 | -11.74 |    - |  1.04 |
| Taking 0.7s box (C) 14/22   Ok        |  4505 | 14.41 |     - |   3.2 |  3754 | -10.97 |    - |  1.04 |
| Taking 0.7s box (C) 15/22   Ok        |  4325 | 20.59 |     - |   3.2 |  2532 | -10.42 |    - |  1.04 |
| Taking 0.7s box (C) 16/22   Ok        |  4145 | 24.52 |     - |   3.2 |  2165 |  -9.77 |    - |  1.04 |
| Taking 0.7s box (C) 17/22   Ok        |  3965 | 29.68 |     - |   3.2 |  1615 |  -9.15 |    - |  1.02 |
| Taking 0.7s box (C) 18/22   Ok        |  3785 | 36.96 |     - |   3.2 |  1283 |  -8.54 |    - |  1.04 |
| Taking 0.7s box (C) 19/22   Ok        |  3605 | 40.42 |     - |   3.2 |  1207 |  -4.89 |    - |  1.04 |
| Taking 0.7s box (C) 20/22   Ok        |  3425 |     - |     - |   3.2 |   946 |      - |    - |     - |
| Taking 0.7s box (C) 21/22   Ok        |  3245 | 24.68 |     - |   3.2 |   854 |  -9.22 |    - |  2.28 |
| Taking 0.7s box (C) 21/22*  Ok        |  3245 |  5.42 |     - |   3.2 |   832 |  -8.17 |    - |  2.08 |
| Taking 0.7s box (C) 22/22   Ok        |  3065 |     - |     - |   3.2 |   701 |      - |    - |     - |


Wide Search Focus Profile 2
Profile has successfully picked point of best focus at 8785 based on peak FWHM.
Although the quadratic curve fit is not used for determining Best Focus Position during
Wide Search Focusing, the curve is shown on graphs for info and could be used in future as part
of QC process.   In this case the quadratic curve is being thrown-off by anomalous points
 with FWHM of 13 to 15 at either end of the profile range (these have very low max pixel value
and can be excluded with a cutoff set at a 10% of hightest max pixel  seen in all frames)
  Measure Focus Profile (Foc2, wide)    2020-12-02 18:12  (Local)
| Image                     | Result    | DRO   | FWHM  | HFD   | Temp  | Max   | Mag    | SN   | Elong |
| Taking ShCap Frame   1/16   Ok        |  9085 | 13.62 |     - |   2.8 |   820 |  -8.82 |   14 |  2.75 |
| Taking ShCap Frame   2/16   Ok        |  9035 | 14.40 |     - |   2.8 |   948 |  -9.37 |   23 |  1.35 |
| Taking ShCap Frame   3/16   Ok        |  8985 | 23.43 |     - |   2.8 |  1260 | -10.11 |   43 |  1.12 |
| Taking ShCap Frame   4/16   Ok        |  8935 | 13.02 |     - |   2.8 |  2336 | -10.92 |   82 |  1.11 |
| Taking ShCap Frame   5/16   Ok        |  8885 |  7.73 |     - |   2.8 |  4992 | -11.70 |  148 |  1.06 |
| Taking ShCap Frame   6/16   Ok        |  8835 |  4.82 |     - |   2.8 | 11188 | -12.45 |  246 |  1.08 |
| Taking ShCap Frame   7/16   Ok        |  8785 |  3.37 |     - |   2.8 | 17568 | -12.77 |  298 |  1.07 |
| Taking ShCap Frame   8/16   Ok        |  8735 |  5.18 |     - |   2.8 |  9152 | -12.33 |  227 |  1.08 |
| Taking ShCap Frame   9/16   Ok        |  8685 |  8.97 |     - |   2.8 |  3704 | -11.51 |  129 |  1.04 |
| Taking ShCap Frame  10/16   Ok        |  8635 | 13.16 |     - |   2.8 |  2932 | -10.82 |   77 |  1.08 |
| Taking ShCap Frame  11/16   Ok        |  8585 | 24.02 |     - |   2.8 |  1576 | -10.07 |   42 |  1.07 |
| Taking ShCap Frame  12/16   Ok        |  8535 | 36.37 |     - |   2.8 |  1300 |  -9.47 |   25 |  1.06 |
| Taking ShCap Frame  13/16   Ok        |  8485 | 40.51 |     - |   2.8 |   992 |  -8.86 |   14 |  1.09 |
| Taking ShCap Frame  14/16   Ok        |  8435 | 27.99 |     - |   2.8 |   840 |  -9.25 |   20 |  2.60 |
| Taking ShCap Frame  15/16   Ok        |  8385 | 14.22 |     - |   2.8 |   692 |  -8.81 |   14 |  2.54 |
| Taking ShCap Frame  16/16   Ok        |  8335 | 14.62 |     - |   2.8 |   712 |  -8.85 |   15 |  3.94 |

Standard Search Focus Profile 13
Autofocusing routine picked position of best focus at 5969 based on anomalous frame
with ?cosmic ray strike with FWHM of 0.98".
based on peak FWHM point instead of the usual quadratic curve fitted value
Visually the actual best focus is clearly at around 5200-5250
The QC process fortunately rejected the autofocus position and
returned focus to the previous best focus at ~ 5380
In this case focusing wasn't as well optimised as it could
   Image Image
  Measure Focus Profile (Foc1)          2020-12-02 20:42  (Local)
| Image                     | Result    | DRO   | FWHM  | HFD   | Temp  | Max   | Mag    | SN   | Elong |
| Taking 2s box (C)  1/14     Ok        |  6079 | 14.57 | 13.59 |   1.9 |   796 |  -9.12 |    - |  1.82 |
| Taking 2s box (C)  1/14*    Ok        |  6079 | 11.58 | 14.08 |   1.9 |   791 |  -9.17 |    - |  1.99 |
| Taking 2s box (C)  1/14*    Ok        |  6079 | 13.47 | 13.75 |   1.9 |   767 |  -9.15 |    - |  1.77 |
| Taking 2s box (C)  2/14     Ok        |  5959 |  0.98 |  4.58 |   1.9 |  4680 | -10.02 |    - |  1.08 |
| Taking 2s box (C)  3/14     Ok        |  5839 |  8.61 |  9.73 |   1.9 |   962 |  -9.55 |    - |  1.11 |
| Taking 2s box (C)  4/14     Ok        |  5719 |  7.38 |  9.25 |   1.9 |   998 |  -9.76 |    - |  1.04 |

| Taking 2s box (C)  5/14     Ok        |  5599 |  5.55 |  7.80 |   1.9 |  1328 | -10.15 |    - |  1.04 |
| Taking 2s box (C)  6/14     Ok        |  5479 |  4.46 |  7.16 |   1.9 |  1597 | -10.45 |    - |  1.11 |
| Taking 2s box (C)  7/14     Ok        |  5439 |  3.88 |  6.19 |   1.9 |  1981 | -10.68 |    - |  1.10 |
| Taking 2s box (C)  8/14     Ok        |  5399 |  3.78 |  6.52 |   1.9 |  1951 | -10.62 |    - |  1.07 |
| Taking 2s box (C)  9/14     Ok        |  5359 |  3.41 |  5.71 |   1.9 |  2204 | -10.71 |    - |  1.04 |
| Taking 2s box (C) 10/14     Ok        |  5239 |  3.57 |  6.03 |   1.9 |  2096 | -10.66 |    - |  1.07 |
| Taking 2s box (C) 11/14     Ok        |  5119 |  3.24 |  5.87 |   1.9 |  2400 | -10.79 |    - |  1.08 |
| Taking 2s box (C) 12/14     Ok        |  4999 |  3.87 |  6.35 |   1.9 |  1858 | -10.62 |    - |  1.04 |
| Taking 2s box (C) 13/14     Ok        |  4879 |  4.34 |  6.68 |   1.9 |  1757 | -10.52 |    - |  1.04 |
| Taking 2s box (C) 14/14     Ok        |  4759 |  6.02 |  7.80 |   1.9 |  1245 | -10.10 |    - |  1.05 |


Fixes and other actions:
Fixes made to Foc1 and Foc2 Autofocusing in AstroMain 3.32.14 to exclude faint points at extremes of profile having max pixel value < 10% of peak max pixel value,  potential peak FWHM that are offset from weighted best focus position by more than 250 steps (Foc1) or more than 150 steps (Foc2) or are particularly sharp points (FWHM < 1.2") that are likely to be cosmic ray strikes rather than stars.
Image Fixed 2020-12-04 (AstroMain 3.32.14)

Create a means by which a focus profile dataset can be easily read in AstroMain in order to replay a profile under simulator conditions in order to test tweaks to the autofocus code. At the moment practice/sim profiles are hard coded and can only be changed by modifying the code.
Image Done 2020-12-08 (AstroMain 3.32.14)

Foc2 Wide Search Focus profile (S831)
Original Profile with 'poor'  Quadratic curve - AstroMain 3.32.6  (2020-11-21)
Profile has picked point of best focus at 8810,
but the rogue point at 8410 had very similar FWHM and was thus very close to being 'picked'.

Profile using revised QC check - AstroMain 3.32.14 (2020-12-08)
Points at extreme of range with very low max pixel value are excluded from calculation of quadratic curve


Foc1 Standard Search Focus profile (S831)
Original Profile unable to determine best focus position - AstroMain 3.32.6  (2020-11-21)

Profile using revised QC check - AstroMain 3.32.14 (2020-12-08)
Reasonable Quadratic curve fit to Best Focus Position


Foc2 Wide Search Focus Profile 2 (S837)
Original Profile with 'poor'  Quadratic curve - AstroMain 3.32.12  (2020-12-02)
 Quadratic curve is being thrown-off by anomalous points with FWHM of 13 to 15 at either
end of the profile range (these have very low max pixel value and can be excluded with
a cutoff set at a 10% of hightest max pixel  seen in all frames)

Profile using revised QC check - AstroMain 3.32.14 (2020-12-08)
Points at extreme of range with very low max pixel value are excluded from calculation of quadratic curve


Foc1 Standard Search Focus Profile 13 (S837)
Original Profile affected by cosmic ray strike - AstroMain 3.32.12 (2020-12-02)
Cosmic ray strike in focus frame at 5969 ( FWHM of 0.98" ) was incorrectly taken as best focus

Profile using revised QC check - AstroMain 3.32.14 (2020-12-08)
Cosmic ray frame result has been ignored


Back to Top
