Notes - Session 842 (2020-12-22)


Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log

Bullet Operational Issues
  - Critical Issues (0),  Major Issues (0),  Minor Issues (0),  Continuous Improvement (2)
Bullet Images from 2020-12-22 >>
2020-12-26
Bullet Pulsar Dome - New Home Magnet

Session Aims & Highlights (2020-12-22)

Main aims

  1. Targets. Acquire images of a selection of variable stars, nearby stars, comets and deep sky targets as allowed by conditions.
  2. Shutter. Ensure observcatoryu shutter is operating correctly following recent repair and design improvment.

Equipment & Software

Highlights

Summary Plots & Logs

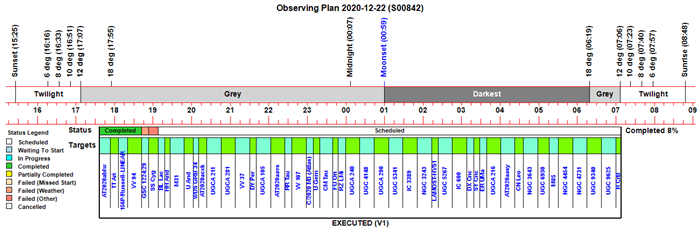

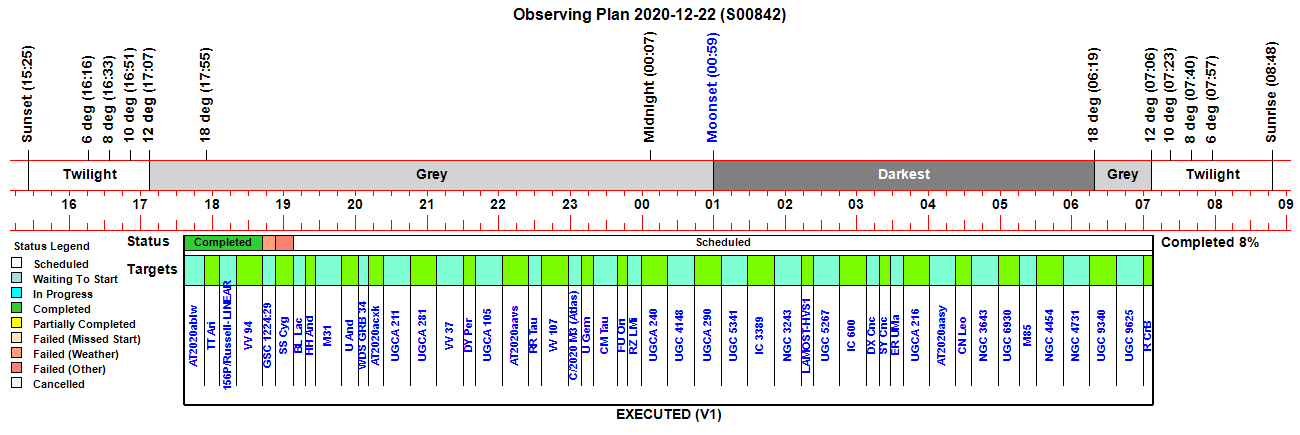

Observing Plan

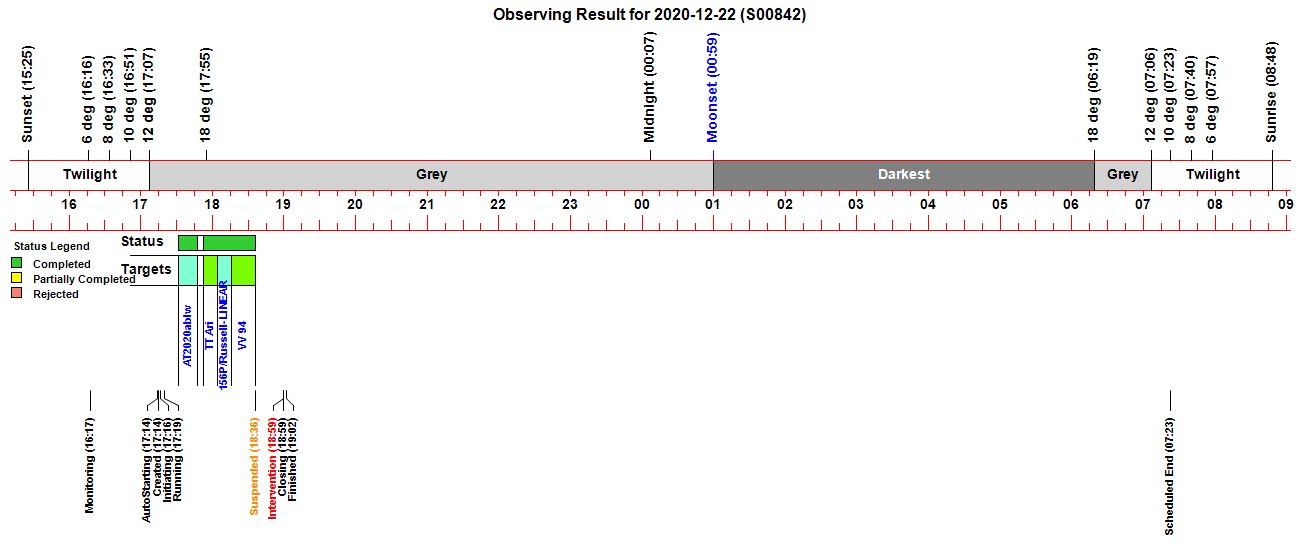

Observing Result

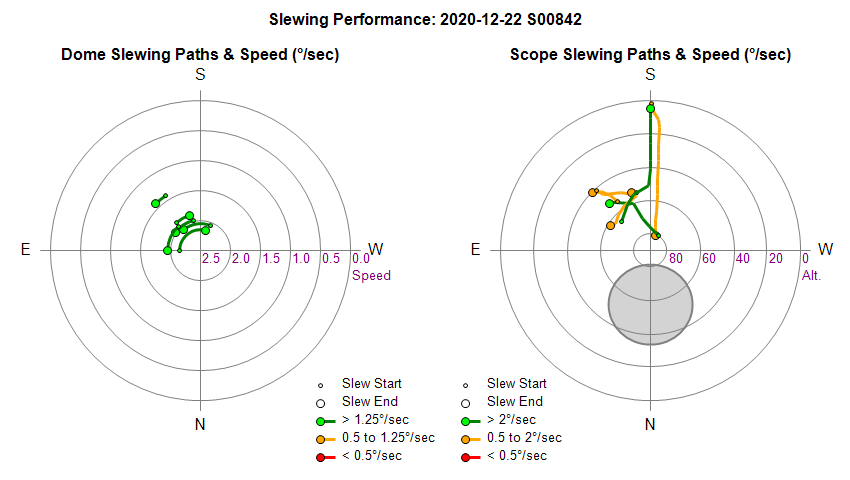

Dome & Scope Slewing Performance

Slew/Centering Performance

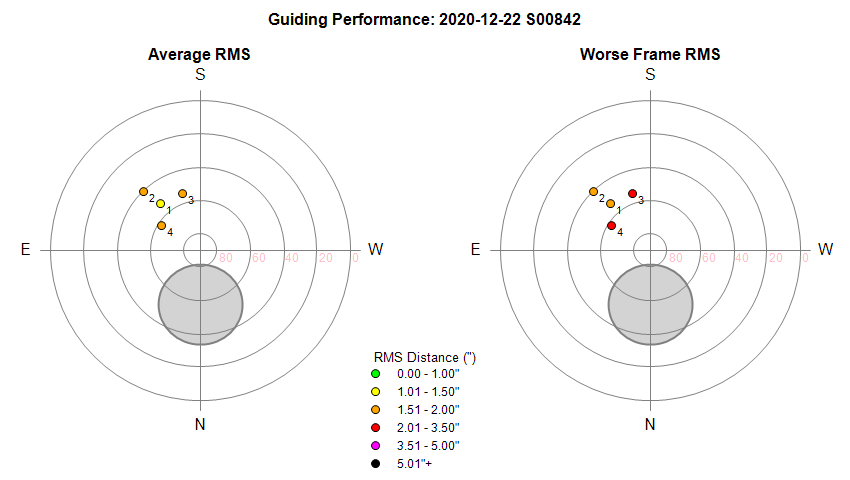

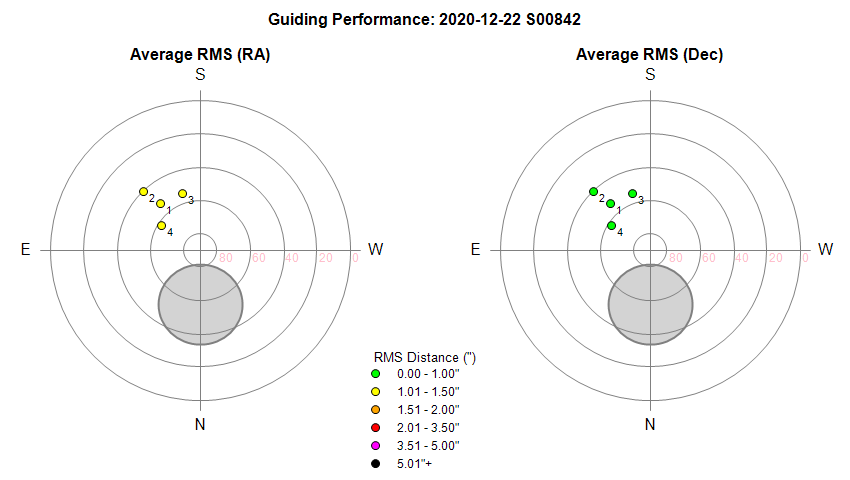

Guiding Performance

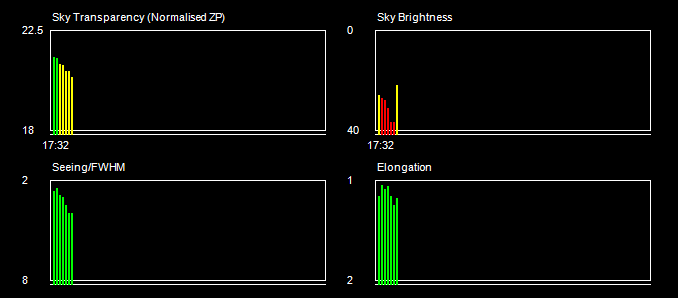

Sky Conditions (Locate Frames)
Chart unavailable for this session

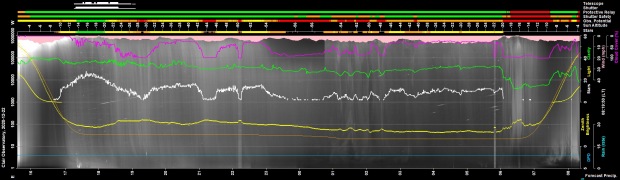

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

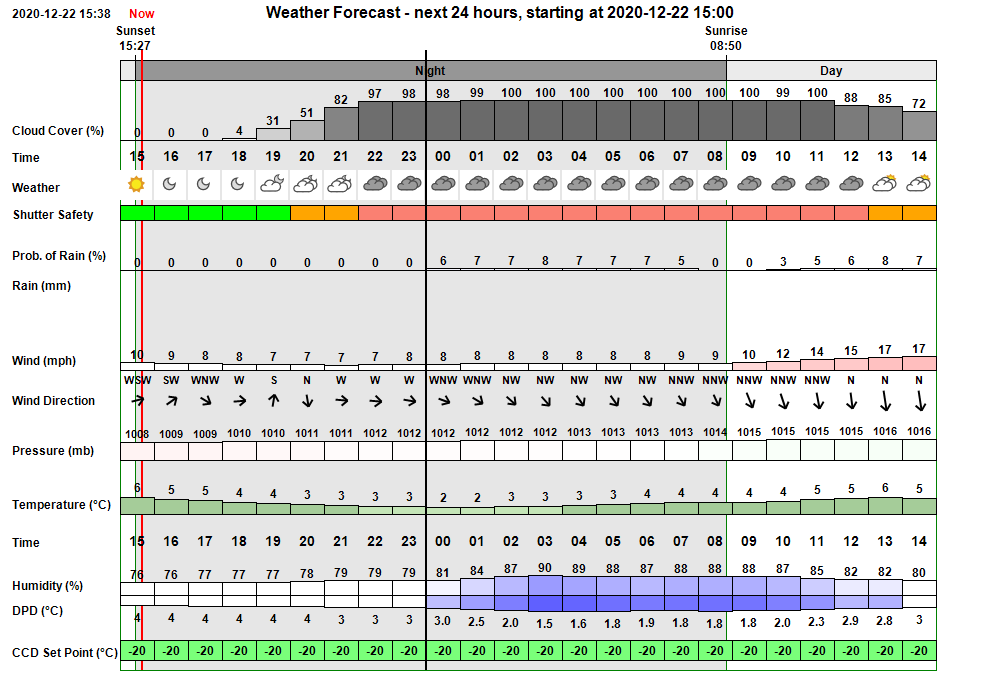

Pre-Session Weather Forecast (API data from darksky.net)
Pre-Session Weather forecast showed clear skies in first part of evening (0-31% cloud cover), with skies clouding over
 from 20:00 to 22:00 (51-97% cloud cover) becoming totally overcast from 23:00 onwards (98-100% cloud cover)
Minimum tempertaure of 2 degC and light wind (7-8 mph).

In the event skies there were sufficiently clear for observing in first part of evening, but skies had poor transparancy.
Skies poor for remainder of night. Minumum Temperature of 1 degC. Winds initially calm-light, but increasing to light by dawn.

Session Event Log
Time     Event Detail
16:17:37 Session Monitoring AutoStart monitoring for Live Session opportunity starting between 16:37 & 06:36
16:37:38   AutoStart Waiting AutoStart waiting till earliest start time at 16:37
16:37:39   AutoStart Delayed Session delayed due to cloud
17:14:06 Session AutoStarting Session autostarting (17:14)
17:14:43 Session Created Live Session Created (2020-12-22 S00842, ImageSaveNum: 842001)
17:14:45   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
17:16:35   Services Started Observatory Services started
17:16:43 Observatory (Auto) Observatory placed in Fully-Automated Mode
17:16:47 Session Pending Session pending (2020-12-22)
17:16:49 Session Initiating Session initiating (2020-12-22)
17:16:51   Plan Requested Observing Plan requested from AstroPlan (1.18)
17:17:17   Plan Loaded Observing Plan loaded to queue (2020-12-22 V1 BEST PLAN, Plan ID: 577)
17:17:29   Camera1 Connected SBIG Camera Connected (set point -20°C)
17:17:35   Telescope Connected Telescope Connected (TheSky6)
17:17:51 Session Equilibration Session ready for dome & camera equilibration
17:19:36   Dome Opened Dome opened (opening time 45s)
17:19:51 Session Running Session running
17:19:54   Queue Started Observing Queue started (48 targets selected)
17:21:10       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
17:24:14       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
17:26:00       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
17:26:02       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
17:28:10       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide)
17:29:55       Focusing Completed Foc2 AutoFocus Completed (Profile No 2)
17:30:10       Focusing Checked Foc2 Focusing Check Succeeded
17:31:47     Target Started (1/48) Target started (1/48, AT2020ablw)
17:34:45       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
17:36:47       Focusing Completed Foc1 AutoFocus Completed (Profile No 3)
17:47:49     Target Completed Target completed (1/48, AT2020ablw)
17:52:50     Target Started (2/48) Target started (2/48, GCVS TT Ari)
17:55:39       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
17:57:47       Focusing Completed Foc1 AutoFocus Completed (Profile No 4)
18:03:55     Target Completed Target completed (2/48, GCVS TT Ari)
18:03:57     Target Started (3/48) Target started (3/48, 156P/Russell-LINEAR)
18:06:49       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S)
18:16:13     Target Completed Target completed (3/48, 156P/Russell-LINEAR)
18:16:15     Target Started (4/48) Target started (4/48, VV 94)
18:18:25       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
18:20:28       Focusing Completed Foc1 AutoFocus Completed (Profile No 5)
18:35:03   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
18:36:10     Target Completed Target completed (4/48, VV 94)
18:36:12   Queue Paused Queue paused for Session Suspension
18:36:13 Session Suspended Session suspended
18:36:58   Dome Closed Dome closed (closing time 45s)
18:47:44     Target Cancelled Target cancelled (5/48, GSC 1224:29) due to cloud
18:59:15 User Intervention User request to close and finish session
18:59:18   Queue Aborted Job Queue aborted
18:59:20 Session Closing Session closing
18:59:25   Dome Closed Dome already closed (closed at 18:36, closing time 45s)
18:59:59   Dome Parked Dome parked (parking time 25s), Az: 90.1 deg
19:00:45   Telescope Parked Telescope parked (parking time 35s)
19:01:15   Telescope Switched Off Telescope Power has been switched off via UPB Switch.
19:02:02   Services Stopped Night Services stopped
19:02:04 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files)
19:02:11 Session Finished Session Finished

Session Alerts
Time     Alert Detail
-- No Alerts                --

Back to Top


Operational Issues (2020-12-22 S842)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Continuous Improvement

[ Prev | Next ]

Back to Top


2020-12-26


Pulsar Dome - New Home Magnet

New replacememt Home Magnet for Observatory Dome was received today from Pulsar Observatories.   This was a replacement for the original magnet that had become badly corroded and became unreliable for homing the observatory (photo below left).  The original had a cut or flaw in its outer casing and water had entered the magnet and corroded it over the course of a couple of years. The new magnet (photo below right) was installed and successfully used for an overdue recalibration of the dome. The new magnet also allowed ASCOM Conform tests for the Dome to pass its Find Home Test where it had previously failed.

Photo showing the old corroded magnet   Photo showing the new replacement Home Magnet
Image    Image



Update 2021-12-05
Around one year since the original home magnet was replaced with a new one, it has been found that one side of the new home magnet has begun to corrode.   Whilst the magnetic strength of the magnet still seems strong, the dome appeared to be unable to find the home magnet during an attempted dome recalibration at end of S939 session (2021-12-05) or when requesting the dome to go the Home position (2021-12-06)

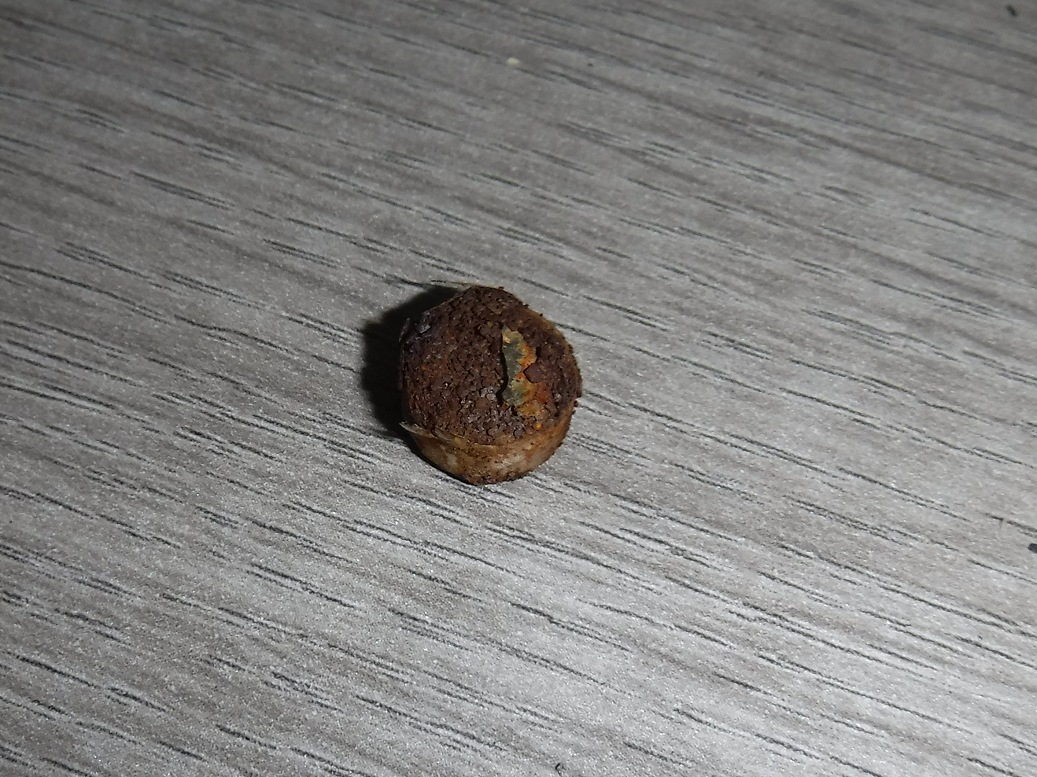

Photo showing the new magnet after 12 months



Update 2022-07-13
Magnet checked today (2022-07-13) and whilst it continues to corrode it still works for finding the dome's Home position.

The Magnet Supplied by Pulsar is a 10mm diameter x 5mm thick, very strong Neodymium magnet,  like these ones from Amazon :
 F645-N52-10 Magnet Expert 10mm dia x 5mm thick Ultra High Performance N52 Neodymium Magnet - 3.2kg pull ( Pack of 10 ) by first4magnets™
 https://www.amazon.co.uk/Magnet-Expert-thick-Performance-Neodymium/dp/B00GFMQ5OM   (£10.48)

- Corrosion issue is due to basic rusting process (metal/Fe + water + oxygen).
- The magnet is inevitably exposed to water from dew/condensation created during nightime observing sessions.
- Neodymium magnets are apparently known for their poor resistance to corrosion, unless they are waterproof versions that are coated by a plastic layer or shrink-wrapped in a PVC cover (which the Pulsar supplied magnets are not)
- The position that the Home magnet needs to be placed in my system, where it sits in direct contact with metal embedded in the reinforced rubber trim, might enhance the rate of corrosion either directly by some electrolysis effect or by causing damage/scratching to the magnet's 'protective' casing.
- Based on original supplied magnet, the corrosion will eventually progress to the point that it is no longer strong enough to be detected by the Dome Unit/Encoder.

Tests performed with an alternate 10mm diameter magnet :

 10 x Cylindrical Magnets 3mm Thick By 10mm in Diameter Round Disc Magnets Very Strong  1.2kg pull by Harlington Group
  https://www.amazon.co.uk/dp/B08426C287/ref=pe_27063361_485629781_TE_item  (£3.95)
  (the received magnets have a better casing than the pictures & reviews on product page)

- One regular 3mm magnet doesn't have sufficient strength to allow Home position detection

- Two regular 3mm magnets used together (6mm) do however have sufficient joint strength to allow Home position detection

- Two regular magnets may or may not prove to have better corrosion resistance than the Pulsar Supplied Neodymium magnet
    (this doesn't appears to be the case  based on extent of corrosion found on 2023-11-17)

Update 2023-11-17.
After replacing one of the dome's Drive Wheels/Connectors on 2023-11-17 (which had become loose/badly worn) and before the dome was recalibrated,  the dome's home magnet was checked and was found to be almost totally corroded with minimal remaining strength and is non-functional - the dome was unable to find Home Position using it.  This was happened on two previous occasions in 2000 and 2022. The Home Magnet is believed to corrode in my Observatory due to an electrolysis effect caused by its contact with metal beading in the rubber trim attached to the edge of dome's roof flange combined with frequent wetting from dew drops running down the inside of the observatory dome. The pieces of the corroded magnet were removed and replaced by a new magnet (actually by a new pair of magnets,  see Home Magnet Tests, 2022-07-13). After successful calibrating the dome the new magnets were removed and carefully stored ready for some future use - repeated experience shows that they can't be left in position for extended periods without corroding.
