Notes - Session 910 (2021-08-31)


Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log

Bullet Operational Issues
  - Critical Issues (0),  Major Issues (2),  Minor Issues (13),  Small Defects (0),  Continuous Improvement (20)

Bullet Images from 2021-08-31 >>        [ Local Files >> ]
Bullet Investigation - Targets failed with message 'scope isn't pointing to the target' even though they were

Session Aims & Highlights (2021-08-31)

Main aims

  1. Targets. Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by time & conditions.
  2. AstroMain. Test fixes, improvements and new features in AstroMain 3.41.5. Check for stability.

Equipment & Software

Highlights

Notes:

Summary Plots & Logs

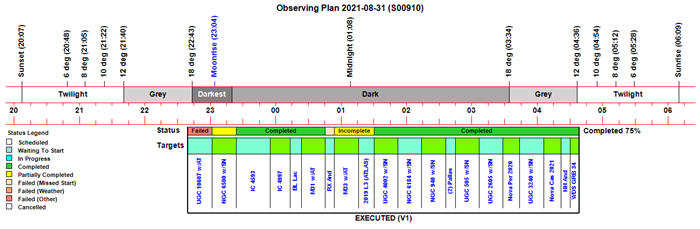

Observing Plan

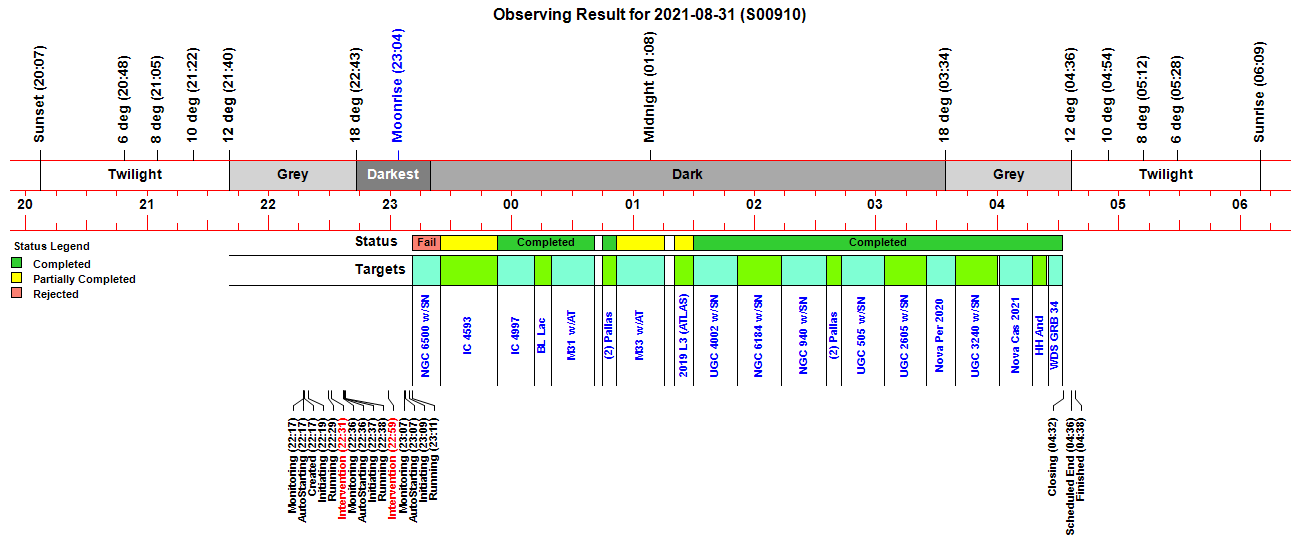

Observing Result

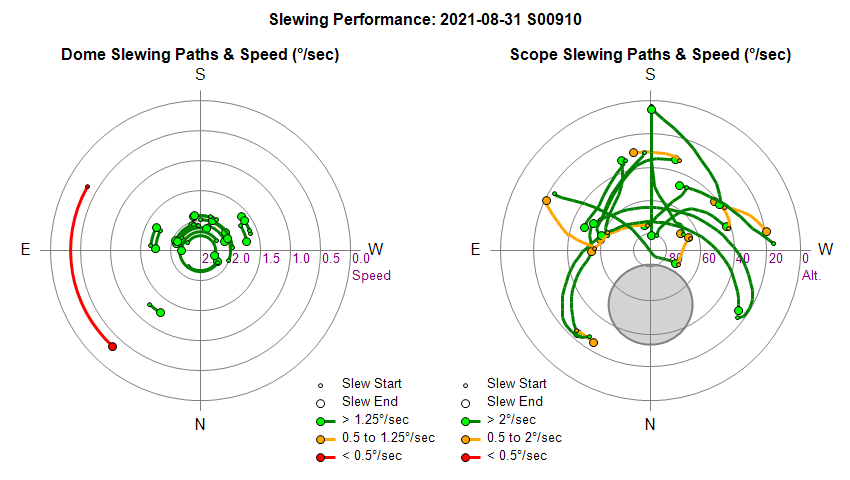

Dome & Scope Slewing Performance

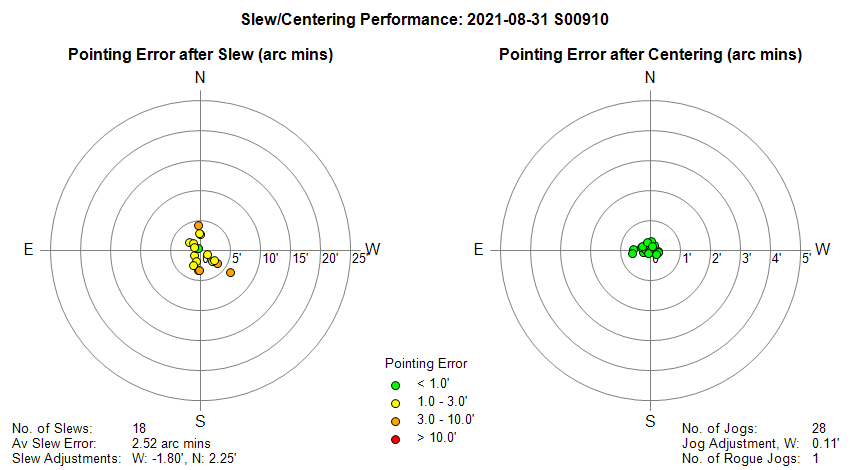

Slew/Centering Performance

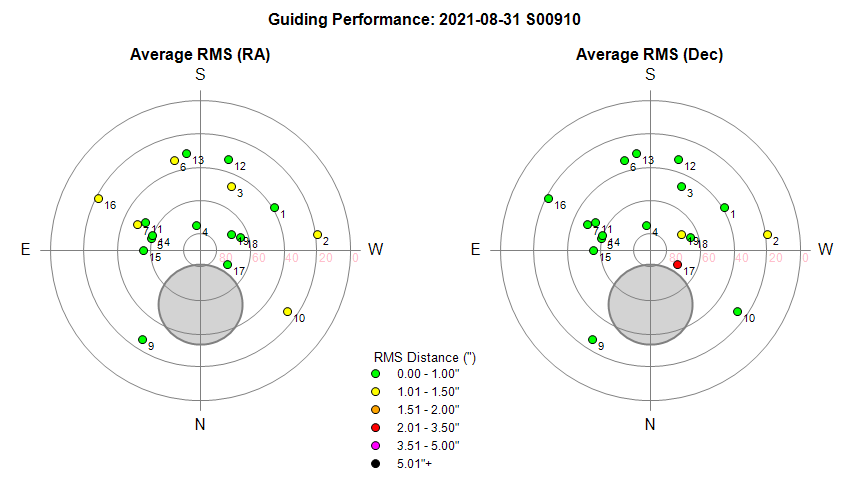

Guiding Performance

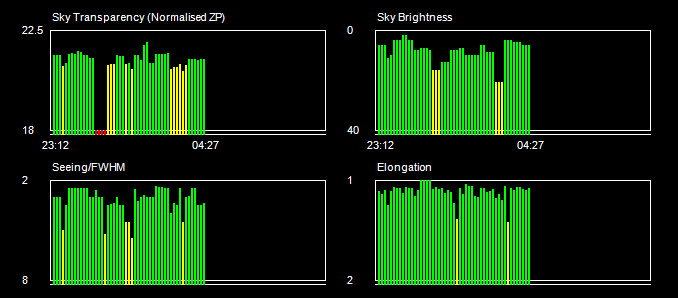

Sky Conditions (Locate Frames)

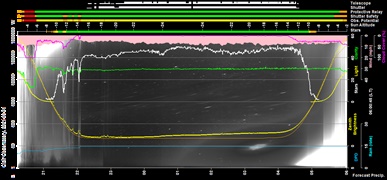

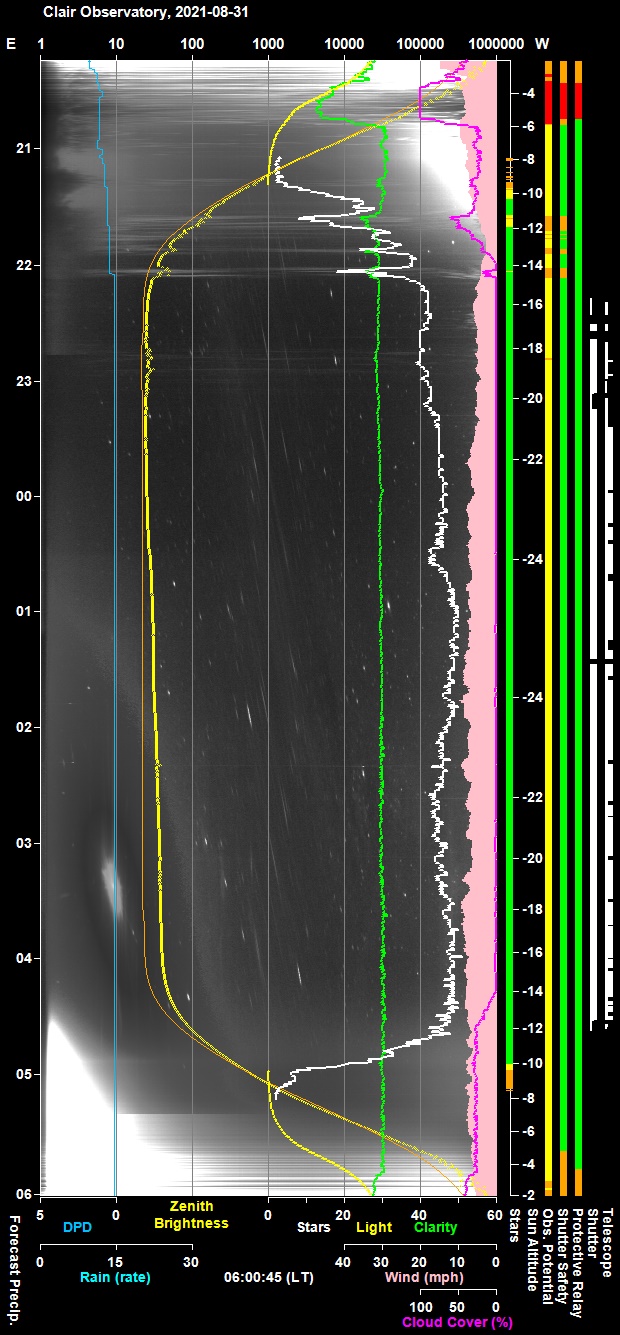

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

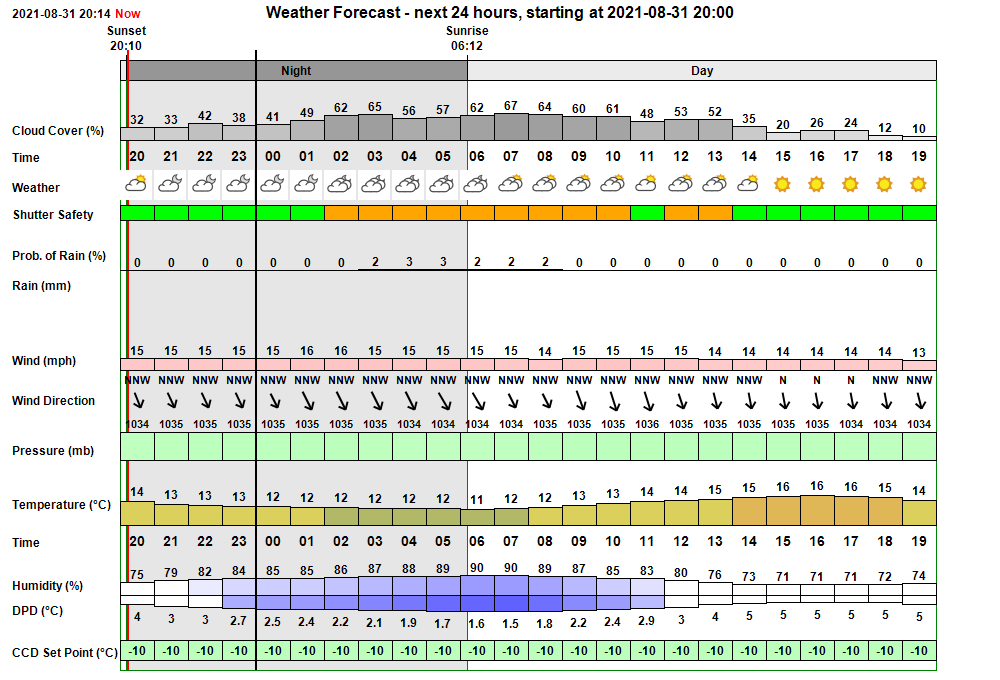

Actual Weather vs Pre-Session Weather Forecast

Session Event Log
Time     Event Detail
22:17:07 Session Monitoring AutoStart monitoring for Live Session opportunity between 22:17 & 03:56
22:17:08 Session AutoStarting Session autostarting (22:17)
22:17:38 Session Created Live Session Created (2021-08-31 S00910, ImageSaveNum: 910001)
22:17:41   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
22:19:25   Services Started Observatory Services started
22:19:31 Observatory (Auto) Observatory placed in Fully-Automated Mode
22:19:33 Session Pending Session pending (2021-08-31)
22:19:35 Session Initiating Session initiating (2021-08-31)
22:19:37   Plan Requested Observing Plan requested from AstroPlan (1.22.6)
22:21:13   Plan Loaded Observing Plan loaded to queue (, Plan ID: 651)
22:21:26   Camera1 Connected SBIG Camera Connected (set point -10°C)
22:21:32   Telescope Connected Telescope Connected (TheSky6)
22:21:47 Session Equilibration Session ready for dome & camera equilibration
22:23:18   Dome Opening Dome opening hasn't finished after 90s
22:29:24   Dome Opened Dome opened (opening time 45s)
22:29:26 Session Running Session running
22:29:28   Queue Started Observing Queue started (20 targets selected)
22:29:31     Target Started (NrZen) Target started (Focus Field 20, HIP 98535)
22:31:00 User Intervention User Intervention to examine issue 'Dome not opening'
22:31:18       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S)
22:31:22       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
22:31:29     Target Completed Target completed (Focus Field 20, HIP 98535)
22:31:31   Queue Aborted Job Queue aborted
22:32:11   Telescope Connected Telescope Connected (TheSky6)
22:35:00   Telescope Connected Telescope Connected (TheSky6)
22:36:46 Session Monitoring AutoStart monitoring for Live Session opportunity between 22:36 & 03:56
22:36:48 Observatory (AutoStart) Observatory placed in Auto-Start Mode
22:36:50 Session AutoStarting Session autostarting (22:36)
22:37:11   Services Started Observatory Services started
22:37:16 Observatory (Auto) Observatory placed in Fully-Automated Mode
22:37:20 Session Pending Session pending (2021-08-31)
22:37:22 Session Initiating Session initiating (2021-08-31)
22:37:33   Plan Loaded Observing Plan loaded to queue (, Plan ID: 651)
22:37:38   Camera1 Connected SBIG Camera Connected (set point -10°C)
22:37:44   Telescope Connected Telescope Connected (TheSky6)
22:37:59 Session Equilibration Session ready for dome & camera equilibration
22:38:01 Session Running Session running
22:38:03   Queue Started Observing Queue started (20 targets selected)
22:38:05     Target Started (NrZen) Target started (Focus Field 20, HIP 98535)
22:39:49       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:43:02       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide)
22:45:09       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
22:45:10       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
22:47:26       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide)
22:49:15       Focusing Completed Foc2 AutoFocus Completed (Profile No 2)
22:49:29     Target Completed Target completed (Focus Field 20, HIP 98535)
22:49:32     Target Started (1/20) Target started (1/20, UGC 10607 w/AT2021xgx)
22:50:04     Target Failed Target failed due to slew error (1/20, UGC 10607 w/AT2021xgx)
22:56:55     Target Started (2/20) Target started (2/20, NGC 6500 w/SN2021wuf)
22:57:23     Target Failed Target failed due to slew error (2/20, NGC 6500 w/SN2021wuf)
22:59:00 User Intervention User Intervention to resolve 'Telescope not Slewing to first two targets'
22:59:32   Queue Aborted Job Queue aborted
23:02:02   Telescope Switched Off Telescope Power has been switched off via UPB Switch.
23:02:47   Services Stopped Observatory Services stopped
23:02:50 Program Closed Program closed by User
23:06:15 Session Resumed Live Session Resumed (2021-08-31 S00910, ImageSaveNum: 910001)
23:06:39   Obs.Manager Started Obs.Manager started
23:06:41   Obs.Overseer Started Obs.Overseer started
23:06:43 Critical Humidity Alert Critical Humidity Alert (Obs.Manager will close the Shutter)
23:06:45   Services Started Observatory Services started
23:07:21 Session Monitoring AutoStart monitoring for Live Session opportunity between 23:07 & 03:56
23:07:23 Observatory (AutoStart) Observatory placed in Auto-Start Mode
23:07:26 Session AutoStarting Session autostarting (23:07)
23:07:29   Dome Closed Dome closed (closing time 50s)
23:07:44   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
23:09:31   Services Started Observatory Services started
23:09:39 Observatory (Auto) Observatory placed in Fully-Automated Mode
23:09:41 Session Pending Session pending (2021-08-31)
23:09:43 Session Initiating Session initiating (2021-08-31)
23:09:49   Plan Loaded Observing Plan loaded to queue (, Plan ID: 651)
23:09:53   Camera1 Connected SBIG Camera Connected (set point -10°C)
23:09:58   Telescope Connected Telescope Connected (TheSky6)
23:10:13 Session Equilibration Session ready for dome & camera equilibration
23:11:00   Dome Opened Dome opened (opening time 46s)
23:11:02 Session Running Session running
23:11:04   Queue Started Observing Queue started (19 targets selected)
23:11:06     Target Started (2/20) Target started (2/20, NGC 6500 w/SN2021wuf)
23:13:45       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
23:16:09       Focusing Completed Foc2 AutoFocus Completed (Profile No 5, wide)
23:18:02       Focusing Completed Foc2 AutoFocus Completed (Profile No 5)
23:20:03       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:22:46       Focusing Completed Foc1 AutoFocus Completed (Profile No 6, wide)
23:24:34       Focusing Completed Foc1 AutoFocus Completed (Profile No 6)
23:24:46     Target Completed Target partially completed (2/20, NGC 6500 w/SN2021wuf)
23:24:48     Target Started (3/20) Target started (3/20, IC 4593)
23:53:11     Target Completed Target partially completed (3/20, IC 4593)
23:53:13     Target Started (4/20) Target started (4/20, IC 4997)
23:57:13       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:59:08       Focusing Completed Foc1 AutoFocus Completed (Profile No 7)
00:11:28     Target Completed Target completed (4/20, IC 4997)
00:11:30     Target Started (5/20) Target started (5/20, GCVS BL Lac)
00:14:27       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:16:14       Focusing Completed Foc1 AutoFocus Completed (Profile No 8)
00:19:50     Target Completed Target completed (5/20, GCVS BL Lac)
00:19:52     Target Started (6/20) Target started (6/20, M31 w/ATNova M31 2021-08a?)
00:23:15       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:25:14       Focusing Completed Foc1 AutoFocus Completed (Profile No 9)
00:40:55     Target Completed Target completed (6/20, M31 w/ATNova M31 2021-08a?)
00:44:45     Target Started (7/21) Target started (7/21, (2) Pallas, ToO)
00:52:03     Target Completed Target completed (7/21, (2) Pallas, ToO)
00:52:05     Target Missed (8/21) Target's time slot was missed (8/21, GCVS RX And)
00:52:07     Target Started (9/21) Target started (9/21, M33 w/AT2021wcf)
01:15:19     Target Completed Target partially completed (9/21, M33 w/AT2021wcf)
01:20:20     Target Started (10/21) Target started (10/21, 2019 L3 (ATLAS))
01:30:00     Target Completed Target partially completed (10/21, 2019 L3 (ATLAS))
01:30:03     Target Started (11/21) Target started (11/21, UGC 4002 w/SN2021wvy)
01:34:16       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:35:58       Focusing Completed Foc1 AutoFocus Completed (Profile No 10)
01:51:44     Target Completed Target completed (11/21, UGC 4002 w/SN2021wvy)
01:51:46     Target Started (12/21) Target started (12/21, NGC 6184 w/SN2021wkv)
01:56:10       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
02:13:25     Target Completed Target completed (12/21, NGC 6184 w/SN2021wkv)
02:13:27     Target Started (13/21) Target started (13/21, NGC 940 w/SN2021vtl)
02:17:54       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:19:47       Focusing Completed Foc1 AutoFocus Completed (Profile No 11)
02:35:30     Target Completed Target completed (13/21, NGC 940 w/SN2021vtl)
02:35:32     Target Started (14/21) Target started (14/21, (2) Pallas)
02:39:10       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:40:51       Focusing Completed Foc1 AutoFocus Completed (Profile No 12)
02:43:12     Target Completed Target completed (14/21, (2) Pallas)
02:43:14     Target Started (15/21) Target started (15/21, UGC 505 w/SN2021ukt)
02:47:17       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S)
03:04:26     Target Completed Target completed (15/21, UGC 505 w/SN2021ukt)
03:04:28     Target Started (16/21) Target started (16/21, UGC 2605 w/SN2021wvw)
03:07:32       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:09:25       Focusing Completed Foc1 AutoFocus Completed (Profile No 13)
03:25:12     Target Completed Target completed (16/21, UGC 2605 w/SN2021wvw)
03:25:14     Target Started (17/21) Target started (17/21, Nova Per 2020)
03:29:26       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:31:09       Focusing Completed Foc1 AutoFocus Completed (Profile No 14)
03:39:22     Target Completed Target completed (17/21, Nova Per 2020)
03:39:25     Target Started (18/21) Target started (18/21, UGC 3240 w/SN2021vau)
03:43:45       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S)
04:00:35     Target Completed Target completed (18/21, UGC 3240 w/SN2021vau)
04:00:53     Target Started (19/21) Target started (19/21, Nova Cas 2021)
04:05:33       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:07:15       Focusing Completed Foc1 AutoFocus Completed (Profile No 15)
04:17:31     Target Completed Target completed (19/21, Nova Cas 2021)
04:17:33     Target Started (20/21) Target started (20/21, GCVS HH And)
04:21:11       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:22:57       Focusing Completed Foc1 AutoFocus Completed (Profile No 16)
04:24:40     Target Completed Target completed (20/21, GCVS HH And)
04:25:09     Target Started (21/21) Target started (21/21, WDS GRB 34)
04:28:54       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:30:36       Focusing Completed Foc1 AutoFocus Completed (Profile No 17)
04:32:22     Target Completed Target completed (21/21, WDS GRB 34)
04:32:25   Queue Completed Job Queue completed
04:32:29 Session Closing Session closing
04:33:24   Dome Closed Dome closed (closing time 50s)
04:34:39   Dome Parked Dome parked (parking time 68s), Az: 90.0 deg
04:36:05   Telescope Parked Telescope parked (parking time 77s)
04:36:20   Telescope State Scope parked Turn scope off. (Handbox)
04:36:40   Telescope Switched Off Telescope Power has been switched off via UPB Switch.
04:37:31   Services Stopped Night Services stopped
04:37:33 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files)
04:38:24 Session Finished Session Finished

Session Alerts
Time     Alert Detail
00:00:04 Dome Alert DomeRecords have stopped updating
00:00:24 Dome Alert DomeRecords have resumed updating
04:13:37 Dome Dome has been stationary for more than 10 mins
04:17:37 Dome Dome Movements have begun again (outage 15.5 mins)

Back to Top


Operational Issues (2021-08-31, S910)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Small Defects

Continuous Improvement

[ Prev | Next ]

Back to Top


Investigation - Targets failed with message 'scope isn't pointing to the target' even though they were

Issue: Scope appearing  to fail to slew to the first 2 targets / targets aborted without imaging.

Description
First two targets, Target 1/20 (UGC 10607) & Target 2/20 (NGC 6500),  both failed with the message  'Scope isn't pointing to the target (Ang Sep. = xx arc degs)' and the targets were aborted by the job executor without any imaging.  User intervention was made to cancel the run and restart the observatory software.

Analysis
Post-session link of Focus Locate Frame (Focus Field 20) taken at 22:39 was good and confirmed that the scope had slewed ok and was sitting at the expected Near Zenith location. (Scope was possibily already on location already following earlier slew to 'Focus Field 20' at 22:30.

Scope then made a  programmed to slew to Target 1/20 (UGC 10607 at  RA: 16 55 09.389, Dec: +26 39 49.28, Az 252.2°. Alt 42.6°) but the Job Executor reported 'Scope isn't pointing to the target (Ang Sep. = 41.9 arc degs)' and aborted the target.  Slew table shows scope reached Az 252.4, Alt 42.2 which is close to the planned target. Review the target position in TheSky6 confirms that original target details (Ra/Dec, Az/Alt). ScopePath confirms that scope reached Ra 16.9156 h, Dec: 26.35°   Post-Slew coordinates were logged as  Ra= 16 54 57.000  Dec=+26 21 05.00 (at LT 22:50:04.62). However a fraction of a second later (at 22:50:04.71) the log file reports a post-slew position of RA= 20 01 44.978 Dec= +48 19 28.80, which is identical to the pre-slew position.    This later figure was used by the job executor to conclude that the scope was a long way from the planned target.   ObsCam pictures however clearly show that the the scope slewed to the planned target and didn't remain at the pre-slew position (Focus Field 20).

After aborting the 1st target the scope was commanded to slew to Target 2/20 (NGC 6500 at  RA: 17 56 02.513, Dec: +18 21 14.07,  Az 232.1° Alt 41.9° ). Pre-slew position was logged at 22:56:56 as being Ra= 16 54 57.000 Dec=+26 21 00.00 (incidentally this is consistent with the UGC 10607 location)   Logged Scope Path and ObsCam shows the scope making the planned slew to NGC 6500.  At 22:57:22 the post-slew position was logged Ra= 17 56 12.000 Dec=+18 04 48.00, but at 22:57:23 pre-slew and post-slew positions were both logged as being at RA= 20 01 44.978 Dec= +48 19 28.80. Again it was these later figures that were used by the job executor to conclude that scope was a long way from the planned target.

The problems delayed the effective start of the session by around one hour. Problem was fixed in-session by aborting the session, parking scope, restarting all observatory software and then restarting session. This seems to resolve the issue. Logs to be reviewed post-session to try to understand what might have caused the issue and determine whether any further actions are required.

Obs.Manager froze at 22:23:39 following Dome Error 'Killing existing OpenDomeTask as it appears to have stalled (97s)'. Obs.Manager resumed between 22:27:14 to 22:27:19. after Dome Error : Exception in CloseShutterTask, the remote procedure call failed ,  HRESULT.. in CloseShutter(ByThread).  At 22:28:39 killing existing OpenDomeTask as it appears stalled (412s).  Variety of other exceptions up to 22:28    Restarted Session at 23:06,

Reviewing code shows the 'offending' post-slew coordinates come following a call to TheSky6.Telescope.GetRaDec()
(dRaPostSlew = Telescope.dRA , dDecPostSlew = Telescope.dDec),   and are compared against 'questionable' pre-slew coordinates that came following an earlier call to
TheSky6.Telescope.GetRaDec()  (dRaPreSlew = Telescope.dRA, dDecPreSlew = Telescope.dDec).   The proceeding 'good' post-slew coordinates come from a calls to objScope.RightAscension & objScope.Declination.   It was seem that the TheSky6.Telescope had somehow become detached from the live telescope driver and didn't provide live Ra/Dec values but was providing older frozen values.

Data reported during connection to the TheSky6.Telescope at 22:21 indicated a clear discrepency between telescope coordinates reported by TheSky6 and those reported by ASCOM direct.  It is possible that this was due to the TheSky6 not using computer time and that this setting was then manually switched in response to seeing the discrepency.  This can not howevre be confirmed either way.  Afthough Telescpe.GetRaDec() appeared to not be giving fresh coordinates, calls to TheSky6.Telescope.Asynchronous = 1
and to TheSky6.Telescope.SlewToRaDec clearly worked ok.     Clearly that was a glitch of some kind, but was this something in TheSky6 upon a problem with two copies of the TheSky6 running, one with TheSky6 UI  and a second background one that hadn't closed from the proceeding session.

Foward Actions
- Could add code to demonstrate that there is a discrepency between ASCOM and TheSky positions and raise an alert ?
- Could add code to detect if there are two copies of TheSky that appear be running at the same time ?

Back to Top
