Session Aims & Highlights (2021-09-29)

Main aims

1. Targets. Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by time & conditions.
2. AstroMain. Test fixes, improvements and new features in AstroMain 3.42.8.

Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• CCDApp2, TheSky6, CCDSoft5, PHD2 2.6.10,  DeviceHub 6.5.1.4,  MeadeGeneric 1.3.1.361, UPB 1.5, ASCOM 6.5 SP1
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.10

• AstroMain 3.42.8 ,  AstroPlan 1.24.2  AstroShCap 1.3.2, AstroGuard 1.6.2,  AstroVOE 1.8,  AstroSN 1.6,  AstroProtect 1.6
  (AstroWeather 1.12.4, AstroAllSky 3.11, AstroObsCam 1.5.7)

Highlights

• Targets.  Images from a total of x targets were acquired through the session.   Sky clear, but moon light and only moderate seeing
•   AstroMain.  AstroMain observatory control worked well and their were software or hardware glitches at all. 100% operational success.

Lowlights

•  Seeing  Seeing was only moderate and sometimes rather poor

Notes:

Summary Plots & Logs

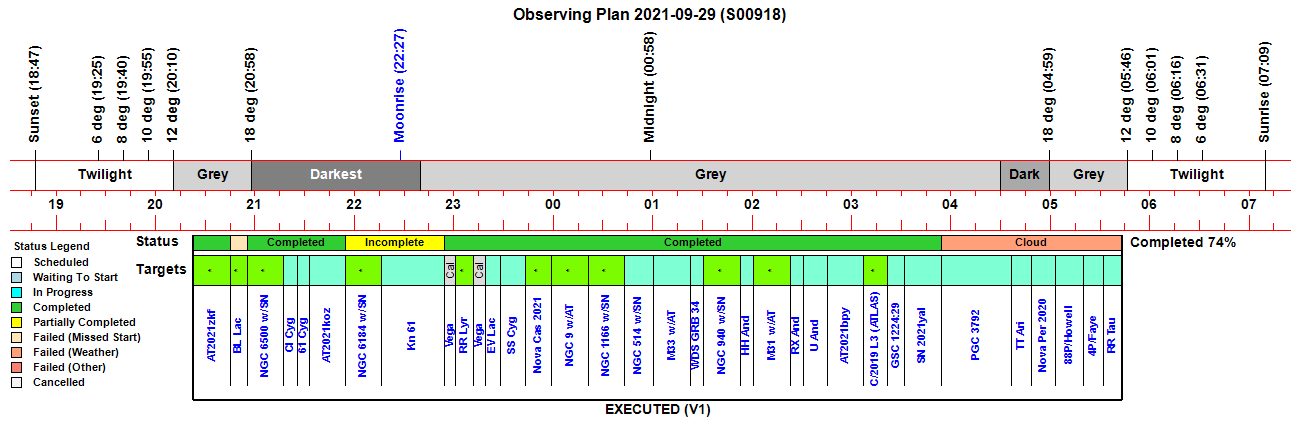

Observing Plan

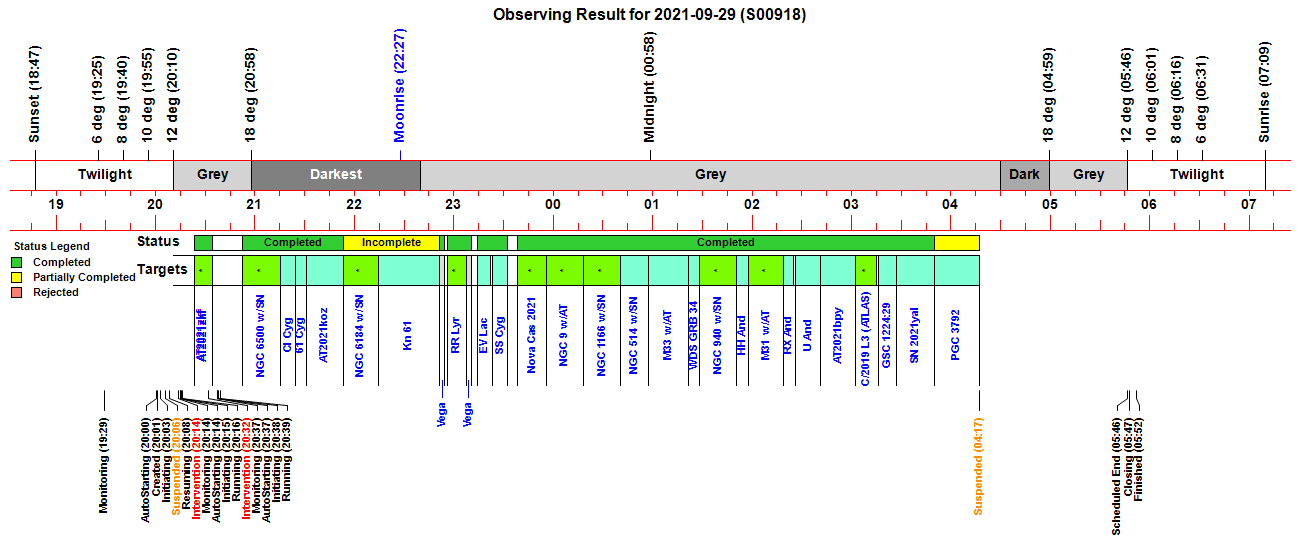

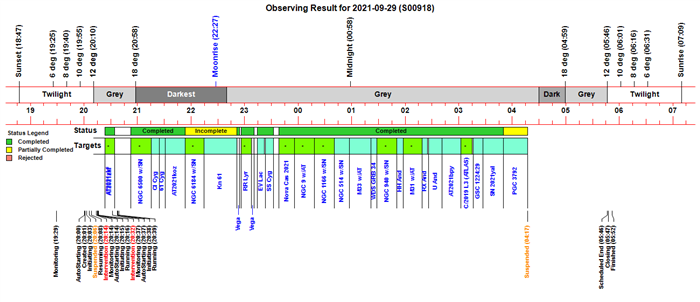

Observing Result

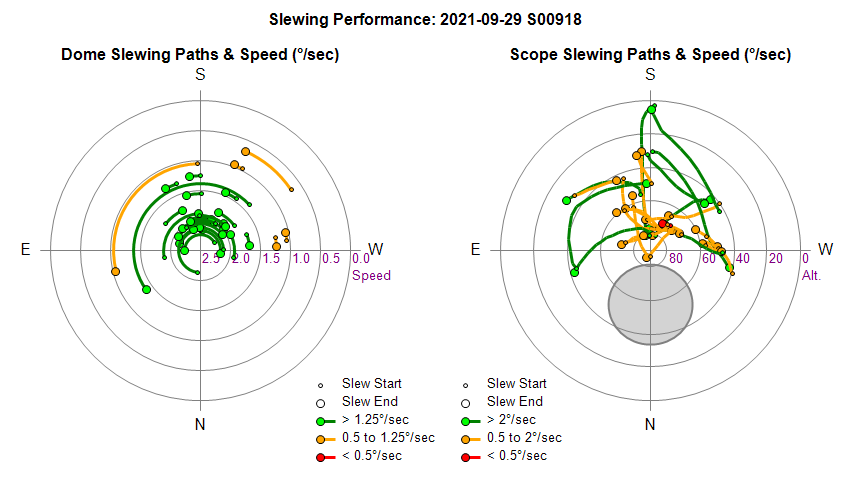

Dome & Scope Slewing Performance

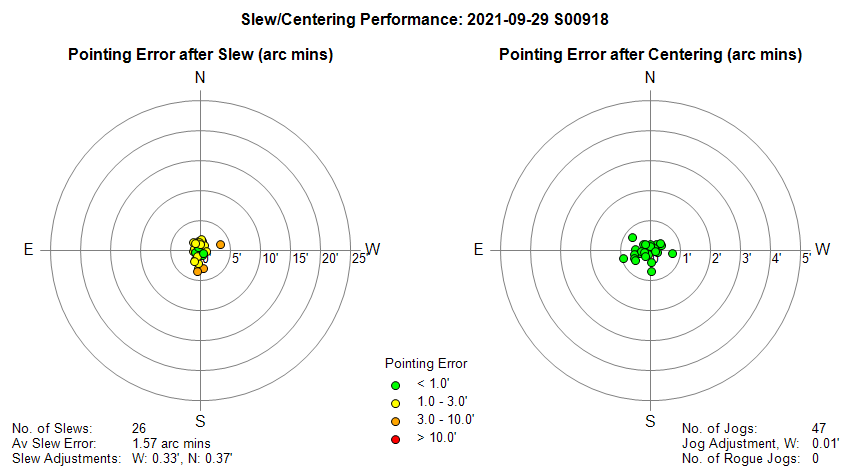

Slew/Centering Performance

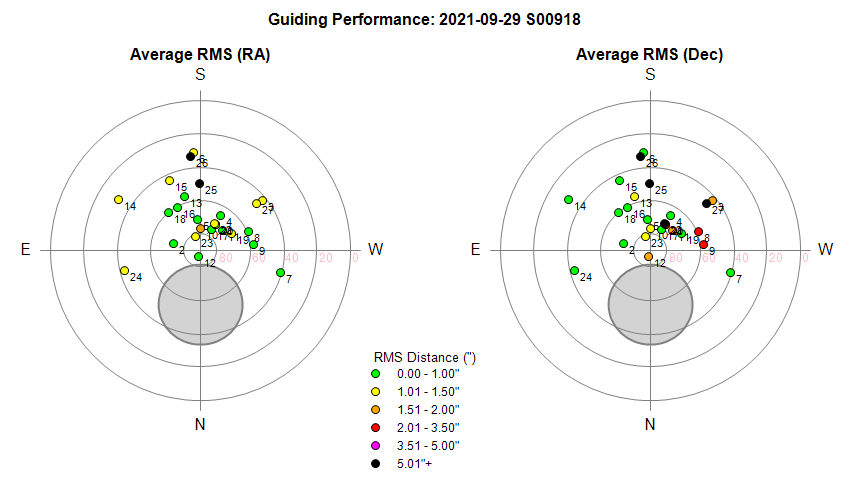

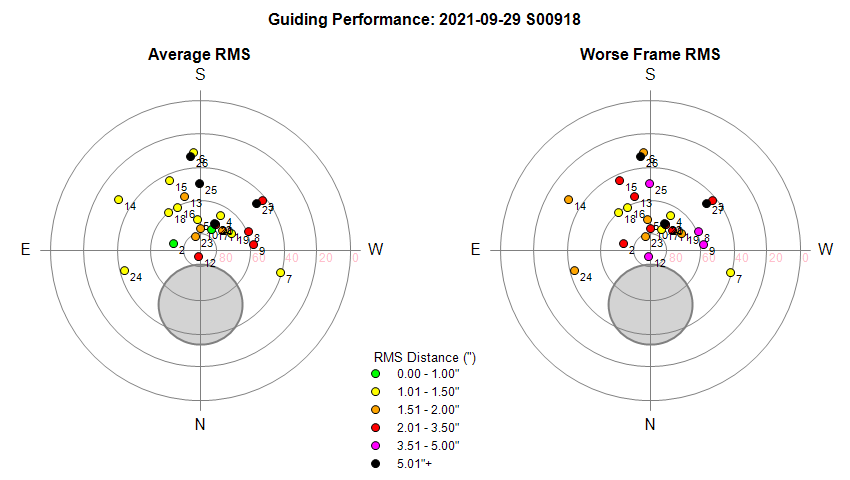

Guiding Performance

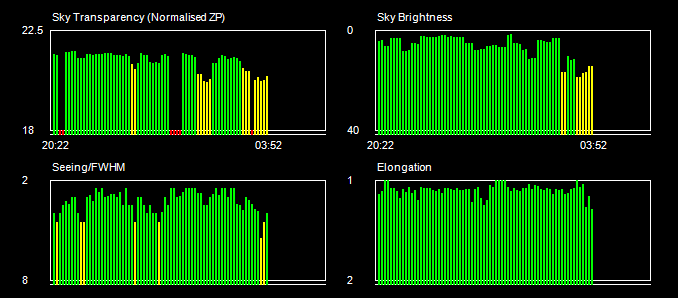

Sky Conditions (Locate Frames)

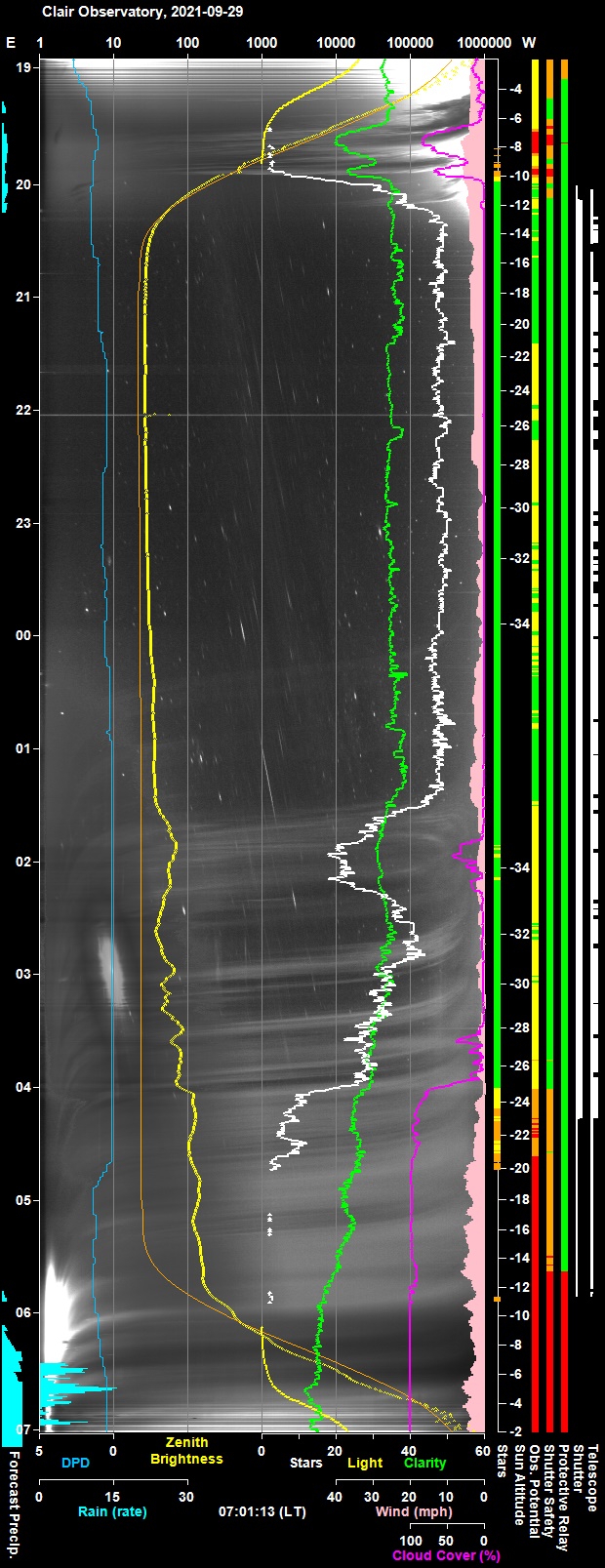

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

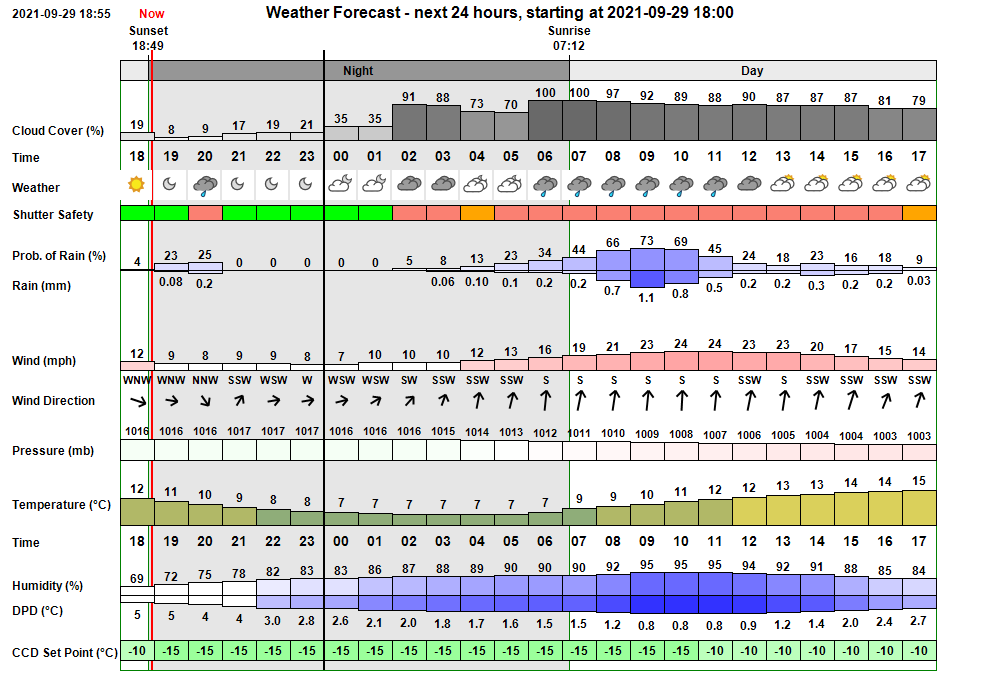

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 19:29:05 Session Monitoring AutoStart monitoring for Live Session opportunity between 19:40 & 05:06 19:29:06   AutoStart Waiting AutoStart waiting till earliest start time at 19:40 19:40:57   AutoStart Delayed Session delayed due to cloud 20:00:29 Session AutoStarting Session autostarting (20:00) 20:01:11   Camera1 Connected SBIG Camera Connected (set point -15°C) 20:01:13 Session Created Live Session Created (2021-09-29 S00918, ImageSaveNum: 918001) 20:01:15   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 20:02:55   Services Started Observatory Services started 20:03:02 Observatory (Auto) Observatory placed in Fully-Automated Mode 20:03:04 Session Pending Session pending (2021-09-29) 20:03:06 Session Initiating Session initiating (2021-09-29) 20:03:08   Plan Requested Observing Plan requested from AstroPlan (1.24.2) 20:04:04   Plan Loaded Observing Plan loaded to queue (, Plan ID: 666) 20:04:14   Camera1 Connected SBIG Camera Connected (set point -15°C) 20:04:19   Telescope Connected Telescope Connected (TheSky6) 20:04:43 Session Equilibration Session ready for dome & camera equilibration 20:06:08 Wait On Weather Waiting For acceptable conditions 20:06:11 Session Suspended Session suspended 20:06:13   Dome Closed Dome already closed (closure time is unknown) 20:06:15   Queue Started Observing Queue started (34 targets selected) 20:08:14 Session Resuming Session resuming 20:08:59   Dome Opened Dome opened (opening time 45s) 20:09:01 Session Running Session running 20:09:03   Queue Resumed Observing Queue resumed 20:14:00 User Intervention User intervention to recommence Autostart to achieve immediate Near Zenith Focusing 20:14:44 Observatory (Manual) Observatory placed in Manual Mode 20:14:54 Session Monitoring AutoStart monitoring for Live Session opportunity between 20:14 & 05:06 20:14:56 Observatory (AutoStart) Observatory placed in Auto-Start Mode 20:14:58 Session AutoStarting Session autostarting (20:14) 20:15:16   Services Started Observatory Services started 20:15:20 Observatory (Auto) Observatory placed in Fully-Automated Mode 20:15:24 Session Pending Session pending (2021-09-29) 20:15:26 Session Initiating Session initiating (2021-09-29) 20:15:40   Plan Loaded Observing Plan loaded to queue (, Plan ID: 666) 20:15:54   Camera1 Connected SBIG Camera Connected (set point -15°C) 20:15:59   Telescope Connected Telescope Connected (TheSky6) 20:16:23 Session Equilibration Session ready for dome & camera equilibration 20:16:25 Session Running Session running 20:16:27   Queue Started Observing Queue started (34 targets selected) 20:16:30     Target Started (NrZen) Target started (Focus Field 20, HIP 98535) 20:18:11     Target Started (NrZen) Target started (Focus Field 20, HIP 98535) 20:18:19       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:20:42       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 20:20:45       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 20:21:02       Focusing Failed Foc1 focusing failed - star lost 20:21:04       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 20:21:38     Target Completed Target completed (Focus Field 20, HIP 98535) 20:21:40     Target Started (1/34) Target started (1/34, AT2021zkf) 20:23:30       Focusing Failed Foc2 focusing failed (failed QC check - Range) 20:23:33     Target Completed Target completed (Focus Field 20, HIP 98535) 20:23:35     Target Started (1/34) Target started (1/34, AT2021zkf) 20:25:10       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:28:55       Focusing Completed Foc1 AutoFocus Completed (Profile No 2, wide) 20:30:13   CCDSoft Issue CCDSoft has encountered an image save issue [0000] 20:30:15   CCDSoft Restarting CCDSoft restarting in attempt to fix image save issue [0000] 20:30:36   Camera1 Connected SBIG Camera Connected (set point -15°C) 20:31:43       Focusing Failed Foc1 focusing failed (failed QC check - Quadratic) 20:32:08     Target Completed Target completed (1/34, AT2021zkf) 20:32:10 User Intervention User intervention to resolve 'dual running jobs' issue created bty earlier intervention 20:32:11   Queue Aborted Job Queue aborted 20:34:00   Services Stopped Observatory Services stopped 20:34:13     Target Completed Target completed (2/34, AT2021zkf) 20:34:39   Queue Aborted Job Queue aborted 20:36:29   Obs.Manager Started Obs.Manager started 20:36:31   Obs.Overseer Started Obs.Overseer started 20:36:35   Services Started Observatory Services started 20:37:05   Telescope Connected Telescope Connected (TheSky6) 20:37:30   Camera1 Connected SBIG Camera Connected (set point -15°C) 20:37:40 Session Monitoring AutoStart monitoring for Live Session opportunity between 20:37 & 05:06 20:37:42 Observatory (AutoStart) Observatory placed in Auto-Start Mode 20:37:44 Session AutoStarting Session autostarting (20:37) 20:38:06   Services Started Observatory Services started 20:38:10 Observatory (Auto) Observatory placed in Fully-Automated Mode 20:38:14 Session Pending Session pending (2021-09-29) 20:38:16 Session Initiating Session initiating (2021-09-29) 20:38:31   Plan Loaded Observing Plan loaded to queue (, Plan ID: 666) 20:38:44   Camera1 Connected SBIG Camera Connected (set point -15°C) 20:38:49   Telescope Connected Telescope Connected (TheSky6) 20:39:13 Session Equilibration Session ready for dome & camera equilibration 20:39:15 Session Running Session running 20:39:18   Queue Started Observing Queue started (33 targets selected) 20:39:19     Target Started (NrZen) Target started (Focus Field 20, HIP 98535) 20:41:00       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:44:31       Focusing Completed Foc1 AutoFocus Completed (Profile No 3, wide) 20:47:39       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 20:47:41       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 20:50:09       Focusing Completed Foc2 AutoFocus Completed (Profile No 4, wide) 20:52:03       Focusing Completed Foc2 AutoFocus Completed (Profile No 4) 20:52:23     Target Completed Target completed (Focus Field 20, HIP 98535) 20:52:25     Target Missed (2/34) Target's time slot was missed (2/34, GCVS BL Lac) 20:52:28     Target Started (3/34) Target started (3/34, NGC 6500 w/SN2021wuf) 20:57:32       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:59:20       Focusing Failed Foc1 focusing failed (failed QC check - Ambiguous) 21:15:27     Target Completed Target completed (3/34, NGC 6500 w/SN2021wuf) 21:15:29     Target Started (4/34) Target started (4/34, GCVS CI Cyg) 21:19:11       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:20:58       Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 21:24:37     Target Completed Target completed (4/34, GCVS CI Cyg) 21:24:39     Target Started (5/34) Target started (5/34, 61 Cyg) 21:27:56       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:29:38       Focusing Completed Foc1 AutoFocus Completed (Profile No 7) 21:30:57     Target Completed Target completed (5/34, 61 Cyg) 21:30:59     Target Started (6/34) Target started (6/34, AT2021koz) 21:35:47       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:37:34       Focusing Completed Foc1 AutoFocus Completed (Profile No 8) 21:53:18     Target Completed Target completed (6/34, AT2021koz) 21:53:20     Target Started (7/34) Target started (7/34, NGC 6184 w/SN2021wkv) 22:14:39     Target Completed Target partially completed (7/34, NGC 6184 w/SN2021wkv) 22:14:41     Target Started (8/34) Target started (8/34, Kn 61) 22:51:07     Target Completed Target partially completed (8/34, Kn 61) 22:51:09     Target Started (9/34) Target started (9/34, Vega) 22:54:24     Target Completed Target completed (9/34, Vega) 22:56:19     Target Started (10/34) Target started (10/34, GCVS RR Lyr) 23:00:11       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:01:57       Focusing Completed Foc1 AutoFocus Completed (Profile No 9) 23:07:28     Target Completed Target completed (10/34, GCVS RR Lyr) 23:07:30     Target Started (11/34) Target started (11/34, Vega) 23:10:28     Target Completed Target completed (11/34, Vega) 23:14:17     Target Started (12/34) Target started (12/34, GCVS EV Lac) 23:18:23       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:20:14       Focusing Completed Foc1 AutoFocus Completed (Profile No 10) 23:22:30     Target Completed Target completed (12/34, GCVS EV Lac) 23:23:07     Target Started (13/34) Target started (13/34, GCVS SS Cyg) 23:26:43       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:28:30       Focusing Completed Foc1 AutoFocus Completed (Profile No 11) 23:32:11     Target Completed Target completed (13/34, GCVS SS Cyg) 23:38:18     Target Started (14/34) Target started (14/34, Nova Cas 2021) 23:43:52       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:45:38       Focusing Completed Foc1 AutoFocus Completed (Profile No 12) 23:55:52     Target Completed Target completed (14/34, Nova Cas 2021) 23:55:54     Target Started (15/34) Target started (15/34, NGC 9 w/AT2021zju) 00:00:31       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:02:17       Focusing Completed Foc1 AutoFocus Completed (Profile No 13) 00:18:04     Target Completed Target completed (15/34, NGC 9 w/AT2021zju) 00:18:06     Target Started (16/34) Target started (16/34, NGC 1166 w/SN2021zby) 00:23:31       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 00:40:22     Target Completed Target completed (16/34, NGC 1166 w/SN2021zby) 00:40:24     Target Started (17/34) Target started (17/34, NGC 514 w/SN2020uxz) 00:44:43       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:46:29       Focusing Completed Foc1 AutoFocus Completed (Profile No 14) 00:57:24     Target Completed Target completed (17/34, NGC 514 w/SN2020uxz) 00:57:26     Target Started (18/34) Target started (18/34, M33 w/AT2021wcf) 01:04:06       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 01:21:45     Target Completed Target completed (18/34, M33 w/AT2021wcf) 01:21:48     Target Started (19/34) Target started (19/34, WDS GRB 34) 01:25:16       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:26:53       Focusing Completed Foc1 AutoFocus Completed (Profile No 15) 01:28:33     Target Completed Target completed (19/34, WDS GRB 34) 01:28:35     Target Started (20/34) Target started (20/34, NGC 940 w/SN2021vtl) 01:32:59       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:35:10       Focusing Completed Foc1 AutoFocus Completed (Profile No 16) 01:50:54     Target Completed Target completed (20/34, NGC 940 w/SN2021vtl) 01:50:56     Target Started (21/34) Target started (21/34, GCVS HH And) 01:54:08       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:55:51   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 01:56:06       Focusing Completed Foc1 AutoFocus Completed (Profile No 17) 01:56:26   SoftSuspend Cancelled Soft Suspend is cancelled due to Improved Conditions 01:57:46     Target Completed Target completed (21/34, GCVS HH And) 01:57:48     Target Started (22/34) Target started (22/34, M31 w/AT2021zdh) 01:58:56   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 02:00:32   SoftSuspend Cancelled Soft Suspend is cancelled due to Improved Conditions 02:01:34       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 02:11:18   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 02:11:58   SoftSuspend Cancelled Soft Suspend is cancelled due to Improved Conditions 02:18:47     Target Completed Target completed (22/34, M31 w/AT2021zdh) 02:18:50     Target Started (23/34) Target started (23/34, GCVS RX And) 02:21:26       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:23:12       Focusing Completed Foc1 AutoFocus Completed (Profile No 18) 02:25:51     Target Completed Target completed (23/34, GCVS RX And) 02:26:21     Target Started (24/34) Target started (24/34, GCVS U And) 02:29:41       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:31:27       Focusing Completed Foc1 AutoFocus Completed (Profile No 19) 02:41:12     Target Completed Target completed (24/34, GCVS U And) 02:41:14     Target Started (25/34) Target started (25/34, AT2021bpy) 02:44:57       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:46:43       Focusing Completed Foc1 AutoFocus Completed (Profile No 20) 03:02:25     Target Completed Target completed (25/34, AT2021bpy) 03:02:27     Target Started (26/34) Target started (26/34, C/2019 L3 (ATLAS)) 03:07:02       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 03:15:39     Target Completed Target completed (26/34, C/2019 L3 (ATLAS)) 03:16:34     Target Started (27/34) Target started (27/34, GSC 1224:29) 03:21:03       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 03:27:02     Target Completed Target completed (27/34, GSC 1224:29) 03:27:17     Target Started (28/34) Target started (28/34, SN 2021yal) 03:32:33       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:34:30       Focusing Completed Foc1 AutoFocus Completed (Profile No 21) 03:50:12     Target Completed Target completed (28/34, SN 2021yal) 03:50:14     Target Started (29/34) Target started (29/34, PGC 3792) 03:53:31       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:55:29       Focusing Completed Foc1 AutoFocus Completed (Profile No 22) 04:02:33   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 04:16:59 Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Shutter) 04:17:01   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud) 04:17:04     Target Aborted (29/34) Target aborted (29/34, PGC 3792) due to cloud 04:17:06   Queue Paused Queue paused for Session Suspension 04:17:08 Session Suspended Session suspended 04:17:54   Dome Closed Dome closed (closing time 50s) 04:26:32     Target Cancelled Target cancelled (29/34, PGC 3792) due to cloud 04:42:43     Target Cancelled Target cancelled (30/34, GCVS TT Ari) due to cloud 04:56:50     Target Cancelled Target cancelled (31/34, Nova Per 2020) due to cloud 05:13:50     Target Cancelled Target cancelled (32/34, 88P/Howell) due to cloud 05:26:52     Target Cancelled Target cancelled (33/34, 4P/Faye) due to cloud 05:47:41     Target Cancelled Target cancelled (34/34, GCVS RR Tau) due to cloud 05:47:46   Queue Completed Job Queue completed 05:47:52 Session Closing Session closing 05:47:57   Dome Closed Dome already closed (closed at 04:17, closing time 50s) 05:49:13   Dome Parked Dome parked (parking time 67s), Az: 90.0 deg 05:50:32   Telescope Parked Telescope parked (parking time 72s) 05:50:47   Telescope State Scope parked Turn scope off. (Handbox) 05:51:07   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 05:51:54   Services Stopped Night Services stopped 05:51:56 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files) 05:52:18 Session Finished Session Finished

Session Alerts

Time     Alert Detail 20:30:13 CCDSoft Image file [0000] hasn't been saved to disk, possible CCDSoft issue 20:31:22 CCDSoft Image file has been saved to disk following CCDSoft Restart 23:41:33 Dome Discrepency Difference between Telescope Az and Dome Az is > 8 deg (Nova Cas 2021)

Back to Top

Operational Issues (2021-09-29, S918)

• Critical Issues (0)
• Major Issues (0)
• Minor Issues (7)
• Small Defects (0)
• Continuous Improvement (17)

[ Prev | Next ]

Critical Issues

• None

Major Issues

• None

Minor Issues

• Near Zenith focus frames (associated with a renewed autostart attempt) were taken at same time as 180s main scope images were being acquired from job queue that was still running in the background.  After spotting an opportunity to commence autostart session again in order to use time for Near Zenith focusing rather than wait 9 mins for first target to arrive at the start of its time slot. the session was put back to Manual using the Obs.Manager's 'Manual' button. It was imagined that this would automatically terminate the job queue, but this didn't in fact happen.  as it sprung to life a few minutes later at the time that a new autostart initiated run begun taking Near Zenith Focus images. This caused user and software confusion with focus being changed whilst taking main image frames, and focusing profiles being messed (FWHM values flat-lining over part of the profile). Obs.Manger should offer more help and assistance to probably close down job queue which the user is intentionally stopping.   Extra checks should be present so that Fully Automated or Autostart modes can not be entered into whilst job queue is running.  Safeguards put in place in AstroMain 3.42.9 to prevent this from happening again.
   Fixed 2021-09-30 (AstroMain 3.42.9 )

• Level 2 (ImageSet) Guidestats being produced for each 2s frame rather than at end of all 7 images.     Problem occured for 61 Cyg (7 x 2s, SeqMode=Auto) and also for GSC 1224:29 (15 x 10s, SeqMode=Auto). Bug fixed (resetting SeqMode=Auto to SeqMode=VVRR wasn't being applied correctly)
   Fixed 2021-09-30 (AstroMain 3.42.9 )

• Job execution held up at xx:xx whilst waiting for CCD Cooler to stabilise at -15 degC even though set point was already on -15 degC.  Resolved in session by resetting lower power band to 68% from 64%, which allowed a trigger to decrease set point temperature to -20 degC. This is a known problem and whilst it was fixed earlier in CheckForStableCCDTemperature() routine it hadn't been fixed in  CheckForStableCCDTemperature(T) .  Fixed in AstroMain 3.42.9.
   Fixed 2021-09-30 (AstroMain 3.42.9 )

• Whilst session was suspended towards end of session the CCD Monitor allowed the CCD Cooler to rise above upper power threshold eventually reaching 100% and compromising the camera's ability to keep the CCD  at the set point temperature.  The CCD Setpoint temperature should have been raised by 5 deg. Although this didn't impact any imaging, should the session have resumed, the CCD would have already been setup at correct temperature which would have prevented a delay at the start of the next target..Logs shows that the bRaiseSetPoint flagged was raised at 05:21, but no action was taken.  Code changed so that CheckForChangeSetPointRequest() is called from Obs.Manager whilst the session is in suspended state.
   Fixed 2021-09-30 (AstroMain 3.42.9 )

• Session event  record"Image file [0000] hasn't been saved to disk, possible CCDSoft issue" (20:30).   This was due to the 'double tasking'  issue near start of session when Near Zenith autofocusing activities conflicted with  job queue imaging activities in the background.  Issues automatically resolved by CCDSoft restart and user activities to abort the two conflicting jobs.  The surface issue is understood and can be closed.   The underlying issue (two jobs allowed to run at same time) has been fixed to prevent the problem from reoccuring.
   Closed 2021-10-01 (Session)

• Report message during Foc2 autofocusing on Near Zenith Focus Field error messages generated saying 'Unable to find SharpCap Image' .  This was due to the 'double tasking'  issue near the start of session when Near Zenith autofocusing activities conflicted with  job queue imaging activities in the background.   The immediate issue (not finding SharpCap message) is understood in this context and can be closed.  The underlying issue (two jobs allowed to run at same time) has been fixed to prevent the problem from reoccuring.
   Fixed 2021-10-01 (Session)

• CI Cyg not showing a Cam1 Box on Cam2 Reference Frame & Guide Frame images. It should be possible to use stored Cam2 offsets to infer the position of the Cam1 FOV on the Cam2 pictures, but in this situation the cam box should be drawn with dashed lines.  Dashed lines drawn in ImageMagicK using -draw  "stroke-dasharray 5 5  ". This has been implemented by changes to LinkCam2GuideFrame() and .  In this particular case problem was a WCS insert issue, but was fixed by using the custom routine 'CalcRaDecToXY()'  instead of the CCDSoft routine  'Image.RADecToXY() '
   Fixed 2021-10-04 (AstroMain 3.43.3)

Small Defects

• None

Continuous Improvement

• Fix minor cosmetic issues related to changing the reporting of autoguide data (guidestars) and improve reporting of result (Ok, #,#)
   Done 2021-09-30 (AstroMain 3.42.9 )

• Make minor cosmetic improvements associated with CheckDomePosition (Dome Slaving is On.)
   Done 2021-09-30 (AstroMain 3.42.9 )

• Add GuideStats table to Session's Local Web page.
   Done 2021-09-30 (AstroMain 3.42.9 )

• CI Cyg producing Guide Stats results for 15s B image, but not the 5s V or 3s R image. Level 3 Guide Stats should be dropped in this situation.   Fixed in AstroMain 3.42.9.  Image GuideStats are no longer reported where the Total ImageSetExp time is < 90s
   Done 2021-09-30 (AstroMain 3.42.9 )

• Improve behaviour when queue resumes after being suspended occurs whilst in equilibration. After the session became suspended whilst in equilibration and before near-zenith focusing occured the job queue was started in 'suspended' mode.  After conditions improved dome opened, but the job queue then entered a 9 minute hold waiting for Target 1's time slot to begin.   Whilst execution may have then begun with Near Zenith focusing (job was aborted before this point),  the wait time would have been better spent by going directly to Near Zenith for Foc1/Foc2 focusing .
   Done 2021-09-30 (AstroMain 3.42.9 )

• Delay waiting for CCD to stabilise at new set point temperarture at -20 degC seemed somewhat excessive (xx;xx/0.  Criteria for stabilsation can probably  be relaxed when the hold point is just before Centering since centering/focusing provide extra time for CCD to stabilise before main images are taken.   Fixed an extra parameter 'Mode' has been added to CheckForStableCCDTemperature() routine, 1 (pre-centering) only waits until CCDTemp is acceptable,  2 (pre-main imaging) waits until CCDTemp has stabilised for 2 minutes.
   Done 2021-09-30 (AstroMain 3.42.9 )

• New AllSky Image Difference Distribution Graphs aren't being scaled well for Dusk & Dawn when sky brightness is rapidly changing.  Scaling was developed based on dark sky and wasn't tested against dusk/dawn situations where the ADU difference between two images is > 400 due to changing brightness and/or changing exposure time.
   Done 2021-09-30 (AstroAllSky 3.11.1)

• Need to add gaussian curve fitting to AllSky Image Difference Distribution data, and illustrate on charts. A quicklook method of determining photometric sky quality has initially implemented based on Max Profile Value (in no. of Pixels in the peak bin), FHWM (in adu) & Peak Value offset (PeakProfileDelta in ADU). Later a more detail photometric sky quality was implemented based on PeakY,  C and RMS error.
   Done 2021-10-02 (AstroAllSky 3.11.2

• Extend Telecomms between AstroAllSky and AstroMain with the inclusion of sky brightness (SkyAduRate) or scope/each target , and Image Difference Stats. Involved extending TTelescopeTarget structure with the extra parameter SkyAduRate (double).
   Done 2021-10-02 (AstroMain 3.43.1)

• Relax the conditions that produce a yellow session warning alert saying that Dome Az is more than 8 deg offset from Scope Az.  Nova Cas recieved this warning in session S918 when it was at 85 deg altutude which is a high altitude geometry effect that can often lead to the dome azimuth being more than 15-20 deg offset from the scope's azimuth.   Code changed in Astrom 3.43.1 so that warnings are now only given when Altitude is < 80 deg.
   Done 2021-10-02 (AstroMain 3.43.1)

• Remove extra ")" from a line in the Session Activity breakdown table (Housekeeping)
   Done 2021-10-02 (AstroAllSky 3.11.2)

• Add a new section to Target Execute that takes a 10s Cam2 Reference frame even if Guiding is not activated.  This is for situations where guiding and Foc1 focusing tasks are going to be skipped due to very bright star in starfield.   New routine  'Guider.TakeCam2ReferenceImage()' added to achieve this action, called from ExecuteTarget
  when T.GuidingScope = 0 And bTakeCam2ReferenceImage = True.
   Done 2021-10-03 (AstroMain 3.43.1)

• Add ability to run a single target/mosaic from AstroMain's Observing/Single&Mosaics tab based on a target held in the Targets database.  Requires some means of selecting Target ID & retrieval of target from database.  Feature added to AstroMain 3.43.3 (2021-10-04), but it requires user to know the Target ID of the required target. Two new fields added to the Observing Single/Mosaic tab (cboxUseTargetIdOb & txtTargetIdOb).  Basic implementation provided and tested in AstroMain 3.34.3. A future improvement could involve some means of identifying / capturing the required target id. Prehaps a selection list based on the text that is entered in the Target Name field.
   Closed 2021-10-04 (AstroMain 3.43.3)

• Query. Why is quadratic fit for Focus Profile 5 (TS80-wide) so poor (20:48). Playing back shows that the best focus position determining for Wide Search Profile was valid and appropriate.  Position is now even better in AstroMain 3.44 as it uses new MaxPixel weighted FWHM method.  The fitted quadratic curve uses 7 points for fitting (9 points rejected), 6 of these points are reasonable, but the last of these points corresponds with point 16/16 FWHM 12.46, max pixel 640. It outlying position is enough to throw off the curve fit by a considerable amount. The max pixel value is the second lowest in the whole profile.  Visually it easy to demonstrate that this point should be rejected, but it is hard to define a set of checks that would have eliminated it.  Fixed by rejecting points with a max pixel < 15% of the peak max value (previously the threshold was <10% of peak max value.  This rejects this last point and my improve other such profiles.
   Fixed 2021-10-12 (AstroMain 3.44)

• Updates to Session.Header.dat not being seen by webpage during start-up phase, making it unclear whether things were progressing or not. This probably happened because AstroPlan was busy uploading various starting images/tables causing a delay in sending the session/autostart details to the webpage. Consider multiple points for the file or a high priority queue. Issue may have been improved by using the user option to catalog existing Live files without updating when starting AstroPlan. Closed after review (2021-10-22).
   Closed 2021-10-22 (AstroPlan 1.24.3 / 1.24.4 )

• Consider submitting new transient targets to a new 'Transients' project rather than to the 'Supernova' project .  Transients that are not yet defined as supernovae and are not associated with any other specific project are saved to the newly created Transients project (Project ID=51).  Transients that are subsequently determined to be SN are then automatically moved to the 'Supernova' project.(Project ID=15).
    Closed 2021-11-08  (AstroSN 1.7.1)

• Must Do targets to be allowed in E or W hemispheres without bias but other targets should be given a higher weighting when lying in the eastern hemisphere, especially longer duration targets (eg 5 x 180s) where guiding is better. Shorter duration targets should probably not be constrained either way.  Item placed on hold until guiding performance is reanalysed following the installation of a new (LX200) Dec Motor Unit on 2021-10-15.   Following change to Polar Alignment the guiding issues west of meridian has lessened, and decision made to close item (2021-12-20)
    Closed after review 2021-12-20 (Observatory, LX200)

• Query. Why did Focus Profile 5 produce an ambiguous result. Closed after review 2022-04-28 as there had been no progress on this query, and because by -in large, auto-focusing is now generally working ok.
    Closed 2022-04-28 (AstroMain/ Session)

• Complete backlog of image building and web page documentation of all 8 observing sessions from Sep 2021.  6 sessions still incomplete as of 2022-04-12.
  Done 2024-06-01 (Session, Website)
