Notes - Session 935 (2021-11-19)


Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log

Bullet Operational Issues
  - Critical Issues (0),  Major Issues (0),  Minor Issues (8),  Small Defects (3),  Continuous Improvement (2)

Bullet Images from 2021-11-19 >>         [ Local Files >> ]

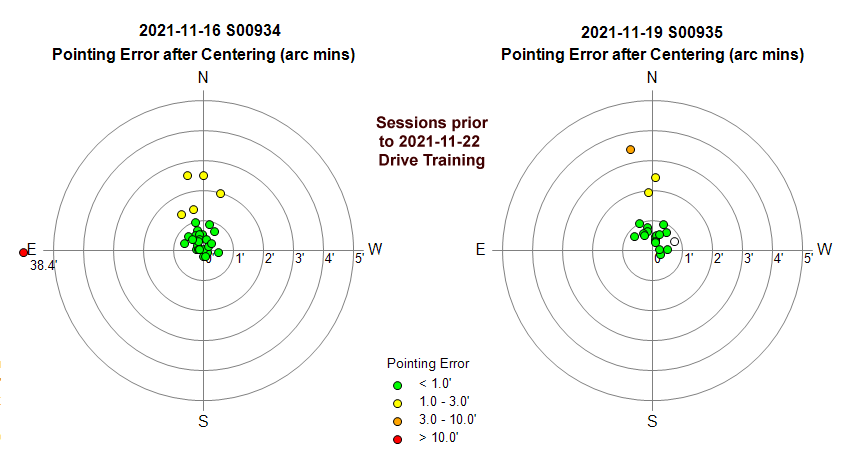

Bullet LX200 - Dec Centering and Guiding Issues
2021-11-21
Bullet LX200 - Improvement Plan (2021-11-21)

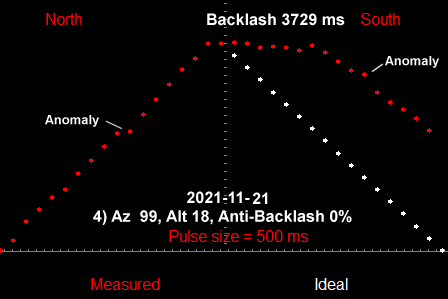

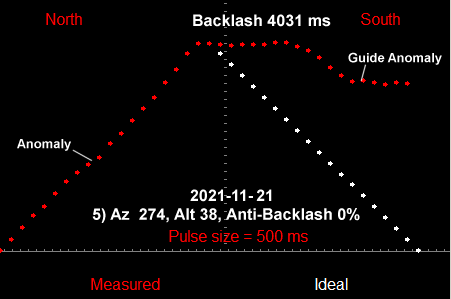

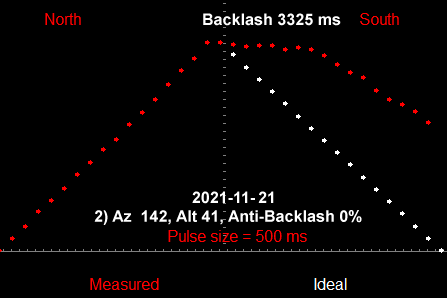

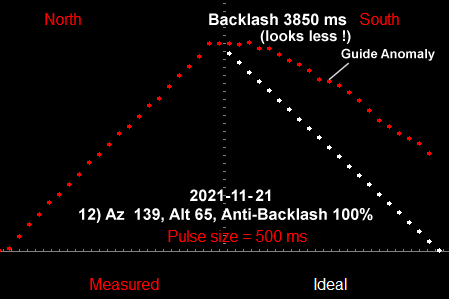

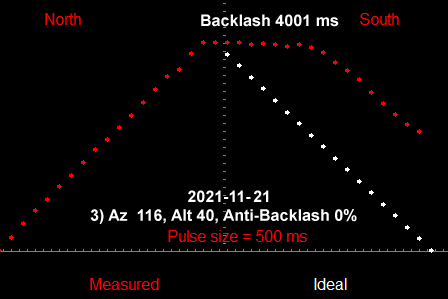

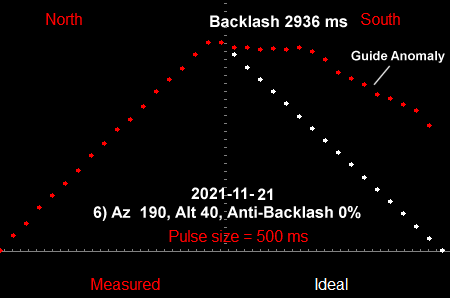

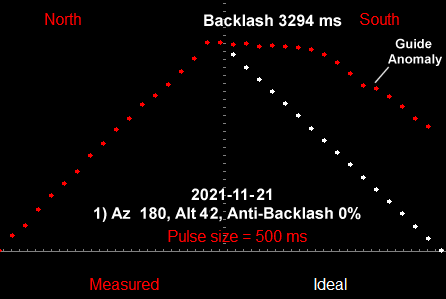

Bullet LX200 - Dec Backlash Measurements (2021-11-21)
2021-11-22

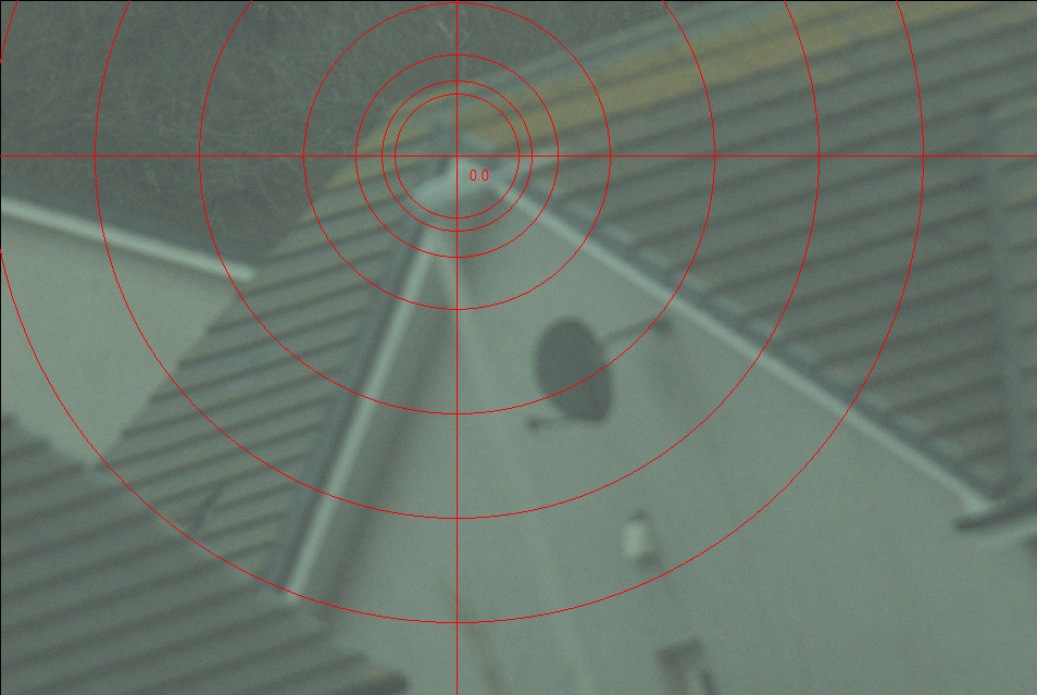

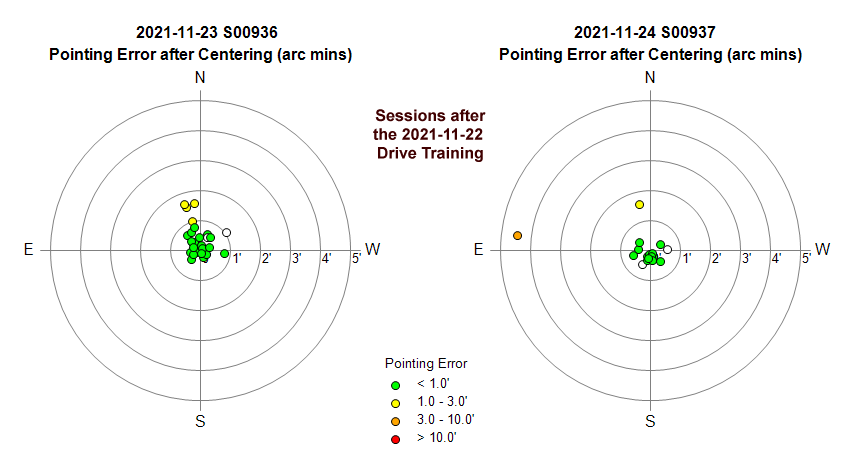

Bullet LX200 - Ra/Dec Drive Training (2021-11-22)

Session Aims & Highlights (2021-11-19)

Main aims

  1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by time & conditions.

Equipment & Software

Highlights

Notes:

  Summary Plots & Logs

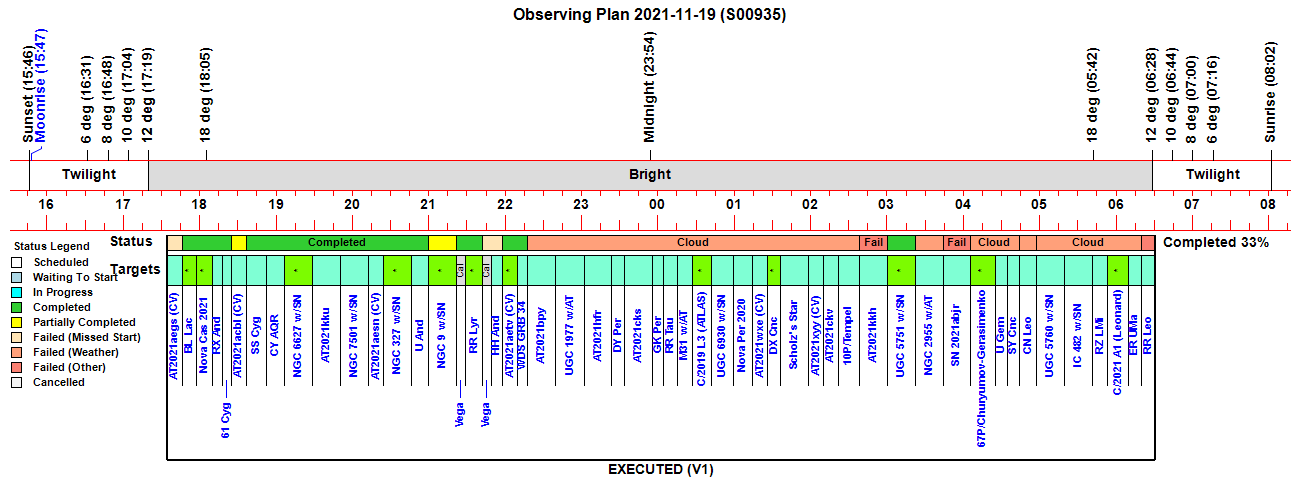

Observing Plan

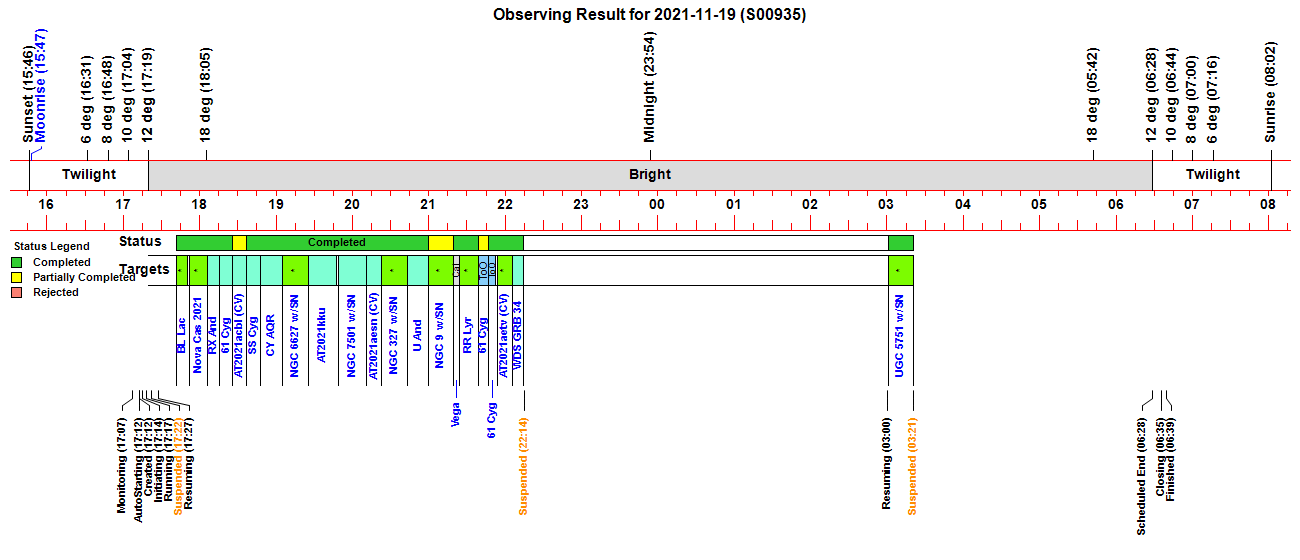

Observing Result

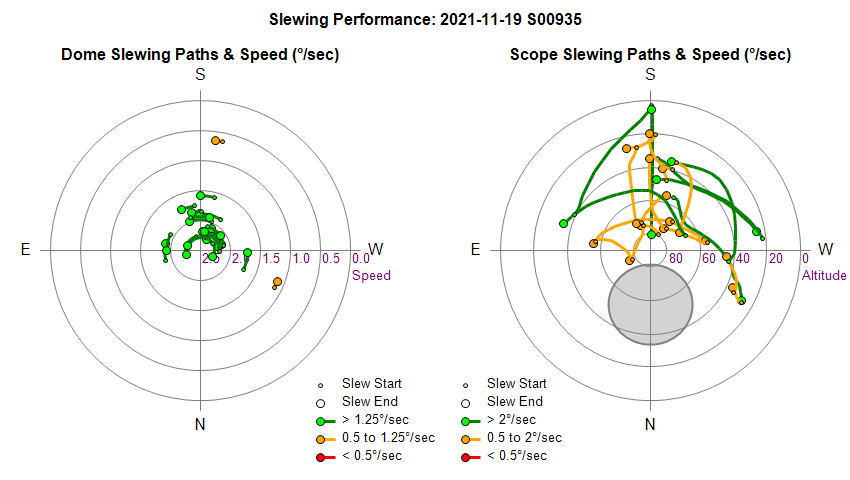

Dome & Scope Slewing Performance

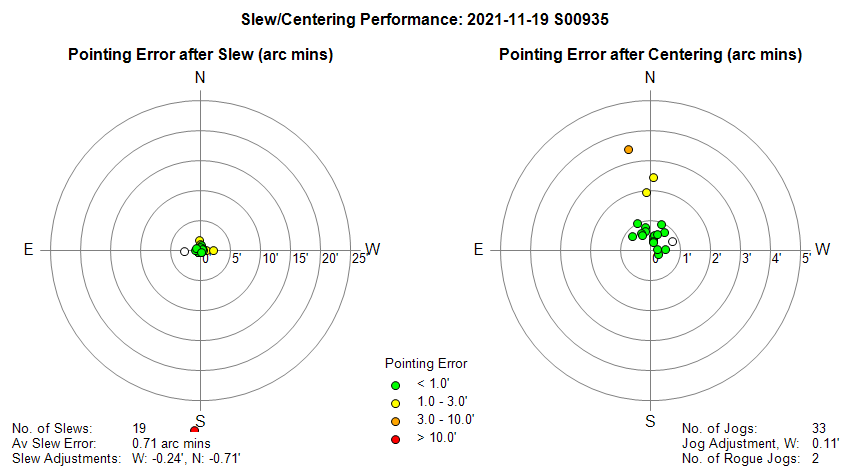

Slew/Centering Performance

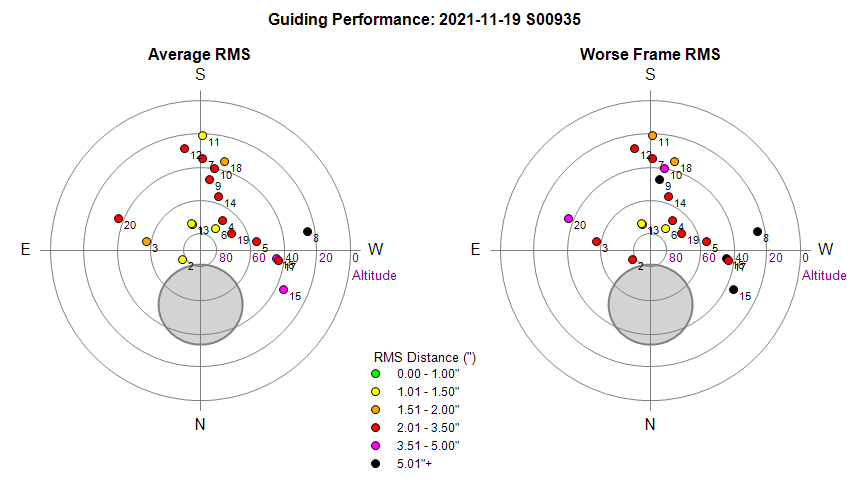

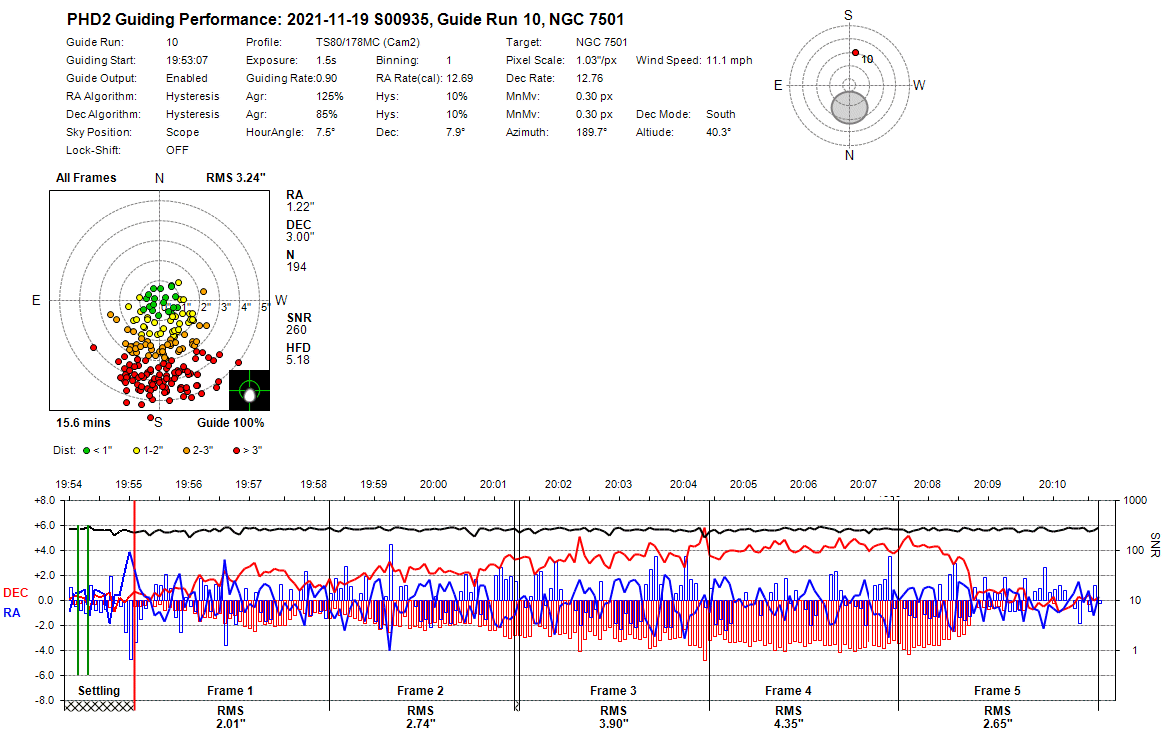

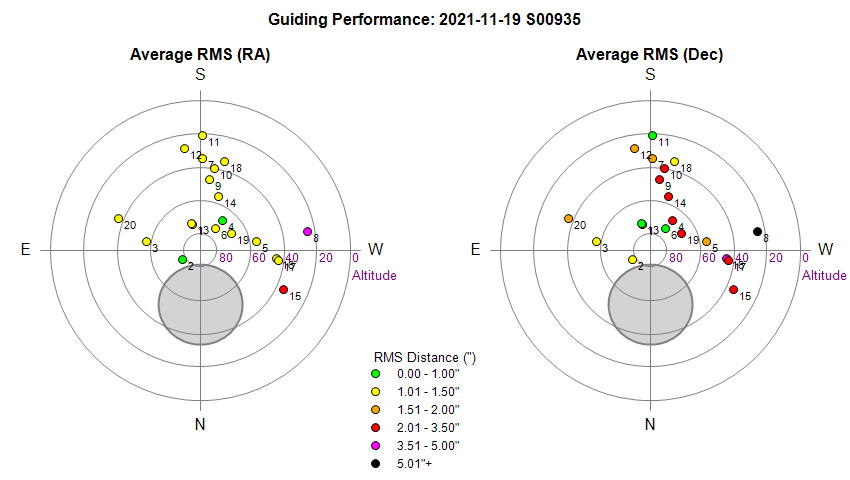

Guiding Performance

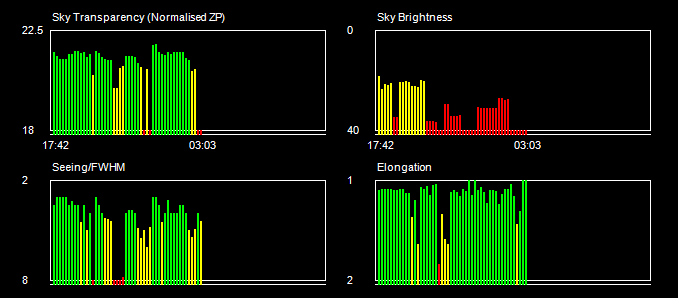

Sky Conditions (Locate Frames)

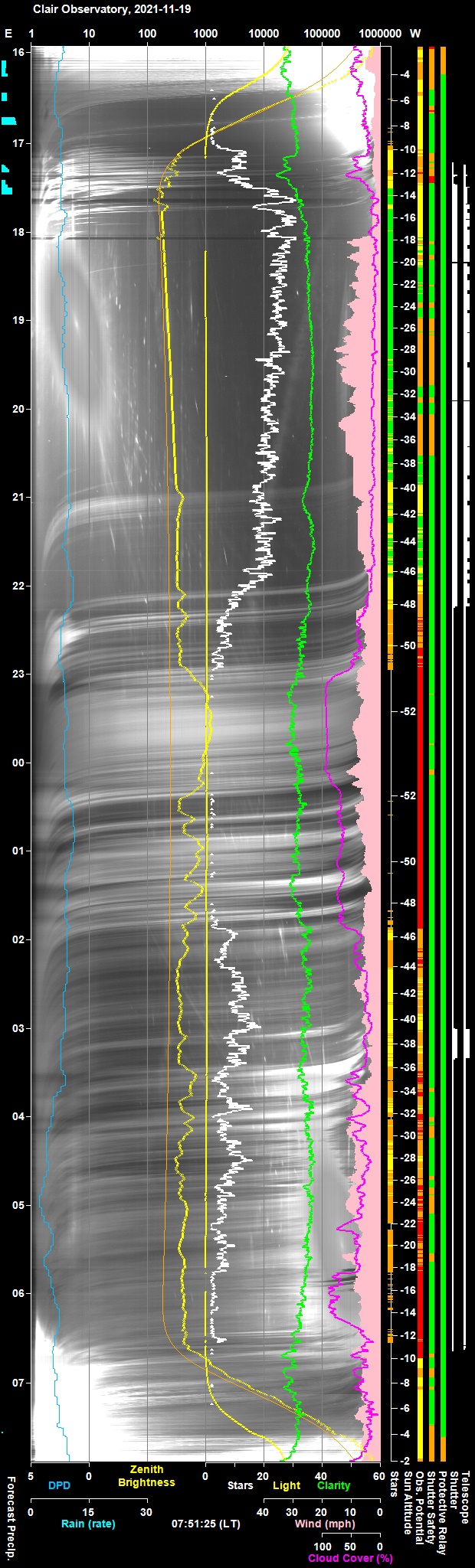

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

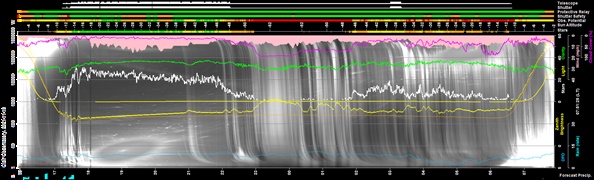

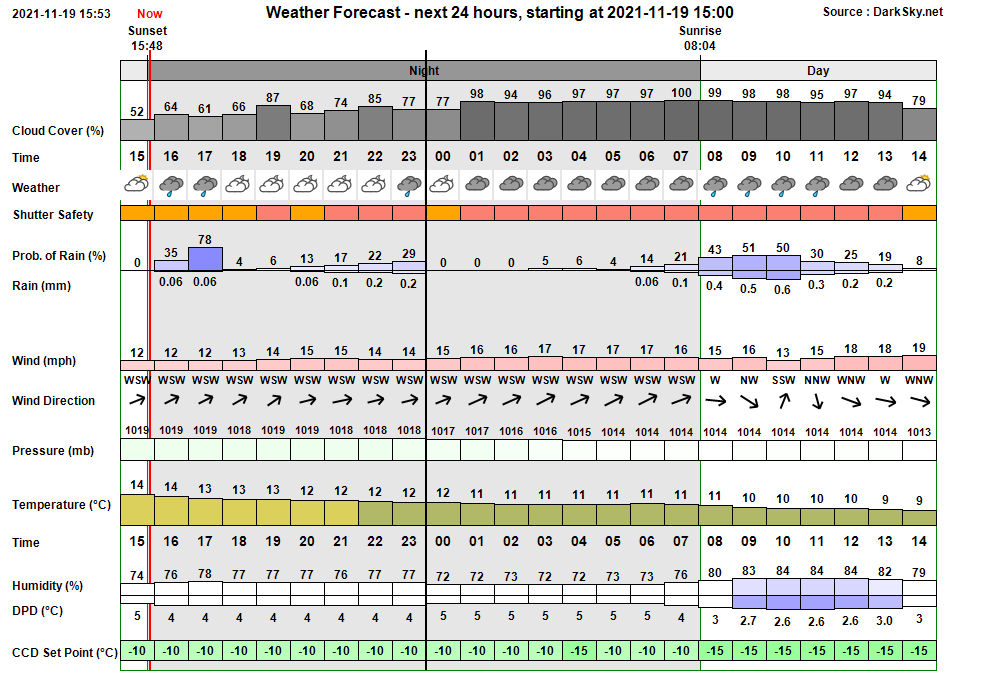

Actual Weather vs Pre-Session Weather Forecast

Session Event Log
Time     Event Detail
17:07:00 Session Monitoring AutoStart monitoring for Live Session opportunity between 17:06 & 05:48
17:07:01   AutoStart Delayed Session delayed due to too few stars
17:12:26 Session AutoStarting Session autostarting (17:12)
17:12:56 Session Created Live Session Created (2021-11-19 S00935, ImageSaveNum: 935001)
17:12:59   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
17:14:42   Services Started Observatory Services started
17:14:50 Observatory (Auto) Observatory placed in Fully-Automated Mode
17:14:52 Session Pending Session pending (2021-11-19)
17:14:54 Session Initiating Session initiating (2021-11-19)
17:14:56   Plan Requested Observing Plan requested from AstroPlan (1.27.1)
17:15:50   Plan Loaded Observing Plan loaded to queue (, Plan ID: 686)
17:16:12   Camera1 Connected SBIG Camera Connected (set point -10°C)
17:16:19   Telescope Connected Telescope Connected (TheSky6)
17:16:48 Session Equilibration Session ready for dome & camera equilibration
17:17:33   Dome Opened Dome opened (opening time 45s)
17:17:58 Session Running Session running
17:18:00   Queue Started Observing Queue started (52 targets selected)
17:18:02   UPB.Switch Restart UPB.Switch has been restarted.
17:18:04     Target Started (NrZen) Target started (Focus Field 21, HIP 103850)
17:19:45       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
17:20:03   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (reducing clarity)
17:21:18 Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Shutter)
17:21:20   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud)
17:21:22       Focusing Aborted Foc1 Focusing Aborted due to HardSuspend
17:21:44       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
17:22:05     Target Completed Target completed (Focus Field 21, HIP 103850)
17:22:07   Queue Paused Queue pausing for Session Suspension
17:22:09 Session Suspended Session suspended
17:22:58   Dome Closed Dome closed (closing time 50s)
17:27:49 Session Resuming Session resuming
17:28:34   Dome Opened Dome opened (opening time 45s)
17:28:36 Session Running Session running
17:28:38   Queue Resumed Observing Queue resumed
17:29:58     Target Started (NrZen) Target started (Focus Field 21, HIP 103850)
17:30:43       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
17:33:50       Focusing Completed Foc1 AutoFocus Completed (Profile No 2, wide)
17:36:16       Focusing Completed Foc1 AutoFocus Completed (Profile No 2)
17:36:18       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
17:38:49       Focusing Completed Foc2 AutoFocus Completed (Profile No 3, wide)
17:40:45       Focusing Completed Foc2 AutoFocus Completed (Profile No 3)
17:41:06     Target Completed Target completed (Focus Field 21, HIP 103850)
17:41:08     Target Missed (1/52) Target's time slot was missed (1/52, AT2021aegs (CV))
17:41:50     Target Started (2/52) Target started (2/52, GCVS BL Lac)
17:45:11       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
17:47:31       Focusing Completed Foc1 AutoFocus Completed (Profile No 4)
17:51:34     Target Completed Target completed (2/52, GCVS BL Lac)
17:52:08     Target Started (3/52) Target started (3/52, Nova Cas 2021)
17:56:52       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
17:58:39       Focusing Completed Foc1 AutoFocus Completed (Profile No 5)
18:06:10     Target Completed Target completed (3/52, Nova Cas 2021)
18:06:12     Target Started (4/52) Target started (4/52, GCVS RX And)
18:09:40       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
18:11:53       Focusing Completed Foc1 AutoFocus Completed (Profile No 6)
18:15:21     Target Completed Target completed (4/52, GCVS RX And)
18:15:23     Target Started (5/52) Target started (5/52, 61 Cyg)
18:20:59       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
18:23:36       Focusing Completed Foc1 AutoFocus Completed (Profile No 7)
18:25:27     Target Completed Target completed (5/52, 61 Cyg)
18:25:29     Target Started (6/52) Target started (6/52, AT2021acbl (CV))
18:29:08       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
18:32:42       Focusing Completed Foc1 AutoFocus Completed (Profile No 8)
18:37:04     Target Completed Target partially completed (6/52, AT2021acbl (CV))
18:37:06     Target Started (7/52) Target started (7/52, GCVS SS Cyg)
18:40:11       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
18:42:29       Focusing Completed Foc1 AutoFocus Completed (Profile No 9)
18:47:34     Target Completed Target completed (7/52, GCVS SS Cyg)
18:47:36     Target Started (8/52) Target started (8/52, GCVS CY AQR)
18:53:09       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
18:55:12       Focusing Completed Foc1 AutoFocus Completed (Profile No 10)
18:56:15   UPB.Switch Restart UPB.Switch has been restarted.
19:05:24     Target Completed Target completed (8/52, GCVS CY AQR)
19:05:26     Target Started (9/52) Target started (9/52, NGC 6627 w/SN2021abkm)
19:08:38       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S)
19:25:43     Target Completed Target completed (9/52, NGC 6627 w/SN2021abkm)
19:25:46     Target Started (10/52) Target started (10/52, AT2021kku)
19:28:56       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
19:32:02       Focusing Completed Foc1 AutoFocus Completed (Profile No 11)
19:48:38     Target Completed Target completed (10/52, AT2021kku)
19:48:40     Target Started (11/52) Target started (11/52, NGC 7501 w/SN2021wyw)
19:54:43       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S)
20:10:45     Target Completed Target completed (11/52, NGC 7501 w/SN2021wyw)
20:10:48     Target Started (12/52) Target started (12/52, AT2021aesn (CV))
20:22:53     Target Completed Target completed (12/52, AT2021aesn (CV))
20:22:55     Target Started (13/52) Target started (13/52, NGC 327 w/SN2021aclv)
20:26:27       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S)
20:43:00     Target Completed Target completed (13/52, NGC 327 w/SN2021aclv)
20:43:02     Target Started (14/52) Target started (14/52, GCVS U And)
20:46:05       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
20:48:17       Focusing Completed Foc1 AutoFocus Completed (Profile No 12)
20:59:58     Target Completed Target completed (14/52, GCVS U And)
21:00:00     Target Started (15/52) Target started (15/52, NGC 9 w/SN2021zju)
21:03:19       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:05:43       Focusing Completed Foc1 AutoFocus Completed (Profile No 13)
21:19:29     Target Completed Target partially completed (15/52, NGC 9 w/SN2021zju)
21:19:31     Target Started (16/52) Target started (16/52, Vega)
21:24:09     Target Completed Target completed (16/52, Vega)
21:24:12     Target Started (17/52) Target started (17/52, GCVS RR Lyr)
21:27:54       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:30:07       Focusing Completed Foc1 AutoFocus Completed (Profile No 14)
21:39:02     Target Completed Target completed (17/52, GCVS RR Lyr)
21:39:04     Target Started (18/53) Target started (18/53, 61 Cyg, ToO)
21:42:05       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:44:16       Focusing Completed Foc1 AutoFocus Completed (Profile No 15)
21:44:28   UPB.Switch Restart UPB.Switch has been restarted.
21:46:49     Target Aborted (18/53) Target aborted (18/53, 61 Cyg, ToO) due to User Intervention
21:46:52     Target Started (19/54) Target started (19/54, 61 Cyg, ToO)
21:49:49       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:51:57       Focusing Completed Foc1 AutoFocus Completed (Profile No 16)
21:53:33     Target Completed Target completed (19/54, 61 Cyg, ToO)
21:53:35     Target Missed (20/54) Target's time slot was missed (20/54, Vega)
21:53:37     Target Missed (21/54) Target's time slot was missed (21/54, GCVS HH And)
21:53:39     Target Started (22/54) Target started (22/54, AT2021aetv (CV))
21:56:59       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:58:59       Focusing Completed Foc1 AutoFocus Completed (Profile No 17)
22:05:51     Target Completed Target completed (22/54, AT2021aetv (CV))
22:05:53     Target Started (23/54) Target started (23/54, WDS GRB 34)
22:06:44   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
22:09:09       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:12:34       Focusing Completed Foc1 AutoFocus Completed (Profile No 18)
22:14:48     Target Completed Target completed (23/54, WDS GRB 34)
22:14:50   Queue Paused Queue paused for Session Suspension
22:14:52 Session Suspended Session suspended
22:15:39   Dome Closed Dome closed (closing time 50s)
22:31:39     Target Cancelled Target cancelled (24/54, AT2021bpy) due to cloud
22:54:01     Target Cancelled Target cancelled (25/54, UGC 1977 w/AT2021irz) due to cloud
23:15:53     Target Cancelled Target cancelled (26/54, AT2021hfr) due to cloud
23:23:14   UPB.Switch Restart UPB.Switch has been restarted.
23:28:31     Target Cancelled Target cancelled (27/54, GCVS DY Per) due to cloud
23:47:53     Target Cancelled Target cancelled (28/54, AT2021cks) due to cloud
23:59:19     Target Cancelled Target cancelled (29/54, GCVS GK Per) due to cloud
00:09:53     Target Cancelled Target cancelled (30/54, GCVS RR Tau) due to cloud
00:21:30     Target Cancelled Target cancelled (31/54, M31 w/AT2021aaxp) due to cloud
00:36:00     Target Cancelled Target cancelled (32/54, C/2019 L3 (ATLAS)) due to cloud
00:52:07     Target Cancelled Target cancelled (33/54, UGC 6930 w/SN2020rcq) due to cloud
01:07:29     Target Cancelled Target cancelled (34/54, Nova Per 2020) due to cloud
01:19:52     Target Cancelled Target cancelled (35/54, AT2021wxe (CV)) due to cloud
01:31:23     Target Cancelled Target cancelled (36/54, GCVS DX Cnc) due to cloud
01:50:59     Target Cancelled Target cancelled (37/54, Scholz's Star) due to cloud
02:03:51     Target Cancelled Target cancelled (38/54, AT2021xyy (CV)) due to cloud
02:16:13     Target Cancelled Target cancelled (39/54, AT2021ckv) due to cloud
02:30:31     Target Cancelled Target cancelled (40/54, 10P/Tempel) due to cloud
02:52:23     Target Cancelled Target cancelled (41/54, AT2021kkh) due to other condition
03:00:20 Session Resuming Session resuming
03:01:05   Dome Opened Dome opened (opening time 45s)
03:01:07 Session Running Session running
03:01:09   Queue Resumed Observing Queue resumed
03:01:11     Target Started (42/54) Target started (42/54, UGC 5751 w/SN2021abcw)
03:05:56   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
03:13:02   SoftSuspend Cancelled Soft Suspend is cancelled due to Improved Conditions
03:20:17   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
03:20:56     Target Completed Target completed (42/54, UGC 5751 w/SN2021abcw)
03:20:58   Queue Paused Queue paused for Session Suspension
03:21:00 Session Suspended Session suspended
03:21:47   Dome Closed Dome closed (closing time 50s)
03:36:07     Target Cancelled Target cancelled (43/54, NGC 2955 w/AT2021jtt) due to cloud
03:57:59     Target Cancelled Target cancelled (44/54, SN 2021abjr) due to other condition
04:19:11     Target Cancelled Target cancelled (45/54, 67P/Churyumov-Gerasimenko) due to cloud
04:28:44     Target Cancelled Target cancelled (46/54, GCVS U Gem) due to cloud
04:38:23     Target Cancelled Target cancelled (47/54, GCVS SY Cnc) due to cloud
04:52:00     Target Cancelled Target cancelled (48/54, GCVS CN Leo) due to wind
05:11:42     Target Cancelled Target cancelled (49/54, UGC 5760 w/SN2020zoq) due to cloud
05:33:34     Target Cancelled Target cancelled (50/54, IC 482 w/SN2021heh) due to cloud
05:46:52     Target Cancelled Target cancelled (51/54, GCVS RZ LMi) due to cloud
06:03:52     Target Cancelled Target cancelled (52/54, C/2021 A1 (Leonard)) due to cloud
06:14:10     Target Cancelled Target cancelled (53/54, GCVS ER UMa) due to cloud
06:35:36     Target Cancelled Target cancelled (54/54, GCVS RR Leo) due to other condition
06:35:42   Queue Completed Job Queue completed
06:35:45 Session Closing Session closing
06:35:50   Dome Closed Dome already closed (closed at 03:21, closing time 50s)
06:36:13   Dome Parked Dome parked (parking time 15s), Az: 90.0 deg
06:37:30   Telescope Parked Telescope parked (parking time 71s)
06:37:44   Telescope State Scope parked Turn scope off. (Handbox)
06:38:05   Telescope Switched Off Telescope Power has been switched off via UPB Switch.
06:38:52   Services Stopped Night Services stopped
06:38:54 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files)
06:39:31 Session Finished Session Finished

Session Alerts
Time     Alert Detail
17:18:00 UPB.Switch disconnected UPB.Switch has unexpectedly disconnected. Restart will be attempted
17:18:02 UPB.Switch UPB.Switch has been successfully restarted.
18:56:15 UPB.Switch disconnected UPB.Switch has unexpectedly disconnected. Restart will be attempted
18:56:17 UPB.Switch UPB.Switch has been successfully restarted.
21:44:27 UPB.Switch disconnected UPB.Switch has unexpectedly disconnected. Restart will be attempted
21:44:30 UPB.Switch UPB.Switch has been successfully restarted.
23:23:14 UPB.Switch disconnected UPB.Switch has unexpectedly disconnected. Restart will be attempted
23:23:16 UPB.Switch UPB.Switch has been successfully restarted.

Back to Top


Operational Issues (2021-11-19, S935)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Small Defects

Continuous Improvement

[ Prev | Next ]

Back to Top


LX200 - Dec Centering & Guiding Issues

Issue:  Centering performance in Declination has deteriorated over recent sessions

Issue is evidenced by

a) Centering Chart showing final pointing errors with a clear overall bias to the north.


and

b) specific examples such as NGC 7501 (Az 190, Alt 40) with pointing errors of  0.48' 2.68' 2.28' 1.93' from the 4 locate frames used, with the pointing error after slew (W -0.32', N -0.36') being smaller than the pointing errors after any of the 3 subsequent centering attempts including the last attempt (W -0.12', N 1.92').  Pointing error in Declination jumped from S 0.36' on initial slew to N 2.62' following an initial 0.36' N centering jog.  Pointing error in Declination only came down slightly to N 2.21' following a S 2.62' jog,  and only came down to N 1.92'  following a further S 2.21' jog.

The problems are in keeping with observation that certain targets including NGC 7501 which had very poor declination guiding with Southward Pulse Guides being largely ineffective in keepin the scope held on the lock position.  The following Guide Performance Chart for NGC 7501 , show that South jogs are ineffective in holding the telescope onto lock position for some 13 minutes, before eventually moving to lock position for the final 2 minutes of the guiding run.




Update 2021-12-16 Centering Issue has been fixed by 2021-12-16 by calling a new routine (JogUsingPulseGuide) that employ PulseGuides to move the scope when the required correction in a given direction (east/west or north/south) is <2 arc mins instead of the using TheSky6.Telescope.Jog method.  (Note: using Pulse Guide scope takes about 8.5s (8500ms) to move 2 arc mins with the guide rate used (x0.90).

Back to Top


2021-11-21


LX200 - Improvement Plan (2021-11-21)

Plan for improving performance of the Observatory's 12" LX200GPS/R scope is listed below.   The actions are designed to improve centering and guiding results.

Back to Top


LX200 - Dec Backlash Measurements (2021-11-21)

A series of measurements of Declination Backlash measurements were made using PHD2 Guiding Assistent with a LX200 guide rate of x0.90 sidereal.
For the tests the scope's anti-backlash setting for the Dec/Alt axis was changed to 0%.

Results

No.
Az
(deg)
Alt
(deg)
Dec Drift Rate
(arcsec/min
Polar Alignment
Error (arc min)
Dec Backlash
(ms)
Dec Backlash
(arc sec)
1 (S) 180 42 0.41 1.6 3294 41.2
2 142 41 -1.55 6.1 3325 41.7
3 116 40 -2.45 10.1 4001 47.9
4 (E) 99 18 -2.59 10.0 3729 44.0
5 (W) 274 38 3.19 14.5 4031 47.0
6 190 40 0.75 2.9 2936 36
7 (W) 270 7 -4.09  (*) 15.7 2667 30.3
8 (NW) 322 31 2.97 18.7 > 5606 65.7
9 (NE) 32 32 -2.26 15.5 3331 41.4
10 (N) 3 27 -0.63 4.6 > 5144 64.7
11 (0%) 130 64 -1.05 5.0 3981 49.0
12 (100%) 139 65     3850 44.4
13 (130%) 143 66     2717 32.5

 * The negative Dec Drift is unexplainable ! The screen capture data that was capture does suggest that star was drifting in an opposite direction to that expected for a azimuth position that lies West of Meridian.   Is this a refraction effect due to the star's low altitude (7 deg).


Analysis
Previous measurements of Dec backlash (2019-12-10) gave an average backlash of 4896 ms at guide speed x0.66 (range 4736 to 5076 ms) .  This is equivalent to 3590 ms at x0.90 guide speed (3457 to 3705 ms).

The average Dec backlash from the first 4 new measurements is 3587 ms at  x0.90 guide speed (range 3294 to 4001 ms) .

This suggests there has been no significant change in Dec backlash with the newly installed Dec Motor (2021-10-12) despite Dec guiding observations (2021-11-09) suggesting the contrary.   At x1.00 guide speed this corresponds to 3328 ms (3.3s).  DocG's notes reported that normal tolerance for backlash on a well tuned LX200 is between 2 and 4s.


Measurement points 2 & 3 are close to the positions where significant unexpected jumps in Dec Position of around 5" occurred with just a single Dec guide pulse during guiding on a couple of targets in session S932 (2021-10-09 , suggesting that the 130% antibacklash setting for the Dec axis in the scope is too extreme.  The setting was reduced to 80% on 2021-10-10.  The same issue occurred in Session S934 (2021-11-16) suggesting that the 80% Anti-Backlash setting itself was also too extreme and should be reduced further, and as a trial the setting was reduced to just 20% ahead of session S935 (2021-11-19).

Tests 11, 12 & 13 (made with anti-backlash settings of 0, 100% and 130%) showed a reduction in residual backlash with increasing anti-backlash use,  but even with 130% anti-backlash a residual backlash of 2717ms (32.5 arcsec) is still measured, suggesting that an even higher antibacklash should be used (a 150% setting was previously used with some success - see AntiBacklash Re-Tried, 2019-12-16 ) , or more probably that scope's backlash setting needs to be updated by 'Re-Training' its Dec Drive.  The later action was taken the following day (see Ra/Dec Drive Training, 2021-11-22).

Image Image

Image Image

Image Image

Image Image

Image Image


Polar Alignment

Polar Alignment Errors indicated by PHD2 Guiding Assistent vary with position as anticipated. Since Polar Alignment Error is mainly in Elevation rather than Azmiuth, the alignment error seen by a single Guide Assistent run is low for positions near due South (1.6') and due north (4.6'), positions and greatest for positions in Western Sky (14.5', 15.7', 18.7') and Eastern Sky  (10.0', 14.5').

PHD2 measurement are broadly consistent with the Polar Alignment Error of 19.5' determined from most recent TPoint Mapping run that comprised  Az/Alt errors of  -19.5' ME and +0.7' MA  (see TPoint Mapping Run & Model, 2021-10-19).

Back to Top


2021-11-22


LX200 - Ra/Dec Drive Training (2021-11-22)

Drive Training



Method
RA and Dec Drives on the Observatory's LX200GPS/R scope were trained today during daylight hours using AutoStar II's Setup/Telescope/Train Drives facility and the apex of a particular house's gable end, located some 400m to the SSW of the Observatory, as a Terrestrial Reference point.


With the Telescope Tracking set to off (i.e. Terrestrial mode),  the apex of the distant house was centered in the GuideScope view using a ZWO 178MC Camera connected to SharpCap and Autostar II's Drive Training initiated.

Autostar II instructions were followed precisely and absolute care taken to not overrun the target upon centering since the operation depends on not reversing the direction of travel.

The whole operation took just a few minutes.

Starting with the target centered, the order of operations after initiating the RA/Az training was :-

   1) scope slews left  - right arrow key used to recenter on the target (then Enter key)

   2) scope slews right  -  left arrow key used to recenter on target (then Enter key)

Starting with the target centered, the order of operations after initiating the Dec/Alt training was :-

   3) scope slews down   - up arrow key used to recenter on the target (then Enter key)

  4) scope slews up  - down arrow key used to recenter on target (then Enter key)

Notes:
- The centre of the guidescope view has previously been set to be very close to the pointing of the main scope
  (the residual difference (about 1 arc min) is considered irrelevant to Drive Training given that the
   same reference point / same camera view was used throughout the training)

- A x8 guide speed was used for recentering the scope after each telescope slew.  This provided a good balance between speed and control.
- A reticle was turned on in SharpCap to allow precision centering.

- Only after compiling this note was it noticed that the reticle in the SharpCap screen capture doesn't seem to be centered in the camera's field of view
  (not sure why it wasn't centerally located, it shouldn't affect the drive training provided that the reticle stayed in same position throughout the training.   Later experimentation showed that the reticle can be dragged and dropped to a new position, this must have happened inadvertently when setting up the reticle over a remote computer connection before physically re-locating to the observatory for the training itself)

Train Drive Results
'
Edit Az Train' and 'Edit Alt Train' options within the AutoStar II's 'Setup/Telescope/Train Drive' menu was used to see the backlash values determined by the Train Drive operation.   The values for RA (Az) and Dec (Alt) drives were +3 and +44 respectively.



I've read in on-line forum postings that 'for well adjusted LX200s (the Dec backlash value) comes out between 60 and 80. '
https://www.cloudynights.com/topic/562518-getting-an-lx200gps-14-to-autoguide-smoothly/page-2

It's not absolutely clear what the units these backlash values have. They are probably in arc secs, but are they values which are independant of guide speed or not ?  . Moving 44" moving at x0.90 guide speed (13.537"/s) would correspond to 3250ms, which is not too far off the backlash value of 3587 ms determined by PHD2's Guiding Assistent (see Dec Backlash Measurements (2021-11-21) )

After completing the RA/Dec drive training the Anti-Backlash setting on the Dec Axis was set to 100%.
(this will be tweaked once new Backlash measurements are taken)

It will be interesting to see if the drive retraining will :-

- improve target centering
- improve guiding performance (especially in Dec)
- tighten up future TPoint Models

Other Work
Opportuntity was also taken to

 - Align the Red-Dot Finder with the Telescope pointing
   (red-dot finder is a fallback mechanism for re-aligning the scope should scope pointing be lost and
    it is becomes impossible to recover using (wide search) plate solution)


 - Slightly adjust the weights below telescope tube so there was a little more weight toward the front tube end
   (purpose of this slightly change was to make it slightly easier for the scope to guide south where it seems to have increased difficulty).

Update 2021-11-26
Residual Dec Backlash Measurements made during S936 session (2021-11-23) using PHD2 Guide Assistent shows that a 100% Anti-Backlash setting is slightly too aggressive for certain telescope positions, but not sufficiently aggressive for other telescope positions. See Residual Dec Backlash Measurements (2021-11-23).  To prevent overcompensation at any telescope position it would seem that a Dec Anti-Backlash setting of 85-90% would be probably be most appropriate setting to use.

Following charts compare centering results from the two sessions (S934 & S935) immediately prior to the 2021-11-22 Drive Training with those from the two sessions (S936 & S937) immediately after the Drive Training.    Target Centering (in Dec) seems to be better in the S937 session, but the S936 session doesn't seem to be parrticularly better than the two sessions prior to Drive Training.







Back to Top
