Main aims
Equipment & Software
Highlights
Summary Plots & Logs

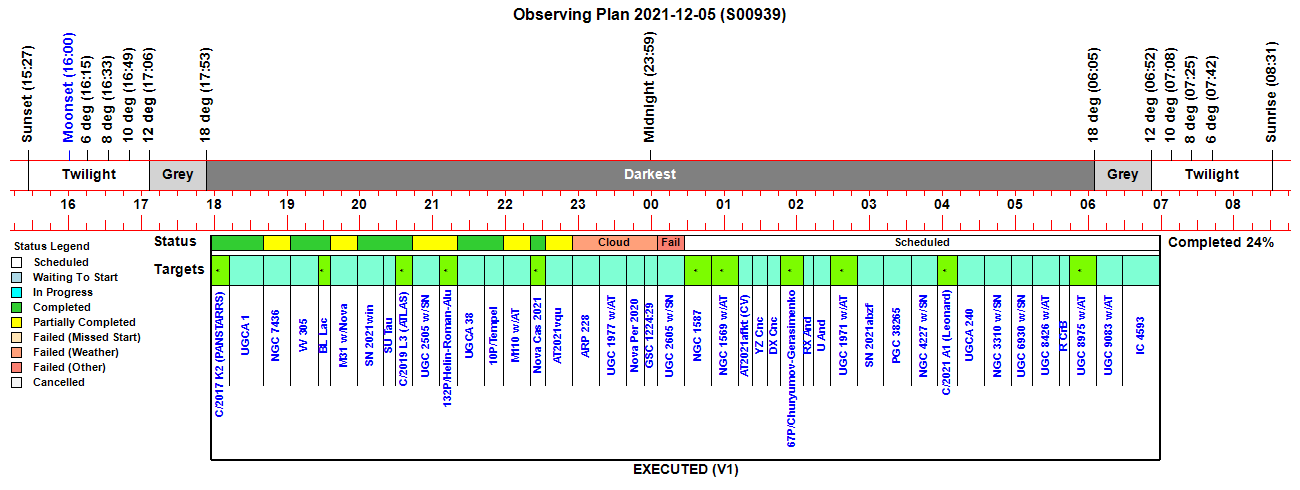

Observing Plan | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

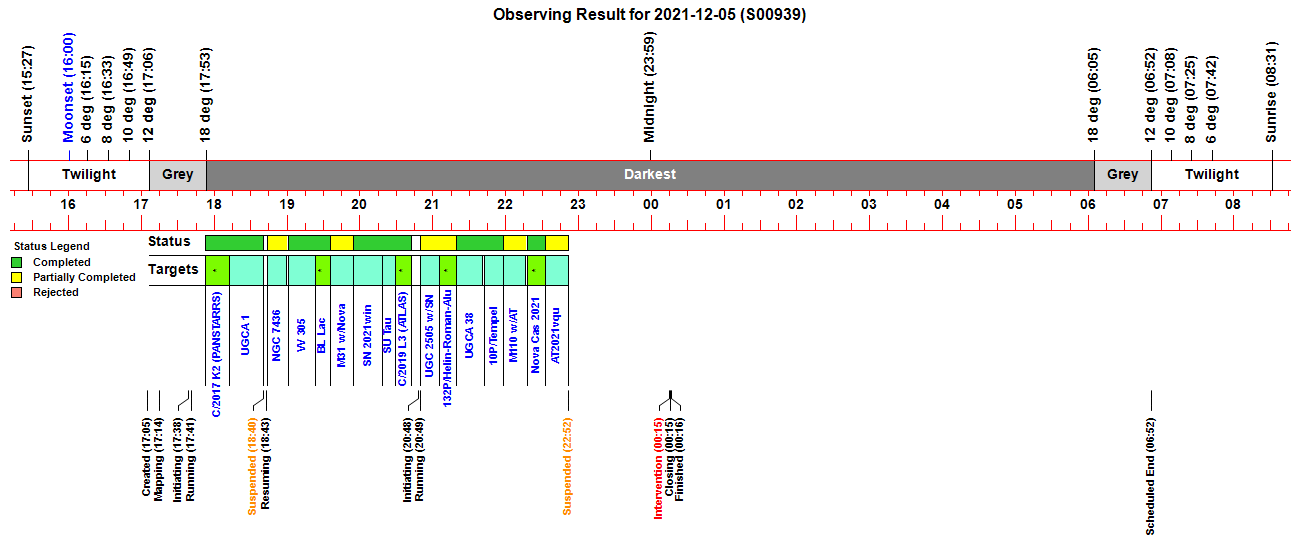

Observing Result |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

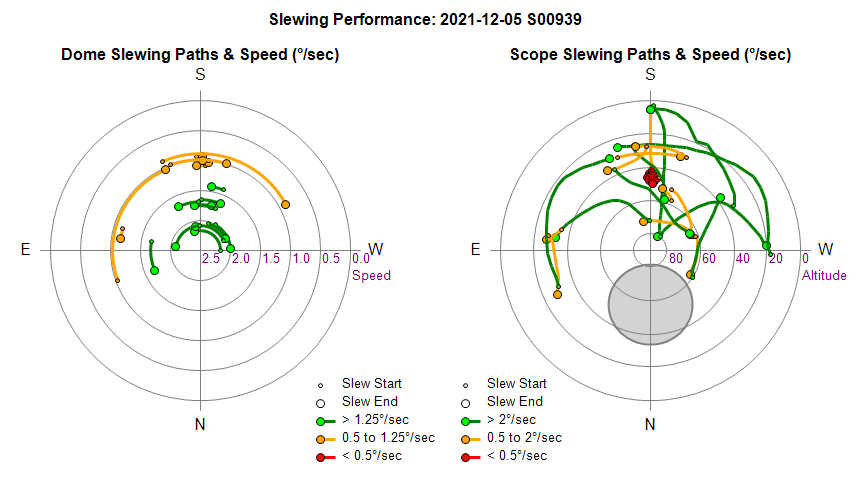

Dome & Scope Slewing Performance | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

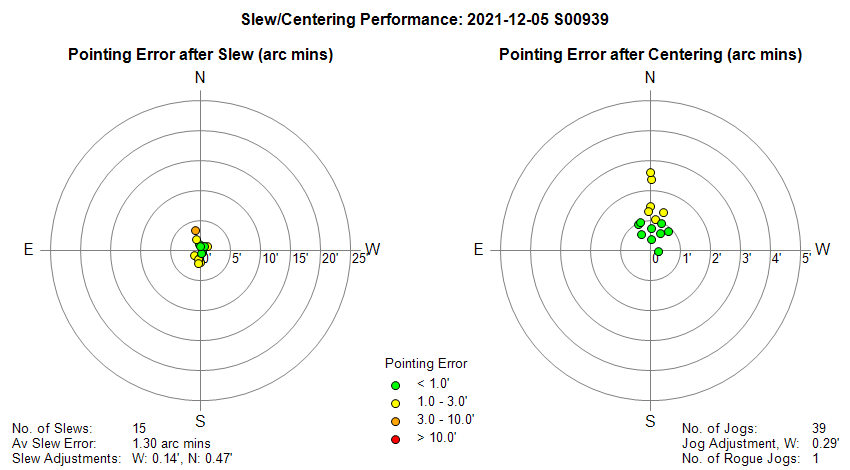

Slew/Centering Performance Poor centering performance in Dec. One rogue jog. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

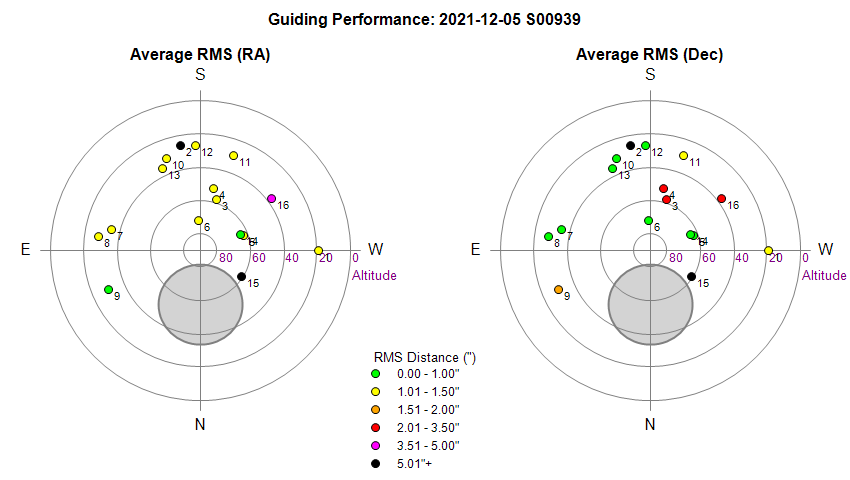

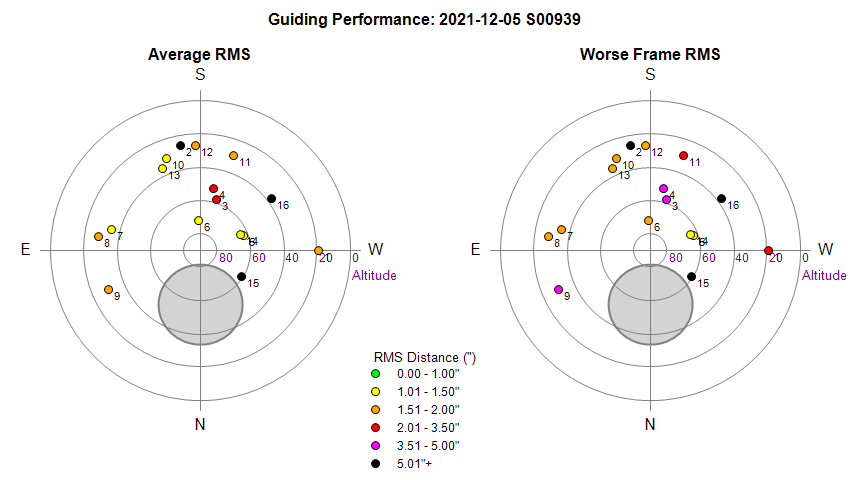

Guiding Performance Reasons for poor Dec guiding :
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sky Conditions (Locate Frames) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

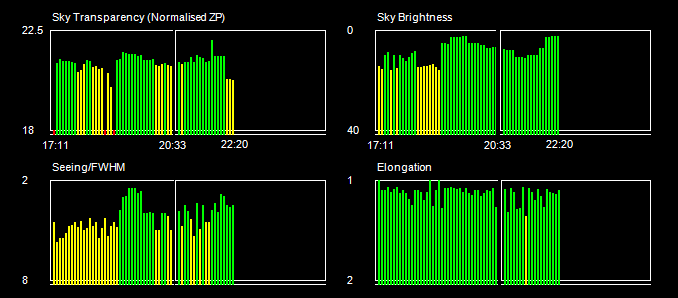

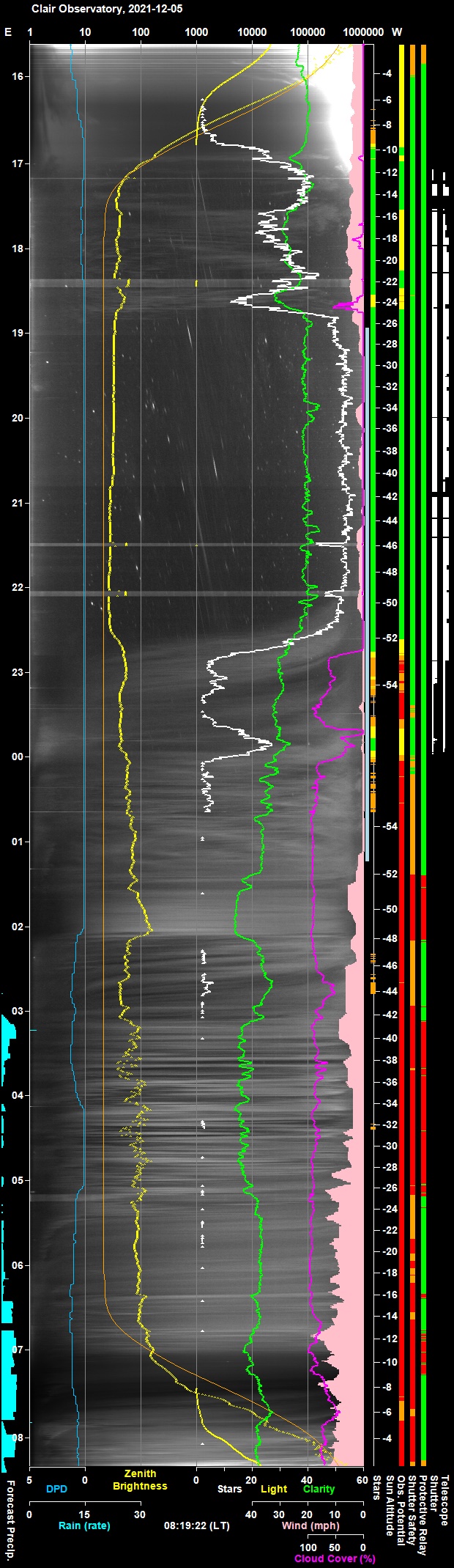

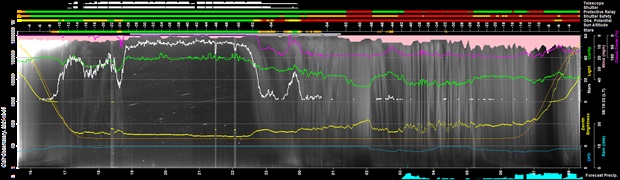

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

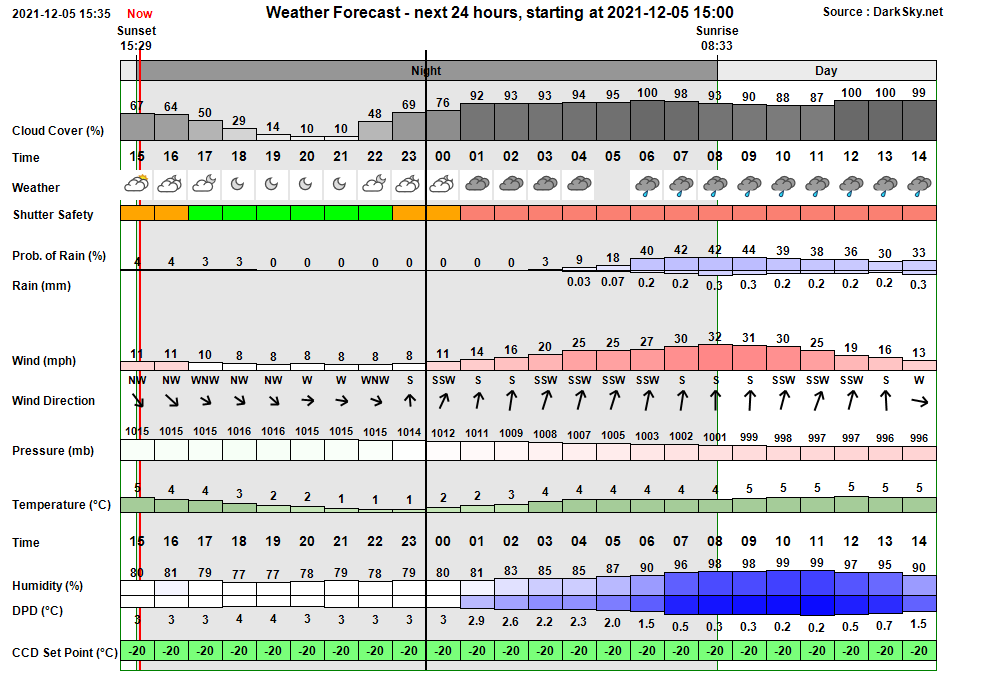

Actual Weather vs Pre-Session Weather Forecast |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Session Event Log | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Session Alerts | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Back to Top
Back to Top
Several maintainance tasks carried out today (2021-12-05) including
Back to Top
Several maintainance tasks carried out today (2021-12-05) including
Back to Top
Opportunity was also taken to look at the issue with the bulge in the panel that lies below the lower lip of the shutter aperture. This bulge caused the shutter to hold up when closing during an earlier session S932 (2021-11-09) and may have potentially caused an issue with shutter opening during session S938 (2021-11-28).
An attempt was made to see if the panel could be 're-trained' to stay in its correct 'non-bulged' state, by employing a bungee cord to pull the panel inwards whilst heat was applied to the panel with a hair-dryer and then left to cool down. The tie was left in place for about one hour. It may or may not have made a slight improvement. The cord was removed after an hour since an observing session will probably proceed this evening, and the tie cannot be left in place whilst the dome rotates in azimuth. Although it is doubtful that the 'training' will work, further and longer attempts to 'train' the panel will be made over the next few weeks.
Back to Top
-------------------------------------------------- Normal Opening at
17:07:34
17:07:33.602
ShutterStatus 1 (closed)
17:07:34.601 OpenShutter
Call to Open Shutter
17:07:34.601 ShutterStatus 2
(opening) immediate status set to opening
17:07:34.991 Volatile 90.2 0 0.000000 0.0
0 1
volatile line shows shutterstate 1 (closed)
17:07:35.615 ShutterStatus 1
(closed)
the
immediate opening status is overturned by the Dome
17:07:35.958
Volatile 90.2 0 0.000000 0.0 0 2 volatile line shows shutterstate 2 (opening), taken 1.4s for dome to catchup
and respond
17:07:40.622 ShutterStatus 2 (opening) Shutter is
Opening
to Shutter is
Opening
17:08:16.716 ShutterStatus 2 (opening) Shutter is
Opening
17:08:17.403 Volatile 90.2 0
0.000000 0.0 0 0 volatile line shows shutterstate 0 (open)
17:08:17.715 ShutterStatus 0 (open) Shutter is Open, opening time 43s (Normal)
--------------------------------------------------
Anomalies Start from 18:40:12
18:40:09.981 ShutterStatus 0 (open)
Shutter is Open
18:40:12.024 CloseShutter
1st call to Close Shutter
18:40:12.024 ShutterStatus 3
(closing) immediate status set to closing
18:40:12.524 Volatile 169.4 0 0.000000
169.4 0 0 volatile line shows shutterstate 0 (open)
18:40:13.038 ShutterStatus 0 (open) the immediate closing status is overturned by the Dome
Shutter is still Open (CloseShutter command was ignored !)
to
18:41:13.067 ShutterStatus 0 (open)
Shutter is Open
18:41:17.061
CloseShutter 2nd attempt to close shutter after 1st attempt failed
18:41:17.061 ShutterStatus 3 (closing) immediate status set to closing
18:41:17.591 Volatile 169.4 0 0.000000
169.4 0 0 volatile lines shows shutterstate 0 (open)
18:41:18.075 ShutterStatus 0 (open) the immediate closing status is overturned by the Dome
Shutter is still Open (CloseShutter command was ignored !)
to
18:42:03.134 ShutterStatus 0 (open)
Shutter is Open
18:42:04.273
CloseShutter 3rd attempt to close shutter (made directly in DeviceHub)
18:42:04.273 ShutterStatus 3 (closing) immediate status set to closing
18:42:05.256 Volatile 170.5 0 0.000000
170.5 0 3 volatile line shows shutterstate 3
(closing)
18:42:05.287 ShutterStatus 3 (closing) Shutter is Closing
to Shutter is Closing
18:42:15.275 ShutterStatus 3 (closing)
Shutter is Closing
18:42:16.274 ShutterStatus 1 (closed) status goes to open before
reporting of first Volatile line with closed state
18:42:16.383 Volatile 170.5 0 0.000000 170.5 0 1 volatile line shows shutterstate 1 (closed)
18:42:21.281 ShutterStatus 1 (closed) Shutter is Closed, closing time only 12s
(This
is too quick based on CloseShutter at 18:42:04 !)
(If we assume actual time of 44s, then CloseShutter would have been at
18:41:32)
18:43:11.303 ShutterStatus 1 (closed)
Shutter is Closed
18:43:12.176
OpenShutter Call to Re-Open Shutter
18:43:12.176 ShutterStatus 2
(opening) immediate status set to opening
18:43:13.143 Volatile 170.5 0 0.000000
170.5 0 2 volatile line shows shutterstate 2
(opening)
18:43:13.190 ShutterStatus 2 (opening) Shutter
is Opening
to
Shutter is Opening
18:43:22.223 ShutterStatus 2
(opening)
Shutter is Opening
18:43:23.221 ShutterStatus 0 (open) status goes to open before the first Volatile line with closed state !
18:43:23.315 Volatile 170.5 0 0.000000 170.5 0 0 volatile goes shows shutterstate 1 (open)
18:43:28.229
ShutterStatus 0 (open) Shutter is Open, opening time only 11s
18:43:33.221 ShutterStatus 0 (open)
(This is too quick based on OpenShutter at 18:43:12 !)
Back to Top

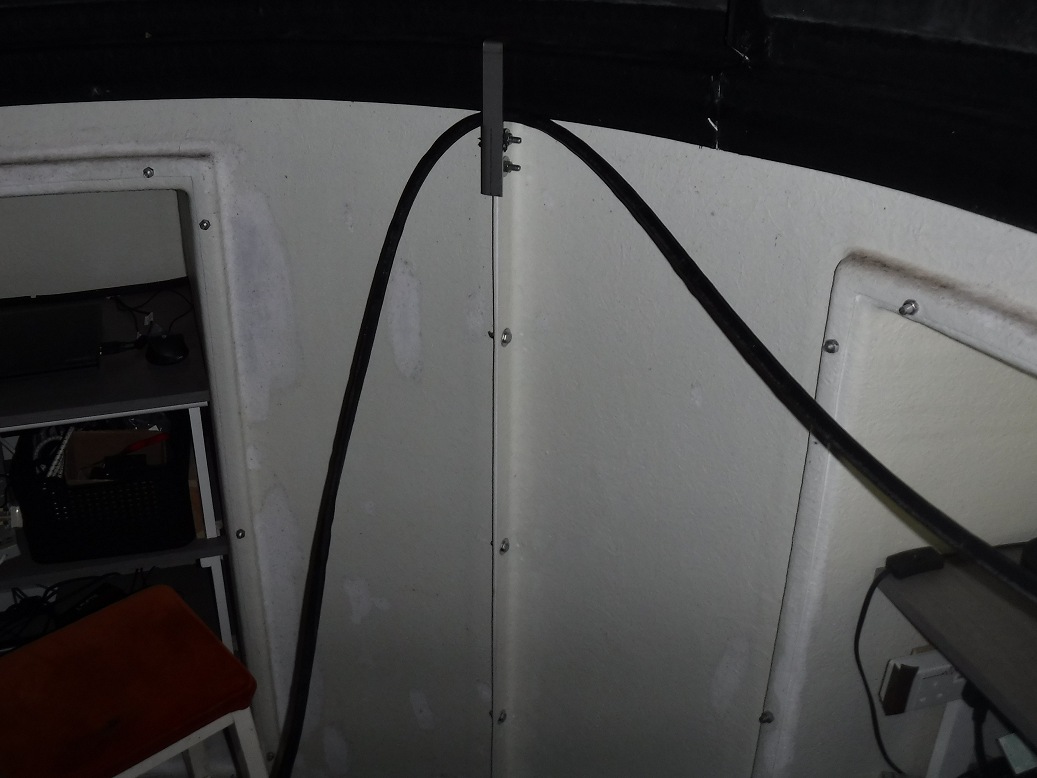

Observatory was visited as the Observatory Control program was reported
repeated failures to close the Dome when cloud developed.
Whilst

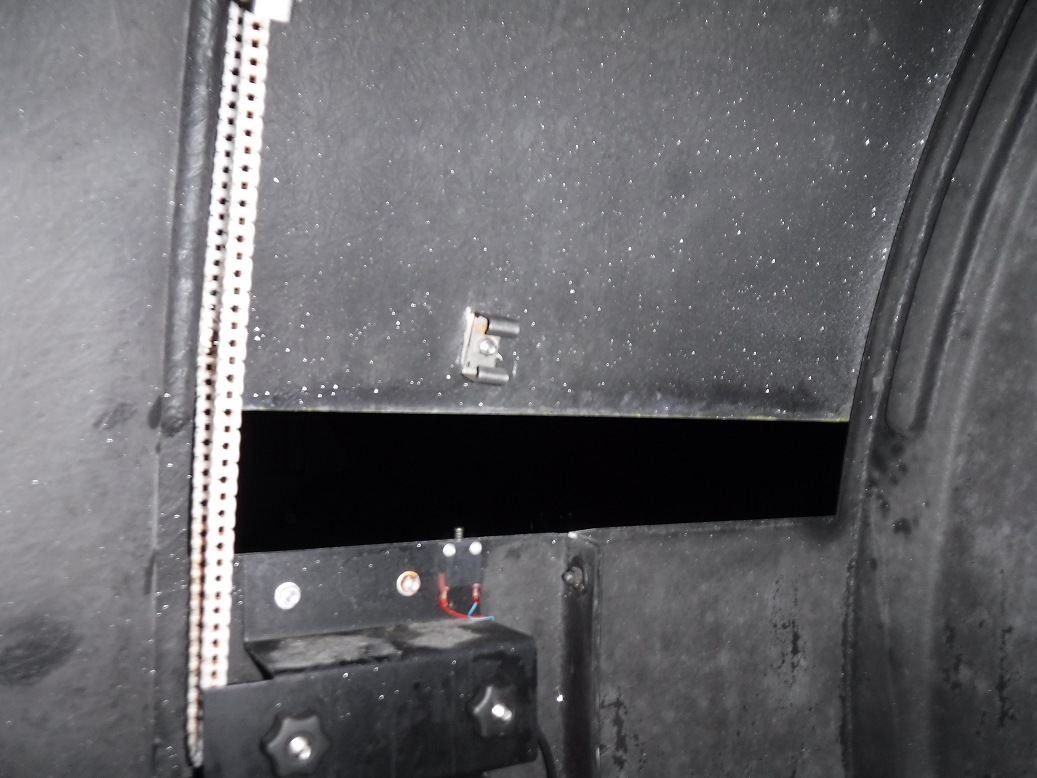

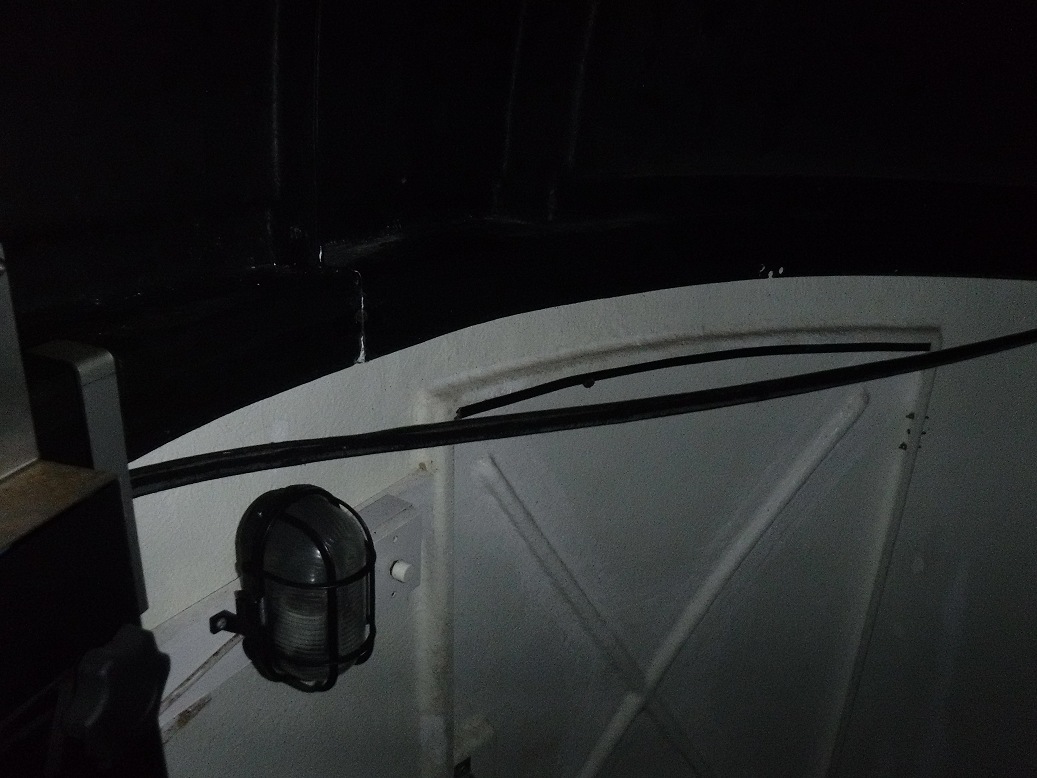

shutter was found to be partially open, the immediate thing that was noticed
was the Rubber Trim that normally runs around the inner flange of the
observatory roof had became detached and was drooping on to the floor in
some section and suspended from dome clamps in others. Investigating showed
that the small colied spring that holds the Dome Rotation encoder arm in
tension against the roof flange had snapped and the elastic band backup was
loose.
Either because of the encoding not reading the movement of the dome or because the rubber strip stalled the movement of the dome passing through the dome rotation motor or through the 4 dome clamps, the dome rotation stopped responding to automated dome azimuth requests (Dome Slaved to Telescope in DeviceHub) and probably blocked the commands to close the domes shutter (some 25 automated requests to close the shutter failed).
This is the second time that the rubber strip has self detached itself
during an observing session since the observatory was commissioned in 2018
(the last time was 2 years ago in
session S714,
2019-10-24)

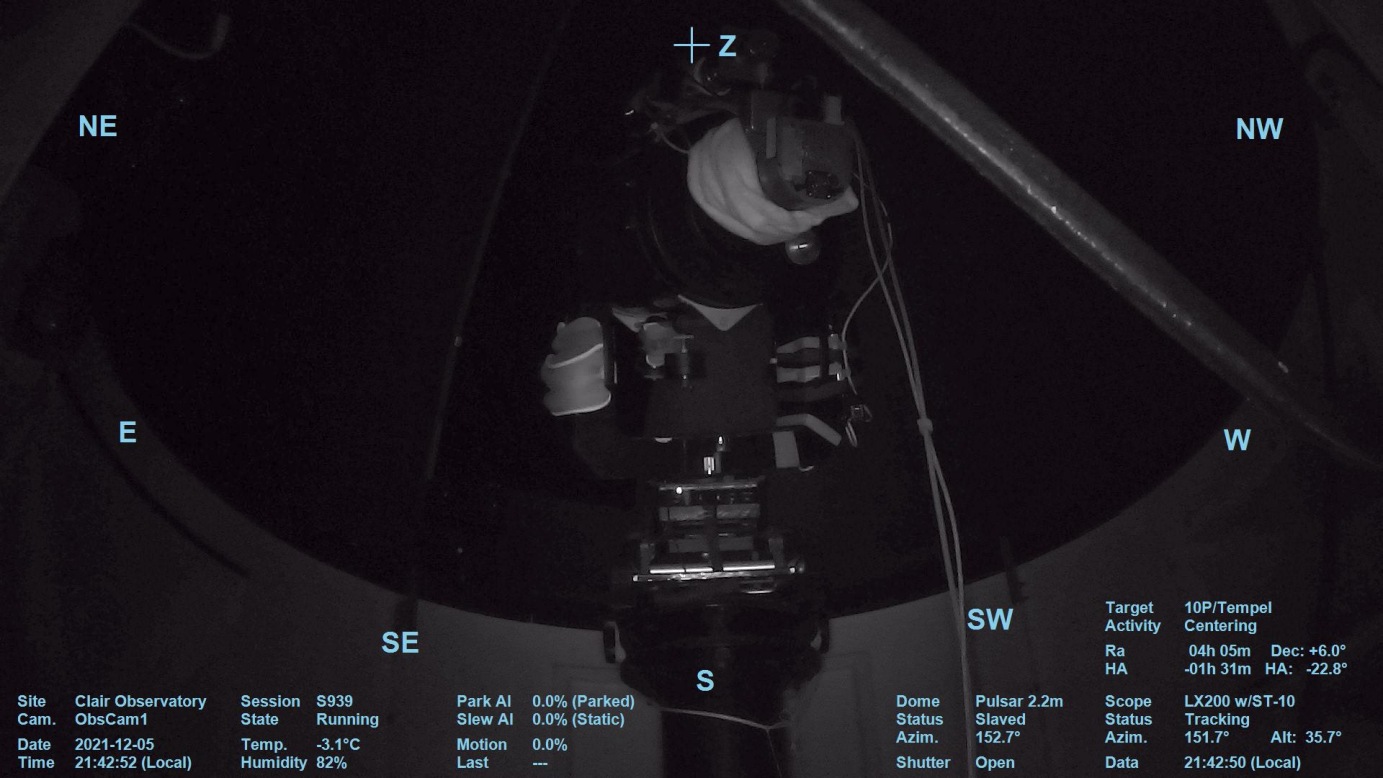

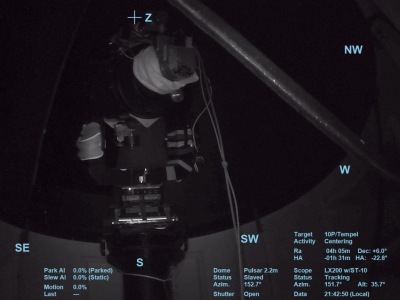

Earlier a mystery object that appeared in 4 frames
from the ObsCam but disappeared after 5 minutes turned out to be the rubber
trim falling down. This was seen at the time, but the object was not
recognised as the rubber trim in dim black/white nighttime images which is
unfortunate as the subsequent problems might possibly have been avoided if
the session was suspended and the observatory visited in person. I was
putting on shoes to go see what it the mystery object was when it was
noticed that the object had disappeared in the refreshed images, and trip
out to observatory wasn't made. This proved to be a costly
error.
The dome's home magnet fell out from its position during the incident. The dome magnet was found but noted to be corroded badly on one side with outer casing fragmented. This was a surprise, but not a total surprise since the magnet was a new replacement magnet installed 12 months in Dec 2020 (a replacement because the original 2018 magnet had almost completely corroded away). Although corroded the magnet seems still having good magnetic strength and it was repositioned into its slot in the roof flange.
Photo showing new magnet (Dec 2020) |
Photo showing the new magnet just 12 months later (Dec 2021) |
|
Back to Top
The Observatory Computer (an old Chilblast laptop with broken hinge, partially failed display) has completely failed and cannot be restarted. It's screen went comletely dead before or during S939 session and although it lasted to the end of session working across a VNC remote connection, the following day it was found that screen was still dead and the computer could not be restarted after several attempt to reboot it. Little/no activity on hard disk light, no output to external monitor. Possible factors in its failure were : basic old age, cold temperature (-3 degC), recent power cuts/fluctuations/spikes associated with Storm Arwen
Some quick research identified a suitable replacement (ASUS ExpertBook Core
i7-10510U 8GB 512GB 14 Inch Windows 10 Pro Laptop P2451FA-EB1438R) which was
ordered today (2021-12-06).
Key features of new computer i7 cpu, were 8GB, 512GB SSD drive, Lan
Port, USB Ports, Screen Resolution 1920 x 1080, Robustness, Business Style, Windows 10 Pro
ASUS ExpertBook, P2451FA-EB1438R
at laptopsdirect :
https://www.laptopsdirect.co.uk/asus-expertbook-core-i7-10510u-8gb-512gb-14-inch-windows-10-pro-laptop-p2451fa-eb1438r/version.asp
(The
possibility of getting a Toshiba Dynabook Satellite Pro C50-E-102 which
is the computer model used for the current AllSky/Weather Computer was looked into, but it
wasn't available )
Once the new computer arrives (hopefully in the next 3 days) it will
require a few days to set up and test.:
Update: The replacement computer is due to arrive Thursday
(2021-12-09)
Back to Top
Steps for the setup and migration to the new observatory computer
Windows
- Admin and User Account
- Computer Name,
HomeGroup
- Desktop
Picture, Desktop DPI, Icons Sizes
- Taskbar Toolbars: Astro, Comp, Apps
- Control Panel
- Device Manager
- Internet Explorer & MS Edge, Google Search
Provider.
Core / General Software
- Kaspersky Internet Security (for
firewall
& antivirus)
- UltraVNC Server (for remote control access)
- TextPad 4 (for
file
editing)
- ACDSee Classic (for general non-Fits image viewing)
- 7 Zip
(for file/folder Zip access)
- PaintShopPro 5 (for image capture)
- Dimension 4 (for time synchronisation)
- Net Framework (for
ASCOM & other programs)
- Visual Studio 2019 (for program debugging)
Drivers
- MeadeGeneric Driver (from
ASCOM site)
- Pegasus Astro
- USB / Serial
Drivers
- SBIG Camera drivers
- Pierro-Astro
USB-RS232 LX200 Cable
Observatory Software
- CCDSoft5
- TheSky6
- ASCOM 6.5.SP2 (incl
DeviceHub)
- OptecTCF-S Installer (6.0.6), TCF Commander and ASCOM
Driver/Local Server
- Pulsar Dome Software / Driver
- Pegasus UPB 1.6
- Pegasus UPB Ascom Drivers (Switch,
Focuser, Observing Conditions)
- PHD2 (autoguiding)
- SharpCap 3.2
- PHD2
- ASTAP
- ImageMagicK
- AstroLaunch
- AstroMain
- AstroPlan
- AstroVOE
- AstroSN
Data
- Session Data (including the latest S939 Session) has already
been taken off the Observatory data
- Other key data / program files is
available on the Development/Analysis Computer indoors, or can be reconstructed or
remade.
- The mSata SSD drive has been removed from old Computer and an
attempt will be made to read the mSata SSD drive once
a 'mSata to USB enclosure'
is recieved from Amazon.
https://www.amazon.co.uk/dp/B08W1W3SVK/ref=pe_27063361_485629781_TE_item
This arrived today (2021-12-08) and with mSata drive installed, access to the
old computer's C Drive was obtained
Windows complaining that
Ihad no permission to files in folders, but offered a Continue dialog which then
allowed permission but took around one hour to process.
- A 2.5" HDD
(Secondary Drive) has also been removed
and has been shown to be readable via an existing 2.5" Sata to USB Enclosure.
This
drive contained mainly old back up data, but will be pressed into service
as a future external hard drive.
New Settings
Once
new programs have been installed a number of program/data settings will have to
be input. These include:
UltraVNC
DeviceHub. Dome
Meade Generic
PHD2
SharpCap
Pegasus UPB
PHD2 will need also need a
new calibration.
PemPro
AstroMain (need
COM Ports associated with Telescope, Dome, TCF-S focuser)
Key Tests:
AstroMain access to
TheSky/CCDSoft objects
CCDSoft access to SBIG ST10 camera &
filter wheel
AstroMain access to TCP/IP datafeeds from
AllSky/Weather Computer
AstroPlan access to Targets Database
AstroMain access to TCF-S focuser
DeviceHub Working
(with Access to Pulsar Dome & LX200)
AstroMain access to Pegasus
UPB PowerBox, Pulsar Dome & LX200 Telescope
PHD2 access to
LX200 Mount and ZWO ASI 178MC camera
SharpCap access to ZWO ASI
178MC camera
AstroMain access to PHD2 & SharpCap.
AstroMain access to ASTAP.
Other Programs
- PemPro
- RSpec
- SigmaBeta 11
Computer Name
- Old Computer was called
'LAPTOP9_CHILL'
- New Computer will be called 'LAPTOP9'
The proposed change in name requires Program links to be changed :
-
AstroMain 3.48.2 - Done,
2021-12-08
- AstroMove 1.8 - Done
- AstroLaunch 1.8 - Done
-
AstroWeather 1.15.2 - Done
- AstroAllSky 3.14.1 - Done
- AstroPlan 1.29.1
- Done
- AstroShCap 1.3.12 - No change required
- AstroGuard - No
change required
- AstroSN 1.7.1 - No change required
- AstroVOE 1.9 - No
change required
- AstroObsCam 1.8 - No change required
Requires shortcut links to Laptop9 to be changed (changes can
only be made once the new computer is networked connected)
IP
Addresses
- Laptop9 VNC Links (changes to IP Address as required)
PHD2
Equipment Profiles
TS80/178MC
- Camera: Simulator (later ASI 178MC), Mount: Device Hub
Telescope (ASCOM)
LX200/ST10 - Camera:
Simulator (later SBIG), Mount: Device Hub Telescope (ASCOM)
Back to Top
A revised guiding algorithum is being developed to better manage recent
issues with positioning and guiding in Dec which are partly due to variability
in Dec backlash, overcorrection of Dec position from a initial single
guide pulse, problems caused for changing Dec Guide Mode during a guide
run, intermittant poor response from telescope to Dec Guide corrections.
Guiding performace is heavily influenced by the behaviour of the telescope
mount. The observatory's fork mounted LX200 GPS telescope has a
significant backlash as telescope's go but is similar to that of other LX200
scopes.
In order to achieve accurate centering it is necessary to use a
backlash compensation setting in the scope that is 95% or close to the scope's
Dec Backlash value, and use Uni-Directional Dec Guiding, where the
direction of Dec Guiding (Dec Guide Mode) is either determined from the
direction of star drift during an initial extended settling period with Dec
Guiding turned off or selected based on the telescope position and previously
determined star drift information as that position. With a reasonable good
Polar Alignment in Azimuth (the more easily determined alignement of the two),
it then becomes a matter of using a particular Dec Mode (north or south) on one
side of the Meridian and using the opposite Dec Mode on the other side of the
Meridian.
PrincipalDecMode = the Dec GUide Mode that is selected as the appropriate Mode for the current telescope position.
Update 2022-02-11
The overall combination of
telescope rebalancing, adjusted/improved Polar alignment and a revised Guiding
control algorithum have largely resolved the earlier guiding performance issues
(note added 2022-02-11)
Back to Top
This Web Page: | Notes - Session 939 (2021-12-05) |
Last Updated : | 2024-09-28 |
Site Owner : | David Richards |
Home Page : | David's Astronomy Web Site |
