Notes - Session 1019 (2022-06-12)


Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log
Bullet Operational Issues
  - Critical Issues (1),  Major Issues (0),  Minor Issues (4),  Small Defects (7),  Continuous Improvement (9),  Issues - Daytime testing (13)

Bullet Images from 2022-06-12 >>         [ Local Files >> ]
2022-06-16
Bullet Observatory Computer - Inaccssible Boot Device
2022-06-21
Bullet Observatory Computer - Windows 10 Reinstall & Rebuild
2022-06-23
Bullet Observatory Computer - Device Setup / Daytime Testing
Bullet Issues - Daytime testing of rebuilt Observatory Computer (13)


Session Aims & Highlights (2022-06-12)

Main aims

  1. DeviceHub. Check out new 6.6.0.11 version of Device Hub.  Ensure that new version is operating without any new issues. Check for the absence of any anomalous dome slews (of the type that impact slew to SS Cyg in S1014 (2022-05-31)
  2. AstroMain. Check out new 3.51.16 version of AstroMain. Ensure that new version hasn't introduced any new issues and that fixes and improvements are working as per design.  In particular check slaved dome slewing behaviour and Obs.Monitor behaviour where code has made significant chnages.
  3. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by time & twilight conditions.

 Equipment & Software

Highlights

Notes:

  Summary Plots & Logs

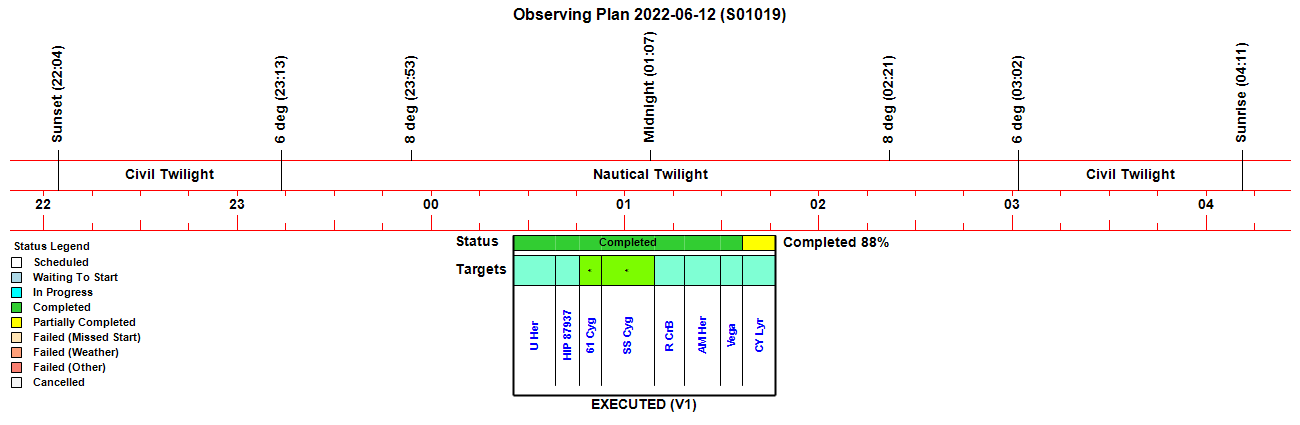

Observing Plan

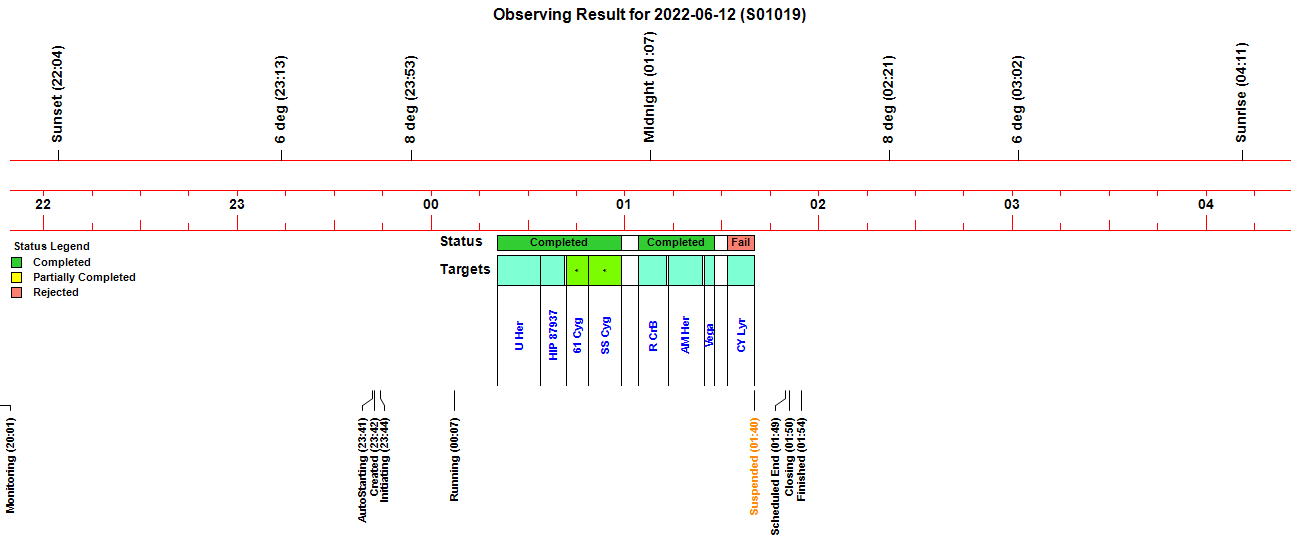

Observing Result

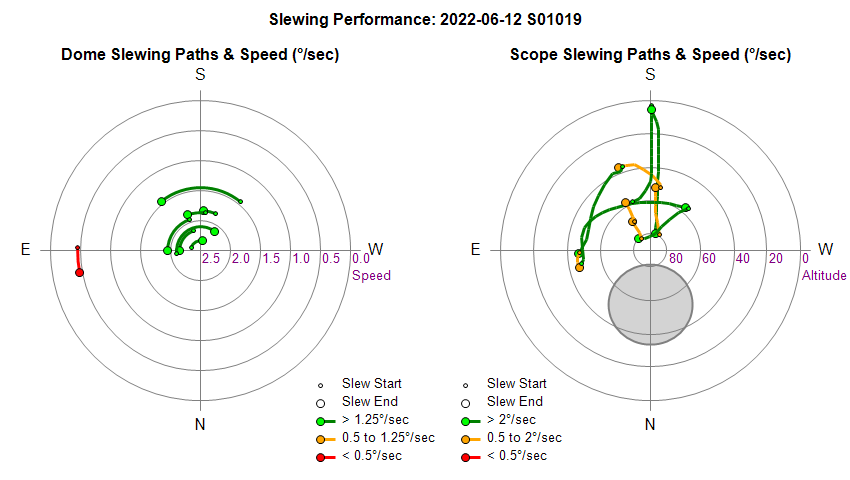

Dome & Scope Slewing Performance

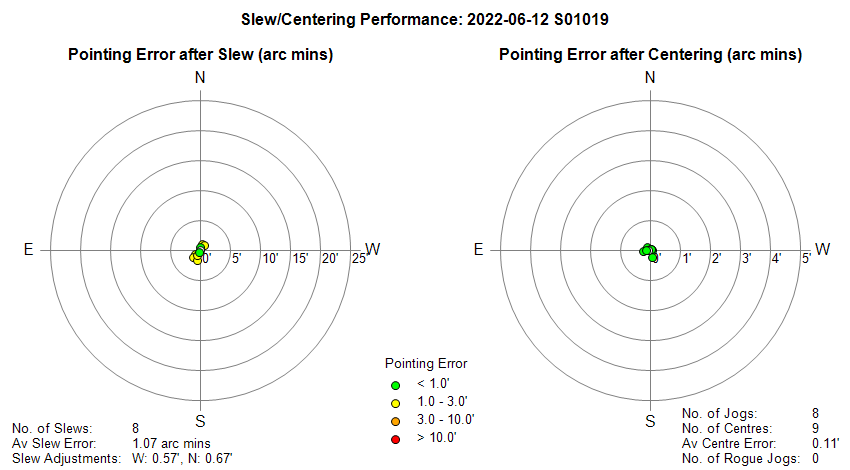

Slew/Centering Performance

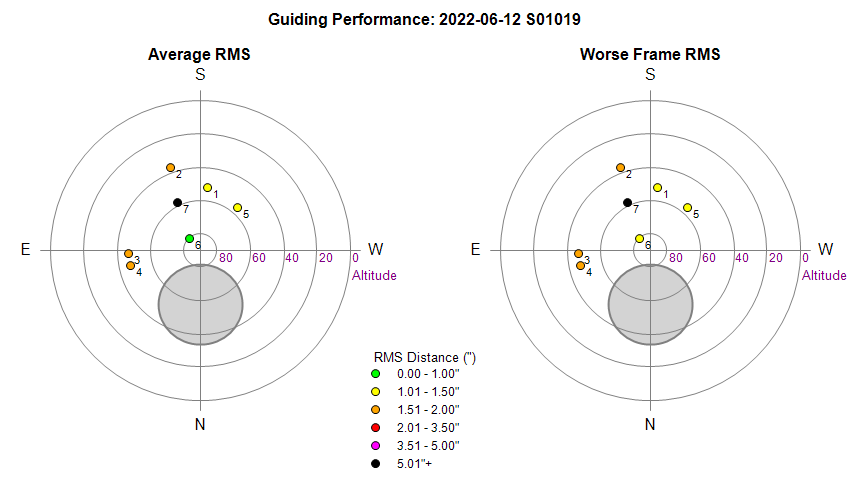

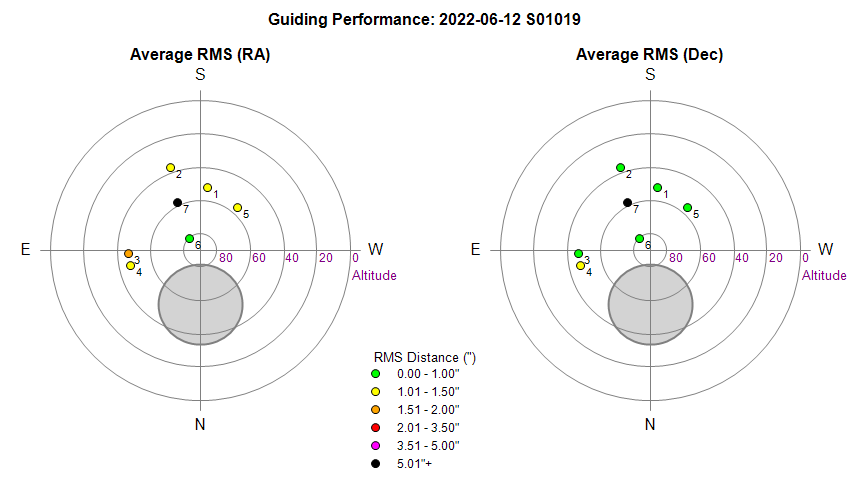

Guiding Performance
Black Point (7) : Guiding badly affected by cloud

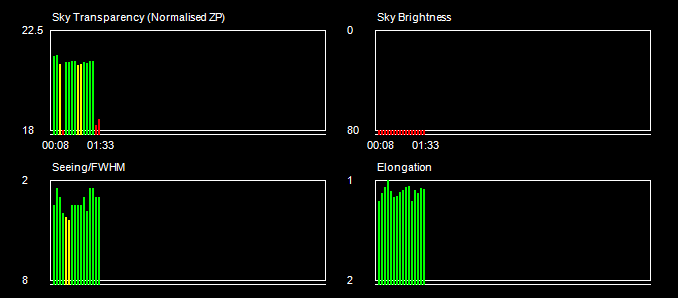

Sky Conditions (Locate Frames)

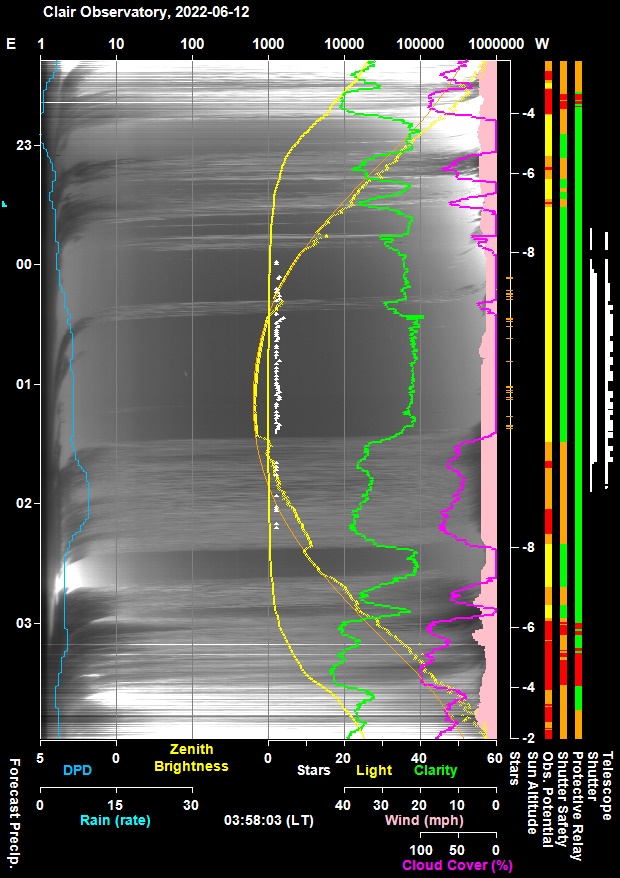

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

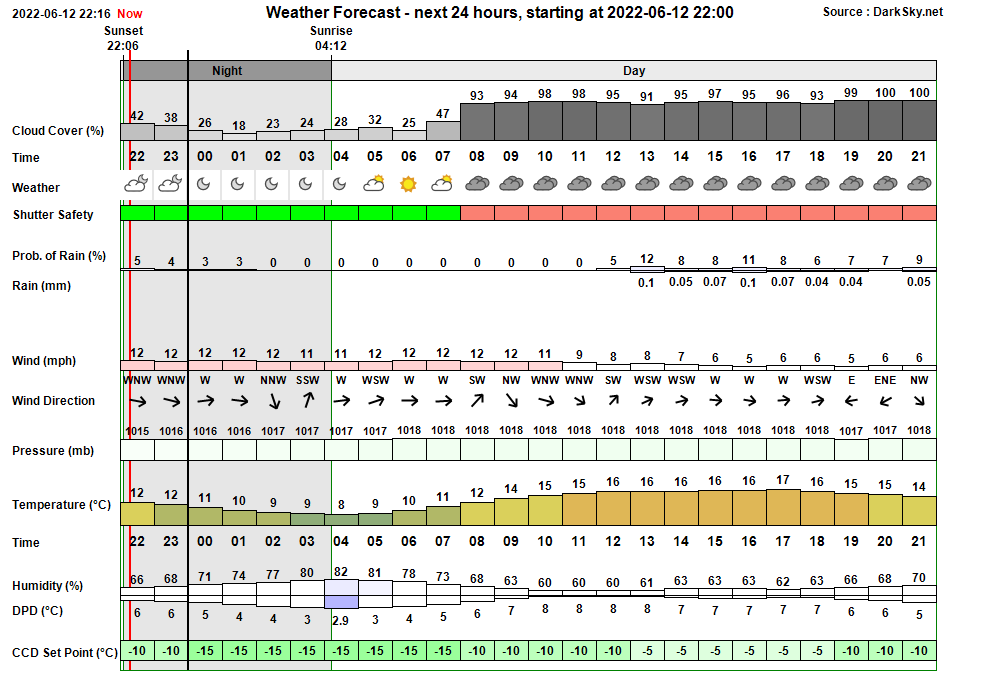

Actual Weather vs Pre-Session Weather Forecast

Session Event Log
Time     Event Detail
20:01:29 Session Monitoring AutoStart monitoring for Live Session opportunity between 23:37 & 01:27
20:01:33   AutoStart Waiting AutoStart waiting till earliest start time at 23:37
23:41:50 Session AutoStarting Session autostarting (23:41)
23:42:31   Camera1 Connected SBIG Camera Connected (set point -15°C)
23:42:33 Session Created Live Session Created (2022-06-12 S01019, ImageSaveNum: 1019001)
23:42:35   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
23:44:15   Services Started Observatory Services started
23:44:22 Observatory (Auto) Observatory placed in Fully-Automated Mode
23:44:25 Session Pending Session pending (2022-06-12)
23:44:27 Session Initiating Session initiating (2022-06-12)
23:44:29   Plan Requested Observing Plan requested from AstroPlan (1.30.8)
23:45:12   Plan Loaded Observing Plan loaded to queue (Plan ID: 779)
23:45:27   Camera1 Connected SBIG Camera Connected (set point -15°C)
23:45:32   Telescope Connected Telescope Connected (TheSky6)
23:45:56 Session Equilibration Session ready for dome & camera equilibration
00:01:58   Dome Opened Dome opened (opening time 45s)
00:02:14   Equilibration Started Dome Equilibration started
00:07:14   Equilibration Ended Dome Equilibration ended (5.0 mins total)
00:07:16 Session Running Session running
00:07:18   Queue Started Observing Queue started (8 targets selected)
00:07:20     Target Started (NrZen) Target started (Focus Field 16, HIP 78946)
00:09:38       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:12:35       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide)
00:14:33       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
00:14:35       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
00:16:47       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide)
00:18:34       Focusing Completed Foc2 AutoFocus Completed (Profile No 2)
00:18:51     Target Completed Target completed (Focus Field 16, HIP 78946)
00:20:38     Target Started (1/8) Target started (1/8, GCVS U Her)
00:23:28       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:25:29       Focusing Completed Foc1 AutoFocus Completed (Profile No 3)
00:33:50     Target Completed Target completed (1/8, GCVS U Her)
00:33:54     Target Started (2/8) Target started (2/8, HIP 87937)
00:36:50       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:39:01       Focusing Completed Foc1 AutoFocus Completed (Profile No 4)
00:41:44     Target Completed Target completed (2/8, HIP 87937)
00:41:48     Target Started (3/8) Target started (3/8, 61 Cyg)
00:44:40       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:46:41       Focusing Completed Foc1 AutoFocus Completed (Profile No 5)
00:48:39     Target Completed Target completed (3/8, 61 Cyg)
00:48:43     Target Started (4/8) Target started (4/8, GCVS SS Cyg)
00:51:29       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:53:41       Focusing Completed Foc1 AutoFocus Completed (Profile No 6)
00:59:03     Target Completed Target completed (4/8, GCVS SS Cyg)
01:04:13     Target Started (5/8) Target started (5/8, GCVS R CrB)
01:07:48       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:09:44       Focusing Completed Foc1 AutoFocus Completed (Profile No 7)
01:13:03     Target Completed Target completed (5/8, GCVS R CrB)
01:13:30     Target Started (6/8) Target started (6/8, GCVS AM Her)
01:16:39       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:18:51       Focusing Completed Foc1 AutoFocus Completed (Profile No 8)
01:24:10     Target Completed Target completed (6/8, GCVS AM Her)
01:24:47     Target Started (7/8) Target started (7/8, Vega)
01:27:39     Target Completed Target completed (7/8, Vega)
01:31:38     Target Started (8/8) Target started (8/8, GCVS CY Lyr)
01:34:33       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:37:04       Focusing Completed Foc1 AutoFocus Completed (Profile No 9)
01:39:59   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (reducing clarity)
01:40:01 Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome)
01:40:03   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud)
01:40:05     Target Aborted (8/8) Target aborted (8/8, GCVS CY Lyr) due to cloud
01:40:07   Queue Paused Queue paused for Session Suspension
01:40:09 Session Suspended Session suspended
01:40:54   Dome Closed Dome closed (closing time 50s)
01:50:40     Target Cancelled Target cancelled (8/8, GCVS CY Lyr) due to cloud
01:50:45   Queue Completed Job Queue completed
01:50:51 Session Closing Session closing
01:50:56   Dome Closed Dome already closed (closed at 01:40, closing time 50s)
01:51:41   Dome Parked Dome parked (parking time 37s), Az: 90.0 deg
01:52:58   Telescope Parked Telescope parked (parking time 71s)
01:53:13   Telescope State Scope parked Turn scope off. (Handbox)
01:53:35   Telescope Switched Off Telescope Power has been switched off via UPB Switch.
01:54:28   Services Stopped Night Services stopped
01:54:30 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files)
01:54:36 Session Finished Session Finished

Session Alerts
Time     Alert Detail
-- No Alerts                --


Back to Top


Operational Issues (2022-06-12, S1019)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Small Defects

Continuous Improvement

Issues - Daytime testing of rebuilt Observatory Computer (2022-06-22 & 2022-06-23)

[ Prev | Next ]

Back to Top


2022-06-16


Observatory Computer - Inaccessible Boot Device

After installation of the latest Windows update (Jun 2022) the Observatory Computer failed to restart.   Each attempt to restart the computer led to a BSOD with the error "Boot Device Inaccessible" (This follows on from occassional recent issues in the past 2 months where the computer wouldn't restart immediately but would after powering down the computer).

After each restart the computer entered the Windows Recovery Environment but each attempt to fix the issue failed.  The different things tried :-
 - 'Startup Repair'
 - 'System Restore'  (restoration to a copy of different previous restore points.
- checking BIOS / Boot device
- chkdsk C: /r

The attempt of last resort will be to reinstall Windows but that means will involve reinstalling all observatory software again and re-inputing configurations, and then prone to a few days of teething trouble in order to get the observatory back to full operation.

Other things too be tried
- Recreate EFI structure and reconfigure boot files

The 'attempt of last resort' will be perform a complete reinstall of Windows 10 but that will involve reinstalling all observatory software again and re-entering configurations.

After trying unsuccessfully for several days to recover boot access to the Observatory Computer it was finally decided to perform a complete reinstalll of Windows 10.  See Observatory Computer - Windows 10 Reinstall & Rebuild (2022-06-21)

Back to Top


2022-06-21


Observatory Computer - Windows 10 Reinstall & Rebuild

After trying unsuccessfully for several days to recover boot access to the Observatory Computer it was finally decided to reinstalll Windows 10 and then reinstall all necessary observatory software & drivers and set required configurations etc.

Experience in Dec 2021 when the new Observatory Computer was originally setup suggest their might be a few days of teething trouble in order to get the observatory fully back to full operation.  This can be mitigated by understanding lessons from Dec 2021 and performing more extensive daytime tests.
   - New Observatory Computer, Setup & Migration (2021-12-06) >>
   - First Session with new Observatory Computer (2021-12-10) >>

Preparation / Windows 10 Reinstall
This involved the following activity:

- Prepare 16 GB (i.e. 8 GB min) USB stick with latest Windows Installation Media
- Take copies of files from  User Documents folder (these will be otherwise lost during Windows reinstall). Files copied to External Hard Drive (USB 3.0)
- Take copies of any key files from 'Program Files (x86)' folder area (eg TheSky6/Data)  (these will be otherwise lost during Windows reinstall)
- Take copies of files/folders in the C:\Data folder (this is a precaution in case of a Windows install issue)
- (Note : Session Data, including the latest S1019 Session from 2022-06-12, has already been taken off the Observatory Computer)

- Boot Computer from USB containing Windows Installation Media (F2 applied during Boot, and then boot from USB)
- Install Windows 10
- Create Admin Account

Testing (to show that earlier major issue 'Boot Device Inaccessible' has been resolved)
- Computer shown to be able to boot/reboot ok

Windows Setup
- User Account (with administrator rights)
- Computer Name, HomeGroup
- Folder Options (single click to open at item, show extensions for known files types, display full path in the title bar etc)
- Date Format (yyyy-mm-dd)
-
Power Options (hard disk (SDD) never turn off)
- Windows Auto Docking (disable)
- Task Bar Settings (disable grouping of icons of same type)
- Desktop Picture, Desktop DPI (100%), Icons Sizes
- Add Taskbar Toolbars (Astro, Comp, Apps toolbar folders saved from before windows reinstall)
- Add QuickLaunch Toolbar (Toolbars > New toolbar.Enter %APPDATA%\Microsoft\Internet Explorer\Quick Launch\ )
- Desktop Icons (Computer/Network)
- Net Framework 3.5 (turn-on Window feature '.Net Framework 3.5' , needed for installation of ASCOM platform)
- Update Windows

Core / General Software
- Internet Explorer & MS Edge,  Google Search Provider.
- Kaspersky Internet Security (for firewall & antivirus)
- UltraVNC Server (for remote control access)

- TextPad 4   (for file editing)
- ACDSee Classic (for general non-Fits image viewing)
- 7 Zip (for file/folder Zip access)
- ImageMagicK (for creating realtime Jpg pictures)
- PaintShopPro 5 (for image capture)
- Dimension 4 (for time synchronisation)
- Visual Studio 2022 (for program debugging)

ASCOM
- ASCOM 6.6
- ASCOM Components for Developers 6.6
- ASCOM Conform 6.6
- DeviceHub 6.6.0.11 (latest version as 2022-06-21)

Drivers
 - MeadeGeneric 1.3.5.414 (for LX200GPS Telescope)
 - Pegasus UPB Ascom Drivers (Switch v2.2, Focuser v1.6, Observing Conditions v1.5, from Jun 2020)
 - SBIG Camera drivers (for ST-10XME CCD Camera)
 - Pierro-Astro USB-RS232 LX200 Cable (for LX200 telescope)
   Pulsar Dome ASCOM Driver (for Pulsar Observatory, from Dec 2017)

- ZWO Drivers, Native & ASCOM (for ASI178MC camera)
 - TCF-S Driver & Software 6.0.6 (for TCF-S focuser)

   Note: Opportunity was taken to download new ZWO Drivers, Native & ASCOM

Observatory Software
- Pulsar Dome Software v1.0.38  (from Mar 2021)
- Pegasus UPB 1.6 (for operation of Pegasus Powerbox & USB connectivity to telescope equipment)
- CCDSoft v5.0.201 (for CCD Image capture & analysis)
- TheSky6 v6.0.0.65 (for Virtual planeterium , telescope control & plate solution)
- TPoint v1.0.511 (for precise telescope slewing)
- PHD2  v2.6.11 (for guiding)
- SharpCap v3.2.6480 (for CMOS Image capture)
- ASTAP (for additional plate solution)

- AstroSuite software (located in the "\More Programs" folder,  these programs and their settings are still available following Windows Install)

- AstroMain
   - AstroPlan
   - AstroGuard
   - AstroVOE
   - AstroSN

Other Programs
-  PemPro 2.8.138
-  CCD Inspector 2.5.0.3
-  RSpec 2.0.0.13
-  SigmaBeta 11


Data
- Data in the /Data folder (is still available following Windows 10 reinstall)
- TheSky6 data will be added to Program and User areas from file/folder copies taken prior to Windows 10 reinstall
- Data to be shared

Note:  The mSata SSD drive that was removed from old Observatory Computer (in Dec 2021) can still be connected via a 'mSata to USB enclosure'  and will eventually be pressed into service as a future external hard drive)

New Settings
Once new programs have been installed a number of program/data settings will have to be input. These include:

   UltraVNC
   DeviceHub (dome & telescope)
   Meade Generic (telescope)
   PHD2
   SharpCap (folder settings, Pro licence added, autoscript set to AstroShCap.py)
   Pegasus UPB
   PHD2 will need also need a new calibration.
   PemPro
   AstroMain (need COM Ports associated with LX200 Telescope, Pulsar Dome, TCF-S focuser & Pegasus Powerbox)
   TheSky6 : Server Settings (Allow remote connections, Hide Server Window)
   TheSky6 : Telescope Settings
   CCDSoft5 : Source Extraction Setup

Initial Tests:
   AstroMain access to TheSky/CCDSoft objects
   AstroMain image linking using CCDSoft & TheSky6
   AstroMain access to TCP/IP datafeeds from AllSky/Weather Computer
   AstroPlan access to Targets Database
   DeviceHub Working (with Access to Sim Scope / Sim Dome, Control from AstroMain

Actions
 Image Modify AstroMove to copy VB.Net Source Files to  "..\Documents\Visual Studio 2022\Projects" folder (instead of "Visual Studio 2019")

Back to Top


2022-06-23


Observatory Computer - Device Setup / Daytime Testing

After performing a complete reinstall of Windows 10 with reinstallation of all necessary observatory software, drivers and settings, the observatory computer was moved back out to the observatory for device setup and daytime testing.

Devices using USB-Serial Adapter
Care was taken to connect USB cables from observatory equipment in a specific order [ Pulsar Dome (1st), Pegasus PowerBox (2nd), TCF-S Focuser (3rd),  LX200 Telescope (4th) ] ensuring that the expected COM port number came up in Device Manager listing and checking data connection to the device before proceeding to the next device.   This was to ensure that the each device was using the same primary COM port that was used prior to reinstalling windows, meaning no change to AstroMain settings.

(Surprisingly there was no obvious delay or OS messages saying that drivers were being installed. Next day Windows 10 had download and installed updates for FTDI - USB 2.12.36.4  and FTDI - Ports 2.12.36.4, Driver Date 2021-07-05), and requested a Computer Restart to complete the update.

Com Ports

Device   Primary Com Port   Secondary Com Port
Pulsar Dome   COM3   n/a
UPB Powerbox   COM4   n/a
TCF-S Focuser   COM5   n/a
LX200 Telescope   COM6   n/a

Dome
DeviceHub.Dome set to Pulsar Observatories.   COM Port 3 set  in Pulsar Dome settings.

- Tested Dome Connect and operation (slew to 95) via DeviceHub.
- Tested Dome Park via AstroMain
- Checked connection to Dome using Pulsar Dome Software, check Settings

Telescope
DeviceHub.Telescope set to Meade Generic.  Com Port 6 set in Meade Generic settings.

- Tested Telescope Connect and operation (slew to point 20 deg away from start-up position) via TheSky6/TeleAPI/DeviceHub.
- Tested Telescope Park via AstroMain

UPB Powerbox
Powerbox set to COM Port 4 in Pegasus Ultimate Powerbox settings. Output 1 and Output 2 renamed in the PowerBox console to 'LX200' and 'TCF-S' respectively.  'Autoconnect to UPB' option set to checked.

- Checked that UPB could be connected to
- Checked that TCF-S could be switched off/switched on via AstroMain
- Checked that LX200 could be switched on (and later switched off) via AstroMain

Focuser
TCF-S focuser set to Com Port 5 (automatic set)

- Checked connection to TCF-S focuser
- Checked focuser movement to new position
- Checked alternate connection to TCF-S focuser via Optec TCF-S Commander

SBIG Camera
USB cable to SBIG camera can be connected at any point as it doesn't use a serial adapter and therefore doesn't take up a COM Port.

Initial attempt to connect to SBIG ST-10XME Camera from CCDSoft failed with 'Error code 1027. Camera Driver/Device not found.'   After looking at previous problems with this issue in the past, the solution was found and  resolved by removing the USB cable to the SBIG Camera, removing SBIG Drivers in 'SbigDriverChecker64',  then locating all SBIGuDrv.dll files on the computer & rename them as  SBIGuDrv.dll_old, and finally update/install drivers again from SbigDriverChecker64. After reconnecting the USB cable the camera was then able to be connected from CCDSoft5.

- Checked SBIG camera connection from CCDSoft
- Checked SBIG Connection / Set Temperature change from AstroMain
- Checked that an image (dark) cold be taken from CCDSoft.

ZWO 178MC Camera
USB3 cable to ZWO 178MC camera was connected last and camera connection/operation checked in SharpCap 3.2 program.

 - Checked that frames were being acquired in SharpCap

Integrated Tests
-  AstroMain access to TheSky/CCDSoft objects
-  AstroMain image linking using CCDSoft & TheSky6
-  AstroMain access to TCP/IP datafeeds from AllSky/Weather Computer
-  AstroPlan access to TheSky6 and Targets Database
-  DeviceHub  Working (with Access to Pulsar Dome & LX200)

-  AstroMain access to TCF-S focuser
-  AstroMain access to ASTAP.

-  AstroMain access to PHD2 & SharpCap.
-  PHD2 access to LX200 Mount and ZWO ASI 178MC camera
-  PHD2 access to LX200 Mount and SBIG camera
-  SharpCap access to ZWO ASI 178MC camera

-  AstroGuard access to Telescope, Dome & Weather Data
-  AstroSN access to TheSky6 & Targets Database

Issues
Issues (13) arising from setup of rebuilt Observatory Computer (2022-06-21 to 2022-06-22) and from daytime testing (2022-06-23 to 2022-06-24) are described here.

Still To Do (Night time work)
- Perform PHD2 Guiding Calibration (TS80/178MC)
- Perform PHD2 Guiding Calibration (LX200/ST10)
- Create PHD2 bad-pixel map (TS80/178MC & LX200/ST10)

Back to Top
