Notes - Session 1039 (2022-09-18)


Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log
Bullet Operational Issues
  - Critical Issues (0),  Major Issues (0),  Minor Issues (1),  Small Defects (2),  Continuous Improvement (4)

Bullet Images from 2022-09-18 >>        [ Local Files >> ]

2022-09-21

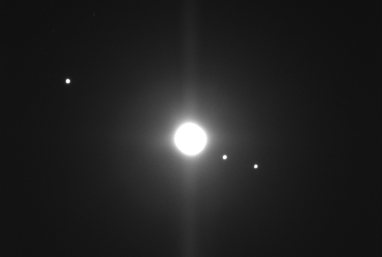

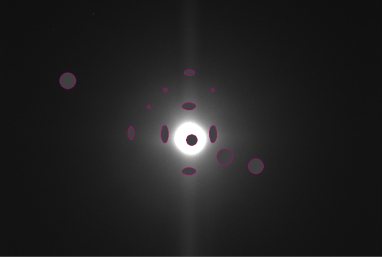

Bullet Investigation - Auto-Centering Telescope on Jupiter


Session Aims & Highlights (2022-09-18)

Main aims

  1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by time & twilight conditions.
  2. Guide Star Selection.  Carry out tests & experiements to help resolve issue with guide star selection when using a guiding in PHD2 with a specified ROI.

 Equipment & Software

Highlights

Notes:

Summary Plots & Logs

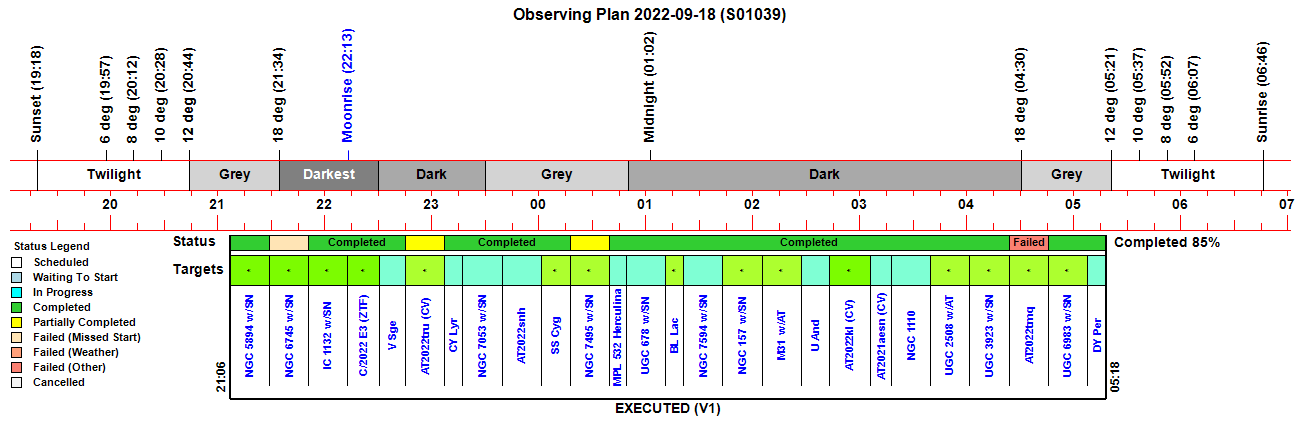

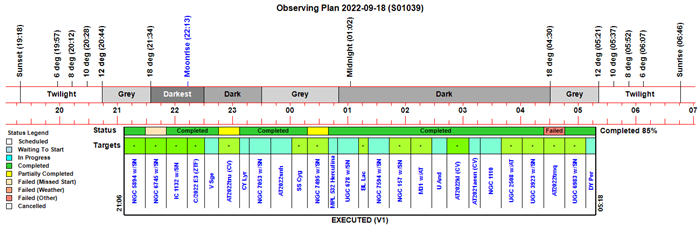

Observing Plan

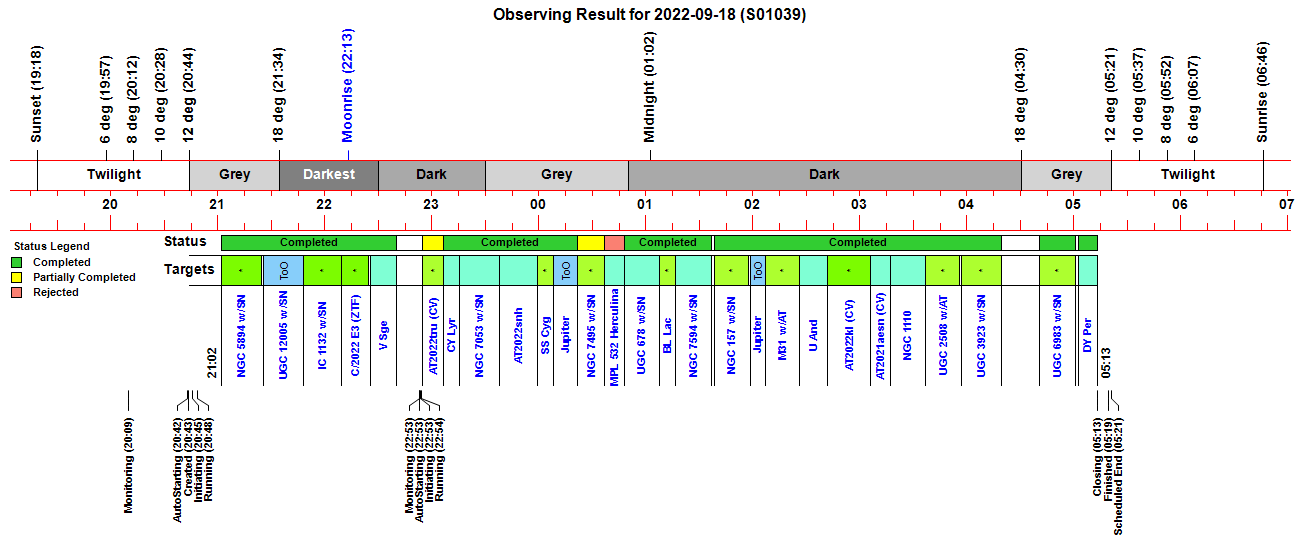

Observing Result

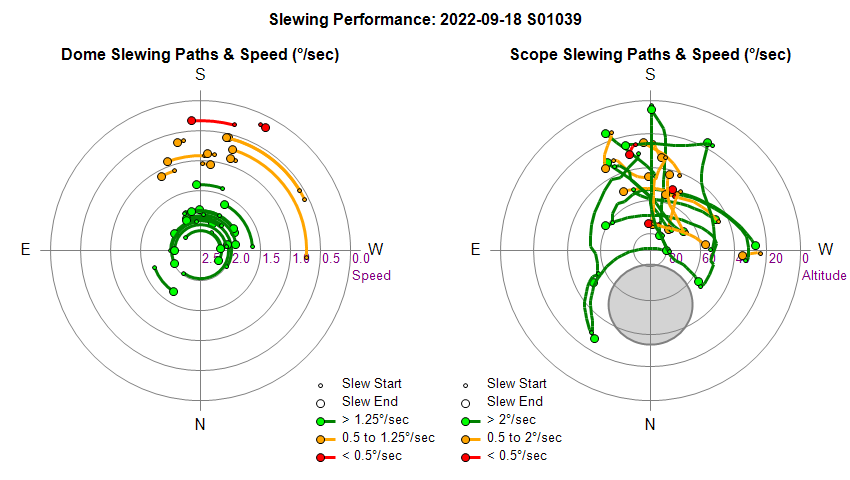

Dome & Scope Slewing Performance

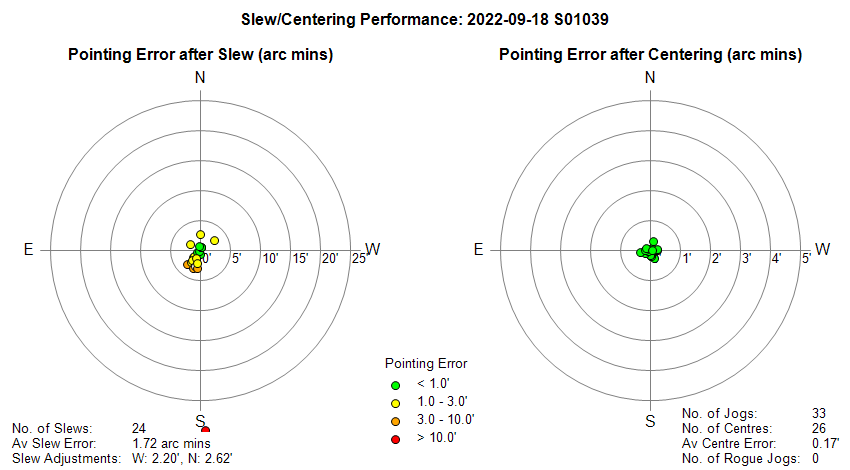

Slew/Centering Performance

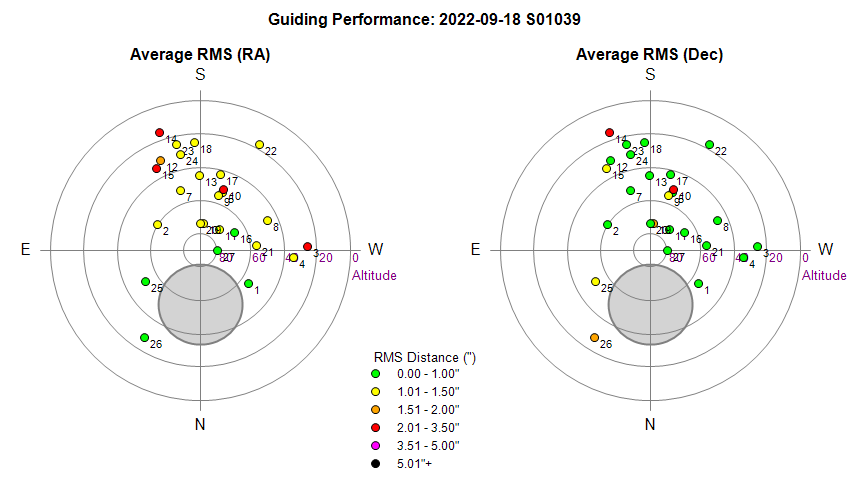

Guiding Performance

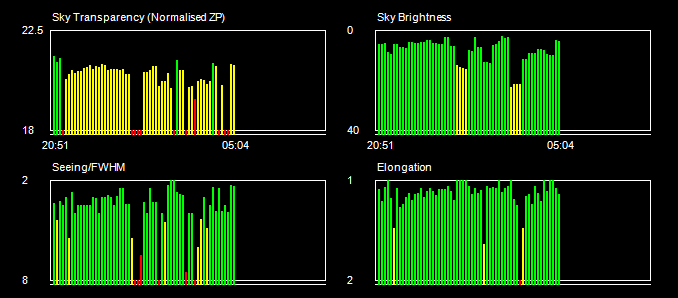

Sky Conditions (Locate Frames)

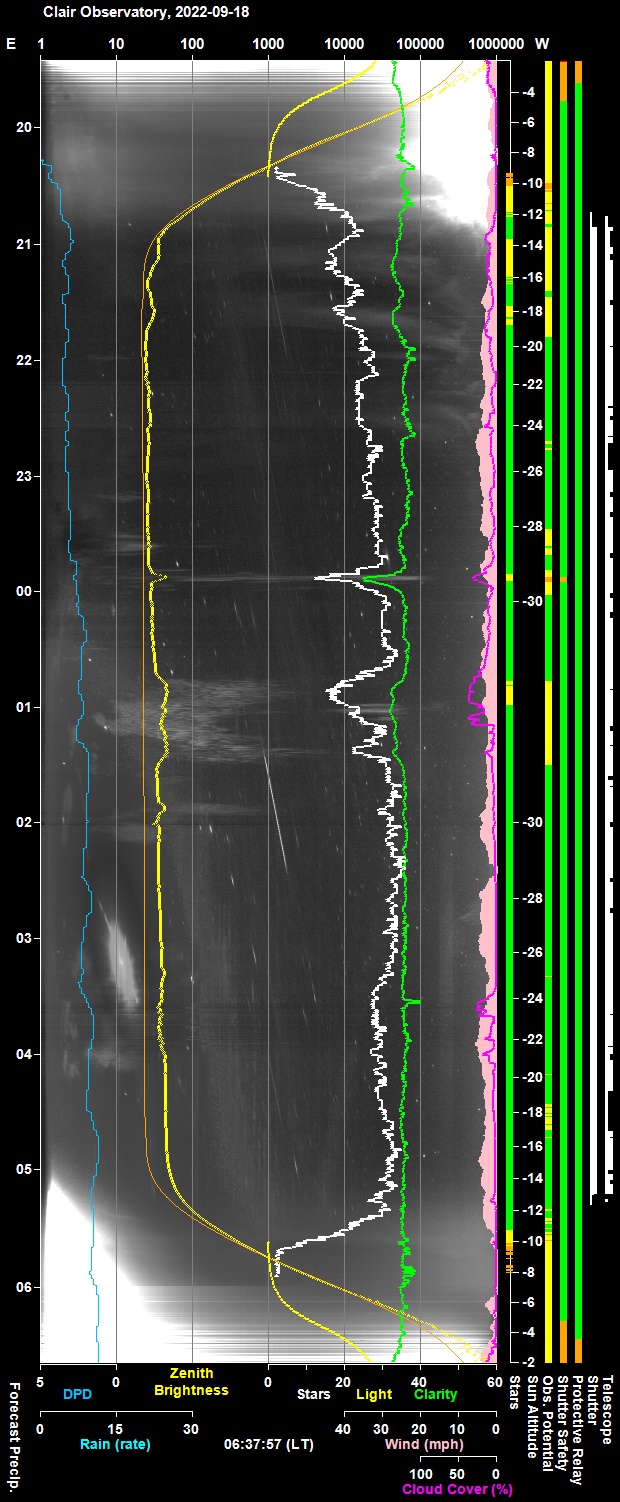

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

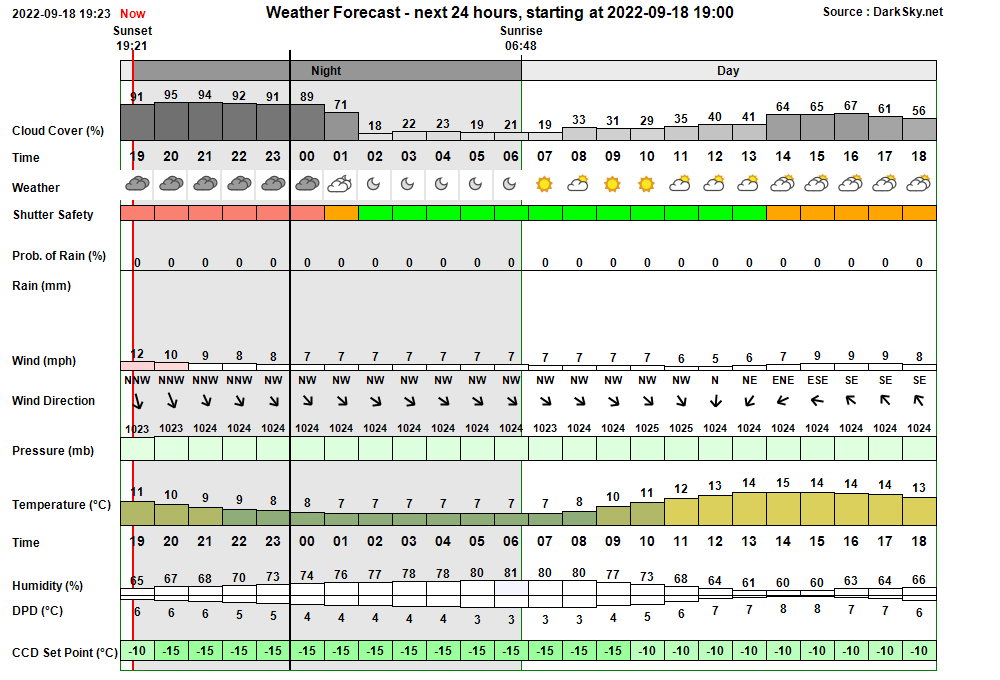

Actual Weather vs Pre-Session Weather Forecast

Session Event Log
Time     Event Detail
20:09:35 Session Monitoring AutoStart monitoring for Live Session opportunity between 20:10 & 04:45
20:09:39   AutoStart Waiting AutoStart waiting till earliest start time at 20:10
20:10:09   AutoStart Delayed Session delayed due to too few stars
20:42:58 Session AutoStarting Session autostarting (20:42)
20:43:30 Session Created Session Created (Live, 2022-09-18 S01039, ImageSaveNum: 1039001)
20:43:33   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
20:45:18   Services Started Observatory Services started
20:45:25 Observatory (Auto) Observatory placed in Fully-Automated Mode
20:45:28 Session Pending Session pending (2022-09-18)
20:45:30 Session Initiating Session initiating (2022-09-18)
20:45:32   Plan Requested Observing Plan requested from AstroPlan (1.32.5)
20:46:09   Plan Loaded Observing Plan loaded to queue (Plan ID: 801)
20:46:33   Camera1 Connected SBIG Camera connected (set point -15°C)
20:46:40   Telescope Connected Telescope connected (TheSky6)
20:47:04 Session Equilibration Session ready to Open Dome
20:47:49   Dome Opened Dome opened (opening time 45s)
20:48:34 Session Running Session running
20:48:37   Queue Started Observing Queue started (26 targets selected)
20:48:40     Target Started (NrZen) Target started (Focus Field 19, HIP 93376)
20:48:54   Dome Unparked Dome unparked
20:53:28       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
20:55:58       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide)
20:57:53       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
20:57:55       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
21:00:02       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide)
21:01:44       Focusing Completed Foc2 AutoFocus Completed (Profile No 2)
21:02:02     Target Completed (NrZen) Target completed (Focus Field 19, HIP 93376)
21:02:06     Target Started (1/26) Target started (1/26, NGC 5894 w/SN2022pgf)
21:05:58       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:08:24       Focusing Completed Foc1 AutoFocus Completed (Profile No 3)
21:25:13     Target Completed Target completed (1/26, NGC 5894 w/SN2022pgf)
21:25:17     Target Started (2/27) Target started (2/27, UGC 12005 w/SN2022ovb, ToO)
21:29:27       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:31:56       Focusing Completed Foc1 AutoFocus Completed (Profile No 4)
21:47:57     Target Completed Target completed (2/27, UGC 12005 w/SN2022ovb, ToO)
21:47:59     Target Missed (3/27) Target's time slot was missed (3/27, NGC 6745 w/SN2022prr)
21:48:02     Target Started (4/27) Target started (4/27, IC 1132 w/SN2022prv)
21:53:33       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S)
22:09:26     Target Completed Target completed (4/27, IC 1132 w/SN2022prv)
22:09:30     Target Started (5/27) Target started (5/27, C/2022 E3 (ZTF))
22:12:43       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S)
22:24:33     Target Completed Target completed (5/27, C/2022 E3 (ZTF))
22:25:34     Target Started (6/27) Target started (6/27, GCVS V Sge)
22:27:24     Dome Slew Dome slew held up at Az. 246.9, 222.1° (Total delay 60s)
22:29:38       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:31:50       Focusing Completed Foc1 AutoFocus Completed (Profile No 5)
22:39:52     Target Completed Target completed (6/27, GCVS V Sge)
22:40:21     Target Started (7/27) Target started (7/27, AT2022tru (CV))
22:43:32     Target Failed Target failed due to aborted (7/27, AT2022tru (CV))
22:43:34   Queue Aborted Job Queue aborted
22:53:01 Session Monitoring AutoStart monitoring for Live Session opportunity between 22:52 & 04:45
22:53:03 Observatory (AutoStart) Observatory placed in Auto-Start Mode
22:53:05 Session AutoStarting Session autostarting (22:53)
22:53:26   Services Started Observatory Services started
22:53:31 Observatory (Auto) Observatory placed in Fully-Automated Mode
22:53:35 Session Pending Session pending (2022-09-18)
22:53:37 Session Initiating Session initiating (2022-09-18)
22:53:42   Plan Loaded Observing Plan loaded to queue (Plan ID: 801)
22:53:56   Camera1 Connected SBIG Camera connected (set point -20°C)
22:54:02   Telescope Connected Telescope connected (TheSky6)
22:54:21 Session Running Session running
22:54:23   Queue Started Observing Queue started (21 targets selected)
22:54:29     Target Started (6/26) Target started (6/26, AT2022tru (CV))
23:06:20     Target Completed Target partially completed (6/26, AT2022tru (CV))
23:06:24     Target Started (7/26) Target started (7/26, GCVS CY Lyr)
23:09:17       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:11:28       Focusing Completed Foc1 AutoFocus Completed (Profile No 6)
23:15:20     Target Completed Target completed (7/26, GCVS CY Lyr)
23:15:24     Target Started (8/26) Target started (8/26, NGC 7053 w/SN2022pux)
23:16:58     Dome Slew Dome slew held up at Az. 223.1, 222.6° (Total delay 56s)
23:19:45       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:21:55       Focusing Completed Foc1 AutoFocus Completed (Profile No 7)
23:37:44     Target Completed Target completed (8/26, NGC 7053 w/SN2022pux)
23:37:48     Target Started (9/26) Target started (9/26, AT2022snh)
23:40:38       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:43:00       Focusing Completed Foc1 AutoFocus Completed (Profile No 8)
23:59:17     Target Completed Target completed (9/26, AT2022snh)
23:59:21     Target Started (10/26) Target started (10/26, GCVS SS Cyg)
00:01:58       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:03:56       Focusing Completed Foc1 AutoFocus Completed (Profile No 9)
00:08:06     Target Completed Target completed (10/26, GCVS SS Cyg)
00:08:10     Target Started (11/27) Target started (11/27, Jupiter, ToO)
00:11:29       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:14:26       Focusing Completed Foc1 AutoFocus Completed (Profile No 10)
00:21:36     Target Completed Target completed (11/27, Jupiter, ToO)
00:21:40     Target Started (12/27) Target started (12/27, NGC 7495 w/SN2022ubb)
00:36:59     Target Completed Target partially completed (12/27, NGC 7495 w/SN2022ubb)
00:37:03     Target Started (13/27) Target started (13/27, MPL 532 Herculina)
00:47:56     Target Completed Target completed (13/27, MPL 532 Herculina)
00:48:00     Target Started (14/27) Target started (14/27, UGC 678 w/SN2020abjq)
00:51:34       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
01:07:41     Target Completed Target completed (14/27, UGC 678 w/SN2020abjq)
01:07:45     Target Started (15/27) Target started (15/27, GCVS BL Lac)
01:10:28       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:12:39       Focusing Completed Foc1 AutoFocus Completed (Profile No 11)
01:16:33     Target Completed Target completed (15/27, GCVS BL Lac)
01:16:37     Target Started (16/27) Target started (16/27, NGC 7594 w/SN2022de)
01:18:03     Dome Slew Dome slew held up at Az. 223.1, 222.5° (Total delay 55s)
01:20:31       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
01:36:36     Target Completed Target completed (16/27, NGC 7594 w/SN2022de)
01:38:19     Target Started (17/27) Target started (17/27, NGC 157 w/SN2022jli)
01:42:03       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S)
01:58:20     Target Completed Target completed (17/27, NGC 157 w/SN2022jli)
01:58:24     Target Started (18/28) Target started (18/28, Jupiter, ToO)
02:00:47       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:02:43       Focusing Completed Foc1 AutoFocus Completed (Profile No 12)
02:07:05     Target Completed Target completed (18/28, Jupiter, ToO)
02:07:09     Target Started (19/28) Target started (19/28, M31 w/ATNova M31 2022-09a?)
02:26:07     Target Completed Target completed (19/28, M31 w/ATNova M31 2022-09a?)
02:26:11     Target Started (20/28) Target started (20/28, GCVS U And)
02:27:15     Dome Slew Dome slew held up at Az. 178.1, 177.8° (Total delay 47s)
02:29:28       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:31:25       Focusing Completed Foc1 AutoFocus Completed (Profile No 13)
02:41:52     Target Completed Target completed (20/28, GCVS U And)
02:41:56     Target Started (21/28) Target started (21/28, AT2022kl (CV))
02:44:53       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:47:03       Focusing Completed Foc1 AutoFocus Completed (Profile No 14)
03:06:00     Target Completed Target completed (21/28, AT2022kl (CV))
03:06:04     Target Started (22/28) Target started (22/28, AT2021aesn (CV))
03:16:56     Target Completed Target completed (22/28, AT2021aesn (CV))
03:17:00     Target Started (23/28) Target started (23/28, NGC 1110)
03:20:22       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
03:36:47     Target Completed Target completed (23/28, NGC 1110)
03:36:51     Target Started (24/28) Target started (24/28, UGC 2508 w/AT2022trp)
03:40:28       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
03:56:23     Target Completed Target completed (24/28, UGC 2508 w/AT2022trp)
03:56:47     Target Started (25/28) Target started (25/28, UGC 3923 w/SN2022rqc)
04:00:44       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:03:28       Focusing Completed Foc1 AutoFocus Completed (Profile No 15)
04:19:31     Target Completed Target completed (25/28, UGC 3923 w/SN2022rqc)
04:19:35     Target Started (26/28) Target started (26/28, AT2022tmq)
04:19:43     Target Failed Target failed due to slew error (26/28, AT2022tmq)
04:24:02 Obs.Monitor Frozen Obs.Monitor appears to be frozen at around 04:24 in section Monitor TheSky6 Scope
04:40:47     Target Started (27/28) Target started (27/28, UGC 6983 w/SN2022pru)
04:44:16       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S)
05:01:05     Target Completed Target completed (27/28, UGC 6983 w/SN2022pru)
05:02:47     Target Started (28/28) Target started (28/28, GCVS DY Per)
05:06:09       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
05:08:21       Focusing Completed Foc1 AutoFocus Completed (Profile No 16)
05:13:08     Target Completed Target completed (28/28, GCVS DY Per)
05:13:11   Queue Completed Job Queue completed
05:13:15 Session Closing Session closing
05:14:10   Dome Closed Dome closed (closing time 50s)
05:15:40   Dome Parked Dome parked (parking time 83s), Az: 90.0 deg
05:17:06   Telescope Parked Telescope parked (parking time 79s)
05:17:21   Telescope State Scope parked Turn scope off. (Handbox)
05:17:43   Telescope Switched Off Telescope Power has been switched off via UPB Switch.
05:18:38   Services Stopped Night Services stopped
05:18:40 Session Housekeeping Session Housekeeping started (Create Fits Summary, Transfer Files)
05:19:11 Session Finished Session Finished

Session Alerts
Time     Alert Detail
23:59:35 Anomalous Dome Slew Dome slew resumed at Az 215.1° (T+8.6s)
04:24:37 Obs.Monitor Obs.Monitor appears to be frozen in section Monitor TheSky6 Scope (last cycle at 04:24:02)
04:25:32 Obs.Monitor Obs.Monitor has resumed again after 1.5 mins


Back to Top


Operational Issues (2022-09-18, S1039)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Small Defects

Continuous Improvement

[ Prev | Next ]

Back to Top


2022-09-21


Investigation - Auto-Centering Telescope on Jupiter

Issue. Existing GetBrightestObject() routine was unable to return the coordinates of Jupiter in Locate Image causing BrightStarLocate code in OB.CenterTarget() to not correctly centre Jupiter and caused the 1/4 frame 1x1 images to fail to capture Jupiter, wasting the opportunity and wasting time.

Description

In the past pictures of bright planets like Jupiter, Mars etc are taken by visually viewing images and instructing the telescope to make the necessary jogs to centre the planet prior to imaging.

With automated imaging the user isn't normally in a position to make the necessary jogs to centre the target.  A normal locate image used for derving a plate solution is typically of 5 -10s exposure. But this is much to long for a very bright target like Jupiter which only requires a locate image of 0.2s long to avoid strong blooming and subsequent ghosting in following images. However the exposure is then too short to capture any stars that are necessary for performing a plate solution.

One option is to simply slew to the target and not centre and to then take full frame 1x1 images knowing that Jupiter will be very probably caught someone in the middle 60% of the image.   This is wasteful in terms of the image file sizes and long delays between frames (1x1 full frame requires 8s download from SBIG ST-10XME camera)

First set of images of Jupiter was captured without centering and using half-frame pictures  (that reduce file size and download times by 25%).  However only 80-90% of planet disk was captured. One part of the disk was cropped off.

The next option is to use existing CentreOnBrightestObject method.   This calls GetBrightestObject() routine to search the Inventory arrays (produced when CCDSoft's Image.FindInventory() method is called) and return the XY coordinates of the brightest object.  This normally gives good results when centering a very bright star like Vega.

A second set of images of Jupiter were attempted using the CentreOnBrightestObject method and using quarter-frame pictures (that reduce file size and download times considerably).  However these failed to capture the planet disk at all.

Analysis
Investigating showed that whilst the GetBrightestObject() seemingly gave correct coordinates of Jupiter from first locate image, it didn't give correct coordinates for the second locate image, giving the coordinates of Jupiter's brightest moon instead.   Examing the second locate image we can see Jupiter with 3 of its moons visible (4th moon lay outside field of view)


Find Inventory show the following,   Jupiter and its 3 moons are found along with dimmer pseudo-star associated with the glare from Jupiter.


Examing the instrumental magntiudes (more negative numbers are brighter) we find that the brightest of Jupiter's moon has an instrumental magnitude that is brighter than the Jupiter, this is most likely because the aperatue used for the SExtractor analysis is set to a size suitable for finding & measuring point sources like stars and it not really suited for analysing large extended objects like the disk of Jupiter (50" diameter).


A larger apeture could potentially be used. Changing Source Extraction setup to aperture diameter of 60 pixels instead of 5 pixels changes instrumental mag of brightest moon from -14.5 to -14.9, but changes that of Jupiter from -13.7 to -17.8.   So Jupiter clearly become the brightest object.

Seeing from the observatory site is fairly variable. But on a good night of seeing the typical FWHM is around 2.8" .
Aperture diameter show be 4-5 times this in order to capture 99% of star flux (Basic Photometry :  https://community.dur.ac.uk/physics.astrolab/photometry_theory.html )

Let's take 4 times the FWHM.  So we need an aperture of 2.8 x 4.0 = 11.2". At plate scale of 1.40"/px (3x3 binned images) this corresponds to aperture diameter of 8 pixels.

Taking aperture of 8 and re-preforming Find Inventory changes instrumental magnitude of brightest moon changes from -14.5 to -14.8, whilst Jupiter changes from -13.7 to -15.0.  So Jupiter becomes brightest object but not by much.

We need to use a larger aperture than 8 pixels.  With an apparent angular diameter of 50" at time of images then using an aperature of 160 pixels  (50 x 4. 5 / 1.40) seems overkill. We just need to find the brightest object not measure its total flux.  Taking instead the disk diameter for the aperture (50") plus the seeing related size (2.8" * 4.5) gives us  62.6" or 45 pixels (at 1.4"/px plate scale).  Using aperture of 45 pixels the instrumental magnitude of brightest moon changes from -14.5 to -14.9, whilst Jupiter changes from -13.7 to -18.3.  So Jupiter clearly becomes the brightest object and LocateBrightestObject centering code would therefore work reliably.


Actions

Image Change standard photometry aperture size to 8 pixels (from 5).   This might result in an offset between star magnitude estimates made pre- and post-change.
Image Create a routine that can change SExtractor setting for aperture size.
Implemented using new routine objConsole.SetDetectAperture()
Image Modify CentreBrightestObject to select aperture size of 45 pixels before centering Jupiter
(or to an aperture diamter of 23 pixels before centering Saturn or Mars)And to ensure that setting is returned to the standard size (8 px) afterwards.  OB.CentreTarget modified to achieve this.

Back to Top
