David's Astronomy Pages Notes - Session 1044 (2022-10-01)

Notes (S1043)

Notes Main

Home Page

Notes (S1045)

	Session Aims & Highlights
	- Observing Result  - Night Summary Plot  - Session Event Log
	Operational Issues
	- Critical Issues (0),  Major Issues (0),  Minor Issues (0),  Small Defects (1),  Continuous Improvement (0)
	Images from 2022-10-01 >>        [ Local Files >> ]

Session Aims & Highlights (2022-10-01)

Main aims

1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by time & twilight conditions.

 Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• CCDApp2, TheSky6, CCDSoft5, DeviceHub 6.6.0.16,  MeadeGeneric 1.3.5.414, UPB 1.5, ASCOM 6.6
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.11dev2

• AstroMain 3.55.2,  AstroPlan 1.32.5,   AstroShCap 1.3.12, AstroGuard 1.9
  AstroVOE 1.12  AstroSN 1.8.6,  AstroProtect 1.7,  AstroMove 1.9.1
  (AstroWeather 1.18.1, AstroAllSky 3.17.1,  AstroObsCam 1.9, AstroLaunch 1.9.4)

Highlights

• Targets.  Data was acquired from only 4 out of 30 planned targets, with partial data acquired from 1-2 further targets (one of which was later rejected due to bad guiding).  This was due a bug with the handling of Rain Trim setting at start of session and later on due to cloud.

Notes:

• Start of session was delayed by a problem with the application of Rain Trim Setting. This also caused the first 3 targets to be missed/skipped.
• Cloud (high cloud that reduced star count without dropping Cloud Sensor's Clarity value effected the session significantly and it was not until later 04:04 that sky was clear enough for productive observing.


Summary Plots & Logs

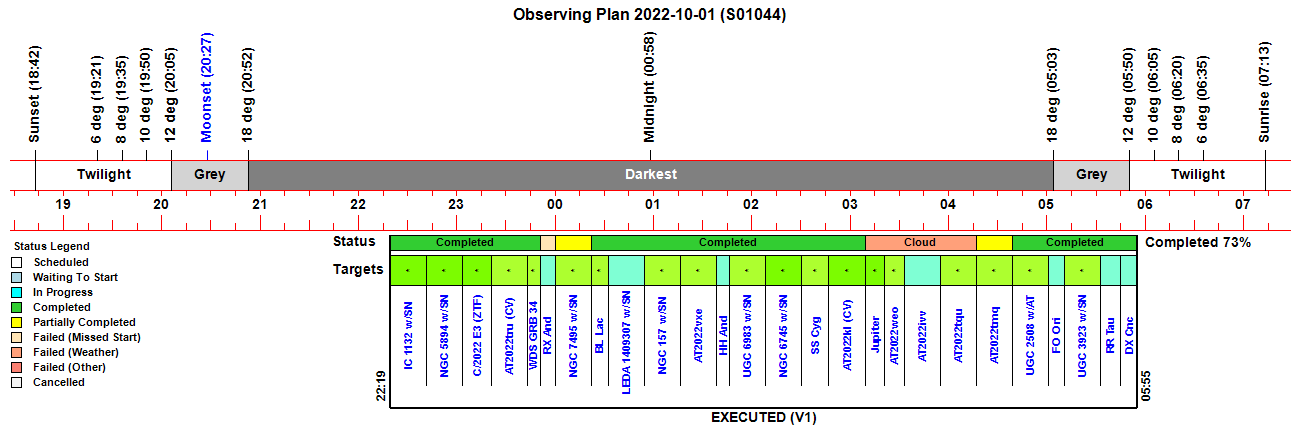

Observing Plan

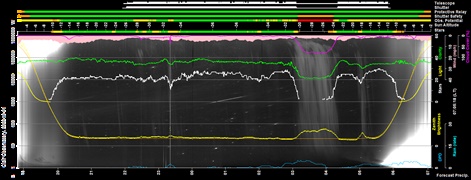

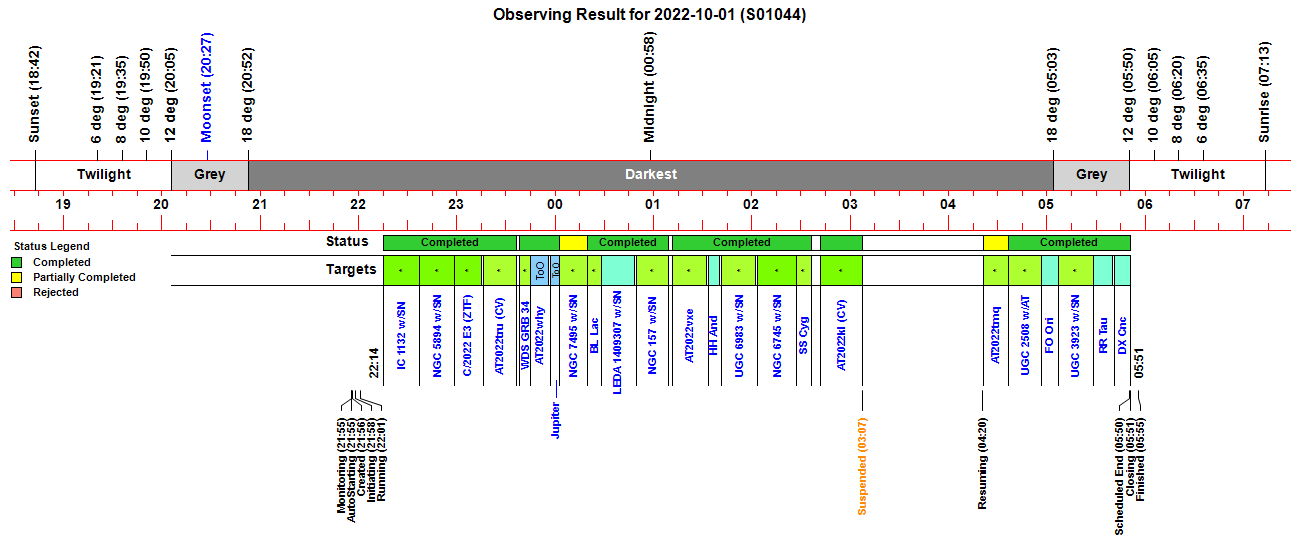

Observing Result

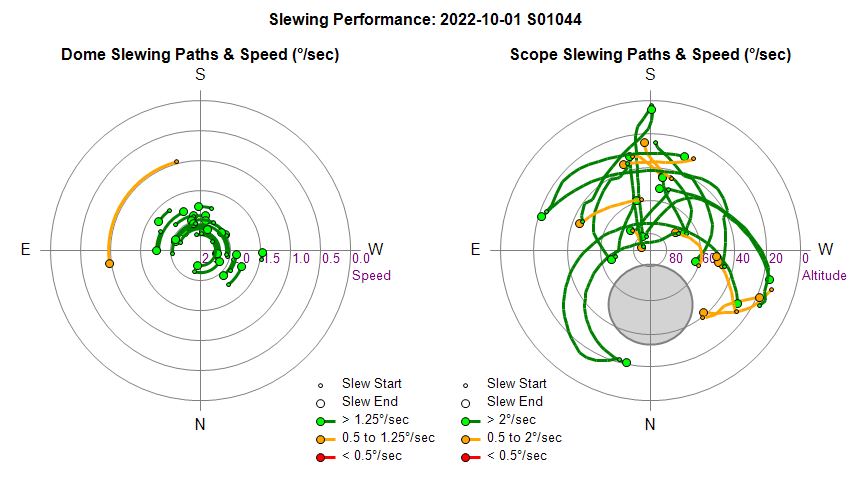

Dome & Scope Slewing Performance

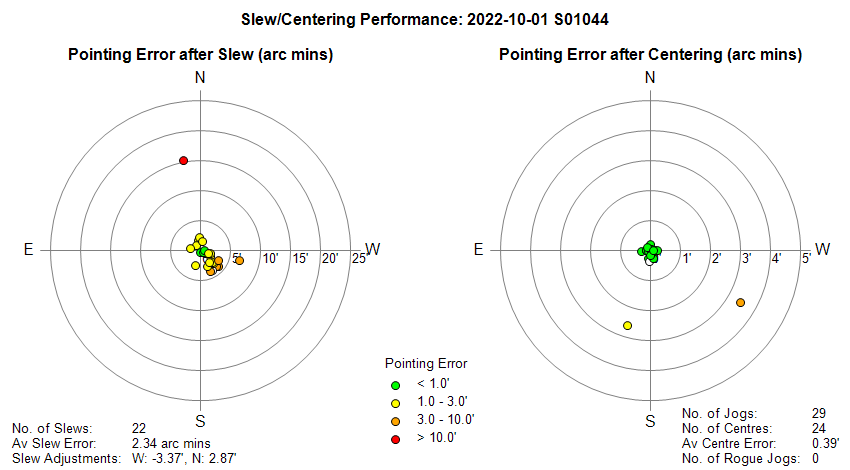

Slew/Centering Performance

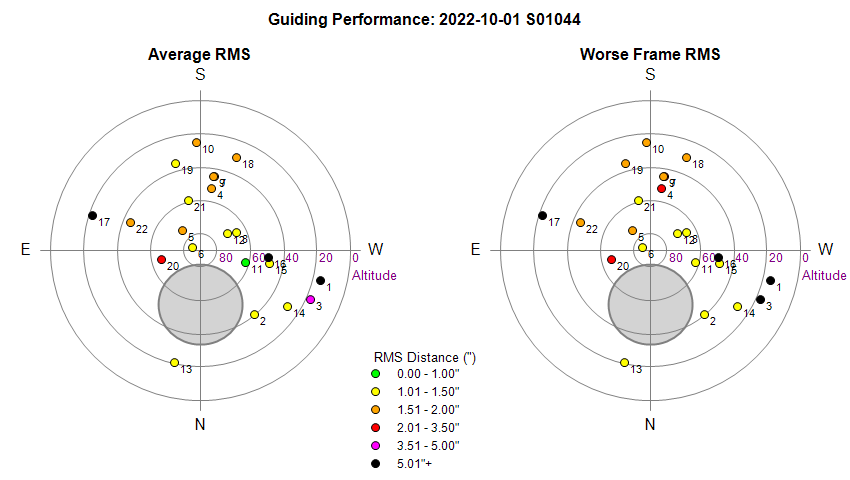

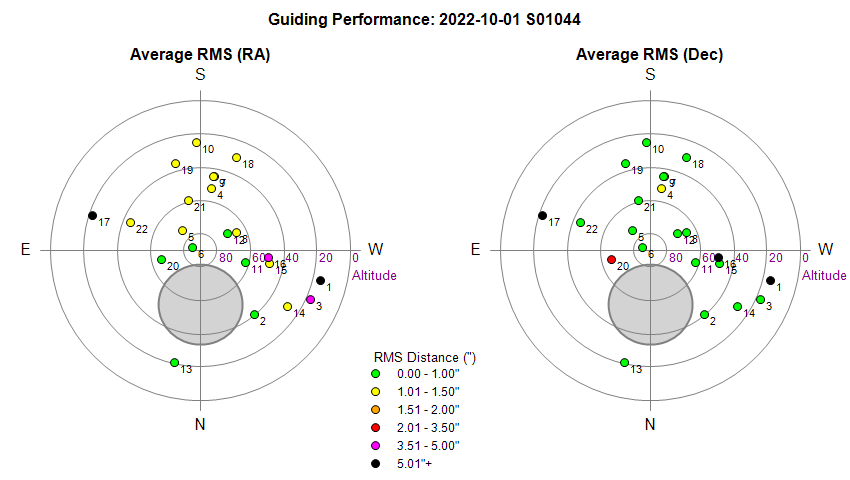

Guiding Performance

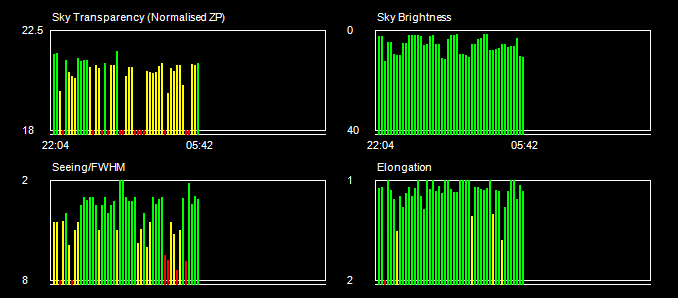

Sky Conditions (Locate Frames)

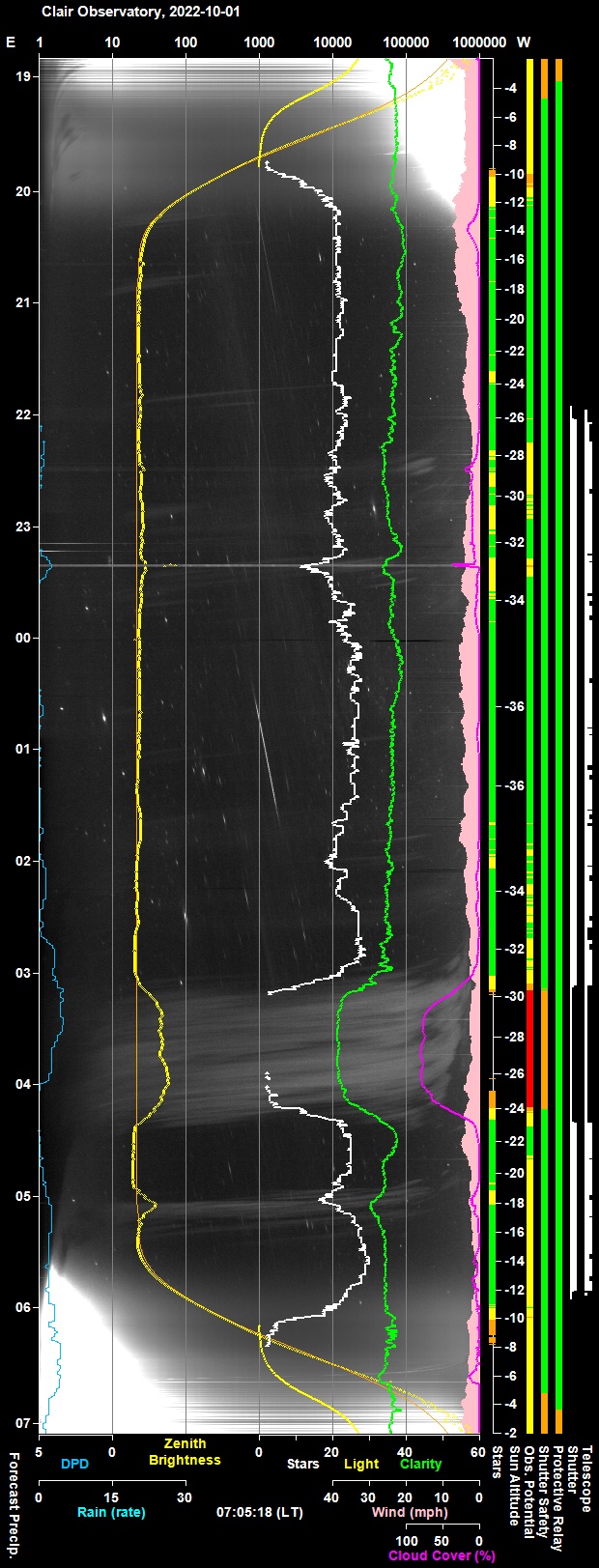

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

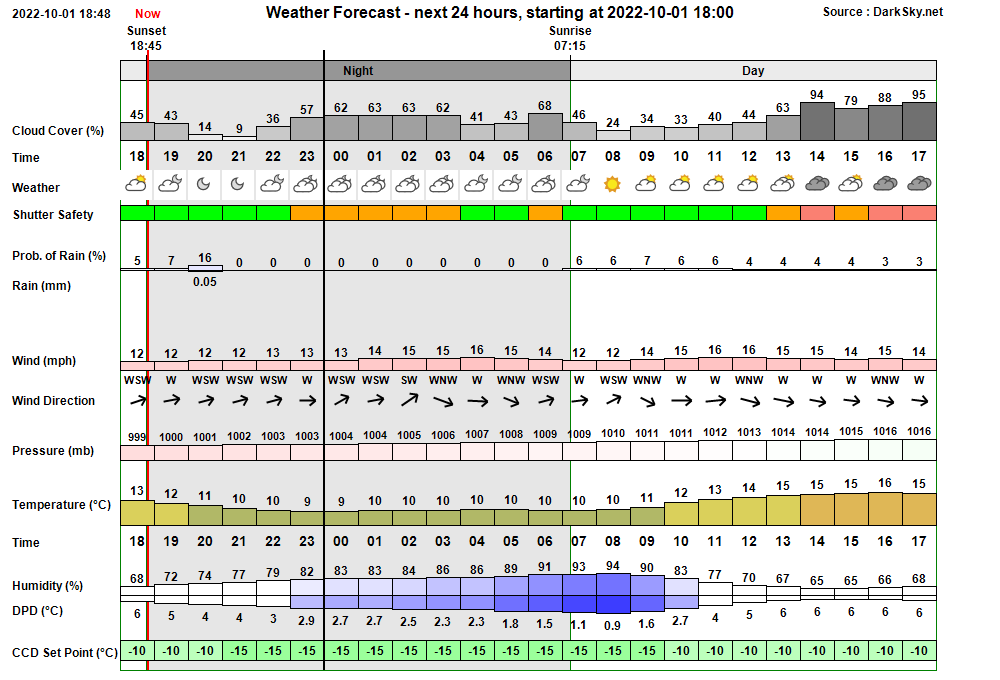

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 21:55:42 Session Monitoring AutoStart monitoring for Live Session opportunity between 21:55 & 05:14 21:55:46 Session AutoStarting Session autostarting (21:55) 21:56:18 Session Created Session Created (Live, 2022-10-01 S01044, ImageSaveNum: 1044001) 21:56:21   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 21:58:02   Services Started Observatory Services started 21:58:09 Observatory (Auto) Observatory placed in Fully-Automated Mode 21:58:11 Session Pending Session pending (2022-10-01) 21:58:13 Session Initiating Session initiating (2022-10-01) 21:58:15   Plan Requested Observing Plan requested from AstroPlan (1.32.5) 21:58:51   Plan Loaded Observing Plan loaded to queue (Plan ID: 806) 21:59:16   Camera1 Connected SBIG Camera connected (set point -15°C) 21:59:23   Telescope Connected Telescope connected (TheSky6) 21:59:47 Session Equilibration Session ready to Open Dome 22:01:22   Dome Opened Dome opened (opening time 45s) 22:01:24 Session Running Session running 22:01:27   Queue Started Observing Queue started (26 targets selected) 22:01:28     Target Started (NrZen) Target started (Focus Field 22, HIP 108888) 22:01:41   Dome Unparked Dome unparked 22:06:10       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:08:34       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide) 22:10:44       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 22:10:46       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 22:12:53       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 22:14:36       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 22:14:54     Target Completed (NrZen) Target completed (Focus Field 22, HIP 108888) 22:14:58     Target Started (1/26) Target started (1/26, IC 1132 w/SN2022prv) 22:20:00       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 22:37:18     Target Completed Target completed (1/26, IC 1132 w/SN2022prv) 22:37:22     Target Started (2/26) Target started (2/26, NGC 5894 w/SN2022pgf) 22:40:35       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:43:00       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 22:58:48     Target Completed Target completed (2/26, NGC 5894 w/SN2022pgf) 22:58:52     Target Started (3/26) Target started (3/26, C/2022 E3 (ZTF)) 23:02:47       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 23:14:52     Target Completed Target completed (3/26, C/2022 E3 (ZTF)) 23:16:17     Target Started (4/26) Target started (4/26, AT2022tru (CV)) 23:20:01       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 23:23:02   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 23:25:37   SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 23:36:27     Target Completed Target completed (4/26, AT2022tru (CV)) 23:38:17     Target Started (5/26) Target started (5/26, WDS GRB 34) 23:41:07       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:43:09       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 23:45:11     Target Completed Target completed (5/26, WDS GRB 34) 23:45:15     Target Started (6/27) Target started (6/27, AT2022why, ToO) 23:48:51       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:51:02       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 23:56:48     Target Completed Target completed (6/27, AT2022why, ToO) 23:56:52     Target Started (7/28) Target started (7/28, Jupiter, ToO) 23:58:50       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 00:02:51     Target Completed Target completed (7/28, Jupiter, ToO) 00:02:53     Target Missed (8/28) Target's time slot was missed (8/28, GCVS RX And) 00:02:55     Target Started (9/28) Target started (9/28, NGC 7495 w/SN2022ubb) 00:19:30     Target Completed Target partially completed (9/28, NGC 7495 w/SN2022ubb) 00:19:34     Target Started (10/28) Target started (10/28, GCVS BL Lac) 00:22:25       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:24:35       Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 00:28:27     Target Completed Target completed (10/28, GCVS BL Lac) 00:28:31     Target Started (11/28) Target started (11/28, LEDA 1409307 w/SN2021ucm) 00:31:41       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 00:48:40     Target Completed Target completed (11/28, LEDA 1409307 w/SN2021ucm) 00:49:22     Target Started (12/28) Target started (12/28, NGC 157 w/SN2022jli) 00:52:54       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 01:08:56     Target Completed Target completed (12/28, NGC 157 w/SN2022jli) 01:11:22     Target Started (13/28) Target started (13/28, AT2022vxe) 01:14:26       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:16:51       Focusing Completed Foc1 AutoFocus Completed (Profile No 7) 01:32:39     Target Completed Target completed (13/28, AT2022vxe) 01:33:22     Target Started (14/28) Target started (14/28, GCVS HH And) 01:35:53       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:38:06       Focusing Completed Foc1 AutoFocus Completed (Profile No 8) 01:40:07     Target Completed Target completed (14/28, GCVS HH And) 01:41:25     Target Started (15/28) Target started (15/28, UGC 6983 w/SN2022pru) 01:46:45       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S) 02:03:00     Target Completed Target completed (15/28, UGC 6983 w/SN2022pru) 02:03:26     Target Started (16/28) Target started (16/28, NGC 6745 w/SN2022prr) 02:08:21       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:10:44       Focusing Completed Foc1 AutoFocus Completed (Profile No 9) 02:27:21     Target Completed Target completed (16/28, NGC 6745 w/SN2022prr) 02:27:25     Target Started (17/28) Target started (17/28, GCVS SS Cyg) 02:30:07       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:32:18       Focusing Completed Foc1 AutoFocus Completed (Profile No 10) 02:36:29     Target Completed Target completed (17/28, GCVS SS Cyg) 02:41:25 Obs.Monitor Frozen Obs.Monitor appears to be frozen at around 02:41 in section Refresh Dome Picture 02:41:41     Target Started (18/28) Target started (18/28, AT2022kl (CV)) 02:45:34       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:47:49       Focusing Completed Foc1 AutoFocus Completed (Profile No 11) 03:06:39   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 03:07:22     Target Completed Target completed (18/28, AT2022kl (CV)) 03:07:24   Queue Paused Queue paused for Session Suspension 03:07:26 Session Suspended Session suspended 03:08:14   Dome Closed Dome closed (closing time 50s) 03:15:52     Target Cancelled Target cancelled (19/28, Jupiter) due to cloud 03:26:52     Target Cancelled Target cancelled (20/28, AT2022weo (CV)) due to cloud 03:46:52     Target Cancelled Target cancelled (21/28, AT2022ivv) due to cloud 04:08:52     Target Cancelled Target cancelled (22/28, AT2022tqu) due to cloud 04:20:33 Session Resuming Session resuming 04:21:18   Dome Opened Dome opened (opening time 45s) 04:21:20 Session Running Session running 04:21:22   Queue Resumed Observing Queue resumed 04:21:25     Target Started (23/28) Target started (23/28, AT2022tmq) 04:36:24     Target Completed Target partially completed (23/28, AT2022tmq) 04:36:28     Target Started (24/28) Target started (24/28, UGC 2508 w/AT2022trp) 04:40:29       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 04:56:42     Target Completed Target completed (24/28, UGC 2508 w/AT2022trp) 04:56:46     Target Started (25/28) Target started (25/28, GCVS FO Ori) 05:00:09       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 05:02:34       Focusing Completed Foc1 AutoFocus Completed (Profile No 12) 05:07:00     Target Completed Target completed (25/28, GCVS FO Ori) 05:07:04     Target Started (26/28) Target started (26/28, UGC 3923 w/SN2022rqc) 05:08:38     Dome Slew Dome slew held up at Az. 89.3° (Delay 45s) 05:11:31       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 05:28:34     Target Completed Target completed (26/28, UGC 3923 w/SN2022rqc) 05:28:38     Target Started (27/28) Target started (27/28, GCVS RR Tau) 05:32:12       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 05:34:25       Focusing Completed Foc1 AutoFocus Completed (Profile No 13) 05:40:58     Target Completed Target completed (27/28, GCVS RR Tau) 05:41:02     Target Started (28/28) Target started (28/28, GCVS DX Cnc) 05:44:06       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 05:46:19       Focusing Completed Foc1 AutoFocus Completed (Profile No 14) 05:51:12     Target Completed Target completed (28/28, GCVS DX Cnc) 05:51:15   Queue Completed Job Queue completed 05:51:19 Session Closing Session closing 05:52:09   Dome Closed Dome closed (closing time 45s) 05:52:31   Dome Parked Dome parked (parking time 15s), Az: 90.0 deg 05:53:48   Telescope Parked Telescope parked (parking time 73s) 05:54:03   Telescope State Scope parked Turn scope off. (Handbox) 05:54:25   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 05:55:21   Services Stopped Night Services stopped 05:55:23 Session Housekeeping Session Housekeeping started (Create Fits Summary, Transfer Files) 05:55:54 Session Finished Session Finished

Session Alerts

Time     Alert Detail 02:42:00 Obs.Monitor Obs.Monitor appears to be frozen in section Refresh Dome Picture (last cycle at 02:41:25) 02:43:00 Obs.Monitor Obs.Monitor has resumed again after 1.5 mins

Back to Top

Operational Issues (2022-10-01, S1044)

• Critical Issues (0)
• Major Issues (0)
• Minor Issues (0)
• Small Defects (1)
• Continuous Improvement (0)


[ Prev | Next ]

Critical Issues

• None

Major Issues

• None

Minor Issues

• None

Small Defects

• Conditions section is showing incorrect description when SunAlt is < -18.0.  With Sun Alt -34.6 the description was reported as being '(Astronomical Twilight)'. This is incorrect as Astronomical Twilight only covers Sun Alt -12 to -18.  The description for <-18.0 is ' (Night)'
  Fixed 2022-10-02 (AstroMain 3.55.3).

• None
