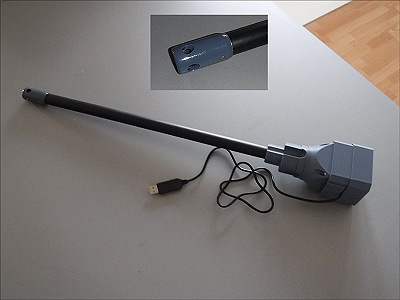

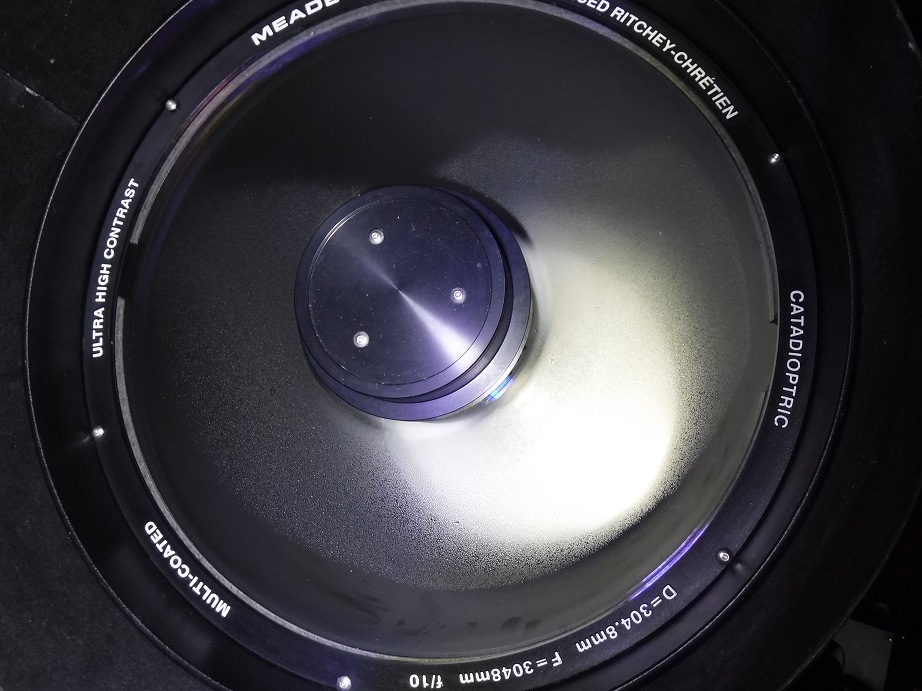

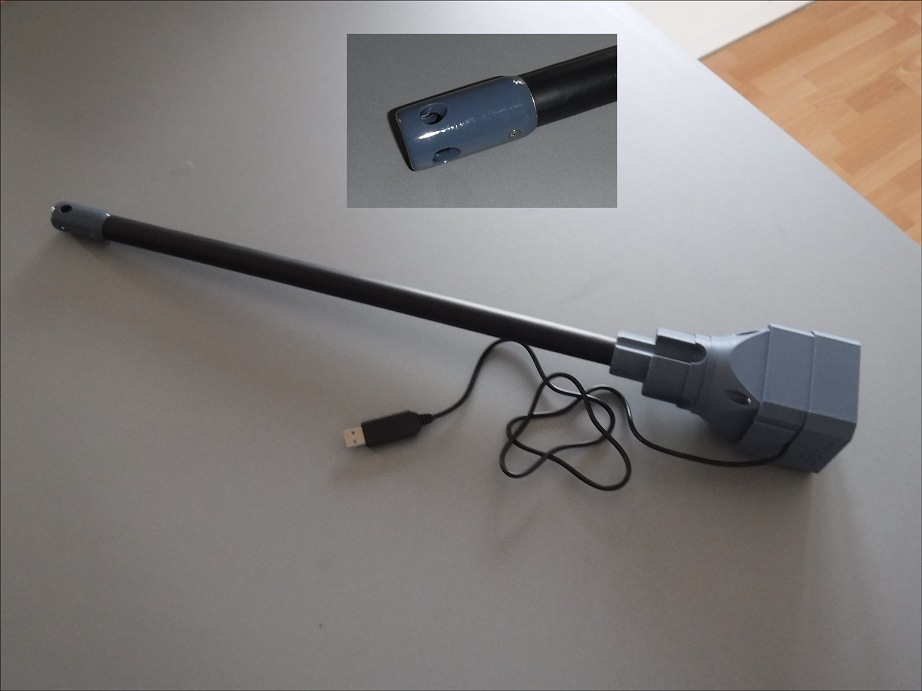

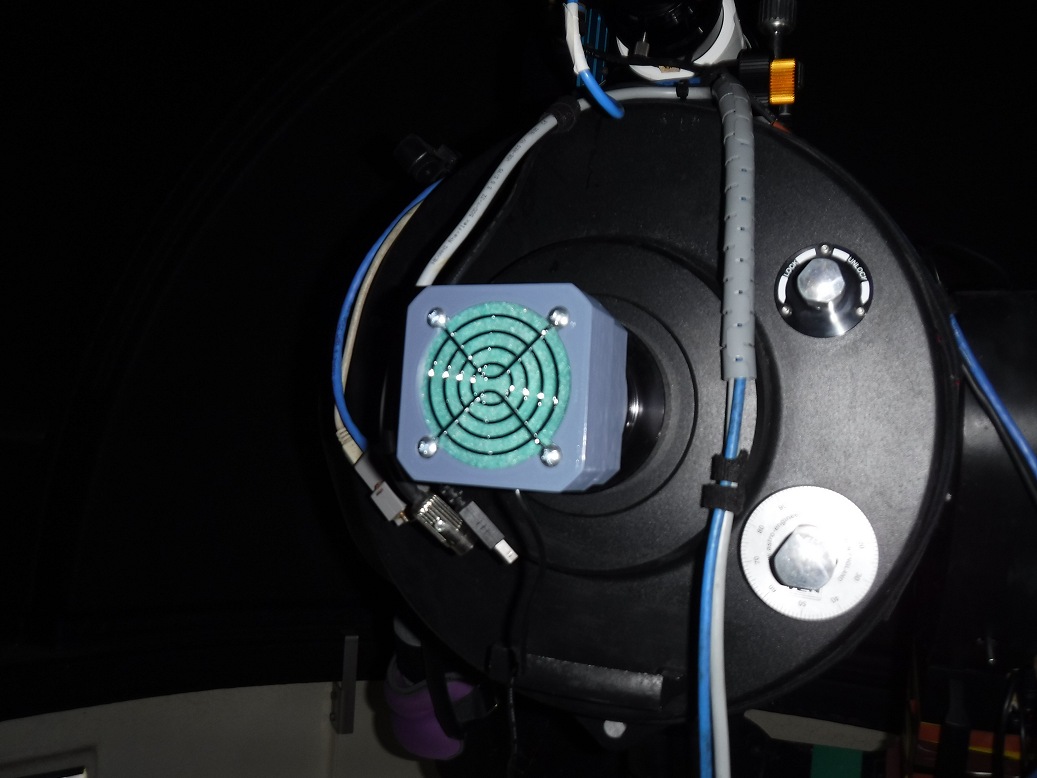

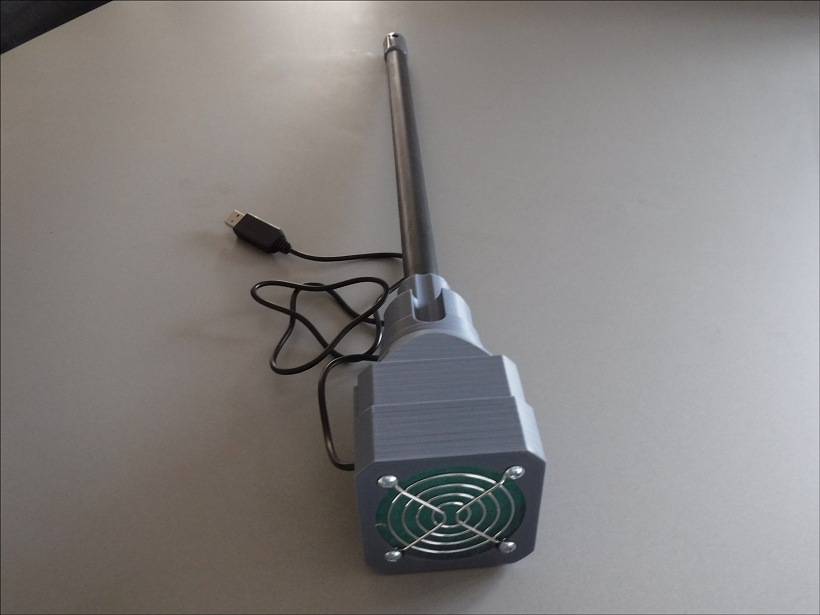

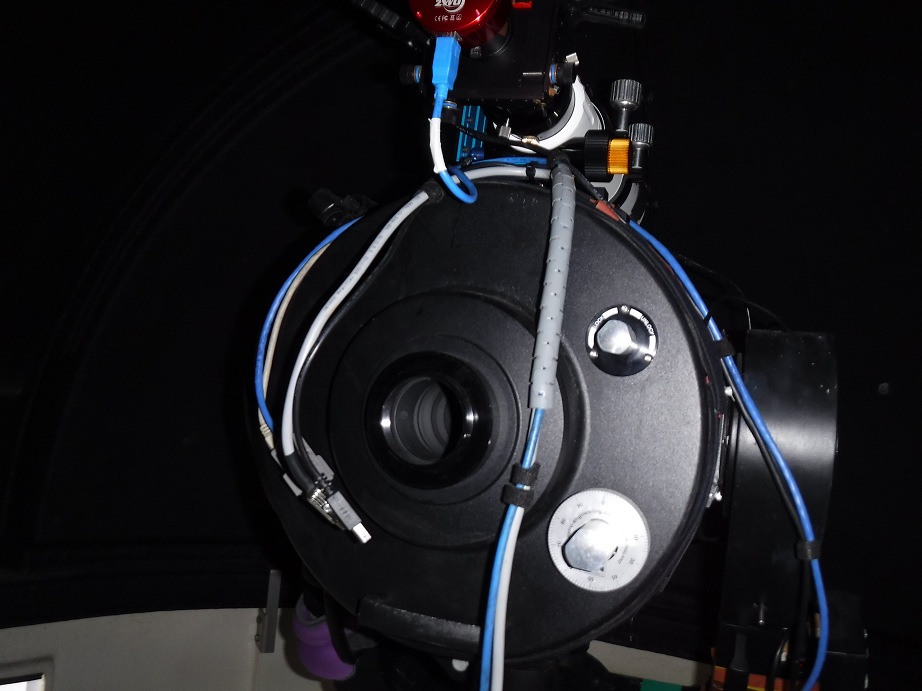

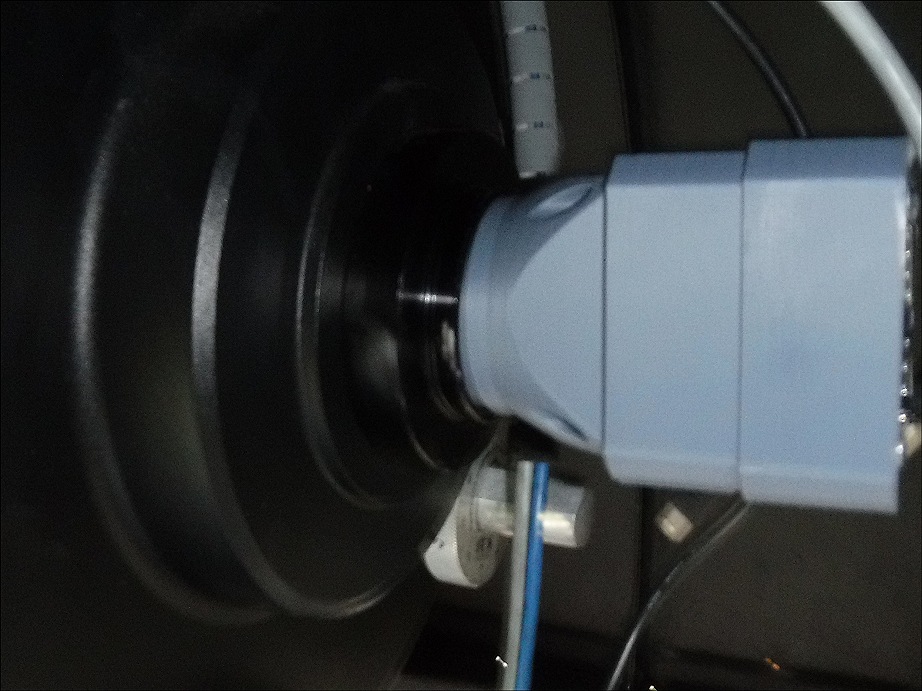

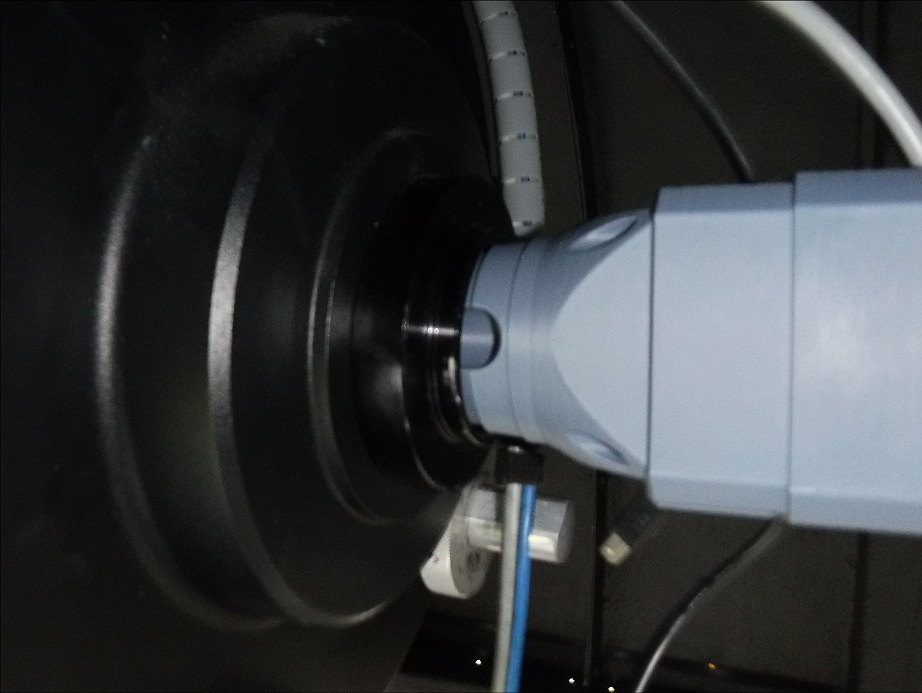

Bullet Lymax SCT Cooler


Session Aims & Highlights (2023-02-04)

Main aims

  1. Camera Rotation.  Rotate ST-10 camera to 180.0 +/- 0.1 deg following its reattachment to telescope. Rotate ZWO 178MC camera on secondary scope to 0 deg + /- 0.2 deg, following identification that it currently sits at 358.5 deg (1.5 deg off).

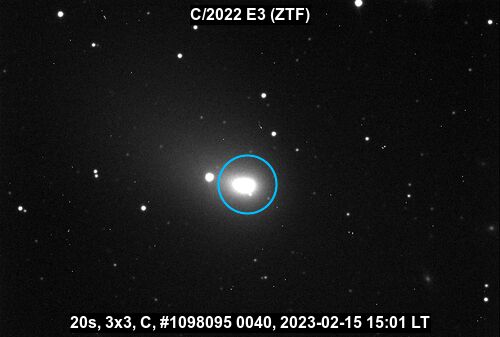

  2. Comet C/2022 E3 (ZTF).  Acquire images of C/2022 E3 (ZTF) after its transit across the north celestrial pole area (not readily observable with my fork mounted scope) on its way to its closest approach to earth and its travel into southen celestrial skies (where it will no longer be visible from my latitude)
  3. AstroMain. Test new AstroMain version (3.61) several changes and additions.
  4. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions.
  5. Secondary Scope Imaging/Stacking.  Continue testing of secondary scope imaging with automated in-session stacking of ZWO 178MC frames using and AstroMain's StackCam2Frames() routine, Siril-cli and a Siril script (OSC_stackframes.ssf).

 Equipment & Software

Highlights

Notes:

Summary Plots & Logs

Observing Plan
No plan created for the session (Manual Based Observing)

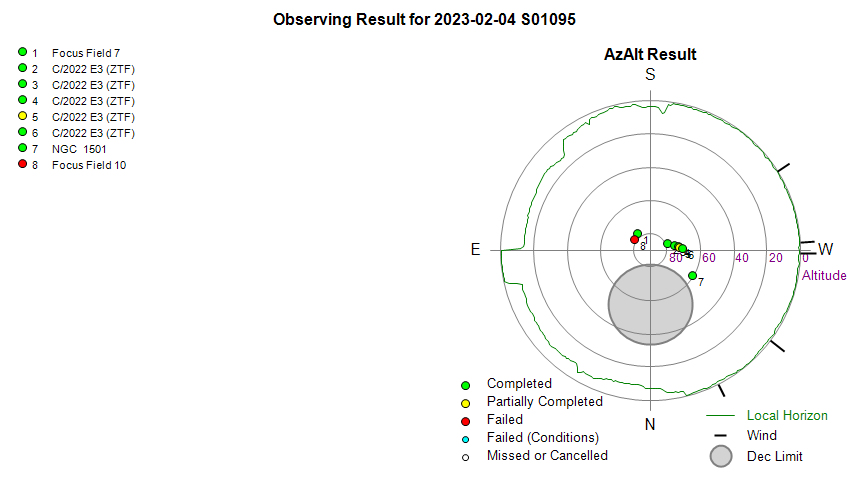

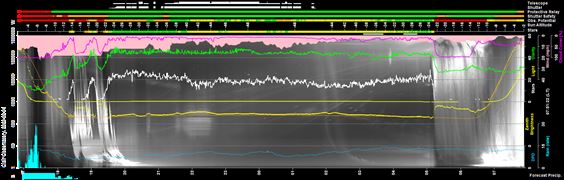

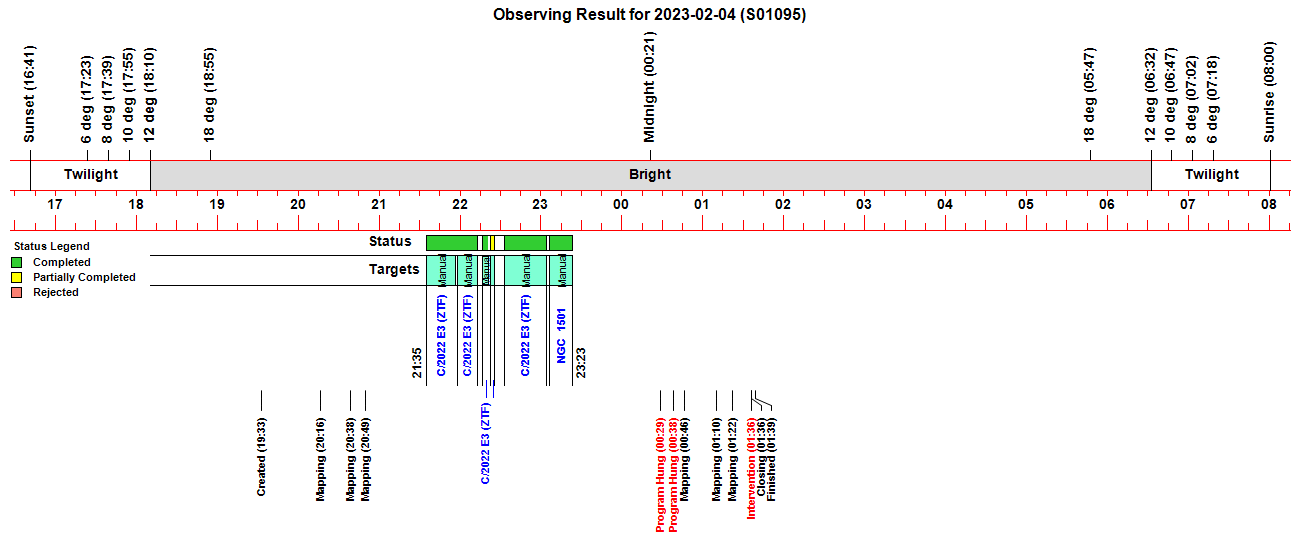

Observing Result

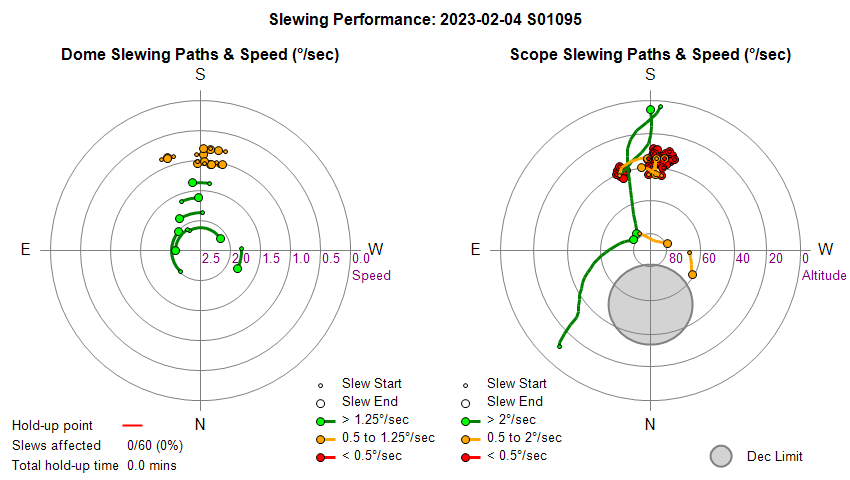

Dome & Scope Slewing Performance

Slew/Centering Performance

Guiding Performance

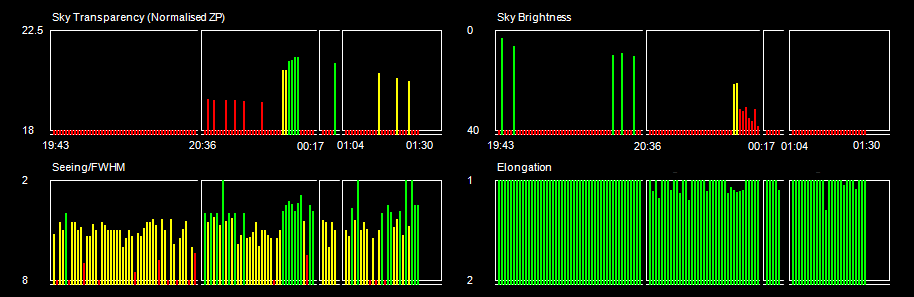

Sky Conditions (Locate Frames)

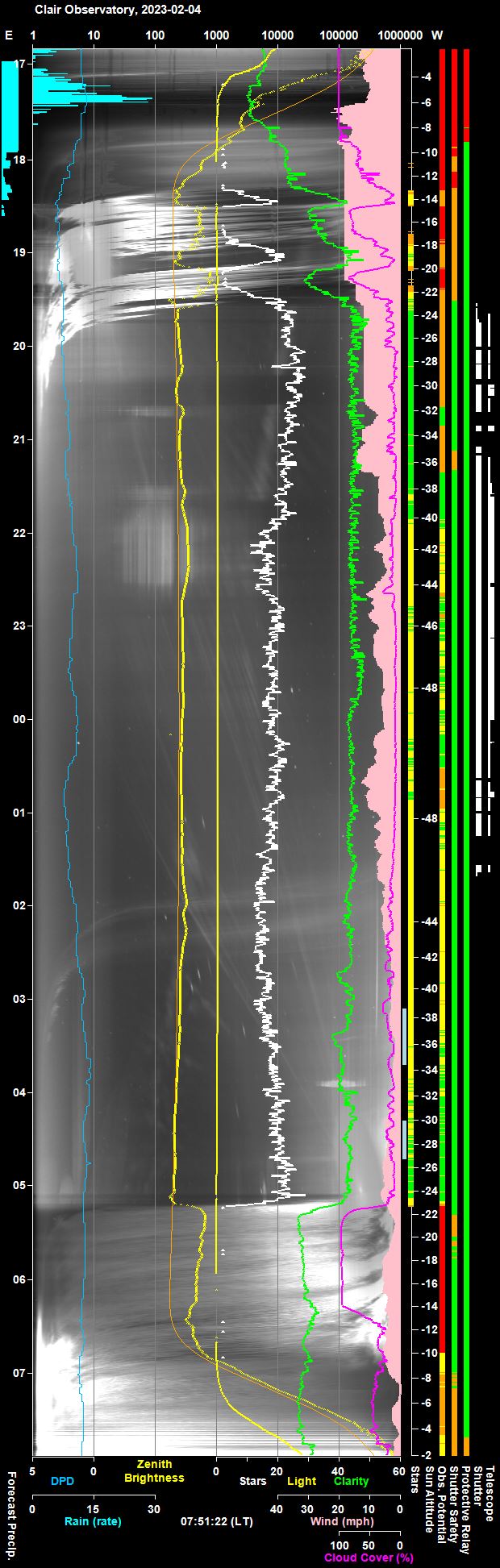

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

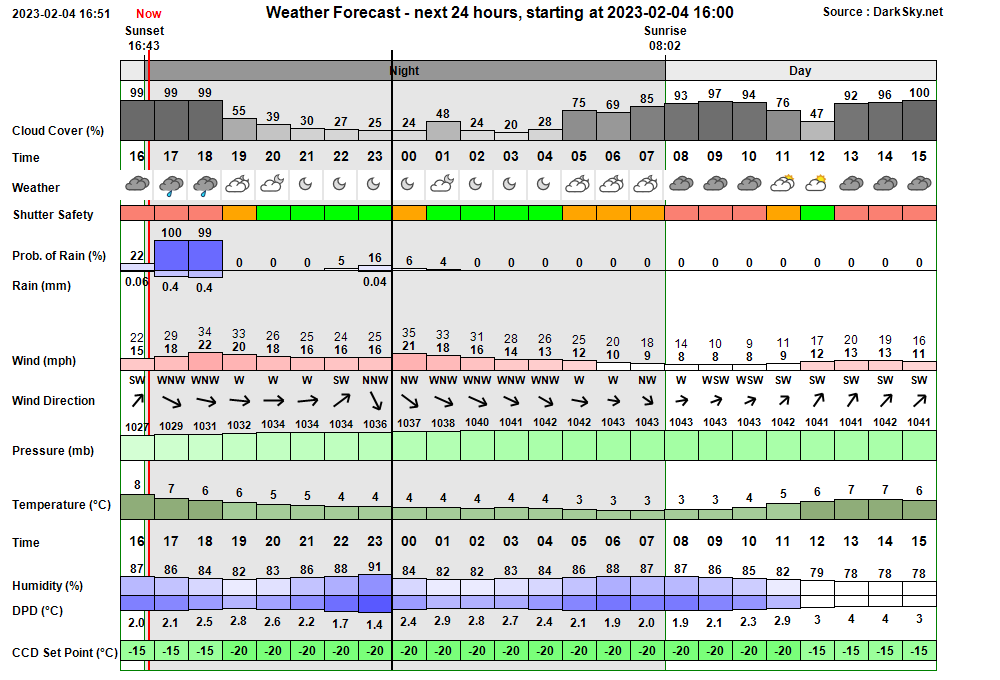

Actual Weather vs Pre-Session Weather Forecast

Session Event Log
Time     Event Detail
19:32:55   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.)
19:33:08 Session Created Session Created (Live, 2023-02-04 S01095, ImageSaveNum: 1095001)
19:37:38   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
19:39:21   Services Started Observatory Services started
19:39:44   Telescope Connected Telescope connected (TheSky6)
19:41:01       Dome Unparked Dome unparked
19:41:49   Dome Opened Dome opened (opening time 47s)
19:42:05   SBIG Camera Take Image failed, Error Code xxx
19:42:32   Camera1 Connected SBIG Camera connected (set point -20°C)
19:42:50   SBIG Camera Take Image command accepted (bSbigDriverException flag is reset)
19:46:58   Observatory Door Observatory Door has opened
19:47:08   Observatory Door Observatory Door has closed (open time 10 sec)
20:16:33   Automapping Started Automapping started (12 points planned)
20:16:50   Observatory Door Observatory Door has opened
20:16:58   Observatory Door Observatory Door has closed (open time 8 sec)
20:32:04 Program Opened Program Opened (AstroMain 3.61)
20:32:06 Session Resumed Session Resumed (Live, 2023-02-04 S01095, ImageSaveNum: 1095017)
20:32:17   Obs.Overseer Started Obs.Overseer started
20:32:42   Obs.Manager Started Obs.Manager started
20:32:50   Services Started Observatory Services started
20:33:59   Services Started Observatory Services started
20:34:16   Telescope Connected Telescope connected (TheSky6)
20:34:38   Camera1 Connected SBIG Camera connected (set point -20°C)
20:38:37   Automapping Started Automapping started (12 points planned)
20:49:12   Automapping Completed Automapping completed (6 points mapped out of 12 points)
20:49:51   Automapping Started Automapping started (12 points planned)
21:00:05   Automapping Completed Automapping completed (3 points mapped out of 12 points)
21:02:39   Telescope Parked Telescope parked (parking time 65s)
21:02:53   Telescope State Handbox reads 'Scope parked Turn scope off.'
21:03:16   Telescope Switched Off Telescope Power has been switched off via UPB Switch.
21:08:27   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
21:10:19   Telescope Connected Telescope connected (TheSky6)
21:11:59   Observatory Door Observatory Door has opened
21:12:03   Observatory Door Observatory Door has closed (open time 4 sec)
21:21:32   Observatory Door Observatory Door has opened
21:21:40   Observatory Door Observatory Door has closed (open time 8 sec)
21:26:20     Target Started (NrZen) Target started (Focus Field 7, HIP 34070)
21:28:11       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:30:09       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
21:30:10       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
21:32:09       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide)
21:33:52       Focusing Completed Foc2 AutoFocus Completed (Profile No 2)
21:34:09     Target Completed (NrZen) Target completed (Focus Field 7, HIP 34070)
21:35:20     Target Started (1/1) Target started (1/1, C/2022 E3 (ZTF)). Using SharpCap
21:56:27   Camera1 Connected SBIG Camera connected (set point -20°C)
21:56:30     Target Completed Target completed (1/1, C/2022 E3 (ZTF))
21:57:55     Target Started (1/1) Target started (1/1, C/2022 E3 (ZTF)). Using SharpCap
22:13:15   Camera1 Connected SBIG Camera connected (set point -20°C)
22:13:17     Target Completed Target completed (1/1, C/2022 E3 (ZTF))
22:16:56     Target Started (1/1) Target started (1/1, C/2022 E3 (ZTF)). Using SharpCap
22:20:51   Camera1 Connected SBIG Camera connected (set point -20°C)
22:20:53     Target Completed Target completed (1/1, C/2022 E3 (ZTF))
22:22:42     Target Started (1/1) Target started (1/1, C/2022 E3 (ZTF)). Using SharpCap
22:25:39   Camera1 Connected SBIG Camera connected (set point -20°C)
22:25:41     Target Completed Target partially completed (1/1, C/2022 E3 (ZTF))
22:32:56     Target Started (1/1) Target started (1/1, C/2022 E3 (ZTF)). Using SharpCap
23:04:23   Camera1 Connected SBIG Camera connected (set point -20°C)
23:04:26     Target Completed Target completed (1/1, C/2022 E3 (ZTF))
23:06:12     Target Started (1/1) Target started (1/1, NGC 1501). Using SharpCap
23:10:10   PHD2 Communication PHD2 is potentially stalled ('LoopingExposures' Events not detected)
23:10:32   PHD2 Restarted PHD2 service restarted
23:23:04   Camera1 Connected SBIG Camera connected (set point -20°C)
23:23:06     Target Completed Target completed (1/1, NGC 1501)
23:29:27   Camera1 Connected SBIG Camera connected (set point -20°C)
00:01:21   Observatory Door Observatory Door has opened
00:01:27   Observatory Door Observatory Door has closed (open time 6 sec)
00:01:29   Observatory Door Observatory Door has opened
00:01:31   Observatory Door Observatory Door has closed (open time 0 sec)
00:08:27   Observatory Door Observatory Door has opened
00:08:32   Observatory Door Observatory Door has closed (open time 5 sec)
00:08:35   Observatory Door Observatory Door has opened
00:08:37   Observatory Door Observatory Door has closed (open time 1 sec)
00:08:44 Obs.Monitor Frozen Obs.Monitor appears to be frozen at around 00:08 in section 'Refresh Dome Picture/Label Dome Azimuth'
00:10:54     Target Started (NrZen) Target started (Focus Field 10, HIP 49253)
00:11:26       Dome Unparked Dome unparked
00:15:36       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S)
00:15:37     Target Completed (NrZen) Target completed (Focus Field 10, HIP 49253)
00:20:03   Observatory Door Observatory Door has opened
00:20:07   Observatory Door Observatory Door has closed (open time 4 sec)
00:27:07   Camera1 Connected SBIG Camera connected (set point -25°C)
00:28:52   CCDSoft Restarting CCDSoft being restarted (user action)
00:29:00 Program Hung AstroMain Program Hung
00:29:39 Program Opened Program Opened (AstroMain 3.61)
00:29:41 Session Resumed Session Resumed (Live, 2023-02-04 S01095, ImageSaveNum: 1095056)
00:29:43   Obs.Overseer Started Obs.Overseer started
00:31:18   Obs.Manager Started Obs.Manager started
00:31:21   Services Started Observatory Services started
00:31:35 Foc1FieldsUpdater Frozen Foc1FieldsUpdater appears to be frozen at around 00:31 in section 'Update Foc1Fields'
00:38:00 Program Hung AstroMain Program or Crashed
00:39:17 Program Opened Program Opened (AstroMain 3.61)
00:39:19 Session Resumed Session Resumed (Live, 2023-02-04 S01095, ImageSaveNum: 1095056)
00:39:31   Obs.Overseer Started Obs.Overseer started
00:39:53   Obs.Manager Started Obs.Manager started
00:40:02   Services Started Observatory Services started
00:41:12   Services Started Observatory Services started
00:41:29   Telescope Connected Telescope connected (TheSky6)
00:42:02   Camera1 Connected SBIG Camera connected (set point -20°C)
00:45:08 Telescope Running 'ResetScopePointing' under user supervision
00:46:18   Telescope Telescope pointing successfully synced
00:46:21   Telescope Pointing Mapping run started
00:46:28   Automapping Started Automapping started (12 points planned)
00:59:17 Program Opened Program Opened (AstroMain 3.61)
00:59:19 Session Resumed Session Resumed (Live, 2023-02-04 S01095, ImageSaveNum: 1095060)
00:59:30   Obs.Overseer Started Obs.Overseer started
01:00:12   CCDSoft Restarting CCDSoft being restarted (user action)
01:00:19   SBIG Camera Reset SBIG Camera being power-cycled
01:01:09   Obs.Manager Started Obs.Manager started
01:01:17   Services Started Observatory Services started
01:02:00   Services Started Observatory Services started
01:02:29   Telescope Connected Telescope connected (TheSky6)
01:04:03   SBIG Camera Take Image failed, Error Code xxx
01:04:19   Camera1 Connected SBIG Camera connected (set point -20°C)
01:04:27   SBIG Camera Take Image command accepted (bSbigDriverException flag is reset)
01:05:22 Telescope Running 'ResetScopePointing' under user supervision
01:06:32 Telescope Running 'ResetScopePointing' under user supervision
01:09:11 Telescope Running 'ResetScopePointing' under user supervision
01:10:09   Telescope Telescope pointing successfully synced
01:10:12   Telescope Pointing Mapping run started
01:10:17   Automapping Started Automapping started (12 points planned)
01:21:12   Automapping Completed Automapping completed (2 points mapped out of 12 points)
01:21:38   Telescope Pointing Mapping run finished (Mapped 2 / 12)
01:22:19   Automapping Started Automapping started (12 points planned)
01:30:54   Automapping Aborted Automapping aborted (2 points mapped out of 12 points)
01:35:10   Telescope Parked Telescope parked (parking time 41s)
01:35:25   Telescope State Handbox reads 'Scope parked Turn scope off.'
01:35:47   Telescope Switched Off Telescope Power has been switched off via UPB Switch.
01:36:08 User Intervention User request to close and finish session
01:36:10 Session Closing Session closing
01:36:58   Dome Closed Dome closed (closing time 50s)
01:37:35   Dome Parked Dome parked (parking time 30s), Az: 90.0 deg
01:39:05   Services Stopped Night Services stopped
01:39:08 Session Housekeeping Session Housekeeping started (Create Fits Summary, Transfer Files)
01:39:18 Session Finished Session Finished


Session Alerts & Alarms
Time     Type       Name Detail
19:42:05 Red Alert SBIG Camera Alert Take Image failed, Error Code xxx
19:42:50 Green Clear SBIG Camera Take Image command accepted (bSbigDriverException flag is reset)
00:09:15 Red Alert Obs.Monitor Obs.Monitor appears to be frozen in section 'Refresh Dome Picture/Label Dome Azimuth' (last cycle at 00:08:44)
00:09:35 Green Clear Obs.Monitor Obs.Monitor has resumed again (00:09) after 0.8 mins
00:33:19 Red Alert Foc1Fields Updater Foc1FieldsUpdater appears to be frozen (last cycle at 00:31:35) in section 'Update Foc1Fields'
00:40:01 Red Alert Program Hung AstroMain UI appears to have stopped responding at 00:39
01:01:16 Red Alert Program Hung AstroMain UI appears to have stopped responding at 01:01
01:04:03 Red Alert SBIG Camera Alert Take Image failed, Error Code xxx
01:04:27 Green Clear SBIG Camera Take Image command accepted (bSbigDriverException flag is reset)



Back to Top


Operational Issues (2023-02-04, S1095)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Small Defects

Continuous Improvement

[ Prev | Next ]

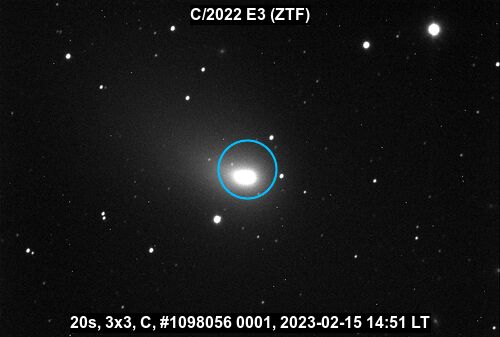

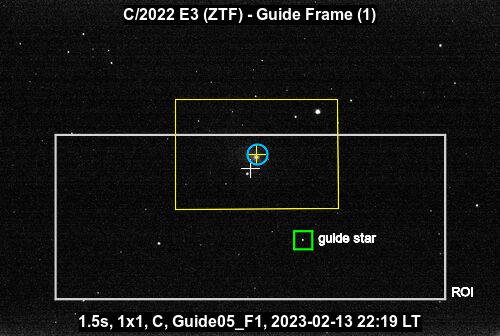

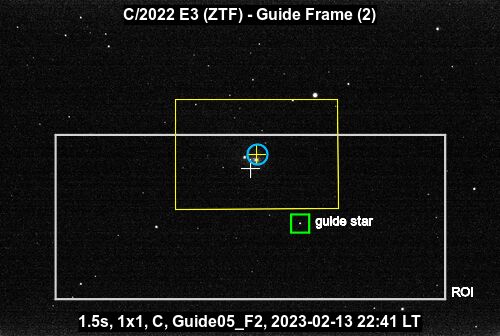

Fig 1 Pictures of guide frames for Comet C/2022 E3 (ZTF) from session S1098

Showing on left (F1 picture) the chosen Guide ROI and the position of the selected Guide Start at start of guiding, and on the right (F2 picture) the Guide Star at the end of guiding period (F2 picture).   Below these are pictures of the 1st and 40th (final) main scope frames showing that guiding has pretty much kept the comet centered in the CCD Camera FOV (yellow rectangle).



Image  Image

Image  Image



Back to Top


2023-02-09


Guiding for Comets

Issue 1.  DecMode set for imaging C/2022 E3 (ZTF) wasn't appropriate because of the rate and direction in which the comet was moving.

Description
Bi-directional Dec guiding isn't used due to the relatively high Dec backlash on the LX200 Scope and therefore unidirectional Dec guiding is used instead.  AstroMain's Guide Manager selects to guide either North or South dependant on which side of the Meridian the telescope is pointing and the known drift tendancy of the mount associated with its current small Polar Alignment error.

This works well for normal sidereal targets, but in the case of C/2022 E3 (ZTF) which is presently moving particularly fast across the sky the direction of movement was opposite to and much bigger than the polar alignmen error related drift.   Resolved in session by flipping the Dec Guide mode from 'North' to 'South'. In such a situation it is appropriate that AstroMain examines the comet's expected direction of movement and make appropriate call to adjust the Dec Guide mode accordingly. The need for such assessment has been previously recognised for objects like comets and meteors, but this is the first case where the discrepency between the comets rate of movement and the Dec Guide mode has been so noticeable.

Analysis

C/2022 E3 (ZTF) comet's relatively high rate of motion (Ra -390.93 arcsec/hr, Dec -852.64 arcsec/hr) at time of imaging in session S1095 means that the comet was moving in southwards in Dec at rate of 14.2'/hour (Dec values decreasing with time).    Comet was also moving westwards in RA (RA values decreasing with time).

At the time of imaging (2023-02-04 22:00 UT) the comet was positioned in sky at Azim 259° Alt 76°, which meant that for the current polar alignment state of the scope the chosen Dec Guiding Mode was 'North'.  This means that with Uni-Directional Dec Guiding only northward directed guide movements can be made by the Guider.   With the comet moving southwards it is clear that northward directed guide movements don't provide the means for the telescope to stay locked on to the moving comet.   The Dec Mode clearly needs to be set to 'South'.

What about a comet that is moving south but at a very small rate of motion (say only  -3 arc sec/hr). In this case the rate of southward movement of the comet is much less that the northward drift of the whole starfield (including comet) and the currently chosen Dec Mode of 'North'  would be correct.

There is obviously a cutoff point where the rate of star drift in one direction (due to scope's polar misalignment) matches the rate of comet motion in the other direction.  But what it that cutoff ?.    There are three approaches can be taken

  1. Guessimate what the cutoff value is (say -50 arcsec/hr) , prehaps basing it on some past observation on the general rates of star drift.
  2. Carry out a drift rate measurement ahead of the Comet Observation,  where, with Dec Guiding turned off,  the rate of  N/S drift of the stars is measured over a certain time period say 10 mins, and the value used to indicate if the comet's expected rate of motion is greater or less than that rate of measured star drift.
  3. Calculate the expected star drift at the comets Az/Alt position based on the known polar misalignment.

For an initial solution to the issue the first approach is by far the easiest and quickest to implement.

 The second approach carries a significant overhead that ends up will reduce the imaging time available by the same amount (10 mins for drift test means 10 mins less time for imaging or one less target for the session).   Measure of direction of star drift direction was previously used to set Dec Mode, but was not without issue and can be thrown off by a Dec backlash effects etc.

The third approach would be the best longer term solution but involves more programming work.
Equations that would be most-likely needed to achieve this task are given at the canburytech.net site, most specifically at
https://canburytech.net/DriftAlign/Equations.html , where the is also an excel spreadsheet that help understand how the equations work.

Initial Solution developed by a new routine   'SetDecModeFromScopePositionAndObjectMotion(RateOfDecMotion As Double)'

Back to Top


Lymax SCT Cooler

A Lymax SCT Cooler for 12" SCT (Lymax CosmicOne SCT Cooler R3) arrived today 2023-02-09 and was straightaway employed to help dry out the inside of the LX200 telescope.

The acqusition of the SCT Cooler follows from an incident during session S1088 (2023-01-18) when snow slid off the observatory dome's shutter onto front of LX200 telescope when the shutter was opened following a heavy snow shower, leading to some water and humidity entering the telescope tube (See notes). This led to significant problems with condensation/dew forming on the inside surface of the LX200s corrector lens and on the primary mirror, suppressing the light transmission through to the SBIG CCD Camera, and effecting the quality of collected images and in some cases preventing the use of the main scope for target imaging.  Problem was particularly bad during session S1095 session (2023-02-04).

Several attempts to reduce the dampness / humidity were tried but none of the following attempts have worked i) blowing (hot) air into tube with hairdryer, ii) sucking air out of the tube with a vacuum cleaner, iii) running dewheaters at max, iv) placing desicator in a muslin back at the visual back.  Further attempt was made 2023-02-05 but this always failed to get rid of the condensation.  Warming the front of the telescope with dew heater is insufficient to fully lift the condensation on the inside of the corrector lens. Using a hair dryer lifts the dew/condensation but it merely recondenses on the primary mirror.  After the corrector lens cools down the condensatton move back to the corrector lens.  Opening the virtual back is uanle able to let the humid air to be expelled /replace.

Removal of the corrector lens to allow the humid air to be fully expelled from the telescope tube was considered but rejected out of concern about damaging the lens or upsetting secondary mirror alignment.

In the end it was decided that despite the quite high expense a Lymax SCT Cooler would be purchased as online posting had indicated that it might be useful for the purpose required (to expell humid air and replace by lower humidity air) even it wasn't the advertised purpose of the Lymax which is to quickly cool a warm telescope.

The TCF-S focuser was removed from the virtual back and the Lymax SCT cooler plugged into a 5V USB Power Supply, and after testing it the long end of the cooler was inserted into the telescope, ensuing that the end didn't hit the secondary mirror. It was found that the Lymax Cooler had to be pulled slightly out in order to allow internal air to be expelled through the 4 vents it has (when the Lymax was fully inserted these vents where block, the virtual back adapter (used for TCF-S adaptor) has a larger opening than the 2" size expected by the Lymax). This proved not to be a problem with the telescope tube lying in a horizontal position.

A hair dryer was initially used to lift the dew/condensation by warming the front of the LX200 corrector lens, the rear cell area and by directing warm air into the SCT Cooler's Air Intake in order to warm the inside of the scope.  The SCT cooler was then left to run for 16-18 hours. All condensation disappeared.

The Telescope was successfully used in session S1096 (2023-02-10) with no signs of any condensation.   Transmissibility through to SBIG Camera returned to normal levels.   The Lymax SCT Cooler proved itself as a total success (price is still a judged to be bit high but it did resolve the significant issue that was affecting observations in the past 2-3 weeks.

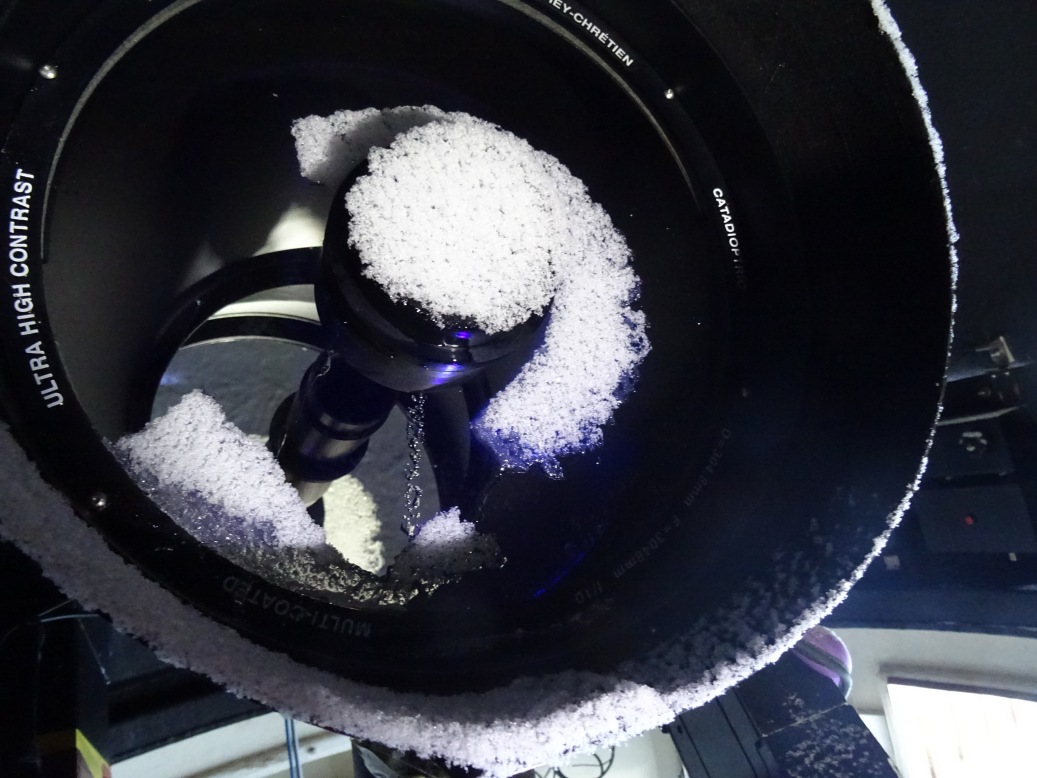

Photo showing snow /ice on
front of telescope optics
(photo 2023-01-17)

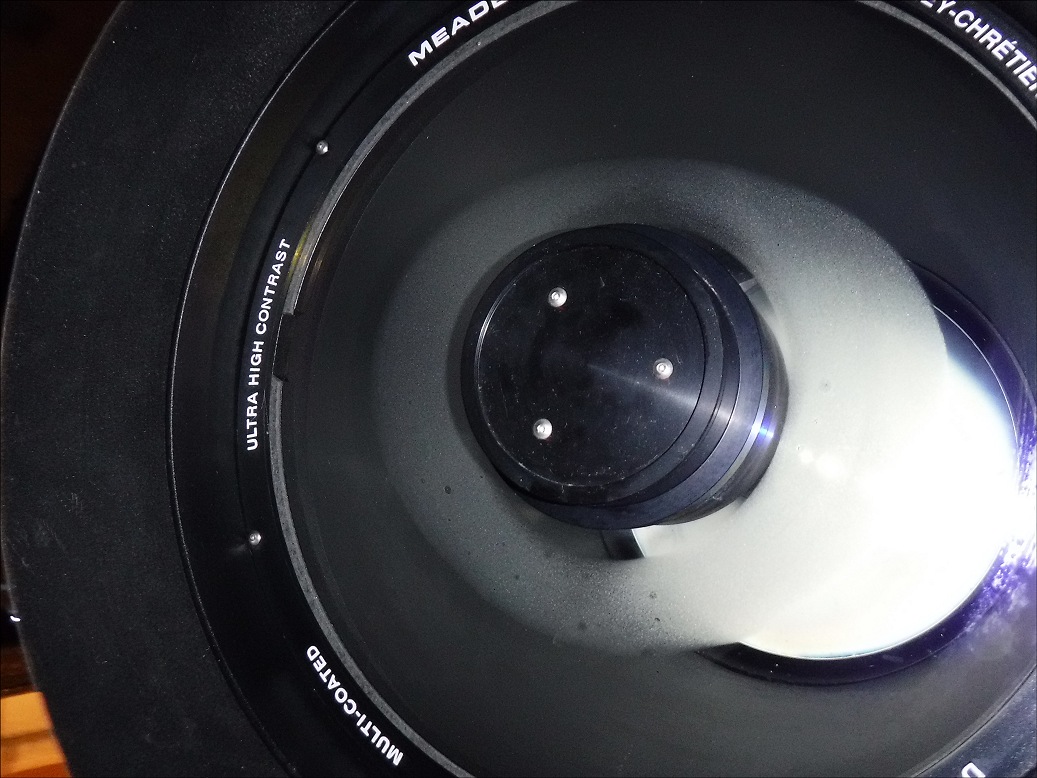

  Photo showing condensation
still present inside telescope
at end of following session  (2023-01-19)

Image    Image

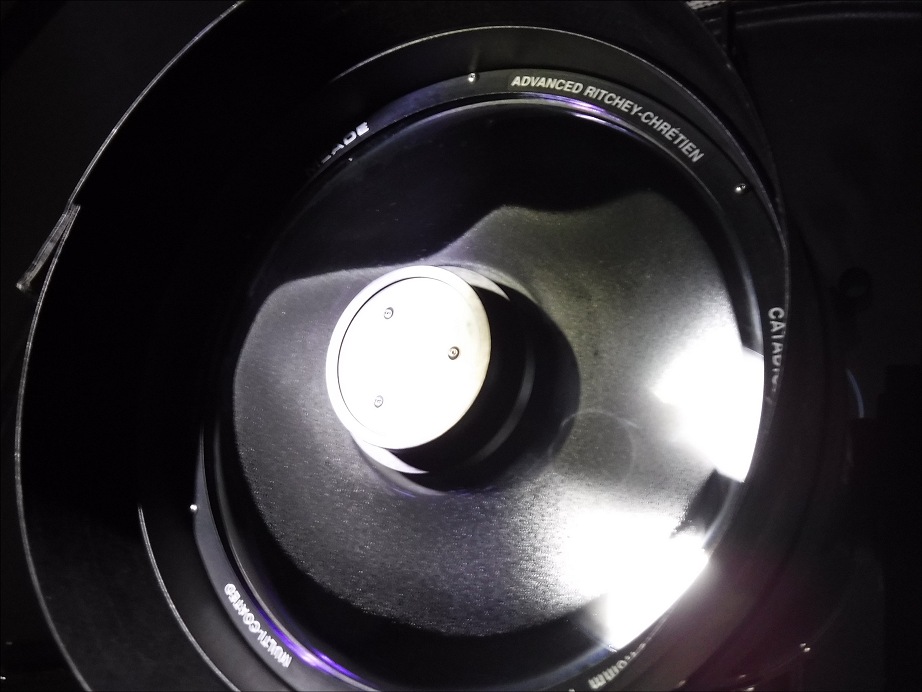

Photo showing condensation
still present inside telescope
 following session S1095 (2023-02-04)

  Photo showing condensation
still present inside telescope
 before using Lymx SCT Cooler (2023-02-09)
Image    Image

Lymax SCT Cooler (end view)   Lymax SCT Cooler (side view)
Image    Image

LX200 Visual Back
(TCF-S Focuser disconnected and removed)
  Lymax SCT Cooler inserted into Visual Back
(Lymax's long tube inserted into
Baffle Tube & into interior of LX200)
Image    Image

Lymax SCT Cooler fully inserted
'exhaust ports blocked')
  Lymax SCT Cooler pulled slightly out
to expose the exhaust ports
Image    Image



Back to Top
