2023-08-17
Bullet Investigation - Dome Shutter failed to close when commanded



Session Aims & Highlights (2023-08-16)

Main aims

  1. AstroMain, CCDSoft.  Check AstroMain, CCDSoft, SBIG Camera following issues in recent sessions (S1126, 2023-08-06 & S1127A, 2023-08-07)
  2. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions



 Equipment & Software

Highlights

Notes:

Summary Plots & Logs

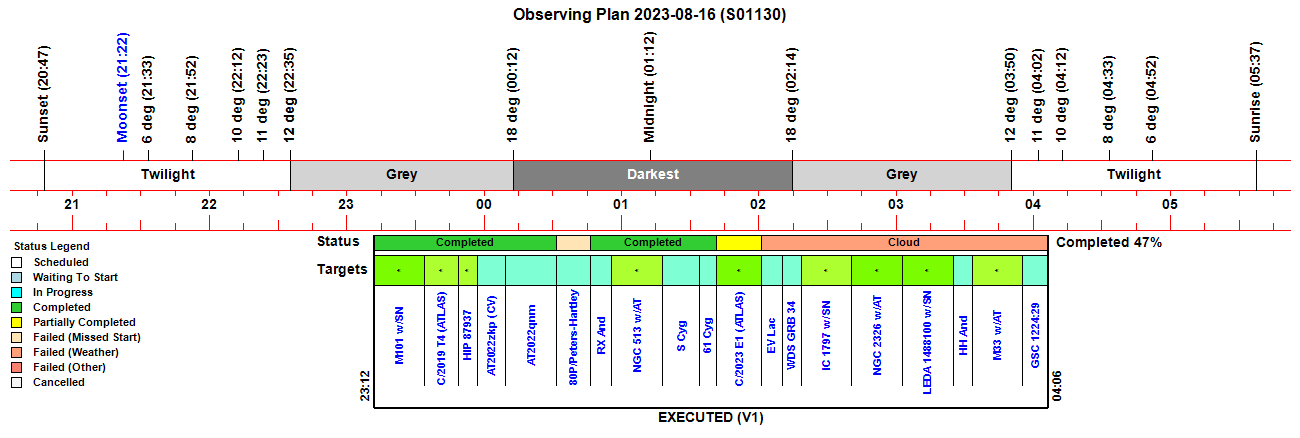

Observing Plan

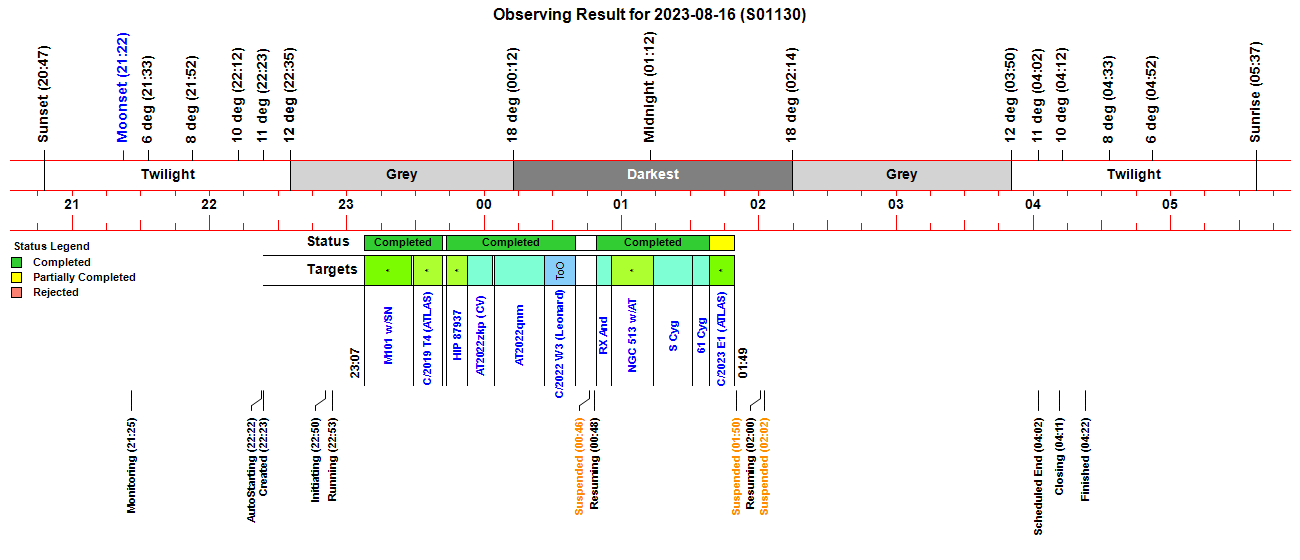

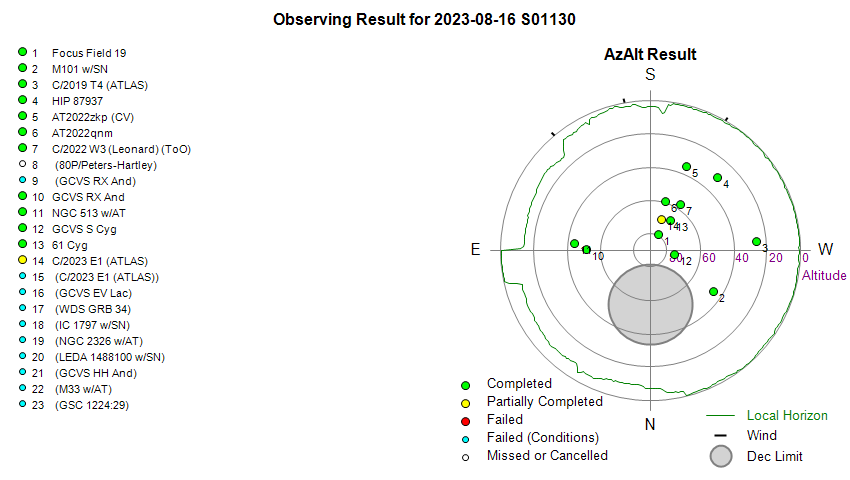

Observing Result

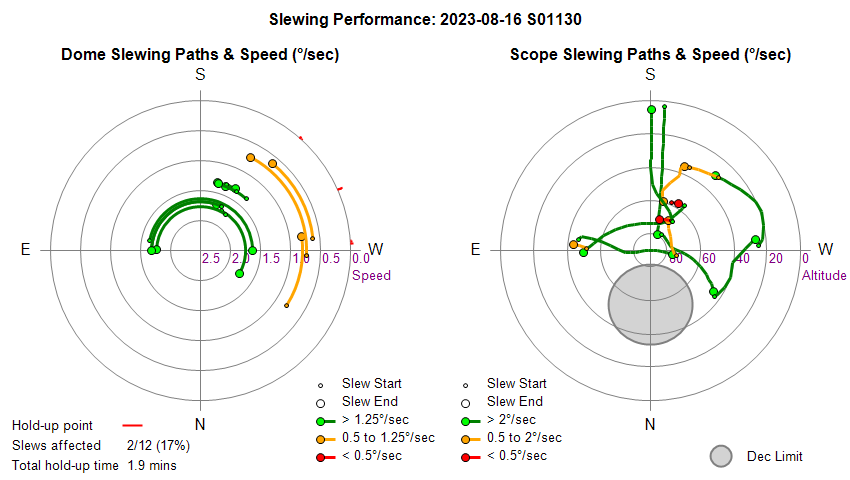

Dome & Scope Slewing Performance

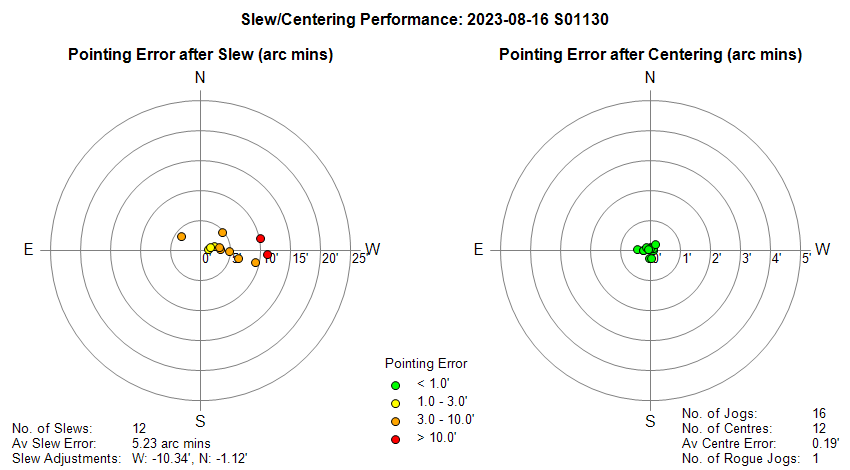

Slew/Centering Performance

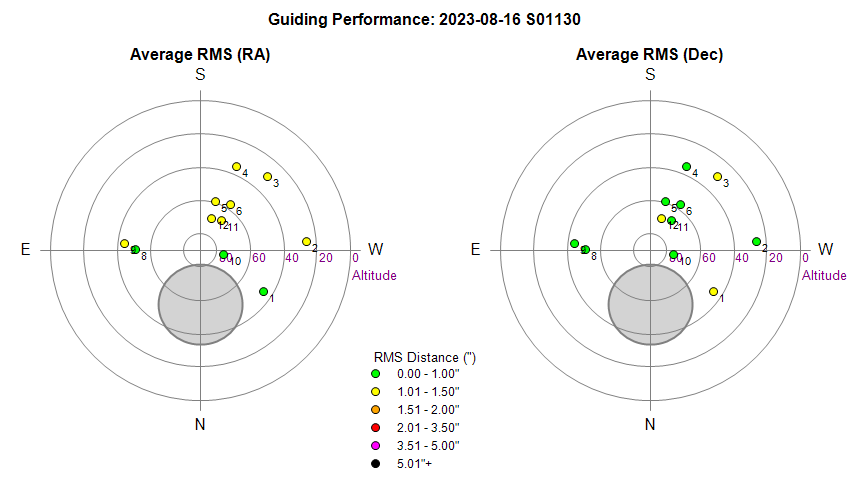

Guiding Performance

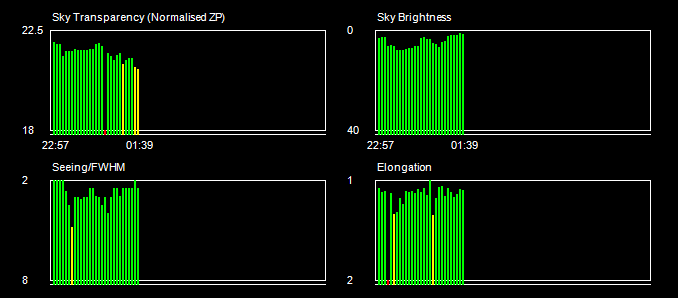

Sky Conditions (Locate Frames)

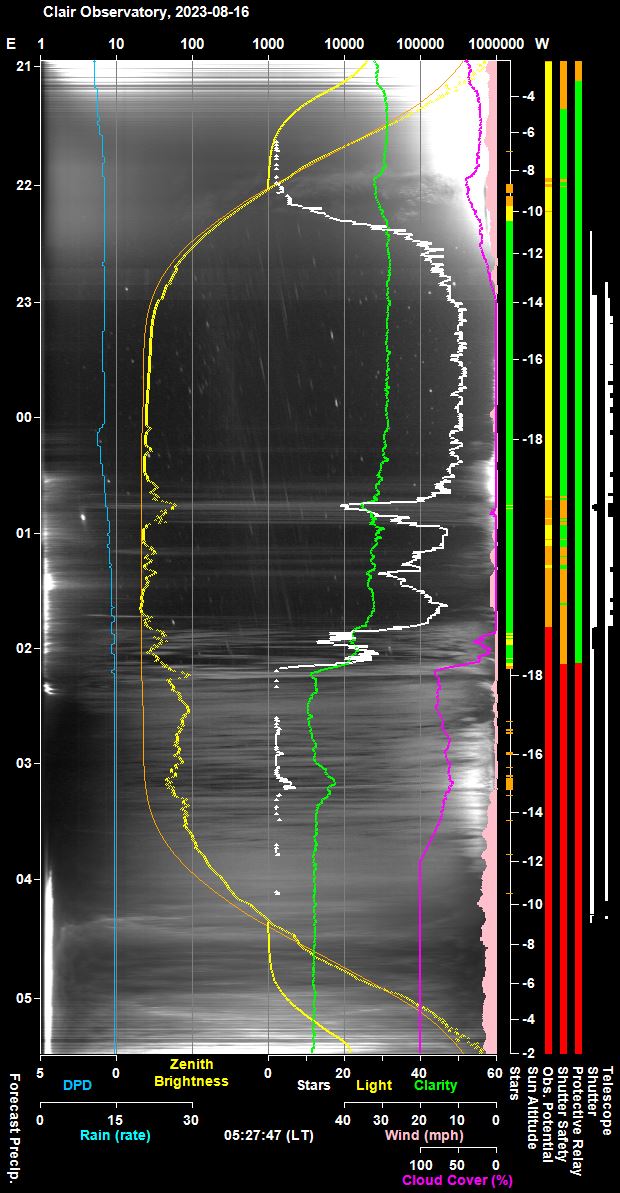

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

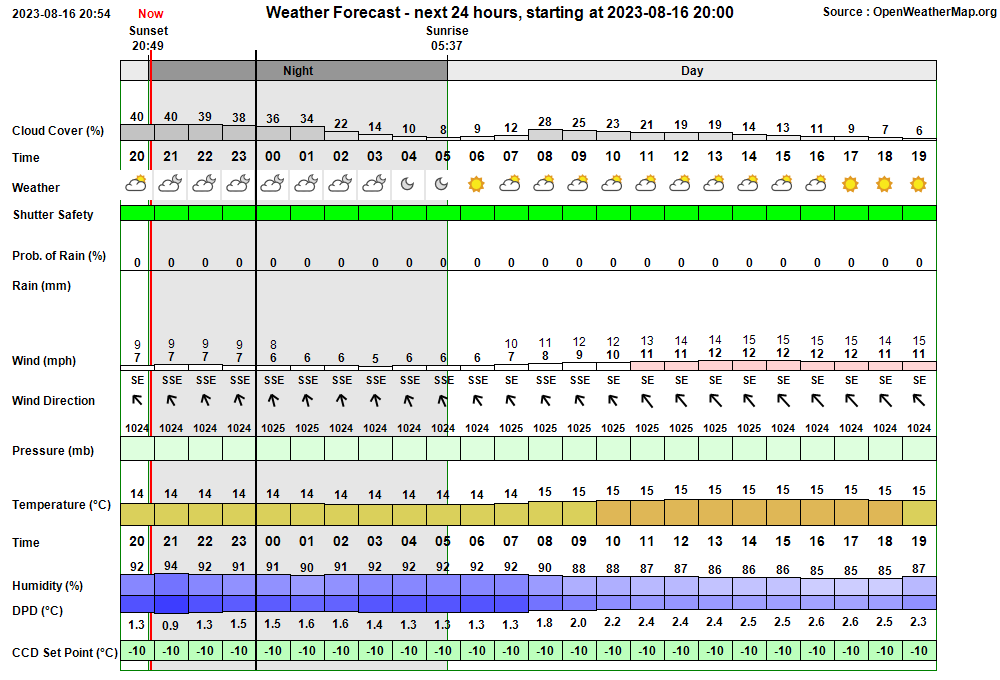

Actual Weather vs Pre-Session Weather Forecast

Session Event Log
Time     Event Detail
21:25:44 Session Monitoring AutoStart monitoring for Live Session opportunity between 21:53 & 03:22
21:25:48   AutoStart Waiting AutoStart waiting till earliest start time at 21:53
21:53:46   AutoStart Delayed Session delayed due to too few stars
22:22:48 Session AutoStarting Session autostarting (22:22)
22:23:17   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.)
22:23:30 Session Created Session Created (Live, 2023-08-16 S01130, ImageSaveNum: 1130001)
22:23:57   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
22:50:29   Services Started Observatory Services started
22:50:36 Observatory (Auto) Observatory placed in Fully-Automated Mode
22:50:38 Session Pending Session pending (2023-08-16)
22:50:40 Session Initiating Session initiating (2023-08-16)
22:50:42   Plan Requested Observing Plan requested from AstroPlan (1.38.1)
22:51:36   Plan Loaded Observing Plan loaded to queue (Plan ID: 904)
22:51:56   Camera1 Connected SBIG Camera connected (set point -10°C)
22:52:33   Telescope Connected Telescope connected (TheSky6)
22:52:57 Session Equilibration Session ready to Open Dome
22:53:42   Dome Opened Dome opened (opening time 45s)
22:53:45 Session Running Session running
22:53:47   Queue Started Observing Queue started (19 targets selected)
22:53:50     Target Started (NrZen) Target started (Focus Field 19, HIP 93376)
22:54:01       Dome Unparked Dome unparked
22:59:06       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:01:47       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide)
23:03:45       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
23:03:46       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
23:05:37       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide)
23:07:20       Focusing Completed Foc2 AutoFocus Completed (Profile No 2)
23:07:37     Target Completed (NrZen) Target completed (Focus Field 19, HIP 93376)
23:07:41     Target Started (1/19) Target started (1/19, M101 w/SN2023ixf)
23:12:02       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
23:28:53     Target Completed Target completed (1/19, M101 w/SN2023ixf)
23:29:08     Target Started (2/19) Target started (2/19, C/2019 T4 (ATLAS))
23:33:11       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
23:41:36     Target Completed Target completed (2/19, C/2019 T4 (ATLAS))
23:43:41     Target Started (3/19) Target started (3/19, HIP 87937)
23:45:00     Dome Slew Dome slew held up at Az. 246.1, 221.5° (Total delay 40s)
23:48:16       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:50:15       Focusing Completed Foc1 AutoFocus Completed (Profile No 3)
23:52:45     Target Completed Target completed (3/19, HIP 87937)
23:52:49     Target Started (4/19) Target started (4/19, AT2022zkp (CV))
23:55:49       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:58:10       Focusing Completed Foc1 AutoFocus Completed (Profile No 4)
00:03:57     Target Completed Target completed (4/19, AT2022zkp (CV))
00:04:22     Target Started (5/19) Target started (5/19, AT2022qnm)
00:07:26       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:09:40       Focusing Completed Foc1 AutoFocus Completed (Profile No 5)
00:26:14     Target Completed Target completed (5/19, AT2022qnm)
00:26:18     Target Started (6/20) Target started (6/20, C/2022 W3 (Leonard), ToO)
00:29:19       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:31:30       Focusing Completed Foc1 AutoFocus Completed (Profile No 6)
00:40:04     Target Completed Target completed (6/20, C/2022 W3 (Leonard), ToO)
00:40:07     Target Missed (7/20) Target's time slot was missed (7/20, 80P/Peters-Hartley)
00:41:33     Target Started (8/20) Target started (8/20, GCVS RX And)
00:45:13   Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome)
00:45:15   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud)
00:45:17     Target Aborted (8/20) Target aborted (8/20, GCVS RX And) due to cloud
00:45:19   Queue Paused Queue paused for Session Suspension
00:45:21 Session Suspending Session suspending
00:46:08   Dome Closed Dome closed (closing time 50s)
00:46:09 Session Suspended Session suspended
00:48:14 Session Resuming Session resuming
00:48:59   Dome Opened Dome opened (opening time 45s)
00:49:00 Session Running Session running
00:49:02   Queue Resumed Observing Queue resumed
00:49:05     Target Started (8/20) Target started (8/20, GCVS RX And)
00:55:28     Target Completed Target completed (8/20, GCVS RX And)
00:55:32     Target Started (9/20) Target started (9/20, NGC 513 w/AT2023jpp)
01:14:00     Target Completed Target completed (9/20, NGC 513 w/AT2023jpp)
01:14:04     Target Started (10/20) Target started (10/20, GCVS S Cyg)
01:18:32       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:20:30       Focusing Completed Foc1 AutoFocus Completed (Profile No 7)
01:30:52     Target Completed Target completed (10/20, GCVS S Cyg)
01:30:57     Target Started (11/20) Target started (11/20, 61 Cyg)
01:32:30     Dome Slew Dome slew held up at Az. 267.4, 266.4, 246.2, 222.3, 221.4° (Total delay 49s)
01:34:54       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:36:50       Focusing Completed Foc1 AutoFocus Completed (Profile No 8)
01:38:24     Target Completed Target completed (11/20, 61 Cyg)
01:38:28     Target Started (12/20) Target started (12/20, C/2023 E1 (ATLAS))
01:41:18       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:43:15       Focusing Completed Foc1 AutoFocus Completed (Profile No 9)
01:49:19   Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome)
01:49:21   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud)
01:49:24     Target Aborted (12/20) Target aborted (12/20, C/2023 E1 (ATLAS)) due to cloud
01:49:26   Queue Paused Queue paused for Session Suspension
01:49:28 Session Suspending Session suspending
01:50:14   Dome Closed Dome closed (closing time 50s)
01:50:16 Session Suspended Session suspended
01:55:24     Target Cancelled Target cancelled (12/20, C/2023 E1 (ATLAS)) due to cloud
02:00:55 Session Resuming Session resuming
02:01:30   Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome)
02:02:36 Session Suspended Session suspended
02:03:01   Dome Closing Dome closure hasn't finished after 90s (ShutterState=Closing)
02:05:01     Target Cancelled Target cancelled (13/20, GCVS EV Lac) due to cloud
02:13:35     Target Cancelled Target cancelled (14/20, WDS GRB 34) due to cloud
02:32:39     Target Cancelled Target cancelled (15/20, IC 1797 w/SN2023nnz) due to cloud
02:54:39     Target Cancelled Target cancelled (16/20, NGC 2326 w/AT2023pgb) due to cloud
03:16:59     Target Cancelled Target cancelled (17/20, LEDA 1488100 w/SN2023olz) due to cloud
03:28:21     Target Cancelled Target cancelled (18/20, GCVS HH And) due to cloud
03:47:26     Target Cancelled Target cancelled (19/20, M33 w/AT2023nou) due to cloud
04:11:28     Target Cancelled Target cancelled (20/20, GSC 1224:29) due to cloud
04:11:33   Queue Completed Job Queue completed
04:11:38 Session Closing Session closing
04:13:13   Dome Closing Dome closure hasn't finished after 90s (ShutterState=Closing)
04:15:19   Dome Closing Dome closure hasn't finished after 90s (ShutterState=Closing)
04:17:24   Dome Closing Dome closure hasn't finished after 90s (ShutterState=Closing)
04:19:14   Dome Parked Dome parked (parking time 73s), Az: 90.0 deg
04:20:33   Telescope Parked Telescope parked (parking time 73s)
04:20:48   Telescope State Handbox reads 'Scope parked Turn scope off.'
04:21:11   Telescope Switched Off Telescope Power has been switched off via UPB Switch.
04:22:36   Services Stopped Night Services stopped
04:22:39 Session Housekeeping Session Housekeeping started (Create Fits Summary, Transfer Files)
04:22:54 Session Finished Session Finished

Session Alerts & Alarms
Time     Type       Name Detail
23:45:00 Yellow Alert Dome Slew Dome slew held up at Az. 246.1, 221.5° (Total delay 40s)
01:32:30 Yellow Alert Dome Slew Dome slew held up at Az. 267.4, 266.4, 246.2, 222.3, 221.4° (Total delay 49s)
02:03:01 Red Alarm Dome Closing Dome closure hasn't finished after 90s (ShutterState=Closing)
02:03:41 Red Alert Dome Alert Dome hasn't reached 'Closed' state after 120s during SoftSuspend
04:13:13 Red Alarm Dome Closing Dome closure hasn't finished after 90s (ShutterState=Closing)
04:15:19 Red Alarm Dome Closing Dome closure hasn't finished after 90s (ShutterState=Closing)
04:17:24 Red Alarm Dome Closing Dome closure hasn't finished after 90s (ShutterState=Closing)


Back to Top


Operational Issues (2023-08-16, S1130)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Small Defects

Continuous Improvement

[ Prev | Next ]

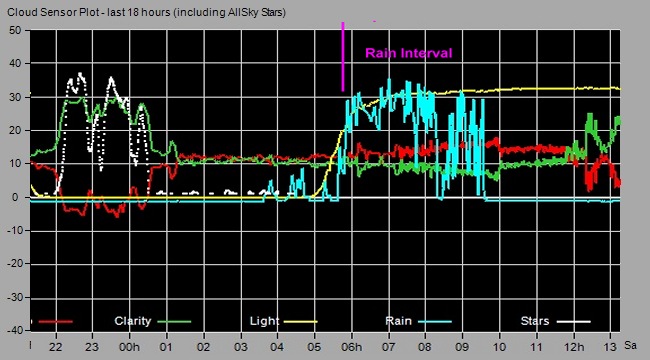

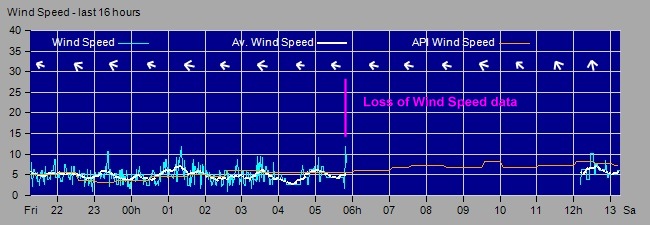

Fig 1.   Comparison between loss of Wind Speed data (2023-08-19 ~05:45)  and Rain Interval
